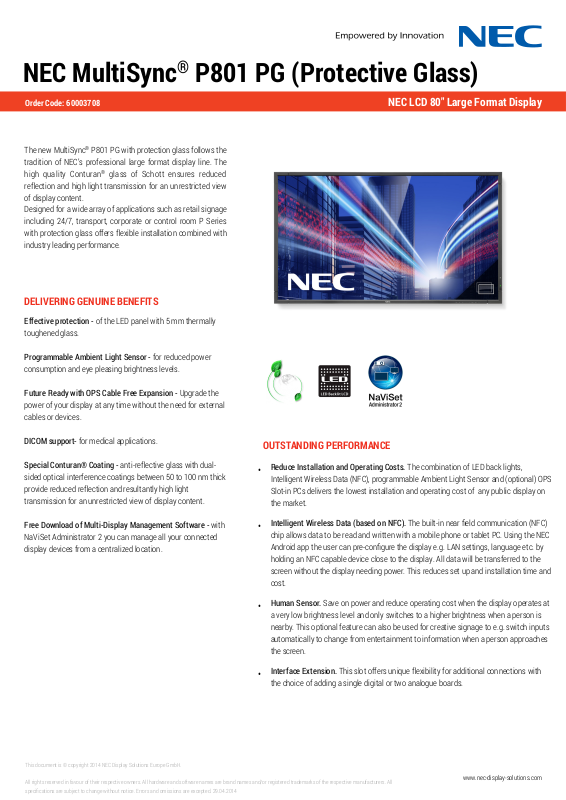

NEC MultiSync® P801 PG (Protective Glass)

Order Code: 60003708

The new MultiSync® P801 PG with protection glass follows the tradition of NEC’s professional large format display line. The high quality Conturan® glass of Schott ensures reduced reﬂection and high light transmission for an unrestricted view of display content. Designed for a wide array of applications such as retail signage including 24/7, transport, corporate or control room P Series with protection glass offers ﬂexible installation combined with industry leading performance.

DELIVERING GENUINE BENEFITS

Effective protection - of the LED panel with 5 mm thermally toughened glass.

Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.

NEC LCD 80" Large Format Display

Future Ready with OPS Cable Free Expansion - Upgrade the power of your display at any time without the need for external cables or devices.

DICOM support- for medical applications.

Special Conturan® Coating - anti-reﬂective glass with dual-

sided optical interference coatings between 50 to 100 nm thick provide reduced reﬂection and resultantly high light transmission for an unrestricted view of display content.

Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.

OUTSTANDING PERFORMANCE

Reduce Installation and Operating Costs. The combination of LED back lights,

•

Intelligent Wireless Data (NFC), programmable Ambient Light Sensor and (optional) OPS Slot-in PCs delivers the lowest installation and operating cost of any public display on the market.

Intelligent Wireless Data (based on NFC). The built-in near ﬁeld communication (NFC)

•

chip allows data to be read and written with a mobile phone or tablet PC. Using the NEC Android app the user can pre-conﬁgure the display e.g. LAN settings, language etc. by holding an NFC capable device close to the display. All data will be transferred to the screen without the display needing power. This reduces set up and installation time and cost.

Human Sensor. Save on power and reduce operating cost when the display operates at

•

a very low brightness level and only switches to a higher brightness when a person is nearby. This optionalfeature can also be used for creative signage to e.g. switch inputs automatically to change from entertainment to information when a person approaches the screen.

Interface Extension. This slot offers unique ﬂexibility for additional connections with

•

the choice of adding a single digital or two analogue boards.

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 29.04.2014

www.nec-display-solutions.com

NEC MultiSync® P801 PG (Protective Glass)

Technical Speciﬁcation NEC MultiSync® P801 PG (Protective Glass)

DISPLAY

Panel Technology

UV2 A with Edge LED backlight

Active Screen Area (W x H) [mm]

1,771.2 x 996.3

Screen Size [inch/cm]

80 / 203.2

Brightness (shipping) [cd/m2]

500, (700 max)

Contrast Ratio (typ.)

5000:1

Viewing Angle [°]

178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Glass Type

Security Glass with anti-reﬂextion coating

Thickness [mm]

Light Transmission [%]

Response Time (typ.) [ms]

4 (grey-to-grey)

SYNCHRONISATION RATE

Horizontal Frequency [kHz]

31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz]

50 - 85

RESOLUTION

Native Resolution

1920 x 1080 at 60 Hz

Supported on DisplayPort and HDMI

1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160 (24/30 Hz); 480p (60 Hz); 576p (50 Hz); 640 x 480; 720p (50/60 Hz); 800 x 600

Supported on HDMI only

1360 x 768; 3840 x 2160 (25 Hz); 4096 x 2160 (24 Hz); 480i (60 Hz); 576i (50 Hz)

CONNECTIVITY

Input Video Analogue

1 x D-sub 15 pin

Input Video Digital

1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP)

Input Audio Analogue

2 x 3,5 mm jack

Input Audio Digital

1 x HDMI; DisplayPort

Input Control

LAN 100Mbit; remote control wire (3,5mm jack); RS232

Output Video Digital

1 x DisplayPort; 1 x DVI-D; 1 x HDMI; 1 x Interface Extension Slot; 1 x OPS; 1 x through DisplayPort out

Output Audio Analogue

3,5mm jack

Output Control

LAN 100Mbit

Remote Control

LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

INTERFACE EXTENSION SLOT

Slot Technology

analogue and digital interface extension (NEC standard)

OPS OPTION SLOT

Slot Technology

Open pluggable speciﬁcation (NEC / Intel OPS standard)

Inrush Current [A]

max. 10

Power Consumption [W]

max. 61

Voltage / Current [V/A]

16/4

SENSORS

Ambient Light Sensor

Integrated, triggered actions programmable

Human Sensor

Optional, external, 4-5m range, triggered actions programmable

Temperature Sensor

Integrated, 3 sensors, triggered actions programmable

NFC Sensor

Integrated, 2cm range, free NEC Android App required

ELECTRICAL

Power Consumption on Mode [W]

235 shipping; 430 (max.)

Power Savings Mode [W]

< 0.5 (ECO Standby); < 1

Power Management

VESA DPMS

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]

+0 to +40

Operating Humidity [%]

20 to 80

MECHANICAL

Dimensions (W x H x D) [mm]

Without stand: 1,836.2 x 1,061.3 x 96.9

Weight [kg]

Without stand: 85.2

Bezel Width [mm]

29.7 (left and right); 29.7 (top and bottom)

VESA Mounting [mm]

4 holes; 400 x 400 (FDMI); M8

AVAILABLE OPTIONS

Accessories

Feet (ST-801); Speaker (SP-RM1); Trolley (PDMHM-L); Wall mount (PDW T XL)

Interface Extension

SB3-AB1 analogue: Audio; Component; Composite; S-Video SB3-AB2 analogue: Audio; RGBHV SB3-DB1 digital: 2 x HDMI

OPS

HD-SDI 1.5G,3G; HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; WiDi receiver

ADDITIONAL FEATURES

Colour Versions

Black Front Bezel, Black Back Cabinet

Safety and Ergonomics

C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI

Audio

Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)

Shipping Content

CD-ROM (User Guides/Manuals); Display; DVI-D cable; Power Cable; Remote Control

Warranty

3 years warranty incl. backlight

1. Power

2. Main Switch

3. Speaker connectors

4. Internal / External speaker switch

5. Audio out

6. USB port for service (ﬁrmware upgrades)

7. LAN daisy chain with SNMP (LAN switch and LAN / RS232 / remote loop through)

8. 2x Audio in

9. RS232 in

10. Remote in for external human / ambient sensor

11. VGA + Component input

12. DP 1.2 loop through

13. HDMI 1.4a

14. DVI-D

SPECIAL CHARACTERISTICS

Auto ID assignment, Auto tiling function, HTTP Server, Image ﬂip, NaViSet Administrator 2, Point Zoom Function, Programmable 10bit LUT with 3 memory banks, Sticky Note Function in OSD, User readable log function

Energy Eﬃciency Ambient light sensor; Carbon savings

Ecological Materials Manuals on CD; Optional feet

meter; ECOMode; Human Sensor
