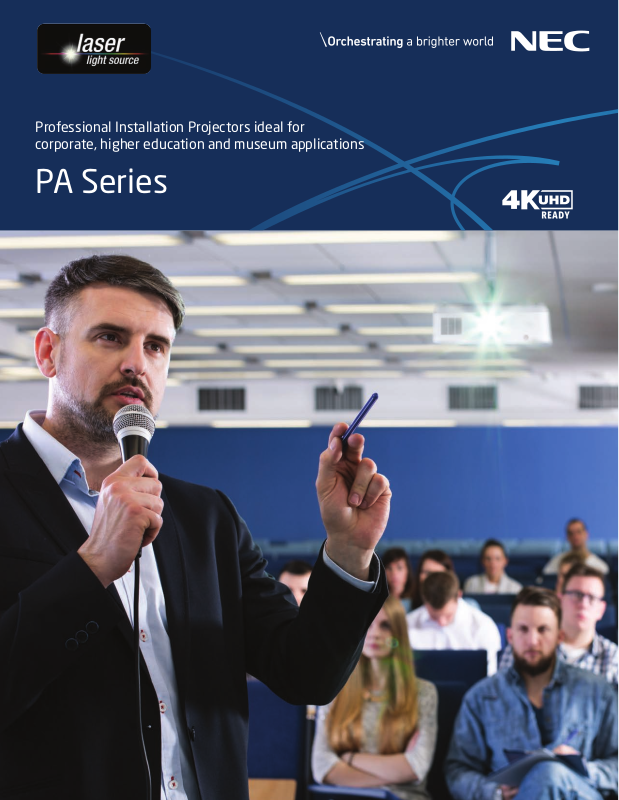

Professional Installation Projectors ideal for
corporate, higher education and museum applications
PA Series
Powerful laser installation projectors equipped to
take on the most demanding integration projects
Powerful Tools
• Multi-display support with Picture by Picture/Picture Out Picture
• TileMatrix (internal multi-screen splitter) enables 4Kx2K resolution
utilizing 4 projectors without the need for external hardware
• Built-in daisy chain capabilities support multi-display applications
• Seamlessly blend multiple images with integrated edge blending
capabilities
Integrated
• 4K Ready - Display stunning 4K 60P content using NEC’s proprietary
high performance video processing/scaling chip without the loss of
critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray”
and “4K TV broadcasting” are supported on all digital inputs
• Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ Link
allow for complete control system support
• Lower the cost of your installation by eliminating the need for costly reprogramming of a control
system. (supports competitors commands, call NEC for complete list)
Flexible
• Enjoy greater installation flexibility with powered motorized bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 2.5 to 68.5 ft
New NP44ML-01LK UST lens placing the projector above the screen and out of site (installation may place the projector above the ceiling line)
• Roll-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
• Up to 60% vertical lens shift and +/- 30% horizontal lens shift capabilities make alignment easy
Laser
• Images appear immediately after power on due to instantaneous start up of the laser
• Dual blue laser systems provide best in class white balance over the life of the projector
• Inorganic optical components create longer lifetime and greater peace of mind
READY
Filter Free
• World’s first filter free LCD projector
• Sealed circulating cooling duct structure for LCD panel cooling
• External air never reaches the optical path
• No dust artifacts or decrease in brightness
• LCD SSL Projector that is maintenance free!
Stacking correction
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up
to 32,000 lumens, which is ideal for largersized screens and environments with heavy
ambient light. This feature also prevents the
complete loss of an image, which can happen
when using only one projector.
Edge blending
This function seamlessly blends multiple
projected images to display a single highresolution image.
NEC’s Unique LCD Panel Cooling Design
MultiPresenter
Utilization of the optional MultiPresenter Stick
provides those looking for a network connection easy
connection with up to 12 devices at once. (Win, MAC,
Android, iOS) Screen mirroring for Android and Win.
Simple annotation software.
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed
full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to
100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is
no cable clutter to manage. With uncompressed HD video support, images have never been more stunning.
What’s more, control signals are contained in the same cable.
GET CONNECTED WITH A WIDE SELECTION OF INPUTS
NEC PA Series Projectors
• Multiple Digital computer inputs ensure quick switching between presentations
• Five audio inputs (one mini stereo [HDMI1
Remote control
Wired and wireless backlit remote
allows you to adjust for complete
control of the projectors menu
structure in a well lit or dark
environment. Direct controls such
as lamp mode, aspect ratio, volume
and input selection eliminates
multiple button pushes.
TM
& HDMI2TM, DisplayPort and HDBaseT) make it easy to add sound to enhance your presentations
Digital Inputs
Among the PA Series’ wide selection
of inputs are dual HDMI w/HDCP and
DisplayPort w/HDCP for connecting
to high-definition sources such as
Blu-ray players, cable boxes, satellite
receivers and personal computers.
ADVANCED SOFTWARE FEATURES
Cornerstone
Enhanced keystone correction allows for horizontal,
vertical and diagonal image correction for aligned
images even when the projector is set up at an angle
to the screen.
3D
When combined with active shutter glasses and
3D emitter, the PA Series Projectors create 3D
images from a computer or Blu-ray player. The
PA Series utilize the 3D sync line output from the
projector to connect to the 3D
emitter. Optional 3D glasses
and emitters from XPAND are
available from NEC.
Cable Cover
This included accessory creates
a clean look for your installation,
while hiding signal cables and the
power cord.
Geometric Correction
Projecting an image isn’t confined to
a standard flat screen or wall with the
NEC PA Series. Geometric correction
allows these models to project an
image on spheres, cylinders, corner
angles and many more non-standard
surfaces.
Screen Splitter
NEC is committed to bringing the latest and greatest innovation to projectors. Multi-display
capabilities and TileMatrix technologies are integrated into the new PA series projectors. This
processing is all done internally and therefore eliminates the additional hardware typically required
to produce a beautiful 4K resolution image.
Tilt-free
The projector can be rotated freely (360°) to orient the
image depending on the installation requirements
Portrait mode
Allows the projector to be rotated (and screen if necessary)
to a vertical alignment so that portrait content can be viewed
without black bars on the side when landscape mode is used.
Specifications
UNIQUE FEATURES
Variable audio-out enables the remote control to be used to adjust
volume of self-powered external speakers that are connected to the
projector. In stand-by mode, the audio-out stays active, allowing the
last input used to pass to the self-powered external speakers.
Advanced AccuBlend™ ensures detailed images when nonnative resolution sources are connected to the projector
64-step image magnification with location control
Built-in HTTP page for control and monitoring over a LAN network.
Email notification of error messages or lamp end-of-life can be sent
to remote locations.
WARRANTY
Registered owners receive a five (5) years or 20,000 hours
(whichever comes first) parts and labor warranty including InstaCare
next business day exchange.
IN THE BOX
Remote control, batteries, power cord, cable cover, user’s manual on
CD-ROM, quick start guide, product registration card.
ACCESSORIES
RMT-PJ37 Replacement Remote Control
Optional Lenses NP40ZL, NP41ZL, NP43ZL, NP44ML-01LK
DS1-MP10RX1 MultiPresenter Stick
XPAND X105-RF-1 3D Glasses
XPAND AD025-RF-X1 RF Emitter
PA600CM Ceiling mount
AEC006009 Adjustable Extension Column, 6” - 9”
AEC012018 Adjustable Extension Column, 12” - 18”
AEC0203 Adjustable Extension Column, 2’ - 3’
AEC0305 Adjustable Extension Column, 3’ - 5
NP01PW1 Power Cord
RGBCBL-PJPX RGB Signal Cable
NECEW2-I Extends term of parts and labor warranty to 4 years
ADVEXON1-I Extends term of InstaCare service program to 2 years
ADVEXON2-I Extends term of InstaCare service program to 3 years
ORDERING MODEL NUMBERS
NP-PA653UL
NP-PA803UL
22.8"
(580mm)
19.4"
(494mm)
PA653UL PA803UL
Display Technology 0.76" LCD w MLA
Light Output (lumens) 6500 normal 8000 normal
Resolution
Contrast Ratio (up to) 2,500,000:1 with auto iris
Laser Life (up to) 20,000 hours
Screen Size (diagonal)
Throw Ratio
Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projection Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens
Keystone Correction +/- 40° horizontal, +/- 40° vertical
Synchronization
Range
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility Yes
Input Terminals
Output Terminals
External Control RS-232, IR, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Power Requirements 100 – 240V AC, 50/60Hz
Input Current 10.2A - 4.5A 11.8A - 5.2A
Power Consumption
(ECO off/ECO Mode/Standby/Standyby-Power Saving) 672W / 437W / 0.64W / 0.11 798W / 470W / 0.64W / 0.11
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 22.8 x 19.4 x 8.2 in. / 580 x 494 x 208mm
Net Weight 40.1lbs. / 18.2 kg
Fan Noise 39 dB normal / 33 dB eco
Regulations
U.S. FCC Part15 Subpart B(ANSI C63.4:2014), UL62368-1:2nd Edition
Canada CSA C22.2 No.60950-1-07,2nd Edition,2014, NOM
Operating Temperature 41° – 104°F / 5° – 40°C
Humidity 20-80% non-condensing
Storage 14° – 122°F / -10° – 50°C
Fan Noise 39 dB normal / 33 dB eco
Regulations USA: UL 1950 FCC Class B, Canada: CSA950 (C-UL), NOM
Operating Temperature 41° – 104°F / 5° – 40°C
Humidity 20-80% non-condensing
Storage -14° – 122°F / -10° – 50°C
Native WUXGA 1920 x 1200
Maximum 4K 4096 x 2160
40 to 500 in. / 1.02 to 12.7m, NP40ZL, NP41ZL, NP43ZL (50 to 500 in. / 1.27 to 12.7m),
NP40ZL 0.79 - 1.11:1
NP41ZL 1.30 - 3.02:1
NP43ZL 2.99 - 5.93:1
NP44ML-01LK 0.32:1
Zoom Motorized
Zoom
Ratio
Focus Motorized
Shift Motorized
Shutter Laser Shutter
Horizontal Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
RGB1 (analog) VGA 15 pin D-sub, Component video using ADP-CV1E adapter
RGB2 (digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3 (digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB4 (digital) DisplayPort w/HDCP (V1.4)
RGB5 (digital) HDBaseT w/HDCP (V1.4/2.2)
Audio1 Stereo Mini Jack
Monitor Out HDBaseT
Audio Out Stereo Mini Jack
3D Sync Line 3Pin D
NP40ZL 0.79 - 1.11:1
NP41ZL 1.30 - 3.02:1
NP43ZL 2.99 - 5.93:1
NP44ML-01LK 0.32:1
NP40ZL Power zoom / Power focus, F=2.0 to 2.5, f= 13.3 to 18.6mm, 3.6lbs. / 1.63 kg
NP41ZL Power zoom / Power focus, F=1.7 to 2.0, f= 21.8 to 49.8mm, 3.9 lbs. / 1.75 kg
NP43ZL Power zoom / Power focus, F=2.2 to 2.6, f= 49.7 to 99.8mm, 3.9 lbs. / 1.77 kg
NP44ML-01LK Power zoom / Power focus, F=2.0, f= 6.27, 7.1 lbs. / 3.2 kg
NP44ML (100 to 400 in. / 2.54 to 10.16m)
* Additional accessories are available, including screens, carts, mount accessories and * replacement
* Lens does not ship with the projector.
cables. Visit www.necdisplay.com for details.
3D Reform, Advanced AccuBlend, AutoSense and ECO Mode are trademarks of NEC Display Solutions. HDMI, the HDMI Logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. All other brand or
product names are trademarks or registered trademarks of their respective holders. Product specifications subject to change.
©2019 NEC Display Solutions of America, Inc. All rights reserved.
Cat.No. 25.NEC.80.GL.UN.295 | rev 4.08.19
