NEC DIRECTION SP B, Direction SP B350, Direction SP B400 Service Manual

Page 1

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC Computer Systems Division, Packard Bell NEC, Inc. (hereinafter “NEC CSD”) and/or its licensors. NEC CSD and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use, and sales rights thereto, except to the extent said rights are expressly granted to others.

The NEC CSD product(s) discussed in this document are warranted in accordance with the terms of the Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data, and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC CSD.

To allow for design and specification improvements, the information in this document is subject to change at any time, without notice. Reproduction of this document or portions thereof without prior written approval of NEC CSD is prohibited.

As an ENERGY STAR partner, NEC Computer Systems Division (NEC CSD) has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

FaxFlash is a service mark NEC Computer Systems Division (NEC CSD), Packard Bell NEC, Inc. Direction is a trademark of Packard Bell NEC, Inc. NEC and MultiSync are registered trademarks of NEC Corporation, used under license. ENERGY STAR is a U.S. registered trademark. All other product, brand, or trade names used in this publication are the trademarks or registered trademarks of their respective trademark

owners.

First Printing — April 1998

NEC Computer Systems Division

Packard Bell NEC, Inc.

1414 Massachusetts Avenue

Boxborough, MA 01719-2298

Page 2

Contents

Page

Preface......................................................................................................................... xi

Abbreviations............................................................................................................... xiii

Section 1 Technical Information

System Board .............................................................................................................. 1-1

Processor.............................................................................................................. 1-1

System Cache/Memory ......................................................................................... 1-2

Chipset ................................................................................................................. 1-2

PCI Local Bus ...................................................................................................... 1-3

Expansion Bus ............................................................................................... 1-3

BIOS.................................................................................................................... 1-3

Plug and Play Support.................................................................................... 1-4

iii

CMOS Memory/Real-Time Clock Battery............................................................. 1-4

DMA/IRQ Settings............................................................................................... 1-4

IDE Ports ............................................................................................................. 1-6

I/O Ports ............................................................................................................... 1-6

Sound System....................................................................................................... 1-6

U.S. Robotics Modem Board (Optional)...................................................................... 1-7

Diskette Drive.............................................................................................................. 1-7

Hard Drive................................................................................................................... 1-7

CD-ROM/DVD Drive.................................................................................................. 1-7

Zip Drive ..................................................................................................................... 1-7

Power Supply .............................................................................................................. 1-7

Power Management..................................................................................................... 1-8

Section 2 Setup Utility

Configuration Information............................................................................................ 2-1

When to Use Setup...................................................................................................... 2-1

How to Start Setup...................................................................................................... 2-2

How to Use Setup ....................................................................................................... 2-2

Menu Bar.............................................................................................................. 2-3

Legend Bar........................................................................................................... 2-4

Selecting a Menu Item .......................................................................................... 2-4

Displaying a Submenu........................................................................................... 2-4

Page 3

iv Contents

Getting Help......................................................................................................... 2-4

Main Menu.................................................................................................................. 2-4

Advanced Menu........................................................................................................... 2-6

Peripheral Configuration Submenu........................................................................ 2-6

IDE Configuration Submenu................................................................................. 2-8

Floppy Options Submenu...................................................................................... 2-10

DMI Event Logging Submenu............................................................................... 2-11

Video Configuration Submenu.............................................................................. 2-11

Resource Configuration Submenu......................................................................... 2-12

Security Menu ............................................................................................................. 2-12

Power Menu................................................................................................................ 2-13

Boot Menu .................................................................................................................. 2-13

Hard Drive Submenu............................................................................................. 2-14

Removable Devices Submenu................................................................................ 2-15

Removable Format Submenu................................................................................. 2-15

Exit Menu.................................................................................................................... 2-15

Section 3 Option Installation

General Rules for Installing Options............................................................................. 3-1

Precautions.................................................................................................................. 3-2

Removing the Access Cover......................................................................................... 3-3

Replacing the Access Cover......................................................................................... 3-4

Expansion Boards........................................................................................................ 3-5

Expansion Slot Locations...................................................................................... 3-5

Expansion Board Installation................................................................................. 3-6

Expansion Board Removal.................................................................................... 3-7

Memory Upgrade......................................................................................................... 3-8

DIMM Removal.................................................................................................... 3-9

DIMM Installation................................................................................................ 3-10

Video Upgrade ............................................................................................................ 3-11

Data Storage Devices................................................................................................... 3-11

Device Slots.......................................................................................................... 3-12

Device Preparation................................................................................................ 3-12

Device Cables....................................................................................................... 3-13

Diskette Drive Signal Cable............................................................................ 3-14

IDE Signal Cables.......................................................................................... 3-14

System Power Cables..................................................................................... 3-15

Page 4

Contents v

Device Cabling...................................................................................................... 3-16

Cabling an IDE Device................................................................................... 3-16

Cabling an Accessible 5 1/4-Inch Device ........................................................ 3-16

Storage Device Installation.................................................................................... 3-17

Removing the Front Panel.............................................................................. 3-17

Removing the CD-ROM/DVD Drive.............................................................. 3-18

Installing a 3 1/2-Inch Device......................................................................... 3-19

Installing a 5 1/4-Inch Device......................................................................... 3-22

Replacing the Front Panel............................................................................... 3-24

Adding External Options.............................................................................................. 3-24

Parallel Printer ...................................................................................................... 3-24

RS-232C Device Connection................................................................................. 3-25

Section 4 Maintenance and Troubleshooting

Maintenance ................................................................................................................ 4-2

System Cleaning.................................................................................................... 4-2

Keyboard Cleaning................................................................................................ 4-3

Mouse Cleaning.................................................................................................... 4-3

Troubleshooting........................................................................................................... 4-5

Diagnosing and Solving Problems ......................................................................... 4-5

Beep Codes........................................................................................................... 4-11

CMOS Battery Replacement................................................................................. 4-12

Section 5 Disassembly and Reassembly

Disassembly................................................................................................................. 5-2

System Access Cover............................................................................................ 5-2

Expansion Board Removal.................................................................................... 5-2

Front Panel Removal............................................................................................. 5-3

Side Panel Removal .............................................................................................. 5-4

Device Cage Removal........................................................................................... 5-4

Diskette Drive Removal........................................................................................ 5-4

5 1/4-Inch Device Removal................................................................................... 5-5

Optional 3 1/2-Inch Hard Disk Drive Removal...................................................... 5-6

Standard 3 1/2-Inch Hard Disk Drive Removal...................................................... 5-7

Fan Assembly Removal......................................................................................... 5-8

DIMM Module Removal....................................................................................... 5-8

Power Supply Removal......................................................................................... 5-9

Page 5

vi Contents

System Board Removal......................................................................................... 5-10

Illustrated Parts Breakdown......................................................................................... 5-12

Appendix A System Specifications

Appendix B Connector Pin Assignments

Serial Interface Connectors.......................................................................................... B-4

Parallel Interface Connector......................................................................................... B-5

Power Supply (Primary)............................................................................................... B-6

Keyboard and Mouse Connectors................................................................................. B-6

Front Panel .................................................................................................................. B-7

Diskette Drive Interface Pin Assignments..................................................................... B-8

IDE Interface Connectors ............................................................................................ B-9

DIMM Sockets............................................................................................................ B-10

AGP Connector........................................................................................................... B-11

ISA Expansion Bus Connector Pin Assignments........................................................... B-12

PCI Expansion Bus Connector Pin Assignments........................................................... B-14

Universal Serial Bus (USB) Connectors....................................................................... B-15

Appendix C System Resources

IRQ Settings................................................................................................................ C-1

Viewing System Resources .......................................................................................... C-2

Locating the Jumper..................................................................................................... C-2

Clearing Your Password ....................................................................................... C-3

Recovering the BIOS............................................................................................ C-4

Figures

Figure 3-1 Releasing the Cover.................................................................................... 3-4

Figure 3-2 Aligning the Tabs........................................................................................ 3-4

Figure 3-3 Locating Expansion Slots............................................................................ 3-6

Figure 3-4 Removing the Slot Cover............................................................................ 3-6

Figure 3-5 Installing a Board........................................................................................ 3-7

Figure 3-6 Removing a DIMM..................................................................................... 3-10

Figure 3-7 Installing a DIMM ...................................................................................... 3-11

Figure 3-8 Locating Device Slots................................................................................. 3-12

Figure 3-9 System Board Cable Connectors................................................................. 3-13

Page 6

Contents vii

Figure 3-10 Diskette Drive Signal Cable....................................................................... 3-14

Figure 3-11 IDE Signal Cable ...................................................................................... 3-15

Figure 3-12 Power Cable Connectors........................................................................... 3-15

Figure 3-13 Connecting IDE Device Cables ................................................................. 3-16

Figure 3-14 Connecting an Accessible 5 1/4-Inch Device ............................................. 3-17

Figure 3-15 Releasing the Front Panel.......................................................................... 3-18

Figure 3-16 Locating the Device Cage Screw............................................................... 3-18

Figure 3-17 Locating Device Slots............................................................................... 3-19

Figure 3-18 Removing the Bracket Screws................................................................... 3-20

Figure 3-19 Aligning the Holes and Tabs...................................................................... 3-20

Figure 3-20 Securing the Disk...................................................................................... 3-21

Figure 3-21 Inserting the Device.................................................................................. 3-21

Figure 3-22 Removing the Blank Panel ........................................................................ 3-22

Figure 3-23 Installing the Device.................................................................................. 3-23

Figure 3-24 Locating the Parallel Port.......................................................................... 3-25

Figure 3-25 Locating Serial Ports................................................................................. 3-26

Figure 4-1 Removing the Mouse Ball Cover................................................................. 4-4

Figure 4-2 Locating the Battery ................................................................................... 4-12

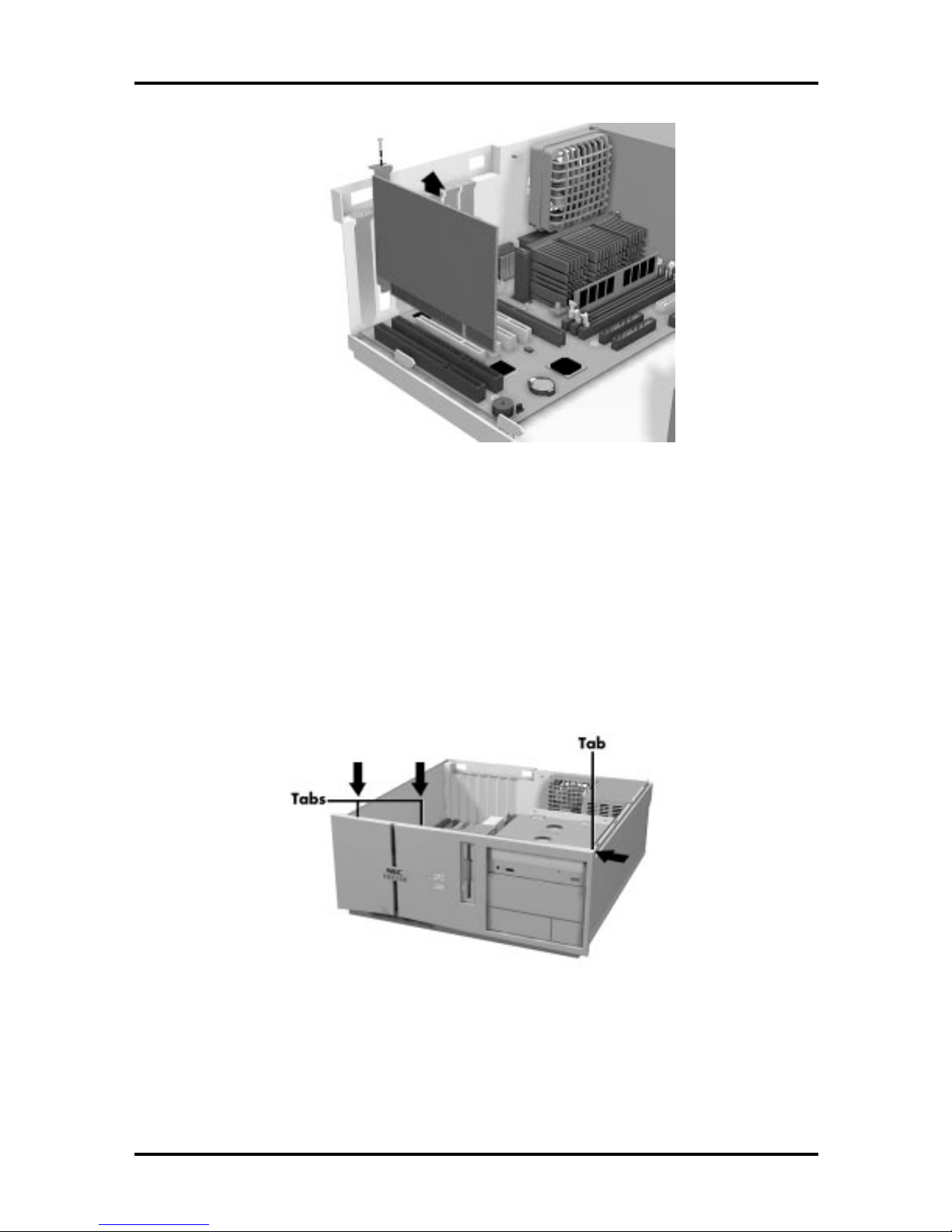

Figure 5-1 Removing a Board...................................................................................... 5-3

Figure 5-2 Releasing the Front Panel............................................................................ 5-3

Figure 5-3 Locating the Device Cage Screw................................................................. 5-4

Figure 5-4 Locating the Two Diskette Drive Clips ....................................................... 5-5

Figure 5-5 Removing the 5 1/4-Inch Device Screws..................................................... 5-6

Figure 5-6 The 3 1/2-Inch Device Bracket Screws ....................................................... 5-6

Figure 5-7 Removing the Securing Screw..................................................................... 5-7

Figure 5-8 Removing the Drive.................................................................................... 5-8

Figure 5-9 Removing a DIMM..................................................................................... 5-9

Figure 5-10 Removing the Power Supply Screws......................................................... 5-10

Figure 5-11 Removing the System Board Screw........................................................... 5-11

Figure 5-12 Direction SP B-Series Desktop Illustrated Parts Breakdown ..................... 5-15

Figure 5-13 Direction SP B-Series Minitower Illustrated Parts Breakdown .................. 5-19

Figure B-1 System Board Connectors and Slots........................................................... B-2

Figure B-2 System Board External Connectors ............................................................ B-2

Page 7

viii Contents

Figure C-1 Locating the Jumper................................................................................... C-2

Tables

Table 1-1 System Features........................................................................................... 1-1

Table 1-2 System Memory Map................................................................................... 1-3

Table 1-3 Interrupt Level Assignments......................................................................... 1-5

Table 1-4 DMA Assignments....................................................................................... 1-5

Table 2-1 Setup Key Functions.................................................................................... 2-4

Table 3-1 Sample Memory Configurations................................................................... 3-9

Table 4-1 NEC CSD Service and Information Telephone Numbers.............................. 4-1

Table 4-2 Problems and Solutions................................................................................ 4-5

Table 4-3 Beep Code Descriptions............................................................................... 4-11

Table 5-1 Disassembly Sequence.................................................................................. 5-1

Table 5-2 Direction SP B-Series Desktop Field-Replaceable Parts List......................... 5-12

Table 5-3 Direction SP B-Series Minitower Field-Replaceable Parts List...................... 5-16

Table 5-4 Direction SP B-Series Memory Options ....................................................... 5-20

Table 5-5 Direction SP B-Series Documentation.......................................................... 5-20

Table B-1 System Board Connectors............................................................................ B-1

Table B-2 System Board Internal Connectors............................................................... B-3

Table B-3 System Board Connector Numbers and Types ............................................. B-3

Table-B-4 RS-232C Serial Port Connector Pin Assignments ........................................ B-4

Table B-5 Parallel Port Connector Pin Assignments..................................................... B-5

Table B-6 Primary Power Supply Connector Pin Assignments...................................... B-6

Table B-7 Keyboard and Mouse Connector Pin Assignments ....................................... B-6

Table B-8 Front Panel Connector Pin Assignments....................................................... B-7

Table B-9 Diskette Drive Connector Pin Assignments.................................................. B-8

Table B-10 IDE/PCI Connector Pin Assignments......................................................... B-9

Table B-11 DIMM Socket Pin Assignments................................................................. B-10

Table B-12 AGP Connector Pin Assignments............................................................... B-11

Table B-13 ISA Expansion Slot Pin Assignments......................................................... B-12

Page 8

Contents ix

Table B-14 PCI Expansion Pin Assignments.................................................................B-14

Table B-15 USB Connectors........................................................................................B-15

Table C-1 System Board Jumper Settings..................................................................... C-3

Page 9

Preface

This service and reference manual contains technical information necessary for servicing and repairing Direction SP B-Series systems. The manual includes system setup information, procedures for installing options, and troubleshooting. The manual is written for NEC CSD-trained customer engineers, system analysts, service center personnel, and dealers.

The manual is organized as follows: Section 1 — Technical Information, provides an overview of the computer features,

hardware design, interface ports, and internal devices. Section 2 — Setup Utility, includes procedures for configuring the system through the

Setup utility program Section 3 — Option Installation, provides installation procedures for adding optional

expansion boards, diskette and hard disk storage devices, system memory, and processor updates.

Section 4 — Maintenance and Troubleshooting, includes recommended maintenance information, lists possible computer problems and their solutions, and has battery replacement procedures.

Section 5 — Disassembly and Reassembly, includes computer disassembly and reassembly procedures.

Appendix A — System Specifications, provides a list of the system specifications including dimensions, weight, environment, safety compliance, power consumption, and memory.

Appendix B — Connector Pin Assignments, provides a list of the internal and external system board connector pin assignments.

Appendix C — System Resources, includes information on IRQ settings and system board jumpers.

Page 10

Abbreviations

xiii

A ampere AC alternating current AT advanced technology

(IBM PC) BBS Bulletin Board Service BCD binary-coded decimal BCU BIOS Customized Utility BIOS basic input/output system bit binary digit BUU BIOS Upgrade Utility bp i bits per inch bps bits per second C capacitance C centigrade Cache high-speed buffer storage CAM constantly addressable memory CAS column address strobe CD/ROM compact disk-ROM CG character generator CGA Color Graphics Adapter CGB Color Graphics Board CH channel clk clock cm centimeter CMOS complementary metal oxide

semiconductor COM communication CONT contrast CPGA ceramic pin grid array CPU central processing unit DAC digital-to-analog converter DACK DMA acknowledge DC direct current DIP dual in-line package DLAB Divisor Latch Address bit DMA direct memory access

DMAC DMA controller DOS disk operating system DRAM dynamic RAM ECC error checking and correction EDO extended data output EGA Enhanced Graphics Adapter EPROM erasable and programmable

ROM

EVGA Enhanced Video Graphics

Array F Fahrenheit FAX facsimile transmission FCC Federal Communications

Commission FG frame ground FM frequency modulation FP fast page FRU field-replaceable unit GB gigabyte GND ground HEX hexadecimal HGA Hercules Graphics Adapter Hz hertz IC integrated circuit ID identification IDE intelligent device electronics IDTR interrupt descriptor table

register in. inch INTA interrupt acknowledge IPB illustrated parts breakdown IR infrared IRR Interrupt Request register ISA Industry Standard Architecture ISR In Service register I/O input/output

Page 11

xiv Abbreviations

IPC integrated peripheral controller ips inches per second IRQ interrupt request K kilo (1024) k kilo (1000) KB kilobyte kg kilogram kHz kilohertz lb pound LED light-emitting diode LSB least-significant bit LSI large-scale integration M mega mA milliamps max maximum MB megabyte MDA Monochrome Display Adapter MFM modified frequency modulation MHz megahertz mm millimeter ms millisecond MSB most-significant bit NASC National Authorized Service

Center NC not connected NMI Non-maskable Interrupt ns nanosecond NSRC National Service Response

Center PAL programmable array logic PC personal computer PCB printed circuit board PCI Peripheral Component

Interconnect

PLCC plastic leaded chip carrier PLL phase lock loop p-p peak-to-peak PPI programmable peripheral

interface PROM programmable ROM QFP quad flat pack RAM random-access memory RAMDAC RAM digital-to-analog

converter RAS row address strobe RGB red green blue RGBI red green blue intensity ROM read-only memory rpm revolutions per minute R read RTC real-time clock R/W read/write S slave SCSI Small Computer System

Interface SG signal ground SIMM single inline memory module SPM standard page mode SRS Sound Retrieval System SVGA Super Video Graphics Array SW switch TAC Technical Assistance Center TSC Technical Support Center TTL transistor/transistor logic tpi tracks per inch USB universal serial bus V volt Vac volts, alternating current

PDA personal digital assistant PFP plastic flat package PIO parallel input/output pixel picture element

Vdc volts, direct current VESA video electronics standards

association

Page 12

VFC VESA-compliant feature

connector VGA Video Graphics Array VRAM video RAM W watt W write

Abbreviations xv

Page 13

Section 1

Technical Information

This section provides an overview of the NEC Direction™ SP B-Series computers. These systems include the Intel® Pentium® II processor with MMX™ technology. Table 1-1 describes the available features of the different models. The subsections that follow provide more detailed information on the system features.

Table 1-1 System Features

Feature Direction SP B350 Direction SP B400

Processor Intel Pentium II

350-MHz MMX System RAM 32 MB to 384 MB 32 MB to 384 MB Secondary Cache 512 KB, pipeline burst 512 KB, pipeline burst Chipset Intel 440BX Intel 440BX Graphics AGP graphics board AGP graphics board Video Memory 4 MB SGRAM 4 MB SGRAM Sound Crystal Semiconductor CS4611

and CS4236 Hard Disk 4.3 GB - 16.8 GB 4.3 GB - 16.8 GB CD-ROM Drive 32x or DVD 32x or DVD Power Supply 235 W 235 W

Intel Pentium II 400-MHz MMX

Crystal Semiconductor CS4611 and CS4236

SYSTEM BOARD

The system board contains most of the components that provide system functions. The following subsections provide a description of these components.

Processor

The system board uses a 350-MHz or 400-MHz Intel Pentium II processor with MMX technology. The MMX processor improves audio, video, and 3D graphics performance.

The processor is packaged in a Single Edge Contact (SEC) cartridge and the cartridge plugs into the system board’s slot 1.

Page 14

1-2 Technical Information

System Cache/Memory

To utilize the processor’s power, the system features an optimized 64-bit memory interface and provides support for a second level cache to compliment the processor’s internal cache.

High-performance features include:

pipeline 32-bit addressing



64-bit data



512-KB of pipeline burst secondary cache; direct mapped write-back and write-through organization.

The system comes with 32 to 384 MB of main system memory. Three sockets on the system board support up to 384 MB of high-speed memory using industry-standard goldplated dual in-line memory modules (DIMMs).

The system supports PC100 Synchronous DRAM (SDRAM) only. The system supports the following DIMM configurations:



1-Mbit by 64 or 1-Mbit by 72 (8-MB DIMM)



2-Mbit by 64 or 2-Mbit by 72 (16-MB DIMM) 4-Mbit by 64 or 4-Mbit by 72 (32-MB DIMM)



8-Mbit by 64 or 8-Mbit by 72 (64-MB DIMM)



16-Mbit by 64 or 16-Mbit by 72 (128-MB DIMM).

Chipset

The Intel 440BX chipset provides DMA, memory, and bus control. The chipset includes the following chips:



Intel 82443BX PCI/AGP (PAC)  provides bus-control signals, address paths, and data paths for transfers between the processor’s host bus, PCI bus, Accelerated Graphics Port (AGP), and main memory.



Intel 82371EB PCI ISA IDE Xccelerator (PIIX4E)  implements the PCI-to-ISA bridge, PCI IDE functionality, Universal Serial Bus (USB) host/hub functions, and enhanced power management.

Page 15

Technical Information 1-3

PCI Local Bus

The 32-bit industry-standard PCI bus is a highly-integrated input/output (I/O) interface that offers the highest performance local bus available for the Pentium II processor. The PCI bus supports burst modes that send large chunks of data across the bus, allowing fast displays of high-resolution images.

The high-bandwidth PCI local bus eliminates data bottlenecks found in traditional systems, maintains maximum performance at high clock speeds, and provides a clear upgrade path to future technologies.

The PCI bus contains two embedded PCI devices: the PCI local bus IDE interface and the PCI video/graphics controller. The PCI bus also contains a connector for attaching the bus expansion board.

Expansion Bus

The expansion bus contains one ISA slot, three PCI slots, one PCI/ISA slot, and one AGP video slot. The PCI ISA IDE Xccelerator chip (PIIX4E) provides the logic that enables the ISA bus functions. With 24-bit memory addressing, a 16-bit data path, and an eight MHz

clock, the ISA bus is designed to support all peripherals compatible with the IBM AT standard. For PCI functions, the Xcelerator chip provides 32-bit memory addressing, 32-bit data path, and a 33-MHz clock speed.



BIOS

The BIOS (Basic Input Output System) is stored in the Intel 28F002 Flash EPROM. The Flash EPROM is reprogrammable and allows fast, economical BIOS upgrades.

The system memory map in shown in Table 1-2.

Table 1-2 System Memory Map

Memory Address Size Function

100000-18000000 383 M E8000-FFFFF 96 K E0000-E7FFF 32 K

C8000-DFFFF 96 K

A0000-C7FFF 160 K 00000-9FFFF 640 K

Extended Memory System BIOS System BIOS (Available as UMB)

Available high DOS memory (open to ISA and PCI bus)

Video memory and BIOS Conventional memory

Page 16

1-4 Technical Information

Plug and Play Support

The system comes with Plug and Play BIOS technology. Plug and Play eliminates complicated setup procedures for installing Plug and Play expansion boards.

To add a Plug and Play expansion board, simply power off the system, install the board, and power on the system. There are no jumpers to set and no system resource conflicts to resolve. Plug and Play automatically configures the board for the system. The system also supports non-Plug and Play boards.

Plug and Play is controlled by the Plug and Play BIOS and the system’s operating system. The Plug and Play BIOS is stored in the Intel 28F002 Flash EPROM on the system board.

The Plug and Play BIOS adds several steps to the POST process. During POST, the Plug and Play evaluates the configuration of installed boards and assigns available system resources to the devices. On completion of Plug and Play POST, the operating system checks to see if there are any additional resources required, then assigns available resources to the devices.

CMOS Memory/Real-Time Clock Battery

The 82371EB PCI ISA IDE Xcelerator (PIIX4E) on the system board stores system information in non-volatile CMOS memory. The chip also contains the system’s real-time clock. Both are maintained by a 3-volt coin cell lithium battery on the system board. The battery is replaceable.

DMA/IRQ Settings

The system automatically configures interrupts requests (IRQ), direct memory access (DMA) channels, and other parameters when adding PCI boards with minimal user intervention.

Table 1-3 and Table 1-4 list system IRQ and DMA default settings.

Page 17

Technical Information 1-5

Table 1-3 Interrupt Level Assignments

IRQ System Resource

NMI I/O channel check 00 Reserved, internal timer 01 Reserved, keyboard controller 02 Reserved, cascade interrupt from slave PIC 03 COM2* 04 COM1* 05 Sound/User available 06 Diskette drive 07 LPT1* 08 Real-time clock 09 PCI/User available 10 User available 11 Windows Sound System*/User available 12 PS/2 mouse port (if present, else user available) 13 Reserved, numeric processor 14 Primary IDE (if present, else user available) 15 Secondary IDE (if present, else user available)

* Default; setting can be changed.

Table 1-4 DMA Assignments

DMA Resource

00 Audio 01 Audio/Parallel port 02 Diskette drive 03 ECP parallel port/Audio 04 Reserved, cascade channel 05 Available 06 Available 07 Available

Page 18

1-6 Technical Information

IDE Ports

The system board provides two fast IDE ports: primary channel and secondary channels. Each port supports two devices for a total of four IDE devices. The system board allows

the connection of an IDE CD-ROM drive for system configuration flexibility without the addition of a controller.

The IDE ports feature an enhanced IDE interface which supports up to 10 MB per second 32-bit wide data transfers on the high-performance PCI local bus. The standard hard disk and Zip drive (in some systems) are connected to the primary channel. The CD-ROM drive is attached to the secondary channel.

I/O Ports

The system board features an enhanced parallel port, two buffered high-speed serial ports, and two Universal Serial Bus (USB) ports.

The enhanced parallel port supports Enhanced Capabilities Port (ECP) and Enhanced Parallel Port (EPP) modes for devices that require ECP or EPP protocols. These protocols allow high-speed bi-directional transfer over a parallel port and increase parallel port functionality by supporting more devices.

The two buffered high-speed serial ports use a fast 16C550 UART which supports transfer rates up to 115.2 kilobits (Kb) per second. These ports allow the installation of high-speed serial devices for faster data transfer rates.

The two USB ports allow additional new plug and play serial devices without removing the system cover. Simply plug the USB device into the port. The speed varies between 12 megabits per second (Mbps) for printers and 1.5 Mbps for mice and keyboards. Up to 127 USB devices can be connected to the computer.

The combination of the enhanced parallel port, buffered serial ports, and USB ports ensure optimum performance for future peripheral devices and operating systems.

Sound System

The system board features the Crystal Semiconductor CS4236B audio codec and CS4611 PCI audio accelerator. The CS4236B integrates an internal FM music synthesizer and joystick logic. The chip also provides the following features.



Advanced power management



Symmetrical mixer



Support for DirectSound

™



Full-duplex audio



Sound Blaster®, Sound Blaster Pro, and Windows Sound System™ compatibility

Page 19

Technical Information 1-7

The CS4611 enables burst mode transfers of audio data between the system bus and the device’s internal DMA engine and stream processor. The chip provides optimized digital audio processing.

The optional AWE64D PCI sound board replaces the integrated Crystal audio system. It provides FM synthesis and 64 simultaneous voices.

U.S. ROBOTICS MODEM BOARD (OPTIONAL)

Two modem boards are available: the U.S. Robotics® x2-capable Winmodem and the U.S. Robotics x2-capable Sportster. Each modem board contains fax and modem capabilities. The Winmodem provides fax and modem capabilities. The Sportster provides modem, fax, full-duplex speakerphone, and voicemail capabilities. Each board provides receive transfer rates of 56 Kbps (kilobytes per second) for data and 14.4 Kbps for fax.

DISKETTE DRIVE

The system comes standard with a 1.44-MB high-density diskette drive preinstalled in the 3 1/2-inch accessible device slot (drive A). The drive is connected to the system board via a two-connector cable.

HARD DRIVE

The system supports up to three IDE hard drives, the standard hard drive, and two optional hard drives (if a Zip drive does not come standard with the system).

CD-ROM/DVD DRIVE

The drive can be used to load programs from a CD or it can be used to play audio CDs. The drive operates at different speeds depending on whether the CD contains music or data. The drive is fully compatible with Kodak Multisession Photo CDs™ and standard CDs.

The drive is connected to the secondary IDE/PCI port on the system board.

ZIP DRIVE

Some systems come with the Iomega® Zip 100 ATA drive. The Zip drive provides removable 100-MB data disks and has a data transfer rate up to 1.4 MB per second.

POWER SUPPLY

The 235-watt power supply is mounted inside the system unit. It supplies power to the system board, option boards, diskette drives, hard drives, keyboard, and mouse. A fan inside the power supply provides system ventilation. The power supply has several cables for attaching to the various devices requiring power.

Page 20

1-8 Technical Information

POWER MANAGEMENT

The Advanced Power Management (APM) program, located on the 82371EB PCI ISA IDE Xcelerator (PIIX4E) chip, reduces system power consumption when there is no activity detected from the keyboard, mouse, diskette drive, CD-ROM/DVD drive, or hard disk drive after a predefined period of time. As soon as activity is detected, the system resumes where it left off.

In the CMOS Setup utility, an inactivity timer is available for setting the length of time before the sytem enter a low-power mode.

Page 21

Section 2

Setup Utility

This section describes the Setup utility program that allows the system configuration information to be viewed and changed.

NOTE:

the correct system parameters for the configuration. Unless setting the time and date, setting security features, customizing the system, or adding optional hardware, Setup does not need to be run.

CONFIGURATION INFORMATION

System configuration information is stored in nonvolatile memory. A nonvolatile memory device retains its data when system power is turned off.

The system ships from the factory with

Nonvolatile memory is a complementary metal-oxide semiconductor (CMOS) chip backed up by a battery on the system board. The battery supplies continuous power to CMOS memory and maintains configuration information when system power is off.

WHEN TO USE SETUP

The Setup utility allows the user to view and set system parameters. Use the Setup utility program:



to set the time and date.



to update or check system parameters when adding or removing expansion options.



to change or set power management features.



to correct a hardware discrepancy when the Power-On Self-Test (POST) displays an error message and a prompt to run Setup.



to check the installation of optional memory by comparing the amount of memory installed with the amount of memory displayed by Setup.



to change certain system operating parameters, such as boot device sequence and keyboard parameters.



to configure system connections for peripherals such as the diskette drive, hard disks, and devices connected to the printer port and serial ports.

Page 22

2-2 Setup Utility

to customize the system with security features such as passwords.



to set system parameters after replacing the CMOS battery.

HOW TO START SETUP

To start the Setup utility, follow these steps:

Turn on or reboot the system.

Press F2 after POST begins, but before the system boots up. You have about five seconds to press F2.

Setup’s Main Menu window appears similar to the following screen.

NOTE

The screen shown is typical of a system. The actual settings on the Main Menu depend upon the hardware installed in the system.

HOW TO USE SETUP

The Setup utility has a Main Menu window and six top-level menus with submenus. The Main Menu window contains the following areas:



A title line  the top line of the Main Menu. This line displays the Setup utility name and copyright message.

Page 23

Setup Utility 2-3

The menu bar  the line under the Setup title line. The menu bar contains six



top-level menus to set system parameters. A Main Menu summary window  the area on the left side of the screen. This



area provides a summary of Main Menu Setup parameters. Some Main Menu parameters can be set from this window or they can be set from submenus.

The help and navigation window  the area on the right side of the screen. This



area provides help information for the Setup option currently selected. The navigation keys provide a summary of commands available for making selections.

The General Help window  a window that appears any time during Setup after



pressing F1. This help window provides general information about using Setup.

The following subsections describe how to use the Main Menu window to set system parameters.

Menu Bar

The menu bar at the top of the Main Menu window lists these menus:



Main  Use the Main menu for basic system configuration. For example, select “Main” to verify processor type and speed and to set the system time and date. Use this menu to check memory parameters.

Advanced  Use the Advanced menu to set serial port and printer port addresses



and interrupts, diskette drive, and hard drive parameters, and to enable/disable the system’s IDE and diskette drive interfaces.

The Advanced menu also provides submenu items for setting keyboard features, video configurations, and DMI event logging.



Security  Use this menu to set User and Administrator Passwords and the Unattended Start feature.



Power — Use the Power menu to set power management parameters.



Boot — Use this menu to set boot options.



Exit  Exits the Setup utility with various save or discard options.

A Maintenance Menu appears when the system is in configure mode. See Appendix C for information on putting the system in configure mode. This menu allows you to change the processor speed and to clear user and supervisor passwords.

To select an option from the menu bar, use the left and right arrow keys. See “Exiting Setup” in this section for a description on exiting the Main Menu.

Page 24

2-4 Setup Utility

Legend Bar

Use the keys listed in the legend bar on the bottom of the Setup menu to make the selections or exit the current menu. Table 2-1 describes the legend keys and their alternates.

Table 2-1 Setup Key Functions

Key Function

F1 Provides help for the parameter field being displayed. Esc Exits the menu. ← or → arrow keys ↑ or ↓ arrow keys Enter Executes a command or selects submenu.

Selects next menu. Moves cursor up and down for item selection.

Selecting a Menu Item

To select a menu item, use the up/down arrow keys to move the cursor to the desired field. Then press

Enter

. The Exit Saving Changes command in the Exit Menu saves the values

currently displayed in all the menus.

Displaying a Submenu

To display a submenu, use the up/down arrow keys to move the cursor to the desired submenu. Then press

Enter

. A pointer (a right-pointing triangle) marks all selectable

submenus.

Getting Help

A Field Help window or Item Specific Help window on the right side of each menu displays the help text for the currently selected Setup option. It updates as the cursor moves to each new field.

Pressing F1 on any menu brings up the General Help window that describes the legend keys and their functions.

Esc

Press

to exit the current window.

MAIN MENU

This section describes the Main Menu parameters. Other menu parameters are available by selecting submenus. Use the arrow keys to move the cursor to a parameter and press to select a submenu. Items with lighter text are not available.

Enter

Page 25

BIOS Version



This field displays your system’s BIOS version number.

Processor Type



This field displays your computer’s processor type.

Processor Speed



This field displays your processor’s speed.



Cache RAM This field displays the size of your system’s L2 (external) cache.



System Memory and Memory Banks 0 - 2

Setup Utility 2-5

This field displays the total amount of memory installed on your system board and in which banks the memory is installed.



Language This field displays the current default language used by the BIOS. Depending on

the system you purchased, you may choose a different display language from among the options listed below.

 English (US) (default)  Italiano  Français  Deutsche  Español



L2 Cache ECC Support This option allows error checking on data accessed from the L2 cache.



System Time and Date These two fields specify the correct time and date. To change them, press

highlight the field you want to change, then press the + or – keys to change the setting.

Tab

Page 26

2-6 Setup Utility

To return to the Main Menu, press

. To move to the Advanced Menu, press the right

Esc

arrow key.

ADVANCED MENU

This section describes the Advanced Menu parameters. Other menu parameters are available by selecting submenus. Use the arrow keys to move the cursor to a parameter and press

to select a submenu. Items with lighter text are not available.

Enter

Plug & Play O/S



This option lets you specify whether a Plug and Play-compatible operating system is being used in your system. Choose “Yes” or “No” (default).

Reset Configuration Data



This option clears the BIOS configuration data on the next boot. The options include “No” (default) or “Yes.”

NumLock



This option controls whether the NumLock key on the keyboard is on or off at boot up. The choices are “Auto” (default), “On,” or “Off.”

Peripheral Configuration Submenu

This submenu can be used to configure your system’s ports or peripheral devices. To enter the submenu, highlight this field, then press



Serial Port A/Serial Port B These options let you configure your system’s Serial Port A or Serial Port B. You

can choose “Auto” (default), “Enabled,” or “Disabled.” The “Auto” setting causes the Setup program to assign the first free COM port (for example, COM 1 3F8h, IRQ4 or COM2, 2F8h, IRQ3). Note that if you set a specific serial port address, it does not appear in the list of options for the other serial port.

CAUTION: An asterisk symbol appearing next to an option indicates that the selected IRQ is set to conflict with another device.

. The following options appear:

Enter

Page 27

Setup Utility 2-7

NOTE: If you select the Enabled option, you can see additional options that allow you to specify the Base I/O address and IRQs for the port you are configuring.



Parallel Port This option configures the system’s Parallel Port. Choose “Auto” (default),

“Enabled,” or “Disabled.” The “Auto” setting causes the Setup program to assign LPT 1, 378h, IRQ7.

NOTE: If you select the Enabled option, you can see additional options that allow you to specify the Base I/O address and IRQs for the port you are configuring.

Mode (Parallel Port)



This option sets the mode for the parallel port. The options include “Output Only” (AT-compatible mode), “Bidirectional” (PS/2-compatible mode), “EPP” (Extended Parallel Port – high speed bidirectional), and “ECP” (Enhanced Capabilities Port – high speed bidirectional).

CAUTION: An asterisk symbol appearing next to an option indicates that the selected IRQ is set to conflict with another device.



Audio This option configures the onboard audio system. Select “Enabled” (default) or

“Disabled.”



Legacy USB Support This option configures support for legacy USB devices. Select “Enabled” or

“Disabled” (default).

To return to the Advanced Menu, press

Esc

Page 28

2-8 Setup Utility

IDE Configuration Submenu

This submenu can be used to auto-configure or manually configure the IDE devices, usually hard drives or CD-ROM drives. Depending on the system you purchased, the available options may include “User,” “Auto” (default), “CD-ROM,” “ATAPI Removable,” or “None.”

The standard hard drive (drive C) shipped with the system is configured as “Primary IDE Master.” The standard CD-ROM drive is configured as “Secondary IDE Master.”

NOTE

Jumpers on the IDE device must be set to the master or slave device (see the documentation that comes with the device).



IDE Controller This option configures the system’s integrated IDE controller. Select from

“Primary,” “Secondary,” “Both” (default) or “Disabled.”



Hard Disk Pre-Delay This option set the time delay to allow the hard disk to spin up. The choices in

seconds are “3,” “6,” “9,” “12,” “15,” “21,” and “30.”

These entries let you check or change the following hard disk drive parameters. They are not available if “Auto” is selected.



Cylinders/Heads/Sectors fields. Cylinders — If your device configuration type is set to “Auto,” this field displays

the number of cylinders for your hard drive and cannot be changed. If the Type is set to “User,” you must enter the correct number of cylinders for your hard drive.

Heads — If your device configuration type is set to “Auto,” this field displays the number of heads for your hard drive and cannot be changed. If the Type is set to “User,” you must enter the correct number of heads for your hard drive.

Sectors — If your device configuration type is set to “Auto,” this field displays the number of sectors for your hard drive and cannot be changed. If the Type is set to “User,” you must enter the correct number of sectors for your hard drive.

Maximum Capacity — This field displays the maximum capacity of your hard disk drive, a value based on the number of cylinders, heads and sectors.

Page 29

Setup Utility 2-9

Multi Sector Transfers



This option determines the number of sectors per block for multiple sector transfers. Like the Cylinders/Heads/Sectors options discussed above, you cannot access this option if the configuration type is set to “Auto.” If necessary, check the specification for your disk drive to determine the best setting for optimum drive performance. The options include:

 2 Sectors  4 Sectors  8 Sectors  16 Sectors  Disabled (default).



LBA Mode Control This option specifies the IDE translation mode. LBA causes Logical Block

Addressing to be used in place of Cylinders/Heads/Sectors. You can enable or disable (default) this option. This option cannot be changed when “Auto” is selected.

CAUTION: Do not change the translation mode setting from the option selected when the hard drive was formatted. Changing the option after formatting could result in corrupted data!



Transfer Mode This option specifies the method for transferring data between the hard drive and

system memory. This option cannot be changed when “Auto” is selected. The options include:

 Standard (default)  Fast PIO 1  Fast PIO 2  Fast PIO 3  Fast PIO 4  FPIO 3 and Bus Mastering  FPIO 4 and Bus Mastering.

Page 30

2-10 Setup Utility

Ultra DMA



This option sets the Ultra DMA Mode for the hard drive. This option cannot be changed when “Auto” is selected. The options include:

 Mode 0  Mode 1  Mode 2  Disabled (default).

To return to the Advanced Menu, press

Esc

Floppy Options Submenu

This submenu can be used to configure your system’s diskette drives. To enter the submenu, highlight the Floppy Options field, then press Controller, Diskette A:, and Floppy Write Protect options.



Floppy Disk Controller This option configures the system’s diskette drive controller. Select “Enabled”

(default) or “Disabled.”



Diskette A: These fields specify the capacity and physical size of Diskette Drive A. To change

these, highlight the field for the drive, press

Enter

options:

 Disabled  360KB, 5.25 inch

. Select Floppy Disk

Enter

and select from the following

 1.2MB, 5.25 inch  720KB, 3.5 inch  1.44/1.25 MB, 3.5 inch (default)  2.88 MB, 3.5 inch.

If you add an optional 5.25-inch diskette drive to your system, select Floppy B and change the parameter to 1.2 MB, 5.25 inch.



Floppy Write Protect This option enables or disables write protection for the diskette drive(s). Choose

the desired setting to enable or disable (default) this option.

To return to the Advanced Menu, press

Esc

Page 31

Setup Utility 2-11

DMI Event Logging Submenu

This submenu can be used to view and modify DMI Event Logs. To enter the submenu, highlight the DMI Event Logging field, then press

Event Log Capacity/Event Log Validity



These fields indicate whether space is available in the Event Log, and whether the contents of the log are valid.

View DMI Event Log



If there are no event logs stored, you cannot access this log.



Clear All DMI Event Logs This option clears the DMI Event Log after rebooting the system. Choose “No”

(default) or “Yes.”



Event Logging

Enter

. The following options appear:

This option enables logging of DMI events. Choose “Disabled” or “Enabled” (default).



Mark DMI Events as Read This option is used to mark off all DMI Events as read. If necessary, press

to access the Confirmation dialog box and confirm your preference.

To return to the Advanced Menu, press

Esc

Video Configuration Submenu

This submenu can be used to configure specific video features. To enter the submenu, highlight the field, then press



Palette Snooping This option controls the ability of a primary PCI graphics controller to share a

common palette with an ISA add-in video board. Select “Enabled” or “Disabled” (default).



AGP Aperture This option specifies the aperture size for the AGP video controller.

Enter

. The following option appears:

Enter

To return to the Advanced Menu, press

Esc

Page 32

2-12 Setup Utility

Resource Configuration Submenu

This option allows you to reserve specific resources for use by legacy ISA devices. To enter the submenu, highlight this field, then press

Memory Reservation Submenu



This option lets you configure memory blocks for use by legacy ISA devices. When selected, the submenu displays a lists of addresses from which specific addresses can be selected. Use the arrow (cursor) keys to highlight an upper memory block, then press the cursor keys, then press

Enter

. The following options are displayed:

. Select “Available” (default) or “Reserved” with

to change the setting.

To return to the Resource Configuration submenu, press



IRQ Reservation Submenu This option lets you reserve specific IRQs (interrupt requests) for use by legacy

ISA devices. To do so, highlight this field, then press (cursor) keys to highlight the specified IRQ, then press (default) or “Reserved” with the arrow keys, then press setting.

CAUTION: An asterisk symbol appearing next to an option indicates that the selected IRQ is set to conflict with another device.

To return to the Advanced Menu, press move to the Security Menu.

SECURITY MENU

Esc

Enter

. Use the arrow

Enter

. Select “Available”

Enter

to change the

. Then press the right arrow (cursor) key to

Esc

The Security Menu can be used to set a user password and/or an administrator password. A User Password controls access to the system and Setup Utility program at boot up. If the

User Password feature has been enabled, you need to enter your User password correctly whenever you boot the system before you can use it.

An Administrator Password controls access to the BIOS and Setup Utility program. If the Administrator Password feature has been enabled, an Administrator password must be entered correctly before all options in the Setup Utility program are available (for example, to disable password protection).

The Unattended Start feature allows the system to boot up and run but the keyboard and mouse are both locked. You must enter the User Password to use the keyboard and mouse.

Page 33

Setup Utility 2-13

Press the right arrow (cursor) key to move to the Power Menu.

POWER MENU

The Power Menu is used to enable or disable the system’s power management features. When the power management option is enabled, the following options appear in the Power Menu:

Power Management



This feature lets you enable or disable BIOS power management.



Inactivity Timer The Inactivity Timer lets you set the length of time that the system needs to be

inactive before entering its low-power or Standby mode. The low-power mode powers down various devices in the system until you resume using it. You can select from “Off,” “1,” “2,” “4,” “6,” “8,” “12” or “16 minutes.” A setting of 1 minute achieves maximum power savings, while a setting of 16 minutes allows maximum performance.



Hard Drive This option controls whether or not a spin down command is issued to the hard

drives when the system goes into a low-power mode. Your choices are “Enabled” (default) or “Disabled.”

VESA Video Power Down



This option controls power to the monitor during the low-power modes. Your choices are “Disabled” or “Enabled.”

Press the right arrow (cursor) key to move to the Boot Menu.

BOOT MENU

The Boot Menu can be used to adjust the system’s boot features. The Boot Menu features the following options:



Quick Boot Mode This option configures the system to boot without running certain POST tests.

The choices are “Enabled” (default) and “Disabled.”

Page 34

2-14 Setup Utility

Scan User Flash Area



This option configures the BIOS to scan the flash memory for user binary files that are executed at boot time. The choices are “Enabled” and “Disabled” (default).

After Power Failure



This option specifies whether or not to restore power to the system if it is turned on and there is a power failure. The options are “Stay Off” which keeps the power off, “Power On” which restores the system’s power, and “Last State” which restores the previous power state.

On Modem Ring



This option specifies how the system responds when power is off and the modem detects an incoming call. The options are “Stay Off” and “Power On” (default).



On LAN This option controls how the system responds to a LAN wake-up call when

power is off. The options are “Stay Off” and “Power On” (default).



On PME This option controls how the system responds to a PCI power management enable

event when power is off. The options are “Stay Off” and “Power On” (default).



First/Second/Third/Fourth Boot Device You can select the sequence of boot devices by type. Pressing your keyboard’s +

(plus) or – (minus) key allows you to select the order. For maximum system accessibility, Removable Device should always be set as the First Boot Device.

Hard Drive Submenu

This submenu lists the system’s available hard drives. Your computer tries to boot to the operating system on the first device listed on the Hard Drive submenu. If no operating system is found, the system continues trying the drives in the order they are listed until an operating system is located.

To see a list of available drives, highlight this field and press device by pressing your keyboard’s + or – key. To exit from the Hard Drive submenu, press

Esc

Enter

. You can select the boot

Page 35

Setup Utility 2-15

Removable Devices Submenu

This submenu lists any available removable devices (if included). One common option is Legacy Floppy Drives. The operating system assigns drive letters to these devices in the order listed. You can change the sequence (and drive lettering) by highlighting this field and pressing list. To exit from the Removable Devices submenu, press

Enter

. Then press your keyboard’s + or – key to move a device up or down the

Esc

Removable Format Submenu

This submenu provides the format of any any available removable devices.

Press the right arrow (cursor) key to move to the Exit Menu.

EXIT MENU

The Exit Menu allows you to choose how to exit the Setup program. Press the arrow (cursor) keys to select the desired option, then press arrow key to select another one).

Enter

to make your choice (or use the



Exit Saving Changes This option exits the Setup program and saves your changes to the BIOS.



Exit Discarding Changes This option exits the Setup program without saving your changes to the BIOS.



Load Setup Defaults This option loads the Setup program’s default values.



Load Custom Defaults This option loads Custom default settings.



Save Custom Defaults This option saves your changes to Custom default settings.



Discard Changes This option loads previous values from CMOS RAM for all BIOS settings.

Page 36

2-16 Setup Utility

NOTE: If your system’s CMOS fails, the BIOS will load custom default settings (if you’ve saved them) or factory default settings.

Finally, press

again to confirm and exit the Setup program.

Enter

Page 37

Section 3

Option Installation

This section provides instructions for installing the following options:

expansion boards



memory upgrade



video upgrade — see the documentation for your video board



data storage devices



external options.

All options (except external options) require removal of the access cover. Procedures for removing the cover are included in this section.

GENERAL RULES FOR INSTALLING OPTIONS

Follow these general rules when installing system options.



Turn off system power and unplug the power cable.



Turn off and disconnect all peripherals.



When handling boards or chips, touch the metal of the system unit to discharge static.



Do not disassemble parts other than those specified in the procedure.



Use a Phillips-head screw driver, unless otherwise specified.



Label any removed connectors. Note where the connector goes and in what position it was installed.

Page 38

3-2 Option Installation

PRECAUTIONS

Take care when working inside the system and when handling computer components. Avoid electric shock or personal injury by observing the following warning.

cover, turn off the power and unplug the system power cable. Power is removed only when the power cable is unplugged.

Static electricity and improper installation procedures can damage computer components. Protect computer components by following these safety instructions.

damage computer components. Discharge static electricity by touching a metal object before removing the access cover.

WARNING: Before removing the access

CAUTION: Electrostatic discharge can



Avoid carpets in cool, dry areas. Leave an option, such as a board or chip, in its anti-static packaging until ready to install it.



Dissipate static electricity before handling any system components (boards, chips, etc.) by touching a grounded metal object, such as the system’s unpainted metal chassis.

If possible, use anti-static devices, such as wrist straps and floor mats.



Always hold a chip or board by its edges. Avoid touching the components on the chip or board.



Take care when connecting or disconnecting cables. A damaged cable can cause a short in the electrical circuit. Misaligned connector pins can cause damage to system components at power-on.

When installing a cable, route the cable so it is not pinched by other components and is out of the path of the system unit cover. Prevent damage to the connectors by aligning connector pins before you connect the cable.



When disconnecting a cable, always pull on the cable connector or strain-relief loop, not on the cable.

Page 39

Option Installation 3-3

REMOVING THE ACCESS COVER

The following subsections describe how to remove the access cover from the desktop or minitower system.

cover, turn off the power and unplug the system power cable. Power is removed only when the power cable is unplugged.

Turn off the computer.

Disconnect the keyboard, mouse, monitor, and any other external options (such as

a printer) from the rear of the computer. Label all cables to make reinstallation easier.

WARNING: Before removing the access

CAUTION: Electrostatic discharge can damage computer components. Discharge static electricity by touching a metal object before you remove the system access cover.

If the system is a minitower, lay the system down on its right side.

Loosen the thumb screw at the rear of the system by turning it counterclockwise.

If you installed a lock on the back of the system, unlock the lock and remove it. Press the right release tab. While pressing the tab, push down and back on the

right rear of the cover. The cover slides back about 1/2 inch. Press the left release tab. While pressing the tab, push down and back on the left

rear of the cover. The cover slides back about 1/2 inch.

Page 40

3-4 Option Installation

Figure 3-1 Releasing the Cover

Lift the access cover off the system.

REPLACING THE ACCESS COVER

To replace the access cover, use the following procedure.

Gently set the access cover inside the edge of the case, taking care not to bend the

metal tabs. Align the tabs on the access cover with their corresponding slots on the system.

Insert the tabs on the edge of the access cover into their slots on the system.

Slide the access cover forward to meet the front panel.

Tighten the thumb screw.

Figure 3-2 Aligning the Tabs

Page 41

Option Installation 3-5

NOTE: The cover fits tightly. If it does not slide all the way to the front panel, place one hand on the front of the unit while you slide the cover forward from the rear.

Reconnect all external peripherals.

Plug in power cables.

EXPANSION BOARDS

Your computer’s system board features several expansion slots that can accommodate accessory adapter boards, such as a TV board. Depending on the system you purchased, some of these devices may be installed in your system.

The Direction SP B-Series supports ISA Plug and Play expansion boards. Plug and Play allows the installation of a board in an expansion slot without changing the hardware settings. There are no system resource conflicts to resolve. Plug and Play automatically configures the board for the system.

Industry-standard 8-bit and 16-bit ISA, and 32-bit PCI expansion boards are supported in the system unit. ISA expansion boards can be Plug and Play or non-Plug and Play boards.

PCI expansion boards run at one half the system host’s bus speed. The PCI bus handles 32 bits of data at a time, being wider as well as faster than the standard ISA bus. PCI boards can send and receive data much faster, thereby boosting system performance.

Expansion Slot Locations

Your system has six expansion slots:



one ISA slot



three PCI slots



one shared ISA/PCI slot



one AGP slot.

The following figure shows expansion slot locations.

Page 42

3-6 Option Installation

Figure 3-3 Locating Expansion Slots

Expansion Board Installation

Install expansion boards in the system as follows.

Remove the access cover.

Follow any preinstallation instructions that come with the expansion board (such as setting switches or jumpers on the board).

Remove the screw securing an expansion slot cover and remove the cover.

Figure 3-4 Removing the Slot Cover

Page 43

Option Installation 3-7

Save the screw for installing the expansion board. Be sure to save the slot cover for future use.

CAUTION: A slot cover can damage the system board or any option board if it falls into the system. Take care to keep the slot cover from falling when removing the screw.

If the slot cover does fall into the unit, remove it before replacing the cover. Hold the board by its edges and insert it into the expansion slot.

Press the board firmly into the expansion slot connector. Gently rock the board

from side-to-side to seat it into the connector.

Insert the screw removed earlier to secure the expansion board to the support

bracket.

Attach any cables required by the expansion board.

Replace the access cover.

Expansion Board Removal

Remove the system access cover.

Label and remove any cables connected to the board.

Figure 3-5 Installing a Board

Page 44

3-8 Option Installation

Remove the screw that secures the board to the support bracket.

Pull the board out of the connector. Gently rock the board from side-to-side to

release it from its connector. Replace the access cover.

MEMORY UPGRADE

Your system comes factory-installed with 32 MB to 384 MB of main system memory, in one to three 168-pin sockets on the system board for Dual In-line Memory Modules (DIMMs).

Install memory in one, two, or three sockets. The memory size and speed may vary between sockets. Single-and double-sided DIMMs are supported.

Depending on product upgrade availability, your system memory can be upgraded to a total of 384 MB. When upgrading your system memory, note the following conditions:



Be sure to use 168-pin 3.3V DIMMs with gold-plated contacts.



Bus speed of 100 MHz is supported.



Non-Error Correcting and Checking (64-bit) and ECC (72-bit) DIMMs are both supported. When ECC memory is installed, the BIOS automatically detects its presence and offers the Setup option to enable ECC mode.

NOTE:

Although memory size may vary, the SDRAM DIMMs must meet the Intel 4-clock, PC100, unbuffered SDRAM DIMM specification for either 64-bit or 72-bit SDRAM.

Use the following procedure to:



Check the memory installed in the system



Determine the DIMM configuration needed to increase memory



Identify DIMM sockets.

NOTE:

If any cables block access to the DIMM sockets, label and disconnect them. If any boards block access to the sockets, remove them.

Locate the three DIMM sockets, J6J1 – Bank 0, J6J2 – Bank1, and

J7J1 – Bank 2. See Appendix B to identify the sockets. Use the following table to determine the DIMM configuration needed to upgrade

memory. The table provides sample memory configurations; it is not a complete list of all memory configurations.

Page 45

Option Installation 3-9

Table 3-1 Sample Memory Configurations

Bank 0 Bank 1 Bank 2 Total RAM

1 M x 64 (8 MB) Empty (0 MB) Empty (0 MB) 8 MB (min.

memory) Empty (0 MB) 4 M x 64 (32 MB) 8 M x 64 (64MB) 96 MB 16 M x 64 (128 MB) Empty (0 MB) 2 M x 64 (16 MB) 144 MB 2 M x 72 (16 MB) 2 M x 72 (16 MB) 4 M x 72 (16 MB) 64 MB (ECC) 2 M x 64 (16 MB) Empty (0 MB) 2 M x 64 (16 MB) 32 MB 4 M x 64 (32 MB) 4 M x 64 (32 MB) 8 M x 64 (64 MB) 128 MB 8 M x 64 (64 MB) 1 M x 64 (8 MB) 4 M x 64 (32 MB) 104 MB 2 M x 64 (16 MB) 4 M x 64 (32 MB) 1 M x 64 (8 MB) 56 MB 4 M x 64 (32 MB) 8 M x 64 (64 MB) 2 M x 64 (16 MB) 112 MB Empty (0 MB) 16 M x 72 (128 MB) 16 M x 72 (128 MB) 256 MB (ECC) 16 M x 64 (128 MB) 2 M x 64 (16 MB) 8 M x 64 (64 MB) 210 MB 16 M x 64 (128 MB) 4 M x 64 (32 MB) 8 M x 64 (64 MB) 224 MB 16 M x 72 (128 MB) 8 M x 72 (64 MB) 1 M x 72 (8 MB) 200 MB (ECC) 16 M x 64 (128 MB) 16 M x 64 (128 MB) 16 M x 64 (128 MB) 384 MB 16 M x 72 (128 MB) 16 M x 72 (128 MB) 16 M x 72 (128 MB) 384 MB (ECC)

Note: The number in parentheses is the memory in megabytes configuration.

DIMM Removal

Use the following procedure to remove a DIMM.

touching the system’s metal chassis.

Remove the access cover.

Locate the DIMM sockets.

To remove a DIMM from its socket, press the plastic clips at the outer edges of

the socket away from the DIMM.

CAUTION: Reduce static discharge by

Page 46

3-10 Option Installation

Carefully rock the DIMM to pull it from the socket.

Store the DIMM in an antistatic bag (available at electronic supply stores) or a

cardboard box.

Figure 3-6 Removing a DIMM

DIMM Installation

Use the following procedure to install a DIMM.

Remove the access cover.

Locate the DIMM sockets.

Remove any currently-installed DIMMs that are not needed. See “DIMM

Removal” in this chapter.

reduce static discharge by touching the system’s metal chassis.

CAUTION: Before installing a DIMM,

Page 47

Option Installation 3-11

To install a DIMM, align the module with an empty socket. Make sure that the

notches on the DIMM line up with the keys in the sockets. Insert the DIMM into the socket. Close the plastic clips at both ends of the

socket.

Figure 3-7 Installing a DIMM

Replace any cables or boards that may have been removed.

Replace the access cover.

VIDEO UPGRADE

Your computer comes with an AGP video board. See your video board’s documentation for information on upgrade capabilities.

DATA STORAGE DEVICES

The system board in your computer supports the following storage devices:



two diskette drives, including the standard 1.44-MB diskette drive and a tape backup unit



up to four IDE drives.

Page 48

3-12 Option Installation

Device Slots

Your computer has seven storage device slots:

a 3.5-inch accessible device slot (contains the standard 1.44-MB diskette drive)



two internal 3.5-inch hard drive slots (one contains the hard drive)



four accessible device slots



 two accessible 5.25-inch device slots (one contains the standard CD-ROM

drive)

 two 3.5-inch device slots; the lower 3.5-inch slot is not accessible on the

desktop model.

Figure 3-8 shows the device slot locations in the system.

Device Preparation

Before installing a storage device in the system, follow any preinstallation instructions that come with the device. For example, check the following:



Diskette drive  remove any termination jumpers on the optional diskette drive. See the documentation that comes with the drive.



IDE device  check the jumper settings on the device before installing it. See the documentation that comes with the device for jumper setting information.

Figure 3-8 Locating Device Slots

Page 49

Option Installation 3-13

 An IDE device, such as an IDE hard disk or IDE CD-ROM drive, must be set

correctly as the first (master) or second (slave) device on the IDE channel.

 The standard IDE hard disk is set as the master device on the primary IDE

connector. The standard CD-ROM drive is the master device on the secondary IDE connector.

SCSI device — The last SCSI device connected to the system (internally or



externally) must have a termination resistor, either installed manually or set automatically if the device is self-terminating. Check the manufacturer’s documentation.

Installation hardware — check to be certain you have the screws necessary to



secure the drive in an accessible drive slot.

Device Cables

The cables used for the installation of optional storage devices include:

diskette drive signal cable



IDE signal cables



system power cables.

The addition of a diskette drive might require the replacement of the existing diskette drive cable. The addition of an IDE device does not require the replacement of the existing IDE cable. The existing IDE cables support two devices on each cable.

Cable connector locations are shown in Figure 3-9.

Figure 3-9 System Board Cable Connectors

Page 50

3-14 Option Installation

Diskette Drive Signal Cable

A two-connector diskette drive signal cable comes attached to the system board and to the standard 1.44-MB diskette drive. If your system comes standard with an Iomega Ditto tape backup unit, the signal cable has three connectors.

Depending on your system, installation of a tape backup unit may require the replacement of the existing diskette drive signal cable with a three-connector cable. Connect an optional tape backup unit to the middle connector on the three-connector diskette drive signal cable.

The colored edge of the cable goes to pin 1 on the cable connector. Align the red edge of the cable with pin 1 (the notched end) on the drive connector.

Figure 3-10 shows a three-connector diskette drive signal cable.

Figure 3-10 Diskette Drive Signal Cable

IDE Signal Cables

Each system comes with a three-connector IDE interface cable attached to the primary IDE connector and the installed hard disk. A second IDE cable connects to the CD-ROM drive and to the secondary IDE connector. In some systems, a Zip drive also comes attached to the primary IDE cable.

Figure 3-11 shows a typical three-connector IDE cable. If the IDE cable is not keyed with a connector tab, align the colored edge of the cable with the pin 1 side of the drive connector.

Page 51

Option Installation 3-15

Figure 3-11 IDE Signal Cable

System Power Cables

Power cables come from the power supply and are attached to the standard storage devices. System power cables vary in length and provide connector sizes to accommodate a variety of supported storage configurations.

Power cable connectors are keyed to fit only in the correct position. Figure 3-12 shows the power cable connectors.

Figure 3-12 Power Cable Connectors

Page 52

3-16 Option Installation

Device Cabling

All storage devices require a power and signal cable connection. Devices shipped with the system are already connected. Cable optional devices as follows.

Cabling an IDE Device

Connect the IDE signal cable connector to the connector on the IDE device. Take care to prevent bending drive connector pins. Align the IDE cable connector

as shown in Figure 3-13.

Locate an available power connector coming from the power supply.

Connect the appropriate power cable to the power connector on the IDE device.

Figure 3-13 Connecting IDE Device Cables

If installing an IDE CD-ROM drive, also connect the audio cable (see the instructions that come with the reader).

Cabling an Accessible 5 1/4-Inch Device

Connect the diskette drive signal cable connector to the signal connector on the device (see Figure 3-14).

Locate an available power connector.

Connect the power cable to the power connector on the device.

Page 53

Option Installation 3-17

Figure 3-14 Connecting an Accessible 5 1/4-Inch Device

Storage Device Installation

The following subsections describe how to install 3 1/2-inch and 5 1/4-inch devices. The installation procedures include:



removing the front panel removing the CD-ROM/DVD drive



installing a 3 1/2-inch device



installing a 5 1/4-inch device



replacing the front panel.

Removing the Front Panel

Use the following procedure to remove the front panel.

Locate the two plastic tabs at the front of the chassis. They are indicated by two arrows engraved on the chassis.

Press down on the two tabs and press in a third tab at the end of the panel to release the panel (see Figure 3-15).

Page 54

3-18 Option Installation

Figure 3-15 Releasing the Front Panel

Pull the panel away from the chassis.

Removing the CD-ROM/DVD Drive

If you need to remove the CD-ROM/DVD drive, you need to remove the accessible device cage.

Use the following procedure to remove the accessible device cage.

Locate the screw on the front of the system between the 3.5-inch blank panel and

diskette drive. Remove the screw.

Figure 3-16 Locating the Device Cage Screw

Slide the cage towards the front of the system and lift it out of the unit.

Page 55

Installing a 3 1/2-Inch Device

Use the following procedure to install a 3 1/2-inch device.

Follow the preinstallation instructions that came with the device, such as setting

jumpers and switches. Remove the access cover.

Remove and label any cables that interfere with installing the device.

Remove the front panel (see the previous section).

Choose the slot for the device being installed (see Figure 3-17).

Option Installation 3-19

Figure 3-17 Locating Device Slots



If you are installing the device in the second 3 1/2-inch internal device slot:

 Remove the two screws securing the 3 1/2-inch hard disk bracket to the

front of the system unit.

Page 56

3-20 Option Installation

Figure 3-18 Removing the Bracket Screws

 Slide the 3 1/2-inch hard disk bracket towards the back of the system unit

until it is free of the molded plastic.

 Align the two screw holes on the hard disk with the two tabs on the

bracket. Slide the hard disk onto the tabs.

Figure 3-19 Aligning the Holes and Tabs

Page 57

Option Installation 3-21

 Place the hard disk into the bracket and secure with the screw.

Figure 3-20 Securing the Disk

 Slide the bracket into the molded plastic drive slot. Secure the bracket to

the front panel with the two screws shown in figure 3-18.

If you are installing the device in the standard 3 1/2-inch internal device slot,



simply insert the drive into the opening until it is secured (see Figure 3-21). Secure the drive with two screws inserted into the front of the system.

Figure 3-21 Inserting the Device

Page 58

3-22 Option Installation

If you are installing a device in an accessible slot, go to step 6.



To install a 3 1/2-inch device in an accessible slot:

Remove the plastic blank panel from the selected slot by pressing the panel tab



inward and swinging the blank panel out (see Figure 3-22).

Figure 3-22 Removing the Blank Panel



Use a screw driver to remove the metal slot cover by carefully pressing it until it breaks away from the chassis. Be careful of sharp edges!



Slide the device into the slot and secure the device.

Connect the device cables (see “Cabling an IDE Device”).

Replace the front panel.

Replace the access cover.

Installing a 5 1/4-Inch Device

Install an accessible device into the device slot as follows.

Follow the preinstallation instructions that came with the device, such as setting

jumpers and switches.

Page 59

Option Installation 3-23

NOTE: If your 5 1/4-inch device comes with drive rails, do not attach them. Remove any rails attached. See the documentation that comes with the device.

Remove the access cover.

Remove the device cage (see “Removing the CD-ROM/DVD Drive”).

Remove and label any cables that interfere with installing the device.

Remove the front panel.

Remove the plastic blank panel. If you are installing a hard drive, keep the panel

handy. Use a screw driver to remove the metal slot cover by carefully pressing it until it

breaks away from the chassis. Be careful of sharp edges. From the front of the system, slide the device, connector end first, into the

device slot.

NOTE: To easily access device connectors for cabling, do not insert a 5 1/4-inch device all the way into the slot.

Connect the device cables (see “Cabling Storage Devices”).

Align the holes in the device with the holes in the chassis.

10.

Secure the device with the screws that came with the device (see Figure 3-23).

11.

Figure 3-23 Installing the Device

Page 60

3-24 Option Installation

NOTE: If you removed the accessible device cage, replace it. Secure the device cage with the screw.

If you installed a hard drive in the 5 1/4-inch slot, replace the plastic panel.

12.

Replace the front panel.

13.

Replace the access cover.

14.

Replacing the Front Panel

To replace the front panel, follow this procedure.

Align the front panel’s six tabs with their corresponding slots on the system (three

of the tabs have holes, the others have prongs). Press the front panel squarely into position until the tabs lock the panel in place.

Replace the access cover.

After securing your system, reboot it and run the Setup program to set the new

configuration.

ADDING EXTERNAL OPTIONS

External connectors on the back of the system unit allow for a variety of industry-standard options.

This subsection provides the installation procedures for the most commonly used external options, which are as follows:



parallel printer



serial devices.

For other external devices, see the instructions that come with the option.

Parallel Printer

NOTE: Before connecting a printer to the system, be sure the printer is set up correctly. Follow the setup instructions that come with the printer.

Connect a parallel printer to the system as follows.

Page 61

Option Installation 3-25

Turn off power to the system and printer.

Connect the printer cable to the printer port on the rear of the system unit (see

Figure 3-24). Secure the cable with the screws provided.

Connect the other end to the printer.

Turn on the printer and the computer.

Figure 3-24 Locating the Parallel Port

RS-232C Device Connection

NOTE:

system, be sure the serial device is set up correctly. Follow the setup instructions that come with the option.

Turn off power to the system and to the serial device.

Connect one end of the serial cable to one of the serial ports on the rear of the

computer (see Figure 3-25). Secure the cable with the screws provided.

Before connecting a serial device to the

Page 62

3-26 Option Installation

Connect the other end to the serial device.

Turn on the serial device and the computer.

Figure 3-25 Locating Serial Ports

Page 63

Section 4

Maintenance and Troubleshooting

This section provides information on maintaining and troubleshooting the Direction SP B-Series computers. Table 4-1 provides the NEC CSD service telephone numbers. Also included in this section are the error beep code descriptions and a procedure for replacing the CMOS battery.

Table 4-1 NEC CSD Service and Information Telephone Numbers

Service Telephone Number

To contact the NEC CSD Direction Technical Support Center (TSC):

To order spare parts: In the U.S., call 1 (800) 233-6321

In the U.S., call 1 (888) 632-2678

In Canada, call 1 (800) 727-2787

To contact Customer Service about service and contract warranty issues:

To log onto the NEC CSD Electronic Bulletin Board System (BBS) to download software drivers and the latest BIOS for ROM flashing:

For information about NEC CSD products, call FaxFlash

the latest Technical Information Bulletins sent to your fax machine 24 hours a day):

To send technical questions over email: tech-support@neccsd.com To fax technical questions to customer support: In the U.S., fax 1 (978) 635-4666 To access the NEC CSD Website: www.necnow.com To access the NEC CSD FTP site: ftp.neccsdeast.com To purchase a new system through NEC NOW,

or to obtain sales literature:

(use the automated service to have

Call 1 (888) 632-9128

Call 1 (978) 635-4706

In the U.S., 1 (888) 329-0088 1 (888) FAX-0088 Outside the U.S., call 1 (978) 635-6090

Call 1 (888) 8NEC-NOW

Page 64

4-2 Maintenance and Troubleshooting

MAINTENANCE

This subsection contains general information for cleaning and checking the system, keyboard, and monitor.

The system, keyboard, and monitor require cleaning and checking at least once a year, and more often if operating in a dusty environment. No other scheduled maintenance or lubrication is required.

WARNING: Unplug all power cords

before performing any maintenance. Voltage is present inside the system and monitor even after the power button is off. All voltage is removed only when the power cord is unplugged.

System Cleaning

Use the following procedure for cleaning the system.

Power off the system and unplug all power cables.

Periodically wipe the outside of the system, keyboard, mouse, and monitor with a

soft, clean cloth. Remove stains with a mild detergent. Do not use solvents or strong, abrasive cleaners on any part of the system.

Clean the monitor screen with a commercial monitor screen cleaning kit. Or use a

glass cleaner, then wipe with a clean lint-free cloth. Local distributors and dealers may sell diskette drive head cleaning kits. These kits

contain special diskettes and cleaning solution. Do not use the abrasive head cleaning kits (kits without cleaning solution).

Insert the diskette immediately after powering on the system, before the disk bootup. Allow the diskette drive heads to clean for about 30 seconds.

Page 65

Maintenance and Troubleshooting 4-3

Keyboard Cleaning

As necessary, inspect and clean the inside of the keyboard as follows.

Remove the eight screws holding the keyboard enclosure together.

NOTE:

considered a whole-unit, field-replaceable assembly. Therefore, disassembly of the keyboard is necessary only when cleaning the inside.

Separate the two halves of the enclosure. Clean the enclosure and keys with a damp cloth. A small, soft-bristle brush may be used to clean between the keys. Do not wet or dampen the keyboard’s printed circuit board (PCB). If the PCB accidentally gets wet, thoroughly dry it before reattaching the keyboard to the system unit.

The keyboard and cable together are

Mouse Cleaning

Under normal conditions, the mouse has a self-cleaning mechanism that prevents a buildup of dust or lint around the mouse ball and tracking mechanism. Periodically, however, the mouse ball must be cleaned. Use the following procedure to clean the mouse.

Unplug the mouse from the system.

Turn the mouse upside down and locate the mouse ball cover (see Figure 4-1).

Page 66

4-4 Maintenance and Troubleshooting

Turn the ball cover clockwise and remove the cover.

Figure 4-1 Removing the Mouse Ball Cover

Turn the mouse over and remove the ball.

Clean the mouse as follows:



Clean the mouse ball with tap water and a mild detergent, then dry it with a lint-free cloth.

Remove any dust and lint from the mouse socket.



Replace the mouse ball in its socket.

Replace the ball cover and turn it counterclockwise until it locks in place.

Page 67

Maintenance and Troubleshooting 4-5

TROUBLESHOOTING

This subsection provides information that helps isolate and repair system malfunctions at the field level. Step-by-step instructions for diagnosing and solving system hardware problems are provided. Technical support is available at 1-888-632-2678.

If disassembly is required, see Section 5. Connector pin assignments are given in Appendix B. Jumper settings are given in the appendices.

Diagnosing and Solving Problems

One beep indicates that the system has completed its power-on self-test (POST) test. If intermittent beeping occurs, power off the system and try again. If the beeping persists, see Table 4-2 and Table 4-3. The following table summarizes problems that may develop during system operation and lists (in sequential order) suggested corrective actions.

Table 4-2 Problems and Solutions

Problem Symptom Solution

No power Power lamp on computer

status panel will not light.

Power suppl malfunction

Front panel lamps out, diskette

of the following conditions

could occur:

and/or hard drives do not spin, monitor blank, interface ports not workin lamp out and/or cannot input from keyboard.

, and keyboard

1. Check that the power cord is plugged into the AC connector on the computer.

Check that the other end of the cord is

ed into a live properly grounded

plu AC power outlet.

2. Check cable connections between the power supply and system board.

3. Systematically eliminate possible shorted PCBs b expansion boards.

4. Check the +5 and +12 power supply es (see Appendix B, “Connector

volta Pin Assi with the system board installed.

5. Replace the power supply.

6. Replace the system board.

1. Perform steps 1 through 4 listed in

this table under No Power.

2. Check power supply voltages.

Volta load on them (s See Appendix B for connector pin assignments.

nments”). Measure voltages

es should be measured with a

removing cables and

stem board plugged in).

3. Replace the power supply.

Page 68

4-6 Maintenance and Troubleshooting

Table 4-2 Problems and Solutions

Problem Symptom Solution

Operating system does not boot

“Invalid Configuration”

Computer halts during loadin

Intermittent beeping at poweron. Computer beeps more than once and is unable to complete bootup.

message displayed.

sequence.

1. Check system configuration (see

Section 2).

2. Check all jumper settings and verify

that drives are enabled (see appendices and Section 2).

3. Reseat DIMMs and option boards in

their connectors. Inspect s for dropped objects.

4. Remove option boards and reboot.

5. Replace system board.

1. Press

parameters.

2. Replace the CMOS battery if the date

and time must be set each time the computer is powered on.

1. Power the computer off. Check for

proper jumper settin appendices), then power on the computer.

to run Setup and correct the

stem board

s (see

Diskette drive does not work

Lamp on drive panel does not light when diskette is loaded.

2. Check condition of selected bootload

device (diskette or hard disk) for bad boot track or incorrect OS files.

3. Try booting OS from diskette or

recopy OS files onto hard disk.

4. Verify correct hard disk is selected.

1. Check power and signal cable

connections between diskette drive, system board, and power supply.

2. Check diskette drive jumpers.

3. Check diskette cable. Replace as

necessary.

4. Check power supply.

. Replace diskette drive.

6. Replace system board.

Page 69

Maintenance and Troubleshooting 4-7

Table 4-2 Problems and Solutions

Problem Symptom Solution

Hard drive malfunction

Hard drive controller failure

Cannot access hard disk.

Memor malfunction

Hard drive lamp does not light but hard drive can be accessed.

message displayed.

Total memory not recognized.

1. Check cable connections between

lamp and system board.

1. Check that the IDE port and hard

drives are enabled in Setup.

1. Check signal/power connections

between hard disk, s supply.

2. Check hard drive jumper settings.

3. Check power supply.

4. Check hard disk cable and hard disk.

Replace as necessary.

5. Replace system board (or hard disk

controller board if the s controller is not used).

1. Reseat DIMMs.

2. Systematically swap DIMMs.

3. Check to see if the DIMM

configuration is valid (see Section 3).

stem board, power

stem board

Modem board malfunction

Keyboard or mouse malfunction

No output from board.

Monitor has prompt, but cannot input data.

4. Replace DIMMs.

5. Replace system board.

Check interrupts (see Appendix C).

Check DMA channels (see Section 1).

1. Check that keyboard/mouse is

plugged in.

2. Check password (see Section 2).

3. Disable password (see Appendix C).

4. Replace keyboard (or mouse).

5. Replace system board.

Page 70

4-8 Maintenance and Troubleshooting

Table 4-2 Problems and Solutions

Problem Symptom Solution

Monitor malfunction

Wavy display.

Blank display.

Unable to synchronize display.

1. Adjust the monitor’s synchronization

controls.

2. Check that the monitor’s resolution

matches the video settin driver used.

3. Check that the utility is not selecting a

refresh rate/resolution that is not supported by the monitor.

4. Check that the driver used matches

the capabilities of the video controller and memory.

1. Check that the computer and monitor

are not near motors or electric fields.

1. Press any key or move the mouse to

ensure power mana blanked the display.

. Check that the monitor power switch

is on.

3. Check that the monitor cable is

attached to the video connector at the back of the system.

or the video

ement has not

4. Check cable connections between the

AC power supply and monitor.

5. Adjust brightness and contrast

controls on the monitor.

6. Check cable connections between the

monitor connector and the s board.

7. Replace system board.

8. Replace monitor.

stem

Page 71

Maintenance and Troubleshooting 4-9

Table 4-2 Problems and Solutions

Problem Symptom Solution

CD-ROM/DVD drive malfunction

Disc tray does not open.

Cannot access CD-ROM/DVD

System power not on.

drive.

. Turn system power on.

1. System power not on. Turn system

power on.

2. System power failed. Insert about an

inch of a strai

ency eject hole, until the tra

emer opens.

. Check that the driver software is

loaded and not corrupted.

Check signal and power connections between the reader, s power supply.

Check the master/slave jumper settings.

Check the IDE cable. Replace as necessary.

Check the power supply. Replace as necessary.

htened paper clip into the

stem board, and

No sound from CDs.

Zip drive malfunction

Cannot access Zip drive.

System power not on

Check the system board. Replace as necessary.

Check that speaker power is on and volume is adjusted.

Check audio software settings.

Check the CD disc.

Check the drive audio cable. Replace as necessary.

Replace the CD-ROM/DVD drive.

Replace the system board.

Turn system power on.

. Check that the Zip drive driver

software is loaded and not corrupted.

Check signal and power connections between the Zip drive, s and power supply.

Check the master/slave jumper settings.

stem board,

Page 72

4-10 Maintenance and Troubleshooting

Table 4-2 Problems and Solutions

Problem Symptom Solution

Communication error

No or bad data when communicating.

Check the IDE cable. Replace as necessary.

Check the power supply. Replace as necessary.

Check the system board. Replace as necessary.

. Check cable connections between

system board and device.

. Check that the interface port is

selected.

. Test or replace the device and interface cable (see the device documentation for troubleshooting).

. Replace the system board.

Page 73

Maintenance and Troubleshooting 4-11

Beep Codes

During boot up, the computer performs a series of POST (Power On Self Test) routines. A beep code may appear when an error is detected. There are fatal and nonfatal errors. The fatal errors include BIOS, CMOS, DMA, RAM, video, and keyboard controller errors. The nonfatal errors include timer tick interrupt, shutdown test, unexpected interrupt in protected mode, gate A20, RAM test, interval timer channel 2 test, clock, serial and parallel port test, numeric processor, system board select, and extended CMOS RAM.

The following table provides a description of the beep codes.

Table 4-3 Beep Code Descriptions

Beeps Description

1-2 Search for option ROMs 1-2-2-3 BIOS ROM checksum

1-3-1-1 Test DRAM refresh 1-3-1-3 Test keyboard controller 1-3-3-1 Autosize DRAM

1-3-3-2 Initialize POST memory manager 1-3-3-3 Clear 512 KB base RAM 1-3-4-1 RAM failure on address line xxxx 1-3-4-3 RAM failure on data bits xxxx of low byte of memory bus 1-4-1-1 RAM failure on data bits xxxx of high byte of memory bus 2-1-2-2 2-1-2-3 2-2-3-1 Test for unexpected interrupts 2-2-4-1 Test RAM between 512 KB and 640 KB

POST device initialization Check ROM copyright notice

Page 74

4-12 Maintenance and Troubleshooting

CMOS Battery Replacement

Remove the 3-volt lithium battery from the system board as follows.

Turn off and unplug the system unit and any external options connected to the system.

the system board causes the computer to lose system configuration information. If possible, run Setup and record the system configuration settings before removing the battery. Use that information to restore the system after replacing the battery.

Remove the system access cover.

CAUTION: Removing the battery from

Locate the battery and its socket on the system board (see Figure 4-2).

Figure 4-2 Locating the Battery

Use fingers to carefully pull the battery up until it is clear to slide the battery out

of the socket.

Page 75

Maintenance and Troubleshooting 4-13

WARNING: The battery can explode if

it is i ncorrectly replaced or improperly discarded. Use only the same battery or an equivalent type recommended by the manufacturer when replacing the battery. Lithium acts as a catalyst when exposed to water and causes spontaneous combustion on contact. Discard used batteries according to the manufacturer’s instructions.

With the positive (+) side facing up, press the new battery into the socket.

Replace the system access cover.

Connect external peripherals and power cables.

Run Setup to reconfigure system parameters (see Section 2).

Page 76

Section 5

Disassembly and Reassembly

This section contains step-by-step disassembly procedures for the system unit. Reassembly is the reverse of disassembly. The procedures are supported by simplified disassembly illustrations to facilitate removal.

A Phillips-head screwdriver is the only required tool. For complete disassembly of the system unit, follow the disassembly order listed intable 5-1. To reassemble, follow the table and procedures in reverse order.

Individual removal procedures do not require the total disassembly of the computer. Each of the following subsections lists the parts that must be removed before beginning the removal procedure.

Table 5-1 Disassembly Sequence

Sequence Part See Page

1 System access cover 5-2 2 Expansion board(s) 5-2 3 Front panel 5-3 4 Side panel 5-4 5 Device cage 5-4 6 Diskette drive 5-4 7 5 1/4-inch device 5-5 8 Optional 3 1/2-inch hard disk drive 5-6 9 Standard 3 1/2-inch hard disk drive 5-7 10 Fan assembly 5-8 11 DIMM module 5-8 12 Power supply 5-9 13 System board 5-10

Page 77

5-2 Disassembly and Reassembly

When disassembling the system unit, follow these general rules.



Disconnect all peripherals. When handling boards or chips, touch the system unit frame to discharge static.



Do not disassemble parts other than those specified in the procedure.



Use a Phillips-head screw driver, unless otherwise specified. Label all removed connectors. Note where the connector goes and in what



position it was installed.

On completion of any reassembly, perform a power-on self-test (see Section 4, “Maintenance and Troubleshooting”). If a fault occurs, verify that the reassembly was performed correctly.

CAUTION: When handling boards or

chips, ground yourself to release static.

DISASSEMBLY

Use the following procedures to disassemble the system unit.

NOTE: Unplug the power cord before disassembling the system unit. Voltage is present inside the system unit even after the power is off. All voltage is removed only when the power cord is unplugged.

System Access Cover

To remove and replace the system access cover, see Section 3.

Expansion Board Removal

Remove any installed expansion board(s) per the following steps.

Remove the system access cover as described in Section 3.

Disconnect any cables leading from the expansion board(s).

Remove the screw that secures the board to the support bracket.

Pull the board out of the connector. Gently rock the board from side-to-side to

release it from its connector (see Figure 5-1).

Page 78

Disassembly and Reassembly 5-3

Figure 5-1 Removing a Board

Front Panel Removal

Remove the front panel from the system unit as follows.

Locate the two plastic tabs at the front of the chassis. They are indicated by two arrows engraved on the chassis.

Press down on the two tabs and press in a third tab at the end of the panel to release the panel (see Figure 5-2).

Figure 5-2 Releasing the Front Panel

Pull the panel away from the chassis.

Page 79

5-4 Disassembly and Reassembly

Side Panel Removal

Remove the side panel from the system unit as follows.

Remove the system access cover and front panel as previously described.

Locate the two side panel securing tabs at the front of the system.

Pull the tabs out and away from the system.

Slide the side panel towards the rear of the unit and away from the unit.

Device Cage Removal

Remove the device cage from the system unit as follows.

Label and disconnect any cables connected to devices in the device cage.

Locate the screw on the front of the system between the 3.5-inch blank panel and diskette drive (see Figure 5-3). Remove the screw.

Figure 5-3 Locating the Device Cage Screw

Slide the cage towards the front of the system and lift it out of the unit.

Diskette Drive Removal

Remove the standard diskette drive from the system unit as follows.

Remove the system access cover and front panel as previously described.

Label and unplug the signal and power cables for the diskette drive.

Page 80

Disassembly and Reassembly 5-5

Locate the two clips at the front of the system that secure the diskette drive.

Figure 5-4 Locating the Two Diskette Drive Clips

Squeeze the two clips and pull the diskette drive out of the front of the system.

5 1/4-Inch Device Removal

Remove an optional 5 1/4-inch device from the system unit as follows.

Remove the system access cover, front panel, and the device cage as previously

described. Label and unplug the signal and power cables from the optional device in the

5 1/4-inch device cage. Unplug the audio cable from an optional CD ROM driver.

Page 81

5-6 Disassembly and Reassembly

Remove the screws holding the device in the cage (see Figure 5-5).

Figure 5-5 Removing the 5 1/4-Inch Device Screws

Slide the device out from the front of the system unit.

Optional 3 1/2-Inch Hard Disk Drive Removal

Remove the optional 3 1/2-inch hard disk drive as follows.

Remove the system access cover and front panel as previously described.

Label and unplug the hard disk drive power and signal cables from the hard disk

drive. Remove the two screws securing the 3 1/2-inch hard disk bracket to the front of

the system unit (see Figure 5-6).

Figure 5-6 The 3 1/2-Inch Device Bracket Screws

Page 82

Disassembly and Reassembly 5-7

Slide the 3 1/2-inch hard disk bracket towards the back of the system unit until it

is free of the molded plastic. Remove the screw on the side of the hard disk securing it to the bracket.

Figure 5-7 Removing the Securing Screw

Slowly pull the hard disk away from the bracket and lift the disk out of the two

securing tabs on the opposite side of the bracket.

Standard 3 1/2-Inch Hard Disk Drive Removal

Remove the standard 3 1/2-inch hard disk drive as follows.

Remove the system access cover and front panel as previously described.

Unplug the hard disk drive power and signal cables from the optional hard disk

drive. Locate the two screws securing the 3 1/2-inch hard disk drive in the molded

plastic cage at the front of the system. Remove the screws. Release the two plastic clips inside the plastic cage holding the drive in place and

slide the drive up and out of the cage.

Page 83

5-8 Disassembly and Reassembly

Figure 5-8 Removing the Drive

Fan Assembly Removal

Remove the fan assembly per the following steps.

Remove the system access cover per Section 3.

At the rear of the system unit, press in on the two locking tabs securing the assembly to the chassis.

Remove the fan by pulling it outward away from the system board.

DIMM Module Removal

Remove any optional DIMM modules from the system board as follows.

Remove the system access cover and any expansion boards as previously described.

Press the locking clips at the ends of the socket away from the DIMM memory module (see Figure 5-9).

Gently rock the module while pulling it up from the socket.

Page 84

Disassembly and Reassembly 5-9

Figure 5-9 Removing a DIMM

When installing a DIMM module, align the notches on the module with the keys in the memory socket, insert the module, and press in the plastic locking clips.

Power Supply Removal

Remove the power supply as follows.

Remove the system access cover as previously described.

Label and unplug the power cable attached to the system board.

Label and unplug the power cables from all installed devices.

At the back of the system unit, remove the two screws securing the power supply to the system unit (see Figure 5-10).

Page 85

5-10 Disassembly and Reassembly

Figure 5-10 Removing the Power Supply Screws

Pull the power supply out of the system unit.

System Board Removal

Remove the system board per the following steps.

Remove the system access cover, expansion boards, fan assembly, and power

supply as previously described. Remove and label all cables connected to the system board. Appendix B provides

the connector identifiers and pin assignments for each connector. Locate and remove the one screw at the rear of the unit that secures the system

board to the system unit (see Figure 5-11).

Page 86

Disassembly and Reassembly 5-11

Figure 5-11 Removing the System Board Screw

Slide the system board towards the front of the unit until is is clear of the metal

shielding and the alignment clips. Lift the board out of the system at an angle.

If replacing the system board, remove any installed DIMMs from the board.

Reinstall the DIMMs on the new board. Replace the access cover and reconnect all the cables. Turn the system and

monitor on and note the initial boot up screen. If the displayed board’s processor speed does not match the actual processor, use the following procedure to set the system’s processor speed.

The following steps adjust the system’s processor speed.

Turn off the system and remove the access cover.

Locate jumper J8A1 on the system board.

Move the jumper block from pins 1 and 2 (normal mode) to pins 2 and 3

(configure mode). Turn on the system .The Maintenance menu appears showing the processor speed.

With the cursor on “Processor Speed,” press

and press

Enter

. Highlight the proper speed

Enter

Exit saving changes. A dialog box appears. Choose to save configuration changes

and exit. A screen with information about the jumper appears. Turn the system off.

Move the jumper block from pins 2 and 3 to pins 1 and 2.

Page 87

5-12 Disassembly and Reassembly

ILLUSTRATED PARTS BREAKDOWN

This section contains the illustrated parts breakdown (IPB) and NEC CSD part numbers for the Direction SP B-Series desktop and minitower computers.

Table 5-2 lists the field-replaceable parts for the desktop and Figure 5-12 provides the illustrated parts breakdown. Table 5-3 lists the field replaceable parts for the minitower and Figure 5-13 provides the illustrated parts breakdown.

Table 5-2 Direction SP B-Series Desktop Field-Replaceable Parts List*

Item Description Part Number

1 Keyboard, Ergo 229-00012 2 32x CD-ROM drive 730330 3a Ditto 3200 tape drive, backup 320547 3b Iomega Jazz drive 221-00018 4 Iomega ATAPI Zip drive 320703 5a 4.3-GB hard drive, IDE UDMA 300856 5b 6.4-GB hard drive, IDE UDMA 300857 5c 8.4-GB hard drive, IDE UDMA 300858 5d 9.1-GB hard drive, IDE UDMA 300833 5e 11.4-GB hard drive, IDE UDMA 300851 5f 14.4-GB hard drive, IDE UDMA 300849 5g 16.8-GB hard drive, IDE UDMA 300850 5h 9.1-GB SCSI hard drive 300689 6 3.5-inch diskette drive 219-00012 7 Microphone 232-00011 8 Speaker 158-056684-000 9 Left side cover 158-056682-000 10 Top cover (access cover) 158-056680-000 11 Front panel 158-056678-000 12 Right side cover 158-056681-000 13 Power supply - Sparkle 190300 14a Altec Lansing speakers, ACS90 160312 14b Altec Lansing speakers, ACS45 160314

____________

* This data was prepared June 1998. For an up-to-date listing of spare parts, please call FaxFlashSM at 1-888-329-0088 (or 1-978-635-6090 outside the U.S.) and order document 42102083.

Page 88

Disassembly and Reassembly 5-13

Table 5-2 Direction SP B-Series Desktop Field-Replaceable Parts List*

Item Description Part Number

14c Altec Lansing speakers, ACS410 160313 14d Altec Lansing speakers, ACS251 160315 15 Fan assembly 158-056683-000 16 Video board, V330 AGP 060214 17a 56-Kbps modem board 090134 17b 56-Kbps Winmodem 090304 18a 3C509B network board 203-00003 18b 3COM PCI 10/100 3C905TX ethernet board 204-00001 19a 2940 Adaptec UW SCSI adapter board 207-00121 19b 2930B S Adaptec SCSI adapter board 030295 20 Diskette drive signal cable 070114 21 IDE signal cable 233-00026 22 Cable, audio internal, dual MPC 070808 23 SCSI cable 233-00133 24 Microsoft Mouse 230-00026 25 Retention mechanism kit 130083 26a 350-MHz Pentium II with active heatsink 202989 26b 400-MHz Pentium II with active heatsink 202899 Top bar heatsink (not shown in figure) 235-00006 27 System board 158-056740-000 28a 32-MB DIMM - non-parity 081918 28b 64-MB DIMM - non-parity 081919 29 AC power cable 070135 30 I/O shield 149763 Cable, VMI — (DVD PCI board to V330 video

board) (not shown in figure)

Cable, diskette drive, 655 mm, 3 connector (not

shown in figure)

070805

233-00013

System power switch (not shown in figure) 130047 Phone cable, modem (not shown in figure) 146585 Parallel printer cable (not shown in figure) 070829 LED and cable, dual color, power (not shown in

figure)

070834

Page 89

5-14 Disassembly and Reassembly

Table 5-2 Direction SP B-Series Desktop Field-Replaceable Parts List*

Item Description Part Number

CD, Restore, Windows 95 systems onl

(not shown in figure)

CD, Restore, Windows NT systems onl

(not shown in figure) Battery (not shown in figure) 158-060367-000 VGA loopback cable (not shown in figure) 070832 PCI video board cable (not shown in figure) 070831 PCI video board (not shown in figure) 060221 Wavetable board (not shown in figure) 030402 Zip drive cartridge (not shown in figure) 380-00002 Ditto backup unit cartridge (not shown in figure) 149747 Jazz drive cartridge (not shown in figure) 380-00102 SCSI cable, 3 connector (not shown in figure) 070833 Monitor, NEC 15”, C550 (not shown in figure) 011001 Monitor, NEC 17”, C700 (not shown in figure) 011002 Monitor, NEC 17”, A700 (not shown in figure) 010438 Monitor, NEC 19”, C900 (not shown in figure) 011027

165406

165407

Monitor, NEC 20”, LCD 2000 (not shown in

figure) SPB 350 logo plate (not shown in figure) 144762 SPB 400 logo plate (not shown in figure) 144763 Microsoft SideWinder 3D joystick (not shown in

figure) DirecPC PCI board (not shown in figure) 149834 DVD drive, Hitachi (not shown in figure) 730124 DVD PCI board, Quadrant (not shown in figure) 060212 Video board, #9 Revolution 3D, AGP (4 MB)

(Order additional 4-MB memor

060204, with this part) (not shown in figure) 4-MB memory upgrade for #9 Revolution 3D

video board (not shown in figure) Video board, #9 Reality 334, AGP (not shown in

figure)

upgrade,

011026

160409

060201

060204

060215

Page 90

Disassembly and Reassembly 5-15

Figure 5-12 Direction SP B-Series Desktop Illustrated Parts Breakdown*

____________

* This data was prepared June 1998. For an up-to-date listing of spare parts, please call FaxFlashSM at 1-888-329-0088 (or 1-978-635-6090 outside the U.S.) and order document 42102083.

Page 91

5-16 Disassembly and Reassembly

Table 5-3 Direction SP B-Series Minitower Field-Replaceable Parts List*

Item Description Part Number

1 AC power cable 070135 2 Microphone 232-00011 3 Microsoft Mouse 230-00026 4 Keyboard, Egro 229-00012 5 Cable, audio internal, dual MPC 070808 6 Diskette drive signal cable 070114 7 IDE signal cable 233-00026 8 SCSI cable 233-00133 9 Video board, V330 AGP 060214 10a 56 Kbps modem board 090134 10b 56 KbpsWinmodem 090304 11a 3C509B network board 203-00003 11b 3COM PCI 10/100 3C905TX ethernet board 204-00001 12a 2940 Adaptec UW SCSI adapter board 207-00121 12b 2930B S Adaptec SCSI adapter board 030295 13 System board 158-056740-000 14 I/O shield 149763 15a 350-MHz Pentium II with active heatsink 202989 15b 400-MHz Pentium II with active heatsink 202899 Top bar heatsink (not shown in figure) 235-00006 16 Retention mechanism kit 130083 17a 32-MB DIMM - non-parity 081918 17b 64-MB DIMM - non-parity 081919 18 Power supply -Sparkle 190300 19 Fan assembly 158-056683-000 20a Altec Lansing speakers, ACS90 160312 20b Altec Lansing speakers, ACS45 160314 20c Altec Lansing speakers, ACS410 160313 20d Altec Lansing speakers, ACS251 160315

____________

* This data was prepared June 1998. For an up-to-date listing of spare parts, please call FaxFlashSM at 1-888-329-0088 (or 1-978-635-6090 outside the U.S.) and order document 42102083.

Page 92

Disassembly and Reassembly 5-17

Table 5-3 Direction SP B-Series Minitower Field-Replaceable Parts List*

Item Description Part Number

21 Left side cover (access cover) 158-056686-000 22 Top cover 158-056685-000 23 Right side cover 158-056687-000 24 Front panel 158-056679-000 25 Speaker 158-056684-000 26a 4.3-GB hard drive, IDE UDMA 300856 26b 6.4-GB hard drive, IDE UDMA 300857 26c 8.4-GB hard drive, IDE UDMA 300858 26d 9.1-GB hard drive, IDE UDMA 300833 26e 11.4-GB hard drive, IDE UDMA 300851 26f 14.4-GB hard drive, IDE UDMA 300849 26g 16.8-GB hard drive, IDE UDMA 300850 26h 9.1-GB SCSI hard drive 300689 27 32x CD-ROM drive 730330 28 Iomega ATAPI Zip drive 320703 29 3.5-inch diskette drive 219-00012 30a Ditto 3200 tape drive, backup 320547 30b Iomega Jazz drive 221-00018 Parallel printer cable (not shown in figure) 070829 LED and cable, dual color, power (not shown in

figure) Cable, VMI — DVD PCI board to V330 video

board) (not shown in figure) Cable, diskette drive, 655 mm, 3 connector (not

shown in figure) System power switch (not shown in figure) 130047 Phone cable, modem (not shown in figure) 146585 VGA loopback cable (not shown in figure) 070832

070834

070805

233-00013

PCI video board cable (not shown in figure) 070831 PCI video board (not shown in figure) 060221 Wavetable board (not shown in figure) 030402 Zip drive cartridge (not shown in figure) 380-00002

Page 93

5-18 Disassembly and Reassembly

Table 5-3 Direction SP B-Series Minitower Field-Replaceable Parts List*

Item Description Part Number

Ditto backup unit cartridge (not shown in figure) 149747 Jazz drive cartridge (not shown in figure) 380-00102 SCSI cable, 3 connector (not shown in figure) 070833 Monitor, NEC 15”, C550 (not shown in figure) 011001 Monitor, NEC 17”, C700 (not shown in figure) 011002

Monitor, NEC 17”, A700 (not shown in figure) 010438 Monitor, NEC 19”, C900 (not shown in figure) 011027 Monitor, NEC 20”, LCD 2000 (not shown in

figure) Cable, CD-ROM, audio (not shown in figure) 070112 Microsoft SideWinder 3D joystick (not shown in

figure) SPB 350 logo plate (not shown in figure) 144762 SPB 400 logo plate (not shown in figure) 144763 DVD drive, Hitachi (not shown in figure) 730124 DVD PCI board, Quadrant (not shown in figure) 060212 DirecPC PCI board (not shown in figure) 149834 Video board, #9 Revolution 3D, AGP (4 MB)

(Order additional 4-MB memor

060204, with this part) (not shown in figure) 4-MB memory upgrade for #9 Revolution 3D

video board (not shown in figure) Video board, #9 Reality 334, AGP (not shown in

figure)

upgrade,

011026

160409

060201

060204

060215

Page 94

Disassembly and Reassembly 5-19

Figure 5-13 Direction SP B-Series Minitower Illustrated Parts Breakdown*

____________

* This data was prepared June 1998. For an up-to-date listing of spare parts, please call FaxFlashSM at 1-888-329-0088 (or 1-978-635-6090 outside the U.S.) and order document 42102083.

Page 95

5-20 Disassembly and Reassembly

Table 5-4 lists Direction SP B-Series memory options.

Table 5-4 Direction SP B-Series Memory Options

Description Part Number

32-MB DIMM (non-parity) 081918 64-MB DIMM (non-parity) 081919

Table 5-5 lists the Direction SP B-Series documentation.

Table 5-5 Direction SP B-Series Documentation*

Description Part Number

Direction SP B-Series User’s Guide 102083-01 Direction SP B-Series Service and Reference

Manual

102083-SRV

____________

* This data was prepared June 1998. For an up-to-date listing of spare parts, please call FaxFlashSM at 1-888-329-0088 (or 1-978-635-6090 outside the U.S.) and order document 42102083.

Page 96

Appendix A

System Specifications

This section describes the system specifications.

Processor

Microprocessor  350-MHz or 400-MHz Pentium II MMX Clock Rate

350 MHz internally, 100 MHz externally



400 MHz internally, 100 MHz externally

Processor Support



32-bit addressing



64-bit data

Primary Cache  32 KB of internal write-back cache on processor Secondary Cache  512 KB of pipeline burst cache Processor Mounting



Processor subsystem is inserted into slot 1 on the system board.



A 242-pin edge connector is implemented on the processor card for system board installation.



Retension Mechanism (RM) is inserted over slot 1 to act as an insertion guide and prevent movement of processor after subsystem mounting.



For thermal protection, a heatsink is supported by a Heat Sink Support (HSS), which is attached to the system board.

Random Access Memory (RAM)

Standard RAM  32 MB to 384 MB of PC100 SDRAM installed in industry-standard DIMM sockets on system board

Total Memory  support for up to 384 MB of high-speed PC100 SDRAM DIMM type  gold-plated, dual in-line modules (DIMMs) Expansion  expandable using the following modules:

Page 97

A-2 System Specifications

1-Mbit by 64 or 1-Mbit by 72 (8-MB DIMM)



2-Mbit by 64 or 2-Mbit by 72 (16-MB DIMM) 4-Mbit by 64 or 4-Mbit by 72 (32-MB DIMM)



8-Mbit by 64 or 8-Mbit by 72 (64-MB DIMM)



16-Mbit by 64 or 16-Mbit by 72 (128-MB DIMM).

Read-Only Memory (ROM)

Flash ROM  2 Mbit

Window RAM (WRAM)

Standard video memory  4 MB video memory on the video board

Calendar Clock

Year/Month/Day/Hour/Minute/Second/.01 Second; maintained by battery backup Battery Type  Real Time Clock (RTC) battery

Input/Output (I/O) Facilities

Integrated Industry-Standard Interfaces



Parallel  bidirectional, ECP/EPP support; one 25-pin connector



Serial  two high-speed RS-232C ports using 16C550-compatible UARTs, supports transfer rates up to 115.2 Kbits per second; 9-pin connectors



Universal Serial Bus (USB)  two USB ports, support two USB peripherals directly to the system; with appropriate connector, each port supports up to 127 daisy-chained devices; supports 12 megabits (Mbs) per second



Keyboard  PS/2-compatible, 6-pin connector (mini DIN)



Mouse  PS/2 compatible, 6-pin connector (mini DIN)



IDE  dual IDE channels  two fast IDE channels

 CD-ROM drive and hard disk on separate channels  support for up to 33 MB/second 32-bit transfers on PCI bus  support for a total of four IDE devices; 40-pin connectors  support for PIO mode 3 and mode 4, multiword DMA2, Ultra DMA33



Diskette Drive  supports two devices, 34-pin connector

Page 98

Expansion Slots

I/O Bus  PCI/ISA Six expansion slots

One 8-/16-bit ISA slot



Three 32-bit PCI slots



One shared ISA/PCI slot



One AGP slot



Keyboard and Mouse

Keyboard  Windows 95 enhanced, PS/2-compatible



Function Keys  12 keys, capable of up to 48 functions



Status Lamps  numeric lock, capital lock, and scroll lock keys



Numeric Keypad  standard

System Specifications A-3



Separate Cursor Control Keys  standard

Mouse  PS/2®-compatible; six-pin connector

Storage Devices

Accessible Devices



3 1/2-inch, 1.44-MB diskette drive



CD-ROM/DVD drive



Zip Drive  Iomega Zip 100 ATA drive on some systems; removable 100-MB data disks; data transfer rate up to 1.4 MB per second

Device Slots

Seven device slots:



a 3.5-inch accessible device slot contains the standard 1.44-MB diskette drive



one internal 3.5-inch hard drive slot for the hard drive, a second internal 3.5-inch hard drive slot is available



four accessible device slots  One accessible 5.25-inch device slot contains the standard CD-ROM/DVD

drive

 One accessible 5.25-inch device slot

Page 99

A-4 System Specifications

 Two 3.5-inch device slots; the lower 3.5-inch slot is not accessible on the

desktop model

Graphics

Video Memory  4 MB Support for High Color at 1024 by 768, 800 by 600, 640 by 480, and True Color at 800 by

600 and 640 by 480

Graphics Support (with 4 MB video memory)



1280 by 1024 pixels, 256 colors 1024 by 768 pixels, 256/64,000 colors 800 by 600 pixels, 256/64,000/16.8 million colors 640 by 480 pixels, 16/256/64,000/16.8 million colors Text



80 columns by 25 lines 132 columns by 25 lines 132 columns by 43 lines

Sound System

Audio integrated on system board based on the Crystal CS4236B and CS4611 chips or optional upgrade board AWE64D (in some systems)

Compatible with Sound Blaster®, Sound Blaster Pro™, and Microsoft® Windows



Sound System™ for PC sound applications



Stereo jacks  microphone in, line in, line out



Symmetrical mixer



FM music synthesizer



Advanced power management



Plug and Play compatibility

Dimensions

System Unit



Height  17.1 in. (43.43 cm)



Desktop Width  6.5 in. (16.51 cm)

Page 100

System Specifications A-5

Minitower Width  7.8 in. (19.81)



Depth  17.3 in. (43.94 cm)



Keyboard

Height  1.6 in. (4.1 cm)



Width  19.0 in. (48.3 cm)



Depth  8.4 in. (21.3 cm)

Weight

The following weights are averages. Weights depend upon the system configuration. System Unit  27.5 lb (12.46 kg)

Keyboard  3.5 to 4 lb (1.6 to 1.8 kg)

Power

Universal Power Supply  235 W Power Management  Partial- and full-power reductions, Sleep button

Recommended Operating Environment

Temperature  50°F to 95°F (10°C to 35°C) Relative Humidity  20% to 80%
