Aterm MR03LN
Instruction Manual
Contents
Contents ........................................................................................ 2
Important Product Information ....................................................... 3
Safety Instructions ......................................................................... 4
Notice ............................................................................................ 8
1. Package Contents ................................................................. 11
3. Part Names and Functions ................................................... 12
4. Using microSIM .................................................................... 14
5. Attaching and Detaching the Battery Pack ........................... 15
6. Network Setup ...................................................................... 16
7. Web Setting .......................................................................... 17
8. Products Specifications ........................................................ 19
Windows® and Windows 7® are registered trademarks of Microsoft
Corporation in the United States and other countries.
Windows 7® is an operating system.
Copyright© NEC AccessTechnica, Ltd. 2013
2
Important Product Information
Important safety information regarding radio frequency (RF)
exposure and use when worn
The product “MR03LN”is declared to conform with the essential requirements
of European Union Directive 1999/5/EC Radio and Telecommunications
Terminal Equipment Directive 3.1(a), 3.1(b) and 3.2.
This wireless portable device complies with the EU requirements for exposure
to radio waves.
Your wireless portable device is a radio transceiver and receiver. It is designed
not to exceed the SAR*(Specifc Absorption Rate) limits** for exposure to
radiofrequency (RF) energy by European Union Directives.
The Max. SAR* value is 1.04W/kg (10 g) when it is worn on the body. To
comply with the RF Exposure limits
a distance of greater than 1.5cm must be maintained from the user's body.
While there may be differences between the SAR* levels of various wireless
portable devices and at various positions, they all meet*** the EU
requirements for RF exposure.
* The exposure standard for wireless portable devices employs a unit of
measurement known as the Specifc Absorption Rate, or SAR.
** The SAR limit recommended by the International Commission on
Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of
tissue.
*** Tests for SAR have been conducted using standard operating positions
with the transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the wireless portable device while
operating can be well below the maximum value. This is because the
wireless portable device is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the
closer you are to a base station antenna, the lower the power output.
We, NEC AccessTechnica, Ltd. hereby, declare that the residential
gateway model MR03LN is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
3
Safety Instructions
Please read these Safety Instructions carefully before using this product.
These Safety Instructions show items that must be followed to prevent danger
to any person and damage to property. Alert symbols below are important to
fully understand these Safety Instructions.
Alert symbols in this instruction manual
Indicates a hazardous situation which could
Warning
Caution
Other alert symbols
■ Warnings and cautions
：
result in death or serious injury.
Indicates a situation which could result in
：
minor injury or physical damage.
Flammable
■ Prohibited actions
General
Battery
Electric shock
No disassembly No water No wet hands No naked flames
High Temperature
Warning
●Do not get any metal objects such as wire come into
contact with the battery terminal.
Do not carry or store the terminal together with any metal
objects such as a necklace.
Ignition, explosion, overheating or leakage of the battery
pack may result.
4
distortion caused by a drop or scratches, never use the
p using the terminal and keep away from the open fire.
Warning
●Do not attach the battery pack forcibly if you are having
trouble attaching it. When attaching the battery pack,
check the direction of the battery pack.
Ignition, explosion, overheating or leakage of the battery
pack may result.
●Do not throw the battery pack into fire.
Ignition, explosion, overheating or leakage of the battery
pack may result.
●Do not pierce the battery pack with a nail, hit it with a
hammer or step on it.
Ignition, explosion, overheating or leakage of the battery
pack may result.
●If the battery fluid gets into your eyes, immediately flush
with clean water and consult a doctor. Do not rub the
eyes. Otherwise, blindness may result.
●If you find any trouble on the battery pack such as
battery pack.
Ignition, explosion, overheating or leakage of the battery
pack may result.
●If the battery leaks or emits unusual odor, immediately
sto
Otherwise, the leaked battery fluid may ignite, resulting in
fire or burst.
●Be careful not to let your pets bite the battery pack.
Otherwise, Ignition, explosion, overheating or leakage of
the battery pack may result.
5
Warning
In these cases
●Do not dispose of old batteries with ordinary household
waste.
Ignition or environmental damage may result.
Cover the battery terminals with a non-conductive tape
and dispose of them in accordance with local waste
disposal regulations.
●Do not use or charge a wet battery pack.
Ignition, explosion, overheating or leakage of the battery
pack may result.
●If the liquid inside the battery pack leaks out, keep the
liquid away from your skin such as face or hands.
Otherwise, blindness or injury to your skin may result.
If the liquid gets into your eyes or mouth, or attaches to
your skin or clothing, flush with clean water immediately.
If the liquid gets into your eyes or mouth, immediately
flush with water and then consult a doctor.
6
Warning
Other warnings
●Turn off this product in any place where use of a wireless
device is prohibited, for example in an airplane or
hospital. Otherwise, it may influence electronics and
medical devices, and cause an incident.
●Do not place or use this product near high-precision
electronics or devices which handle weak signals, for
example pacemakers. Otherwise, electronics such as
pacemakers may malfunction. Do not use this product
near medical electronics, or in any place where you are
prohibited from using this product, for example in a
hospital.
● Do not place this product near vases, pots, cups,
cosmetics, vessels with chemicals or water, or near any
small metal objects (staples etc.) which could fall through
the ventilation slots. If this product gets wet or a short
circuit occurs, it may cause a fire, electric shock or
malfunction.
●Do not place or use this product in a humid location such
as a bathroom and humidifier. Otherwise, a fire, electric
shock or malfunction may occur.
7
Notice
Indicates a situation which could result in this product performing poorly or
malfunctioning.
What you must not do
●Do not drop or hit this product. Otherwise, it may malfunction.
● Do not leave this product in a cold place such as an ice
warehouse. Otherwise, this product may operate abnormally.
●Disconnect all cords before moving this product. Otherwise, it may
malfunction.
●This product may operate abnormally if the connecting cords are
disconnected when it is on, or if the connection is unstable. When
this product is on, do not touch the connecting parts.
●Do not turn on this product immediately after you turn it off. Wait at
least 10 seconds to restart. It may not turn on if you attempt to turn
it back on immediately.
8
Other warnings
● If you turn off or disconnect this product during data
communication, communication may fail or data may be damaged.
If your data are important, check them against the original.
Notes on wireless LAN
●The standard values of wireless LAN are the maximum theoretical
values when communication is carried out with other products with
the same configuration as this product. The standard values may
not indicate the actual data transfer rate.
●The interconnectivity of this product with other products is not
guaranteed.
● Wireless LAN transmission distance and transmission speed
varies greatly depending on objects in the surrounding
environment such as walls and furniture.
9
Security notes on wireless LAN products
Wireless LAN has the advantage of a LAN connection without the
use of LAN cables if the device is placed within the reach of radio
waves. You can send and receive information between devices that
use radio waves such as a computer and the wireless LAN access
point (base unit). On the other hand, you may encounter the
following problems if you do not complete the settings related to
security because the radio waves reach beyond all obstacles such
as walls if within a certain range.
●Interception of information: Some malicious computer users
may intercept radio waves intentionally to discover your IDs,
passwords, credit card numbers, e-mails, etc.
●Unauthorized intrusion: Some malicious computer users may
access personal or office networks to gain personal or
confidential information and send out false data. Also, they may
intercept communication content, rewrite it, and then send it out.
Furthermore, they may send out computer viruses to destroy
data and systems.
Wireless LAN products already have security systems so there is a
low probability that any of the above problems will occur if you use
the product with these settings.
You should be fully aware of problems which may happen to you if
you do not do your security configuration. We recommend that you
use this product only after making the security setting you judge to
be necessary based on a proper understanding of the problems
which may occur if security settings are not configured.
We, NEC AccessTechnica, Ltd., do not take responsibility for any
damage caused by a security problem occurring because of a lack
of a security measure or an unavoidable issue with the wireless LAN
specifications.
In addition, we recommend changing the encryption key and PIN
code of the wireless LAN access point (base unit) on a regular basis
to ensure safe use of the wireless LAN.
10
1. Package Contents
This product package contains the following items.
□Aterm MR03LN Terminal □Battery Cover □Battery Pack
□Instruction manual
11
3. Part Names and Functions
Name
Display
Description
Right Side / Left side
<Aterm MR03LN>
(1)
(1)PPPPoooower button
(1)(1)
wer button
wer buttonwer button
Indicators
(2)USB port
(2)USB port
(2)USB port(2)USB port
(1) Power button
Hold down the button to turn on
Port
Name Display Description
(2) USB port
microUSB Connection Cable
12

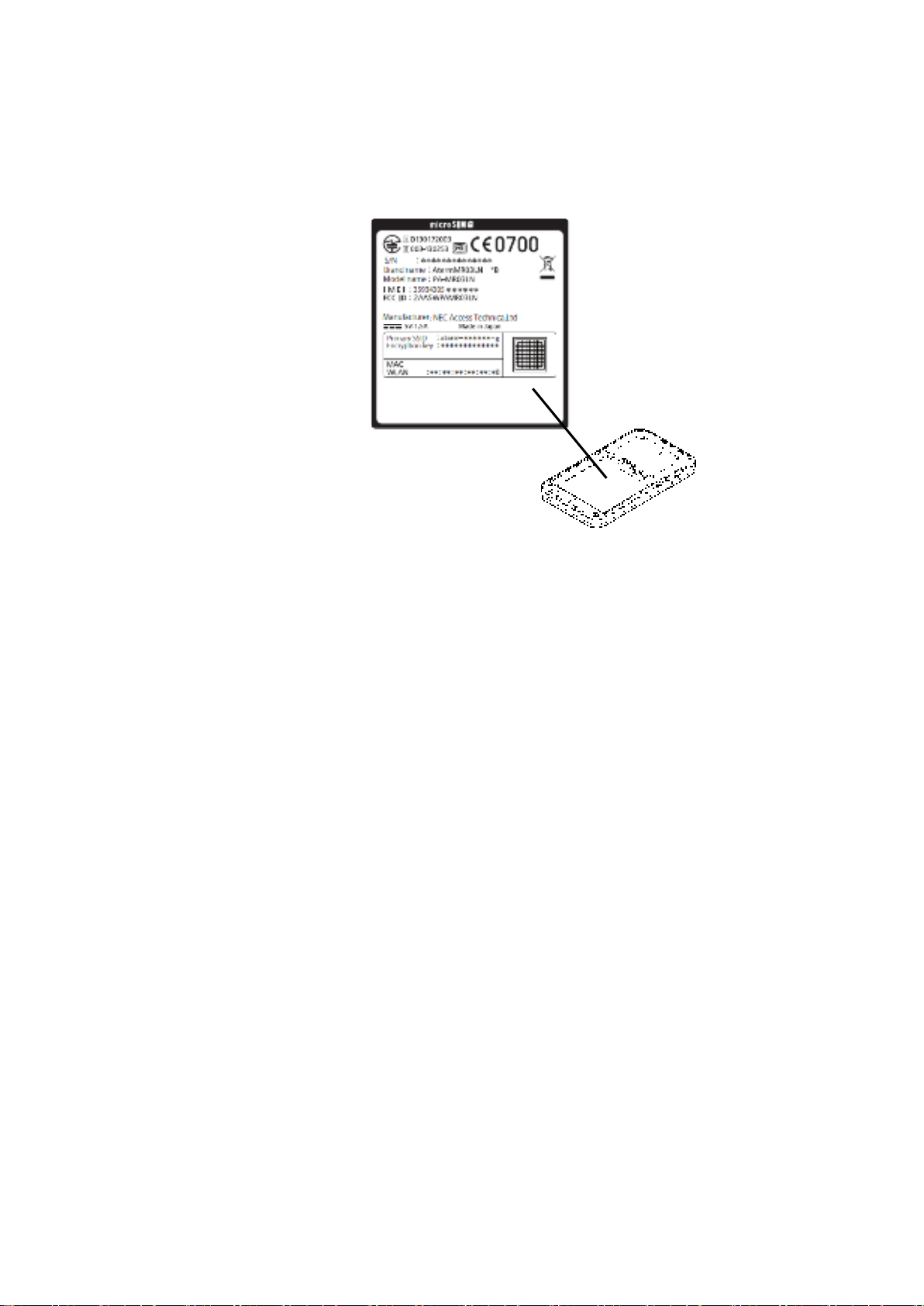

Product label
Look at the product label on
the left side of this product
to configure a wireless LAN
terminal [client].
*The label is an
Network name
example.
(SSID)
of initial state and coded key
13
4. Using microSIM
microSIM slot
A microSIM is an IC Card that stores personal information such as your phone number.
Without the microSIM installed in this terminal, you cannotuse data communication.
For details on handling the microSIM,refer to the microSIM manual.
When inseting and removing the microSIM,hold this terminal with both hands.
Inseting the microSIM
(1) With the IC chip side down, insert a microSIM under the microSIM slot
in the direction of arrow.
Removing the microSIM
(1) Slide the microSIM in the direction of arrow to remove.
14
5. Attaching and Detaching the
Battery contacts
Battery Pack
When attaching and detaching the battery pack, hold this terminal with both hands.
Attaching the Battery Pack
(1) With the “ ”side of the battery pack up, align the metal contacts of both the
Battery pack and terminal, attach the battery pack in the direction,and then
Push it down in the direction.
(2) Check the direction of the Battery cover and attach it to the terminal.
Detaching the Battery Pack
(1) Insert a fingernail into the groove at the bottom of this terminal, and pull up.
(2)
Hold the “PULL” tab of battery pack, and pull it up the direction of the arrow.
15
6. Network Setup
Wireless LAN
2G
Registering the Access Point Setting
(1) In the top menu, click ”
(2) In the submenu, click “
(3) Click “
(4) “
(5) Click “
(6) On the setting screen, set the required items.
接続先名, 接続サービス
(7) To register a new access point, click “
Connecting to Windows PC
For Windows7
(1) Turn on the wireless LAN function of a PC.
(2) Start
ネット
sharing center)”
※ネットワークのと共有センター
(3) Click “
(4) Click the item witch shows SSID set to this terminal, and click “
※
(5) In “
Security key(AES shared key) set to this terminal and click “OK”.
高度な設定を表示
国際ローミング
編集
”
⇒
(Network and Internet)”
ネットワークに接続
(Default:”aterm-:******-g)”
セキュリティキーまたはパスフレーズ
”, put a tick “
Click “
基本設定”.
接続先設定
”
, APN,
コントロールパネル
(Connect to a netwoak)”
(2G/3G)”
使用する
ユーザー名, パスワード, 暗号化方式, 接続方式
⇒ “ネットワークのと共有センター
(Netwark and sharing center) windows appers
”
設定
”
(Control panel)”
(Security key or pass phrase)”, enter
⇒ “ネットワークとインター
(Netwark and
接続
(Connect)”.
16
7. Web Setting
(1) Start the PC and others.
(2) Start a WWW browser, enter "http://192.168.179.1/" and open
the page for Web configurations.
(3) Enter the user name and password. The user name is "admin"
and the password is "1234" (default value).
(4) The "管理者パスワード変更" screen appears. Change the
administrator's password as you like, and write it down in the
"Administrator's password" box below.
Do not forget to write down your administrator's password. The
password is essential to the configuration of this product. You
need to enter the password to open the configuration screen. If
you forget the password, you will need to initialize this product.
Note that all the configurations you have saved will be deleted
during initialization.
Administrator's password
17
(5) Select the menu you want to modify, and proceed.
18
8. Products Specifications
Item
Condition
Antenna Antenna built in
HSPA Frequency
WAN
Wireless LAN
USB port
Operating conditions
Dimensions Approx. 111(W) x 64(D) x 11(H) mm
GSM850 Frequency UL:824-849MHz, DL:869-894MHz
EGSM900 Frequency UL:880-915MHz, DL:925-960MHz
DCS1800 Frequency UL:1710-1785MHz, DL:1805-1880MHz
PCS1900 Frequency UL:1850-1910MHz, DL:1930-1990MHz
Antenna Antenna built in
Frequency
IEEE802.11b
IEEE802.11g
IEEE802.11n
Physical
interface
Port 1ports
Type USB2.0
band/CH
Bit rate 1/2/5.5/11Mbps
Frequency
band/CH
Bit rate 6/9/12/18/24/36/48/54Mbps
Frequency
band/CH
Bit rate 6.5 Mbps to 300 Mbps (HT20/40)
Type micro B connector
Temperature: 0 to 35 °C
Humidity: 10 to 95%
UL:1920-1980MHz,DL:2110-2170MHz
Band1
2.4GHz (2412-2472MHz)/1-13ch
2.4GHz (2412-2472MHz)/1-13ch
2.4GHz (2412-2472MHz)/1-13ch
Power consumption 5.5W
Weight Approx. 0.11 kg
Battery pack
Model name 1UF575555S-B003A
Battery type Lithiumion battery
Nominal voltage 3.8V
Nominal capacity 2300mAh
19
Notice
(1) All rights reserved. No part of this manual may be copied or
reproduced without prior permission.
(2) Contents of this manual may change without notice.
(3) We take every possible precaution to ensure the accuracy of this
manual, but if anything is unclear or erroneous in the content,
please contact us. (http://www.necat.co.jp/)
(4) We assume no responsibility whatsoever for any failure,
malfunction, accident, trouble or damage resulting from external
causes such as erroneous operation, natural disasters, faults
power cuts, etc.
(5) Please note that we shall not be responsible for any damage
resulting from security problems if no security measures are in
place or the wireless LAN specification is insecure.
(6) If the product is damaged in accidentally through inappropriate
use or unpredictable circumstances (e.g. thunderstorms or
electric current leakage), the product may not operate properly.
Please read this manual and follow the instructions carefully.
Disposing of your used NEC product
In the European Union
EU-wide legislation as implemented in each Member State
requires that used electrical and electronic products carrying the
mark (left) must be disposed of separately from normal
household waste. This includes the residential gateway or
electrical accessories, such as the AC Adaptor.
When you dispose of such products, please follow the guidance
of your local authority and/or ask the shop where you purchased
the product.
The mark on the electrical and electronic products only applies to
the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products
outside the European Union, please contact your local authority
and ask for the correct method of disposal.
20
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the
R&TTE Directive 1999/5/EC. The following test methods have
been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
- EN 60950-1/A12: 2011
Safety of Information Technology Equipment
- EN 50566:2013
Product standard to demonstrate compliance of radio frequency
fields from handheld and body- mounted wireless communication
devices used by the general public (30 MHz — 6 GHz)
- EN 300 328 V1.8.1:2012
Electromagnetic compatibility and Radio spectrum Matters
(ERM); Wideband transmission systems; Data transmission
equipment operating in the 2.4GHz ISM band andusing wide
band modulation techniques; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive
- EN 301 511 V9.0.2:2003
Global System for Mobile communications (GSM); Harmonized
standard for mobile stations in the GSM 900 and DCS 1800
bands covering essential requirements under article 3.2 of the
R&TTE directive (1999/5/EC)
- EN 62479:2010
Assessment of the compliance of low power electronic and
electrical equipment with the basic restrictions related to human
exposure to electromagnetic fields (10 MHz to 300 GHz)
- EN 301 908-1 V6.2.1:2013
IMT cellular networks; Harmonized EN covering the essential
requirements
of article 3.2 of the R&TTE Directive; Part 1: Introduction and
common requirements
Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
3
Radiation Exposure Statement
The product comply with the FCC portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as
possible from the user body or set the device to lower output power
if such function is available.
2
NEC AccessTechnica, Ltd.
Aterm MR03LN Instruction Manual 1st Edition
9.
3
AM1-002493-001 12/2013
Loading...
