English-1
English
Declaration of the Manufacturer
We hereby certify that the colour monitors AccuSync LCD73V (L175GZ)/AccuSync LCD93V (L195GY)/LCD170V (L175GZ)/ LCD190V (L195GY) are in compliance with
RISK OF ELECTRIC SHOCK • DO NOT OPEN
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
Contents
Your new NEC LCD monitor box* should contain the following:
• LCD monitor with tilt base
• Power Cord
• User’s Manual
• CD-ROM
• Base Stand
• Cable Holder *
Remember to save your original box and packing material to transport or ship the monitor.
User’s Manual
Power Cord
Base Stand
Cable Holder LCD monitor
Captive type (Video signal
cable is connected)
CD-ROM
Quick Start
To attach the Base to the LCD Stand:
1. Insert the front of the LCD stand into the holes in the front of the
Base (Figure S.1).
2. Attach the Base to the Stand. The locking tab on the Base should
fit into the hole on the back of the Stand (Figure S.1).
To attach the Cable Holder:
1. Attach the Cable Holder on to the Base. Insert the hooks on the Cable Holder into the holes at the back of the Stand and slide the Cable Holder downward into place (Figure S.1).
NOTE: Please confirm that the tabs are completely secure.
To attach the LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable connected with the monitor to the connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the computer. Attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.2). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable
adapter.
3. Connect the power cord to the power outlet. Place the Video Signal Cable and power cord to the Cable holder (Figure B.1).
NOTE: Adjust position of cable that place under the Cable holder to
avoid damage for cable or monitor.
NOTE: Please refer to Caution section of this manual for proper
selection of power cord.
Figure S.1
Base
Locking Tabs
Stand
Figure A.1 Figure A.2
Macintosh Cable Adapter (not included)
Cable holder
Figure B.1
Cable Holder
Council Directive 73/23/EEC:
– EN 60950-1
Council Directive 89/336/EEC:
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
01_English 13/2/07, 9:44 AM1
Ofrecido por www.electromanuales.com
English-2
English
Figure C.1
Power Button
Figure TS.1
Figure R.1
Non-abrasive surface
Figure R.2
Figure R.3
4-SCREWS (M4) (MAX depth: 8.5 mm)
Weight of LCD assembly: 3.6 kg - AccuSync LCD73V/LCD170V (MAX)
4.9 kg - AccuSync LCD93V/LCD190V (MAX)
Specifications
Tighten all screws
100 mm
Thickness of Bracket (Arm) 2.0 ~ 3.2 mm
Controls
OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:
1. Basic function at pressing each key
Showing OSM. Shortcut to Bright adjust
window.
Button
At No OSD showing
Shortcut to contrast adjust window.
At OSD showing
(Icon selection stage)
Go to Adjustment stage. Cursor goes to left. Cursor goes to right.
At OSD showing
(Adjustment stage)
Go to Icon selection stage. Adjust value decrease or
Cursor for adjust goes to left.
Adjust value increase or Cursor for adjust goes to right.
SELECT
+
“Auto adjust” operate.
Reset operation. Mute off/on switch on Volume adjustment window.
AUTO/RESET
4. Turn on the monitor with the front power button and the computer (Figure C.1).
5. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:
• Auto Adjust Contrast
• Auto Adjust Refer to the Controls section of this User’s Manual for a full
description of these OSM controls.
NOTE: If you have any problem, please refer to the
Troubleshooting section of this User’s Manual.
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternative mounting purposes:
1. Disconnect all cables.
2. Place monitor face down on a non-abrasive surface (Figure R.1).
3. Remove the 3 screws connecting the monitor to the stand and remove the stand as indicated (Figure R.2). The monitor is now ready for mounting in an alternative manner.
4. Connect the AC cord to the back of the monitor (Figure R.3).
5. Reverse this process to re-attach stand.
NOTE: Use only VESA-compatible alternative mounting method.
NOTE: Handle with care when removing monitor stand.
Removing the Base
NOTE: Always remove the Base when shipping the LCD.
1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. While using your thumbs, press the bottom tabs upward to unlock.
3. Press the top tabs down to unlock and pull off the stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use the attached screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
100 mm
4 x 12 mm with lock washer and flat washer
01_English 13/2/07, 9:44 AM2
Ofrecido por www.electromanuales.com
English-3
English
Sub Menu
(Icon Select)
Press
“–” or “+”
Sub Menu (Adjust)
Press “SELECT” key
Press
“–” or “+”
Example Tool:
Press “SELECT” key
Press “SELECT” key
Main Menu (Icon Select) Main Menu (Adjust)
Press
“SELECT”
key
Press
“SELECT”
key
Press “SELECT” key
Adjust by using
“–” or “+”
Adjust by using
“–” or “+”
BRIGHTNESS
Adjusts the overall image and background screen brightness.
CONTRAST
Adjusts the image brightness in relation to the background.
AUTO CONTRAST
Adjusts the image displayed for non-standard video inputs.
AUTO ADJUST
Automatically adjusts the Image Position, the H. Size and Fine setting.
LEFT/RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN/UP
Controls Vertical Image Position within the display area of the LCD.
H. SIZE
Adjusts the horizontal size by increasing or decreasing this setting.
FINE
Improves focus, clarity and image stability by increasing or decreasing this setting.
COLOUR CONTROL SYSTEMS
Five colour presets (9300/7500/sRGB/USER/NATIVE) select the desired colour setting. The sRGB and NATIVE, colour presets are standard and cannot be changed.
COLOUR RED
Increase or decreases Red. The change will appear on screen.
COLOUR GREEN
Increase or decreases Green. The change will appear on screen.
COLOUR BLUE
Increase or decreases Blue. The change will appear on screen.
TOOL
Selecting TOOL allows you to get into the sub menu.
FACTORY PRESET
Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to tage effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.
EXIT
Selecting EXIT allows you exit OSM menu/ sub menu.
LANGUAGE
OSM control menus are available in nine languages.
OSM TURN OFF
The OSM control menu will stay on as long as it is in use. In the OSM Turn OFF submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10 - 120 seconds by 5 seconds step.
OSM LOCK OUT
This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM are locked out. To activate the OSM Lock Out function, press “AUTO/ RESET”, then “+” key and hold down simultaneously. To de-activate the OSM Lock Out, press “AUTO/ RESET”, then “+” key and hold down simultaneously.
RESOLUTION NOTIFIER
If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at optimal resolution.
DDC/CI
Turns ON or OFF the two way communication and control of the monitor.
MONITOR INFO
Indicates the model and serial numbers of your monitor.
OSM Warning
OSM Warning menus disappear with SELECT button. NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear. RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu. OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear.
2. OSM structure
01_English 13/2/07, 9:45 AM3
Ofrecido por www.electromanuales.com
Deutsch
Deutsch-1
STROMSCHLAGGEFAHR • NICHT ÖFFNEN
SETZEN SIE DAS GERÄT WEDER REGEN NOCH FEUCHTIGKEIT AUS, DA ES ANDERNFALLS ZU FEUER ODER STROMSCHLÄGEN KOMMEN KANN. VERWENDEN SIE DEN NETZSTECKER DIESES GERÄTS KEINESFALLS MIT EINEM VERLÄNGERSKABEL ODER EINER STECKDOSENLEISTE, WENN DIE STECKERSTIFTE NICHT VOLLSTÄNDIG EINGEFÜHRT WERDEN KÖNNEN. ÖFFNEN SIE DAS GEHÄUSE NICHT, DA SICH IM INNEREN KOMPONENTEN BEFINDEN, DIE UNTER HOCHSPANNUNG STEHEN. LASSEN SIE WARTUNGSARBEITEN VON QUALIFIZIERTEN WARTUNGSTECHNIKERN DURCHFÜHREN.
WARNUNG
VORSICHT: ENTFERNEN SIE KEINESFALLS ABDECKUNG ODER
RÜCKSEITE, DAMIT ES NICHT ZU STROMSCHLÄGEN KOMMT. IM INNEREN BEFINDEN SICH KEINE VOM BENUTZER ZU WARTENDEN KOMPONENTEN. LASSEN SIE WARTUNGSARBEITEN VON QUALIFIZIERTEN WARTUNGSTECHNIKERN DURCHFÜHREN.
Dieses Symbol weist den Benutzer auf nicht isolierte spannungsführende Komponenten im Gerät hin, die Stromschläge verursachen können. Aus diesem Grund dürfen Sie keinesfalls Kontakt mit einer Komponente im Geräteinneren herstellen.
Dieses Symbol weist den Benutzer auf wichtige Informationen zu Betrieb und Pflege dieses Geräts hin. Die Informationen sollten sorgfältig gelesen werden, um Probleme zu vermeiden.
VORSICHT
Inhalt der Verpackung
Der Karton* mit Ihrem neuen NEC LCD-Monitor sollte folgende Komponenten enthalten:
• LCD-Monitor mit verstellbarem Fuß
• Netzkabel
• Bedienungsanleitung
• CD-ROM
• Standfuß
• Kabelhalter
*
Bewahren Sie den Originalkarton und das Verpackungsmaterial für spätere Transporte des Monitors auf.
Kurzanleitung
So befestigen Sie den Standfuß am Fuß des LCD-Monitors:
1. Setzen Sie die Vorderseite des LCD-Fußes in die Löcher auf der Vorderseite des Standfußes (Abbildung S.1).
2. Befestigen Sie den Standfuß am Monitor. Der Schnappverschluss des Standfußes muss in die Aussparung auf der Rückseite des Monitorfußes einrasten (Abbildung S.1).
Gehen Sie folgendermaßen vor, um den Kabelhalter zu befestigen:
1. Befestigen Sie den Kabelhalter am Standfuß. Stecken Sie die Haken des Kabelhalters in die Aussparungen auf der Rückseite des Monitorfußes und schieben Sie den Kabelhalter nach unten in Position (Abbildung S.1).
HINWEIS: Überprüfen Sie bitte, dass der Schnappverschluss richtig
eingerastet ist.
Gehen Sie folgendermaßen vor, um den LCD-Monitor an Ihr System anzuschließen:
1. Schalten Sie Ihren Computer aus.
2. PC mit analogem Ausgang: Verbinden Sie den Mini-D-SUB­Stecker (15 Stifte) des am Monitor montierten Signalkabels mit dem Anschluss der Grafikkarte in Ihrem System (Abbildung A.1). Ziehen Sie die Schrauben fest.
Mac: Schließen Sie den MultiSync-Kabeladapter für Macintosh (nicht mitgeliefert) an den Computer an. Stecken Sie den Mini-D­SUB-Stecker (15 Stifte) des Signalkabels in den Macintosh­Kabeladapter (Abbildung A.2). Ziehen Sie die Schrauben fest.
HINWEIS: Für einige Macintosh-Systeme ist kein Macintosh-
Kabeladapter erforderlich.
3. Schließen Sie das Netzkabel an die Steckdose an. Führen Sie das Signalkabel und Netzkabel durch den Kabelhalter (Abbildung B.1).
HINWEIS: Bringen Sie die Kabel so unter der Kabelabdeckung an, dass
weder Kabel noch Monitor beschädigt werden können.
HINWEIS: Beachten Sie zur Auswahl des richtigen Netzkabels den
entsprechenden Sicherheitshinweis in dieser Bedienungsanleitung.
Erklärung des Herstellers
Wir bestätigen hiermit, dass der Farbmonitor AccuSync LCD73V (L175GZ) und AccuSync LCD93V (L195GY)/LCD170V (L175GZ)/ LCD190V (L195GY) den folgenden Richtlinien entspricht:
und mit folgendem Siegel gekennzeichnet ist:
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
EG-Direktive 73/23/EG:
– EN 60950-1
EG-Direktive 89/336/EG:
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
Abbildung S.1
Standfuß
Verriegelungen
Monitorfuß
Abbildung A.1 Abbildung A.2
Macintosh­Kabeladapter (nicht mitgeliefert)
Abbildung B.1
Kabelhalter
Bedienung-
sanleitung
Netzkabel
Standfuß
Kabelhalter LCD-Monitor
mit montiertem
Videosignalkabel
CD-ROM
Kabelhalter
02_German 13/2/07, 9:45 AM1
Ofrecido por www.electromanuales.com
Deutsch
Deutsch-2
Bedienelemente
Die OSM Bedienelemente (On-Screen-Manager) auf der Vorderseite des Monitors haben folgende Funktionen:
1. Basisfunktion beim Betätigen der jeweiligen Taste
Zeigt den OSM an. Öffnet das Fenster für die
Helligkeitseinstellung.
Taste
Ohne OSD­Anzeige
Öffnet das Fenster für die Kontrasteinstellung.
Mit OSD-Anzeige
(
Symbolauswahlmodus
)
Wechselt zur Einstellungsphase.
Cursor nach links. Cursor nach rechts.
Mit OSD-Anzeige
(Einstellungsmodus)
Wechselt zum Symbolauswahlmodus.
Verringert den Wert oder bewegt Cursor nach links.
Erhöht den Wert oder bewegt Cursor nach rechts.
SELECT
+
Aktiviert die automatische Einstellung.
Zurücksetzen der Einstellung. Schaltet im Fenster für die Lautstärkeeinstellung die Stummschaltung ein/aus.
AUTO/RESET
4. Schalten Sie den Computer und den Monitor mit dem Netzschalter an der Vorderseite (Abbildung C.1) ein.
5. Die berührungslose Einstellungsautomatik nimmt beim ersten Setup für die meisten Timings die optimalen Einstellungen für den Monitor vor. Weitere Anpassungen werden mit den folgenden OSM Steuerungen vorgenommen:
• Automatische Kontrasteinstellung
• Automatische Einstellung Im Abschnitt Bedienelemente dieser Bedienungsanleitung finden
Sie eine ausführliche Beschreibung der OSM-Steuerungen.
HINWEIS: Treten Probleme auf, beachten Sie das Kapitel
Fehlerbehebung in dieser Bedienungsanleitung.
Neigen
Fassen Sie den Monitor an beiden Seiten und neigen Sie ihn nach Bedarf (Abbildung TS.1).
Entfernen des Monitorfußes für die Montage
So bereiten Sie den Monitor für eine alternative Montage vor:
1. Ziehen Sie alle Kabel ab.
2. Legen Sie den Monitor mit der Vorderseite nach unten auf eine weiche Oberfläche (Abbildung R.1).
3. Entfernen Sie die 3 Schrauben, mit denen der Fuß am Monitor befestigt ist, und heben Sie den Fuß ab (Abbildung R.2). Der Monitor kann jetzt auf andere Art montiert werden.
4. Schließen Sie das Netzkabel an der Rückseite des Monitors an (Abbildung R.3).
5. Führen Sie die Schritte in umgekehrter Reihenfolge aus, um den Fuß wieder anzubringen.
HINWEIS: Verwenden Sie ausschließlich VESA-kompatible
Montagemethoden.
HINWEIS: Entfernen Sie den Monitorfuß vorsichtig.
Entfernen des Standfußes
HINWEIS: Entfernen Sie den Standfuß vor dem Versenden des
Monitors.
1. Legen Sie den Monitor mit der Vorderseite nach unten auf eine weiche Oberfläche (Abbildung R.1).
2. Drücken Sie mit den Daumen die unteren Verriegelungen nach oben, um sie zu lösen.
3. Ziehen Sie den entriegelten Fuß vom Monitor ab.
Befestigen eines Tragarms
Dieser LCD-Monitor kann mit einem Tragarm verwendet werden.
Verwenden Sie die beigefügten Schrauben (4 Stück) für die Montage, wie es in der Abbildung dargestellt ist. Die Sicherheitsvorschriften verlangen, dass der Monitor an einem Tragarm montiert wird, der für das Gewicht des Monitors ausreichend stabil ist.
Der LCD-Monitor darf nur auf einem zugelassenen Arm montiert werden, der beispielsweise mit einem GS-Zeichen versehen ist.
Abbildung TS.1
Abbildung R.1
Weiche Oberfläche
Abbildung R.2
Abbildung R.3
4 SCHRAUBEN (M4) (maximale Tiefe: 8,5 mm)
Gewicht des LCD-Monitors komplett: 3,6 kg - AccuSync LCD73V/LCD170V (max.)
4,9 kg - AccuSync LCD93V/LCD190V (max.)
Technische Daten
Alle Schrauben festziehen
100 mm
Stärke der Halterung (Arm) 2,0 ~ 3,2 mm
100 mm
4 x 12 mm mit Federring und Federscheibe
Abbildung C.1
Netzschalter
02_German 13/2/07, 9:45 AM2
Ofrecido por www.electromanuales.com
Deutsch
Deutsch-3
Untermenü
(Symbolauswahl)
Taste
„–“ oder „+“
drücken
Untermenü (Einstellungen)
Taste „SELECT“ drücken
Taste
„–“ oder „+“
drücken
Beispiel WERKZEUG:
Taste „SELECT“ drücken
Taste „SELECT“ drücken
Hauptmenü (Symbolauswahl) Hauptmenü (Einstellungen)
Taste
„SELECT“
drücken
Taste
„SELECT“
drücken
Taste „SELECT“ drücken
Mit „–“ oder „+“
einstellen
Mit „–“ oder „+“
einstellen
2. OSM Struktur
HELLIGKEIT
Passt die Bild- und Hintergrundhelligkeit des Bildschirms an.
KONTRAST
Ändert die Bildhelligkeit im Verhältnis zum Hintergrund.
AUTOM. KONTRAST
Passt das angezeigte Bild bei Verwendung nicht dem Standard entsprechender Eingangssignale an.
AUTOM. EINSTELLUNG
Stellt Bildposition, Bildbreite und Optimierung automatisch ein.
LINKS/RECHTS
Steuert die horizontale Bildposition im Anzeigebereich des LCD.
AUF/AB
Steuert die vertikale Bildposition im Anzeigebereich des LCD.
BILDBREITE
Durch Erhöhen oder Verringern dieses Werts wird das Bild breiter bzw. schmaler.
OPTIMIERUNG
Optimiert Schärfe, Deutlichkeit und Bildstabilität durch Erhöhen oder Verringern dieses Werts.
FARBSTEUERUNGSSYSTEM
Fünf Voreinstellungen (9300/7500/sRGB/BENUTZER/ ORIGINALFARBEN) wählen die gewünschte Farbeinstellung aus. Die Farbeinstellungen sRGB und ORIGINALFARBEN sind Standardeinstellungen und können nicht angepasst werden.
FARBE ROT
Erhöht oder verringert den Rotanteil. Die Änderung wird auf dem Bildschirm sichtbar.
FARBE GRÜN
Erhöht oder verringert den Grünanteil. Die Änderung wird auf dem Bildschirm sichtbar.
FARBE BLAU
Erhöht oder verringert den Blauanteil. Die Änderung wird auf dem Bildschirm sichtbar.
WERKZEUG
Durch Auswahl von WERKZEUG gelangen Sie in das Untermenü.
WERKSEINSTELLUNG
Mit der OSM-Steuerung „Werkseinstellung“ werden alle OSM­Einstellungen auf die Werkseinstellungen zurückgesetzt. Sie müssen die Taste RESET mehrere Sekunden halten, um die Rücksetzung durchzuführen. Einzelne Einstellungen können durch Markieren der betreffenden Steuerung und anschließendes Drücken der Taste RESET zurückgesetzt werden.
EXIT
Mit „EXIT“ verlassen Sie das OSM Menü/Untermenü.
SPRACHE
Die OSM-Menüs sind in neun Sprachen verfügbar.
OSM ANZEIGEDAUER
Das OSM Steuerungsmenü wird ausgeblendet, wenn es nicht mehr verwendet wird. Im Untermenü „OSM Anzeigedauer” können Sie festlegen, nach welchem Zeitraum das OSM Steuerungsmenü ausgeblendet wird, wenn der Benutzer keine Taste drückt. Die Voreinstellungen reichen von 10 – 120 Sekunden in 5-Sekunden-Abständen.
OSM ABSCHALTUNG
Mit „OSM Abschaltung“ werden alle OSM-Funktionen bis auf „Helligkeit“ und „Kontrast“ gesperrt. Wenn Sie im Modus „OSM Abschaltung“ auf die OSM Steuerungen zugreifen, wird ein Bildschirm angezeigt, der auf die Sperre der OSM Steuerungen hinweist. Um die Funktion „OSM Abschaltung“ zu aktivieren, halten Sie die Tasten AUTO/RESET und „+“ gleichzeitig gedrückt. Um die Funktion „OSM Abschaltung“ wieder zu deaktivieren, drücken Sie erneut die Taste AUTO/ RESET und gleichzeitig die Taste „+“.
AUFLÖSUNGSANZEIGE
Wenn Sie AN auswählen, wird nach 30 Sekunden eine Meldung auf dem Bildschirm angezeigt, wenn der Monitor nicht auf die optimale Auflösung eingestellt ist.
DDC/CI
Schaltet die 2-Wege-Kommunikation und die Steuerung des Monitors EIN oder AUS.
MONITORINFORMATION
Die Modell- und die Seriennummer des Monitors.
OSM Warnung
Die Menüs der OSM Warnungen können mit der Taste „SELECT“ ausgeblendet werden. KEIN SIGNAL: Diese Funktion gibt eine Warnung aus, wenn kein Signal verfügbar ist. Das Fenster Kein Signal wird nach dem Einschalten oder einem Wechsel des Eingangssignals sowie dann angezeigt, wenn kein Videosignal verfügbar ist.
AUFLÖSUNGSANZEIGE: Diese Funktion warnt Sie, wenn nicht die optimale Auflösung verwendet wird. Nach dem Einschalten, nach einer Änderung des Videosignals oder wenn das Videosignal nicht die richtige Auflösung besitzt, wird das Fenster Auflösungsanzeige angezeigt. Diese Funktion kann im Hilfsfunktionenmenü deaktiviert werden.
FREQUENZ ZU HOCH: Diese Funktion empfiehlt die optimale Auflösung und Bildwiederholrate. Nach dem Einschalten, nach einer Änderung des Eingangssignals oder wenn das Videosignal nicht die richtige Auflösung besitzt, wird das Fenster Frequenz zu hoch angezeigt.
02_German 13/2/07, 9:45 AM3
Ofrecido por www.electromanuales.com
Español
Español-1
RIESGO DE DESCARGAS ELÉCTRICAS • NO ABRIR
PARA PREVENIR EL PELIGRO DE INCENDIO O DESCARGAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA O LA HUMEDAD. TAMPOCO UTILICE EL ENCHUFE POLARIZADO DE ESTE PRODUCTO CON UN RECEPTÁCULO DEL CABLE DE EXTENSIÓN U OTRAS TOMAS A MENOS QUE LAS PROLONGACIONES SE PUEDAN INSERTAR COMPLETAMENTE. NO ABRA LA CAJA DEL MONITOR, YA QUE CONTIENE COMPONENTES DE ALTO VOLTAJE. DEJE QUE SEA EL PERSONAL DE SERVICIO CUALIFICADO QUIEN SE ENCARGUE DE LAS TAREAS DE SERVICIO.
ADVERTENCIA
PELIGRO: PARA REDUCIR EL RIESGO DE DESCARGAS
ELÉCTRICAS, NO RETIRE LA CUBIERTA (O LA PARTE POSTERIOR). EL MONITOR NO CONTIENE PIEZAS QUE DEBA MANIPULAR EL USUARIO. DEJE QUE SEA EL PERSONAL DE SERVICIO CUALIFICADO QUIEN SE ENCARGUE DE LAS TAREAS DE SERVICIO.
Este símbolo advierte al usuario de que el producto puede contener suficiente voltaje sin aislar como para causar descargas eléctricas. Por tanto, evite el contacto con cualquier pieza del interior del monitor.
Este símbolo advierte al usuario de que se incluye documentación importante respecto al funcionamiento y el mantenimiento de este producto. Por ello, debería leerla atentamente para evitar problemas.
PELIGRO
Contenido
Su nueva caja* de monitor LCD NEC debería contener:
• Un monitor LCD con base inclinable
• Cable de alimentación
• Manual del usuario
• CD-ROM
• Base
• Pasacables
*
Recuerde conservar la caja y el material de embalaje originales para poder transportar el monitor en el futuro.
Inicio rápido
Para conectar la base al soporte del monitor:
1. Inserte la parte frontal del soporte del monitor en los orificios situados en la parte delantera de la base (figura S.1).
2. Conecte la base al soporte. La lengüeta de sujeción de la base debería encajar en el orificio de la parte posterior del soporte (figura S.1).
Para montar el pasacables:
1. Conecte el pasacables a la base. Inserte los corchetes del pasacables en los orificios situados en la parte posterior del soporte y deslice el pasacables hacia abajo hasta que encaje en su sitio (figura S.1).
NOTA: compruebe que las lengüetas están bien aseguradas. Para conectar el monitor LCD a su sistema, siga estas indicaciones:
1. Apague el ordenador.
2. Para PC con salida analógica: conecte el cable de señal del mini D-SUB de 15 clavijas conectado al monitor al conector de la tarjeta de visualización de su sistema (figura A.1). Apriete todos los tornillos.
Para los Mac: conecte el adaptador para Macintosh de MultiSync (no incluido) al ordenador. Conecte el cable de señal del mini D-SUB de 15 clavijas al adaptador para Macintosh de MultiSync (figura A.2). Apriete todos los tornillos.
NOTA: algunos sistemas Macintosh no necesitan adaptador.
3. Conecte el cable de alimentación a la toma de corriente. Introduzca el cable de señal de vídeo y el de alimentación en el pasacables (figura B.1).
NOTA: asegúrese de que el cable del pasacables está bien
colocado para evitar daños en él y el monitor.
NOTA:
consulte el apartado Peligro de este manual para asegurarse de que selecciona el cable de alimentación adecuado.
Declaración del fabricante
Por la presente certificamos que este monitor AccuSync LCD73V (L175GZ)/AccuSync LCD93V (L195GY)/LCD170V (L175GZ)/ LCD190V (L195GY) en color cumplen la
y lleva la marca
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japón
Directiva 73/23/CEE:
– EN 60950-1
Directiva 89/336/CEE:
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024

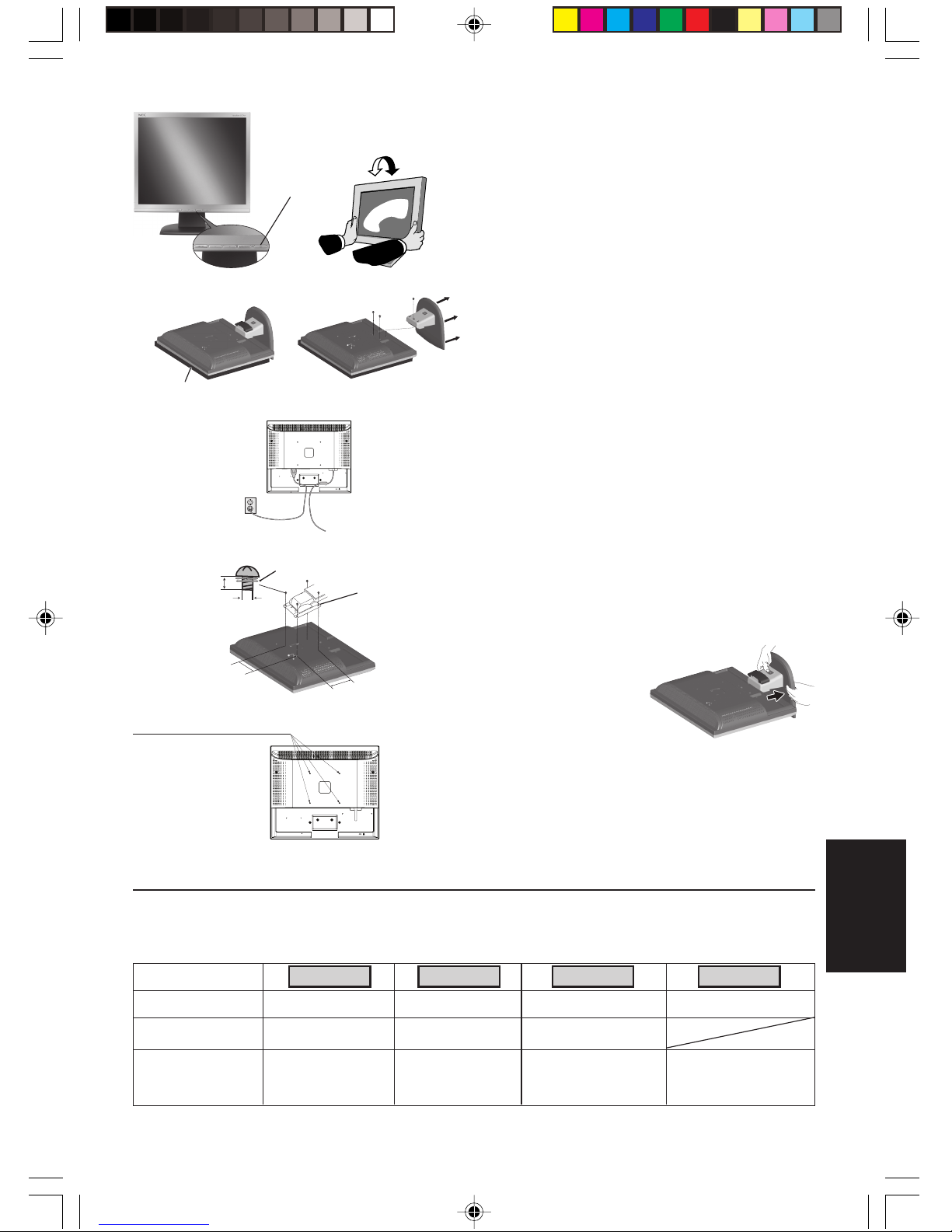

Figura S.1
Base
Lengüetas de
sujeción
Soporte
Figura A.1 Figura A.2
Adaptador para Macintosh (no incluido)
Figura B.1
Pasacables
Manual del
usuario
Cable de
alimentación
Base
Pasacables Monitor LCD
Tipo fijo (cable de señal de
vídeo conectado)
CD-ROM
Pasacables
03_Spain 13/2/07, 9:45 AM1
Ofrecido por www.electromanuales.com
Español
Español-2
Controles
Los botones de control OSM (On-Screen Manager) situados en la parte frontal del monitor funcionan del siguiente modo:
1. Funciones básicas pulsando una tecla
Aparece OSM. Acceso rápido a la ventana
de ajuste del brillo.
Botón
Si no aparece OSD
Acceso rápido a la ventana de ajuste del contraste.
Si aparece OSD
(selección del icono)
Pasa al nivel de ajuste. El cursor se desplaza hacia
la izquierda.
El cursor se desplaza hacia la derecha.
Si aparece OSD
(ajuste)
Pasa al nivel de selección del icono.
Disminución del valor de ajuste o el cursor para el ajuste se desplaza hacia la izquierda.
Aumento del valor de ajuste o el cursor para el ajuste se desplaza hacia la derecha.
SELECT
+
Función de “Auto ajuste”.
Función de reajuste. Silencio encendido/apagado en la ventana de ajuste del volumen.
AUTO/RESET
Figura TS.1
Figura R.1
Superficie no abrasiva
Figura R.2
Figura R.3
4 TORNILLOS (M4) (profundidad MÁX.: 8,5 mm)
Peso del conjunto del monitor: 3,6 kg - AccuSync LCD73V/LCD170V (MÁX.)
4,9 kg - AccuSync LCD93V/LCD190V (MÁX.)
Especificaciones
Apriete todos los tornillos
100 mm
Grosor de la escuadra (brazo) 2,0 ~ 3,2 mm
100 mm
4 arandelas de seguridad y arandelas planas de 12 mm
Figura C.1
Botón de
encendido
4. Encienda el monitor y el ordenador con el botón de encendido (figura C.1).
5. Esta función No-touch ajusta automáticamente el monitor con la configuración óptima inicial en la mayoría de cadencias. Para llevar a cabo otros ajustes, utilice los siguientes controles de OSM:
• Contraste de autoajuste
• Auto ajuste Consulte el apartado Controles de este manual del usuario si
desea obtener una descripción detallada de estos controles OSM.
NOTA: si surgiera algún problema, consulte el apartado Solución
de problemas de este manual del usuario.
Inclinación
Sostenga el monitor por ambos lados con las manos y ajuste la inclinación que desee (figura TS.1).
Cómo retirar el soporte del monitor para el montaje
Para montar el monitor de otra forma:
1. Desconecte todos los cables.
2. Coloque el monitor boca abajo en una superficie no abrasiva (figura R.1).
3. Retire los 3 tornillos que unen el monitor al soporte y retire el soporte como se indica (figura R.2). El monitor ya está preparado para montarlo de otro modo.
4. Conecte el cable de CA a la parte posterior del monitor (figura R.3).
5. Repita el proceso en sentido inverso para volver a montar el soporte.
NOTA: utilice sólo métodos de montaje alternativos compatibles
con VESA.
NOTA: retire el soporte del monitor con cuidado.
Desmontaje de la base
NOTA: desmonte la base siempre que vaya a transportar el
monitor.
1. Coloque el monitor boca abajo en una superficie no abrasiva (figura R.1).
2. Suelte las lengüetas inferiores presionándolas hacia arriba con los pulgares.
3. Extraiga la base del soporte.
Instalación de un brazo flexible
Este monitor LCD está diseñado para ser utilizado con un brazo flexible.
Para el montaje, utilice los tornillos (4) y colóquelos tal como se muestra en la imagen. Para cumplir las normas de seguridad, el monitor debe estar montado a un brazo que garantice la estabilidad necesaria teniendo en cuenta el peso del monitor.
El monitor LCD sólo se podrá utilizar con un brazo homologado (por ejemplo, de la marca GS).
03_Spain 13/2/07, 9:45 AM2
Ofrecido por www.electromanuales.com
Español
Español-3
Submenú
(selección del
icono)
Pulse
“–” o “+”
Submenú (ajuste)
Pulse la tecla “SELECT”
Pulse
“–” o “+”
Ejemplo Tool (herramienta):
Pulse la tecla “SELECT”
Pulse la tecla “SELECT”
Menú principal (selección del icono) Menú principal (ajuste)
Pulse
la tecla
“SELECT”
Pulse
la tecla
“SELECT”
Pulse la tecla “SELECT”
Ajuste con
“–” o “+”
Ajuste con
“–” o “+”
2. Estructura de OSM
BRILLO
Ajusta el brillo de la imagen global y del fondo.
CONTRASTE
Ajusta el brillo de la imagen respecto al fondo.
CONTRASTE AUTOM.
Ajusta la imagen que aparece para las entradas de vídeo no estándar.
AUTO AJUSTE
Ajusta automáticamente la configuración de Image Position (Posición de la imagen), Anchura y Estabilidad.
IZQ./DERECHA
Controla la posición horizontal de la imagen en el área de visualización de la pantalla.
ABAJO/ARRIBA
Controla la posición vertical de la imagen en el área de visualización de la pantalla.
ANCHURA
Ajusta el tamaño horizontal aumentando o reduciendo esta configuración.
ESTABILIDAD
Mejora el enfoque, la claridad y la estabilidad de la imagen aumentando o reduciendo esta configuración.
SISTEMAS DE CONTROL DEL COLOR
Con el preajuste de cinco colores (9300/7500/sRGB/USER/ ESTÁNDAR) se selecciona la configuración del color deseada. Las configuraciones de color sRGB y ESTÁNDAR son estándar y no se pueden modificar.
COLOR ROJO
Aumenta o disminuye el Rojo. El cambio aparecerá en la pantalla.
COLOR VERDE
Aumenta o disminuye el Verde. El cambio aparecerá en la pantalla.
COLOR AZUL
Aumenta o disminuye el Azul. El cambio aparecerá en la pantalla.
HERRAMIENTA
Seleccionando TOOL (HERRAMIENTA) se accede al submenú.
CONF. DE FÁBRICA
Seleccionando Conf. de fábrica podrá restablecer todas las configuraciones de control de OSM originales. Mantenga pulsado el botón RESET durante unos segundos para que se active la función. Podrá restablecer cada configuración resaltando el control correspondiente y pulsando el botón RESET.
EXIT
Con EXIT podrá salir del menú/submenú de OSM.
IDIOMA
Los menús del control OSM están disponibles en nueve idiomas.
ACTIVIDAD OSM
El menú de control de OSM permanecerá activado mientras se esté utilizando. En el submenú Actividad OSM puede indicar cuánto tiempo debe transcurrir desde que se toca por última vez un botón del menú de control de OSM hasta que éste se desconecta. La opción preconfigurada permite un mínimo de 10 segundos y un máximo 120, variable en intervalos de 5 segundos.
BLOQUEO OSM
Este control bloquea totalmente el acceso a todas las funciones de control de OSM excepto Brillo y Contraste. Si intenta activar los controles de OSM mientras está activado el modo de Bloqueo, aparecerá una ventana notificándole que los controles de OSM están bloqueados. Para activar la función de Bloqueo OSM, pulse “AUTO/ RESET” y la tecla “+” simultáneamente. Para desactivar la función de Bloqueo OSM, pulse “AUTO/ RESET” y la tecla “+” simultáneamente.
AVISO DE RESOLUCIÓN
Si está activado y la resolución no es la óptima, aparecerá un mensaje en la pantalla transcurridos 30 segundos para informarle de ello.
DDC/CI
Activa o desactiva la comunicación y control bidireccional del monitor.
INFORMACIÓN MONITOR
Indica el número de modelo y de serie del monitor.
Mensaje de advertencia OSM
Los mensajes de advertencia OSM desaparecen con el botón SELECT. NO HAY SEÑAL: esta función avisa al usuario cuando no se recibe ninguna señal. Una vez conectada la alimentación, cuando se modifica la señal de entrada o el vídeo no está activo, aparecerá la ventana No hay señal.
AVISO DE RESOLUCIÓN: esta función advierte de que se debe optimizar la resolución. Al encender el monitor, al modificar la señal de entrada y cuando la resolución de la señal de vídeo no es la adecuada, aparecerá la ventana de alerta de Aviso de resolución. Esta función se puede desactivar en el menú TOOL (herramienta).
FUERA DE RANGO: esta función recomienda optimizar la resolución y la velocidad de regeneración de la imagen. El menú Fuera de rango puede aparecer después de encender el monitor, al modificar la señal de entrada o si la cadencia de la señal de vídeo no es la adecuada.
03_Spain 13/2/07, 9:45 AM3
Ofrecido por www.electromanuales.com
Français
Français-1
RISQUE D’ÉLECTROCUTION • NE PAS OUVRIR
POUR ÉVITER LES RISQUES D’INCENDIE OU D’ÉLECTROCUTION, N’EXPOSEZ PAS L’APPAREIL À LA PLUIE OU À L’HUMIDITÉ. DE MÊME, N’UTILISEZ PAS LA PRISE POLARISÉE DE CET APPAREIL AVEC UNE RALLONGE OU D’AUTRES PRISES SI ELLES NE PEUVENT ÊTRE TOTALEMENT ENFONCÉES. N’OUVREZ PAS LE BOÎTIER CAR IL CONTIENT DES COMPOSANTS À HAUTE TENSION. CONFIEZ TOUS LES TRAVAUX DE DÉPANNAGE AU PERSONNEL TECHNIQUE QUALIFIÉ.
AVERTISSEMENT
ATTENTION : POUR RÉDUIRE LES RISQUES D’ÉLECTROCUTION,
N’ENLEVEZ PAS LE CAPOT (OU L’ARRIÈRE). VOUS NE POUVEZ RÉPARER AUCUNE PIÈCE INTERNE. CONFIEZ TOUS LES TRAVAUX DE DÉPANNAGE AU PERSONNEL TECHNIQUE QUALIFIÉ.
Ce symbole prévient l’utilisateur qu’une tension non isolée dans l’appareil peut être suffisante pour provoquer une électrocution. Il est donc dangereux d’établir le moindre contact avec une pièce dans cet appareil.
Ce symbole prévient l’utilisateur que des documents importants sur l’utilisation et le dépannage de cet appareil ont été inclus. Ils doivent donc être lus attentivement pour éviter tout problème.
ATTENTION
Sommaire
L’emballage* de votre nouveau moniteur LCD NEC doit contenir les éléments suivants :
• Moniteur LCD avec socle inclinable
• Cordon d’alimentation
• Manuel de l’utilisateur
• CD-ROM
• Support de socle
• Support de câble
*
N’oubliez pas de conserver la boîte et le matériel d’emballage d’origine pour le cas où vous seriez amené à transporter ou expédier le moniteur.
Démarrage rapide
Pour fixer le socle au support du LCD :
1. Introduire l’avant du support du LCD dans les trous à l’avant du socle (Figure S.1).
2. Fixez le socle au support. Le loquet de verrouillage du socle doit venir s’insérer dans l’orifice au dos du support (Figure S.1).
Pour fixer le support de câble :
1. Fixez le support de câble au socle. Insérez les crochets du support de câble dans les orifices au dos du support et faites ensuite coulisser le support de câble vers le bas pour le fixer (Figure S.1).
REMARQUE : Veuillez vous assurer que les attaches sont
solidement fixées.
Pour connecter le moniteur LCD à votre système, suivez ces instructions :
1. Éteignez votre ordinateur.
2. Pour un PC équipé d’une sortie analogique : Branchez le mini- connecteur D-SUB à 15 broches du câble de signal connecté au moniteur sur le connecteur de la carte vidéo de votre ordinateur (Figure A.1). Serrez toutes les vis.
Pour un Mac : Branchez l’adaptateur de câble (non fourni) pour Macintosh du MultiSync à l’ordinateur. Branchez le câble signal mini D-SUB à 15 broches à l’adaptateur de câble MultiSync pour Macintosh (Figure A.2). Serrer toutes les vis.
REMARQUE : Certains systèmes Macintosh n’ont pas besoin
d’adaptateur de câble.
3. Connectez le cordon d’alimentation à la prise de courant. Mettez le câble du signal vidéo et le cordon d’alimentation dans le support de câble (Figure B.1).
REMARQUE : Régler la portion de câble située sous le support de
câble afin d’éviter de toute détérioration du câble ou du moniteur.
REMARQUE : Veuillez vous reporter à la section Attention de ce
manuel pour le choix d’un cordon d’alimentation adapté.
Déclaration du constructeur
Nous certifions par le présent document que le moniteur couleur AccuSync LCD73V (L175GZ) et AccuSync LCD93V (L195GY)/ LCD170V (L175GZ)/LCD190V (L195GY) sont en conformité avec
sous la marque suivante :
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japon
la directive européenne 73/23/EEC :
– EN 60950-1
la directive européenne 89/336/EEC :
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
Figure S.1
Socle
Pattes de fixation
Support
Figure A.1 Figure A.2
Adaptateur de câble pour Macintosh (non inclus)
Figure B.1
Support de câble
Manuel de l’utilisateur
Cordon
d’alimentation
Support
de socle
Support de
câble
Moniteur LCD
Type captif (câble de signal
vidéo connecté)
CD-ROM
Support de câble
04_French 13/2/07, 9:45 AM1
Ofrecido por www.electromanuales.com
Français
Français-2
Commandes
Fonctionnement des boutons de commandes OSM (On-screen Manager – Gestionnaire à l’écran) sur la face avant du moniteur :
1. Fonction de base en pressant chaque touche
Affichage de l’OSM. Raccourci vers la fenêtre de
réglage de la luminosité.
Bouton
Aucun affichage OSD Raccourci vers la fenêtre de
réglage du contraste.
Affichage de l’OSD
(Phase de sélection d’icône)
Aller vers la phase de réglage.
le curseur va vers la gauche. le curseur va vers la droite.
Affichage de l’OSD
(phase de réglage)
Aller vers la phase de sélection de l’icône.
Règle en diminuant la valeur ou le curseur de réglage va vers la gauche.
Règle en augmentant la valeur ou le curseur de réglage va vers la droite.
SELECT
+
La fonction « Réglage Auto. » opère.
Opération de réinitialisation. Muet (marche/arrêt) bascule vers la fenêtre de réglage du volume.
AUTO/RESET
4. Allumer le moniteur avec le bouton d’alimentation situé à l’avant (Figure C.1) ainsi que l’ordinateur.
5. Le réglage automatique sans intervention applique automatiquement au moniteur, pour la plupart des résolutions, les paramètres optimaux en fonction de la configuration initiale. Pour des réglages supplémentaires, utilisez les commandes OSM suivantes :
• Contraste automatique
• Réglage Automatique Reportez-vous à la section Commandes de ce manuel
de l’utilisateur pour une description complète de ces commandes OSM.
REMARQUE : Si vous rencontrez le moindre des problèmes,
veuillez vous reporter à la section Résolution des
problèmes du présent manuel.
Inclinaison
Tenez les deux côtés de l’écran du moniteur et ajustez manuellement l’inclinaison souhaitée (Figure TS.1).
Dépose pour montage du support du moniteur
Pour préparer le moniteur en vue d’un autre montage :
1. Déconnectez tous les câbles.
2. Placez le moniteur face vers le bas sur une surface non abrasive (Figure R.1).
3. Retirez les 3 vis fixant le moniteur à son support et enlevez le support comme indiqué (Figure R.2). Le moniteur est maintenant prêt pour un montage différent.
4. Connectez le cordon d’alimentation CA à l’arrière du moniteur (Figure R.3).
5. Inversez cette procédure pour fixer à nouveau le support.
REMARQUE : Utilisez uniquement une méthode de montage
alternative compatible VESA.
REMARQUE : Manipulez avec soin, en retirant le support du moniteur.
Pour retirer le socle
REMARQUE : Veuillez toujours retirer le socle lors du transport du
LCD.
1. Placez le moniteur face vers le bas sur une surface non abrasive (Figure R.1).
2. A l’aide de vos pouces, appuyez le bas des fixations vers le haut pour les déverrouiller.
3. Détachez le socle du support.
Raccordement d’un bras flexible
Ce moniteur LCD est conçu pour être utilisé avec un bras flexible.
Veuillez utiliser les vis fournies (4) comme indiqué dans l'image lors de l’installation. Afin de respecter les prescriptions relatives à la sécurité, le moniteur doit être monté sur un bras garantissant la stabilité nécessaire en fonction du poids du moniteur.
Le moniteur LCD doit être uniquement utilisé avec un bras homologué (par exemple, portant la marque GS).
Figure TS.1
Figure R.1
Surface non abrasive
Figure R.2
Figure R.3
4-VIS (M4) (Profondeur MAXI. : 8,5 mm)
Poids de l’assemblage du LCD : 3,6 kg - AccuSync LCD73V/LCD170V (MAXI.)
4,9 kg - AccuSync LCD93V/LCD190V (MAXI.)
Specifications
Serrez toutes les vis
100 mm
Epaisseur de la fixation (Bras) 2,0 ~ 3,2 mm
100 mm
4 x 12 mm avec rondelle frein et rondelle plate
Figure C.1
Bouton
d’alimentation
04_French 13/2/07, 9:45 AM2
Ofrecido por www.electromanuales.com
Français
Français-3
Sous-menu
(Sélection de
l’icône)
Sous-menu (réglage)
Appuyez sur la touche « SELECT »
Appuyez sur « – » ou « + »
Exemple Outil :
Appuyez sur la touche « SELECT »
Appuyez sur la touche « SELECT »
Menu principal (Sélection de l’icône) Menu principal (réglage)
Appuyez sur
la touche
« SELECT »
Appuyez sur la touche « SELECT »
Réglez en utilisant
« – » ou « + »
Réglez en utilisant
« – » ou « + »
2. Structure du menu OSM
Appuyez sur
la touche
« SELECT »
Appuyez sur « – » ou « + »
LUMINOSITÉ
Règle la luminosité globale de l’image et du fond de l’écran.
CONTRASTE
Règle la luminosité de l’image en fonction du fond.
CONTRASTE AUTO.
Règle l’image affichée pour des entrées vidéo non standard.
RÉGLAGE AUTO.
Règle automatiquement la position de l’image, la dimension horizontale et la finesse.
GAUCHE/DROITE
Contrôle la position horizontale de l’image dans la zone d’affichage du LCD.
BAS/HAUT
Contrôle la position verticale de l’image dans la zone d’affichage du LCD.
LARGEUR
Règle la largeur par l’augmentation ou la diminution de ce paramètre.
FINESSE
Améliore le point, la clarté et la stabilité de l’image par augmentation ou diminution de ce paramètre.
SYSTÊMES DE CONTRÔLE DES COULEURS
Cinq préréglages de couleur (9300/7500/sRVB/UTILISATEUR/ NATIVE) déterminent le réglage de couleur souhaité. Les préréglages des couleurs, sRVB et NATIVE, sont des préréglages standard et ne peuvent pas être modifiés.
COULEUR ROUGE
Augmente ou diminue le Rouge. La modification sera visible à l’écran.
COULEUR VERTE
Augmente ou diminue le Vert. La modification sera visible à l’écran.
COULEUR BLEUE
Augmente ou diminue le Bleu. La modification sera visible à l’écran.
OUTIL
La sélection de l’option OUTIL vous permet d’entrer dans le sous-menu.
PRÉRÉGLAGE USINE
En choisissant Préréglage usine, vous pouvez rétablir les réglages d’usine pour tous les paramètres des commandes OSM. Maintenez le bouton RESET enfoncé plusieurs secondes pour qu’il prenne effet. Il est possible de réinitialiser individuellement des réglages en mettant la commande concernée en surbrillance et en appuyant sur le bouton RESET.
EXIT (Sortie)
La sélection du bouton EXIT vous permet de quitter le menu de l’OSM, ou un sous-menu.
LANGUE
Les menus des commandes OSM sont disponibles en neuf langues.
EXTINCTION DE L’OSM
Le menu des commandes OSM restera à l’écran aussi longtemps qu’il sera utilisé. Dans le sous-menu Extinction OSM, vous pouvez choisir la durée d’attente du moniteur entre la dernière pression de touche et l’extinction du menu des commandes OSM. Les choix prédéfinis sont situés entre 10 et 120 secondes, par pas de 5 secondes.
VERROUILLAGE OSM
Cette commande bloque totalement l’accès à toutes les fonctions de commande OSM en dehors de la luminosité et du contraste. Toute tentative d’activation de commande OSM lorsque ce dernier est en mode verrouillé provoque l’apparition d ‘un écran informant que les commandes OSM sont verrouillées. Pour activer la fonction de verrouillage de l’OSM, maintenez enfoncés en même temps le bouton « AUTO/ RESET » et la touche « + ». Pour désactiver le verrouillage de l’OSM, maintenez enfoncés en même temps le bouton « AUTO/ RESET » et la touche « + ».
ERREUR DE RÉSOLUTION
Si MARCHE est sélectionné, un message apparaîtra sur l’écran après 30 secondes, vous signalant que la résolution n’est pas optimale.
DDC/CI
ACTIVE ou DÉSACTIVE le contrôle et la communication bidirectionnels du moniteur.
INFORMATION ÉCRAN
Indique le nom du modèle et les numéros de série de votre moniteur.
Avertissements OSM
Les menus Avertissements OSM disparaissent avec le bouton SELECT. PAS DE SIGNAL : Cette fonction vous avertit quand il n’y a pas de signal. Après mise sous tension du moniteur, ou s’il y a modification du signal d’entrée ou encore s’il n’y a pas de signal vidéo actif, la fenêtre Pas de signal apparaît. ERREUR DE RÉSOLUTION : Cette fonction vous avertit de l’utilisation en résolution optimisée. Après la mise sous tension, ou en cas de changement du signal d’entrée, ou si le signal vidéo ne possède pas la résolution appropriée, la fenêtre Notification de résolution s’affiche. Cette fonction peut être désactivée dans le menu OUTIL. HORS LIMITE : Cette fonction affiche un conseil sur la résolution optimisée et le taux de rafraîchissement recommandés. Après la mise sous tension ou en cas de modification du signal d’entrée ou encore si le signal vidéo ne possède pas la résolution appropriée, le menu Hors limites s’affiche.
04_French 13/2/07, 9:45 AM3
Ofrecido por www.electromanuales.com
Italiano
Italiano-1
PERICOLO DI SCOSSA ELETTRICA • NON APRIRE
PER EVITARE PERICOLO DI INCENDI O DI SCOSSE ELETTRICHE, NON ESPORRE L’UNITA’ A PIOGGIA O UMIDITA’. INOLTRE, NON USARE LA SPINA POLARIZZATA DELL’UNITA’ CON UNA PRESA DI CAVO DI PROLUNGA O ALTRE PRESE, A MENO CHE I POLI DELLA SPINA SI INSERISCANO COMPLETAMENTE. NON APRIRE LA CARROZZERIA POICHE’ ALL’INTERNO VI SONO COMPONENTI SOTTO ALTA TENSIONE. PER LA MANUTENZIONE RIVOLGERSI A PERSONALE DI MANUTENZIONE QUALIFICATO.
AVVISO
ATTENZIONE: PER EVITARE IL RISCHIO DI SCOSSA ELETTRICA,
NON TOGLIERE IL COPERCHIO (O LA COPERTURA POSTERIORE). ALL’INTERNO NON VI SONO PARTI MANUTENIBILI DALL’UTENTE. PER LA MANUTENZIONE RIVOLGERSI A PERSONALE DI MANUTENZIONE QUALIFICATO.
Questo simbolo avverte l’utente che tensioni non isolate all’interno dell’unità possono essere sufficientemente elevate da provocare scossa elettrica. Pertanto è pericoloso avere qualsiasi tipo di contatto con un componente interno all’unità.
Questo simbolo avverte l’utente che sono state incluse importanti informazioni relative al funzionamento ed alla manutenzione dell’unità. Pertanto esse devono essere lette attentamente al fine di evitare l’insorgere di problemi.
Contenuto
La confezione del nuovo monitor LCD NEC* deve contenere le seguenti parti:
• Monitor LCD con base inclinabile
• Cavo di alimentazione
• Manuale Utente
• CD ROM
• Supporto base
• Supporto cavi
*
Conservare la confezione ed il materiale di imballaggio originali per trasportare o spedire il monitor.
Guida rapida
Per collegare la base al supporto LCD:
1. Inserire la parte anteriore del supporto LCD nei fori presenti sulla parte anteriore della base (Figura S.1).
2. Fissare la base al supporto. La linguetta di bloccaggio sulla base deve essere inserita perfettamente nel foro sulla parte posteriore del supporto (Figura S.1).
Per collegare il supporto cavi:
1. Fissare il supporto cavi alla base. Inserire i ganci del supporto cavi nei fori sulla parte posteriore del supporto e far scivolare il supporto cavi verso il basso per posizionarlo correttamente (Figura S.1).
NOTA: Assicurarsi che le linguette siano ben salde. Per collegare il monitor LCD al sistema, attenersi alle seguenti
istruzioni:
1. Spegnere il computer.
2. Per il PC con l’uscita analogica: Collegare il cavo segnali mini D-SUB a 15 pin collegato al monitor al connettore della scheda video del sistema (Figura A.1). Serrare tutte le viti.
Per Mac: Collegare l’adattatore cavo MultiSync-Macintosh (non incluso) al computer. Fissare il cavo segnali mini D-SUB a15pin all’adattatore cavo MultiSync Macintosh (Figura A.2). Serrare tutte le viti.
NOTA: Alcuni sistemi Macintosh non dispongono di un adattatore
cavo Macintosh.
3. Collegare il cavo di alimentazione alla presa di alimentazione. Collocare il cavo segnali video e il cavo di alimentazione sul supporto cavi (Figura B.1).
NOTA: Regolare la posizione del cavo che si trova sotto il supporto
cavi per evitare di danneggiare il cavo o il monitor.
NOTA: Fare riferimento alla sezione “Attenzione” di questo
manuale per una scelta corretta del cavo di alimentazione.
ATTENZIONE
Dichiarazione del Costruttore
Qui si certifica che il monitor a colori AccuSync LCD73V (L175GZ)/ AccuSync LCD93V (L195GY)/LCD170V (L175GZ)/LCD190V (L195GY) rispettano le norme
ed è contrassegnato con
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Giappone
Direttiva del Consiglio Europeo 73/23/CEE:
– EN 60950-1
Direttiva del Consiglio Europeo 89/336/CEE:
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
Figura S.1
Base
Linguette di
bloccaggio
Supporto
Figura A.1 Figura A.2
Adattatore cavo Macintosh (non incluso)
Figura B.1
Supporto cavi
Manuale
Utente
Cavo di
alimentazione
Supporto
base
Supporto
cavi
Monitor LCD
Attacco fisso (il cavo segnali
video è collegato)
CD ROM
Supporto cavi
05_Italian 13/2/07, 9:45 AM1
Ofrecido por www.electromanuales.com
Italiano
Italiano-2
Controlli
I tasti OSM (On-Screen Manager) sulla parte anteriore del monitor hanno le seguenti funzioni:
1. Funzioni principali tasti
Visualizzazione OSM. Collegamento alla finestra
di regolazione luminosità.
Visualizzazione OSD nulla
Collegamento alla finestra di regolazione del contrasto.
Visualizzazione OSD
(fase di selezione icone)
Si passa allo fase di regolazione.
Il cursore va a sinistra. Il cursore va a destra.
Visualizzazione OSD
(fase di regolazione)
Si passa allo fase di selezione icone.
Diminuzione valore regolazione oppure il cursore va a sinistra per effettuare la regolazione.
Aumento valore di regolazione oppure il cursore per la regolazione va a destra.
SELECT
+
Si mette in funzione la “regolazione automatica”.
Operazione di Reset. Commutatore mute off/on nella finestra di regolazione volume.
AUTO/RESET
Pulsante
4. Accendere il monitor con il pulsante di alimentazione, posto sulla parte anteriore, e il computer (Figura C.1).
5. La regolazione automatica No-touch regola automaticamente il monitor sulle impostazioni ottimali al momento della configurazione iniziale per la maggior parte delle temporizzazioni. Per ulteriori regolazioni, usare i seguenti controlli OSM:
• Regolazione automatica del contrasto
• Auto Aggiust Fare riferimento alla sezione Controlli di questo Manuale Utente
per una descrizione completa di questi controlli OSM.
NOTA: In caso di problemi fare riferimento alla sezione Ricerca
guasti di questo Manuale utente.
Inclinazione
Afferrare con le mani i due lati dello schermo del monitor e inclinarlo a piacere (Figura TS.1).
Rimozione del supporto monitor per il montaggio
Per predisporre il monitor a un diverso montaggio:
1. Scollegare tutti i cavi.
2. Sistemare il monitor verso il basso su una superficie non abrasiva (Figura R.1).
3. Togliere le 3 viti che fissano il monitor al supporto e sollevare il supporto come illustrato (Figura R.2). Il monitor ora è pronto per essere montato in modo diverso.
4. Collegare il cavo di alimentazione c.a. sulla parte posteriore del monitor (Figura R.3).
5. Per rimontare sul supporto, ripetere queste operazioni nell’ordine inverso.
NOTA: Utilizzare esclusivamente un metodo di montaggio
alternativo compatibile VESA.
NOTA: Rimuovere con cautela il supporto del monitor.
Rimozione della base
NOTA: Rimuovere sempre la base quando si sposta l’LCD.
1. Sistemare il monitor verso il basso su una superficie non abrasiva (Figura R.1).
2. Utilizzando entrambi i pollici, premere le linguette in basso verso l’alto per sbloccare.
3. Tirare la base non bloccata ed estrarla dal supporto.
Collegamento di un braccio flessibile
Il monitor LCD è progettato per essere utilizzato con il braccio flessibile.
Durante l’installazione utilizzare le viti (4 pezzi) come indicato nella figura. Per soddisfare i requisiti di sicurezza, il monitor deve essere montato su un braccio che garantisca la necessaria stabilità in considerazione del peso del monitor.
Il monitor LCD deve essere utilizzato esclusivamente con un braccio di tipo approvato (per es. marca GS).
Figura TS.1
Figura R.1
Superficie non abrasiva
Figura R.2
Figura R.3
4 VITI (M4) (profondità MAX: 8,5 mm)
Peso del gruppo LCD: 3,6 kg - AccuSync LCD73V/LCD170V (MAX)
4,9 kg - AccuSync LCD93V/LCD190V (MAX)
Specifiche tecniche
Serrare tutte le viti
100 mm
Spessore della staffa (braccio) 2.0 ~ 3.2 mm
100 mm
4 x 12 mm con rondella di bloccaggio e rondella piatta
Figura C.1
Pulsante di
alimentazione
05_Italian 13/2/07, 9:45 AM2
Ofrecido por www.electromanuales.com
Italiano
Italiano-3
Sottomenu
(icona Seleziona)
Sottomenu (Regolazione)
Premere il tasto “SELEZIONA”
Strumento di esempio:
Premere il tasto “SELEZIONA”
Premere il tasto “SELEZIONA”
Menu principale
(icona Seleziona)
Menu principale
(Regolazione)
Premere il tasto “SELEZIONA”
Regolazione
utilizzando “–” o “+”
Regolazione
utilizzando “–” o “+”
2. Struttura OSM
Premere
il tasto
“SELEZIONA”
Premere “–” o “+”
Premere “–” o “+”
LUMINOSITÀ
Regola la luminosità dell’immagine e dello schermo.
CONTRASTO
Regola la luminosità dell’immagine in relazione allo sfondo.
AUTO-CONTRASTO
Regola l’immagine visualizzata per input video non standard.
REGOLAZIONE AUTOM.
Regola automaticamente la posizione immagine, la dimensione orizzontale e la regolazione di precisione.
SIN./DEST.
Controlla la posizione orizzontale dell’immagine all’interno dell’area di visualizzazione dell’LCD.
GIÙ/SU
Controlla la posizione verticale dell’immagine all’interno dell’area di visualizzazione dell’LCD.
DIMENSIONE ORIZZ.
Regola la dimensione orizzontale aumentando o diminuendo questa impostazione.
FINE
Migliora messa a fuoco, nitidezza e stabilità dell’immagine, aumentando o diminuendo questa impostazione.
SISTEMI DI CONTROLLO COLORE
Grazie a cinque predisposizioni di colore (9300/7500/sRGB/ UTENTE/NATIVO) è possibile selezionare l’impostazione colore desiderata. Le impostazioni predefinite di colore sRGB e NATIVO sono impostazioni standard e non possono essere modificate.
COLORE ROSSO
Aumenta o diminuisce il rosso. La modifica comparirà sullo schermata.
COLORE VERDE
Aumenta o diminuisce il verde. La modifica comparirà sullo schermata.
COLORE BLU
Aumenta o diminuisce il blu. La modifica comparirà sullo schermata.
STRUMENTO
Selezionando STRUMENTO è possibile ottenere il sottomenu.
CONFIG. DI FABBRICA
Selezionando Config. di fabbrica è possibile resettare tutte le impostazioni dei controlli OSM riportandole alle configurazioni di fabbrica. Il pulsante RESET deve essere tenuto premuto per diversi secondi per avere effetto. È possibile resettare impostazioni individuali selezionando il relativo comando e premendo il pulsante RESET.
EXIT
Selezionando EXIT è possibile uscire dal menu / sottomenu OSM.
LINGUA
I menu di controllo OSM sono disponibili in nove lingue.
DISABILITAZIONE OSM
Il menu di controllo OSM rimane attivo per il tempo che è in uso. Nel sottomenu Disabilitazione OSM, è possibile selezionare l’intervallo di tempo dopo il quale, nel caso non venga premuto nessun tasto, il menu di controllo OSM si chiude. Le scelte preimpostate sono 10 - 120 secondi intervallati da 5 secondi.
BLOCCO OSM
Questo comando blocca l’accesso a tutte le funzioni di comando OSM ad eccezione di Luminosità e Contrasto. Se si tenta di attivare i controlli OSM in modalità Blocco OSM , apparirà una schermata che informa del fatto che i controlli OSM sono bloccati. Per attivare la funzione Blocco OSM, premere il tasto “AUTO/ RESET”, quindi il tasto “+” e tenerli premuti contemporaneamente. Per disattivare la funzione Blocco OSM, premere il tasto “AUTO/ RESET”, quindi il tasto “+” e tenerli premuti contemporaneamente.
NOTIF. RISOLUZIONE
Se è selezionato ON, dopo 30 secondi appare sulla schermata un messaggio che indica che la risoluzione non è ottimale.
DDC/CI
ATTIVA o DISATTIVA la comunicazione bidirezionale e il controllo del monitor.
MONITOR INFO
Indica il modello e i numeri di serie del monitor.
Avvertenza OSM
I menu di avvertenza OSM scompaiono quando si preme il pulsante SELECT. NESSUN SEGNALE: Questa funzione avverte in caso non vi sia nessun segnale presente. Dopo l’accensione o quando vi è un cambiamento del segnale di input o il video è inattivo, apparirà la finestra Nessun Segnale. NOTIF. RISOLUZIONE: Questa funzione consiglia l’utilizzo di una risoluzione ottimizzata. Dopo l’accensione o quando vi è un cambiamento del segnale di ingresso o il segnale video non ha la risoluzione opportuna, si apre la finestra Notif. Risoluzione. Questa funzione può essere disattivata nel menu STRUMENTI. FUORI PORTATA: Questa funzione suggerisce la risoluzione e la frequenza di rinfresco ottimali. Dopo aver attivato l’alimentazione, in caso di modifica del segnale di ingresso o se il segnale video non ha una temporizzazione adatta, apparirà il menu Fuori tolleranza.
Premere
il tasto
“SELEZIONA”
05_Italian 13/2/07, 9:45 AM3
Ofrecido por www.electromanuales.com
Русский
Русский-1
ОПАСНОСТЬ ПОРАЖЕНИЯ ЭЛЕКТРИЧЕСКИМ ТОКОМ • НЕ ОТКРЫВАТЬ
ВО ИЗБЕЖАНИЕ ВОЗГОРАНИЯ ИЛИ ПОРАЖЕНИЯ ЭЛЕКТРИЧЕСКИМ ТОКОМ НЕ ПОДВЕРГАЙТЕ АППАРАТ ВОЗДЕЙСТВИЮ ДОЖДЯ ИЛИ ВЛАГИ. КРОМЕ ТОГО, НЕ ВСТАВЛЯЙТЕ ПОЛЯРНУЮ ВИЛКУ УСТРОЙСТВА В РОЗЕТКУ УДЛИНИТЕЛЯ ИЛИ ДРУГИЕ РОЗЕТКИ, ЕСЛИ ЕЕ ШТЫРЬКИ НЕ ВХОДЯТ ПОЛНОСТЬЮ. НЕ ОТКРЫВАЙТЕ КОРПУС, ТАК КАК ВНУТРИ НАХОДЯТСЯ ДЕТАЛИ ПОД ВЫСОКИМ НАПРЯЖЕНИЕМ. ПО ВОПРОСАМ ОБСЛУЖИВАНИЯ ОБРАТИТЕСЬ К КВАЛИФИЦИРОВАННОМУ СПЕЦИАЛИСТУ.
ПРЕДУПРЕЖДЕНИЕ
ВНИМАНИЕ. ЧТОБЫ УМЕНЬШИТЬ РИСК ПОРАЖЕНИЯ
ЭЛЕКТРИЧЕСКИМ ТОКОМ, НЕ СНИМАЙТЕ КРЫШКУ (ИЛИ ЗАДНЮЮ ПАНЕЛЬ). ВНУТРИ АППАРАТА НЕТ ДЕТАЛЕЙ, ОБСЛУЖИВАНИЕ КОТОРЫХ МОЖЕТ ВЫПОЛНЯТЬ ПОЛЬЗОВАТЕЛЬ. ПО ВОПРОСАМ ОБСЛУЖИВАНИЯ ОБРАТИТЕСЬ К КВАЛИФИЦИРОВАННОМУ СПЕЦИАЛИСТУ. Этот знак предупреждает пользователей о том, что внутри устройства находятся неизолированные детали под высоким напряжением, которые могут стать причиной поражения электрическим током. Поэтому ни в коем случае нельзя прикасаться к каким-либо деталям внутри устройства. Этот знак предупреждает пользователей о том, что имеется важная документация по эксплуатации и обслуживанию этого устройства. Поэтому ее необходимо внимательно прочитать, чтобы избежать возможных проблем.
ВНИМАНИЕ
Содержимое
В упаковочной коробке* нового монитора NEC LCD должно быть следующее:
• Монитор LCD с шарнирной опорой
• Кабель питания
• Руководство пользователя
• диск CD-ROM
•Подставка основания
• Держатель кабеля
* Обязательно сохраните коробку и упаковочный материал для
транспортировки или перевозки монитора.
Краткое руководство по началу работы
Чтобы подсоединить основание к подставке ЖКД:
1. Вставьте переднюю часть подставки ЖКД в отверстия в передней части основания (Рисунок S.1).
2. Закрепите подставку на основании. Защелка на основании должна войти в соответствующее отверстие на задней стороне подставки (Рисунок S.1).
Чтобы установить держатель кабеля:
1. Закрепите держатель кабеля на основании. Вставьте держатель кабеля в отверстия на задней стороне подставки и, сдвинув держатель вниз, установите его на место (Рисунок S.1).
ПРИМЕЧАНИЕ. Убедитесь, что защелки надежно фиксируют
держатель.
Чтобы подключить ЖКД монитор LCD к системе, выполните следующие инструкции:
1. Отключите питание компьютера.
2. Для ПК с аналоговым выходом: подключите 15-контактный мини-разъем D-SUB видеосигнального кабеля, идущего от монитора, к разъему видеоплаты на компьютере (Рисунок A.1). Затяните все винты.
Для Mac: Подсоедините адаптер кабеля для MultiSync Macintosh (не входит в комплект) к компьютеру. Подключите кабель видеосигнала с 15-штырьковым мини-разъемом D-SUB к адаптеру кабеля для MultiSync Macintosh (Рисунок A.2). Затяните все винты.
ПРИМЕЧАНИЕ. Для некоторых компьютеров Macintosh адаптер
кабеля Macintosh не требуется.
3. Подключите кабель питания к электрической розетке. Поместите кабель видеосигнала и кабель питания в держатель (Рисунок B.1).
ПРИМЕЧАНИЕ. Отрегулируйте положение кабеля под держателем
кабелей, чтобы предотвратить повреждение кабеля или монитора.
ПРИМЕЧАНИЕ. Ре комендации по правильному выбору кабеля питания
см. в разделе “Внимание” настоящего руководства.
Заявление изготовителя
Мы настоящим подтверждаем, что цветной монитор AccuSync LCD73V (L175GZ)/AccuSync LCD93V (L195GY)/LCD170V (L175GZ)/ LCD190V (L195GY) соответствуют
и содержит отметку
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
To kyo 108-0023, Japan
Директиве Совета 73/23/EEC:
– EN 60950-1
Директиве Совета 89/336/EEC:
– EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
BZ 02
Рисунок S.1
Основание
Фиксирующие
выступы
Подставка
Рисунок A.1 Рисунок A.2
Адаптер кабеля для Macintosh (не входит в комплект)
Рисунок B.1
Держатель кабеля
Руководство
пользователя
Кабель
питания
Подставка основания
Держатель
кабеля
ЖК-монитор
со стороны монитора
видеокабель не отсоединяется
CD-ROM
Держатель кабелей
06_Russian 13/2/07, 9:46 AM1
Ofrecido por www.electromanuales.com
Русский
Русский-2
Органы управления
Кнопки управления OSM (Экранного меню) на передней панели монитора выполняют следующие функции:
1. Основная функция при нажатии каждой кнопки
Отображение меню OSM. Быстрый выбор окна
регулировки Яркости.
Button
Когда не отображается экранный индикатор
Вызов окна настройки контрастности.
Когда отображается экранный индикатор
(стадия выбора значка)
Переход к стадии Adjustment (Регулировка).
Перемещение курсора влево.
Перемещение курсора вправо.
Когда отображается экранный индикатор
(стадия Adjustment (Регулировка))
Переход к стадии выбора значка.
Уменьшение значения настройки или перемещение курсора для настройки влево.
Увеличение значения настройки или перемещение курсора для настройки вправо.
SELECT
+
Работает функция автонастройки “Auto adjust”.
Сброс настроек. Переключатель Mute off/on (Включение/отключение звука) в окне регулировки громкости Volume.
AUTO/RESET
4. Включите монитор с помощью кнопки питания (Рисунок C.1) и компьютер.
5. Функция бесконтактной настройки выполняет автоматическую подстройку оптимальных параметров монитора при первоначальной настройке, включая большинство параметров синхронизации. Для дальнейших настроек используйте следующие параметры OSM:
•Auto Adjust Contrast (Автонастройка контрастности)
•Auto Adjust (Автонастройка) Полное описание этих параметров OSM см. в разделе “Органы
управления” этого руководства пользователя.
ПРИМЕЧАНИЕ. В случае какой-либо неполадки обратитесь к разделу
Устранение неисправностей этого руководства
пользователя.
Наклон
Установите требуемый наклон экрана монитора, держа его руками с обеих сторон (Рисунок TS.1).
Отсоединение подставки монитора перед установкой
Чтобы подготовить монитор к установке в другом положении:
1. Отсоедините все кабели.
2. Положите монитор экраном вниз на неабразивную поверхность (Рисунок R.1).
3. Отверните 3 винта, крепящие монитор к подставке, и снимите подставку, как показано на рисунке (Рисунок R.2). Теперь монитор готов к установке другим способом.
4. Подключите кабель питания к разъему на задней панели монитора (Рисунок R.3).
5. Повторите процесс в обратном порядке, чтобы снова подсоединить подставку.
ПРИМЕЧАНИЕ. Другие используемые методы установки должны
удовлетворять требованиям VESA.
ПРИМЕЧАНИЕ. Соблюдайте осторожность при снятии подставки
монитора.
Снятие основания
ПРИМЕЧАНИЕ. При транспортировке монитора ЖКД всегда снимайте
основание.
1. Положите монитор экраном вниз на неабразивную поверхность (Рисунок R.1).
2. Большими пальцами нажмите на нижние выступы в направлении вверх для разблокировки.
3. Снимите основание с подставки.
Подсоединение подвижного кронштейна
Этот ЖКД монитор предназначен для использования с подвижным кронштейном.
При установке используйте винты (4 шт.), как показано на рисунке. В целях соблюдения правил безопасности монитор следует устанавливать на кронштейне, обеспечивающем необходимую устойчивость с учетом веса монитора.
ЖКД монитор следует использовать только с предназначенным для него кронштейном (например, марки GS).
Рисунок TS.1
Рисунок R.1
Неабразивная поверхность
Рисунок R.2
Рисунок R.3
4-ВИНТА (M4)
(МАКСИМАЛЬНАЯ глубина: 8,5 мм)
Вес ЖКД монитора в сборе: 3,6 кг - AccuSync LCD73V/LCD170V (MAX)
4,9 кг - AccuSync LCD93V/LCD190V (MAX)
Характеристики
Затяните все винты
100 мм
То лщина кронштейна (рычага) 2,0 ~ 3,2 мм
100 мм
4 х 12 мм с пружинной шайбой и плоской шайбой
Рисунок C.1
Кнопка питания
06_Russian 13/2/07, 9:46 AM2
Ofrecido por www.electromanuales.com
Русский
Русский-3
Подменю
(Icon Select)
(Выбор значка)
Нажимайте
кнопку
“-” или “+”
Подменю (Adjust) (Настройка)
Нажмите клавишу “SELECT”
Образец:
Нажмите клавишу “SELECT”
Нажмите клавишу “SELECT”
Главное меню (Icon Select)
(Выбор значка)
Главное меню (Adjust)
(Настройка)
Нажмите
клавишу
“SELECT”
Нажмите клавишу
“SELECT”
Нажмите клавишу “SELECT”
Выполните настройку с
помощью кнопок “-” или “+”
2. Структура меню OSM
Выполните
настройку с
помощью кнопок
“-” или “+”
Нажимайте
кнопку
“-” или “+”
BRIGHTNESS (ЯРКОСТЬ)
Настройка общей яркости изображения и фона экрана.
CONTRAST (КОНТРАСТНОСТЬ)
Настройка яркости изображения по отношению к фону.
AUTO CONTRAST (АВТОКОНТРАСТНОСТЬ)
Коррекция изображения, соответствующего нестандартным входным видеосигналам.
AUTO ADJUST (АВТОНАСТРОЙКА)
Автоматическая настройка параметров положения, горизонтального размера и четкости.
LEFT/RIGHT (ВЛЕВО/ВПРАВО)
Контроль горизонтального положения изображения на экране ЖКД.
DOWN/UP (ВНИЗ/ВВЕРХ)
Контроль вертикального положения изображения на экране ЖКД.
H. SIZE (Г. РАЗМЕР)
Регулировка горизонтального размера путем увеличения или уменьшения значения этого параметра.
FINE (ЧЕТКОСТЬ)
Улучшение фокусировки, четкости и устойчивости изображения путем увеличения или уменьшения значения этого параметра.
COLOUR CONTROL SYSTEMS (СИСТЕМЫ РЕГУЛИРОВКИ ЦВЕТА)
Пять задаваемых варианта установки цвета (9300/7500/sRGB/ USER/NATIVE) для выбора необходимой настройки цвета. Палитры цветов sRGB и NATIVE являются стандартными и неизменяемыми.
COLOUR RED (КРАСНЫЙ)
Увеличение или уменьшение красного цвета. Изменение будет отображаться на экране.
COLOUR GREEN (ЗЕЛЕНЫЙ)
Увеличение или уменьшение зеленого цвета. Изменение будет отображаться на экране.
COLOUR BLUE (СИНИЙ)
Увеличение или уменьшение синего цвета. Изменение будет отображаться на экране.
TOOL (ИНСТРУМЕНТЫ)
При выборе TOOL (ИНСТРУМЕНТЫ) можно войти в подменю.
FACTORY PRESET (ЗАВОДСКИЕ НАСТРОЙКИ)
Выбор параметра заводских настроек позволяет выполнить сброс всех параметров OSM до значений, установленных на заводе. Для этого необходимо в течение нескольких секунд удерживать нажатой кнопку RESET (СБРОС). Отдельные настройки можно сбросить, выделив их и нажав кнопку RESET.
EXIT (ВЫХОД)
При выборе кнопки EXIT (ВЫХОД) можно закрыть меню OSM/ подменю.
LANGUAGE (ЯЗЫК)
Меню параметров OSM переведены на девять языков.
OSM TURN OFF (ОТКЛЮЧЕНИЕ МЕНЮ OSM)
Меню параметров OSM будет оставаться на экране, пока оно используется. В подменю OSM Turn Off (Отключение экранного индикатора) можно выбрать время ожидания монитора после последнего нажатия кнопки до закрытия меню параметров OSM. Предварительно заданные значения: 10 - 120 секунд с шагом в 5 секунд.
OSM LOCK OUT (БЛОКИРОВКА МЕНЮ OSM)
С помощью этого параметра можно полностью заблокировать доступ ко всем функциям параметров OSM, кроме Brightness (Яркость) и Contrast (Контрастность). При попытке активизации параметров OSM в режиме блокировки появится сообщение, указывающее, что меню OSM заблокированы. Чтобы включить функцию блокировки меню OSM, нажмите кнопку “AUTO/ RESET”, затем “+” и удерживайте обе кнопки нажатыми. Чтобы отключить функцию блокировки меню OSM, нажмите кнопку “AUTO/ RESET”, затем “+” и удерживайте обе кнопки нажатыми.
RESOLUTION NOTIFIER (ПОКАЗАТЕЛЬ РАЗРЕШЕНИЯ)
Если выбрано значение ON (ВКЛ), через 30 секунд на экране появляется сообщение о том, что параметр разрешения отличается от оптимального разрешения.
DDC/CI
Включение или отключение двухстороннего управления монитором.
MONITOR INFO (ИНФОРМАЦИЯ О МОНИТОРЕ)
Информация о номере модели и серийном номере монитора.
Предупреждение OSM
Меню предупреждения OSM исчезают при нажатии кнопки SELECT. NO SIGNAL (НЕТ СИГНАЛА): Эта функция выдает предупреждение при отсутствии сигнала. Окно No Signal (Нет сигнала) появляется при включении питания, изменении входного сигнала или неактивном видеоизображении.
RESOLUTION NOTIFIER (ПОКАЗАТЕЛЬ РАЗРЕШЕНИЯ):
Эта функция выдает предупреждение о необходимости использования оптимизированного разрешения. Окно Resolution Notifier (Показатель разрешения) появляется при включении питания, изменении входного сигнала, неправильном разрешении видеосигнала. Эту функцию можно отключить в меню TOOL (ИНСТРУМЕНТЫ).
OUT OF RANGE (ВНЕ ДОПУСТИМОГО ДИАПАЗОНА):
Эта функция выдает рекомендации по использованию оптимизированного разрешения и частоты регенерации. Окно Out Of Range (Вне допустимого диапазона) появляется при включении питания, изменении входного сигнала, неправильной синхронизации видеосигнала.
06_Russian 13/2/07, 9:46 AM3
Ofrecido por www.electromanuales.com
xx_Back 13/2/07, 9:46 AM1
Ofrecido por www.electromanuales.com
Printed in China
Part Number: ________
Printed on recycled paper
xx_Back 13/2/07, 9:46 AM2
Ofrecido por www.electromanuales.com
Loading...
