MODELS N9902 F-1

MultiSync 95F-1 AccuSync 95F-1

COLOR MONITOR

SERVICE MANUAL

Better Service

Better Reputation

Better Profit

/MITSUBISHI

NEC-MITSUBISHI ELECTRIC VISUAL SYSTEMS

W A R N I N G

The SERVICE PERSONNEL should have the appropriate technical training knowledge and experience necessary to :

 Be familiar with specialized test equipment, and  Be careful to follow all safety procedures associated with high voltage CRT

circuit designs to minimize danger to themselves and their coworkers.

To avoid electrical chocks, this equipment should be used with an appropriate power cord and be connected only to a properly grounded AC outlet

This equipment utilized a micro-gap power switch. Turn off the monitor by first pushing the front panel power switch. Next, remove the power cord from the AC outlet.

To prevent fire or shock hazards, do not expose this unit to rain or moisture

This symbol warns the personnel that un-insulated voltage within the unit may have sufficient magnitude to cause electric shock.

This symbol alerts the personnel that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

PRODUCT SAFETY CAUTION

1. When parts replacement is required for servicing, always use the manufacturer’s specified replacement.

2. Comply with all caution and safety-related notes on the product display chassis and picture tube.

3. When replacing the component, always be certain that all the components are put back in the place.

4. When servicing display monitor unit, it is required that the provided lead dress is used in the high voltage circuit area.

5. It is also recommended that shatter proof goggles are worn, when removing, installing and handling the picture tube. People not equipped with the proper precautionary measures mentioned should keep the picture tube away from body while handling.

6. As for a connector, pick and extract housing with fingers properly since a disconnection and improper contacts may occur, when wires of the connector are led.

7. Use a proper screwdriver. If you use screwdriver that does not fit, you may damage the screws.

CONTENTS

Page No.

SPECIFICATIONS...................................................................................................... 1

CONTROLS ................................................................................................................ 2

SERIAL NUMBER INFORMATION ............................................................................ 4

DISASSEMBLY .......................................................................................................... 5

ADJUSTMENT SPECIFICATIONS ............................................................................ 6

TROUBLE SHOOTING............................................................................................. 16

THEORY OF CIRCUIT DESCRIPTION ................................................................... 25

REPLACEMENT PARTS LIST

1) MultiSync 95F ........................................................................................... 29

2) AccuSync 95F Difference List .................................................................. 54

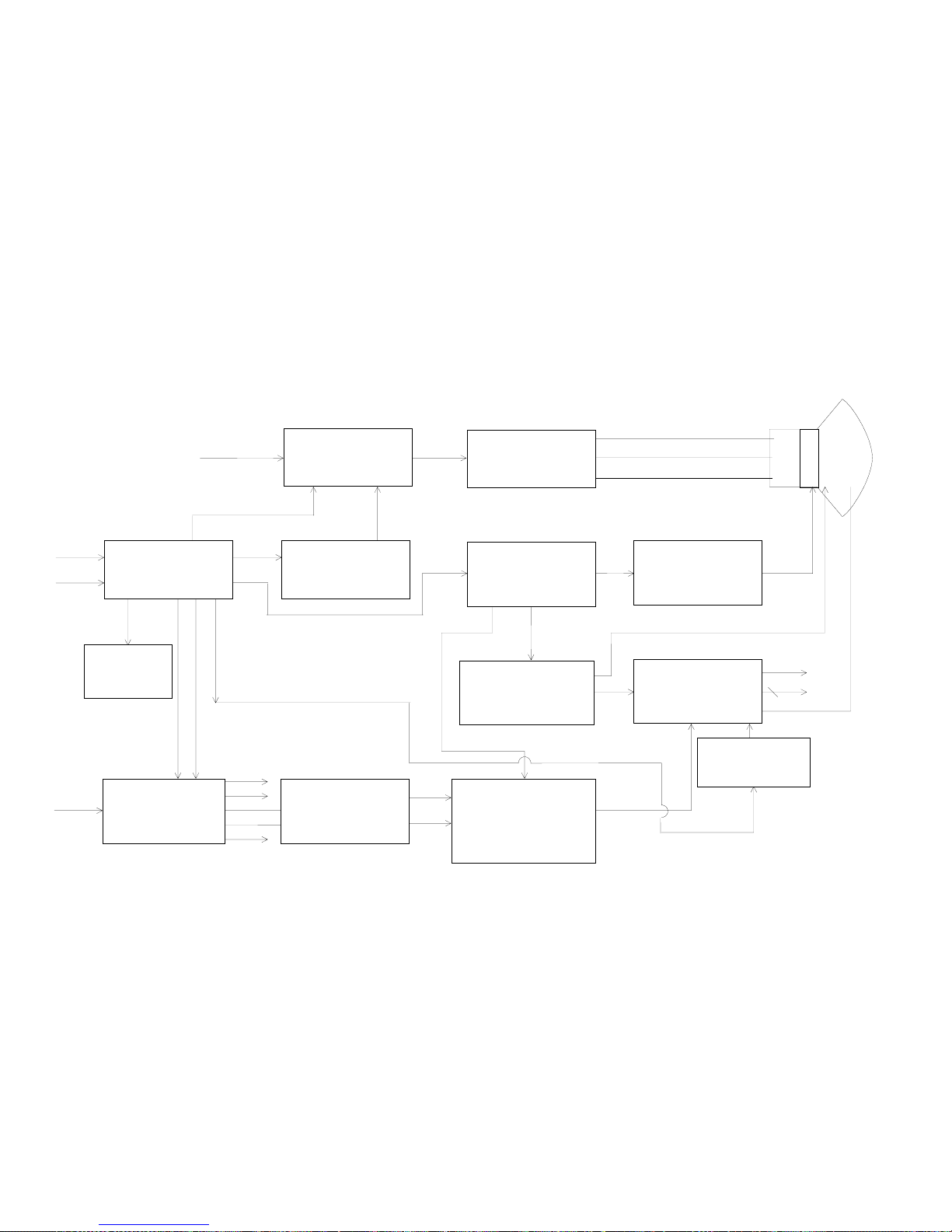

BLOCK DIAGRAM.................................................................................................... 56

SCHEMATIC............................................................................................................. 57

1) Video Board................................................................................................. 57

2) Main Board .................................................................................................. 58

Monitor Specifications N9902 Monitor Notes

Picture Tube Diagonal: Viewable: Ima

e Size:

Radius:

19 inch 18 inch 1360 mm

90° deflection, 0.26 mm dot pitch CRT, medium –short persistence phosphor, multi-layered anti static screen coating, semi-tint screen, Invar Shadow Mask and Opticlear scre en surface.

Input Signal Video: S

nc:

ANALOG 0.7Vp-p/75 Ohms Sep arate sync. P o sitiv e /Negative

Display Color Analog input: Unlimited number of Colors

Depends on display card used.

Synchronization Horizontal: Range Vertical:

31 kHz to 96 kHz 55 Hz to 160 Hz

Automatically Automatically

Resolutions S up porte d Resolution based on horizontal and vertical frequencies only

640 × 480 @ 60 to 160 Hz 800 × 600 @ 55 to 153 Hz 832 × 624 @ 55 to 144 Hz 1024 × 768 @ 55 to 105 Hz 1152 × 870 @ 55 to 105 Hz 1280

1024 @ 55 to 90 Hz ………

1600 × 1280 @ 55 to 76 Hz

Some systems may not support all modes listed.

NMV cites recommended resolution at 85 Hz for opt imal displa

performance.

Active Display A rea

(

Factory Setting) Horizontal:

Vertical:

356 m m/14.0 inches

267 m m/10.5 inches

Dependent upon signal timing used, And does not inclu de border area.

Active Display A rea (Full Scan)

366 m m/14.4 inches 274 m m/10.8 inches

Dependent upon signal timing used,

And does not inclu de border area. Power Supply AC 100 - 240V, 50-60Hz Current Rating 2.2A @ 100 - 240V Dimensions 442 mm (W) × 453 m m (H) × 455 mm (D)

17.4 inches (W ) ×17.8 inche s (H ) × 17.9 inches (D)

Weight 22.0 kg

48.5 lbs

Environmental Considerations Operatin

Temperature: Humidity: Feet: Stora

e Temperature:

Humidit

Feet:

0° C to + 35° C 30% to 80% 0 to 10,000 Feet

-20 ° C to + 60° C 10% to 90% 0 to 45,000 Feet

NOTE: Technical specifications are su bject to ch ange without notice.

SPECIFICATIONS

SELECT RESET

–

CONTROLS

On-screen display control buttons on the front of the monitor Function as follows:

SELECT Enters and exits the OSD menu and decides the icon. CONTROL − / + Selects one of the controls and increases or decreases the

adjustment.

RESET Resets the highlighted control to the factory Setting.

Adjusts the overall image and background screen brightness.

Adjusts the image brightness in relation to the background.

R Red Color Control: Adjust the red contrast of the display. G Green Color Control: Adjust the green contrast of the display. B Blue Color Control: Adjust the blue contrast of the display.

Moves the image horizontally (left or right).

Moves the image vertically (up or down).

Increases or decreases the horizontal size of the image.

Increases or decreases the vertical size of the image.

Increases or decreases the curvature of the sides either inward or outward.

Increases or decreases the top of the screen to be the same as the bottom.

Increases or decreases the tilt of the sides either to the left or right.

Increases or decreases the curvature of the sides either to the left or right.

Rotates the entire display clockwise or counterclockwise.

Degauss Control: Eliminates the buildup of stray magnetic

fields that alter the correct scan of the electron beams

and affect the purity of the screen colors, focus and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetized.

Caution: Please allows a minimum of 20 minutes to

elapse between uses of the Degauss Control.

9300 This color setting is adjusted at the factory to the stated Kelvin

OSD: There are 3 background color (blue,black, and white). To choose background

color, press SELECT button after the selection of OSD in “Icon select window”.

Horizontal Moire Canceler: Reduces horizontal moire levels.

Vertical Moire Canceler: Reduces vertical moire levels.

EXIT: To exit the OSD window. Select EXIT in “Icon select window”, then push

SELECT button to exit OSD window.

Note: If no buttons are pushed after 10 seconds while in OSD, the window will

automactically disappear.

SERIAL NUMBER LABEL

MODEL N9902

SERIAL No.

00001 ~ on ward (Start from 00001 ~ when month is changed.)

It doesn’t have meaning specially

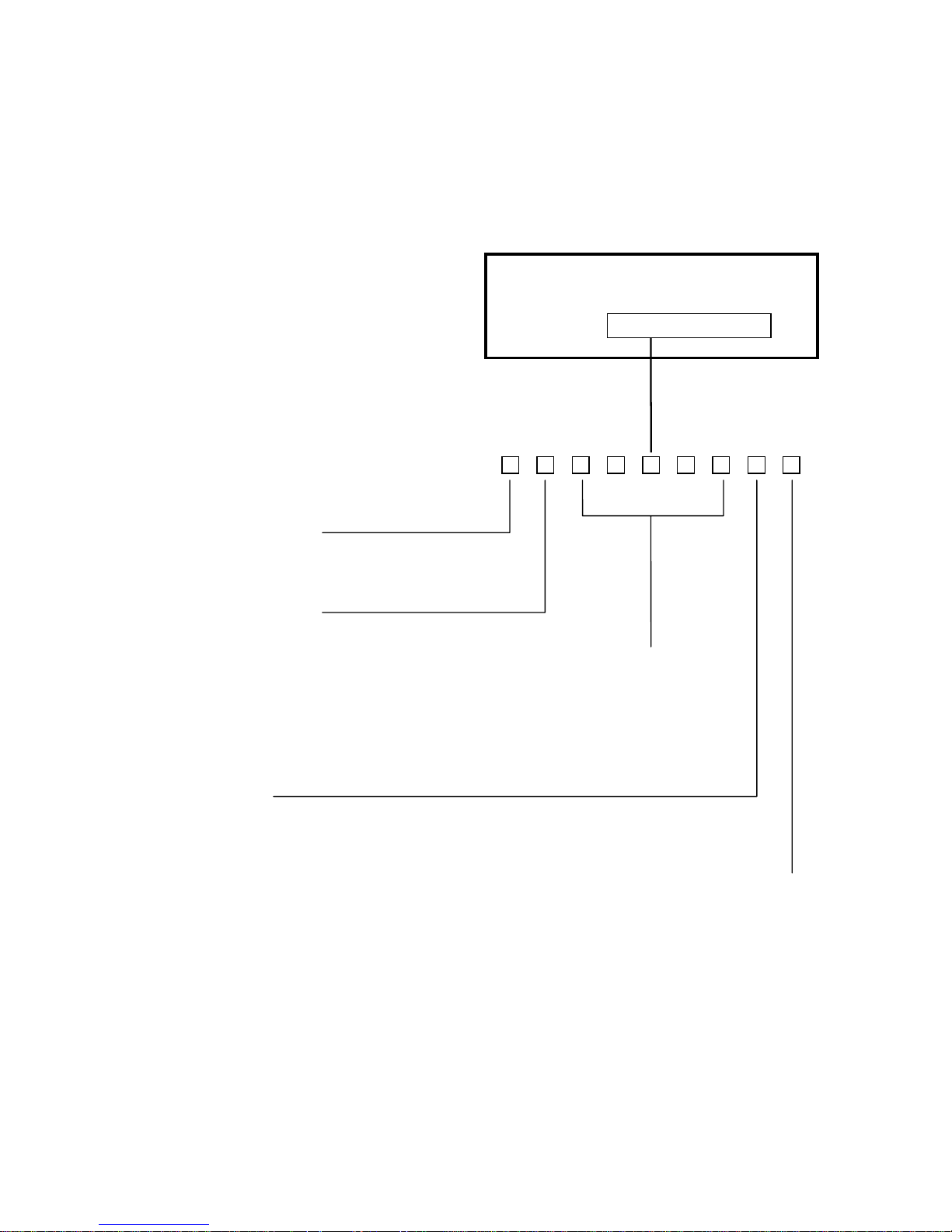

SERIAL NUMBER INFORMATION

Refer to the serial number information shown below.

Manufactured Year : ( Last digit )

Manufactured Month : January to September 1 to 9 October X November Y December Z

Factory mark :

NPG CHINA ..............................Y

DISASSEMBLY

• Before you disassemble the set, turn off power and pull out the power plug.

•

Use a proper screwdriver. If you user screwdriver that does not fit, you may damage the

screws.

•

Disassembly is the opposite process of assembly.

•

Carefully discharge the CRT anode potential by grounding to CRT dag ground harness before

removing Anode Cap.

EXPLANATION

1.Disassemble a screw like a picture.

2.Disconnect the GND wire (CRT coating earth wire) from MAIN BOARD ASSY and CRT BOARD ASSY. This model has three kinds of CRT. Depend on CRT, the GND wire assembly is some different. Be careful.

3.Disconnect the connector “S201”, “S202”, “S203”, Coating earth connector, and screen lead from the CRT BOARD ASSY.

4.Disconnect the CRT BOARD ASSY from the CRT.

5.Disconnect the connector “S301”, “S601”, “S703”, “S701”, “S104” and “P102” from the MAIN BOARD ASSY.

6.Remove the Anode Cap from the CRT. NOTE: Carefully discharge the CRT anode by shorting it to ground before removing Anode Cap.

ADJUSTMENT SPECIFICATIONS

TABLE OF CONTENTS

Page

(1) Adjustment Tools........................................................................................................................... 7

(2) Timing Table .................................................................................................................................. 7

(3) Definition for Normal Condition...................................................................................................... 7

(4) B+ Adjustment ............................................................................................................................... 7

(5) Free Run Adjustment..................................................................................................................... 8

(6) H. V. Adjustment............................................................................................................................ 8

(7) X-ray Test ...................................................................................................................................... 8

(8) H-Center Adjustment ..................................................................................................................... 8

(9) H-Size Adjustment......................................................................................................................... 8

(10) Mode 11 Pre-Adjustment............................................................................................................. 8

(11) G2 Voltage Adjustment(Raster Brightness Adjustment) ............................................................. 8

(12) Focus Adjust................................................................................................................................ 9

(13) Convergence Adjust .................................................................................................................... 9

(14) Automatically Adjust .................................................................................................................... 9

(15) White Balance Adjustment .......................................................................................................... 9

(16) White Balance Check and ABL Adjust ........................................................................................ 9

(17) Power Saving Test .................................................................................................................... 10

(18) DCC 1/2B Test .......................................................................................................................... 10

(19) Timing Table .............................................................................................................................. 11

Reference

Inspection of PnP communication and Writing EDID to EEPROM and inspection of

PnP communication ............................................................... 14

1. Construction of System......................................................................................................... 14

2. EDID Write and Inspection Method....................................................................................... 14

3. EDID Data File ...................................................................................................................... 15

MODE RESOLUTION H-SYNC EREQ. V-SYNC FREQ H . POLARITY V . POLARITY

1 VGA400 31.4kHz 70Hz - + 2 VGA640*480 31.4kHz 60Hz - 3 640*480(75) 37.5kHz 75Hz - 4 640*480(85) 43.2kHz 85Hz - 5 800*600(75) 46.8kHz 75Hz + + 6MAC

¢º

50K 49.7kHz 75Hz - 7 800*600(85) 53.6kHz 85Hz + + 8 1024*768(75) 60.0kHz 75Hz + + 9 1280*1024(60) 64.0kHz 60Hz + +

10 1024*768(85) 68.6kHz 85Hz + + 11 1280*1024(75) 79.9kHz 75Hz + + 12 1280*1024(85) 91.1kHz 85Hz + + 13 1600*1200(75) 93.7kHz 75Hz + + 14 1024*768(60) 48.3kHz 60Hz - 15 Free run Adj. 30.0kHz 69Hz - + 16 H. CENTERING,EHT 90.1kHz 85Hz + +

N9902 Adjustment Specifications

(1) Adjustment tools:

(A) Color Analyzer (B) CHAROMA 2135 or Function Generator (C) Multi meter (D) Hi-Pot Probe (E) Convergence Meter (F) Degauss Probe (G) Power Meter (H) Automatic Alignment System (I) DDC test fixture

(2) TIMING TABLE(FACTORY MODE -14 MODES)

(3) Definition for Normal Condition:

(A) INPUT AC VOLTAGE 110V/50HZ. (B) WARM UP TIME 30 MINUTES. (C) CROSSHATCH PATTERN. (D) ALL VR ADJ CENTER. (E) CRT FACE TO EAST DIRECTION (F) COLOR TEMP 9300K

(4) B+ Adjustment:

(A) MODE: 60kHz 1240*768(75) (B) PATTERN: CROSSHATCH (C) Adjustment: Adjust VR102 to make the cathode of D112 has 14.9V

+0.1V on cathode.

(D) CHECK: CHECK OTHER POWER SOURCE should be 82

+2V,7.0+0.3V,

47V

+2V,-12.1V+0.5V.

(5) FREE RUN Adjustment

(A) MODE: 30kHz 70Hz (B) Make TP6 to be short to the ground, and adjust VR306 to make the picture to the normal

position.

(6) H.V. Adjustment:

(A) MODE: 90.1kHz 110Hz (B) PATTERN: ALL BLACK(Brightness cut off) (C) Adjustment: Adjust VR302 to make the high voltage has 25.8

+0.2KV

(7) X-RAY test:

(A) MODE: 90.1kHz 110Hz (B) PATTERN: CROSSHATCH(Brightness just cut off) (C) Test: a. Make TP1 and TP2 to be short circuit confirm the X-ray reactive.

b. Reset the power.

(8) H-CENTER Adjustment

(A) MODE: 90.1kHz 110Hz (B) PATTERN: CROSSHATCH (C) Adjustment: Adjust VR301 to make raster is centrally on CRT

(9) H-size Adjustment:

(A) MODE: 53.7kHz 800*600(85) (B) PATTERN: CROSSHATCH (C) Adjust H-SIZE, OSD set to Max, then adjust VR305 to make the full scan.

(10) MODE 11 Pre-Adjustment:

(A) MODE: 79.9kHz 1280*1024(75) (B) PATTERN: CROSSHATCH (C) Adjust V-CENTER, H-SIZE, V-SIZE, PINCUSHION, TRAPEZOID, H-PHASE to make

Picture Position Center and Picture Size 356*267mm.

(11) G2 Voltage adjustment (Raster Brightness adjustment)

(A) MODE: 79.9kHz 1280*1024(75) (B) PATTERN: ALL BLACK (C) Adjustment:a. WARM UP 30 min.

b. Make External Degauss. c. Adjust SCREEN VR to 560

+10V

d. CUT OFF Adjustment: Video signal off (0Vp-p), bright VR set to MAX,

adjust VR304 VR (G1), at the brightness 1~1.5FL.(4.2

+0.8 cd/m²)

(12) FOCUS Adjust:

(A) Adjust H.parabola Vp-p by OSM H-Focus control.

> 53K H.para : 90% ~ 100% < 53K H.para : 80% ~ 90%

Check T303 output Vp-p.

H.para : 350 Vp-p (Max. 500 Vp-p) Hitachi V.para : 190 Vp-p (Max. 190 Vp-p) Samsung V.para : 150 Vp-p (Max.150 Vp-p)

(B) MODE: 79.9kHz 1280*1024(75) (C) PATTERN: CROSSHATCH (D) Adjust Focus VR(S), horizontal line must be clearly. (FBT center VR)

Adjust Focus VR(D), vertical line must be clearly. (FBT up VR)

(13) Convergence Adjust:

(A) MODE: 79.9kHz 1280*1024(75) (B) PATTERN: CROSSHATCH. (C) Adjustment: Use the convergence meter to check the spec. if can not follow the spec,

adjust Yoke coil to make be follow the spec.

(14) Automatically adjust:

Adjust H-SIZE, V-SIZE, H-PHASE, V-PHASE, PINCUSHION, TRAPEZOID R.G.B. GAIN by factory product line automatic adjustment system¢wsystemER9300 ,ER2300)(Adjust NO. 1~14MODE). H.SIZE : 356

+3mm

H.SIZE : 267

+2mm

H.POSI :

+2mm

H.POSI :

+2mm

(15) White Balance Adjustment (set VR304 in the central of VR)

(A) MODE: 80kHz 1280*1024 (B) PATTERN: ALL BLACK (C) Make External Degauss (D) Video signal off (0Vp-p), Brightness set to Max, check screen at the brightness 1~1.5FL.

(4.2

+0.8 cd/m²), or adjust VR304 at brightness 1~1.5FL.(4.2+0.8 cd/m²)

X = 0.283

± 0.01

y = 0.297

± 0.01

Y = 4.2

± 0.8 cd/m²

(16) White Balance Check and ABL Adjust:

(A) MODE: 80kHz 1280*1024(75) (B) PATTERN: CENTER BLOCK(WINDOW)

standard as below

9300K x = 0.283

+ 0.010

y = 0.297

+ 0.010

Y = 155

+ 5 cd/m²

7500K x = 0.300

+ 0.010

y = 0.315

+ 0.010

Y = 155

+ 5 cd/m²

6500K x = 0.315

+ 0.010

y = 0.325

+ 0.010

Y = 155

+ 5 cd/m² (D) PATTERN: FULL WHITE 9300K. (E) If they are out of spec, adjust to following:

BRIGHTNESS: Back raster is 0.2 cd/m² position CONTRAST MAX: (MAX-5 digit )~(MAX) Adjust R/G/B gain to be 9300K color due to about spec.

(F) When adjust 6500K and 7500K color¡Akeep brightness and contrast max position to (E)

condition. Adjust R/G/B/ GAIN to be 6500K color due to about spec..

(G) Adjustment: Brightness control and contrast control set to Max, adjust VR303 to

Y=29~31FT-L(103

+3cd/m²)

(17) POWER SAVING Test:

(A) MODE: 60kHz 1024*768(75) (B) PATTERN: ANY PATTERN. (C) Adjustment:

a. It should be into suspend mode when signal quit after 5 sec.2

the power output must

<15W. Check the LED color :Orange.

b. It should be into power off mode when into suspend mode after 3sec.and the power

output must be

<5W. Check the LED color :Orange

c. Transfer the signal and check the screen is normal. Check the LED color :Green

(18) DDC 1/2B Test:

(A) MODE: Any MODE. (B) PATTERN: Any PATTERN. (C) Scan bar code label and apply serial NO. to EDID Data.

Preset M ode No.

123456

VGA VGA VESA VESA VESA (MAC)

Signal Nam e

640*400 640*480 640*480 640*480 800*600 832*624

(75) (85) (75) (75)

Resolution

640*400 640*480 640*480 640*480 800*600 832*624

Dot Clock

(MHz)

25.175 25.175 31.5 00 36.000 49.500 57.283

(kHz)

31.47 31.469 37.50 43.269 46.8 75 49.725

fv (Hz)

70.09 59.940 75.00 85.008 75.00 74.550

Total

(

dot

)

800 800 840 832 1056 1152

(uS)

31.78 31.778 26.6 67 23.111 21.333 20.111

Disp (dot)

640 640 640 640 800 832

(uS)

25.42 25.422 20.3 17 17.778 16.162 14.523

Front (dot)

16 16 16 56 16 32

(uS)

0.64 0.636 0.508 1.556 0.323 0.559

Sync Pulse (dot)

96 96 64 56 80 64

(uS)

3.18 3.813 2.032 1.556 1.616 1.117

Back (dot)

48 48 120 80 160 224

(uS)

1.91 1.907 3.810 2.222 3.232 3.910

Total

(H)

449 525 500 509 625 667

(m S )

14.268 16.683 13.3 33 11.764 13.333 13.414

Disp (H)

400 480 480 480 600 624

(m S )

12.711 15.253 12.800 11.093 12.800 12.549

Front (H)

12 10 1 1 1 1

(m S )

0.381 0.318 0.027 0.023 0.021 0.020

Sync Pulse (H)

223333

(mS)

0.064 0.064 0.080 0.069 0.064 0.060

Back (H)

35 33 16 25 21 39

(mS)

1.112 1.049 0.427 0.578 0.448 0.784

Inte rla c e

NON NON NON NON NON NON

Polarity

(H/V )

NEG/POS NEG /NEG NEG/NEG NEG/NEG POS/POS NEG/NEG

Com p osite Sync Com p osite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Se rra tion

OFF OFF OFF OFF OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

(19) TIMING TABLE

Preset Mode No.

789101112

VESA VESA VESA VESA VESA VESA

Signal N am e

800*600 1024*768 1280*1024 1024*768 1280*1024 1280*1024

(85) (75) (60) (85) (75) (85)

Resolution

800*600 1024*768 1280*1024 1024*768 1280*1024 1280*1024

Dot Clock (MHz)

56.250 78.750 108.000 94.5 135.0 157.5

fh (kHz)

53.674 60.023 63.981 68.677 79.976 91.146

fv (Hz)

85.061 75.029 60.020 85 75.025 85.024

Total

(

dot

)

1048 1312 1688 1376 1688 1728

(uS)

18.631 16.660 15.630 14.561 12.504 10.971

Disp (dot)

800 1024 1280 1024 128 0 1280

(uS)

14.222 13.003 11.852 10.836 9.481 8.127

Front (dot)

32 16 48 48 16 64

(uS)

0.569 0.203 0.444 0.508 0.11 9 0.406

Sync (dot)

64 96 112 96 144 160

(uS)

1.138 1.219 1.037 1.016 1.067 1.016

Back (dot)

152 176 248 208 248 224

(uS)

2.702 2.235 2.296 2.201 1.873 1.422

Total

(H)

631 800 1066 808 1066 1072

(m S )

11.756 13.328 16.661 11.765 13.329 11.761

Disp (H)

600 768 1024 768 1024 1024

(m S )

11.179 12.795 16.005 11.183 12.804 11.235

Front (H)

111111

(m S )

0.019 0.017 0.016 0.015 0.013 0.011

Sync (H)

333333

(mS)

0.056 0.050 0.047 0.044 0.038 0.033

Back (H)

27 28 38 36 38 44

(mS)

0.503 0.466 0.594 0.524 0.475 0.483

Inte rla c e

NON NON NON NON NON NON

P olarity (H/V )

POS/POS POS/POS POS/POS POS/POS POS/POS POS/POS

Com p osite Sync Com p osite Vide o Character Font

7*9 7*9 7*9 7*9 7*9 7*9

S e rra tion

OFF OFF OFF OFF OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

Preset Mode No.

13 14 15 16

VESA VESA

Signal N am e

1600*1200 1024*768 FREE H.C EN T

(75) (60)

Resolution

1600*1200 1024*768 640*400 1280*102

Dot Clock (MHz)

202.5 65. 0 25.24 157.5

fh (kHz)

93.75 48.36 30.05 91.146

fv (Hz)

75 60 69.56 85.024

Total

(

dot

)

2160 1344 840 1728

(uS)

10.667 20.68 33.278 10.971

Disp (dot)

1600 1024 640 1280

(uS)

7.901 1 5.75 25.357 8.127

Front (dot)

64 24 16 64

(uS)

0.316 0.37 0.631 0.406

Sync (dot)

192 136 64 160

(uS)

0.948 2.09 2.536 1.016

Back (dot)

304 160 120 224

(uS)

1.501 2.46 4.754 1.422

Total

(H)

1250 806 432 1072

(m S )

13.333 16.667 14.376 11.761

Disp (H)

1200 768 400 1024

(m S )

12.800 15.880 13.311 11.235

Front (H)

1311

(m S )

0.011 0.062 0.033 0.011

Sync (H)

3623

(mS)

0.032 0.124 0.067 0.033

Back (H)

46 29 29 47

(mS)

0.491 0.600 0.956 0.483

Inte rla c e

NON NON NON NON

P olarity (H/V )

POS/POS NEG/NEG NEG/POS POS/POS

Com p osite Sync Com p osite Vide o Character Font

7*9 7*9 7*9 7*9

S e rra tion

OFF OFF OFF OFF

EQP

OFF OFF OFF OFF

Monitor

Program Disk

Signal Cable

Fixture

Power Cable

Write and Inspection for Plug and Play Communication

1. Construction of System

This system should be connected as shown below.

Note: PC clock speed should be below 266MHz. OS is PC-DOS.

Fixture Board can be connected directly to PC without Printer Cable.

2. EDID Write and Inspection Method

1) Run specified EDID write and Inspection program on PC-DOS mode. The monitor turns into the self test mode.

2) Run the specified EDID write and inspection program under PC-DOS mode.

3) Key in the serial No. or Scan serial No. bar code.

4) Press “Return” key to write the EDID data.

5) Press “F1” key to inspect DDC1 communication.

6) Press “F2” key to inspect DDC2 communication EDID DATA Format: Please refer the 3. EDID data File.

DEF

00 FF FF FF FF FF FF 00 38 A3 D2 5D 01 01 01 01

0F 0A 01 02 0C 25 1B 78 EA CF E8 A1 55 47 99 25

10 48 4C FF FF 80 31 59 45 59 61 59 71 4F 81 59

81 99 A9 4F D1 40 86 3D 00 C0 51 00 30 40 40 A0

13 00 64 0B 11 00 00 1E 00 00 00 FD 00 37 A0 1F

60 18 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4D

75 6C 74 69 53 79 6E 63 20 39 35 46 00 00 00 FF

00 30 34 30 30 30 30 31 59 41 0A 20 20 20 00 E1

DEF

00 FF FF FF FF FF FF 00 38 A3 D0 5D 01 01 01 01

0F 0A 01 02 0C 25 1B 78 EA CF E8 A1 55 47 99 25

10 48 4C FF FF 80 31 59 45 59 61 59 71 4F 81 59

81 99 A9 4F D1 40 86 3D 00 C0 51 00 30 40 40 A0

13 00 64 0B 11 00 00 1E 00 00 00 FD 00 37 A0 1F

60 18 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41

63 63 75 53 79 6E 63 20 39 35 46 0A 00 00 00 FF

00 30 34 30 30 30 30 31 59 41 0A 20 20 20 00 68

11 12 1

14 1

17 1

Format *NNNNNNNN_YMSSSSSFR*

Example * N A 5 0 0 0 8 T

0600001YA*

3. EDID data file

(1)EDID Serial No. Format

1) MS95F-1 Week of Manufacture (Month*4) Year of Manufacture

Serial No Area 9bytes Check Sum

2) AS95F-1 Week of Manufacture (Month*4) Year of Manufacture

Serial No Area 9bytes Check Sum

(2)Bar Code Format(code39)

*+Model Code + 1 space + Serial No. + *

Serial No. Descriptions;

Y: Manufactured Year (Last digit) ex. 0 à 2000

M: Manufactured Month 1 ~ 9, X(October), Y(Novenber), Z(December) S: Serial No. ( 5digits) 00001 ~ onward (restart when month is changed) F: Factory Code: Y is NPG China Factory R: Product Revision code: start from A

EDID Code Input Procedure ex.

1) Scan Bar code (20 digits) NA50008T_ 9600001YA

2) Skip 9 digits then find the Serial No. 0600001YA

3) Make Year hex Code from Year digit 0 à 0Ah

4) Make Week hex Code from Month digit 6*4 = 24 à 18h

5) Change Serial No. to ASCII code 30h 36h 30h 30h 30h 30h 31h 59h 41h

6) Apply Serial No. Information to the default EDID code.

7) Download EDID from PC to Monitor.

8) DDC1 Inspection

9) DDC2B Inspection

TROUBLE SHOOTING

Refer to User’s Manual trouble shooting section before using this chart.

TABLE OF CONTENTS

Page

1.NO OPERATION, POWER LED FLASH ....................................................................................... 17

2.NO OPERATION, POWER LED OFF ........................................................................................... 18

3.VIDEO NOISE, UNSYNCHRONOUS............................................................................................ 19

4 . NO VIDEO ................................................................................................................................... 20

5.NO RASTER .................................................................................................................................. 21

6.TROUBLE IN H.V SYNC ............................................................................................................... 22

7.PINCUSHION POOR..................................................................................................................... 23

8.FOCUS POOR............................................................................................................................... 24

POWER LED FLASH

POWER SW

TURN OFF

POWER SW

TURN OFF

MULTIMETER TEST

Q315, Q312, D114,

D110,D111,D112,D113

1. NO OPERATION, POWER LED FLASH

1. DC P/S O/P VOLTAGE SET AT 17V,CURRENT SET AT 200MA. POSITIVE CONNECT TO C109”+”. NEGATIVE CONNECT TO C105”-“.

2. SCOPE SET AT 10V/DIV, 10US/DIV, PROBE CONNECT TO Q101-GATE AND C105”-“.

POWER SW

TURN OFF

CHECK

F101

CHECK

Q101

CHECK

U101

U101 PIN6

PULSE O/P

POWER SW

TURN ON

FAILURE

R111, ZD103

CHECK

U101 PIN 7 VCC

PIN 4 SAWTOOTH

2. NO OPERATION, POWER LED OFF

CHECK HORIZONT AL

FREQUENCY C114 TO GND

CHECK

Q312 FREQUENCY

SYNCRONIZE

WITH H-SYNC

CHECK U301

NORMAL OPERATION

CHECK

Q101 G-S FREQUENCY

SYNCRONIZE

WITH H-SYNC

CHECK C114, R116

D109, R115, R117

YES

NONO

3. VIDEO NOISE, UNSYNCHRONOUS

NO VIDEO

YES

CHECK

SCREEN CONTROL

CLOCKWISE

YES

CHECK

U201 PIN 2, 6, 11

SIGNAL LEVEL

YES

CHECK

U201 PIN 29, 32, 35

SIGNAL LEVEL

TROUBLE IN U201

CLAMP(PIN 19)

U201 12V VOLTAGE

YES

CHECK

U203 PIN 1, 3, 5

SIGNAL LEVEL

CHECK

CATHODE VIDEO

LEVEL

TROUBLE IN CRT

YES

TROUBLE IN U203

R220, R240, R260

TROUBLE IN U203

8V, 12V, 80V VOLTAGE

TROUBLE IN

R/G/B SIGNAL,

SIGNAL CABLE

REFER

NO RASTER

4. NO VIDEO

CHECK

U301 PIN 1, PIN 2

H/V SYNC

NO RASTER

CHECK

B+

TROUBLE IN

MCU U701

YES

TROUBLE IN

Q315,Q318,T301,D320,

D321,Q325,Q305,Q306,T302

CHECK Q315

COLLECTOR ABOUT

1050Vp-p

CHECK G1

VOLTAGE ABOUT

-45~65V

TROUBLE IN G2 VOLTAGE

YES

TROUBLE IN

Q331, Q323, Q329, R394,

D314, T302, C328, U701

CHECK

T302 PIN 3 VOLTAGE

57V AT 31.5KHz, 172V

AT 93.7KHz

TROUBLE IN

U301,Q312,D317,D111,R387,

R312, Q307, Q308

OR DEFLECTION YOKE

YES

CHECK

U301 PIN 26, 28

H/V SYNC

TROUBLE IN

U301

YES

POWER SUPPLY

CHECK

YES

CHECK

U701 PIN 31 IS LOW

5. NO RASTER

TROUBLE IN

HOR. OR VER. SYNC

CHECK

CONNECTOR S701

(PIN6,7), SIGNAL

TROUBLE IN

SIGNAL CABLE

CHECK

U701(PIN 39,40)

H/V SYNC.

SIGNAL

TROUBLE IN

H/V SYNC LINE &

Q701, Q702

CHECK

U701(PIN 32,33)

H/V SYNC.

SIGNAL

CHECK

U701(PIN 5)

VOLTAGE

5V?

TROUBLE IN

5V LINE

YES

CHECK

U701(PIN 1, 2)

TROUBLE IN

U301

YES

NO NO

CHECK

U701 (PIN 7, 8)

FREQ.12MHz

TROUBLE IN

H.V SIGNAL LINE

R301, R302, C706,

C301, C302

TROUBLE IN

X701, U701

NOYES

6. TROUBLE IN H. V SYNC

PINCUSHION

P ARABOLA

WAVE

CHECK

U301 PIN 24

PARABOLA

TROUBLE IN U301

CHECK C350, Q332,

R30V, R30W

CHECK Q309, Q311,

YES

7. PINCUSHION POOR

FOCUS POOR

CHECK

T302 14PIN H-DYNAMIC

PARABOLA WAVEFORM 550Vpp,

V-DYNAMIC PARABOLA

WAVEFORM 180Vpp

ADJUST

T302 STATIC FOCUS VR AND

DYNAMIC FOCUS VR

CHECK

T303 H AND V PARABOLA

WAVEFORM

TROUBLE IN T303, Q305, R360, R32H, R331, R339, C322, C324,

C320

YES

1. CHECK STATIC FOCUS AND DYNAMIC FOCUS VR LINE TO CRT SOCKET

2. CRT SOCKET OR CRT POOR

CHECK C323 H-PARABOLA WAVEFORM 29Vpp

CHECK

Q303, Q304 EMITTER

H-PARABOLA

32-Vpp

TROUBLE IN T303

TROUBLE IN

Q302, Q303, Q304, Q338

YES

GO TO

FACTORY MODE,

CHOICE H-FOCUS ICON, ADJUST

TO 80~100%, CHECK U301

10PIN FOCUS 3.8Vpp

TROUBLE IN U301

YES

V-PARABOLA

YES

CHECK

Q301, Q317 COLLECT

H-PARABOLA

5-Vpp

TROUBLE IN

Q301, Q307

8. FOCUS POOR

N9902 Theory of circuit operation

This monitor contains the following blocks

Page

1.Power Supply.................................................................................................................................. 26

2.Video Circuit & OSD ....................................................................................................................... 26

3.Micro Controller System ................................................................................................................. 26

4.Vertical Deflection ........................................................................................................................... 27

5.Horizontal Deflection.......................................................................................................................27

6.FBT Secondary & Dynamic Focus.................................................................................................. 28

SW1 SW2 SW3 HF/S

fH<52.0k H H H L

52.0k<=fH<74.0k L H H H

74.0k<=fH<83.0k L L H H

83.0k<=fH<96.5k L L L H

96.5k>=fH H H H H

1. Power Supply

(a) The filter network consists of L104, C101, C107, L101, L102, C103 and C104. The main function of this

filter circuit is to eliminate the noise that is produced from monitor itself.

(b) T101 is an energy converter which transfers the energy from primary winding to secondary load. R105,

C112 and D105 are the snubber circuit and they function to absorb the spike to protect Q101.

FBT secondary to ensure the power supply and horizontal deflection are synchronized.

(d) D110, D111, D112, D113, D114 are output rectifier diodes which are filtered by C119, C120, C121,

C122 and C143. The output voltage will supply and control all the deflection circuit.

(e) DC to DC step-up PWM is output from U301 pin28. This waveform through Q307 and Q308 to drive the

Q312. This pulse width is varied with horizontal frequency, and then the DC voltage is difference of FBT pin3.

2. Video Circuit & OSD

The video amplifier system is consist of the Pre-Amplifier, the Video-Power-Amplifier, and the cutoffVoltage circuit.

(a)The U201 (M52743B) is a three channel video pre-amplifier IC, that controlled by MCU IIC bus for the

features of contrast, output DC level, 3 SUB gain controls (R-Gain, G-Gain, B-Gain). (b)U201 PIN 19 need a positive pulse for clamping and PIN 27 also need a positive pulse for blanking. (c)The OSD mixer processes are on pin 2, 3, 4, and the OSD Blk input on pin 1. (d)The Video-Power-Amplifier U203 (LM2435) is a three channel hybrid IC which functions as a cascade

type transistor amplifier to reach the high bandwidth performance. (e)The Cutoff- Adjusting circuit is consist of Q211, Q212, Q231, Q232, Q251 and Q252 to provide the

function of background white-balance. (f)The U202 (MTV021N-38) is a OSD generator outputs the R. G. B. and FBLK signals that MCU shows

the monitor’s status and the user adjusting indications. This IC is synchronized by horizontal and

vertical sync input on pin 5 and pin 10.

3. Micro Controller System

(a)The MCU U701 (MTV212) provides the following functions:

(1) Output 10 PWM to adjust the voltage controlled functions such as H-SIZE, BRIGHTNESS,

ROTATION.

(2)When MCU detected the power saving signal, two outputs pin 28 and pin29 will change the Hi/Lo

state to control the power saving circuit.

(3)There has 4 outputs (SW1~SW3, HF/S) to control the H-SIZE, when MCU detected the different

sync, the SW1~SW3, HF/S will change its Hi/Lo state.

(4)There still has 4 CS outputs used to control the S-correction capacitor for horizontal deflection

stage.

(5)Pin 33 and pin 32 provides the always positive polarity H-SYNC and V-SYNC.

Input Output Sync Sync PS CS

Mode State

HVHV

Mute

121234

ON Pulses Pulses Pulse Pulse L H H Depend on fH

Stand ByNo pulsesPulses L L H LHLLLL

SuspendPulsesNo pulses L L H LHLLLL

User

PMS_OFFNo pulsesNo pulses L L H LLLLLL

ON Pulses Pulses Pulses Pulses L H H Depend on fH

Stand ByNo pulsesPulses L L L HHLLLL

SuspendPulsesNo pulses L L L HHLLLL

Factor

PMS_OFFNo pulsesNo pulses L L L HHLLLL

Input Output Sync Sync Rotation SW

Mode State

HVHVDAC123

ON Pulses Pulses Pulse Pulse Adj. data Depend on fH

Stand ByNo pulses Pulses L L 107/255 H H H

Suspend Pulses No pulses L L 107/255 H H H

User

PMS_OFF No pulses No pulses L L 0/255 H H H

ON Pulses Pulses Pulses Pulses Adj. data Depend on fH

Stand ByNo pulses Pulses L L Adj. data H H H

Suspend Pulses No pulses L L Adj. data H H H

Factor

PMS_OFF No pulses No pulses L L Adj. data H H H

(b)The U702 is an EEPROM IC which stores the parameters of each mode and the user adjusting result

and also DDC data. It is controlled by IIC bus from MCU.

4. Vertical Deflection

(a)Vertical deflection Saw-tooth waveform is provided by U301, pin 23, and amplified by U401

TDA8172.

(b)A voltage multiplier connected to pin 3 and pin 6, consists of D402, C409 to avoid flyback scanning

line appeared during the vertical flyback period. (c)U301 (TDA9111) pin 21 provides a DC level as a V-Position control voltage. (d)U401 pin 5 is output to drive vertical yoke.

5. Horizontal Deflection

(a)U301 is a horizontal signal processing IC. Horizontal Driver signal is output from pin 26 of U301

TDA9111 and through Q333, Q334 to drive Q316 and T301. (b)T301 is an on/off type driver transformer. It functions to convert primary energy to secondary, and

drive the horizontal output transistor Q315, R369 and C363 are the snubber.

Cs Table By Frequency

CS1 CS2 CS3 CS4 FH < 30K 0 0 0 0 30K < fH < 34K 0000 34K < fH < 36.5K 0010

36.5K < fH < 45K 0110 45K < fH < 52K 1001 52K < fH < 62.5K 1101

62.5K < fH < 67K 0011 67K < fH < 74K 1011 74K < fH < 83K 1111 83K < fH < 96.5K 1111

96.5 < fH 1 1 1 1

(c)Horizontal linearity compensation circuit:

(1)The main component is that L303 is Linearity coil and L302 is choke, when the horizontal < 52K

only L301 on and L302 off, when the horizontal > 52K, L301, L302 all on. Compensation circuit is consists of L301, L302, RL301 and Q322.

(2)The control voltage is from U701 pin 30, it varied with horizontal frequency. When the horizontal

frequency > 52K, U701 pin 36 output voltage is high and L302 is on, the horizontal frequency < 52K U701 pin 30 output voltage is low and the L302 is off.

(3)C344 is the Cs capacitor, and Q324 controls C345, Q326 controls C347, Q325 controls C346,

Q327 controls C348. The U701 pin 1, 2, 3, 4 controls the Q324, Q326, Q325 and Q327 respectively. So different frequency has different combination to meet the requirement.

6. FBT Secondary & Dynamic Focus

(a)Focus and screen voltage are come from FBT bleeder. (b)G1 bias is controlled through R399, VR304, R308, R30K, R30F, Q323 and Q331. (c)Q329 is controlled by MCU pin 31 Mute 2, and it will blank the picture during mode change. (d)Q401 is the blanking buffer to G1 to blank the retrace line of picture. (e)R318, R322, R305, D302, ZD301, Q339 and Q340 are the x-ray protection circuit. Once the HV rises

abnormally, U301 win shut down itself, all the horizontal deflection is stopped by then.

(f)Dynamic Focus:

(1)H-Focus: U301 pin 10 outputs a parabolic waveform and through Q302 into Q338 to get a reverse

amplified waveform. This waveform is through the SEPP Q303 and Q304, as a current gain then input into T303.

(2)V-Focus: U401 pin 5 output waveform through R329, C322, R32G and C324 to get a parabolic

waveform. This waveform is amplified by Q305 and input into T303.

(3)H-Focus and V-Focus are into T303 to get a combined waveform that will input to FBT.

Replacement Parts List

1) MultiSync 95F

H: HITACHI, S: Samsung, A: A ver., B: B ver.

ASSY CODE PART NO DESCRIPTION LOCATION Q' T Y ALT REMARK

1 BRACKET(PWB)ASSY 12000381 BRACKET(PWB,D) 1 2 BRACKET(PWB)ASSY 12000491 BRACKET(PWB,A) 1 3 BRACKET(PWB)ASSY 12000501 BRACKET(PWB,BL) 1 4 BRACKET(PWB)ASSY 12000511 BRACKET(PWB,BR) 1 5 BRACKET(PWB)ASSY 12000521 BRACKET(PWB,C) 1 6 BRACKET(PWB)ASSY 14000071 SCREW (PL-CPTS*3*8*15BF) 6 7 CABINET FRONT ASSY 10101191 CABINET FRONT 1 A 8 CABINET FRONT ASSY 10101411 CABINET FRONT 1 B

9 CABINET FRONT ASSY 11300501 PUSH BUTTON (CONTROL) 1 10 CABINET FRONT ASSY 11300641 PUSH BUTTON (SW) 1 11 CABINET FRONT ASSY 11600221 LENS 1 12 CABINET FRONT ASSY 13000011 COIL SPRING 1 13 CABINET FRONT ASSY 10101411 CABINET FRONT 1 14 CABINET FRONT ASSY 11300501 PUSH BUTTON (CONTROL) 1 15 CABINET FRONT ASSY 11300641 PUSH BUTTON (SW) 1 16 CABINET FRONT ASSY 11600221 LENS 1 17 CABINET FRONT ASSY 13000011 COIL SPRING 1 18 CNT BOARD A/I G A 210555 ELECT 105oC/T 1u/50V M C150 1 19 CNT BOARD A/I G A 347635 ELECT 85oC/T 47u/25V M C152 1 20 CNT BOARD A/I EJ044148 DIODE "T" 1N4148 D120 1 21 CNT BOARD A/I EJ044148 DIODE "T" 1N4148 D121 1 22 CNT BOARD A/I 80003841 DIODE 1A/20V UF4003 D041(CHENMKO) D122 1 23 CNT BOARD A/I 80010361 BASE PIN 7P 2. 54 L-TYPE P102 1 24 CNT BOARD A/I R0224127 BASE PIN 4P+HOUSING P=2.5 P103 1 25 CNT BOARD A/I 72000591 PCB HARMONIC CNT BOARD PCB2 1 26 CNT BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q120 1 27 CNT BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q120 OR 28 CNT BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q121 1 29 CNT BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q121 OR 30 CNT BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q122 1 31 CNT BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q122 OR 32 CNT BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R173 1 33 CNT BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R174 1 34 CNT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R175 1 35 CNT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R176 1 36 CNT BOARD A/I FA330820 CARBON 1/2W(T) 5% 82ohm R177 1 37 CNT BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HI TACHI) ZD120 1 38 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T B201 1 39 CRT BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B202 1 40 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T B231 1 41 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T B251 1 42 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T B271 1 43 CRT BOARD A/I HC006002 BEAD 3.5X4.7/T B2C1 1 44 CRT BOARD A/I GA333555 ELECT 85oC/T 3.3u/ 50V M C211 1 45 CRT BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/50V K C212 1 46 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C213 1 47 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C214 1 48 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C215 1 49 CRT BOARD A/I GA210595 ELECT 105oC/T 1u/100V M C216 1 50 CRT BOARD A/I GA333555 ELECT 85oC/T 3.3u/ 50V M C231 1 51 CRT BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/50V K C232 1 52 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C233 1

53 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C234 1 54 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C235 1 55 CRT BOARD A/I GA210595 ELECT 105oC/T 1u/100V M C236 1 56 CRT BOARD A/I GA333555 ELECT 85oC/T 3.3u/ 50V M C251 1 57 CRT BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/50V K C252 1 58 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C253 1 59 CRT BOARD A/I GA410575 ELECT NP/T 1u/100V M C254 1 60 CRT BOARD A/I GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C255 1 61 CRT BOARD A/I GA210595 ELECT 105oC/T 1u/100V M C256 1 62 CRT BOARD A/I GB710253 CERAMIC Y5P(B)/T 1000P/50V K C260 1 63 CRT BOARD A/I GB7101F3 CERAMIC Y5P(B)/T 100P/500V K C261 1 64 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C272 1 65 CRT BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/50V K C273 1 66 CRT BOARD A/I GA422555 ELECT NP/T 2.2u/50V M C274 1 67 CRT BOARD A/I GB610153 CERAMIC SL/T 100P/50V K C275 1 68 CRT BOARD A/I GA210655 ELECT 105oC/T 10u/50V M C276 1 69 CRT BOARD A/I GA210555 ELECT 105oC/T 1u/50V M C277 1 70 CRT BOARD A/I GB610153 CERAMIC SL/T 100P/50V K C280 1 71 CRT BOARD A/I GA247625 ELECT 105oC/T 47u/16V M C281 1 72 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 1 73 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C283 1 74 CRT BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C284 1 75 CRT BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C285 1 76 CRT BOARD A/I GB768153 CERAMIC Y5P(B)/T 680P/50V K C286 1 77 CRT BOARD A/I GB7101F3 CERAMIC Y5P(B)/T 100P/500V K C287 1 78 CRT BOARD A/I GA322715 ELECT 85oC/T 220u/10V M C288 1 79 CRT BOARD A/I GA310715 ELECT 85oC/T 100u/10V M C289 1 80 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C290 1 81 CRT BOARD A/I GF210362 MEF CAP BOX 0.01u/63V J C291 1 82 CRT BOARD A/I GF210352 MEF CAP BOX 0.01u/50V J C291 OR 83 CRT BOARD A/I GF210372 MEF CAP BOX 0.01u/100V J C291 OR 84 CRT BOARD A/I GF210362 MEF CAP BOX 0.01u/63V J C292 1 85 CRT BOARD A/I GF210352 MEF CAP BOX 0.01u/50V J C292 OR 86 CRT BOARD A/I GF210372 MEF CAP BOX 0.01u/100V J C292 OR 87 CRT BOARD A/I GB733153 CERAMIC Y5P(B)/T 330P/50V K C294 1 88 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C295 1 89 CRT BOARD A/I GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C296 1 90 CRT BOARD A/I GB7472F3 CERAMIC Y5P(B)/T 4700P/500V C297 1 91 CRT BOARD A/I GA222675 ELECT 105oC/T 22u/100V M C298 1 92 CRT BOARD A/I GB7471F3 CERAMIC Y5P(B)/T 470P/500V C2C2 1 93 CRT BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C2C5 1 94 CRT BOARD A/I GF210372 MEF CAP BOX 0.01u/100V J C2C6 1 95 CRT BOARD A/I GB7471F3 CERAMIC Y5P(B)/T 470P/500V C2C7 1 96 CRT BOARD A/I GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C2C8 1 97 CRT BOARD A/I GA222675 ELECT 105oC/T 22u/100V M C2C9 1 98 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D211 1

99 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D212 1 100 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D213 1 101 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D214 1 102 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D214 OR 103 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D215 1 104 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D215 OR 105 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D216 1

106 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D216 OR 107 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D231 1 108 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D232 1 109 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D233 1

110 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D234 1 111 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D234 OR 112 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D235 1 113 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D235 OR 114 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D236 1 115 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D236 OR 116 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D251 1 117 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D252 1 118 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D253 1

119 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D254 1 120 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D254 OR 121 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D255 1 122 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D255 OR 123 CRT BOARD A/I 80000451 DIODE "T" 1SS83 D256 1 124 CRT BOARD A/I 80004711 DIODE "T" 1SS244 D256 OR 125 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D271 1 126 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D272 1 127 CRT BOARD A/I EJ044148 DIODE "T" 1N4148 D273 1 128 CRT BOARD A/I E JAC0017 DIODE/T 1A 1N4936 D2C1 1 129 CRT BOARD A/I E JAC0017 DIODE/T 1A 1N4936 D2C2 1 130 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J1 1 131 CRT BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J11 1 132 CRT BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J12 1 133 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J13 1 134 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J14 1 135 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J15 1 136 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J16 1 137 CRT BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J17 1 138 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J18 1 139 CRT BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J19 1 140 CRT BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J2 1 141 CRT BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J20 1 142 CRT BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J21 1 143 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J22 1 144 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J23 1 145 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J24 1 146 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J25 1 147 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J26 1 148 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J27 1 149 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J28 1 150 CRT BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J3 1 151 CRT BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J4 1 152 CRT BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J5 1 153 CRT BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J6 1 154 CRT BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J7 1 155 CRT BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J8 1 156 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J9 1 157 CRT BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm JP1 1 158 CRT BOARD A/I HB 013568 PACKING COIL/T 0.56uH K(EC24) L212 1

159 CRT BOARD A/I HB 013568 PACKING COIL/T 0.56uH K(EC24) L232 1 160 CRT BOARD A/I HB 013568 PACKING COIL/T 0.56uH K(EC24) L252 1 161 CRT BOARD A/I HB 013101 PACKING COIL/T 100uH K(EC24) L271 1 162 CRT BOARD A/I HB 013101 PACKING COIL/T 100uH K(EC24) L272 1 163 CRT BOARD A/I HB 003220 PACKING COIL/T 22uH L273 1 164 CRT BOARD A/I 72000412 CRT PCB N9902 PCB 1 165 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q211 1 166 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q212 1 167 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q231 1 168 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q232 1 169 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q251 1 170 CRT BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q252 1 171 CRT BOARD A/I E BA 07336 TR PNP 2SA733P TO-92(T) Q272 1 172 CRT BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q272 OR 173 CRT BOARD A/I E AA 23690 TR NPN PH2369 TO-92(T) Q273 1 174 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R200 1 175 CRT BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R201 1 176 CRT BOARD A/I FA040330 CARBON 1/8W(T) 5% 33ohm R202 1 177 CRT BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R203 1 178 CRT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R204 1 179 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R211 1 180 CRT BOARD A/I F B 247509 METAL 1/4W(T) 1% 75ohm R212 1 181 CRT BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R213 1 182 CRT BOARD A/I FA040560 CARBON 1/8W(T) 5% 56ohm R214 1 183 CRT BOARD A/I FA040751 CARBON 1/8W(T) 5% 750ohm R215 1 184 CRT BOARD A/I FA240101 CARBON 1/4W(T) 5% 100ohm R216 1 185 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R217 1 186 CRT BOARD A/I FA040224 CARBON 1/8W(T) 5% 220K R218 1 187 CRT BOARD A/I FA330103 CARBON 1/2W(T) 5% 10K R219 1 188 CRT BOARD A/I FA040913 CARBON 1/8W(T) 5% 91K R220 1 189 CRT BOARD A/I FA040821 CARBON 1/8W(T) 5% 820ohm R221 1 190 CRT BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R222 1 191 CRT BOARD A/I FA040392 CARBON 1/8W(T) 5% 3.9K R223 1 192 CRT BOARD A/I FA040681 CARBON 1/8W(T) 5% 680ohm R224 1 193 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R231 1 194 CRT BOARD A/I F B 247509 METAL 1/4W(T) 1% 75ohm R232 1 195 CRT BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R233 1 196 CRT BOARD A/I FA040560 CARBON 1/8W(T) 5% 56ohm R234 1 197 CRT BOARD A/I FA040751 CARBON 1/8W(T) 5% 750ohm R235 1 198 CRT BOARD A/I FA240101 CARBON 1/4W(T) 5% 100ohm R236 1 199 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R237 1 200 CRT BOARD A/I FA040224 CARBON 1/8W(T) 5% 220K R238 1 201 CRT BOARD A/I FA330103 CARBON 1/2W(T) 5% 10K R239 1 202 CRT BOARD A/I FA040913 CARBON 1/8W(T) 5% 91K R240 1 203 CRT BOARD A/I FA040821 CARBON 1/8W(T) 5% 820ohm R241 1 204 CRT BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R242 1 205 CRT BOARD A/I FA040392 CARBON 1/8W(T) 5% 3.9K R243 1 206 CRT BOARD A/I FA040681 CARBON 1/8W(T) 5% 680ohm R244 1 207 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R251 1 208 CRT BOARD A/I F B 247509 METAL 1/4W(T) 1% 75ohm R252 1 209 CRT BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R253 1 210 CRT BOARD A/I FA040560 CARBON 1/8W(T) 5% 56ohm R254 1 211 CRT BOARD A/I FA040751 CARBON 1/8W(T) 5% 750ohm R255 1

212 CRT BOARD A/I FA240101 CARBON 1/4W(T) 5% 100ohm R256 1 213 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R257 1 214 CRT BOARD A/I FA040224 CARBON 1/8W(T) 5% 220K R258 1 215 CRT BOARD A/I FA330103 CARBON 1/2W(T) 5% 10K R259 1 216 CRT BOARD A/I FA040913 CARBON 1/8W(T) 5% 91K R260 1 217 CRT BOARD A/I FA040821 CARBON 1/8W(T) 5% 820ohm R261 1 218 CRT BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R262 1 219 CRT BOARD A/I FA040392 CARBON 1/8W(T) 5% 3.9K R263 1 220 CRT BOARD A/I FA040681 CARBON 1/8W(T) 5% 680ohm R264 1 221 CRT BOARD A/I FA240101 CARBON 1/4W(T) 5% 100ohm R271 1 222 CRT BOARD A/I FA040563 CARBON 1/8W(T) 5% 56K R272 1 223 CRT BOARD A/I FA040682 CARBON 1/8W(T) 5% 6.8K R273 1 224 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R274 1 225 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R275 1 226 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R276 1 227 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R277 1 228 CRT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R280 1 229 CRT BOARD A/I FA240221 CARBON 1/4W(T) 5% 220ohm R281 1 230 CRT BOARD A/I FA040752 CARBON 1/8W(T) 5% 7.5K R282 1 231 CRT BOARD A/I FA040221 CARBON 1/8W(T) 5% 220ohm R283 1 232 CRT BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R284 1 233 CRT BOARD A/I FA240010 CARBON 1/4W(T) 5% 1ohm R285 1 234 CRT BOARD A/I FA040512 CARBON 1/8W(T) 5% 5.1K R286 1 235 CRT BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R287 1 236 CRT BOARD A/I FA040332 CARBON 1/8W(T) 5% 3.3K R288 1 237 CRT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R289 1 238 CRT BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R290 1 239 CRT BOARD A/I FA040100 CARBON 1/8W(T) 5% 10ohm R293 1 240 CRT BOARD A/I FA040105 CARBON 1/8W(T) 5% 1M R294 1 241 CRT BOARD A/I FA040562 CARBON 1/8W(T) 5% 5.6K R295 1 242 CRT BOARD A/I FA040682 CARBON 1/8W(T) 5% 6.8K R296 1 243 CRT BOARD A/I FA040562 CARBON 1/8W(T) 5% 5.6K R297 1 244 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R298 1 245 CRT BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R299 1 246 CRT BOARD A/I FA240470 CARBON 1/4W(T) 5% 47ohm R2C1 1 247 CRT BOARD A/I FA240470 CARBON 1/4W(T) 5% 47ohm R2C2 1 248 CRT BOARD A/I FA240470 CARBON 1/4W(T) 5% 47ohm R2C3 1 249 CRT BOARD A/I FA240102 CARBON 1/4W(T) 5% 1K R2C4 1 250 CRT BOARD A/I FA330334 CARBON 1/2W(T) 5% 330K R2C5 1 251 CRT BOARD A/I E KA 00507 ZEN DIODE 1/2W(T) 5C2 ZD272 1 252 CRT BOARD INSERT HC005003

BEAD 3.5X8/T

¥ß¦¡

B2C2 1 253 CRT BOARD INSERT GB7472H3 CERAMIC Y5P(B)/T 4700P/1KV K C2C3 1 254 CRT BOARD INSERT GBE103H5 CERAMIC Z5U(E )/A 0.01u/1KV M C2C4 1 255 CRT BOARD INSERT 80001751 17" 29D NECK CRT SOCKET

CRT SOCKET

1 256 CRT BOARD INSERT R0224070 SINGLE PIN 1P L=14mm 2.36D GND 1 257 CRT BOARD INSERT HB000008 CHOKE COIL 100uH 8X10 L2C1 1 258 CRT BOARD INSERT FB560309 MOF 2W/M(A) 5% 3ohm R205 1 259 CRT BOARD INSERT R0224129 BASE PIN 6P+HOUSING P=2.5 S271 1 260 CRT BOARD INSERT R0224131 BASE PIN 8P+HOUSING P=2.5 S272 1 261 CRT BOARD INSERT R0224130 BASE PIN 7P+HOUSING P=2.5 S273 1 262 CRT BOARD INSERT R0224125 BASE PIN 2P+HOUSING P=2.5 S274 1 263 CRT BOARD INSERT 80005341 IC M52743BSP U201 1 264 CRT BOARD INSERT 80005351 IC MTV021N-38 U202 1

265 CRT BOARD INSERT 12600022 HEAT SINK(VIDEO) U203 1 266 CRT BOARD INSERT 14000031 SCREW(#2CBRITS*3*12*15BF) U203 1 267 CRT BOARD INSERT 80005331 IC LM2435 U203 1 268 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B101 1

269 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B102 1

270 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B103 1

271 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B104 1 272 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T B105 1 273 MAIN BOARD A/I HC005003

BEAD 3.5X8/T

¥ß¦¡

B106 1 274 MAIN BOARD A/I HC005003

BEAD 3.5X8/T

¥ß¦¡

B107 1 275 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B301 1 276 MAIN BOARD A/I HC005002

BEAD 3.5X4.7/T

¥ß¦¡

B302 1 277 MAIN BOARD A/I HC006003

BEAD 3.5X8/T

ª×¦¡

B305 1 278 MAIN BOARD A/I HC005003

BEAD 3.5X8/T

¥ß¦¡

B701 1 279 MAIN BOARD A/I GA310745 ELECT 85oC/T 100u/35V M C106 1 280 MAIN BOARD A/I GA322745 ELECT 85oC/T 220u/35V M C109 1 281 MAIN BOARD A/I GB733153 CERAMIC Y5P(B)/T 330P/50V K C110 1 282 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C111 1 283 MAIN BOARD A/I GF210462 ME F CAP BOX 0.1u/ 63V J C114 1 284 MAIN BOARD A/I GE433252 PLASTIC PPN/T 0.0033u/50V J C115 1 285 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C116 1 286 MAIN BOARD A/I GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C123 1 287 MAIN BOARD A/I GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C124 1 288 MAIN BOARD A/I GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C125 1 289 MAIN BOARD A/I GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C126 1 290 MAIN BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C136 1 291 MAIN BOARD A/I GA322735 ELECT 85oC/T 220u/25V M C137 1 292 MAIN BOARD A/I GA347725 ELECT 85oC/T 470u/16V M C141 1 293 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C142 1 294 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C149 1 295 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C151 1 296 MAIN BOARD A/I GA310735 ELECT 85oC/T 100u/25V M C154 1 297 MAIN BOARD A/I GF233262 ME F CAP BOX 0.0033u/ 63V J C155 1 298 MAIN BOARD A/I GF222362 ME F CAP BOX 0.022u/ 63V J C157 1 299 MAIN BOARD A/I GA347635 ELECT 85oC/T 47u/25V M C158 1 300 MAIN BOARD A/I GA322615 ELECT 85oC/T 22u/10V M C162 1 301 MAIN BOARD A/I GB747153 CERAMIC Y5P(B)/T 470P/50 K C167 1 302 MAIN BOARD A/I GB747153 CERAMIC Y5P(B)/T 470P/50 K C301 1 303 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C302 1 304 MAIN BOARD A/I GF210352 ME F CAP BOX 0.01u/ 50V J C302 OR 305 MAIN BOARD A/I GF210372 ME F CAP BOX 0.01u/ 100V J C302 OR 306 MAIN BOARD A/I GF222362 ME F CAP BOX 0.022u/ 63V J C303 1 307 MAIN BOARD A/I GF222352 ME F CAP BOX 0.022u/ 50V J C303 OR 308 MAIN BOARD A/I GF222372 ME F CAP BOX 0.022u/ 100V J C303 OR 309 MAIN BOARD A/I GE468171 PLASTIC PPN/T 680P/50V G C304 1 310 MAIN BOARD A/I GF247462 ME F CAP BOX 0.47u/ 63V J C305 1 311 MAIN BOARD A/I GF247452 MEF CAP BOX 0.47u/50V J C305 OR 312 MAIN BOARD A/I GF247472 ME F CAP BOX 0.47u/ 100V J C305 OR 313 MAIN BOARD A/I GF233362 ME F CAP BOX 0.033u/ 63V J C306 1 314 MAIN BOARD A/I GF233352 ME F CAP BOX 0.033u/ 50V J C306 OR 315 MAIN BOARD A/I GF233372 ME F CAP BOX 0.033u/ 100V J C306 OR 316 MAIN BOARD A/I GF247462 ME F CAP BOX 0.47u/ 63V J C307 1 317 MAIN BOARD A/I GF247452 ME F CAP BOX 0.47u/ 50V J C307 OR

318 MAIN BOARD A/I GF247472 ME F CAP BOX 0.47u/ 100V J C307 OR 319 MAIN BOARD A/I GE468171 PLASTIC PPN/T 680P/50V G C308 1 320 MAIN BOARD A/I GA322655 ELECT 85oC/T 22u/50V M C309 1 321 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C311 1 322 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C312 1 323 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C314 1 324 MAIN BOARD A/I GF210262 ME F CAP BOX 0.001u/ 63V J C315 1 325 MAIN BOARD A/I GF210252 ME F CAP BOX 0.001u/ 50V J C315 OR 326 MAIN BOARD A/I GF210272 ME F CAP BOX 0.001u/ 100V J C315 OR 327 MAIN BOARD A/I GF210482 ME F CAP BOX 0.1u/ 250V J C316 1 328 MAIN BOARD A/I GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K C317 1 329 MAIN BOARD A/I GA310585 ELECT 85oC/T 1u/250V M C318 1 330 MAIN BOARD A/I GF222462 ME F CAP BOX 0.22u/ 63V J C319 1 331 MAIN BOARD A/I GF222452 ME F CAP BOX 0.22u/ 50V J C319 OR 332 MAIN BOARD A/I GF222472 ME F CAP BOX 0.22u/ 100V J C319 OR 333 MAIN BOARD A/I GA310585 ELECT 85oC/T 1u/250V M C320 1 334 MAIN BOARD A/I GF210462 ME F CAP BOX 0.1u/ 63V J C321 1 335 MAIN BOARD A/I GF210452 ME F CAP BOX 0.1u/ 50V J C321 OR 336 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C322 1 337 MAIN BOARD A/I GF222462 ME F CAP BOX 0.22u/ 63V J C323 1 338 MAIN BOARD A/I GF222452 ME F CAP BOX 0.22u/ 50V J C323 OR 339 MAIN BOARD A/I GF222472 ME F CAP BOX 0.22u/ 100V J C323 OR 340 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C324 1 341 MAIN BOARD A/I GA310675 ELECT 85oC/T 10u/100V M C325 1 342 MAIN BOARD A/I GA310585 ELECT 85oC/T 1u/250V M C326 1 343 MAIN BOARD A/I GF233362 ME F CAP BOX 0.033u/ 63V J C327 1 344 MAIN BOARD A/I GF233352 ME F CAP BOX 0.033u/ 50V J C327 OR 345 MAIN BOARD A/I GF233372 ME F CAP BOX 0.033u/ 100V J C327 OR 346 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C331 1 347 MAIN BOARD A/I GA347455 ELECT 85oC/T 0.47u/50V M C332 1 348 MAIN BOARD A/I R0319111 JUMPER WIRE AI/T 5mm C333 1 349 MAIN BOARD A/I GA347725 ELECT 85oC/T 470u/16V M C334 1 350 MAIN BOARD A/I GA322555 ELECT 85oC/T 2.2u/50V M C335 1 351 MAIN BOARD A/I GB7561F3 CERAMIC Y5P(B)/T 560P/500V C338 1 352 MAIN BOARD A/I GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K C339 1 353 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C340 1 354 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C341 1 355 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C342 1 356 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C343 1 357 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C349 1 358 MAIN BOARD A/I GF210352 ME F CAP BOX 0.01u/ 50V J C349 OR 359 MAIN BOARD A/I GF210372 ME F CAP BOX 0.01u/ 100V J C349 OR 360 MAIN BOARD A/I GA422555 ELECT NP/T 2.2u/50V M C350 1 361 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C352 1 362 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C353 1 363 MAIN BOARD A/I GF210352 ME F CAP BOX 0.01u/ 50V J C353 OR 364 MAIN BOARD A/I GF210372 ME F CAP BOX 0.01u/ 100V J C353 OR 365 MAIN BOARD A/I GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C354 1 366 MAIN BOARD A/I GB7221F3 CERAMIC Y5P(B)/T 220P/500V C355 1 367 MAIN BOARD A/I GF210462 ME F CAP BOX 0.1u/ 63V J C357 1 368 MAIN BOARD A/I GF210452 ME F CAP BOX 0.1u/ 50V J C357 OR 369 MAIN BOARD A/I GA322735 ELECT 85oC/T 220u/25V M C358 1 370 MAIN BOARD A/I GA322735 ELECT 85oC/T 220u/25V M C359 1

371 MAIN BOARD A/I GF210262 ME F CAP BOX 0.001u/ 63V J C363 1 372 MAIN BOARD A/I GF210252 ME F CAP BOX 0.001u/ 50V J C363 OR 373 MAIN BOARD A/I GF210272 ME F CAP BOX 0.001u/ 100V J C363 OR 374 MAIN BOARD A/I GA210685 ELECT 105oC/T 10u/250V M C364 1 375 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C365 1 376 MAIN BOARD A/I R0319111 JUMPER WIRE AI/T 5mm C367 1 377 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C368 1 378 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C370 1 379 MAIN BOARD A/I GA322725 ELECT 85oC/T 220u/16V M C372 1 380 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C373 1 381 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C374 1 382 MAIN BOARD A/I GF210462 ME F CAP BOX 0.1u/ 63V J C375 1 383 MAIN BOARD A/I GF210452 ME F CAP BOX 0.1u/ 50V J C375 OR 384 MAIN BOARD A/I GF210362 ME F CAP BOX 0.01u/ 63V J C376 1 385 MAIN BOARD A/I GF210352 ME F CAP BOX 0.01u/ 50V J C376 OR 386 MAIN BOARD A/I GF210372 ME F CAP BOX 0.01u/ 100V J C376 OR 387 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C378 1 388 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C379 1 389 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C380 1 390 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C381 1 391 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C382 1 392 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C383 1 393 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C384 1 394 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C385 1 395 MAIN BOARD A/I GA347625 ELECT 85oC/T 47u/16V M C401 1 396 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C402 1 397 MAIN BOARD A/I GF210462 ME F CAP BOX 0.1u/ 63V J C403 1 398 MAIN BOARD A/I GF210452 ME F CAP BOX 0.1u/ 50V J C403 OR 399 MAIN BOARD A/I GF215462 ME F CAP BOX 0.15u/ 63V J C404 1 400 MAIN BOARD A/I GF215452 ME F CAP BOX 0.15u/ 50V J C404 OR 401 MAIN BOARD A/I GF215472 ME F CAP BOX 0.15u/ 100V J C404 OR 402 MAIN BOARD A/I GF247462 ME F CAP BOX 0.47u/ 63V J C405 1 403 MAIN BOARD A/I GF247452 ME F CAP BOX 0.47u/ 50V J C405 OR 404 MAIN BOARD A/I GF247472 ME F CAP BOX 0.47u/ 100V J C405 OR 405 MAIN BOARD A/I GB768153 CERAMIC Y5P(B)/T 680P/50V K C406 1 406 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C408 1 407 MAIN BOARD A/I GA322745 ELECT 85oC/T 220u/35V M C409 1 408 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C411 1 409 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C412 1 410 MAIN BOARD A/I GF222462 ME F CAP BOX 0.22u/ 63V J C413 1 411 MAIN BOARD A/I GF222452 MEF CAP BOX 0.22u/50V J C413 OR 412 MAIN BOARD A/I GF222472 ME F CAP BOX 0.22u/ 100V J C413 OR 413 MAIN BOARD A/I GF210482 ME F CAP BOX 0.1u/ 250V J C421 1 414 MAIN BOARD A/I GB710253 CERAMIC Y5P(B)/T 1000P/ 50V K C422 1 415 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C423 1 416 MAIN BOARD A/I GB768253 CERAMIC Y5P(B)/T 6800P/ 50V K C425 1 417 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C601 1 418 MAIN BOARD A/I GA310555 ELECT 85oC/T 1u/50V M C602 1 419 MAIN BOARD A/I GB710353 CERAMIC Y5P(B)/T 0.01u/ 50V K C603 1 420 MAIN BOARD A/I GB733153 CERAMIC Y5P(B)/T 330P/50V K C604 1 421 MAIN BOARD A/I GE210352 PLASTIC PEI/T 0.01u/50V J C701 1 422 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C702 1 423 MAIN BOARD A/I GA310725 ELECT 85oC/T 100u/16V M C703 1

424 MAIN BOARD A/I GB610153 CERAMIC SL/T 100P/50V K C706 1 425 MAIN BOARD A/I GA310655 ELECT 85oC/T 10u/50V M C707 1 426 MAIN BOARD A/I GB710253 CERAMIC Y5P(B)/T 1000P/ 50V K C708 1 427 MAIN BOARD A/I GB710253 CERAMIC Y5P(B)/T 1000P/ 50V K C709 1 428 MAIN BOARD A/I GB710253 CERAMIC Y5P(B)/T 1000P/ 50V K C716 1 429 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C717 1 430 MAIN BOARD A/I GB210458 CERAMIC Y5V/T 0.1u/50V Z C718 1 431 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D101 1 432 MAIN BOARD A/I 80003821 DIODE 1A/1KV UF4007 D041(CHENMKO) D105 1 433 MAIN BOARD A/I 80003841 DIODE 1A/20V UF4003 D041(CHENMKO) D108 1 434 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D109 1 435 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D115 1 436 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D117 1 437 MAIN BOARD A/I EJAC0005 DIODE/T 1A 1N4002 D123 1 438 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D124 1 439 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D127 1 440 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D129 1 441 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D135 1 442 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D301 1 443 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D302 1 444 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D303 1 445 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D304 1 446 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D305 1 447 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D306 1 448 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D307 1 449 MAIN BOARD A/I EJA00018 DIODE/T 1A UF4006 D308 1 450 MAIN BOARD A/I EJA20003 DIODE/T 1A BA159 D309 1 451 MAIN BOARD A/I EJA20003 DIODE/T 1A BA159 D310 1 452 MAIN BOARD A/I EJA20003 DIODE/T 1A BA159 D311 1 453 MAIN BOARD A/I EJA20003 DIODE/T 1A BA159 D312 1 454 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D313 1 455 MAIN BOARD A/I EJA00018 DIODE/T 1A UF4006 D314 1 456 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D315 1 457 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D318 1 458 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D319 1 459 MAIN BOARD A/I 80004031 DIODE/T 11DQ06 D322 1 460 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D323 1 461 MAIN BOARD A/I EJAC0017 DIODE/T 1A 1N4936 D325 1 462 MAIN BOARD A/I EJA00018 DIODE/T 1A UF4006 D326 1 463 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D329 1 464 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D332 1 465 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D334 1 466 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D335 1 467 MAIN BOARD A/I EJAC0005 DIODE/T 1A 1N4002 D402 1 468 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D403 1 469 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D601 1 470 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D703 1 471 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D706 1 472 MAIN BOARD A/I EJ044148 DIODE "T" 1N4148 D707 1 473 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J1 1 474 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J10 1 475 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J100 1 476 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J101 1

477 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J102 1 478 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J103 1 479 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J104 1 480 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J105 1 481 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J106 1 482 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J107 1 483 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J108 1 484 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J109 1 485 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J11 1 486 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J110 1 487 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7. 5mm J111 1 488 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J112 1 489 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J113 1 490 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J114 1 491 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12. 5mm J115 1 492 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J116 1 493 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J117 1 494 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12. 5mm J118 1 495 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J119 1 496 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J12 1 497 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J120 1 498 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J121 1 499 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J122 1 500 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J123 1 501 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J124 1 502 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J125 1 503 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J126 1 504 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J127 1 505 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J128 1 506 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J129 1 507 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J13 1 508 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J130 1 509 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J131 1 510 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J132 1 511 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J133 1 512 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J134 1 513 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J135 1 514 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J136 1 515 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J137 1 516 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J138 1 517 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J139 1 518 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J14 1 519 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J140 1 520 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J141 1 521 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J142 1 522 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J143 1 523 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J144 1 524 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J145 1 525 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J146 1 526 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J147 1 527 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J148 1 528 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J149 1 529 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J15 1

530 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J150 1 531 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J151 1 532 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J152 1 533 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J153 1 534 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J154 1 535 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J154 1 536 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J155 1 537 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J155 1 538 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J156 1 539 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J157 1 540 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J158 1 541 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J159 1 542 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J16 1 543 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J160 1 544 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J161 1 545 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J162 1 546 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J164 1 547 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J165 1 548 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J166 1 549 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J167 1 550 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J168 1 551 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J169 1 552 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J17 1 553 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J170 1 554 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J171 1 555 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J172 1 556 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J173 1 557 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J174 1 558 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J175 1 559 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J176 1 560 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J177 1 561 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J178 1 562 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J179 1 563 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J18 1 564 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J180 1 565 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J181 1 566 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J182 1 567 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J183 1 568 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T J184 1 569 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J185 1 570 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J186 1 571 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J187 1 572 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J188 1 573 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J189 1 574 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J19 1 575 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J190 1 576 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J191 1 577 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J192 1 578 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J193 1 579 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J194 1 580 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J195 1 581 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J196 1 582 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17. 5mm J2 1

583 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J20 1 584 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J21 1 585 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J22 1 586 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J23 1 587 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J24 1 588 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J25 1 589 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J26 1 590 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J27 1 591 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J29 1 592 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7. 5mm J3 1 593 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J30 1 594 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J31 1 595 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J32 1 596 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J33 1 597 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J34 1 598 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J35 1 599 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J36 1 600 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J37 1 601 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J38 1 602 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J39 1 603 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12. 5mm J4 1 604 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J40 1 605 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J41 1 606 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J42 1 607 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J43 1 608 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J44 1 609 MAIN BOARD A/I HC006002 BEAD 3.5X4.7/T J45 1 610 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J46 1 611 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J47 1 612 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J48 1 613 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J49 1 614 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J5 1 615 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J50 1 616 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J51 1 617 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J52 1 618 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J53 1 619 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J54 1 620 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J55 1 621 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J56 1 622 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J57 1 623 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J58 1 624 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J59 1 625 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12. 5mm J6 1 626 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J60 1 627 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J61 1 628 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J62 1 629 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J63 1 630 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J64 1 631 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J65 1 632 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J66 1 633 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J67 1 634 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J68 1 635 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J69 1

636 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J7 1 637 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J70 1 638 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J71 1 639 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J72 1 640 MAIN BOARD A/I R0319115 JUMPER WIRE AI/T 15mm J73 1 641 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J74 1 642 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J75 1 643 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J76 1 644 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J77 1 645 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J78 1 646 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J79 1 647 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7. 5mm J8 1 648 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J80 1 649 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J81 1 650 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J82 1 651 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J83 1 652 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J84 1 653 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J85 1 654 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J86 1 655 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm J87 1 656 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J88 1 657 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J89 1 658 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12. 5mm J9 1 659 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J90 1 660 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J91 1 661 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J92 1 662 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm J93 1 663 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J94 1 664 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J95 1 665 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm J96 1 666 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J97 1 667 MAIN BOARD A/I R0319116 JUMPER WIRE AI/T 17.5mm J98 1 668 MAIN BOARD A/I R0319117 JUMPER WIRE AI/T 20mm J99 1 669 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm JP1 1 670 MAIN BOARD A/I R0319111 JUMPER WIRE AI/T 5mm L107 1 671 MAIN BOARD A/I R0319111 JUMPER WIRE AI/T 5mm L109 1 672 MAIN BOARD A/I R0319114 JUMPER WIRE AI/T 12.5mm L303 1 673 MAIN BOARD A/I HB013561 PACKING COIL/T 560uH K(EC24) L305 1 674 MAIN BOARD A/I HB003101 P EACKING COIL/T 100uH L308 1 675 MAIN BOARD A/I HB003101 P EACKING COIL/T 100uH L309 1 676 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q102 1 677 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q102 OR 678 MAIN BOARD A/I 80005251 TR NPN KSP44 TO-92(T) Q103 1 679 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q105 1 680 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q105 OR 681 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q107 1 682 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q107 OR 683 MAIN BOARD A/I EBA04230 TR PNP BF423 TO-92(T) Q108 1 684 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q109 1 685 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q109 OR 686 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q110 1 687 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q110 OR 688 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q111 1

689 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q111 OR 690 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q113 1 691 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q113 OR 692 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q114 1 693 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q114 OR 694 MAIN BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q1 16 1 695 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q301 1 696 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q301 OR 697 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q302 1 698 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q302 OR 699 MAIN BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q305 1 700 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q307 1 701 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q307 OR 702 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q308 1 703 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q308 OR 704 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q310 1 705 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q310 OR 706 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q311 1 707 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q311 OR 708 MAIN BOARD A/I EAA22355 TR NPN 2SC2235Y TO-92(T) Q313 1 709 MAIN BOARD A/I EBA09655 TR PNP 2SA965Y TO-92(T) Q314 1 710 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q317 1 711 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q317 OR 712 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q319 1 713 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q319 OR 714 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q320 1 715 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q320 OR 716 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q321 1 717 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q321 OR 718 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q322 1 719 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q322 OR 720 MAIN BOARD A/I EBA04230 TR PNP BF423 TO-92(T) Q323 1 721 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q328 1 722 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q328 OR 723 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q329 1 724 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q329 OR 725 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q330 1 726 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q330 OR 727 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q331 1 728 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q331 OR 729 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q332 1 730 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q332 OR 731 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q333 1 732 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q333 OR 733 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q334 1 734 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q334 OR 735 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q335 1 736 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q335 OR 737 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q336 1 738 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q336 OR 739 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q337 1 740 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q337 OR 741 MAIN BOARD A/I EAA04220 TR NPN BF422 TO-92(T) Q338 1

742 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q339 1 743 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q339 OR 744 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q340 1 745 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q340 OR 746 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q341 1 747 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q341 OR 748 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q401 1 749 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q401 OR 750 MAIN BOARD A/I EAA12133 TR NPN 2SC1213AC TO-92(T) Q601 1 751 MAIN BOARD A/I EBA06733 TR PNP 2SA673AC TO-92(T) Q602 1 752 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q603 1 753 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q603 OR 754 MAIN BOARD A/I EAA23690 TR NPN PH2369 TO-92(T) Q701 1 755 MAIN BOARD A/I EAA09456 TR NPN 2SC945P TO-92(T) Q702 1 756 MAIN BOARD A/I 80003231 TR NPN KTC945-P TO-92(T) Q702 OR 757 MAIN BOARD A/I EBA07336 TR PNP 2SA733P TO-92(T) Q703 1 758 MAIN BOARD A/I 80003241 TR PNP KTA733 TO-92(T) Q703 OR 759 MAIN BOARD A/I FA240620 CARBON 1/4W(T) 5% 62ohm R102 1 760 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R106 1 761 MAIN BOARD A/I FA330564 CARBON 1/2W(T) 5% 560K R107 1 762 MAIN BOARD A/I FA330564 CARBON 1/2W(T) 5% 560K R108 1 763 MAIN BOARD A/I FA040220 CARBON 1/8W(T) 5% 22ohm R109 1 764 MAIN BOARD A/I FA240162 CARBON 1/4W(T) 5% 1.6K R10A 1 765 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R112 1 766 MAIN BOARD A/I FA240154 CARBON 1/4W(T) 5% 150K R113 1 767 MAIN BOARD A/I FA240390 CARBON 1/4W(T) 5% 39ohm R115 1 768 MAIN BOARD A/I FA330271 CARBON 1/2W(T) 5% 270ohm R116 1 769 MAIN BOARD A/I FA240470 CARBON 1/4W(T) 5% 47ohm R117 1 770 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R118 1 771 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R119 1 772 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R120 1 773 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R121 1 774 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R123 1 775 MAIN BOARD A/I FB910010 METAL 1/4W(T) 5% 1ohm R125 1 776 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R126 1 777 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R129 1 778 MAIN BOARD A/I FA240620 CARBON 1/4W(T) 5% 62ohm R131 1 779 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R133 1 780 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R134 1 781 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R135 1 782 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R136 1 783 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R137 1 784 MAIN BOARD A/I FA240681 CARBON 1/4W(T) 5% 680ohm R138 1 785 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47K R139 1 786 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47K R141 1 787 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm R142 1 788 MAIN BOARD A/I FA240681 CARBON 1/4W(T) 5% 680ohm R143 1 789 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R144 1 790 MAIN BOARD A/I FB242701 METAL 1/4W(T) 1% 2.7K R145 1 791 MAIN BOARD A/I FB245602 METAL 1/4W(T) 1% 56K R146 1 792 MAIN BOARD A/I FB241003 METAL 1/4W(T) 1% 100K R147 1 793 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R148 1 794 MAIN BOARD A/I FA240154 CARBON 1/4W(T) 5% 150K R151 1

795 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R153 1 796 MAIN BOARD A/I FA040153 CARBON 1/8W(T) 5% 15K R154 1 797 MAIN BOARD A/I FA040221 CARBON 1/8W(T) 5% 220ohm R158 1 798 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R159 1 799 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R160 1 800 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R161 1 801 MAIN BOARD A/I FA040273 CARBON 1/8W(T) 5% 27K R162 1 802 MAIN BOARD A/I FA240122 CARBON 1/4W(T) 5% 1.2K R163 1 803 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R164 1 804 MAIN BOARD A/I FA040681 CARBON 1/8W(T) 5% 680ohm R166 1 805 MAIN BOARD A/I FA330184 CARBON 1/2W(T) 5% 180K R170 1 806 MAIN BOARD A/I FA330224 CARBON 1/2W(T) 5% 220Kohm R172 1 807 MAIN BOARD A/I FA330681 CARBON 1/2W(T) 5% 680ohm R182 1 808 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R183 1 809 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R301 1 810 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R302 1 811 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R303 1 812 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R304 1 813 MAIN BOARD A/I FB241002 METAL 1/4W(T) 1% 10K R305 1 814 MAIN BOARD A/I FB245601 METAL 1/4W(T) 1% 5.6K R306 1 815 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R308 1 816 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R309 1 817 MAIN BOARD A/I FA240105 CARBON 1/4W(T) 5% 1M R30A 1 818 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R30B 1 819 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R30D 1 820 MAIN BOARD A/I FA040682 CARBON 1/8W(T) 5% 6.8K R30E 1 821 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R30F 1 822 MAIN BOARD A/I FA040302 CARBON 1/8W(T) 5% 3K R30G 1 823 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R30H 1 824 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R30I 1 825 MAIN BOARD A/I FA040272 CARBON 1/8W(T) 5% 2.7K R30J 1 826 MAIN BOARD A/I FA040513 CARBON 1/8W(T) 5% 51K R30K 1 827 MAIN BOARD A/I FA040473 CARBON 1/8W(T) 5% 47K R30L 1 828 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R30M 1 829 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R30N 1 830 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R30P 1 831 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R30U 1 832 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R30V 1 833 MAIN BOARD A/I FA040561 CARBON 1/8W(T) 5% 560ohm R30W 1 834 MAIN BOARD A/I FA040154 CARBON 1/8W(T) 5% 150K R30Y 1 835 MAIN BOARD A/I FA040152 CARBON 1/8W(T) 5% 1.5K R30Z 1 836 MAIN BOARD A/I FA040333 CARBON 1/8W(T) 5% 33K R311 1 837 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R313 1 838 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R314 1 839 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R315 1 840 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R316 1 841 MAIN BOARD A/I FA040912 CARBON 1/8W(T) 5% 9.1K R317 1 842 MAIN BOARD A/I FB241802 METAL 1/4W(T) 1% 18K R318 1 843 MAIN BOARD A/I FA040474 CARBON 1/8W(T) 5% 470K R319 1 844 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R31B 1 845 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R31C 1 846 MAIN BOARD A/I R0319113 JUMPER WIRE AI/T 10mm R31E 1 847 MAIN BOARD A/I FA240220 CARBON 1/4W(T) 5% 22ohm R31F 1

848 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R31S 1 849 MAIN BOARD A/I FA240101 CARBON 1/4W(T) 5% 100ohm R31T 1 850 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R31U 1 851 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R31W 1 852 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R31X 1 853 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R31Y 1 854 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R320 1 855 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R321 1 856 MAIN BOARD A/I FB241002 METAL 1/4W(T) 1% 10K R322 1 857 MAIN BOARD A/I FA040332 CARBON 1/8W(T) 5% 3.3K R323 1 858 MAIN BOARD A/I FA240103 CARBON 1/4W(T) 5% 10K R324 1 859 MAIN BOARD A/I FA040470 CARBON 1/8W(T) 5% 47ohm R325 1 860 MAIN BOARD A/I FA040010 CARBON 1/8W(T) 5% 1ohm R326 1 861 MAIN BOARD A/I FA040100 CARBON 1/8W(T) 5% 10ohm R327 1 862 MAIN BOARD A/I FA240102 CARBON 1/4W(T) 5% 1K R32B 1 863 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R32C 1 864 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R32D 1 865 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R32F 1 866 MAIN BOARD A/I FA040113 CARBON 1/8W(T) 5% 11K R32G 1 S 867 MAIN BOARD A/I FA040752 CARBON 1/8W(T) 5% 7.5K R32G 1 H 868 MAIN BOARD A/I FA240100 CARBON 1/4W(T) 5% 10ohm R32H 1 869 MAIN BOARD A/I FA330479 CARBON 1/2W(T) 5% 4.7ohm R32J 1 870 MAIN BOARD A/I FA240203 CARBON 1/4W(T) 5% 20K R32K 1 871 MAIN BOARD A/I FA040272 CARBON 1/8W(T) 5% 2.7K R32L 1 872 MAIN BOARD A/I FA040123 CARBON 1/8W(T) 5% 12K R32M 1 873 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R32N 1 874 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R32P 1 875 MAIN BOARD A/I FA330474 CARBON 1/2W(T) 5% 470K R32R 1 876 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R32S 1 877 MAIN BOARD A/I FA040304 CARBON 1/8W(T) 5% 300K R32T 1 878 MAIN BOARD A/I FA240100 CARBON 1/4W(T) 5% 10ohm R32U 1 879 MAIN BOARD A/I FA240390 CARBON 1/4W(T) 5% 39ohm R32W 1 880 MAIN BOARD A/I FA040823 CARBON 1/8W(T) 5% 82K R330 1 881 MAIN BOARD A/I FA040302 CARBON 1/8W(T) 5% 3K R331 1 882 MAIN BOARD A/I FA040202 CARBON 1/8W(T) 5% 2K R332 1 883 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R333 1 884 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R334 1 885 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R335 1 886 MAIN BOARD A/I FA040183 CARBON 1/8W(T) 5% 18K R336 1 887 MAIN BOARD A/I FA040272 CARBON 1/8W(T) 5% 2.7K R337 1 888 MAIN BOARD A/I FA040332 CARBON 1/8W(T) 5% 3.3K R338 1 H 889 MAIN BOARD A/I FA040124 CARBON 1/8W(T) 5% 120K R338 1 S 890 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R339 1 H 891 MAIN BOARD A/I FA040562 CARBON 1/8W(T) 5% 5.6K R339 1 S 892 MAIN BOARD A/I R0319112 JUMPER WIRE AI/T 7.5mm R340 1 893 MAIN BOARD A/I FA040513 CARBON 1/8W(T) 5% 51K R341 1 894 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R342 1 895 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R343 1 896 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R344 1 897 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R345 1 898 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R346 1 899 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R347 1 900 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R348 1

901 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R349 1 902 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R350 1 903 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R351 1 904 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R352 1 905 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R353 1 906 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R354 1 907 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R355 1 908 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R356 1 909 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R357 1 910 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R358 1 911 MAIN BOARD A/I FA040395 CARBON 1/8W(T) 5% 3.9M R359 1 912 MAIN BOARD A/I FA330304 CARBON 1/2W(T) 5% 300K R360 1 913 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R362 1 914 MAIN BOARD A/I FA040100 CARBON 1/8W(T) 5% 10ohm R363 1 915 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R364 1 916 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R367 1 917 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R368 1 918 MAIN BOARD A/I FA330220 CARBON 1/2W(T) 5% 22ohm R372 1 919 MAIN BOARD A/I FA330220 CARBON 1/2W(T) 5% 22ohm R373 1 920 MAIN BOARD A/I FA240102 CARBON 1/4W(T) 5% 1K R374 1 921 MAIN BOARD A/I FA240102 CARBON 1/4W(T) 5% 1K R375 1 922 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R378 1 923 MAIN BOARD A/I FB249102 METAL 1/4W(T) 1%91K R379 1 924 MAIN BOARD A/I FA040681 CARBON 1/8W(T) 5% 680ohm R380 1 925 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R382 1 926 MAIN BOARD A/I FA040100 CARBON 1/8W(T) 5% 10ohm R384 1 927 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R388 1 928 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R389 1 929 MAIN BOARD A/I FA040684 CARBON 1/8W(T) 5% 680K R390 1 930 MAIN BOARD A/I FA040100 CARBON 1/8W(T) 5% 10ohm R391 1 931 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R392 1 932 MAIN BOARD A/I FA240202 CARBON 1/4W(T) 5% 2K R393 1 933 MAIN BOARD A/I FB910010 METAL 1/4W(T) 5% 1ohm R394 1 934 MAIN BOARD A/I FA040154 CARBON 1/8W(T) 5% 150K R395 1 935 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R397 1 936 MAIN BOARD A/I FA040105 CARBON 1/8W(T) 5% 1M R398 1 937 MAIN BOARD A/I FA040123 CARBON 1/8W(T) 5% 12K R401 1 938 MAIN BOARD A/I FA040622 CARBON 1/8W(T) 5% 6.2K R402 1 939 MAIN BOARD A/I FA040363 CARBON 1/8W(T) 5% 36K R404 1 940 MAIN BOARD A/I FA330331 CARBON 1/2W(T) 5% 330ohm R406 1 941 MAIN BOARD A/I FA330229 CARBON 1/2W(T) 5% 2.2ohm R409 1 942 MAIN BOARD A/I FA040622 CARBON 1/8W(T) 5% 6.2K R410 1 943 MAIN BOARD A/I FA040104 CARBON 1/8W(T) 5% 100K R415 1 944 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R421 1 945 MAIN BOARD A/I FA040223 CARBON 1/8W(T) 5% 22K R422 1 946 MAIN BOARD A/I FA040154 CARBON 1/8W(T) 5% 150K R423 1 947 MAIN BOARD A/I FA040332 CARBON 1/8W(T) 5% 3.3K R424 1 948 MAIN BOARD A/I FA240104 CARBON 1/4W(T) 5% 100K R425 1 949 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R601 1 950 MAIN BOARD A/I FA040102 CARBON 1/8W(T) 5% 1K R602 1 951 MAIN BOARD A/I FA330122 CARBON 1/2W(T) 5% 1.2K R603 1 952 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R701 1 953 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R702 1

954 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R703 1 955 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R704 1 956 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R705 1 957 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R706 1 958 MAIN BOARD A/I FA040105 CARBON 1/8W(T) 5% 1M R707 1 959 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R708 1 960 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R709 1 961 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R710 1 962 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R711 1 963 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R712 1 964 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R716 1 965 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R717 1 966 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R719 1 967 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R726 1 968 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R727 1 969 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R729 1 970 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R730 1 971 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R731 1 972 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R732 1 973 MAIN BOARD A/I FA040101 CARBON 1/8W(T) 5% 100ohm R733 1 974 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R734 1 975 MAIN BOARD A/I FA040471 CARBON 1/8W(T) 5% 470ohm R735 1 976 MAIN BOARD A/I FA040222 CARBON 1/8W(T) 5% 2.2K R736 1 977 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R737 1 978 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R738 1 979 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R746 1 980 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R747 1 981 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R748 1 982 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R749 1 983 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R750 1 984 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R751 1 985 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R752 1 986 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R753 1 987 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R754 1 988 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R755 1 989 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R756 1 990 MAIN BOARD A/I FA040472 CARBON 1/8W(T) 5% 4.7K R757 1 991 MAIN BOARD A/I FA040392 CARBON 1/8W(T) 5% 3.9K R760 1 992 MAIN BOARD A/I FA040103 CARBON 1/8W(T) 5% 10K R761 1 993 MAIN BOARD A/I FA040272 CARBON 1/8W(T) 5% 2.7K R762 1 994 MAIN BOARD A/I 80003831 IC REGULATOR TL431 817B 4P U108 1 995 MAIN BOARD A/I EKA0200B ZEN DIODE 1/2W(T) 20-2 ZD101 1 996 MAIN BOARD A/I EKA01201 ZEN DIODE 1/2W(T) 12A2 ZD102 1 997 MAIN BOARD A/I EKA0180B ZEN DIODE 1/2W(T) 18-2 ZD103 1 998 MAIN BOARD A/I EKA00507 ZEN DIODE 1/2W(T) 5C2 ZD104 1

999 MAIN BOARD A/I EKA00911 ZEN DIODE 1/2W(T) HZ9A3 ZD301 1 1000 MAIN BOARD A/I EKA00401 ZEN DIODE 1/2W(T) 4A2 ZD302 1 1001 MAIN BOARD A/I EKA0180B ZEN DIODE 1/2W(T) 18-2 ZD303 1 1002 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD701 1 1003 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD702 1 1004 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD703 1 1005 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD704 1 1006 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD705 1

1007 MAIN BOARD A/I EKA00607 ZEN DIODE 1/2W(T) HZS6C2(HITACHI) ZD706 1 1008 MAIN BOARD INSERT 80006751

BEAD 3.5X8 (H/I)

¥ß¦¡

B303 1 1009 MAIN BOARD INSERT 80003791 DIODE BRIDGE 600V/4A D4SBL(SD) BD101 1 1010 MAIN BOARD INSERT 80003801 DIODE BRIDGE 600V/4A TS4B06G(TSC) BD101 OR

1011 MAIN BOARD INSERT 80004741 DIODE BRIDGE 600V/4A D3SB60(SD) BD101 OR 1012 MAIN BOARD INSERT GJC222E5 SAFETY Y-CAP/D 2200P/400V M C102 1 1013 MAIN BOARD INSERT GJA222E5 SAFETY Y-CAP/D 2200Pf /400V M(MURATA)KX C102 OR 1014 MAIN BOARD INSERT 80006101

POWER ELECT 85 C 330uF/400V M HITACHI 30*40

C105 1 1015 MAIN BOARD INSERT GB7103H3 CERAMIC Y5P(B)/T 0.01u/1KV K C112 1 1016 MAIN BOARD INSERT GBE103H5 CERA MIC Z5U(E )/A 0.01u/1KV M C113 1 1017 MAIN BOARD INSERT GAB107B5 ELECT 105oC/A 100u/160V M C119 1 1018 MAIN BOARD INSERT 80004421 ELECT 105oC/A 680u/63V M, TL KAIMEI C120 1 1019 MAIN BOARD INSERT GAB10835 ELECT 105oC/A 1000u/25V M C121 1 1020 MAIN BOARD INSERT GAA10825 ELECT 85oC/A 1000u/16V M C122 1 1021 MAIN BOARD INSERT 80004411 ELECT 105oC/A 470u/63V M, TL KAIMEI C138 1 1022 MAIN BOARD INSERT GAB47735 ELECT 105oC/A 470u/25V M C143 1 1023 MAIN BOARD INSERT GAB47735 ELECT 105oC/A 470u/25V M C153 1 1024 MAIN BOARD INSERT GAA10685 ELECT 85oC/A 10u/250V M C328 1 1025 MAIN BOARD INSERT GF210482 MEF CAP BOX 0.1u/250V J C329 1 1026 MAIN BOARD INSERT GFC182J2 PLASTI C PPS/A 1800P/2KV J C337 1 1027 MAIN BOARD INSERT GFD204E2 PLASTIC PMM/A 0.2/400V C344 1 H 1028 MAIN BOARD INSERT 80007001 PLASTIC MPSA/A 0. 22u/400V J C344 1 S 1029 MAIN BOARD INSERT GFD68382 PLASTIC PMM/A 0.068u/250V C345 1 H 1030 MAIN BOARD INSERT GFB10482 PLASTIC MPP/A 0.1u/250V J C345 1 S 1031 MAIN BOARD INSERT GFB43482 PLASTIC MPP/A 0.43u/250V J C346 1 H 1032 MAIN BOARD INSERT GFB47482 PLASTIC MPP/A 0.47u/250V J C346 1 S 1033 MAIN BOARD INSERT GFB12482 PLASTIC MPP/A 0.12u/250V J C347 1 H 1034 MAIN BOARD INSERT GFB22482 PLASTIC MPP/A 0.22u/250V J C347 1 S 1035 MAIN BOARD INSERT GFB12582 PLASTIC MPP/A 1.2u/250V J C348 1 H 1036 MAIN BOARD INSERT GFB82482 PLASTIC MPP/A 0.82u/250V J C348 1 S 1037 MAIN BOARD INSERT GAA47735 ELECT 85oC/A 470u/25V M C351 1 1038 MAIN BOARD INSERT 80004391 ELECT 105oC/A 47u/250V M Low ESR C356 1 1039 MAIN BOARD INSERT 80006161 PLASTIC PPS/A 5100P/2KV J(PILKOR) C360 1 1040 MAIN BOARD INSERT 80002771

PLASTIC PPS/A DKRG 5100P/1.5KV J(SHIN YEI)

C360 OR 1041 MAIN BOARD INSERT GED332M2 PLASTIC PPN/A 3300P/800V J C361 1 1042 MAIN BOARD INSERT 80004191 ELECT NP 2.2u/250V 105oC M C362 1 1043 MAIN BOARD INSERT GFA22582 PLASTIC MPE/A 2.2u/ 250V J C366 1 1044 MAIN BOARD INSERT GAA47735 ELECT 85oC/A 470u/25V M C407 1 1045 MAIN BOARD INSERT GAA47735 ELECT 85oC/A 470u/25V M C410 1 1046 MAIN BOARD INSERT GAA10775 ELECT 85oC/A 100u/100V M C721 1 1047 MAIN BOARD INSERT 80003561

DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D110 1 1048 MAIN BOARD INSERT 80004881 DIODE 4A/600V FMG-G26S TO-220(SANKEN) D111 1 1049 MAIN BOARD INSERT 12800021 HEAT SINK(22.5*56.5*1.3) D111 1 1050 MAIN BOARD INSERT 14300011 SCREW(PL-CPIMS*3*8*15B F) D111 1 1051 MAIN BOARD INSERT 80011411

DIODE 5A/600V 40ns TO-220F(

¬M¹F

)

D111 OR 1052 MAIN BOARD INSERT 80002981

DIODE 3A/200V RG4Z

¥¦æ

D112 1 1053 MAIN BOARD INSERT 12800011 HEAT SINK (22.5*31.5*1.3) D112 1 1054 MAIN BOARD INSERT 80011421

DIODE RK36 2A/60V

Ås¨¤

SANKEN

D113 1 1055 MAIN BOARD INSERT 80010341

DIODE SR206 2A/60V

Ås¸}

(CHENMKO)

D113 OR 1056 MAIN BOARD INSERT 80003551

DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D114 1 1057 MAIN BOARD INSERT 80001131

DIODE/A 3A/600V RG4A

Ås¨¤

D317 1 1058 MAIN BOARD INSERT 80004171 DIODE DTV56F TO-220 D320 1 1059 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS *3*8*15BF) D320 1

1060 MAIN BOARD INSERT 80004521 DIODE DTV64F TO-220 D320 OR 1061 MAIN BOARD INSERT EJB00004 DIODE /A 5TUZ47 D320 OR 1062 MAIN BOARD INSERT 80000691 DIODE/A 3A RG4A D321 1 1063 MAIN BOARD INSERT 12800241 HEAT SINK (22.5*56.5*1.3t) D321 1 1064 MAIN BOARD INSERT 80000691 DIODE/A 3A RG4A D324 1 1065 MAIN BOARD INSERT 80001521 FUSE 3.15A/250V 50T T3.15A F101 1 1066 MAIN BOARD INSERT R0180028 FUSE HOLDER 5X20mm FOR F101 2 1067 MAIN BOARD INSERT 80006291 WIRE 1618#24AWG 47mm BLACK FOR GND 1 1068 MAIN BOARD INSERT 80004511 RUBBER,SILICON TO-3P3 0.3mm(PINGOOD) FOR Q101 1 1069 MAIN BOARD INSERT 80004761 SINGLE PIN L=12 D=1.56

FOR TH101

2 1070 MAIN BOARD INSERT JD010040 IC SOCKET 40P FOR U701 1 1071 MAIN BOARD INSERT R0224070 SINGLE PIN 1P L=14mm 2.36D GND1 1 1072 MAIN BOARD INSERT R0224070 SINGLE PIN 1P L=14mm 2.36D GND3 1 1073 MAIN BOARD INSERT 80006291 WIRE 1618#24AWG 47mm BLACK GND6 1 1074 MAIN BOARD INSERT 80006511 WIRE 1007 AWG24 L=300mm BLACK JJA 1 1075 MAIN BOARD INSERT 80009191 WIRE 1007 AWG26 L=400mm RED JJC 1 1076 MAIN BOARD INSERT 80009171 WIRE 1007 AWG26 L=470mm YELLOW JJD 1 1077 MAIN BOARD INSERT 80003511 WIRE GND 70mm Y/G 1015 18A L100 1 1078 MAIN BOARD INSERT 80003861 CORE EMI COMM ON CHOKE UT20 2mH L102 1 1079 MAIN BOARD INSERT 80003681 CORE EMI CHOKE T50-26B 200uH L104 1 1080 MAIN BOARD INSERT HB000008 CHOKE COIL 100uH 8X10 L108 1 1081 MAIN BOARD INSERT 80010281 HARMONIC CHOKE EE42 60mH L110 1 1082 MAIN BOARD INSERT 80009301 LINEARITY COI L L301 1 H 1083 MAIN BOARD INSERT 80005301 H-LINEARITY COI L N9902 L301 1 S 1084 MAIN BOARD INSERT 80005311 CHIKE 30uH N9902/N9702 L302 1 1085 MAIN BOARD INSERT HB000019 CHOKE COIL 130uH 18X20 L304 1 S 1086 MAIN BOARD INSERT 80007011 CHOKE COIL 150uH 18X20 L304 1 H 1087 MAIN BOARD INSERT 80009201 CHOKE 45uH 16*22 MS95F L306 1 1088 MAIN BOARD INSERT 80003901 CHOKE 2.2mH MS90 L307 1 1089 MAIN BOARD INSERT 80000131

LED L-59GH/1GYC(

§t©³®y

)

LED101 1 1090 MAIN BOARD INSERT 80012071 EM I FI LTER 03MD2 UL/TUV (DELTA) P101 1 1091 MAIN BOARD INSERT 14000051 SCREW (#CBRITS*4*8*15B F) P101 2 1092 MAIN BOARD INSERT 80010351 HARNESS 4P P=2.5 L=190 P103 1 1093 MAIN BOARD INSERT 80005781 WIRE 14P-8P-7P N9902 P702 1 1094 MAIN BOARD INSERT 72000553 MA IN PCB MS95 F PCB 1 1095 MAIN BOARD INSERT 80003771 FET N IRFPE50 800V/7.8A TO-247AC Q101 1 1096 MAIN BOARD INSERT 12800491 HEAT SINK(50*25*75) Q101 1 1097 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q101 1 1098 MAIN BOARD INSERT 80003871 FET N 2SK2648-01 800V/9A Q101 OR 1099 MAIN BOARD INSERT EB307720 TR PNP 2SB772 TO-126 Q104 1 1100 MAIN BOARD INSERT EA306691 TR NPN HSD669AC TO-126 Q106 1 1101 MAIN BOARD INSERT EB307720 TR PNP 2SB772 TO-126 Q112 1 1102 MAIN BOARD INSERT EB20861A TR PNP 2SB861C TO-220F Q115 1 1103 MAIN BOARD INSERT 80001201 TP PNP TIP 32C TO-220 Q115 OR 1104 MAIN BOARD INSERT EA306691 TR NPN HSD669AC TO-126 Q303 1 1105 MAIN BOARD INSERT 12800191 HEAT SINK(15*11*60) Q303 1 1106 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q303 1 1107 MAIN BOARD INSERT EB306493 TR PNP 2SB649 TO-126 Q304 1 1108 MAIN BOARD INSERT 12800191 HEAT SINK(15*11*60) Q304 1 1109 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q304 1

1110 MAIN BOARD INSERT EA200004 TR NPN 2SD1138 TO-220 Q309 1 1111 MAIN BOARD INS ERT 12800251 HEAT SINK(42*13*50) Q309 1 1112 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q309 1

1113 MAIN BOARD INSERT 80003311 FET N YTAF640 TO 220F Q312 1 1114 MAIN BOARD INSERT 12800181 HEAT SINK(40*12*65) Q312 1 1115 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q312 1 1116 MAIN BOARD INSERT 80004401 TR NPN 2SC5440 TO-3P Q315 1 1117 MAIN BOARD INSERT 12600211 HEAT SINK(H-OUT)-B Q315 1 1118 MAIN BOARD INSERT 18000381 EDGE SADDLE (t2) Q315 1

1119 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q315 1 1120 MAIN BOARD INSERT R0311D04 SCREW CTTWC M3.0X10 Q315 3 1121 MAIN BOARD INSERT 80005721 TOSHIBA 2SC5411(fhe) Q315 OR 1122 MAIN BOARD INSERT 12800261 HEAT SINK(134*14*60) Q315A 1 1123 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q315A 4 1124 MAIN BOARD INSERT EF206300 FE T N IRF630 TO-220 3P Q316 1 1125 MAIN BOARD INSERT EF206300 FE T N IRF630 TO-220 3P Q324 1 1126 MAIN BOARD INSERT 80003311 FET N YTAF640 TO 220F Q325 1 1127 MAIN BOARD INSERT 12800151 HEAT SINK(27*12*0.8) Q325 1 1128 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q325 1 1129 MAIN BOARD INSERT EF206300 FE T N IRF630 TO-220 3P Q326 1 1130 MAIN BOARD INSERT 80003311 FET N YTAF640 TO 220F Q327 1 1131 MAIN BOARD INSERT 12800151 HEAT SINK(27*12*0.8) Q327 1 1132 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS*3*8*15BF) Q327 1 1133 MAIN BOARD INSERT 80002031 FUSEABLE RES 1/2W(A)/M 0.22ohm J R103 1 1134 MAIN BOARD INSERT FCE20473 WOUND RE S 5W(B) 5% 47K R104 1 1135 MAIN BOARD INSERT 80002031 FUSEABLE RES 1/2W(A)/M 0.22ohm J R105 1 1136 MAIN BOARD INSERT 80002001 FUSEABLE RES 1/2W(A)/M 0.33ohm J R110 1 1137 MAIN BOARD INSERT FC110228 WOUND RES 2W(A) 5% 0.22ohm R111 1 1138 MAIN BOARD INSERT FB470103 MOF 1W/M(A) 5% 10K R114 1 1139 MAIN BOARD INSERT FB470153 MOF 1W/M(A) 5% 15K R122 1 1140 MAIN BOARD INSERT FB470100 MOF 1W/M(A) 5% 10ohm R127 1 1141 MAIN BOARD INSERT FB470100 MOF 1W/M(A) 5% 10ohm R128 1 1142 MAIN BOARD INSERT FB470100 MOF 1W/M(A) 5% 10ohm R130 1 1143 MAIN BOARD INSERT FB710220 MOF 3W/M(A) 5% 22ohm R132 1 1144 MAIN BOARD INSERT FB470561 MOF 1W/M(A) 5% 560ohm R140 1 1145 MAIN BOARD INSERT FB470103 MOF 1W/M(A) 5% 10K R150 1 1146 MAIN BOARD INSERT FB910229 FUSEABLE MF RES 1/4W 2.2ohm J R152 1 1147 MAIN BOARD INSERT FB560228 MOF 2W/M(A) 5% 0.22ohm R155 1 1148 MAIN BOARD INSERT 80006681 FUSEABLE RES 1/2W M(A) 3.3ohm R156 1 1149 MAIN BOARD INSERT FB470333 MOF 1W/M(A) 5%33K R171 1 1150 MAIN BOARD INSERT FB470221 MOF 1W/M(A) 5% 220ohm R30S 1 1151 MAIN BOARD INSERT FB470222 MOF 1W/M(A) 5% 2.2Kohm R312 1 1152 MAIN BOARD INSERT 80004181 FUSIBLE RES 1W/M(A) 0.33 R31A 1 1153 MAIN BOARD INSERT FB470221 MOF 1W/M(A) 5% 220ohm R329 1 1154 MAIN BOARD INSERT FB560271 MOF 2W/M(A) 5% 270ohm R361 1 1155 MAIN BOARD INSERT FB710121 MOF 3W/M(A) 5% 120ohm R365 1 1156 MAIN BOARD INSERT FB710121 MOF 3W/M(A) 5% 120ohm R366 1 1157 MAIN BOARD INSERT FB470221 MOF 1W/M(A) 5% 220ohm R369 1 1158 MAIN BOARD INSERT FB720010 MOF 3W/M(B) 5% 1ohm R370 1 1159 MAIN BOARD INSERT FB470270 MOF 1W/M(A) 5% 27ohm R371 1 1160 MAIN BOARD INSERT FB560560 MOF 2W/M(A) 5% 56ohm R376 1 1161 MAIN BOARD INSERT FB560471 MOF 2W/M(A) 5% 470ohm R377 1 1162 MAIN BOARD INSERT FB560300 MOF 2W/M(A) 5% 30ohm R385 1 1163 MAIN BOARD INSERT FB710471 MOF 3W/M(A) 5% 470ohm R386 1 1164 MAIN BOARD INSERT FB720278 MOF 3W/M(B) 5% 0.27ohm R387 1 1165 MAIN BOARD INSERT FB480154 MOF 1W/M(B) 5% 150Kohm R399 1

1166 MAIN BOARD INSERT FB710100 MOF 3W/M(A) 5% 10ohm R403 1 1167 MAIN BOARD INSERT FB470010 MOF 1W/M(A) 5% 1ohm R407 1 1168 MAIN BOARD INSERT FB560339 MOF 2W/M(A) 5% 3.3ohm R411 1 1169 MAIN BOARD INSERT HG010020 POWER RELAY 12V RL101 1 1170 MAIN BOARD INSERT 80005751 REPLY 12V 6P MI-SS-212DM(GOOD SKY) RL101 OR 1171 MAIN BOARD INSERT 80005831 REPLY 12V 8P MI-SS-212D(GOOD SKY) RL102 1 1172 MAIN BOARD INSERT 80005841 REPLY 12V 8P OMI-SS-212L(OEG) RL301 1 1173 MAIN BOARD INSERT 80005831 REPLY 12V 8P MI-SS-212D(GOOD SKY) RL301 OR 1174 MAIN BOARD INSERT 80006131 BASE PIN 3P(2NC) 7.92mm(L-TYPE ) S102 1 1175 MAIN BOARD INSERT R0224308 B ASE PIN 2.36 P=8/10 4P S301 1 1176 MAIN BOARD INSERT R0224315

BASE PIN 3P+HOUSING 3± P=2.5

S601 1 1177 MAIN BOARD INSERT R0224130 B ASE PIN 7P +HOUSI NG P=2.5 S701 1 1178 MAIN BOARD INSERT 80002201 SPARK GAP 1.5KV+-500V SG301 1 1179 MAIN BOARD INSERT 80003781 POWER SW KDC-A04-10(B) SW101 1 1180 MAIN BOARD INSERT 80009021

POWER SW 10A/250V PS-3-22SPA-L5AZ(Solteam

)

SW101 OR 1181 MAIN BOARD INSERT 80000251 TACT SW 1P 100G SW701 1 1182 MAIN BOARD INSERT 80000251 TACT SW 1P 100G SW702 1 1183 MAIN BOARD INSERT 80000251 TACT SW 1P 100G SW703 1 1184 MAIN BOARD INSERT 80008971 POWER X'FM EER4215 280uH MS95F T101 1 1185 MAIN BOARD INSERT 80006761 DRIVE X'FM 6mH (EI-19) T301 1 1186 MAIN BOARD INSERT 80007181 FBT FOR N9902F T302 1 1187 MAIN BOARD INSERT 14000071 SCREW (PL-CPTS*3*8*15BF) T302(FBT)3 1188 MAIN BOARD INSERT 80005851 DYNAMIC FOCUS X'FMR N9902 T303 1 1189 MAIN BOARD INSERT 80004371 THERMISTOR NTCR N15SP006L 6 ohm/5A TH101 1 1190 MAIN BOARD INSER T 80003631 THERMISTOR PTCR 9ohm 2P DGC2R9ROM27C TH102 1 1191 MAIN BOARD INSERT R0224074 S I NGLE PIN L=11.5mm D=1.0 TP1 1 1192 MAIN BOARD INSERT R0224074 S I NGLE PIN L=11.5mm D=1.0 TP2 1 1193 MAIN BOARD INSERT R0224077 BASE PIN 1P 1.5mm TP3 1 1194 MAIN BOARD INSERT R0224074 S I NGLE PIN L=11.5mm D=1.0 TP6 1 1195 MAIN BOARD INSERT DD002600 IC LINEAR KA3842A 8P U101 1 1196 MAIN BOARD INSERT 80009051 IC LINEAR UC3842A UN1EX U101 OR 1197 MAIN BOARD INSERT 80000321 IC PHOTO COUPLE PS2561 4P U102 1 1198 MAIN BOARD INSERT 80002581 IC PHOTO COUPLE H11A817B 4P U102 OR 1199 MAIN BOARD INSERT 80005281 IC TDA9111 U301 1 1200 MAIN BOARD INSERT 80001041 IC LINEAR TDA8172 7PIN U401 1 1201 MAIN BOARD INSERT 12800171 HEAT SINK(45*27*60) U401 1 1202 MAIN BOARD INSERT 14000041 SCREW(P-#2CBRTS *3*8*15BF) U401 1 1203 MAIN BOARD INSERT 80009311 FLASH MCU MTV212MN64 N9902F (H) U701 1 H 1204 MAIN BOARD INSERT 80008711 FLA SH MCU MTV212MN64 N9902F U701 1 S 1205 MAIN BOARD INSERT 12300121 PLATE,SHIELDING(IC) U701 1 1206 MAIN BOARD INSERT BE028000 EEPROM 2404 DIP 8P U702 1 1207 MAIN BOARD INSERT 12300241 PLATE,SHIELDING(EEPROM) U702 1 1208 MAIN BOARD INSERT FF300201

VR CARBON 6ö

¥ß

200ohm

VR102 1 1209 MAIN BOARD INSERT FF300103

VR CARBON 6ö ¥ß 10K VZ067TH1

VR301 1 1210 MAIN BOARD INSERT FF310202

VR CARBON 6ö ª× 2K

VR302 1 1211 MAIN BOARD INSERT FF310303

VR CARBON 6ö ª× 30K

VR303 1 1212 MAIN BOARD INSERT FF310103

VR CARBON 6ö ª× 10K

VR304 1 1213 MAIN BOARD INSERT FF300503

VR CARBON 6ö ¥ß 50K

VR305 1 1214 MAIN BOARD INSERT FF310102

VR CARBON 6ö ª× 1K

VR306 1 1215 MAIN BOARD INSERT EM012004 X'TAL 49u 12MHZ X 701 1 1216 MAIN BOARD INSERT EJAC0017 DIODE/T 1A 1N4936 1 1217 P ACKING ASSY 13200721 CARTON BOX MS95F 1 A 1218 P ACKING ASSY 13201073 CARTON BOX MS95F-1(B)("B"MARK+GOST) 1 B

1219 P ACKING ASSY 13400432 POLYLON(T) 1 1220 P ACKING ASSY 13400442 POLYLON(B) 1 1221 PACKING ASSY 13700021 BAG POLYETHYLENE (270*370) 1 1222 PACKING ASSY 13700031 BAG POLYETHYLENE (150*370) 1 1223 P ACKING ASSY 13700071 PE BAG(500*480*850+WARNING) 1 1224 P ACKING ASSY 15500481 OWNERS MANUAL(MS75 F/95F) 1 A 1225 P ACKING ASSY 15500722 OWNERS MANU AL MS75F/95F-1(B) 1 B 1226 P ACKING ASSY 15800051 SAFETY INSTRUCTION SHEET 1 A 1227 PACKING ASSY 15900052 SALES OFFICE LIST 1 B 1228 PACKING ASSY 19700023 INSTRUCTION CO-ROM MS75F/95F 1 B 1229 PACKING ASSY 15201201 LABEL SAFETY GOST-RUSSIA(FOR MANUAL

)

1230

REVOLVING STAND ASSY

11000361 REVOLVING STAND ASSY(B)

2nd TOOLING

1231

REVOLVING STAND ASSY

17000451 CUSHION SHEET(14.8*14.8*T4)

FOR 2nd BASE

1232

REVOLVING STAND ASSY

11000251 REVOLVING STAND (B) 1

1233

REVOLVING STAND ASSY

11000261 REVOLVING STAND (T) 1

1234

REVOLVING STAND ASSY

17000291 CUSHION SHEET 4

1235 SET ASSY 80001631

POWER CORD 3P 1.8M NON-SHIELD

¬ü³W

COLOR SG8508

CORD POWER

1236 SET ASSY 80001651

POWER CORD 3P 1.8M EUROPE NON-SHIELD COLOR SG8508(CTOA6

)

CORD POWER

1B 1237 SET ASSY 80008941 CRT 19" SAMSUNG M46QCK761X123 CRT 1 S 1238 SET ASSY 80008951 CRT 19" HITACHI M46LSQ183X01(W) CRT 1 H 1239 SET ASSY 80006231 WIRE GND 1015 18AWG L=150mm BLACK

CRT-CHASSIS

2 1240 SET ASSY 80008911 DEGAUSSING COIL 0.6D 90T, TYPE 8 AS95 F

DEGAUSSING

1 1241 SET ASSY HA030010 EMI FILTER COIL 20*10*10 FBT G2 1 JVC FBT 1242 SET ASSY HA030010 EMI FILTER COIL 20*10*10 FBT G4 1 JVC FBT 1243 SET ASSY 80011321 WIRE BRAIDED 0.12/120C 180mm FBT-CRT 1 1244 SET ASSY 80006241 WIRE GND 1015 18AWG L=160mm BLACK FBT-CRT 4 1245 SET ASSY 80011311 CRT GND WIRE N9902F GND WIRE 1 1246 SET ASSY HA030010 E M I FILTER COIL 20*10*10 ROTATION 1 1247 SET ASSY 80011321 WIRE BRAIDED 0.12/120C 180mm

SOCKET-CRT

1 1248 SET ASSY R0191207 TAPE BLACK L=75mmX3

0.015

1249 SET ASSY 80005391 SINGLE CABLE 1.8m D-SUB(BLUE) 1 1250 SET ASSY 10101181 CABINET FRONT ASSY 1 A 1251 SET ASSY 10101401 CABINET FRONT ASSY 1 B 1252 SET ASSY 10101302 CABINET BACK 1 A 1253 SET ASSY 10101422 CABINET BACK 1 B 1254 SET ASSY 11000331 REVOLVING STAND ASSY 1 1255 SET ASSY 11300041 PUSH BUTTON(SW,B) 1 1256 SET ASSY 12000601 BRACKET(CABLE) 1 1257 SET ASSY 12000402 BRACKET(L) 1 1258 SET ASSY 12000412 BRACKET(R) 1 1259 SET ASSY 12000481 BRACKET(PWB)ASSY 1 1260 SET ASSY 12300251 PLATE,SHIELDING(VIDEO) 1 1261 SET ASSY 15000721 NAME PLATE INSTRUCTION MS95F 1 A 1262 SET ASSY 15000762 NAME PLATE INSTRUCTION MS95F-1(B) 1 B 1263 SET ASSY 15200031 LABEL (REV.) 1 1264 SET ASSY 15200281 LABEL,SERIAL BARCODE 1 A 1265 SET ASSY 15200331 LABEL,SERIAL BARCODE 1 B 1266 SET ASSY 15200491 LABEL(MANUFACTURE,NPG) 1 A 1267 SET ASSY 15200901 LABEL CRA MS95F 1 A 1268 SET ASSY 15200961 LABEL WARNING(30KV) 1 A 1269 SET ASSY 15200971 LABEL WARNING(30KV,1000uA) 1 B 1270 SET ASSY 15201021 LABEL(RATED) 1 B 1271 SET ASSY 15200681 LABEL(TCO99) 1 B

1272 SET ASSY 17000111 CRT PA D t=3.5 2 1273 SET ASSY 17000301 CUSHION PIECE (BACK) 1 1274 SET ASSY 14000021 SCREW(#2CBRITS*4*12*15BF) 2 1275 SET ASSY 14300031 SCREW (PL-CPIMS*4*10*15BF) 3 1276 SET ASSY 17000541 MAYLAR SHEET(D18*T2) 2 1277 SET ASSY 18000191 CABLE,CLIP(L=60) 2 1278 SET ASSY 18000241 CABLE CLIP(L=100) 2 1279 SET ASSY 18000261 ANODE CLAMPER(SPA-11G) 2 1280 SET ASSY 14600011 SCERW SPECIAL(5*25) 4 1281 SET ASSY 14800011 SPECIAL WASHER(D20,M6,T2) 4 1282 SET ASSY 18000271 SPACER SUPPROT(PS-26GD) 4 1283 SET ASSY 14000011 SCREW (#2CBRITS*4*16*15BF) 6 1284 SET ASSY R0315A04 CA BLE TIE L=100mm W=2.5mm 8 1285 SET ASSY 14000071 SCREW (PL-CPTS*3*8*15BF) 17 1286 SET ASSY 11000381 REVOLVING STAND ASSY(94HB) OR 1287 SET ASSY 14800021 SPECIAL WASHER(D20,M6,T1.6) OR 1288 SET ASSY 14800031 SPECIAL WASHER(T1.2) OR 1289 SET ASSY 14800041 SPECIAL WASHER(D20,M6,T1.0) OR 1290 SET ASSY 14800051 SPECIAL WASHER(T0.5) OR 1291 SET ASSY 14800061 SPECIAL WASHER(D20,M6,T2.5) OR

REVISED BY ECN NO:NN771007 SORT BY ASSY CODE

2) AccuSync 95F Different Parts List H: HITACHI, S: SAMSUNG

ASSY CODE PART NO DESCRIPTION LOCATION Q'TY ALT REMARK

1 BRACKET(PWB)ASSY 12000492 BRACKET(PWB,A) 1 2 BRACKET(PWB)ASSY 12000502 BRACKET(PWB,BL) 1 3 BRACKET(PWB)ASSY 12000512 BRACKET(PWB,BR) 1 4 BRACKET(PWB)ASSY 12000522 BRACKET(PWB,C) 1 5 BRACKET(PWB)ASSY 12000382 BRACKET(PWB,D) 1 6 BRACKET(PWB)ASSY 12300421 PLATE,SHIELDING(RS) 1 7 BRACKET(PWB)ASSY 14000071 SCREW (PL-CPTS*3*8*15BF) 11 8 CABINET FRONT ASSY 10101211 CABINET FRONT 1

9 CABINET FRONT ASSY 11300651 PUSH BUTTON (SW) 1 10 CABINET FRONT ASSY 11300521 PUSH BUTTON (CONTROL) 1 11 CABINET FRONT ASSY 11600221 LENS 1 12 CABINET FRONT ASSY 11700251 KEY COVER 1 13 CABINET FRONT ASSY 13000011 COIL SPRING 1 14 P ACKING ASSY 13201081 CARTON BOX AS95F(A)-1 1 15 P ACKING ASSY 13400432 POLYLON(T) 1 16 P ACKING ASSY 13400442 POLYLON(B) 1 17 PACKING ASSY 13700021 BAG POLYETHYLENE (270*370) 1 18 P ACKING ASSY 13700031 BAG POLYETHYLENE(150*370) 1 19 PACKING ASSY 13700071 PE BAG (500*480*850 + WARNING) 1 20 P ACKING ASSY 15500711 OWNERS MANUAL(AS75 F/95F-1) 1 21 P ACKING ASSY 15800051 SAFETY INSTRUCTION SHEET 1 22

REVOLVING STAND ASSY

11000361 REVOLVING STAND ASSY(B)

2nd TOOLING

REVOLVING STAND ASSY

17000451 CUSHION SHEET(14.8*14.8*T4)

FOR 2nd BASE

REVOLVING STAND ASSY

11000251 REVOLVING STAND (B) 1

REVOLVING STAND ASSY

11000261 REVOLVING STAND (T) 1

REVOLVING STAND ASSY

17000291 CUSHION SHEET 4

27 SET ASSY 80001631

POWER CORD 3P 1.8M NON-SHIELD

¬ü³W

COLOR SG8508

CORD POWER

1 28 SET ASSY 80008951 CRT 19" HITACHI M46LSQ183X01(W) CRT 1 H 29 SET ASSY 80008941 CRT 19" SAMSUNG M46QCK761X123 CRT 1 S 30 SET ASSY 80006231 WIRE GND 1015 18AWG L=150mm BLACK

CRT-CHASSIS

2 31 SET ASSY 80008911 DEGAUSSING COIL 0.6D 90T, TYPE 8 AS95F

DEGAUSSING

1 32 SET ASSY HA030010 EMI FILTER COIL 20*10*10 FBT G2 1 JVC FBT 33 SET ASSY HA030010 EMI FILTER COIL 20*10*10 FBT G4 1 JVC FBT 34 SET ASSY 80011321 WIRE BRAIDED 0.12/120C 180mm FBT-CRT 1 35 SET ASSY 80006241 WIRE GND 1015 18AWG L=160mm BLACK FBT-CRT 4 36 SET ASSY 80008991 CRT GND WIRE MS95F GND WIRE 1 37 SET ASSY HA030010 E M I FILTER COIL 20*10*10 ROTATION 1 38 SET ASSY 80011321 WIRE BRAIDED 0.12/120C 180mm

SOCKET-CRT

1 39 SET ASSY R0191207 TAPE BLACK L=75mmx3

0.015

40 SET ASSY 80005391 SINGLE CABLE 1.8m D-SUB(BLUE) 1 41 SET ASSY 10101201 CABINET FRONT ASSY 1 42 SET ASSY 10101302 CABINET BACK 1 43 SET ASSY 11000331 REVOLVING STAND ASSY 1 44 SET ASSY 17000111 CRT PA D t=3.5 1 45 SET ASSY 12000482 BRACKET(PWB)ASSY 1 46 SET ASSY 12000402 BRACKET(L) 1 47 SET ASSY 12000412 BRACKET(R) 1 48 SET ASSY 12000601 BRACKET(CABLE) 1 49 SET ASSY 12300251 PLATE,SHIELDING(VIDEO) 1 50 SET ASSY 17000301 CUSHION PIECE (BACK) 1 51 SET ASSY 11300041 PUSH BUTTON(SW,B) 1 52 SET ASSY 15000732 NAME PLATE INSTRUCTION AS95F 1

53 SET ASSY 15200031 LABEL (REV.) 1 54 SET ASSY 15200281 LABLE,SERIAL BARCODE 1 55 SET ASSY 15200491 LABEL(MANUFACTURE,NPG) 1 56 SET ASSY 15200961 LABEL WARNING(30KV) 1 57 SET ASSY 15200912 LABEL CRA AS95F 1 58 SET ASSY 14000021 SCREW(#2CBRITS*4*12*15BF) 2 59 SET ASSY 14300031 SCREW (PL-CPIMS*4*10*15BF) 3 60 SET ASSY 18000261 ANODE CLAMPER(SPA-11G) 2 61 SET ASSY 18000191 CABLE,CLIP(L=60) 2 62 SET ASSY 18000241 CABLE CLIP(L=100) 2 63 SET ASSY 17000541 MAYLAR SHEET(D18*T2) 2 64 SET ASSY 14600011 SCERW SPECIAL(5*25) 4 65 SET ASSY 14800011 SPECIAL WASHER(D20,M6,T2) 4 66 SET ASSY 18000271 SPACER SUPPROT(PS-26GD) 4 67 SET ASSY 14000011 SCREW (#2CBRITS*4*16*15BF) 6 68 SET ASSY R0315A04 CA BLE TIE L=100mm W=2.5mm 8 69 SET ASSY 14000071 SCREW (PL-CPTS*3*8*15BF) 17 70 SET ASSY 11000381 REVOLVING STAND ASSY(94HB) OR 71 SET ASSY 14800021 SPECIAL WASHER(D20,M6,T1.6) OR 72 SET ASSY 14800031 SPECIAL WASHER(T1.2) OR 73 SET ASSY 14800041 SPECIAL WASHER(D20,M6,T1.0) OR 74 SET ASSY 14800051 SPECIAL WASHER(D20,M6,T0.5) OR 75 SET ASSY 14800061 SPECIAL WASHER(D20,M6,T2.5) OR

REVISED BY ECN NO:NN781007 SORT BY ASSY CODE

Video Output

AMP U203

R-OUT G-OUT

B-OUT

Vertical AMP

Output

U401

V-DY

Horizontal &

Vertical Process

U301

Dynamic Focus

Q302, Q303, Q304

Q305, Q338, T303,

Q301, Q317

BRIGHTNESS

CONTROL

Q329,Q323,VR304

Horizontal Driver

& Output

T301, Q315, Q316

High Voltage

Generator

T302

G2 G4

H-DY

Video Pre-AMP

U201

R, G, B Input

OSD Process

U202

H/H+V V

AC Input

Micro-Processor

U701

PS1 PS2

EEPROM

U702

Switch Power

Supply

U101, T101

80V 47V

15V 7V

-12

Voltage

Regulator

Q106, Q113

12V 5V

N9902F BLOCK DIAGRAM

R710

4.7K

R602

X701NCC705

C704

R603 1/2W

1.2K

C378

Y5V

.1u

R122

15K

D704

R732 100

R123 10K

R349

24K

25V

47u

C158

Y5P

220P

C127

1N4936

D327NC

R124

1/2W

R177

12 7

L110

HARMONIC-EE42

P103

-3

P103

-4

P102

-1

P102

P103

-2

P103-4

P103

-1

P102-1

P103-2

P102-4

1/4W

1.6K

R10A

P103-3

UF4003

D122

25V

47u

C152

180K 1/2W

R170

D113 RK36

SR206

220K 1/2W

R172

1N4148

D121

Q112 B772

25V1u

C150

10K

R176

10K

R175

33K

R174

R368

R320

680

R380

1000P

C709

1000P

C710

B302

C945

Q122

R31E J.W

JJD

27K

R162

BF423

Q108

R164

0.01u

C701

47u 16V

C116

R720

4.7K

R712

R156

F.S

1/2W

3.3

F.S

1W.33

R31A

D136

2.2K

R364

1.5KV

SG301

1N4148

D115

C380

10u

C385

10u

C386

NCC389

D325

1N4936

C349

MEF

.01u

JJA

R32T 300KR392 10K

C945

Q341

10K

R32S

1/4W

R32U

1/4W

R32W

100u

16V

C314

R171

33K

D314

UF4006

C945

Q116

2120

V-IN

H-IN

H-SIZE

BRIGHTNES

ROT

MUTE2

HF/S

H-OUT

V-OUT

CLAMP

DEL

OFF

PS2

SW1

SW2

HSCL

HSDA

SW3

ABL

5PCPC97

I/O

P1.4

MUTEL

CS4

P3.2/INTO

A_86/96

A/DKEY

STOUTP

ISCL

ISDA

VSS

VDD

RESET

CS3

CS2

CS1

U701

MTV212

R139 47K

Q317 C945

R713

C377

BF422

Q338

R140

560

R356

100K

L301

5uH

C720

Y5V

0.1u

C383

COM

RL301

0M1-SS-212L

M1-SS-212DM

R317

9.1K

R153

10K

C136 220u 16V

R360 300K 1/2W

2.7K

R762

C945

Q330

D705 NC

D308

UF4006

Q325

IRF640

R345

10K

R357

10K

C347

MPP

250V

.12u(H)

R348

24K

C945

Q319

C358

25V

220u

R354

100K

Y5P

.01u

C343

C337

1800P

2KV PPS

C403 .1u MEF

A733

Q340

Q324

IRF630

R761

10K

R701

4.7K

D326

UF4006

3.3K

R323

Q115

T2P92C

B861

100K

R32N 12K

R32M

C945

Q339

4.7K

R32P

1/4W

R32H

10u

C322

R329

220

BF422

Q305

Q603 C945

Y5P

1000P 1KV

C317

T303

250V

C318

MEF

63V

.22u

C323

1N4148

D335

C945

Q107

2.2K

R32F

C945

Q337

R32E

1N4148

D334

ZD302

4A2

J.W

C333

0.22

R155

R407

R347

24K

4.7K

R31Y

R415 100K

1N4148

D332

D301

1N4148

C945

Q321

C361

3300P

PPN

800V

P702

S701

R365

120

R352

10K

R30Z

1.5K

1N4148

D707

C308

PPN

680P

R355

100K

1000P

C422

R704

100

R361

270

Y5P

.01u

C342

R406 330 1/2W

R735

470

16V

47u

C382

R342

10K

R381

D312

BA159

C306

MEF.033u

L309

100uH

C345

PMM

250V

0.068u(H)

C312

16V

47u

Q101

2SK2648-01

IRFPC50

R102

1/4W

R343 10K

Y5P

.01u

C341

R369

220

Q309 D1138

R353 100K

R106 22K

F.S1/2W

.33

R110

R344

10K

R351

10K

F.S

1/2W

.22

R105

S601

C945

Q320

A733

Q336

F.S

1/4W

2.2

R152

D304

1N4148

R706

4.7K

ZD101 20V-2

C336

D309

BA159

A733

Q307

L304 130uH

R371

R391

R31T 1/4W

100

R307

D111

FMG-G26S

SFA806G

TP1

R367

22K

C346

.43u(H)

250V

MPP

C328 250V

10u

D601

1N4148

C2235

Q313

C316 250V

MEF

.1u

1 14

T101

EER4215

R393 1/4W

C331 10u

C945

Q114

D315

1N4148

R760

3.9K

1/2W

470K

R32R

470K

R319

R385

30 2W

R403

ZD104

5C2

1/4W

10K

R324

C945

Q333

R359

3.9M

L306 45uH

C348

MPP

250V

1.2u(H)

R32B

1/4W1K

C945

Q329

R330

82K

A733

Q703

R386

3W470

C370 10u

C324

R325

33K

R173

ZD102 12A2

R737

4.7K

2.7K

R32L

R332

TP2

R425 1/4W

100K

C142 .01u

MEF

R756

4.7K

63V BOX

0.1u MEF

C321

C411

.1u Y5V

R738 10K

R376

TDA9111

U301

VAGC-CAP

H-REF

COMP

VGND

REGIN

H-BLKO/P

1-SENSE

GND

H-FLY

VREF

H-GND

VCAP

FOCUS

VOUT

H-FOCUSCAP

EW-O/P

H-LOCKCAP

X-RAY

PLL1F

H-O/P-COL

GND

B+/OUT

PLL2C

VCC

SCL

H-LOCKOUT

SDA

V-I/P

H-I/P

+5V

R366

120

R746

4.7K

R747

4.7K

R748

4.7K R749

4.7K

R751

10K

R752

4.7K

R30I 1K

R702

4.7K

D108

UF4003

R30L 47K

1000u

16V

C122

SYN+

R30H 10K

2.2u

C335

C115 PPN

.0033u

C408 .1u Y5V

T301

50K

VR305

C309

22u

C424

R30J

2.7K

Q303 D669

R31W

680K

R390

D303

1N4148

C945

Q401

D403

1N4148

C945

Q105

C374

.1u

Y5V

R321

VR302 HV.ADJ

Y5P

100P

C706

SELET

SW701

R30G 3K

R30F

4.7K

A733

Q302

Y5P330P

C110

C362

105

250V

2.2u

R30K

51K

R30E

6.8K

C402

.1u Y5V

R410

6.2K

D316 NC

R424

3.3K

R316

6C2

ZD704

C149 100u

16V

C425

Y5P

6800P

D117

1N4148

C137 25V

220u

C413 .22u

MEF

C412

R409

2.2

1/2W

Q312

YTAF640

R373

1/2W

10K

R31U

R30B 100K

1/4W

20K

R32K

R303

10K

C141 16V

470u

R411

2W3.3

L302 30uH

Y5P

1KV

1000P

C339

R144

10K

JP101

B305

R387

O.27

R322

10K 1/4W

C143

105

470u 25V

B303

B649

Q304

R132 3W22

R111

.22

R302 100

Y5P

500V

220P

C355

R377

470 2W

D708

R301 470

R370

VR301

10K

H.CENTER

C305

MEF

0.47u

B103

C945

Q308

R313

C120

680u

63V 105

R384

R394

1/4W

C313

C357

.1u MEF

R131

1/4W

220u 35V

C409

C379

Y5V.1u

TDA8172

U401

JJC

C154

25V

100u

D402

1N4002

R331

R383

C367

J.W

C384

10u

C410 470u

25V

A733

Q311

C945

Q331

D318

1N4936

R399

150K

VR304

10K

R703

100

R182 1/2W

680

C423 Y5P

.01u

R30A

1/4W 1M

R378 100K

R30D

C601

10u

R398

Y5P

.01u

C340

R374 1/4W

D319

1N4936

R341

51K

6543

NC SDL

SCL

VCC

24C04

U702

C329 250V

MEF

0.1u

D317 RG4A

C945

Q322

R422

22K

C310

R158 220

C603 Y5P

0.01u

R397

100K

R753

4.7K

R388 10K

D324 RG4A

D321 RG4A

R734

4.7K

D322

11DQ06

P704

R754

4.7K

R121 10K

Y5P

330P

C604

A965

Q314

R375 1/4W

C332 .47u

MEF

.01u

C376

VR102

200

B+.ADJ

C125

Y5P

1KV

330P

R315

A733

Q310

JP2

OPEN

1/4W

91K

R379

C344

MPP(H)

400V

0.2u

MPP

400V

.22u

R30M

22K

Q301 C945

Q315 C5440

TH102

2P 9

DGC2R9ROM27C

MEF.01u

C353

KA3842A

U101

B104

Y5P

1000P

C716

R372

1/2W

C945

Q113

PH2369

Q701

A733

Q334

L303 J.W.

9A3

ZD301

D323

10K

R150

2.7K 1/4W

R145

C151

47u 16V

16V

100u

C703

C381

10u

C311

.1u Y5V

D129

1N4148

C364

105

250V

10u

1N4148

D329

D320

5TUZ47

DTV64F

DTV56F

C945

Q109

D135

1N4148

ZD701 6C2

R143

1/4W680

C401

16V

47u

R421

4.7K

2200P

400V YCAP

C102

R395 150K

R750

4.7K

C153 470u 25V 105

C123

1KV

100P

Y5P

JP1

R129

D114 RG2Z

1KV330P

Y5P

C354

D112 RG4Z

B106

C602

D110 RG2A

R107 560K 1/2W

1KV

.01u

C113

F.S

1/2W

.22

R103

R135

4.7K

R128

C351 470u

25V

C124

Y5P

1KV100P

R127

Q104 B772

B105

C1213

Q601

C715

C157

.022u

MEF

R126

10K

D124

1N4148

D306

1N4148

JJA

1/4W

R117

6C2

ZD703

R137

10K

L109

J.W

R138 1/4W

680

431

TLP721F

PS2561

U102

R136

22K

C112

Y5P

1KV

0.01u

D305

1N4148

817B

TL431

U108

R382

10K

R339

5.6K

R125

1/4W

C945

Q332

L307

2.2mH

A673

Q602

10u

100V

C325

R402

6.2K

R338

3.3K(H)

R159

4.7K

C407 470u 25V

D302

1N4148

R336

18K

C363 MEF

.001u

11K

R32G

C717 .1u Y5V

D109

1N4148

R335

2.2K

C405

MEF

0.47u

D310

BA159

R118

22K

R363

270 1/2W

R116

D307

1N4148

1/4W

R115

R30V

4.7K

18V-2

ZD103

R183 10K

C945

Q328 R334 10K

R333

10K

C945

Q335

R154

15K

R31S

4.7K

R112

C111 .01u

MEF

1N4148

D706

B102

B101

R350

10K

R32J

2.2

1/2W

22u 10V

C162

C707

10u

Y5P

470P

C167

R166 680

R108 560K 1/2W

C315

MEF

1000P

R119 100K

R109

R161

10K

D311

BA159

JJC

3300P MEF

C155

B107

ZD702 6C2

R148

10K

B301

D127 1N4148

C356

LOW_ESR

105

250V

100u

R142

2.2K

16V

220u

C372

C359

25V

220u

IRF630

Q316

C368

.1u Y5V

R141 47K

C302 .01u

MEF

R346

24K

KSP45

Q103

R340 J.W

NO COM

RL102

M1-SS-212DM

D123

1N4002

R151 150K 1/4W

D701

R120

22K

220u

35V

C109

4.7K

R601

6C2

ZD705

C406

Y5P

680P

IRF640

Q327

S102

C404

.15u

MEF

C114

.1u MEF

N15SP006L

6/5A

TH101

R401

12K

6C2

ZD706

2mH

L102

R318

18K

1/4W

HZS6C2

ZD120

JP102

P103-1

C945

Q120

D669

Q106

3.15A 250V

F101

R32A

P101

R404

36K

10K

R711

R30W 560

R337

2.7K(H)

R362 10K

100u 35V

C106

R30Y 150K

DOWN

SW703

Y5P

560P 500V

C338

R30U

2.2K

R32C

10K

MEF

0.1u

C375

R134 1K

R310

10K

1/4W

R305

C702 .1u Y5V

R147

100K 1/4W

R327

C365

Y5V

.1u

Y5V

.1u

C718

R309 100K

R308

2.2K

C304

PPN

680P

R757

4.7K

R717

4.7K

C330

MEF1000P

10K

R114

C119

105

100u 160V

R306

5.6K 1/4W

R31F

R32D

100

L108 100uH

R716

4.7K

R304

R733 100

C945

Q111

C421

.1u MEF

250V

C945

Q102

C307

.47u

MEF

10K

R31X

C722

R314

10K

R163 1/4W

560

R30N 100

R31C

10K

C301 470P

Y5P

R30P 100

C334

16V

470u

R311

33K

R729

4.7K

R755

4.7K

L308

100uH

SYN-

C327

.033u

MEF

D313

1N4148

C945Q110

560uH

L305

R759

ZD303

18V-2

R133 10K

1N4148

D120

100KR389

R719 10K

R709

4.7K

R113 150K 1/4W

C326

250V

R30S 220 1W

UF4007

D105

R423 150K

R31B

10K

C721 100u 100V

R160

10K

ADJ.

H.HOLD

VR306

R726

4.7K

R705 470

R727

4.7K

R730

4.7K

D703

1N4148

BF423

Q323

C371

R736

2.2K

D702

C352 10u

FOCUS

T302 FBT

A733

Q121

TP3

COM

0M1-SS-212L

M1-SS-212DM

RL101

SW702

1W2.2K

R312

C366

MPE

250V

2.2u

WW5W

47K

R104

C303

MEF

.022u

TP6

BD101

D4SBL

D3SB60

TS4B06G

SW101

C945

Q702

C350

2.2u NP

R358

C360 5100P 2KV PPS

LED101

Q326

IRF630

R130

L107

J.W

R708

4.7K

L310

100uH

R146

56K

1/4W

L104

B701

C138

470u

63V 105

R707

VR303 30K

R731

4.7K

1N4148

D101

250V

C320

S301

H-DY V-DY

C121 1000u

25V 105

R326

100u

16V

C373

C105 330u 400V

C319

.22u MEF

Y5P

1KV

330P

C126

6.9V

HSCL

HSDA

5V 5V

CLAMP

SW3

-12V

STOUT

PS2

ISDA

CS4

5V(PC)

H-BLK

MUTE1

BRIT

80VSW

MUTE2

#5PC

ABL

DEG

H-SIZECS3

CS3

ROT

80VDF

46V

OFF

CS1

V-OUT

CS2

SW2

SW1

12VSW

HF/S

S/G

ISCL

15VSW

#5(PC)

4 5 6 7 8321

R E V I S I O N S

DRAWNECO/PCN NO.

DATEDESCRIPTIONREV.

Lynn

(H),(S)

R337:2.7K(S)

C346:0.1u(S) C347:0.22u(S)

C346:0.47u(S) C348:0.82u(S)

(S)

(H)

(S)

7.5K(H)

ADJ.

CUT OFF

ABL ADJ.

R32G:11K(S)

90V~264V

AC INPUT

02-12-2001

3-5

AS95FM5.SCH 72000553

AS95F/MS95F MAIN SCH

DOCUMENT NO.

2.ALL RESISTORS ARE " 1/8 WATT , 5 % " UNLESS OTHERWISE NOTED.

File Name:

APPROVAL

NPG DISPLAY LTD.

SIZE: REV:

Model

1.THE UNIT OF RESISTANCE " OHM " IS OMITTED ( K-1000 OHMS AND M-1MEG OHMS )

3.ALL CAPACITANCE RATTING " 50V " IS OMITTED UNLESS OTHERWISE NOTED.

NOTE:

DIRECTOR BY:

CHECK BY :

Date:

DRAWING BY :

0.1A

1.6A/86K

MODEL MS95F-1/AS95F-1 MAIN BOARD SCHEMATIC DIAGRAM

R2C5 330K

1/2W

B202

C261 500V

100P

Y5P

500V

4700P

C297

Y5P

.01u

C212

R2C4

1/4W

L272

100uH

C2C2

470P

500V

Y5P

TO-G2

C2C4 .01u

1KV

C2C3

4700P

1KV Y5P

C2C1

R2C3 1/4W

C2C7

470P

Y5P

500V

R2C1 1/4W

SG2C4

C2C5

.1u

Y5V

D2C1

1N4936

B2C1

R205

B271

C236

100V

105

C283

.1u

Y5V

100uH

L2C1

B272

105

100V

22u

C2C9

L232

0.56uH

R289

10K

S273

R290

10K

C293

Y5P 680P C286

R288

3.3K

Y5P

500V

1000P

C296

C233

16V

47u

5C2

ZD272

R203

4.7K

1N4148

D273

R287

4.7K

R286

5.1K

R202

L252

0.56uH

SG2C1

C282

.1u

Y5V

SG2C3

SG2C2

R2C2 1/4W

R256 1/4W

100

R216

1/4W

100

105

10u

C276

A733

Q272

R283

220

1N4148

D271

GND

R282

7.5K

R280

10K

R238

220K

105

100V

22u

C298

1/2W

10K

R239

C256

100V

105

R237

1SS244

1SS83

D236

R242

33K

L212

0.56uH

R240

91K

R241

820

R244

680

BF422

Q232

R243

3.9K

BF422

Q231

Z5V

103

C235

105

100V

C234

TO-GK

1SS244

1SS83

D234

1SS244

1SS83

D235

R236

1/4W

100

R258

220K

1/2W

10K

R259

C216

100V

105

R257

1SS244

1SS83

D256

R262

33K

L273

22uH

R260

91K

R261

820

R264

680

BF422

Q252

R263

3.9K

BF422

Q251

Z5V

103

C255

105

100V

C254

TO-BK

1SS244

1SS83

D254

1SS244

1SS83

D255

R271

100

1/4W

R218

220K

1/2W

10K

R219

R292

R217

1SS244

1SS83

D216

R222

33K

L271

100uH

R220

91K

R221

820

R224

680

R281

1/4W

220

BF422

Q212

R274

100

BF422

Q211

Z5V

103

C215

105100V

C214

TP-RK

1SS244

1SS83

D214

1SS244

1SS83

D215

R273

6.8K

R252

1/4W

2.2u

C274

R235

750

C213

16V

47u

R255

750

C290

.1u

Y5V

B-OUT

R-OUT

B-IN

R-IN

GND

G-IN

VBIAS

VCC

G-OUT

LM2435U203

R212

1/4W

R215

750

R234

R254

R214

R272

56K

R284

R298

100

JP1

S274

2 1

R276

100

C277

C279

C278

R299

100

R275

100

S272

R297

5.6K

R296

6.8K

R295

5.6K

C280

100P

FOCUS

CRT

G1 G2

H.V

C271

N.C.

R293

150

C291

.01u

MEF

R294

C284

220u

16V

R277

100

B251

10V

100u

C289

C275

100P

C295

.1u

Y5V

D2C2

1N4936

PH2369

Q273

C272

.1u

Y5V

R285

1/4W

10V

220u

C288

ZD271

C231

3.3u

R253

470

R233

470

R213

470

C2C8 100P

1KV Y5P

C285

16V

47u

R251

R231

R211

R201

470

R200

R223

3.9K

S271

Y5P

.01u

C273

B2C2

1N4148

D252

C253

16V

47u

1N4148

D233

1N4148

D231

B201

C211

3.3u

Y5P

500V

100P

C287

Y5P

.01u

C252

B231

R232

1/4W

1N4148

D232

1N4148

D213

1N4148

D211

C251

3.3u

C281

105

16V

47u

Y5P

.01u

C232

1N4148

D212

C292

.01u

MEF

1N4148

D253

1N4148

D251

R204

10K

C2C6

.01u

100V

MEF

VSS

R-OSD

G-OSD

B-OSD

FBKG

HTONE

VFLB

VDD

SCK

SDA

HFLB

VDDA

VCO

VSSA

MTV021N-38

U202

Y5P

330P

C294

16 21

VCC

O/P.R

GND

O/P.G

REF

BRI

O/P.B

CONT

BLK

D/A

GND

SDA

SCL

CLAMPS/G.OUT

+5V

ABL

GND

OSD.B

VCC

I/P.B

GND.G

OSD.G

VCC

S/G.IN

I/P.G

GND.R

OSD.R

VCC

I/P.R

FBK

M52743BSP

U201

Y5P

1000P

C260

1N4148

D272

80V

6.9V

H-BLK

ABL

CLAMP

12V

ISDA

ISCL

S/G

DGND

72000412

DOCUMENT NO:

N9902V4.SCH

1999.11.24.

(2)

LYNN CHEN

N9902 VIDEO SCH

FILE NAME :

ECN NO.

REV. DESCRIPTION DATE DRAWN

REVISIONS

NPG DISPLAY LTD.

2.ALL RESISTORS ARE " 1/8 WATT , 5 % " UNLESS OTHERWISE NOTED.

APPROVAL

REV:A2SIZE:

Title

1.THE UNIT OF RESISTANCE " OHM " IS OMITTED ( K-1000 OHMS AND M-1MEG OHMS )

3.ALL CAPACITANCE RATTING " 50V " IS OMITTED UNLESS OTHERWISE NOTED.

NOTE:

DIRECTOR BY:

DRAWING BY :

CHECK BY :

Date:

1234567

GND

MODEL MS95F-1/AS95F-1 VIDEO BOARD SCHEMATIC DIAGRAM

NEC N9902 F-1, AccuSync 95F-1 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
