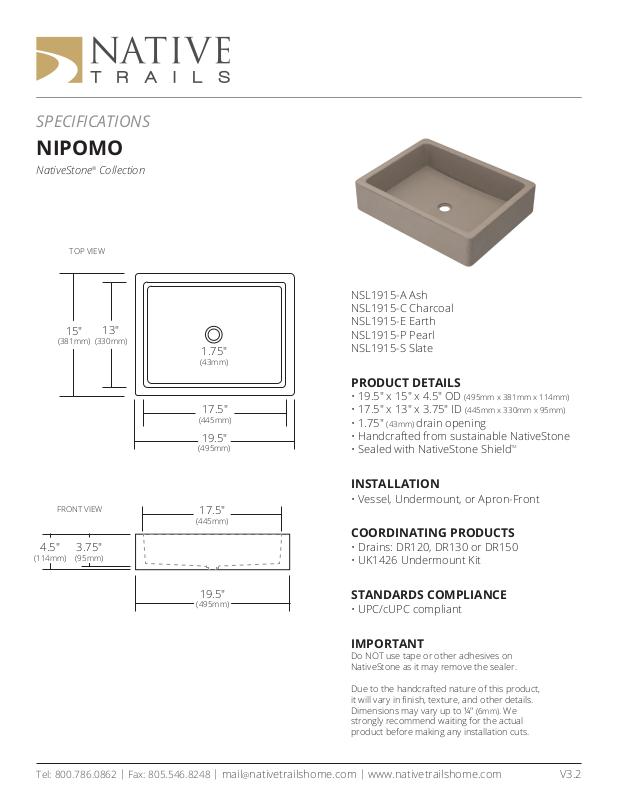

SPECIFICATIONS
NIPOMO
NativeStone® Collection
TOP VIEW
15"
(381mm)
13"
(330mm)
1.75"
(43mm)
17.5"
(445mm)
19.5"
(495mm)
NSL1915-A Ash
NSL1915-C Charcoal
NSL1915-E Earth
NSL1915-P Pearl
NSL1915-S Slate
PRODUCT DETAILS
• 19.5" x 15" x 4.5" OD (495mm x 381mm x 114mm)
• 17.5" x 13" x 3.75" ID (445mm x 330mm x 95mm)
• 1.75" (43mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with NativeStone Shield
TM
FRONT VIEW
4.5"
(114mm)
3.75"
(95mm)
17.5"
(445mm)
19.5"
(495mm)
Tel: 800.786.0862 | Fax: 805.546.8248
INSTALLATION
• Vessel, Undermount, or Apron-Front
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• UK1426 Undermount Kit
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Do NOT use tape or other adhesives on
NativeStone as it may remove the sealer.
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to ¼″ (6mm). We
strongly recommend waiting for the actual
product before making any installation cuts.
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.2
