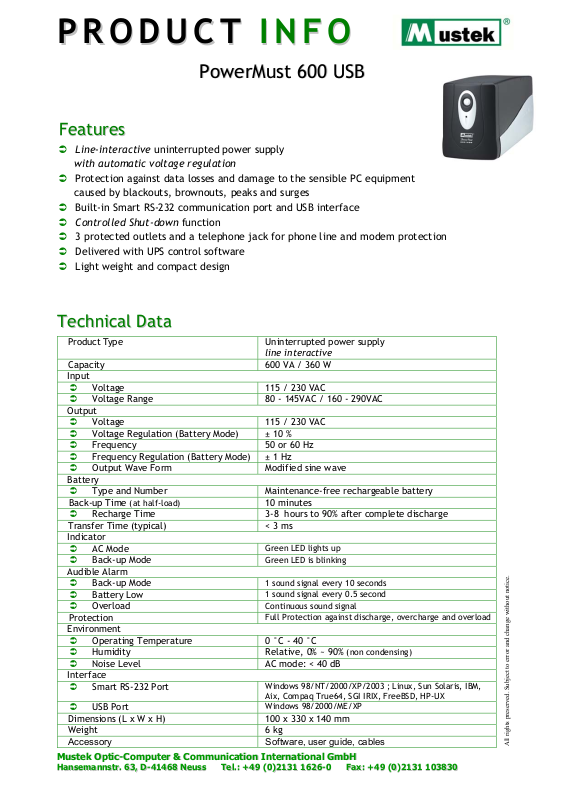

PPoowweerrMMuusstt 660000 UUSSBB

FFeeaattuurreess

 Line-interactive uninterrupted power supply

with automatic voltage regulation

 Protection against data losses and damage to the sensible PC equipment

caused by blackouts, brownouts, peaks and surges

 Built-in Smart RS-232 communication port and USB interface
 Controlled Shut-down function
 3 protected outlets and a telephone jack for phone line and modem protection
 Delivered with UPS control software
 Light weight and compact design

TTeecchhnniiccaall DDaatta

Product Type Uninterrupted power supply

Capacity 600 VA / 360 W

Input

 Voltage 115 / 230 VAC
 Voltage Range 80 - 145VAC / 160 - 290VAC

Output

 Voltage 115 / 230 VAC
 Voltage Regulation (Battery Mode) ± 10 %
 Frequency 50 or 60 Hz
 Frequency Regulation (Battery Mode) ± 1 Hz
 Output Wave Form Modified sine wave

Battery

 Type and Number Maintenance-free rechargeable battery

Back-up Time (at half-load) 10 minutes

 Recharge Time 3-8 hours to 90% after complete discharge

Transfer Time (typical) < 3 ms

Indicator

 AC Mode
 Back-up Mode

Audible Alarm

 Back-up Mode
 Battery Low
 Overload

Protection

Environment

 Operating Temperature 0 °C - 40 °C
 Humidity Relative, 0% ~ 90% (non condensing)
 Noise Level AC mode: < 40 dB

Interface

 Smart RS-232 Port

 USB Port

Dimensions (L x W x H) 100 x 330 x 140 mm
Weight 6 kg

Accessory Software, user guide, cables

MMuusstteekk OOppttiicc--CCoommppuutteerr && CCoommmmuunniiccaattiioonn IInntteerrnnaattiioonnaall GGmmbbH

HHaannsseemmaannnnssttrr.. 6633,, DD--4411446688 NNeeuussss TTeell..:: ++4499 ((00))22113311 11662266--00 FFaaxx:: ++4499 ((00))22113311 110033883300

a

line interactive

Green LED lights up
Green LED is blinking

1 sound signal every 10 seconds
1 sound signal every 0.5 second
Continuous sound signal
Full Protection against discharge, overcharge and overload

Windows 98/NT/2000/XP/2003 ; Linux, Sun Solaris, IBM,
Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX
Windows 98/2000/ME/XP
