MOTOROLA DEFY MINI

TinBoost.GSG.ASIA.EMARA_12m.fm Page 0 Thursday, March 1, 2012 3:55

TinBoost.GSG.ASIA.EMARA_12m.fm Page 1 Thursday, March 1, 2012 3:55

Congratulations

MOTOROLA DEFY™ MINI

Your MOTOROLA DEFY™ MINI helps you seamlessly manage your "Office" and "Outdoor" lifestyles.

•Lifeproof: Your phone is water-resistant, dustproof

and it has a scratch-resistant screen, because accidents happen.

• Dashboard: Easy access to all your favourite Outdoor

apps, like details, see "Dashboard" on page 12.

• MotoSwitch: MotoSwitch is a dynamic interface that

gives you seamless access to content that is relevant to you. For details, see "motos witch" on page 13.

• Extended battery life: So you have longer to use

your phone outdoors.

Note: Certain apps and features may not be available in all countries.

Caution: Before assembling, charging or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product.

Camera, Compass and a pedometer. For

This product meets the applicable limit for exposure to radio waves (known as SAR) of

2.0 W/kg (ICNIRP). The limits and guidelines

1Congratulations

TinBoost.GSG.ASIA.EMARA_12m.fm Page 2 Thursday, March 1, 2012 3:55

include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product.

Note: When using the product while worn on your body, either use an approved accessory, such as a holster, or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call.

Want more?

More help, more accessories, more free stuff. We're here to help.

• Updates: Phone updates, PC software,

user guides, online help and more at www.motorola.com/mydefymini.

• Accessories: Find more for your phone at

www.motorola.com/products.

•Social: The latest news, tips & tricks, videos and so

much more—join us on:

Yo u Tu b e ™ www.youtube.com/motorola

Facebook™ www.facebook.com/motorola

Tw i t t e r www.twitter.com/motomobile

2 Congratulations

Front camera

Notification light

Flash = missed call,

new message or

other notification.

Micro USB

Microphone

Volume keys

Camera key

Power/

Sleep key

Open options.

Home

Touch =

home screen

Hold =

recent apps

Touch = text Hold = voice

Back

Go back one

screen.

3.5mm HSJ headset jack

Press=sleep Hold=power

TinBoost.GSG.ASIA.EMARA_12m.fm Page 3 Thursday, March 1, 2012 3:55

Your phone

the important keys & connectors

3Your phone

TinBoost.GSG.ASIA.EMARA_12m.fm Page 4 Thursday, March 1, 2012 3:55

Camera

Cover lock

Note: To help protect your phone, always make sure that

the battery cover and any connector covers are closed and secure.

4 Your phone

TinBoost.GSG.ASIA.EMARA_12m.fm Page 5 Thursday, March 1, 2012 3:55

Contents

Let's go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Personalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Bluetooth™, Wi-Fi & cable connections. . . . . . . . . . . . . . . . . . 41

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Safety, regulatory & legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5Contents

SIM microSIM microSIM

+ Adapter

TinBoost.GSG.ASIA.EMARA_12m.fm Page 6 Thursday, March 1, 2012 3:55

Let's go

let's get you up and running

Assemble & charge

1 Cover off 2 SIM in

3 microSD in (may

4 Battery in

already be inserted)

5 Cover on 6 Charge up

6 Let's go

Power key

TinBoost.GSG.ASIA.EMARA_12m.fm Page 7 Thursday, March 1, 2012 3:55

Caution: Please read "Battery use & safety" on page 46.

Set up & go

Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details.

When you turn on your new phone, you can create or enter a Google™ account so that you can download apps, use Gmail™ and much more:

1 Press and hold Power to turn on

your phone.

2 Touch the Android™ image to begin

setup.

3 Touch a button to Create a Google

account, Sign in with one you have or Skip.

You can log into your account from a computer at accounts.google.com.

4 When your phone confirms the account, it shows

account sync options.

• To change whether your phone shows the Google

account's contacts, Gmail™ and calendar, touch the Google account name.

• To add another account, touch Add account.

For details, see "Email" on page 24.

• To exit setup, touch Home .

7Let's go

TinBoost.GSG.ASIA.EMARA_12m.fm Page 8 Thursday, March 1, 2012 3:55

If your phone cannot connect, touch Menu > Wi-Fi

to change mobile network settings.

settings

Rugged

Your MOTOROLA DEFY™ MINI stands up to water, dust and life. Now your investment is safe and protected from life's little challenges, like that sudden rain shower and other everyday mishaps.

Of course, your phone isn't indestructible, so to avoid damage from natural elements, such as water, sand and dust intrusion, always make sure that the battery door cover and connector covers are closed and secure.

If your phone gets wet and/or dirty:

• Wipe with a soft cloth and shake to remove excess

water from the entire phone, especially the display screen, speaker and microphone ports.

• Allow your phone to air-dry for at least 1 hour before

using it again.

• Always make sure you clean all dirt and debris from

the battery door cover/seals and connector covers.

Note: Your phone is not designed to float or work underwater.

8 Let's go

Camera key

Volume keys

TinBoost.GSG.ASIA.EMARA_12m.fm Page 9 Thursday, March 1, 2012 3:55

sleep & wake up

Your screen sleeps when you hold it to your ear during a call or when it is inactive. To change the sleep delay, touch Menu > Settings > Display > Screen timeout.

To turn phone sounds on or off from a locked screen, flick the toggle switch .

To unlock the screen, press Power/Lock Key then touch and flick to .

keys

Use your phone's keys to navigate and open options at any time.

Press the volume keys to change the ringer volume (on the home screen), or the earpiece volume (during a call).

From any screen, press the Camera key on the right side of the phone to open the camera.

Touch Home to return to the home screen. Touch and hold Home to see your recent apps.

9Let's go

00:32

Browser

Market

http://www.

Notifications

Flick down for details.

Status indicators

Shortcuts

Open the app menu.

Widgets

Touch to open. Touch & hold to move or delete.

Drag or flick to open panels (or scroll in lists).

TinBoost.GSG.ASIA.EMARA_12m.fm Page 10 Thursday, March 1, 2012 3:55

Home screen & apps

a few essentials

Quick start: Home screen

You'll see the home screen when you turn on the phone or touch Home from a menu:

• To open shortcuts or widgets, touch them. Touch

Home to return to the home screen.

When you open shortcuts or widgets, touch Menu for options.

10 Home screen & apps

TinBoost.GSG.ASIA.EMARA_12m.fm Page 11 Thursday, March 1, 2012 3:55

• To move or delete shortcuts or widgets, touch and hold them until you feel a vibration, then drag it to

another spot, another panel or at the top.

In lists like

Contacts, touch and hold list items for

options.

• To add shortcuts, widgets or wallpaper, touch and

hold an empty spot until you see the menu. You can also add a folder to organise your shortcuts.

• To show more panels, drag or flick right or left. Touch

Home to show panel thumbnails.

In lists like Contacts, drag or flick to scroll.

To change your ringtone, display brightness and more, touch Menu > Settings > Sound or Display. For details, see "Personalise" on page 17.

Tip: From the home screen, touch Menu > Profiles to design different home screens for Work, Home or

Weekend. Your changes are stored in each profile.

11Home screen & apps

00:32

Call

00'00"00

Steps

Touch &

Hold

Compass

Camera

FM Radio

Cal

0.0

PEDOMETER

CALORIE

Shortcuts

Drag or flick to see other apps.

Start/stop/save pedometer record.

To change app that is shown.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 12 Thursday, March 1, 2012 3:55

Dashboard

You can access the outdoor apps on your phone with the dashboard, just touch > Dashboard.

RUNTIM

Your dashboard shows apps like Camera, Compass and

FM Radio. You can also see a pedometer that reports

your runtime, steps and calories burned—it's the ideal fitness companion.

Note: To set the pedometer, touch Menu > Settings > Height and Weight, then enter your details.

To view or share your records, touch Menu >

My Record or Share.

12 Home screen & apps

11:19

00:32

Browser

Calendar

Dash bo...

Clock

Music

Market

Maps

Drag or flick to open panels.

Open the app menu.

Your favourites, touch to open.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 13 Thursday, March 1, 2012 3:55

motoswitch

Jump right to your favourite apps from the home screen!

To set up your favourite apps, touch then choose to add your apps automatically (your phone adds the apps you use the most) or manually:

http://www.

Tip: The biggest app icon shows the app you use the most.

To delete a favourite app icon, touch and hold, then drag the app icon to the bin .

To go to a favourite app from the home screen, just touch it.

13Home screen & apps

TinBoost.GSG.ASIA.EMARA_12m.fm Page 14 Thursday, March 1, 2012 3:55

Apps

To show your app menu, touch .

• To scroll, flick up or down.

• To open an app, touch it.

• To close the app menu, touch Back .

Tip: To show the last eight apps you opened, touch and

hold Home .

To download new apps from Android Market™, touch

> Market. Touch Search to find an app, or

touch My apps to show or reinstall the apps you downloaded. To download apps from websites, you need to change your security settings: Touch Menu > Settings > Applications > Unknown sources.

Tip: Choose your apps and updates carefully, from trusted sites like Market, as some may have an impact on your phone's performance—see "Choose carefully" on page 15.

Note: When installing an app, make sure you read the alerts that tell you what information the app will access. If you don't want the app to have access to this information, cancel the installation.

To move or uninstall your apps, touch Menu >

Settings > Applications > Manage applications. Touch

an app in the list to show details and options.

14 Home screen & apps

TinBoost.GSG.ASIA.EMARA_12m.fm Page 15 Thursday, March 1, 2012 3:55

On your computer, you can browse and manage apps for all your devices powered by Android™ at market.android.com

Choose carefully

Apps are great. There's something for everyone. Play, communicate, work or have fun. But remember, choose your apps carefully. Here are a few tips:

• To help prevent spyware, phishing or viruses from

affecting your phone or privacy, use apps from trusted sites, like Market.

• In Market, check the apps' ratings and comments

before installing.

• If you doubt the safety of an app, don't install it.

• Like all apps, downloaded apps will use up memory,

data, battery and processing power—some more than others. For example, a simple battery level widget will use less than a streaming music player app. After installing an app, if you're not happy with how much memory, data, battery or processing power it's using, uninstall it. You can always install it again later.

• Just like web browsing, you may want to monitor

children's access to apps to help prevent exposure to inappropriate content.

• Certain apps may not provide completely accurate

information. Take care, especially when it comes to personal health.

15Home screen & apps

Clear

Notifications

10:32

New voicemail

Dial (your voicemail number)

11:19

TinBoost.GSG.ASIA.EMARA_12m.fm Page 16 Thursday, March 1, 2012 3:55

Phone status & notifications

In the status bar at the top of your screen, the right side shows phone status. The left side shows new messages or events (for details, flick the bar down).

network strength battery strength

new voicemail new text message

Bluetooth™ on Bluetooth

Wi-Fi connected flight mode

USB connected alarm set

silent ringer silent ringer, vibrate

mute call speakerphone

connected

16 Home screen & apps

Display settings

Brightness

Screen timeout

All window animations are shown

Animation

Auto-rotate screen

Adjust the delay before the screen automatically turns off

Sound settings

General

Incoming calls

Only in Silent mode

Vibrate

Volume

Silent mode

Silence all sounds except media & alarms

Phone ringtone

Notifications

Notification ringtone

Choose separate volume settings for incoming calls, media, alarms and notifications.

Call & message notifications

Turn on or off menu animations.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 17 Thursday, March 1, 2012 3:55

Personalise

add your personal touch

Quick start: Personalise

From the home screen, touch Menu > Settings >

Sound or Display.

17Personalise

Dial pad

Add call

SpeakerMute

Recorder

Christine Fanning

Home 222-333-4444

Contacts

Favourites

Phone Call log

ABC DEF

MNO

WXYZ

JKL

TUV

GHI

PQRS

11:19

00:32

Contacts GroupsFavouritesPhone Call log

Christine F... 222-333-4444

29 matches

222222

Current call 01:13

End

Add cal

Recor

Open a list, then touch an entry to call.

Shows matching numbers, flick down to see more.

Hang up.

Start a conference call.

Call.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 18 Thursday, March 1, 2012 3:55

Calls

it's good to talk

Quick start: Calls

From the home screen, touch .

Tip: For quick access to contacts, see "Favourites" on page 21.

18 Calls

TinBoost.GSG.ASIA.EMARA_12m.fm Page 19 Thursday, March 1, 2012 3:55

• To answer a call, touch and flick to .

• To ignore an incoming call, touch and flick to .

Conference calls

To start a conference call, call the first number. After they answer, touch Add call and call the next number. When the next number answers, touch Merge calls. To remove individual callers, touch Manage.

Call waiting

If you are on a call and a new call arrives:

• With call waiting on, touch and flick to ,

to answer the new call and put the old call on hold. Then, touch Swap to switch between calls, or Merge

calls

to combine them.

• With call waiting off, the new call goes straight to your

voicemail.

To turn on call waiting, touch Menu > Settings > Call

settings

> Call feature settings > Additional settings >

Call waiting.

Emergency calls

Note: Your service provider programs one or more emergency phone numbers that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre-programmed emergency number(s) may not work in

19Calls

TinBoost.GSG.ASIA.EMARA_12m.fm Page 20 Thursday, March 1, 2012 3:55

all locations and sometimes an emergency call cannot be placed due to network, environmental or interference issues.

1 Touch (if your phone is locked, then

touch Emergency call).

2 Enter the emergency number.

3 Touch Call to call the emergency number.

Note: Your phone can use location based services (GPS

and AGPS) to help the emergency services find you. See "Location services" in your legal and safety information.

Cool down

In very limited circumstances, such as where your phone has been exposed to extreme heat, you may see "Cool down" messages. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in "Cool down" mode, only emergency calls can be made.

20 Calls

Contacts

Favourites

Phone Call log

11:19

00:32

Contacts GroupsFavouritesPhone Call log

Displaying 20 contacts

Arthur Baudo

Barry Smyth

Cheyenne Medina

Christine Fanning

New contact Multiselect

Accounts Import/exportDisplay options

Drag or flick to scroll.

Switch to the dialler, recent calls, favourites or groups.

Touch to search, create and more.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 21 Thursday, March 1, 2012 3:55

Contacts

contacts like you've never had before

Quick start: Contacts

From the home screen, touch > Contacts.

Favourites

For quick access to a favourite contact, open the contact, then touch the star next to their name. To show your favourites, touch and touch Favourites at the top.

To add a shortcut to your favourites, touch and hold a blank spot on your home screen, then touch Folders >

21Contacts

TinBoost.GSG.ASIA.EMARA_12m.fm Page 22 Thursday, March 1, 2012 3:55

Starred contacts. You can also add a shortcut for an

individual contact: Touch and hold a blank spot on your home screen, then choose

Shortcuts > Contacts.

Storage & transfer

When you create a new contact, your phone asks if you want to store it in your Google™ account, phone memory or SIM card. Contacts in all three places appear in your Contacts list, but if you change phones:

• Contacts in your Google™ account can download

when you log into your Google account on a new Android™ device. You can open these contacts from any computer at contacts.google.com.

• Contacts on your SIM card can load to a new device

when you insert your SIM card.

• Contacts in your phone memory stay in your old

phone, unless you export them.

To import or export contacts between your phone memory and a SIM or memory card, touch >

Contacts, then touch Menu > Import/export.

22 Contacts

Messaging

Text messaging

12254558787

14447772222

You had 1 missed call from 07254545878 ... 17 Aug

Wanna get something to eat tonight? How about ... 17 Aug

12223334545

Ha! Thanks.

16 Aug

Settings

Delete threads

Traditional mode

Multiples

Compose

Messaging

11:19

Drag or flick to scroll.

Touch to change settings and more.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 23 Thursday, March 1, 2012 3:55

Messaging

sometimes it's better to text or email...

Quick start: Text messaging

From the home screen, touch > Messaging.

Tip: To see more messages, flick or drag up.

23Messaging

TinBoost.GSG.ASIA.EMARA_12m.fm Page 24 Thursday, March 1, 2012 3:55

• To set up Google or Corporate (Microsoft™ Exchange

server) accounts, touch Menu > Settings >

Accounts & sync > Add account. For details, contact

the account provider.

To set up standard email accounts (not Gmail™ or Microsoft™ Exchange), touch > Email and follow the wizard. To add more standard accounts, open Email and touch Menu > Accounts > Menu > Add account. For details, contact the account provider.

• To open email, touch > Email or Gmail.

Touch a message to open it.

Tip: Touch Menu for options like Refresh or

Search.

• To create an email, touch > Email or Gmail,

then touch Menu > Compose.

Tip: Touch Menu for options, like Attach or Add

Cc/Bcc

Gmail synchronises with your Google™ account mail,

which you can open from any computer at mail.google.com. To stop synchronising with your account, touch Menu > Settings > Accounts & sync, touch your Google account, then deselect Gmail.

24 Messaging

TinBoost.GSG.ASIA.EMARA_12m.fm Page 25 Thursday, March 1, 2012 3:55

Voicemail

When you have a new voicemail, shows in the status bar at the top of your screen. To hear voicemails, touch then touch and hold 1.

If you need to change your voicemail number, on the home screen touch Menu > Settings > Call settings > Call feature settings > Voicemail settings. For your voicemail number or other details, contact your service provider.

25Messaging

Anne

TinBoost.GSG.ASIA.EMARA_12m.fm Page 26 Thursday, March 1, 2012 3:55

Text entry

keys when you need them

Quick start: Text entry

To change the keyboard, touch and hold a blank spot in a text box. A menu opens, where you can choose Input

method

> Android keyboard or Swype.

Note: Swype is not available in all regions. Your keyboard might change depending on what you're entering.

Swype lets you drag your finger over the letters of a

word, in one continuous motion.

To enter a word, just

Anne

EN @#

qwe r t yu i op

&$456+:;

asdfghj k l

!7890

xcvbnm

:-)

26 Text entry

SYM

12 3

Send

%()

To enter a word, just trace a path through

trace a path through the letters.

the letters. To capitalise, go above

To capitalise, go above the keyboard.

the key. For double letters,

For double letters, circle the letter.

circle the letter.

?123

:-)

MNBVCX

KLJHGFDSA

WE R TY U I O PQ

234

67890

!?,"':(

Touch and hold an empty spot to open a menu.

Delete

Symbols/numbers

TinBoost.GSG.ASIA.EMARA_12m.fm Page 27 Thursday, March 1, 2012 3:55

Android keyboard lets you enter letters by touching

them one at a time.

Text entry dictionary

Your phone's dictionary stores special words or names to recognise when you enter them.

To open your dictionar y, from the home screen, touch Menu > Settings > Language & keyboard > User

dictionary

• To add a word, touch Menu > Add.

• To edit or delete a word, touch and hold it.

Sen

27Text entry

Sun

Mon Tue Wed Thu Sat

Fri

June 2012

Day

Week Month

Diary

Today More

Drag or flick to scroll.

Colour indicates events.

Touch to choose the calendar view. Choose More to create an event or change settings.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 28 Thursday, March 1, 2012 3:55

Schedule

helping you stay in control

Quick start: Schedule

From the home screen, touch > Calendar.

Alarm clock

To set an alarm (like to wake up), touch > Clock, then touch the alarm.

• To turn an alarm on or off, touch next to it.

• To add an alarm, touch Add alarm, then enter alarm

• To change an alarm, touch the time.

28 Schedule

details.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 29 Thursday, March 1, 2012 3:55

• To set a snooze period, in the Alarm clock list

touch Menu >

When an alarm sounds, touch Dismiss to turn it off or

Snooze to delay it. To cancel a snoozed alarm, drag down

the status bar and touch the alarm name.

Settings > Snooze duration.

Date & time

To set the date, time, time zone and formats, touch Menu > Settings > Date & time.

29Schedule

p :

New window Windows

Exit

Bookmarks

Refresh

11:19

Drag or flick to scroll.

Enter a webpage URL.

Touch to open bookmarks, windows and more.

Connection

Mobile network: Wi-Fi:

TinBoost.GSG.ASIA.EMARA_12m.fm Page 30 Thursday, March 1, 2012 3:55

Web

surf the web with your phone

Quick start: Web

From the home screen, touch > Browser.

Note: Your phone automatically uses your mobile phone network to connect to the web. Your service provider may charge to surf the web or download data. If you can't connect, contact your ser vice provider.

30 Web

ttp://www.google.co.u

htt

//www

TinBoost.GSG.ASIA.EMARA_12m.fm Page 31 Thursday, March 1, 2012 3:55

Downloads

To download files in your browser, touch a file link or touch and hold a picture to choose Save image.

To show the files you downloaded, touch >

Downloads. Touch and hold an item to open it, see

details or remove it from the list.

You can download "Apps" on page 14.

31Web

Chicago, IL

N Clark St

Wacker Dr

E Ontario St

E Ohio St

N Rush St

N Park St

N New St

N Wabash Ave

N Dearborn St

E Grand Ave

E Randolph St

N Michigan Ave

subm

uloC

W Lake St W Lake St

E Wacker Pl

State/lake

Grand Red

Lake

Randolph

St Metra

Randolph/

Wabash

Washington-Blue

E S WaterSt

Ontario St

o r

44 West Street

Clear Map

Directions

Join Latitude

My Places

Touch to open, then touch to add to Starred Places.

Drag or flick to scroll.

Find nearby places.

Show your location.

Show layers on the map.

Touch to get directions, open your Starred Places, windows and more.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 32 Thursday, March 1, 2012 3:55

Location

where you are, where you're going

Quick start: Location

From the home screen, touch > Maps.

Google Maps™ offers powerful, user-friendly mapping technology and local business information—including business locations, contact information and driving directions.

32 Location

Photos & videos

Open your last photo or video.

Switch resolution & more.

Store photo location.

Set white balance for your

lighting.

Zoom.

Flash.

Choose front or back

camera.

Choose camera or camcorder.

Capture.

see it, capture it, share it!

Quick start: Photos & videos

From any screen, press the Camera key on the right side of the phone to open the camera.

Tip: For the clearest photos and videos, clean the lens with a soft, dry cloth.

View & share photos & videos

From the home screen, touch Gallery.

Flick left and right to show folders. Touch a folder to show its photos or videos, then touch a thumbnail image to open, share or delete it.

Tip: From the viewfinder, you can touch the thumbnail in the top right to open your last photo or video.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 33 Thursday, March 1, 2012 3:55

33Photos & videos

TinBoost.GSG.ASIA.EMARA_12m.fm Page 34 Thursday, March 1, 2012 3:55

• To zoom in, touch

the screen with two fingers and then drag them apart. To zoom out, drag your fingers together.

• To send or post the

photo or video, touch

Menu > Share.

To use a Bluetooth or cable connection, see "Bluetooth™, Wi-Fi & cable connections" on page 41.

• To delete the photo or video, touch Menu > Delete.

• To set a photo as your wallpaper or a contact photo,

touch Menu > More > Set as.

• To crop or rotate a photo, touch Menu > More.

• To play a video, touch .

Tip: Turn the phone sideways for a widescreen view.

34 Photos & videos

My music

Connected Music Player

Radio

Music videos

Community

Song identification

TinBoost.GSG.ASIA.EMARA_12m.fm Page 35 Thursday, March 1, 2012 3:55

Music

when music is what you need...

Your music community

Listen to the radio, watch videos, read music news and more.

From the home screen, touch > Music+.

My music. Listen to your tunes.

Radio. Surf the airwaves for fresh music. There's

something for everyone. You need a headset for the Radio. Check out SHOUTcast™ Radio for music from all generations and types.

35Music

TinBoost.GSG.ASIA.EMARA_12m.fm Page 36 Thursday, March 1, 2012 3:55

Music videos. Watch videos from YouTube™,

pre-recorded TV programmes and your own videos.

Community. Find songs, see what people are listening

to all around the world and see what's hot on the music charts.

Song identification. Get information about a song that

is playing. Select

Tell me what is playing and hold your

phone close to the source of the music.

Note: Recognition will not take place if the music is from a live concert or a musical performance where digital recording is not even.

Configuration data. Some features in Connected

Music Player, such as Music videos and news, Community, Song identification and Song lyrics, require data traffic. Set the data mode: Touch Menu >

Settings > Data usage.

36 Music

Music library

Artists

Albums

Songs

Playlists

Shuffle all

No lyrics found

Mary J Blige ft. U2 - One

TinBoost.GSG.ASIA.EMARA_12m.fm Page 37 Thursday, March 1, 2012 3:55

Quick start: Music

Touch, touch, play—instant music. Just open your music library, then select what you want to play.

From the home screen, touch > Music+ >

Mymusic.

Your music is stored by artists, albums, songs and playlists. Touch a category, then touch the song or playlist you want to play.

• To adjust volume, use the volume keys.

37Music

TinBoost.GSG.ASIA.EMARA_12m.fm Page 38 Thursday, March 1, 2012 3:55

• When a song is playing, you touch Menu > More

to add it to a playlist or use it as a ringtone.

To edit, delete or rename playlists, touch >

Music+ > My music touch the Playlists tab, then touch

and hold the playlist name.

• To hide the player and use other apps,

touch Home . Your music keeps playing. To return to the player, flick down the status bar and touch .

Tip: For quick music player controls, touch and hold an empty spot on your home screen, then choose

Android widgets > Music.

• To stop the player, touch .

• Before a flight, turn off network and wireless

connections so that you can keep listening to music: Press and hold Power > Flight mode.

Note: When you select flight mode, all wireless services are disabled. You can then turn Wi-Fi and/or Bluetooth back on, if permitted by your airline. Other wireless voice and data services (such as calls and text messages) remain off in flight mode. Emergency calls to your region's emergency number can still be made.

You can use your phone's 3.5 mm HSJ headset jack to connect wired headphones, or go wireless with a Bluetooth headset.

38 Music

TinBoost.GSG.ASIA.EMARA_12m.fm Page 39 Thursday, March 1, 2012 3:55

To listen to FM radio stations, plug in a 3.5 mm HSJ headset and touch >

FMRadio. Your phone uses

the headset wire as the radio aerial.

39Music

Local Connecting netw...


Video

Music

Show media server list

Touch to open.

Touch to select category (Photo, Video or Music).

TinBoost.GSG.ASIA.EMARA_12m.fm Page 40 Thursday, March 1, 2012 3:55

Media

view and share...

Quick start: Media

From the home screen, touch > MediaSee.

• Touch Menu to Select a media player or the

Upload/download manager.

• Touch and hold a thumbnail, then touch Push to,

Upload or Information to send to an online media

server or display details.

40 Media

Wi-Fi networks

Wi-Fi settings

Notify me when an open network is available

Network notification

(Your network)

Wi-Fi

Bluetooth devices

Bluetooth settings

XT320

Device name

Scan for devices

Make device discoverable

Discoverable

Bluetooth

Pair with this device

(Nearby Bluetooth device)

Set how long device will be discoverable

Discoverable timeout

Turn Bluetooth power on & scan, or turn off.

Change your phone's Bluetooth device name.

Turn Wi-Fi power on & scan, or

turn off.

Re-scan.

Connect a device found by the scan.

Connect a network found by the

scan.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 41 Thursday, March 1, 2012 3:55

Bluetooth™, Wi-Fi & cable connections

home, office or hotspot

Quick start: Connections

Note: Due to French regulatory restrictions regarding possible interference, you should not use Bluetooth in France when outdoors.

From the home screen, touch Menu > Settings >

Wireless & networks, then Bluetooth settings or Wi-Fi settings

41Bluetooth™, Wi-Fi & cabl e connections

TinBoost.GSG.ASIA.EMARA_12m.fm Page 42 Thursday, March 1, 2012 3:55

• To connect Bluetooth devices, touch Menu >

Settings > Wireless & networks > Bluetooth settings

> Scan for devices (or Bluetooth, if it is off). Touch a device that your phone found, to connect it.

• To connect Wi-Fi networks, touch Menu >

Settings > Wireless & networks > Wi-Fi settings (then

touch Wi-Fi, if it is off). Touch a network that your phone found, to connect it.

• To use a cable connection, connect your phone's

micro USB port to a standard USB port on your computer, then use a computer program to transfer files to and from your phone's memory card. Your phone supports microSD cards up to 32 GB.

On your phone, flick down the status bar and touch to enable your phone's memory card.

You can download your phone's driver files from www.motorola.com/support.

• To make your phone a hotspot that other devices can

use to connect to the Internet, touch Menu >

Settings > Wireless & networks > Tethering & mobile hotspot

. Then, choose to enable USB tethering or

Mobile hotspot.

Note: Keep it secure. To protect your phone and hotspot from unauthorised access, it is strongly recommended that you set up hotspot Security (WPA2 is the most secure), including password.

42 Bluetooth™, Wi-Fi & cable connections

TinBoost.GSG.ASIA.EMARA_12m.fm Page 43 Thursday, March 1, 2012 3:55

Wi-Fi modes

For those who like to get a bit more technical, your phone supports the following Wi-Fi modes:

802.11b, g, n.

43Bluetooth™, Wi-Fi & cabl e connections

Security

Device administration

Lock screen with a pattern, PIN or password

Set up screen lock

Show password as you type

Turn off ephemeris auto-download

Visible passwords

Credential storage

Screen unlock

Passwords

Add or remove device administrators

Select device administrators

Location & security settings

Set up SIM card lock

SIM card lock

Show password letters and numbers when you enter them (rather than ***).

Choose a number code required to turn your phone on.

Set a lock pattern, PIN or password required to wake up the screen.

help keep your phone safe

Quick start: Security

From the home screen, touch Menu > Settings >

Location & security.

Reset

To reset your phone to factory settings and erase all the data on your phone, touch Menu > Settings >

Privacy > Factory data reset > Reset phone.

Warning: All downloaded apps and user data on your phone will be deleted.

44 Security

TinBoost.GSG.ASIA.EMARA_12m.fm Page 44 Thursday, March 1, 2012 3:55

TinBoost.GSG.ASIA.EMARA_12m.fm Page 45 Thursday, March 1, 2012 3:55

Troubleshooting

we're here to help

Crash recovery

In the unlikely event that your phone stops responding to touches and key presses, try a quick reset. Press and hold Power then touch Restart, or remove the back cover and battery ("Assemble & charge" on page 6), then replace and turn your phone on as usual.

Service & Repairs

If you have questions or need assistance, we're here to help.

Go to www.motorola.com/mydefymini, where you can select from a number of customer care options. You can also contact the Motorola customer support centre at 0870 9010 555 (United Kingdom) and 1850 909 555 (Ireland).

45Troubleshooting

TinBoost.GSG.ASIA.EMARA_12m.fm Page 46 Thursday, March 1, 2012 3:55

Safety, regulatory & legal

Battery use & safety

The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded — the battery should only be replaced by a Motorola-approved service facility and any attempt to remove or replace your battery may damage the product.

Important: Handle and store batteries properly to avoid injury or damage.

battery safety issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries.

DON'Ts

• Don't disassemble, crush, puncture, shred or otherwise attempt to change the form of your battery.

• Don't use tools, sharp objects or excessive force to insert or remove the battery as this can damage the battery.

• Don't let the mobile device or battery come in contact with liquids.*

get into the mobile device's circuits, leading to corrosion.

• Don't allow the battery to touch metal objects.

stay in prolonged contact with the battery contact points, the battery could become very hot.

• Don't place your mobile device or battery near a heat source.*

can cause the battery to swell, leak or malfunction.

• Don't dry a wet or damp battery with an appliance or heat source

dryer or microwave oven.

DOs

• Do avoid leaving your mobile device in your car in high temperatures.*

• Do avoid dropping the mobile device or battery.*

on a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your mobile device or battery has been damaged in any of the ways listed here.

* Note:

Always make sure that any battery, connector and compartment covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your conditions.

46 Safety, regulatory & legal

mobile device

If metal objects, such as jewellery,

Dropping these items, especially

can resist damage from these

Most

Liquids can

High temperatures

, such as a hair

032375o

TinBoost.GSG.ASIA.EMARA_12m.fm Page 47 Thursday, March 1, 2012 3:55

Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards.

damage to the mobile device caused by non-Motorola batteries and/or chargers. To help you identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a "Motorola Original" hologram. If you see a message on your display such as

Unabletocharge

•

Remove the battery and inspect it to confirm that it has a "Motorola Original" hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and try charging it again;

•

If the message remains, contact a Motorola authorised service centre.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire, explosion,

leakage or other hazard.

Proper and safe battery disposal and recycling:

important for safety, it also benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at

Disposal:

Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling centre or national recycling organisations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

Battery charging

Notes for charging your product's battery:

•

During charging, keep your battery and charger near room temperature for efficient battery charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

•

Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging.

, take the following steps:

www.motorola.com/recycling

Motorola's warranty does not cover

Invalidbattery

Proper battery disposal is not only

Third party accessories

Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device's performance. In some circumstances, third party accessories can be dangerous and may void your mobile device's warranty. For a list of Motorola accessories, visit

www.motorola.com/products

47Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 48 Thursday, March 1, 2012 3:55

Driving precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application whilst driving may cause distraction, and may be prohibited or restricted in certain areas—always obey the laws and regulations on the use of these products.

While driving, NEVER:

•

Type, read, enter or review texts, emails, or any other written data.

•

Surf the web.

•

Input navigation information.

•

Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

•

Keep your eyes on the road.

•

Use a hands-free device if available or required by law in your area.

•

Enter destination information into a navigation device

•

Use voice-activated features (such as voice dial) and speaking features (such as audible directions), if available.

•

Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.

•

End your call or other task if you cannot concentrate on driving. Remember to follow the "Smart practices whilst driving" at www.motorola.com/callsmart

(in English only).

before

driving.

Seizures, blackouts & eyestrain

To reduce eyestrain and avoid headaches, it is always a good idea to hold the screen at a comfortable distance from your eyes, use in a well-lit area, and take frequent breaks. Some people may be susceptible to seizures or blackouts (even if they have never had one before) when exposed to fl ashing lights or light patterns, such as when playing video games, or watching videos with flashing-light effects. Discontinue use and consult a doctor if any of the following symptoms occur: seizures, blackout, convulsion, eye or muscle twitching, loss of awareness or disorientation. If you or someone in your family has experienced seizures or blackouts, please consult your doctor before using an application that produces flashing-light effects on your mobile device.

48 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 49 Thursday, March 1, 2012 3:55

Caution about high volume usage

Warning:

Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can't hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears or muffled speech, you should stop listening to the device through your headset or headphones and get your hearing checked. For more information about hearing, see our website at direct.motorola.com/hellomoto/nss/AcousticSafety.asp

(in English only).

Repetitive motion

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experienc e occasional discomfort in your hands, arms, shoul ders, neck or other parts of your body. If you continue to have discomfort during or after such use, stop use and see a doctor.

Children

Keep your mobile device and its accessories away from small children.

products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Supervise access for older children.

your mobile device, you may want to monitor their access to help prevent:

•

Exposure to inappropriate apps or content.

•

Improper use of apps or content.

•

Loss of data.

Similar to a computer, if an older child does use

These

Glass parts

Some parts of your mobile device may be made of glass. This glass could break if the product receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service centre.

49Safety, regulatory & legal

032374o

032376o

032375o

TinBoost.GSG.ASIA.EMARA_12m.fm Page 50 Thursday, March 1, 2012 3:55

Operational warnings

Obey all posted signs when using mobile devices in public areas.

Potentially explosive areas

Potentially explosive areas are often, but not always, posted and can include blasting areas, fuelling stations, fuelling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or area s where the air contains chemicals or particles, such as grain dust or metal powders. When you are in such an area, turn off your mobile device, and do not remove, install or charge batteries, unless it is a radio product type especially qualified for use in such areas and certified as "Intrinsically safe" (for example, Factory Mutual, CSA or UL approved). In such areas, sparks can occur and cause an explosion or fire.

Symbol key

Your battery, charger or mobile device may contain symbols, defined as follows:

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.

Do not dispose of your battery or mobile device with your household waste. See "Recycling" for more information.

Do not use tools.

50 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 51 Thursday, March 1, 2012 3:55

Symbol Definition

For indoor use only.

Listening at full volume to music or voice through a headset may damage your hearing.

Radio frequency (RF) energy

Exposure to RF energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate using your mobile device, the system handling your call controls the power level at which your mobile device transmits. Your mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

RF energy operational precautions

For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions:

•

When placing or receiving a phone call, hold your mobile device just like you would a

landline phone.

•

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved accessory (e.g. clip, holder, holster, case or arm band). If

you do not use a body-worn accessory supplied or approved by Motorola, ensure that

whatever product is used is free of any metal and that it positions the mobile device at

least 2.5 cm (1 inch) away from the body.

•

Using accessories not supplied or approved by Motorola may cause your mobile device to

exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved

accessories, visit our website at:

www.motorola.com

51Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 52 Thursday, March 1, 2012 3:55

RF energy interference/compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, de signed or otherwise configured for RF energy compati bility. In some circumstances, your mobile device may cause interference with other devices.

Follow instructions to avoid interference problems

Turn off your mobile device in any location where posted notices instruct you to do so, such as hospitals or healthcare facilities. In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers a flight mode or similar feature, consult airline staff about using it in-flight.

Medical devices

If you have a medical device, including an implantable medical device such as a pacemaker or defibrillator, consult your healthcare provider and the device manufacturer's directions before using this mobile device. Persons with implantable medical devices should observe the following precautions:

•

ALWAYS keep the mobile device more than 20 centimetres (8 inches) from the

implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimise the potential for

interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place.

Specific absorption rate (ICNIRP)

SAR (ICNIRP)

YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organisation (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific absorption rate, or SAR. The SAR limit for mobile devices is 2 W/kg.

52 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 53 Thursday, March 1, 2012 3:55

Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands under the ICNIRP guidelines for your device model are listed below:

Head SAR GSM 900 + WiFi + Bluetooth 1.08 W/kg

Body-worn SAR

During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimise interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are interested in further redu cing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away from the head and body. Additional information can be found at

The tests are carried out in accordance with [CENELEC EN50360] [IEC standard PT62209-1].

GSM 850 + WiFi + Bluetooth

www.motorola.com/rfhealth

. The highest SAR values

0.915 W/kg

European Union directives conformance statement

EU conformance

The following CE compliance information is applicable to Motorola mobile devices that carry one of the following CE marks:

0168

[Only indoor use allowed in France

0168

Hereby, Motorola declares that this product is in compliance with:

•

The essential requirements and other relevant provisions of directive 1999/5/EC

•

All other relevant EU directives For products that support Wi-Fi 802.11a (as defined in your product information): This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz (802.11a) Wi-Fi frequency band.

for Bluetooth and/or Wi-Fi]

53Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 54 Thursday, March 1, 2012 3:55

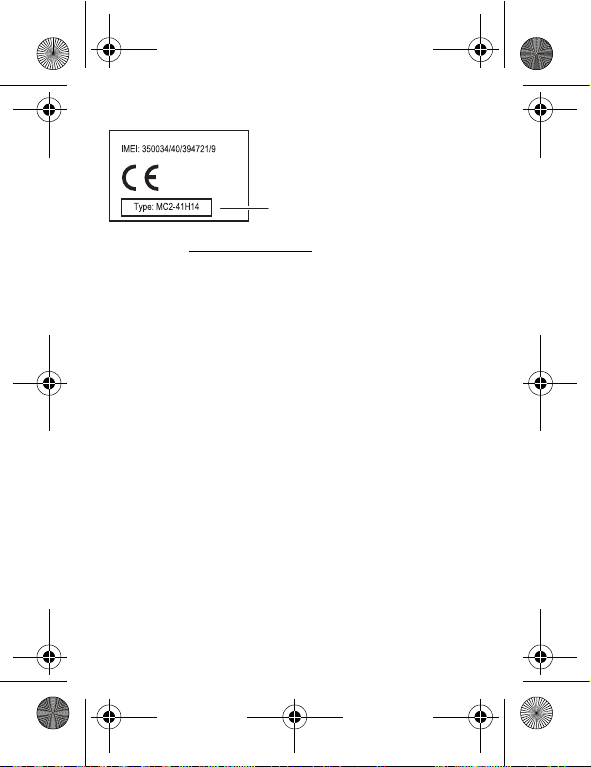

The following gives an example of a typical product approval number:

0168

You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at the Product approval number from your product's label in the "Search" bar on the website.

FCC notice to users

FCC notice

The following statement applies to all products that bear the FCC logo on the product label.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accorda nce with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outl et on a circuit different from that to which the receive r is

connected.

•

Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3). Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.

54 Safety, regulatory & legal

www.motorola.com/rtte

Product approval number

(in English only). To find your DoC, enter

TinBoost.GSG.ASIA.EMARA_12m.fm Page 55 Thursday, March 1, 2012 3:55

For products that support Wi-Fi 802.11a (as defined in your product information): This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz (802.11a) Wi-Fi frequency band.

Software notices

Software copyright notice

Warning against unlocking the bootloader or altering a product's operating system software:

Motorola strongly recomme nds that you do not alter a product's operat ing system, which includes unlocking the bootloader, rooting a device or running any operating software other than the approved versions issued by Motorola and its partners. Such alterations may permanently damage your product, cause your product to be unsafe and/or cause your product to malfunction. In such cases, neither the product nor any damage resulting therefrom will be covered by warranty.

Important FCC information:

will impact its FCC grant of eq uipment authorisation. The FCC grant is based on the product's emission, modulation and transmission characteristics, including: power levels, operating frequencies and bandwidths, SAR levels, duty-cycle, transmission modes (e.g., CDMA, GSM), and intended method of using the product (e.g., how the product is held or used in proximity to the body). A change to any of these factors will invalidate the FCC grant. It is illegal to operate a transmitting product without a valid grant.

Location services

GPS & AGPS

The following information is applicable to Motorola mobile devices that provide location-based functionality. Location sources can include GPS, AGPS and Wi-Fi. Your mobile device can use Global Positioning System (GPS) signals for location-based applications. GPS uses satellites controlled by the U.S. government that are subject to changes implemented in accordance with the Department of Defense policy and the Federal Radio Navigation Plan. These changes may affect the performance of location technology on your mobile device. Your mobile device can also use Assisted Global Positioning System (AGPS), which obtains information from the mobile network to improve GPS performance. AGPS uses your wireless service provider's network and th erefore airtime, data charges and/or additional charges may apply in accordance with your service plan. Contact your wireless service provider for details. Your mobile device can also use Wi-Fi signals to determine your approximate location, using information from known and available Wi-Fi networks.

You must not make or enable any changes to the product that

55Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 56 Thursday, March 1, 2012 3:55

Your location

Location-based information includes information that can be used to determine the approximate location of a mobile device. Mobile devices that are connected to a wireless network transmit location-based information. Devices enabled with location technology also transmit location-based information. Additionally, if you use applications that require location-based information ( e.g. driving directions), such applications t ransmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola and other third parties providing services.

Emergency calls

When you make an emergency call, the mobile network may activate the AGPS technology in your mobile device to tell the emergency responders your approximate location. AGPS has limitations and

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Navigation

The following information is applicable to Motorola mobile devices that provide navigation features. When using navigation features, note that mapping information, directions and other navigational data may contain inaccurate or incomplete data. In some countries, complete information may not be avai lable. Therefore, you should visually conf irm that the navigational instructions are consistent with what you see. All drivers should pay attention to road conditions, closures, traf fic and all other factors that may impact driving. Always obey pos ted road signs.

Privacy & data security

Motorola understands that privacy and data security are important to everyone. Given that some features of your mobile device may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

• Monitor access

may have unmonitored access. Use your device's security and lock features, where available.

• Keep software up to date

patch or software fix for your mobile device that updates the device's security, install it as soon as possible.

56 Safety, regulatory & legal

might not work in your area

—Keep your mobile device with you and do not leave it where others

—If Motorola or a software/application vendor releases a

. Therefore:

TinBoost.GSG.ASIA.EMARA_12m.fm Page 57 Thursday, March 1, 2012 3:55

• Secure personal information

various locations including your SIM card, memory card and phone memory. Make sure you remove or clear all personal information before you recycle, return or give away your device. You can also back up your personal data to transfer to a new device.

Note:

For information on how to back up or wipe data from your mobile device, go to

www.motorola.com/support

• Online accounts

MOTOBLUR). Go to your account for information on how to manage the account and how to use security features such as remote wipe and device location (where available).

• Applications and updates

trusted sources only. Some apps can impact your phone's performance and/or have access to private information including account details, call data, location details and network resources.

•Wireless

—For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi networks. Also, when using your device as a hotspot (where available) use network security. These precautions will help prevent unauthorised access to your device.

• Location-based information

technologies such as GPS, AGPS or Wi-Fi, can transmit location-based information. See "Location services" for more details.

• Other information your device may transmit

and other diagnostic (including location-based) information, and other non-personal information to Motorola or other third-party servers. This information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at your service provider.

Use & care

Your device is designed to resist damage from exposure to certain rugged conditions, as stated in your product information. However, to help care for your device, avoid prolonged or extreme exposure to those conditions and please observe the following:

protection

To help protect your mobile device, always make sure that any battery,

connector and compartment covers are closed and secure.

—Your mobile device can store personal information in

—Some mobile devices provide a Motorola online account (such as

—Choose your apps and updates carefully and install from

—Mobile devices enabled with location based

—Your device may also transmit testing

privacy@motorola.com

, or contact

57Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 58 Thursday, March 1, 2012 3:55

drying

Don't try to dry your device using a microwa ve oven, conventional oven or dryer,

as this may damage the device.

cleaning

To clean your device, use only a dry soft cloth. Do not use alcohol or other

cleaning solutions.

Recycling

Mobile devices & accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets or batteries) with your household waste or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola approved service centre in your region. Details of Motorola-approved national recycling schemes and further information on Motorola recycling activities can be found at: www.motorola.com/recycling

Packaging & product guides

Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

Software copyright

Software copyright notice

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any licence under the copyrights, patents or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free licence to use that arises by operation of law in the sale of a product.

58 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 59 Thursday, March 1, 2012 3:55

Content copyright

The unauthorised copying of copyrighted materials is contrary to the provisions of the copyright laws of the United States and other countries. This device is intended solely for copying non-copyrighted materials, materials in which you own the copyright or materials which you are authorised or legally permitted to copy. If you are uncertain about your right to copy any material, please contact your legal advisor.

Open source software information

OSS information

For instructions on how to obtain a copy of any source code being made publicly available by Motorola related to software used in this Motorola mobile device, you may send your request in writing to the address below. Please make sure that the request includes the model number and the software version number. MOTOROLA MOBILITY, INC. OSS Management 600 North US Hwy 45 Libertyville, IL 60048 USA The Motorola website information regarding Motorola's use of open source. Motorola has created the interaction with the software community-at-large. To view additional information regarding li cences, acknowledgements and required copyright notices for open source packages used in this Motorola device, please press Menu Key >

Settings

Opensourcelicences

self-contained applicat ions that present supplemental notices for open so urce packages used in those applications.

opensource.motorola.com

Aboutphone

(in English only) also contains

website to serve as a portal for

Legalinformation

. In addition, this Motorola device may include

59Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 60 Thursday, March 1, 2012 3:55

How to obtain service or other information

1. Please access and review the online Customer support section of Motorola's consumer website prior to requesting warranty service.

2. If the Product is still not functioning properly after making use of this resource, please contact the Warrantor listed at the Motorola website or the contact information for the corresponding location.

3. A representative of Motorola, or of a Motorola Authorised repair centre, will help determine whether your Product requires service. You may be required to download or otherwise obtain and accept software updates from Motorola or a Motorola authorised repair centre. You are responsible for any applicable carrier service fees incurred while obtaining the required downloads. Complying with the warranty process, repair instructions and accepting such s oftware updates is required in order to receive additional warranty support.

4. If the software update does not fix the problem, you will receive instructions on how to ship the Product to a Motorola Authorised repair centre or other entity.

5. To obt ain warranty service, as permitted by applicabl e law, you are required to include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) your address and telephone number. In the event the Product is not covered by the Motorola Limited Warranty, Motorola will inform the consumer of the availability, price and other conditions applicable to the repair of the Product.

To obtain service or other information, please access and review the online Customer Support section of Motorola's consumer website at

www.motorola.com

60 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 61 Thursday, March 1, 2012 3:55

Motorola Mobility Inc. Limited Global Warranty Mobile Phones

Warranty

FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

Who is providing the Limited Warranty?

This Limited Warranty is provided by Motorola Mobility UK Limited, Redwood, Crockford Lane, Chineham Business Park, Basingstoke, RG24 8WQ, England.

Who is Covered?

This Limited Warranty extends only to the first consumer purchaser of the Product, and is not transferable.

What Does This Limited Warranty Cover?

Motorola Mobility Inc. or its subsidiaries' warranty obligations are limited to the terms and conditions set forth herein. Subject to the exclusions contained below, Motorola Mobility Inc or its subsidiaries ("Motorola") warrant this Mobile Phone, and any in-box accessories which accompany such Mobile Phone ("Product") against defects in materials and workmanship, under normal consumer use, for a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser, or the period of time required by the laws of the country where the Product is purchased, whichever is longer ("Warranty Period"). Repairs made under this Limited Warranty are covered for the balance of the original Warranty Period, or 90 days from the date of service, whichever is longer. Any upgrade to the original product will be covered only for the duration of the original Warranty Period. This limited Warranty is only available in the country where the Product was purchased. Motorola may provide service outside the country of purchase , to the extent that it is possible and under the terms and conditions of the country of purchase. This Limited Warranty applies only to new Products which are a) manufactured by or for Motorola as identified by the "Motorola" trademark, trade name, or logo legally affixed to them; b) purchased by consumers from an authorized reseller or distributor of Motorola Products; and c) accompanied by this written Limited Warranty.

61Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 62 Thursday, March 1, 2012 3:55

What Will Motorola Do?

If a covered defect or damage arises and a valid warranty claim is received within the applicable Warranty Period, Motorola, at its sole option, unless otherwise required by applicable law, will either (1) repair, at no charge, the defect or damage using new, used or reconditioned/refurbished functionally equivalent replacement parts; or (2) exchange the Product with a replacement Product that is new or which has been recondit ioned/refurbished or otherwise remanufactured from new or used parts and is functionally equivalent to the original Product; or (3) refund the purchase price of any Products covered by the terms and conditions of this Limited Warranty. Products, parts and supporting documentation provided to Motorola as part of the warranty process, shall become the property of Motorola, and may not be returned. When a replacement or refund is given, the Product for which the replacement or refund is provided must be returned to Motorola and shall become the property of Motorola.

This Warranty Does Not Apply to:

(a)

Consumable parts

time unless failure has occurred due to a defect in materials or workmanship. As with all batteries, the maximum capacity of the battery will decrease with time and use; this is not a defect. Only defective batteries and batteries that leak are covered by this warranty. (b)

Cosmetic damage

cosmetic damage. (c)

Damage caused by use with non-Motorola products.

the use of non-Motorola branded or certified Products, accessories or other peripheral equipment, including without limitation housings, parts, or software, are excluded from coverage. (d)

Damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or

other external causes

operating the Product outside their permitted or intended uses as defined by Motorola, including but not limited to as set forth by Motorola in the Products' User Manual, Quick Start Guide, Online Tutorials, and other documentation), improper storage (e.g. subjecting the Product to extreme temperatures), abuse or neglect (e.g. broken/bent/missing clips/fasteners/connectors); impact damage (e.g. dropping the Product) (ii) contact with liquids, water, rain, extreme humidity, heavy perspiration or other moisture; sand, food, dirt or similar substances (except for Products sold as resistant to such substances, but only to the extent the damage was not caused by incorrectly securing the phone's protective elements or subjecting the Product to conditions beyond its stated specifications or limits); (iii) use of the Products for commercial rental purposes; or (iv) external causes or acts which are not the fault of Motorola, including but not limited to flood, fire, earthquake, tornado or other acts of God, are excluded from coverage.

62 Safety, regulatory & legal

, such as batteries or protective coatings designed to diminish over

, including but not limited to scratches, dents, cracks or other

Defects or damage that result from

; including but not limited to: (i) improper usage or operation (e.g.

TinBoost.GSG.ASIA.EMARA_12m.fm Page 63 Thursday, March 1, 2012 3:55

(e)

Unauthorized Service or Modification.

testing, adjustment, installation, maintenance, alteration, or modification in any way, including but not limited to tampering with or altering the software, by someone other than Motorola, or its authorized service centers, are excluded from coverage. Notwithstanding the foregoing, any Product which has had its bootloader unlocked, or whose operating system has been altered, including any failed attempts to unlock the bootloader or alter such operating system, is not covered by this warranty, regardless of whether such modifications are authorized, approved, or otherwise sanctioned by Motorola. (f)

A product or part that has been modified in any manner without the written

permission of Motorola.

Motorola from determining whether such Products are covered under the terms of this Limited Warranty are excluded from coverage. The forgoing shall include but not be limited to (i) serial numbers, date tags or other manufacturer coding that has been removed, altered or obliterated; (ii) mismatched or duplicated serial numbers; or (iii) broken seals or other evidence of tampering. Do not open the Product or attempt to repair the Product yourself; such conduct may cause damage that is not covered by this warranty (g)

Normal wear and tear or otherwise due to the normal aging of the product.

(h)

Defects, damages, or the failure of the Product due to any communication

service or network you subscribe to or use with the Products.

(i)

All software, including operating system software, third-party software,

applications, and all other software of any kind.

provided "AS-IS" and "AS AVAILABLE," "WITH ALL FAULTS" and without a warranty of any kind. The Limited Warranty does not apply to any non-Motorola product or any software, even if packaged or sold with the Motorola hardware, unless otherwise required by applicable local law. (j)

Products that have been refurbished, reconditioned, or remanufactured

Products repaired or replaced pursuant to the terms of this Limited Warranty. If damage is outside the scope of warranty coverage, repair services may be available, but all costs associated with such out of warranty repair will be your responsibility.

What Other Limitations Are There?

•

TO THE EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED. NO ORAL OR WRITTEN REPRESENTATIONS MADE BY MOTOROLA OR ANY SELLER, RESELLER OR DISTRIBUTOR OF THE PRODUCTS, INCLUDING EMPLOYEES AND AGENTS THEREOF, SHALL CREATE ANY ADDITIONAL WARRANTY OBLIGATIONS, INCREASE THE SCOPE, OR OTHERWISE MODIFY IN ANY MANNER THE TERMS OF THIS LIMITED WARRANTY.

Products that have been altered in any manner so as to prevent

Defects or damage resulting from service,

Software distributed by Motorola is

, except for

63Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 64 Thursday, March 1, 2012 3:55

•

TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT AND ALL WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. WHERE SUCH STATUTORY OR IMPLIED WARRANTIES CANNOT LAWFULLY BE DISCLAIMED, THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THE EXPRESS LIMITED WARRANTY CONTAINED HEREIN AND THE REMEDIES OF REPAIR, REPLACEMENT, OR REFUND AS DETERMINED BY MOTOROLA IN ITS SOLE DISCRETION SHALL BE THE EXCLUSIVE REMEDY OF THE CONSUMER.

•

TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA DOES NOT WARRANT THAT THE OPERATION OF ANY PRODUCTS OR SOFTWARE COVERED UNDER THIS LIMITED WARRANTY WILL MEET YOUR REQUIREMENTS, WORK IN COMBINATION WITH ANY HARDWARE OR SOFTWARE APPLICATIONS OR THIRD PARTY SERVICES, BE UNINTERRUPTED, ERROR-FREE, OR WITHOUT RISK TO, OR LOSS OF, ANY INFORMATION, DATA, SOFTWARE OR APPLICATIONS CONTAINED THEREIN, OR THAT DEFECTS IN THE PRODUCTS OR SOFTWARE WILL BE CORRECTED.

•

TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT, TORT OR UNDER OTHER LEGAL THEORY (INCLUDING NEGLIGENCE), FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCTS, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS; LOSS OF BUSINESS; BUSINESS INTERRUPTION; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, OR CORRUPTION OF INFORMATION, DATA, SOFTWARE OR APPLICATIONS (INCLUDING ANY COSTS ASSOCIATED WITH RECOVERING, PROGRAMMING, OR REPRODUCING ANY INFORMATION, DATA, SOFTWARE OR APPLICATIONS STORED ON OR USED WITH MOTOROLA PRODUCTS, OR ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF ANY INFORMATION OR DATA STORED ON THE PRODUCTS); OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS.

•

SOME STATES OR JURISDICTIONS DO NOT ALLOW THE LIMITATION OR EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR THE EXCLUSION OR LIMITATION ON THE LENGTH OF AN IMPLIED WARRANTY, OR THE LIMITATION OR EXCLUSION OF DAMAGES FOR PERSONAL INJURIES CAUSED BY NEGLIGENCE, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE OR JURISDICTION.

64 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 65 Thursday, March 1, 2012 3:55

• DATA BACKUP:

INCLUDING BUT NOT LIMITED TO PERSONAL CONTACTS, ADDRESS BOOKS, PICTURES, MUSIC AND GAMES WILL BE ERASED DURING THE REPAIR PROCESS, AND CAN NOT BE REINSTALLED BY MOTOROLA. TO AVOID LOSING SUCH INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS PLEASE CREATE A BACK UP BEFORE YOU DELIVER YOUR PRODUCT FOR WARRANTY SERVICE, REMOVE ANY CONFIDENTIAL, PROPRIETARY OR PERSONAL INFORMATION AND DISABLE ANY SECURITY PASSWORDS. YOU WILL BE RESPONSIBLE FOR REINSTALLING ALL SUCH INFORMATION, DATA, SOFTWARE, OTHER APPLICATIONS AND PASSWORDS. MOTOROLA AND/OR ITS AUTHORIZED SERVICE CENTERS ARE NOT RESPONSIBLE FOR THE LOSS OR MISUSE OF ANY DATA, FILES, CONTENT, APPLICATIONS AND PROGRAMS WHEN THE PRODUCT IS DELIVERED FOR WARRANTY SERVICE. YOUR PRODUCT OR A REPLACEMENT PRODUCT WILL BE RETURNED TO YOU AS YOUR PRODUCT WAS CONFIGURED WHEN ORIGINALLY PURCHASED, SUBJECT TO APPLICABLE SOFTWARE UPDATES. MOTOROLA MAY INSTALL OPERATING SYSTEM SOFTWARE UPDATES AS PART OF WARRANTY SERVICE THAT MAY PREVENT THE PRODUCT FROM REVERTING TO AN EARLIER VERSION OF THE OPERATING SYSTEM SOFTWARE. THIRD PARTY APPLICATIONS INSTALLED ON THE PRODUCT MAY NOT BE COMPATIBLE OR WORK WITH THE PRODUCT AS A RESULT OF THE OPERATING SYSTEM SOFTWARE UPDATE. MOTOROLA AND ITS AUTHORIZED SERVICE CENTERS ARE NOT RESPONSIBLE FOR THE LOSS OF, OR INABILITY TO USE, SUCH INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS.

•

WARNING AGAINST UNLOCKING THE BOOTLOADER OR ALTERING A PRODUCT'S OPERATING SYSTEM SOFTWARE: MOTOROLA STRONGLY RECOMMENDS AGAINST ALTERING A PRODUCT'S OPERATING SYSTEM, WHICH INCLUDES UNLOCKING THE BOOTLOADER, ROOTING A DEVICE OR RUNNING ANY OPERATING SOFTWARE OTHER THAN THE APPROVED VERSIONS ISSUED BY MOTOROLA AND ITS PARTNERS. SUCH ALTERATIONS MAY PERMANENTLY DAMAGE YOUR PRODUCT, CAUSE YOUR PRODUCT TO BE UNSAFE AND/OR CAUSE YOUR PRODUCT TO MALFUNCTION. IN SUCH CASES, NEITHER THE PRODUCT NOR ANY DAMAGE RESULTING THEREFROM WILL BE COVERED BY THIS WARRANTY.

•IMPORTANT FCC INFORMATION:

TO THE PRODUCT THAT WILL IMPACT ITS FCC GRANT OF EQUIPMENT AUTHORIZATION. THE FCC GRANT IS BASED ON THE PRODUCT'S EMISSION, MODULATION, AND TRANSMISSION CHARACTERISTICS, INCLUDING: POWER LEVELS, OPERATING FREQUENCIES AND BANDWIDTHS, SAR LEVELS, DUTY-CYCLE, TRANSMISSION MODES (E.G., CDMA, GSM), AND INTENDED METHOD OF USING THE PRODUCT (E.G., HOW THE PRODUCT IS HELD OR USED IN PROXIMITY TO THE BODY). A CHANGE TO ANY OF THESE FACTORS WILL INVALIDATE THE FCC GRANT. IT IS ILLEGAL TO OPERATE A TRANSMITTING PRODUCT WITHOUT A VALID GRANT.

ALL INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS,

YOU MUST NOT MAKE OR ENABLE ANY CHANGES

65Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 66 Thursday, March 1, 2012 3:55

www.motorola.com Certain features, services and applications are network-dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

Note:

The images in this guide are examples only. MOTOROLA and the Stylised M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google Latitude, Gmail, YouTube, Picasa, Google Books, Google Docs, Google Goggles, Google Finance, Google Places, Google Maps Navigation Beta, Google Calendar, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobility Inc. All rights reserved.

Caution:

Motorola does not take responsibility for changes/modification to the transceiver. Product ID: MOTOROLA Manual number: 68016766040

DEFY™MINI

(Model XT320)

66 Safety, regulatory & legal

TinBoost.GSG.ASIA.EMARA_12m.fm Page 67 Thursday, March 1, 2012 3:55

68016766040

Motorola DEFY MINI Getting Started Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
