Mocet IP3032-E User Manual

IP3032-E Standard IP Deskphone

Quick User Guide

Copyright © 2013, All Rights Reserved.

Ver: A D/C: 102-0812

Page 2

MOCET IP3032-E Standard IP Deskphone Quick User Guide

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to
operated the equipment under FCC rules.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN55022
class B for ITE and EN 50082-1. This meets the essential protection requirements of the European
Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.

Environment

The phone you have purchased, as well as any used batteries must not be disposed of with
household waste. You should return these to your distributor if they are to replaced or dispose of
them in an approved recycling center.

Trademarks

All company, brand and product names, like Metaswitch™, Broadsoft™, Freeswitch™ and
Asterisk™ are registered trademarks of their respective owners.

WARNING! ▼

1. Read these installation instructions carefully before connecting the IP phone to its power.

2. To reduce the risk of electric shock, do not remove the cover from the IP phone or attempt to

dismantle it. Opening or removing covers may expose you to dangerous voltage levels.
Equally, incorrect reassembly could cause electric shock on re-use of the appliance.

3. Do not expose the IP Phone to Fire, direct sunlight or excessive heat.

4. Do not expose the IP Phone to rain or moisture and do not allow it to come into contact with

water.

5. Do not install the IP phone in an environment likely to present a THREAT OF IMPACT.

6. You may clean the IP phone using a fine damp cloth. Never use solvents (such as

trichloroethylene or acetone), which may damage the phone’s plastic surface and LCD
screen. Never spray the phone with any cleaning product whatsoever.

7. Take care not to scratch the LCD screen.

8. The IP phone is designed to work in temperatures from 5

o

C to 40oC.

9. The IP phone must be installed at least 1 meter from radio frequency equipment, such as

!

!

Page 3

MOCET IP3032-E Standard IP Deskphone Quick User Guide

TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields).

10. Do not connect the LAN/PC ports to any network other than an Ethernet network.

11. Do not attempt to upgrade your IP phone in an unstable power environment. This could

cause unexpected issues.

12. Do not work on the system or connect or disconnect cables during lightning storms.

13. Children don't recognize the risks of electrical appliances. Therefore use or keep the phone

only under supervision of adults or out of the reach from children.

14. No repair can be performed by the end user, if you experience trouble with this equipment,

for repair or warranty information, please contact your supplier.

Page 4

MOCET IP3032-E Standard IP Deskphone Quick User Guide

Introduction

The MOCET IP3032-E Standard IP Deskphone is an easy-to-use high quality deskphone
with many advanced features including support for secure calling with trusted layer
security (TLS) and Secure Real-time Transfer Protocol (SRTP), a built-in IP Security
(IPSEC) virtual private network (VPN) client, and instant messaging capabilities. Utilizing
a next generation capacitive touch sensitivity panel design, the IP3032-E supports up to
four simultaneous lines and can be positioned in multiple tilt angles and has a wall mount
option, and has a built-in two port 10/100M Ethernet switch with automatic support for
power over Ethernet (PoE). The IP3032-E has 8 programable buttons and can be
configured through the simple built in menus displayed on the blue backlit LCD or from

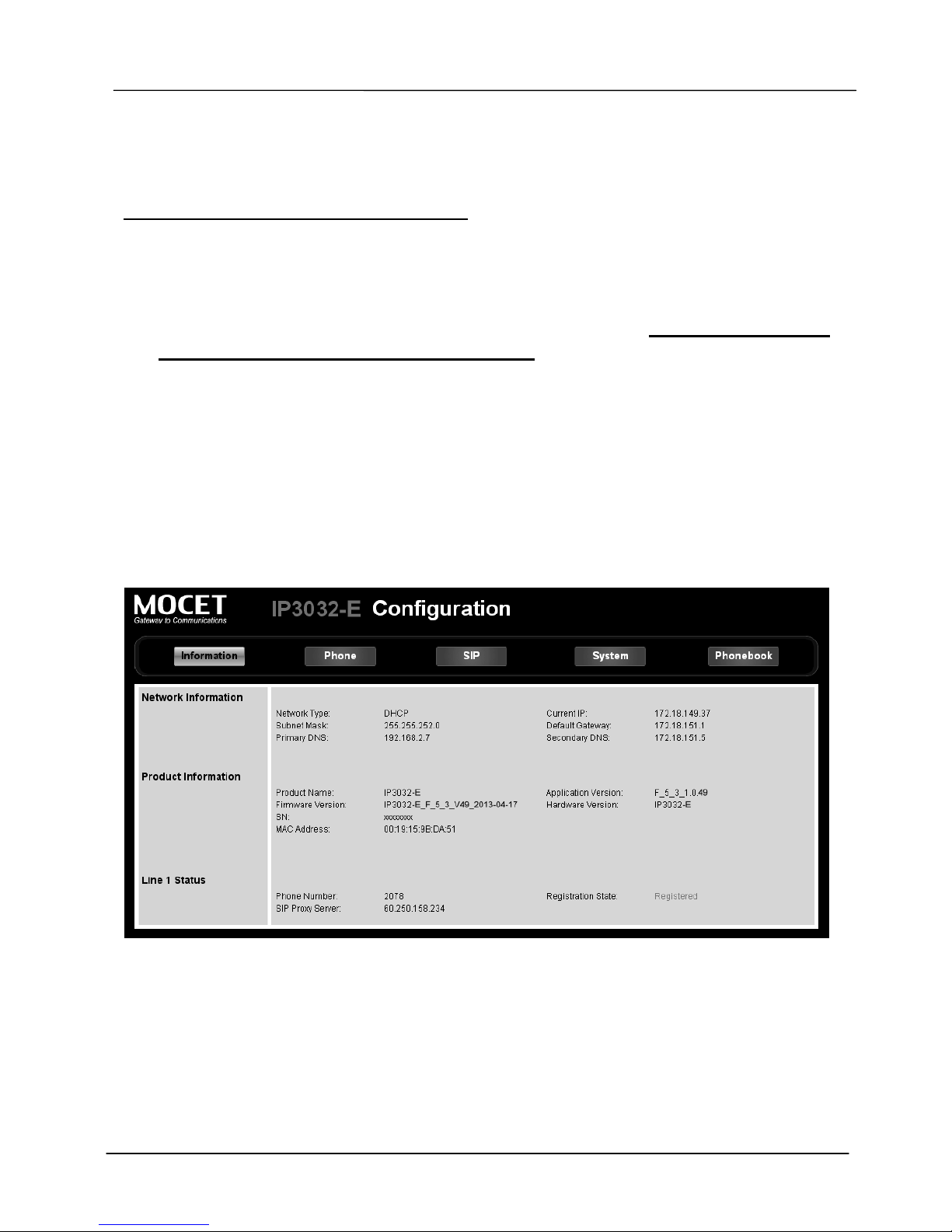

the phone’s web user interface. The IP3032-E can be automatically provisioned from a
local or Internet based server using the built-in MOCET auto-provisioning and
management protocols.

The IP3032-E IP Phone supports many advanced features including 3-way on-phone
conferencing, can transfer and receive calls using industry-standard SIP protocols, and
can provide built-in music-on-hold (MoH) over IP network. The IP3032-E is interoperable
with a wide range of SIP services and servers including those based on Metaswitch™,
Broadsoft™, Freeswitch™ and Asterisk™. Therefore, the IP3032-E can be deployed and
used anywhere there is a suitable local area network (LAN) with Internet access and a
local or remotely hosted SIP server. Since it is a stand-alone and “always-on” device, it
does not require connection to a computer for it to work.

In addition, the IP3032-E supports HD audio through the use of the G.722 wideband codec,
and has a dedicated external headset port. These functions make the IP3032-E a more
powerful and flexible IP phone to meet the demands of a busy professional user.

Page 5

MOCET IP3032-E Standard IP Deskphone Quick User Guide

Hardware Installation

Attaching the Stand to the Phone

Please read “IP3000 IP Deskphone Stand Installation Guide” first before installing the
stand on your phone.

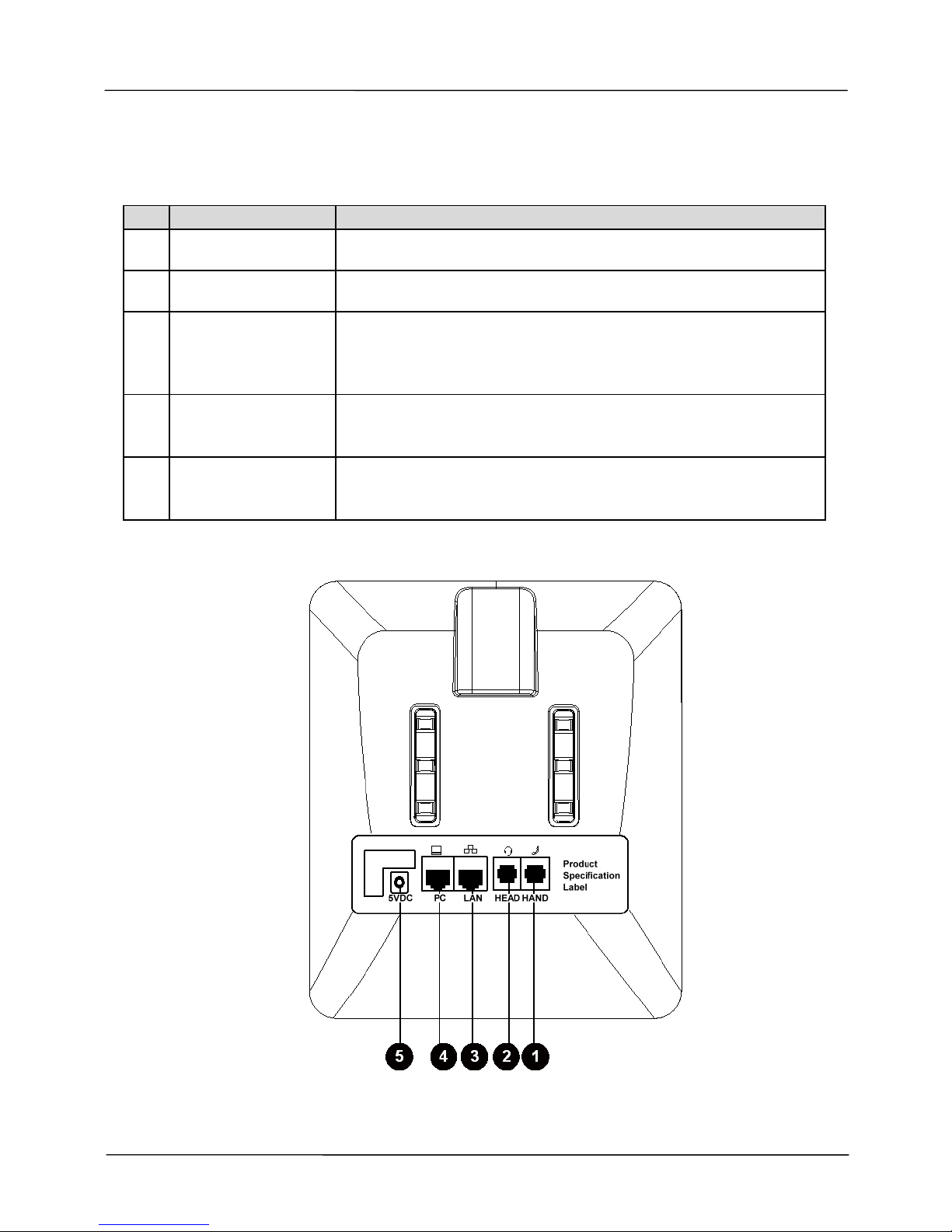

Connecting the Handset to the Phone

Connect the handset to the curly handset cord and then connect the other end of the
curly handset cord to the port marked HAND with the handset icon on the bottom of the
IP3032-E.

Connecting the Ethernet Cable

Using a general CAT-5 Ethernet cable, follow the installation steps below:

(1) If your Ethernet Switch supports PoE:

- Please connect an Ethernet cable to the Switch port from the LAN port of the
IP3032-E. Then you will see the phone LEDs and buttons light up momentarily and
the phone will boot.

Page 6

MOCET IP3032-E Standard IP Deskphone Quick User Guide

(2) If your Ethernet Switch doesn’t support PoE:

- Please connect an Ethernet cable to the Switch port from LAN port of the
IP3032-E.

- Plug in the IP3032-E power adaptor* to the wall power outlet then plug the barrel
plug to the power port on the back of the phone. You should see the phone

LEDs and buttons light up momentarily and the phone will boot.

To eliminate the requirement for multiple Ethernet cables to an user’s location, the user’s
computer can be connected to the network through the second Ethernet port on the
IP3032-E.

Notice :

1. The IP3032-E takes just under two minutes to start up and becomes operational.
There are a series of LED and buttons that will light up periodically to provide boot
progress information. Please be patient.

2. The IP3032-E does not ship with a power adapter. If you are not using Power over
Ethernet (PoE), you must order the power adapter separately from MOCET.

Do not use other power adapters. Use only the MOCET IP3032-E
Power Adapter with your IP3032-E IP Phone. Adapters for other
devices may damage IP3032-E IP Phone.

CAUTION
