CITY MULTI Control System
and Mitsubishi Mr. Slim Air Conditioners
<ORIGINAL>
English
Français
Español
MA Remote Controller PAR-33MAA
Instruction Book
Italiano
Português
Ελληνικά
Türkçe
Slovenščina
Svenska
Hrvatski
Română
Dansk
Prior to use, thoroughly read the instructions in this manual to use the product correctly.
Retain for future reference.
Make sure that this CD-ROM and the Installation Manual are passed on to any future users.
To ensure safety and proper operation of the remote controller, the remote controller should
only be installed by qualified personnel.
Product features
Feature 1
Large, easy-to-see display
Cool Set temp.
Mode
Temp.
Full-dot LCD display with large characters
for easy viewing
Feature 2
Simple button arrangement
Feature 3
Large, easy-to-press buttons
Buttons are arranged according
to usage to allow for intuitive
navigation.
Frequently used buttons are larger
than other buttons to prevent
unintended pressing of other
buttons.
Contents
Safety precautions ....................................4
Names and functions of controller components
Controller interface ...................................................6
Display ......................................................................8
Read before operating the controller
Menu structure ........................................................10
Icon explanations .................................................... 11
.........6
.........10
Basic operations .....................................12
Power ON/OFF ....................................................... 12
Operation mode, temperature, and fan speed settings
.........14
Navigating through the menu .................18
Main menu list .........................................................18
Restrictions for the sub remote controller ............... 19
Navigating through the Main menu .........................20
Controller operation-Function settings
Vane•Louver•Vent. (Lossnay) .................................22
High power ..............................................................24
Clock .......................................................................25
Timer (On/Off timer) ................................................26
Timer (Auto-Off timer) .............................................28
Weekly timer ........................................................... 30
OU silent mode ....................................................... 32
Restriction ...............................................................34
Energy saving ......................................................... 38
Night setback .......................................................... 43
Manual vane angle .................................................45
Main display ............................................................48
Contrast ..................................................................49
Language selection .................................................50
Daylight saving time ................................................52
Function setting (CITY MULTI) ...............................54
.......22
Maintenance ...........................................56
Filter information ..................................................... 56
Troubleshooting ......................................58
Error information ..................................................... 58
No occupancy Auto-OFF ........................................60
Specifications .........................................61
Controller specifications ..........................................61
Function list (as of February 1, 2017) ..................... 62
List of functions that can/cannot be used in combination
.........63
Safety precautions
• Thoroughly read the following safety precautions before using the unit.
• Observe these precautions carefully to ensure safety.
WARNING
CAUTION
• After reading this manual, pass it on to the end user to retain for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made available
to those who repair or relocate the controller. Make sure that the manual is passed on to any future
users.
Indicates a risk of death or serious injury.
Indicates a risk of serious injury or structural damage.
General precautions
WARNING
Do not install the unit in a place where large
amounts of oil, steam, organic solvents, or corrosive
gases, such as sulfuric gas, are present or where
acidic/alkaline solutions or sprays are used
frequently. These substances can compromise
the performance of the unit or cause certain
components of the unit to corrode, which can result
in electric shock, malfunctions, smoke, or fire.
To reduce the risk of shorting, current leakage,
electric shock, malfunctions, smoke, or fire, do not
wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the switches/buttons or
touch other electrical parts with wet hands.
When disinfecting the unit using alcohol, ventilate
the room adequately. The fumes of the alcohol
around the unit may cause a fire or explosion when
the unit is turned on.
To reduce the risk of injury or electric shock, before
spraying a chemical around the controller, stop the
operation and cover the controller.
To reduce the risk of injury or electric shock, stop
the operation and switch off the power supply before
cleaning, maintaining, or inspecting the controller.
If any abnormality (e.g., burning smell) is noticed,
stop the operation, turn off the power switch, and
consult your dealer. Continued use of the product
may result in electric shock, malfunctions, or fire.
Properly install all required covers to keep moisture
and dust out of the controller. Dust accumulation and
water can cause electric shock, smoke, or fire.
CAUTION
To reduce the risk of fire or explosion, do not place
flammable materials or use flammable sprays
around the controller.
To reduce the risk of damage to the controller, do not
directly spray insecticide or other flammable sprays
on the controller.
4
4
To reduce the risk of environmental pollution, consult
an authorized agency for proper disposal of remote
controller.
To reduce the risk of electric shock or malfunctions,
do not touch the touch panel, switches, or buttons
with a pointy or sharp object.
To reduce the risk of injury and electric shock, avoid
contact with sharp edges of certain parts.
To avoid injury from broken glass, do not apply
excessive force on the glass parts.
To reduce the risk of injury, wear protective gear
when working on the controller.
Precautions for moving or repairing the controller
WARNING CAUTION
The controller should be repaired or moved only by
qualified personnel. Do not disassemble or modify
the controller.
Improper installation or repair may cause injury,
electric shock, or fire.
Additional precautions
To avoid damage to the controller, use appropriate
tools to install, inspect, or repair the controller.
This controller is designed for exclusive use with the
Building Management System by Mitsubishi Electric.
The use of this controller for with other systems or
for other purposes may cause malfunctions.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
To reduce the risk of shorting, electric shock, fire,
or malfunction, do not touch the circuit board with
tools or with your hands, and do not allow dust to
accumulate on the circuit board.
To avoid discoloration, do not use benzene, thinner,
or chemical rag to clean the controller. To clean the
controller, wipe with a soft cloth soaked in water with
mild detergent, wipe off the detergent with a wet
cloth, and wipe off water with a dry cloth.
To avoid damage to the controller, provide protection
against static electricity.
This appliance is intended to be used by expert
or trained users in shops, in light industry and on
farms, or for commercial use by lay persons.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
55
Names and functions of controller components
Controller interface
5
6
1234
Function buttons
7890
6
1 ON/OFF button
Press to turn ON/OFF the indoor unit.
2 SELECT button
Press to save the setting.
3 RETURN button
Press to return to the previous screen.
4 MENU button Page 20
Press to bring up the Main menu.
5 Backlit LCD
Operation settings will appear.
When the backlight is off, pressing any
button turns the backlight on and it
will stay lit for a certain period of time
depending on the screen.
When the backlight is off, pressing any
button turns the backlight on and does
not perform its function. (except for the
ON/OFF button)
6 ON/OFF lamp
This lamp lights up in green while the unit
is in operation. It blinks while the remote
controller is starting up or when there is
an error.
The functions of the function buttons
change depending on the screen.
Refer to the button function guide that
appears at the bottom of the LCD for
the functions they serve on a given
screen.
When the system is centrally
controlled, the button function guide
that corresponds to the locked button
will not appear.
Main display Main menu
Main
Fri
Room
Set temp.
Cool Auto
Mode Temp. Fan
7890 7890
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Main display:
Cursor Page
Function guide
7 Function button F1
Main display: Press to change the operation
mode.
Main menu: Press to move the cursor down.
8 Function button F2
Main
display
: Press to decrease temperature.
Main menu: Press to move the cursor up.
9 Function button F3
Main
display
: Press to increase temperature.
Main menu: Press to go to the previous page.
0 Function button F4
Main
display
: Press to change the fan speed.
Main menu: Press to go to the next page.
7
Names and functions of controller components
Display
The main display can be displayed in two different modes: "Full" and "Basic."
The factory setting is "Full." To switch to the "Basic" mode, change the setting
on the Main display setting. (Refer to page 48.)
Full mode
* All icons are displayed for
explanation.
7
9
Basic mode
m
6
8
0
1
a
m
1
hgfedcb
Centrally controlled
Room
Cool Auto
Mode Temp. Fan
Cool
Set temp.
k
5
2
Centrally controlled
2
AutoSet temp.
Fri
Fri
3
i
l
j
4
3
4
Mode Temp. Fan
5
8
1Operation mode Page 14
Indoor unit operation mode appears here.
2Preset temperature Page 15
Preset temperature appears here.
3Clock
(See the Installation Manual.)
Current time appears here.
4Fan speed Page 16
Fan speed setting appears here.
5Button function guide
Functions of the corresponding buttons appear
here.
6
Appears when the ON/OFF operation is centrally
controlled.
7
Appears when the operation mode is centrally
controlled.
8
Appears when the preset temperature is centrally
controlled.
9
Appears when the filter reset function is centrally
controlled.
0 Page 56
Indicates when filter needs maintenance.
c Page 26, 28, 43
Appears when the On/Off timer (Page 26),
Night setback (Page 43), or Auto-off timer
(Page 28) function is enabled.
appears when the timer is disabled by the
centralized control system.
d Page 30
Appears when the Weekly timer is enabled.
e Page 41
Appears while the units are operated in the
energy-save mode. (Will not appear on some
models of indoor units)
f Page 32
Appears while the outdoor units are operated in
the silent mode.
g
Appears when the built-in thermistor on the
remote controller is activated to monitor the
room temperature (a).
appears when the thermistor on the
indoor unit is activated to monitor the room
temperature.
h Page 22
Indicates the vane setting.
i Page 23
Indicates the louver setting.
j Page 23
Indicates the ventilation setting.
aRoom temperature
(See the Installation Manual.)
Current room temperature appears here.
b Page 36
Appears when the buttons are locked.
Most settings (except ON/OFF, mode, fan
speed, temperature) can be made from
the Main menu. (Refer to page 20.)
k Page 34
Appears when the preset temperature range is
restricted.
l
Appears when an energy-saving operation is
performed using a "3D i-See sensor" function.
mCentrally controlled
Appears for a certain period of time when a
centrally-controlled item is operated.
9
Read before operating the controller
Menu structure
Main menu
Press the
MENU button.
Move the cursor
to the desired
item with
the F1 and
F2 buttons,
and press
the SELECT
button.
Vane•Louver•Vent. (Lossnay)
High power
Timer
On/Off timer
Auto-Off timer
Weekly timer
OU silent mode
Restriction
Temp. range
Operation lock
Energy saving
Auto return
Schedule
Night setback
Filter information
Error information
Maintenance
Auto descending panel
Manual vane angle
3D i-See sensor
Initial setting
Main/Sub
Clock
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Daylight saving time
Page 22
Page 24
Page 26
Page 28
Page 30
Page 32
Page 34
Page 36
Page 38
Page 41
Page 43
Page 56
Page 58
Refer to the Instructions Manual that
came with the automatic elevating panel.
Page 45
Refer to the indoor unit Instruction
Book.
Refer to the Installation Manual.
Page 25
Page 48
Page 49
Refer to the Installation Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
Page 50
Page 52
10
Service
Main
Test run
Input maintenance info.
Function setting
(Mr. Slim)
Function setting
(CITY MULTI)
Lossnay (CITY MULTI only)
Check
Self check
Maintenance password
Remote controller check
Not all functions are available on all models of indoor units.
Icon explanations
Controller operation
Timer
P
Refer to the indoor unit Installation
Manual.
Refer to the indoor unit Installation
Manual.
Refer to the Installation Manual.
Refer to page 54.
Refer to the Installation Manual.
Refer to the indoor unit Installation
Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
The table below
summarizes the square
icons used in this manual.
P
ON
The administrator or maintenance user password must be entered
on the password input screen to change settings. There is no
settings that can skip this process.
Timer
Enter administrator password
Select:
Cursor
F1 F2 F3 F4
Indicates settings that can be
changed only while the units
are in operation.
Indicates settings that can be
changed only while the units
are operated in the Cool,
Heat, or Auto mode.
F1 : Press to move the cursor left.
F2 : Press to move the cursor right.
F3 : Press to decrease the value by 1.
F4 : Press to increase the value by 1.
*Changes cannot be made unless the
correct password is entered.
Indicates settings that can be changed
OFF
only while the units are not in operation.
Indicates functions that are not available
when the buttons are locked or the
system is centrally controlled.
Indicates
settings that
can be made
only from the
main remote
controller.
11
Basic operations
Power ON/OFF
Button operation
ON
Press the ON/OFF button.
The ON/OFF lamp will light up in green, and the
operation will start.
OFF
Press the ON/OFF button again.
The ON/OFF lamp will come off, and the operation will
stop.
12
Operation status memory
Remote controller setting
Operation mode Operation mode before the power was turned off
Preset temperature Preset temperature before the power was turned off
Fan speed Fan speed before the power was turned off
Settable preset temperature range
Operation mode Preset temperature range
Cool/Dry 19 ~ 30 ºC (67 ~ 87 ºF)
Heat 17 ~ 28 ºC (63 ~ 83 ºF)
Auto (Single set point) 19 ~ 28 ºC (67 ~ 83 ºF)
Auto (Dual set points) [Cool]
Fan/Ventilation Not settable
The settable temperature range varies with the model of indoor units.
Preset temperature range for the Cool mode
[Heat]
Preset temperature range for the Heat mode
13
Basic operations
Operation mode, temperature, and fan speed settings
Button operation
Operation mode
Press the F1 button to go through the operation
modes in the order of "Cool, Dry, Fan, Auto, and
Heat." Select the desired operation mode.
Cool Dry Fan
Auto Heat
•
Operation modes that are not available to the connected
indoor unit models will not appear on the display.
Room
Cool
Mode Temp. Fan
F1 F2 F3 F4
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant system (connected to the same
outdoor unit) are already operated in a different mode. In this case, the rest of the unit in the same
group can only be operated in the same mode.
<Auto (dual set point) mode>
When the operation mode is set to the Auto (dual set point) mode, two preset
temperatures (one each for cooling and heating) can be set. Depending on the room
temperature, indoor unit will automatically operate in either the Cool or Heat mode
and keep the room temperature within the preset range.
Fri
AutoSet temp.
ON
14
The graph below shows the operation pattern of indoor unit operated in the Auto
(dual set point) mode.
Operation pattern during Auto (dual set point) mode
The room temperature
Preset temp.
(Cool)
Preset temp.
(Heat)
changes corresponding
to the change in the
outside temperature.
Room temperature
Heat Cool Heat Cool
Preset temperature
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
<Cool, Dry, Heat, and Auto (single set point)>
Room
Cool
Mode Temp. Fan
F1 F2 F3 F4
<Auto (dual set point) mode>
1
Preset
temperature
for cooling
Preset
temperature
for heating
Room
Auto
Mode Temp. Fan
AutoSet temp.
Auto
Fri
Press the F2 button to decrease the preset
temperature, and press the F3 button to
increase.
•
Refer to the table on page 13 for the settable
temperature range for different operation modes.
•
Preset temperature range cannot be set for Fan/
Ventilation operation.
•
Preset temperature will be displayed either in
Centigrade in 0.5- or 1-degree increments, or in
Fahrenheit, depending on the indoor unit model and the
display mode setting on the remote controller.
Example display
(Centigrade in 0.5-degree increments)
Fri
The current preset temperatures will appear.
Press the F2 or F3 button to display the
Settings screen.
F1 F2 F3 F4
15
Basic operations
Set Temp.
2
Preset
temperature
for cooling
Preset
temperature
for heating
Main display:
Cursor
F1 F2 F3 F4
Fan speed
Room
Cool
Mode Temp. Fan
Temp.
Press the F1 or F2 button to move the cursor
to the desired temperature setting (cooling or
heating).
Press the F3 button to decrease the selected
temperature, and F4 to increase.
•
Refer to the table on page 13 for the settable
temperature range for different operation modes.
•
The preset temperature settings for cooling and heating
in the Auto (dual set point) mode are also used by the
Cool/Dry and Heat modes.
•
The preset temperatures for cooling and heating in the
Auto (dual set point) mode must meet the conditions
below:
• Preset cooling temperature is higher than preset heating temperature.
• The minimum temperature difference requirement between cooling
and heating preset temperatures (varies with the models of indoor units
connected) is met.
* If preset temperatures are set in a way that does not meet
the minimum temperature difference requirement, both preset
temperatures will automatically be changed within the allowable setting
ranges.
Navigating through the screens
• To return to the Main display ...... RETURN button
Fri
Press the F4 button to go through the fan
speeds in the following order.
AutoSet temp.
Auto
16
F1 F2 F3 F4
•The available fan speeds depend on the models of connected
indoor units.
17
Navigating through the menu
Main menu list
Setting and display
Setting details Reference
items
Vane•Louver•Vent.
(Lossnay)
High power Use to reach the comfortable room temperature quickly.
Timer On/Off
Weekly timer Use to set the weekly operation On/Off times.
OU silent mode Use to set the time periods in which priority is given to quiet
Restriction Temp.
Energy
saving
timer
Auto-Off
timer
range
Operation
lock
Auto
return
Schedule Set the start/stop times to operate the units in the energy-save
Use to set the vane angle.
•Select a desired vane setting from fi ve different settings.
Use to turn ON/OFF the louver.
•Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
•Select a desired setting from "Off," "Low," and "High."
•
Units can be operated in the High-power mode for up to 30 minutes.
Use to set the operation On/Off times.
•Time can be set in 5-minute increments.
* Clock setting is required.
Use to set the Auto-Off time.
•Time can be set to a value from 30 to 240 in 10-minute increments.
•Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
* 1ºC increments
operation of outdoor units over temperature control. Set the Start/
Stop times for each day of the week.
•Select the desired silent level from "Normal," "Middle," and "Quiet."
* Clock setting is required.
Use to restrict the preset temperature range.
•
Different temperature ranges can be set for different operation modes.
* 1ºC increments
Use to lock selected functions.
•The locked functions cannot be operated.
Use to get the units to operate at the preset temperature after
performing energy-save operation for a specifi ed time period.
•Time can be set to a value from 30 and 120 in 10-minute increments.
* This function will not be valid when the preset temperature ranges are
restricted.
* 1ºC increments
mode for each day of the week, and set the energy-saving rate.
•Up to four energy-save operation patterns can be set for each day.
•Time can be set in 5-minute increments.
•Energy-saving rate can be set to a value from 0% and 50 to 90% in
10% increments.
* Clock setting is required.
page
22
24
26
28
30
32
34
36
38
41
18
Setting and display
Setting details Reference
items
Night setback Use to make Night setback settings.
Filter information Use to check the fi lter status.
Error information
Maintenance
Initial
setting
Service Function
Manual vane
angle
Clock Use to set the current time. 25
Main
display
Contrast Use to adjust screen contrast. 49
Language
selection
Daylight
saving
time
setting
(
CITY MULTI
•Select "Yes" to enable the setting, and "No" to disable the setting. The
temperature range and the start/stop times can be set.
* Clock setting is required.
* 1ºC increments
•The fi lter sign can be reset.
Use to check error information when an error occurs.
•Error code, error source, refrigerant address, unit model, manufacturing
number, contact information (dealer's phone number) can be displayed.
* The unit model, manufacturing number, and contact information need
to be registered in advance to be displayed.
Use to set the vane angle for each vane to a fi xed position. 45
Use to switch between "Full" and "Basic" modes for the Main
display.
•The default setting is "Full."
Use to select the desired language. 50
Sets the daylight saving time. 52
Use to make settings for indoor unit's functions. 54
)
page
43
56
58
48
Restrictions for the sub remote controller
Main
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Main display:
Cursor Page
The following settings cannot be made
from the sub remote controller. Make these
settings from the main remote controller.
"Main" is displayed in the title of the Main
menu on the main remote controller.
•Timer
(On/Off timer, Auto-Off timer)
•Weekly timer
•OU silent mode
•Energy saving
(Auto return, Schedule)
•Night setback
•Maintenance
(Manual vane angle)
19
F1 F2 F3 F4
Page
Main
Main display:
Cursor Page
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Navigating through the menu
F1 F2 F3 F4
Cursor
Main
Main display:
Cursor Page
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Navigating through the Main menu
Button operation
Accessing the Main menu
Main
Item selection
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Main display:
Cursor Page
F1 F2 F3 F4
Press the MENU button.
The Main menu will appear.
Press F1 to move the cursor down.
Press F2 to move the cursor up.
Navigating through the pages
20
Press F3 to go to the previous page.
Press F4 to go to the next page.
Saving the settings
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
Setting display:
day
F1 F2 F3 F4
Select the desired item, and press the SELECT
button.
The screen to set the selected item will appear.
Exiting the Main menu screen
Room
Cool
Mode Temp. Fan
F1 F2 F3 F4
AutoSet temp.
Fri
Press the RETURN button to exit the Main
menu and return to the Main display.
If no buttons are touched for 10 minutes, the screen will automatically return to the
Main display. Any settings that have not been saved will be lost.
Display of unsupported functions
Main menu
Not available
Unsupported function
Return:
F1 F2 F3 F4
The message at left will appear if the user
selects a function not supported by the
corresponding indoor unit model.
21
Controller operation-Function settings
Auto
Auto
Swing
Step 1 Step 2
Step 4Step 3
Swing
Step 5
Vane•Louver•Vent. (Lossnay)
Button operation
Accessing the menu
Main
Main display:
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor Page
F1 F2 F3 F4
Vane setting
Fri
Swing Off Off
LouverVent .Va ne
ON
Select "Vane•Louver•Vent. (Lossnay)" from the
Main menu (refer to page 20), and press the
SELECT button.
Press the F1 or F2 button to go through the
vane setting options: "Auto," "Step 1," "Step 2,"
"Step 3," "Step 4," "Step 5," and "Swing."
Select the desired setting.
22
F1 F2 F3 F4
(Sample screen on CITY MULTI)
Fri
Room
Cool
Mode Temp. Fan
AutoSet temp.
Select "Swing" to move the vanes up and down
automatically.
When set to "Step 1" through "Step 5", the vane
will be fixed at the selected angle.
• under the vane setting icon
This icon will appear when the vane is set to "Step 5"
and the fan operates at low speed during cooling or
dry operation (depends on the model).
The icon will go off in an hour, and the vane setting
will automatically change.
Louver setting
Off On
Fri
Press the F4 button to turn the louver swing ON
and OFF.
F1 F2 F3 F4
(Sample screen on CITY MULTI)
Ventilation setting
Low
Vent .
F1 F2 F3 F4
(Sample screen on Mr. Slim)
Off
LouverVent .Va ne
Fri
Press the F3 button to go through the
Off On
On
ventilation setting options in the order of "Off,"
"Low," and "High."
* Settable only when LOSSNAY unit is connected.
Off Low High
Off Low High
• The fan on some models of indoor units may be
interlocked with certain models of ventilation units.
Returning to the Main menu
Main
Main display:
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor Page
F1 F2 F3 F4
Press the RETURN button to go back to the
Main menu.
23
Controller operation-Function settings
High power
ON
Function description
High-power operation function allows the units to operate at higher-than-normal capacity so that the
room air can be conditioned to an optimum temperature quickly. This operation will last for up to 30
minutes, and the unit will return to the normal operation mode at the end of the 30 minutes or when
the room temperature reaches the preset temperature, whichever is earlier. The units will return to the
normal operation when the operation mode or fan speed is changed.
Button operation
Select "High power" from the Main menu during
Cooling, Heating, or Auto operation (refer to
page 20), and press the SELECT button.
"High power" function is available only on the
models that support the function.
Move the cursor to "Yes" with the F3 or F4
button, and press the SELECT button.
1
2
Main
Main display:
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor Page
F1 F2 F3 F4
High power
High power No / Yes
24
Select:
F1 F2 F3 F4
High power No / Yes
High power operation selected
Main menu:
Cursor
High power
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu ........... MENU button
• To return to the previous screen ....... RETURN button
Clock
Button operation
P
1
2
Main Main menu
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
Initial setting menu
Main/Sub
Clock
Main display
Contrast
Display details
Main menu:
Cursor Page
F1 F2 F3 F4
Select "Initial setting" from the Main menu (refer
to page 20), and press the SELECT button.
Clock setting is required before making the
following settings.
• On/Off timer • Weekly timer
• OU silent mode • Energy saving
• Night setback
If a given system has no system controllers, the
clock time will not automatically be corrected.
In this case, periodically correct the clock time.
Move the cursor to the "Clock" with the F1 or
F2 button, and press the SELECT button.
3
Clock
yyyy / mm/ dd hh: mm
2 17 / 1 / 1
Select:
Cursor
F1 F2 F3 F4
:
Move the cursor to the desired item with the F1
or F2 button out of year, month, date, hour, or
minute.
Increase or decrease the value for the selected
item with the F3 or F4 button, and press the
SELECT button.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
25
Controller operation-Function settings

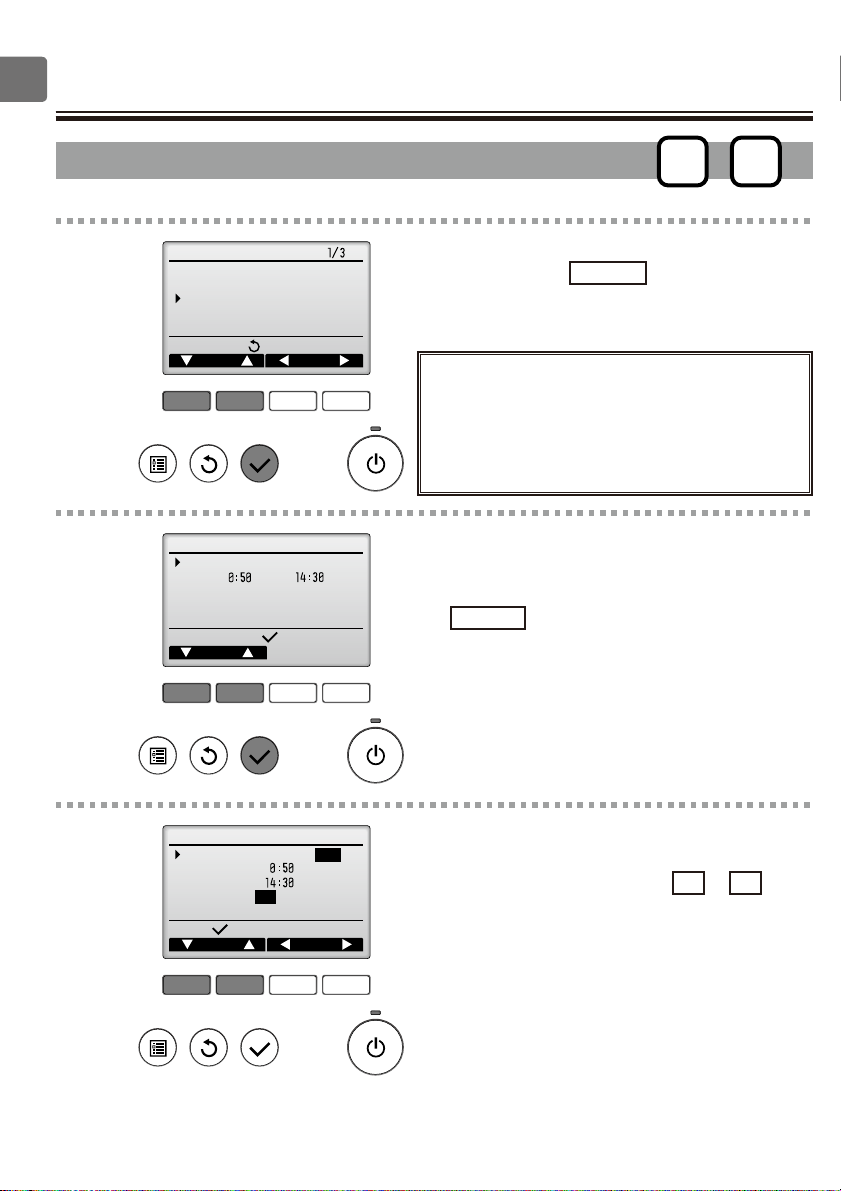

Timer (On/Off timer)
Button operation
Main
1
Main display:
2
Setting display:
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor Page
F1 F2 F3 F4
On/Off timer Yes
On Off
Repeat No
Auto-off No
Stop in
F1 F2 F3 F4
Timer
Cursor
--- min
Main
Select "Timer" from the Main menu (refer to page
20), and press the SELECT button.
The On/Off timer will not work in the following cases:
when On/Off timer is disabled, during an error, during
check (in the service menu), during test run, during
remote controller diagnosis, when the clock is not set,
during Function setting, when the system is centrally
controlled (when On/Off operation or Timer operation from
local remote controller is prohibited).
The current settings will appear.
Move the cursor to the On/Off timer, and press
the SELECT button.
P
26
3
On/Off timer No / Yes
On
Off
Repeat No / Yes
Select:
F1 F2 F3 F4
Timer
Cursor Cursor
The screen to set the timer will appear.
Select the desired item with the F1 or F2
button out of "On/Off timer," "On," "Off," or
"Repeat."
4
On/Off timer No / Yes
On
Off
Repeat No / Yes
Select:
F1 F2 F3 F4
Timer
Cursor Time
Change the setting with the F3 or F4 button.
•
On/Off timer: No (disable)/Yes (enable)
•
On: Operation start time
(settable in 5-minute increments)
* Press and hold the button to rapidly advance
the numbers.
•
Off: Operation stop time
(settable in 5-minute increments)
* Press and hold the button to rapidly advance
the numbers.
•
Repeat: No (once)/Yes (repeat)
5
On/Off timer No / Yes
On
Off
Repeat No / Yes
Select:
F1 F2 F3 F4
On/Off timer No / Yes
On
Off
Repeat No / Yes
Main menu:
Timer
Cursor Time
Timer
Changes saved
Room
Cool
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Fri
will appear on the Main display in the Full
mode when the On/Off timer is enabled.
appears when the timer is disabled by the
AutoSet temp.
centralized control system.
Mode Temp. Fan
27
Controller operation-Function settings
Timer ( Auto-Off timer)
Button operation
Timer
--- min
Cursor
Auto-Off timer
Cursor Cursor
1
2
On/Off timer Yes
On Off
Repeat No
Auto-Off No
Stop in
Setting display:
F1 F2 F3 F4
Auto-Off No Yes
Stop in min
Select:
F1 F2 F3 F4
Main
Bring up the Timer setting screen.
(Refer to page 26.)
Select "Auto-Off", and press the SELECT
button.
The Auto-Off timer will not work in the following cases:
when Auto-Off timer is disabled, during an error, during
check (in the service menu), during test run, during
remote controller diagnosis, during Function setting, when
the system is centrally controlled (when On/Off operation
or Timer operation from local controller is prohibited).
The current settings will appear.
Move the cursor to the "Auto-Off" or "Stop in --min" with the F1 or F2 button.
P
28
3
Auto-Off timer
Auto-Off No Yes
Stop in min
Select:
Cursor Time
F1 F2 F3 F4
Change the setting with the F3 or F4 button.
• Auto-Off: No (disable)/Yes (enable)
•
Stop in --- min: Timer setting (The settable
range is 30 to 240 minutes in
10-minute increments.)
4
Auto-Off timer
Auto-Off No Yes
Stop in min
Select:
Cursor Time
F1 F2 F3 F4
Auto-Off timer
Auto-Off No Yes
Stop in min
Changes saved
Main menu:
Room
Cool
Mode Temp. Fan
AutoSet temp.
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Fri
will appear on the Main display in the
Full mode when the Auto-Off timer is enabled.
appears when the timer is disabled by the
centralized control system.
29
Controller operation-Function settings
Weekly timer
Button operation
Main
1
2
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Main display:
F1 F2 F3 F4
Mon Tue Wed Thu Fri Sat Sun
Setting display:
F1 F2 F3 F4
Main menu
Cursor Page
Weekly timer
No.
day Page
Main
Select "Weekly timer" from the Main menu (refer
to page 20), and press the SELECT button.
The Weekly timer will not work in the following cases:
when the On/Off timer is enabled, when the weekly timer
is disabled, during an error, during check (in the service
menu), during test run, during remote controller diagnosis,
when the clock is not set, during Function setting, when
the system is centrally controlled (On/Off operation,
temperature setting, or Timer operation from local remote
controller is prohibited).
The current settings will appear.
Press the F1 or F2 button to see the settings
for each day of the week.
Press the F4 button to see patterns 5 through 8.
Press the SELECT button to go to the setting
screen.
P
30
3
Weekly timer
Weekly timer No / Yes
Select:
F1 F2 F3 F4
Cursor
The screen to enable (Yes) and disable (No) the
weekly timer will appear.
To enable the setting, move the cursor to "Yes"
with the F3 or F4 button, and press the
SELECT button.
4
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
Weekly timer
Mon Tue Wed Thu Fri Sat Sun
No.
Input display:
day Select Page
F1 F2 F3 F4
The weekly timer setting screen will appear and
the current settings will be displayed.
Up to eight operation patterns can be set for
each day.
Move the cursor to the desired day of the week
with the F1 or F2 button, and press the
F3 button to select it. (Multiple days can be
selected.)
Press the SELECT button.
Weekly timer
5
Select:
F1 F2 F3 F4
Day selection:
6: 3
No.
1 : 2 - 27
Cursor Content
Weekly timer
Changes saved
Auto
Thu
On
Thu
Operation pattern setting screen will appear.
Press the F1 button to move the cursor to the desired
pattern number.
Move the cursor to the time, On/Off, or temperature
with the F2 button.
Change the settings with the F3 or F4 button.
• Time: settable in 5-minute increments
* Press and hold the button to rapidly advance the numbers.
• On/Off/Auto: Selectable settings depend on the model of
connected indoor unit. (When an Auto pattern is executed,
the system will operate in the Auto (dual set point) mode.)
• Temperature: The settable temperature range
depends on the connected indoor units. (1ºC increments)
When the Auto (dual set point) mode is selected, two preset
temperatures can be set. If an operation pattern with a single
preset temperature setting is executed during the Auto
(dual set point) mode, its setting will be used as the cooling
temperature setting in the Cool mode.
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the setting change/day of the week
selection screen ............................. SELECT button
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
will appear on the Main display in the Full
mode when the weekly timer setting for the
current day exists.
The icon will not appear while the On/Off timer
is enabled or the system is under centralized
control (Timer operation from local remote
controller is prohibited).
31
Controller operation-Function settings
OU silent mode
Main
P
Function description
This function allows the user to set the time periods in which priority is given to quiet operation of
outdoor units over temperature control. Set the start and stop times each day of the week for the quiet
operation. Select the desired silent level from "Middle" and "Quiet".
Button operation
Select "OU silent mode" from the Main menu
(refer to page 20), and press the SELECT
button.
"OU silent mode" function is available only on the
models that support the function.
The current settings will appear.
Press the F1 or F2 button to see the settings
for each day of the week.
Press the SELECT button to go to the setting
screen.
1
2
Main
Main display:
Setting display:
Main menu
Van e·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor Page
F1 F2 F3 F4
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
day
32
3
F1 F2 F3 F4
OU silent mode
OU silent mode No / Yes
Select:
F1 F2 F3 F4
Cursor
The screen to enable (Yes) and disable (No) the
silent mode will appear.
To enable this setting, move the cursor to "Yes"
with the F3 or F4 button, and press the
SELECT button .
4
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
Select:
day Select
The OU silent mode setting screen will appear.
To make or change the setting, move the cursor
to the desired day of the week with the F1 or
F2 button, and press the F3 button to select it.
(Multiple days can be selected.)
5
F1 F2 F3 F4
OU silent mode
Start Stop Silent
-
Select:
Cursor Content
F1 F2 F3 F4
OU silent mode
Changes saved
Day selection:
Sat
Sat
Press the SELECT button.
The setting screen will appear.
Move the cursor to the desired item with the F1
or F2 button out of Start time, Stop time, or
Silent level.
Change the settings with the F3 or F4 button.
•
Start/Stop time:
settable in 5-minute increments
* Press and hold the button to rapidly advance
the numbers.
•
Silent level: Normal, Middle, Quiet
Normal Middle Quiet
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the setting change/day of the week
selection screen ............................. SELECT button
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
will appear on the Main display in the Full
mode during the OU silent mode.
33
Controller operation-Function settings
Restriction
Setting the temperature range restriction
Button operation
Select "Restriction" from the Main menu (refer to
page 20), and press the SELECT button.
The current settings will appear.
Move the cursor to "Temp. range" with the F1 or
F2 button, and press the SELECT button.
1
2
Main
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
Main display:
Cursor Page
F1 F2 F3 F4
Restriction
Temp. range Yes
Cool·Dry
Heat
Auto
Setting display:
Page
-
-
-
P
34
3
F1 F2 F3 F4
Temp. range
Temp. range No / Yes
Cool·Dry
Heat
Auto
Select:
Cursor
F1 F2 F3 F4
-
-
-
Cursor
The screen to set the temperature range will
appear.
Move the cursor to the desired item with the F1
button out of "Temp. range," "Cool•Dry," "Heat,"
or "Auto."
4
Temp. range
Temp. range No / Yes
Cool·Dry
Heat
Auto
Select:
Cursor Temp.
F1 F2 F3 F4
Temp. range
Temp. range No / Yes
Cool·Dry
Heat
Auto
Changes saved
Main menu:
-
-
-
-
-
-
Change the settings with the F3 or F4 button.
• Temp. range:
No (unrestricted) or
Yes (restricted)
• Cool•Dry:
• Heat:
• Auto:
Upper and lower limit temperature
(1ºC increments)
Upper and lower limit temperature
Upper and lower limit temperature
(1ºC increments)
(1ºC increments)
Temperature setting ranges
Mode Lower limit Upper limit
*1
Cool•Dry
Heat
Auto
* The settable range varies depending on the connected unit.
*1 Temperature ranges for the Cool, Dry, and Auto (dual set
point) modes can be set.
*2 Temperature ranges for the Heat and Auto (dual set point)
modes can be set.
*3 Temperature ranges for the Heat, Cool, and Dry modes
must meet the conditions below:
Upper limit for cooling - upper limit for heating ≥ Minimum
•
temperature difference (varies with indoor unit model)
Lower limit for cooling - lower limit for heating ≥ Minimum
•
temperature difference (varies with indoor unit model)
*4 Temperature range for the Auto (single set point) mode can
be set.
*3
*2
*3
*4
19 ~ 30ºC
(67 ~ 87ºF)
17 ~ 28ºC
(63 ~ 83ºF)
19 ~ 28ºC
(67 ~ 83ºF)
30 ~ 19ºC
(87 ~ 67ºF)
28 ~ 17ºC
(83 ~ 63ºF)
28 ~ 19ºC
(83 ~ 67ºF)
Press the SELECT button to save the settings.
A confirmation screen will appear.
Room
Cool
Mode Temp. Fan
AutoSet temp.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Fri
will appear on the Main display in the Full
mode when the temperature range is restricted.
35
Controller operation-Function settings
Restriction
Operation lock function
Button operation
Restriction
1
2
Operation locked No
On/Off Mode Set temp.
Van e
Setting display:
Page
F1 F2 F3 F4
Restriction
Operation locked No / Yes
On/Off
Mode
Set temp.
Van e
Select:
Cursor Cursor
Locked
Locked
Locked
Locked
P
To enable the operation lock function, set
the item "Operation locked" to " Yes".
Bring up the Restriction setting screen. (Refer to
page 34.)
Move the cursor to "Operation locked" and press
the SELECT button.
The screen to make the settings for the operation
lock function will appear.
Move the cursor to the desired item with the F1
or F2 button out of "Operation locked," "On/Off,"
"Mode," "Set temp.," or "Vane."
36
F1 F2 F3 F4
Restriction
Operation locked Yes
On/Off Mode Set temp.
Van e
Changes saved
Main menu:
Change the settings with the F3 or F4 button.
•
Operation locked: No (disable)/Yes (enable)
•
On/Off: On/Off operation
•
Mode: Operation mode setting
•
Set temp.:
•
Vane: Vane setting
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Preset temp. setting
"-" / "Locked"
Room
Cool
Mode Fan
(When Set temp. is locked)
AutoSet temp.
Fri
will appear on the Main display in the Full
mode when the operation lock function setting is
enabled.
Operation guide that corresponds to the locked
function will be suppressed.
37
Controller operation-Function settings
Energy saving
Main
Automatic return to the preset temperature
After the Auto return function is enabled, when the operation mode change or ON/OFF operation
is performed from this remote controller, the set temperature automatically returns to the required
temperature regardless of the set time.
Button operation
Select "Energy saving" from the Main menu
(refer to page 20), and press the SELECT
button.
The current settings will appear.
Move the cursor to "Auto return" with the F1 or
F2 button, and press the SELECT button.
1
2
Main
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
Main display:
Cursor Page
F1 F2 F3 F4
Energy saving
Auto return Yes
Cool: min,
Heat: min,
Schedule No
Mon Tue Wed Thu Fri Sat Sun
Setting display:
Cursor
P
38
F1 F2 F3 F4
3
Auto return
Auto return No / Yes
Cool: After min
back to
Heat: After min
back to
Select:
Cursor Cursor
F1 F2 F3 F4
The screen to make the settings for the
automatic return to the preset temperature will
appear.
Move the cursor to the desired item with the F1
or F2 button out of "Auto return," "Cool," or
"Heat."
Change the settings with the F3 or F4 button.
•
Auto return: No (disable)/Yes (enable)
•
Cool: Timer setting range is 30 to 120 minutes
in 10-minute increments.
Temperature setting range is 19 to 30ºC
4
Auto return
Auto return No / Yes
Cool: After min
back to
Heat: After min
back to
Select:
Cursor Content
(67 to 87ºF) (1ºC increments).
•
F1 F2 F3 F4
Heat: Timer setting range is 30 to 120 minutes
in 10-minute increments.
Temperature setting range is 17 to 28ºC
(63 to 83ºF) (1ºC increments).
Auto return
Auto return Yes
Cool: min,
Heat: min,
Changes saved
Main menu:
Press the SELECT button to save the settings.
"Cool" includes "Dry" and "Auto Cool" modes,
and "Heat" includes "Auto Heat" mode.
The screen to set the selected item will appear.
Navigating through the screens
• To go back to the Main menu ........... MENU button
• To return to the previous screen ...... RETURN button
Timer or Preset temperature settings will not be effective when the temperature range is
restricted and when the system is centrally controlled (when the temperature range setting
from local controller is prohibited). When the system is centrally controlled (when timer
operation from local remote controller is prohibited), only the timer setting will be ineffective.
39
<Sample screens when the Auto return function is enabled>
Example: Lower the Set temp. to 24ºC (75ºF). 60 minutes later, the Set temp. will be back to 28ºC (83ºF).
60
Fri
minutes
later
Cool AutoSet temp.
Cool AutoSet temp.
Fri
Cool AutoSet temp.
Fri
Mode Fan
Temp. Temp. Temp.
Mode Fan
The Set temp. is changed
from 28ºC (83ºF) to 24ºC
(75ºF) by a user.
Mode Fan
60 minutes later, the Set
temp. returns to 28ºC (83ºF)
automatically.
40
Controller operation-Function settings
Energy saving
Setting the energy-saving operation schedule
Button operation
Bring up the "Energy saving" screen. (Refer to
page 38.)
Move the cursor to the "Schedule," and press the
SELECT button.
The screen to see the schedule will appear.
Press the F1 or F2 button to see the settings
for each day of the week.
Press the SELECT button to go to the setting
screen.
1
2
Energy saving
Auto return Yes
Cool: min,
Heat: min,
Schedule No
Mon Tue Wed Thu Fri Sat Sun
Setting display:
Cursor
F1 F2 F3 F4
Energy saving
Mon Tue Wed Thu Fri Sat Sun
No.
Setting display:
day
-
-
-
-
Main
P
3
F1 F2 F3 F4
Energy saving
Energy saving No / Yes
Select:
F1 F2 F3 F4
Cursor
The screen to enable (Yes)/disable (No) the
energy-saving operation schedule will appear.
Select "No" or "Yes" with the F3 or F4 button.
Press the SELECT button to go to the setting
change/day of the week selection screen.
41
4
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
Energy saving
Mon Tue Wed Thu Fri Sat Sun
No.
Input:
day Select
F1 F2 F3 F4
-
-
-
-
The setting change/day of the week selection
screen will appear.
Up to four operation patterns can be set for each
day.
Move the cursor to the desired day of the week
with the F1 or F2 button, and press the
F3 button to select it. (Multiple days can be
selected.)
Press the SELECT button to go to the pattern
setting screen.
Energy saving
Mon
5
No.
Select:
Cursor Content
F1 F2 F3 F4
Energy saving
Mon
Changes saved
Day selection:
42
The pattern setting screen will appear.
-
-
-
-
Press the F1 button to move the cursor to the
desired pattern number.
Move the cursor to the desired item with the
F2 button out of the start time, stop time, and
energy-saving rate (arranged in this order from
the left).
Change the settings with the F3 or F4 button.
•
Start/Stop time:
settable in 5-minute increments
* Press and hold the button to rapidly advance
the numbers.
•
Energy-saving rate: The setting range is 0%
and 50 to 90% in 10% increments
.
Press the SELECT button to save the settings.
A confirmation screen will appear.
The lower the value, the greater the energy-saving effect.
will appear on the Main display in the Full
mode when the unit is operated in the energy
saving mode.
Navigating through the screens
• To go back to the setting change/day of the week
selection screen ............................. SELECT button
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Controller operation-Function settings
Night setback
Main
P
Function description
This control starts heating operation when the control object group is stopped and the room temperature
drops below the preset lower limit temperature. Also, this control starts cooling operation when
the control object group is stopped and the room temperature rises above the preset upper limit
temperature.
The Night setback function is not available if the operation and the temperature setting are performed
from the remote controller.
If the room temperature is measured by the air-conditioner's suction temperature sensor, the accurate
temperature may not be obtained when the air-conditioner is inactive or when the air is not clean. In
this case, switch the sensor to a remote sensor (PAC-SE40TSA/PAC-SE41TS-E) or a remote control
sensor.
Button operation
Select "Night setback" from the Main menu (refer
to page 20), and press the SELECT button.
1
Main
Main display:
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
Cursor Page
F1 F2 F3 F4
2
Night setback
Night setback Yes
Temp. range 19 - 28
Start 23:00
Stop 5:00
Setting display:
F1 F2 F3 F4
The current settings will appear.
Press the SELECT button to go to the setting
screen.
43
3
Night setback
Night setback No / Yes
Temp. range 19 - 28
Start 23:00
Stop 5:00
Select:
Cursor Content
F1 F2 F3 F4
Night setback
Night setback No / Yes
Temp. range 19 - 28
Start 23:00
Stop 5:00
Changes saved
Main menu:
Move the cursor to the desired item with the F1 or
F2 button out of Night setback No (disable)/Yes
(enable), Temp. range, Start time, or Stop time.
Change the settings with the F3 or F4 button.
•
Temp. range:
The lower limit temperature (for
heating operation) and the
upper limit temperature (for
cooling operation) can be set.
The temperature difference
between the lower and upper
limits must be 4
ºC (8ºF) or
more. The settable temperature
range varies depending on the
connected indoor units.
* 1ºC increments
•
Start/Stop time:
settable in 5-minute increments
* Press and hold the button to rapidly advance
the numbers.
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
44
Room
Cool
Mode Temp. Fan
AutoSet temp.
will appear on the Main display in the
Fri
Full mode when the Night setback function is
enabled.
appears when the timer is disabled by the
centralized control system.
The Night setback will not work in the following cases:
when the unit is in operation, when the Night setback
function is disabled, during an error, during check (in the
service menu), during test run, during remote controller
diagnosis, when the clock is not set, during Function
setting, when the system is centrally controlled (On/Off
operation, temperature setting, or Timer operation from
local remote controller is prohibited).
Controller operation-Function settings
Manual vane angle
Button operation
Main
Main menu
1
2
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
Maintenance menu
Auto descending panel
Manual vane angle
3D i-See sensor
Main menu:
Cursor
F1 F2 F3 F4
Main
Select "Maintenance" from the Main menu (refer
to page 20), and press the SELECT button.
Select "Manual vane angle" with the F1 or F2
button, and press the SELECT button.
OFF
3
Manual vane angle
Ref. address
Unit No.
Identify unit Check button
Input display:
Cur. Address Check
F1 F2 F3 F4
Move the cursor to "Ref. address" or "Unit No."
with the F1 button to select.
Select the refrigerant address and the unit
number for the units to whose vanes are to be
fixed, with the F2 or F3 button, and press the
SELECT button.
•
Ref. address: Refrigerant address
•
Unit No.: 1, 2, 3, 4
Press the F4 button to confirm the unit.
The screen at left shows a sample display on Mr. Slim. On
CITY MULTI units, "M-NET address," is displayed instead
of "Ref. address", and the "Unit No." will not be displayed.
45
4
Manual vane angle
Select:
Outlet Angle
F1 F2 F3 F4
Manual vane angle
The current vane setting will appear.
Select the desired outlets from 1 through 4 with
the F1 or F2 button.
•
Outlet: "1," "2," "3," "4," and "1, 2, 3, 4, (all outlets)"
Press the F3 or F4 button to go through the
option in the order of "No setting (reset)," "Step
1," "Step 2," "Step 3," "Step 4," "Step 5," and
"Step 6."
Select the desired setting.
* Step 6 can only be set for one outlet.
■ Vane setting
Setting
No setting
Draft
reduction
Press the SELECT button to save the settings.
A screen will appear that indicates the setting
information is being transmitted.
The setting changes will be made to the selected
outlet.
The screen will automatically return to the
previous screen when the transmission is
completed.
Make the settings for other outlets, following the
same procedures.
If all outlets are selected, will be
displayed the next time the unit goes
into operation.
Navigating through the screens
• To return to the previous screen ...... RETURN button
Step 1 Step 2
Step 4Step 3
All outlets
Step 5
46
*Draft reduction
The [Draft reduction] mode keeps the vane angle more horizontal than the angle of
Step 1 so that the airflow will not be directed toward the people.
This function can be set only for one outlet.
This function cannot be set for models with two or three outlets.
In the Draft reduction mode, the airflow may cause the ceiling discoloration.
47
Controller operation-Function settings
Main display
Button operation
Main Main menu
1
Main display:
F1 F2 F3 F4
2
Main menu:
F1 F2 F3 F4
Maintenance
Initial setting
Service
Cursor Page
Initial setting menu
Main/Sub
Clock
Main display
Contrast
Display details
Cursor Page
P
Select "Initial setting" from the Main menu (refer
to page 20), and press the SELECT button.
Move the cursor to the "Main display" with
the F1 or F2 button, and press the SELECT
button.
48
3
Main display
Full / Basic
Select:
F1 F2 F3 F4
Cursor
Select "Full" or "Basic" (refer to page 8) with
the F3 or F4 button, and press the SELECT
button.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Contrast
Button operation
P
1
2
Main Main menu
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
Initial setting menu
Main/Sub
Clock
Main display
Contrast
Display details
Main menu:
Cursor Page
F1 F2 F3 F4
Select "Initial setting" from the Main menu (refer
to page 20), and press the SELECT button.
Move the cursor to the "Contrast" with the F1 or
F2 button, and press the SELECT button.
3
Contrast
Main menu:
F1 F2 F3 F4
Adjust the contrast with the F3 or F4 button,
and press the MENU or RETURN button.
DarkLight
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
49
Controller operation-Function settings
Language selection
P
Function description
The desired language can be set. The language options are English, French, German, Spanish, Italian,
Portuguese, Swedish, and Russian.
Button operation
Select "Initial setting" from the Main menu (refer
to page 20), and press the SELECT button.
Move the cursor to the "Language selection" with
the F1 or F2 button, and press the SELECT
button.
1
2
Main Main menu
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
Initial setting menu
Auto mode
Administrator password
Language selection
Daylight saving time
Main menu:
Cursor Page
50
F1 F2 F3 F4
3
Language selection
English
Español
Português
Türkçe
Select:
Cursor
Français
Italiano
Ελληνικά
Svenska
Cursor
F1 F2 F3 F4
Language selection
English
Español
Português
Türkçe
Main menu:
Français
Italiano
Ελληνικά
Svenska
Changes saved
Move the cursor to the language you desire with
the F1 through F4 buttons, and press the
SELECT button to save the setting.
When the power is on for the first time, the Language
selection screen will be displayed. Select a desired
language. The system will not start-up without
language selection.
A screen will appear that indicates the setting
has been saved.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
51
Controller operation-Function settings
Daylight saving time
P
Function description
The start/end time for daylight saving time can be set. The daylight saving time function will be activated
based on the setting contents.
• If a given system has a system controller, disable this setting to keep the correct time.
• At the beginning and the end of daylight saving time, the timer may go into action twice or not at
all.
• This function will not work unless the clock has been set.
Button operation
Select "Initial setting" from the Main menu (refer
to page 20), and press the SELECT button.
1
Main Main menu
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
52
2
Initial setting menu
Auto mode
Administrator password
Language selection
Daylight saving time
Main menu:
Cursor Page
F1 F2 F3 F4
Move the cursor to the "Daylight saving time"
with the F1 or F2 button, and press the
SELECT button.
3
Daylight saving time
DST
Date(Start)
Start time
Forward to
Select:
Cursor
Daylight saving time
Date(End)
End time
Backward to
Select:
Cursor
No / Yes
Day
/
Week / Month
Sun
/
5th / Mar
1:00
2:00
/
Week / Month
Day
Sun / 5th / Oct
2:00
1:00
Move the cursor to the following items with the
F1 button to make the settings.
• DST
Select "No" (disable) or "Yes" (enable) with the
F2 button. The default setting is "No."
• Date(Start)
*1
Set the day of the week, week number, and
month with the F3 or F4 button. The default
setting is "Sun/5th/Mar."
• Start time
Set the start time for daylight saving time with
the F3 or F4 button.
F1 F2 F3 F4
• Forward to
Set the time when the clock is to be set forward
to at the start time above with the F3 or F4
button.
• Date(End)
*1
(2nd page)
Set the day of the week, week number, and
month with the F3 or F4 button. The default
setting is "Sun/5th/Oct."
• End time (2nd page)
Set the end time for daylight saving time with
the F3 or F4 button.
• Backward to (2nd page)
Set the time when the clock is to be set
backward to at the end time above with the F3
or F4 button.
*1 If "5th" is selected for the week number and the 5th week
does not exist in the selected month of the year, the
setting is considered to be "4th."
Press the SELECT button to save the settings.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
53
Controller operation-Function settings
Function setting (CITY MULTI)
OFF
Function description
Make the indoor units' function settings from the remote controller as necessary.
• The following settings should be made only for CITY MULTI units and as necessary.
• Refer to the Installation Manual for how to make the settings for Mr. Slim units.
• Refer to the indoor unit Installation Manual for information about the factory settings of indoor units,
function setting numbers, and setting values.
• When changing the indoor units' function settings, record all the changes made to keep track of the
settings.
Button operation
1
Main Main menu
Maintenance
Initial setting
Service
Main display:
Cursor Page
F1 F2 F3 F4
Select "Service" on the Main menu (see page
20), and press the SELECT button.
P
54
2
Service menu
Maintenance password
Remote controller check
Function setting
Main display:
Cursor
F1 F2 F3 F4
Select "Function setting" on the Service Menu
screen, and press the SELECT button.
3
F1 F2 F3 F4
Set / Conf
Sending data
Cursor
Select:
M-NET address
Function No.
Data
Function
3
32
2
3
32
2
M-NET address
Function No.
Data
Function setting
Function setting
Address
3
32
2
M-NET address
Function No.
Data
Return:
Function setting
Setting completed
4
The Function setting screen will appear.
Press the F1 or F2 button to move the cursor
to one of the following: M-NET address, function
setting number, or setting value. Then, press the
F3 or F4 button to change the settings to the
desired settings.
Once the settings have been completed, press
the SELECT button.
A screen will appear that indicates that the
settings information is being sent.
To check the current settings of a given unit, enter
the setting for its M-NET address and function setting
number, select Conf for the Function, and press the
SELECT button.
A screen will appear that indicates that the settings
are being searched for. When the search is done, the
current settings will appear.
When the settings information has been sent, a
screen will appear that indicates its completion.
To make additional settings, press the RETURN
button to return to the screen shown in Step 3
above. Set the function numbers for other indoor
units by following the same steps.
Navigating through the screens
• To return to the Service Menu screen .......... MENU button
• To return to the previous screen ...... RETURN button
55
Maintenance
Filter information
Room
Cool
Mode Temp. Fan
Button operation
Fri
AutoSet temp.
will appear on the Main display in the Full
mode when it is time to clean the filters.
Wash, clean, or replace the filters when this
sign appears.
Refer to the indoor unit Instructions Manual
for details.
1
2
Main
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
Main display:
Cursor Page
F1 F2 F3 F4
Filter information
Please clean the filter.
Press Reset button after
filter cleaning.
Main menu:
F1 F2 F3 F4
Reset
Select "Filter information" from the Main menu
(refer to page 20), and press the SELECT
button.
Press the F4 button to reset filter sign.
Refer to the indoor unit Instructions Manual for
how to clean the filter.
56
3
Filter information
Reset filter sign?
Cancel
OK
F1 F2 F3 F4
Select "OK" with the F4 button.
Filter information
Filter sign reset
Main menu:
Room
Cool
Mode Temp. Fan
If two or more indoor units are connected, filter cleaning timing for each unit may be different,
depending on the filter type.
The icon will appear when the filter on the main unit is due for cleaning.
When the filter sign is reset, the cumulative operation time of all units will be reset.
The icon is scheduled to appear after a certain duration of operation, based on the premise that
the indoor units are installed in a space with ordinary air quality. Depending on the air quality, the
filter may require more frequent cleaning.
AutoSet temp.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the previous screen ...... RETURN button
Fri
When the is displayed on the Main display
in the Full mode, the system is centrally
controlled and the filter sign cannot be reset.
The cumulative time at which filter needs cleaning depends on the model.
57
Troubleshooting
F1 F2 F3 F4
Error information
Error code
Error unit IU
Ref. address Unt#
Model name
Serial No.
ResetPage
Error information
Contact information
Dealer
Tel
ResetPage
Reset error: Reset button
Reset error: Reset button
Error information
When an error occurs, the following screen will appear.
Check the error status, stop the operation, and consult your dealer.
Button operation
Error code, error unit, refrigerant address, unit
1
model name, and serial number will appear.
The model name and serial number will appear
only if the information have been registered.
Press the F1 or F2 button to go to the next
page.
Contact information (dealer's phone number) will
appear if the information have been registered.
58
2
F1 F2 F3 F4
F1 F2 F3 F4
Error information
Error reset
Error reset
Error code
Error unit IU
Ref. address Unt#
Model name
Serial No.
ResetPage
Reset current error?
Error reset
OKCancel
Main menu:
Reset error: Reset button
Press the F4 button or the ON/OFF button to
reset the error that is occurring.
Errors cannot be reset while the ON/OFF
operation is prohibited.
blinks
Select "OK" with the F4 button.
Navigating through the screens
• To go back to the Main menu .......... MENU button
Checking the error information
Main
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
Main display:
Cursor Page
F1 F2 F3 F4
While no errors are occurring, page 2/2 of the
error information (refer to page 58) can be
viewed by selecting "Error information" from the
Main menu (refer to page 20).
Errors cannot be reset from this screen.
blinks
59
No occupancy Auto-OFF
The following screen will appear for the 3D i-See sensor panel model when the unit is
stopped due to the No occupancy Auto-OFF function of the energy saving option.
Refer to the indoor unit Instruction Book for the 3D i-See sensor setting.
Shut down by
No Occupancy Auto-off
31/Dec 12:59
Fri
60
Specifications
Controller specifications
Specifi cation
Product size 120(W) x 120(H) x 19(D) mm (4 3/4 x 4 3/4 x 3/4 [in])
Net weight 0.25 kg (9/16 lb.)
Rated power supply voltage 12 VDC (supplied from indoor units)
Power consumption 0.3 W
Usage environment Temperature 0 ~ 40ºC (32 ~ 104
Material Panel: PMMA
Sound Pressure Level The A-weighted sound pressure level is below 70 dB.
(not including the protruding part)
ºF)
Humidity 30 ~ 90%RH (with no dew condensation)
Main body: PC + ABS
61
Function list (as of February 1, 2017)
Function
Operation/
Display
Schedule/Timer On/Off timer
Energy saving Auto return
Restriction Operation lock
Others Manual vane angle
Power ON/OFF
Operation mode switch
Room temperature setting
Auto (dual set point) mode
Fan speed setting
Vane angle setting
Louver setting
Ventilation setting
High power operation
Auto descending panel
Backlight
Contrast setting
Main display mode switch
Clock setting
Clock display format setting
Language selection (8 languages)
Daylight saving time
Room temperature display
Error display
Filter information
Auto-off timer
Weekly timer
Night setback
OU silent mode
Schedule
Temperature range restriction
Password
(Administrator and Maintenance)
3D i-See sensor
Test run
Model information input
Dealer information input
Function setting
Smooth maintenance
Refrigerant volume check
Refrigerant leak check
* The supported functions vary depending on the unit model.
CITY MULTI
: Supported ×: Unsupported
○
Mr. Slim Required
password
○○
○○
○○
○○
○○
○○
○○
○○
×○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
○○
×○
○○
×○
○○
○○
○○
○○
○○
○○
○○
○○
○○
×○
×○
×○
-
-
-
-
-
-
-
-
-
-
administrator
administrator
administrator
administrator
administrator
administrator
administrator
-
administrator
administrator
administrator
administrator
administrator
administrator
administrator
administrator
administrator
administrator
maintenance
-
maintenance
maintenance
maintenance
maintenance
maintenance
maintenance
maintenance
62
List of functions that can/cannot be used in combination
High
On/Off
power
High power
timer
Auto-off
timer
Weekly
timer
OU
silent
mode
Temperature
range
1
Operation
lock
2
Auto
return
Energy
schedule
saving
1
Night
setback
On/Off timer
Auto-off timer
Weekly timer
OU silent
mode
Temperature
range
Operation lock
Auto return
Energy saving
schedule
Night setback
: Can be used in combination : Cannot be used in combination : Restricted
1: This function is enabled after completing the high power operation because the high power
operation has the higher priority.
2: This function cannot be operated if some operation is locked.
3: Night setback function cannot be used when the unit is in operation by On/Off timer setting.
4: Auto-off function cannot be used for Night setback operation.
5: Night setback function cannot be used when the unit is in operation by Weekly timer setting.
6: Temperature range setting cannot be used for Night setback operation.
7: Auto return function cannot be used for Night setback operation.
1: Weekly timer setting is not effective because On/Off timer has the higher priority.
2: Auto return function cannot be used because Temperature range setting has the higher priority.
1
1
2
1
345 6 7
1
2
2
3
4
5
6
7
63
This product is designed and intended for use in the residential,
commercial, and light-industrial environment.
The product at hand is based on the following EU regulations:
• Restriction of Hazardous Substances 2011/65/EU
• Electromagnetic Compatibility Directive 2014/30/EU
HEAD OFFICE: TOKYO BLDG. , 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
MANUFACTURER: MITSUBISHI ELECTRIC CORPORATION Air-conditioning & Refrigeration Systems Works
5-66, Tebira 6 Chome, Wakayama-city, 640-8686, Japan
WT08389X01
Loading...
