CITY MULTI Control System and Mitsubishi Mr. Slim Air Conditioners

MA Remote Controller PAR-31MAA

Instruction Book

Français

Español

Italiano

Nederlands

Português

Ελληνικά

Русский

Türkçe

Český

Slovenský

Magyar

Prior to use, thoroughly read the instructions in this manual to use the product correctly. Retain for future reference. Make sure that this CD-ROM and the Installation Manual are passed on to any future users. To ensure safety and proper operation of the remote controller, the remote controller should only be installed by qualified personnel.

Polski

Slovenščina

Svenska

Hrvatski

Български

Română

Dansk

Product features

Feature 1

Large, easy-to-see display

Cool Set temp.

Mode

Temp.

Full-dot LCD display with large characters for easy viewing

Feature 2

Simple button arrangement

Feature 3

Large, easy-to-press buttons

Buttons are arranged according to usage to allow for intuitive navigation.

Frequently used buttons are larger than other buttons to prevent unintended pressing of other buttons.

Contents

Safety precautions Names and functions of controller components

Controller interface ....................................................6

Display ....................................................................... 8

Read before operating the controller

Menu structure.........................................................10

Icon explanations..................................................... 11

Basic operations

Power ON/OFF ........................................................ 12

Operation mode, temperature, and fan speed settings

Navigating through the menu

Main menu list .........................................................18

Restrictions for the sub remote controller ................ 19

Navigating through the Main menu..........................20

Controller operation-Function settings

Vane•Louver•Vent. (Lossnay) ..................................22

High power ..............................................................24

Clock........................................................................25

Timer (On/Off timer) .................................................26

(Auto-Off timer) .............................................. 28

Weekly timer ............................................................ 30

OU silent mode ........................................................ 32

Restriction................................................................34

Energy saving .......................................................... 38

Night setback ........................................................... 42

Manual vane angle ..................................................44

Main display.............................................................46

Contrast ................................................................... 47

Language selection .................................................48

Function setting .......................................................50

.................................... 4

......... 6

......... 10

.......................................... 12

..........14

...................... 18

.......22

Maintenance

Filter information ...................................................... 52

Troubleshooting

Error information ...................................................... 54

Specifications

.................................................52

............................................ 54

................................................56

Safety precautions

• Thoroughly read the following safety precautions before using the unit.

• Observe these precautions carefully to ensure safety.

WARNING

CAUTION

• After reading this manual, pass it on to the end user to retain for future reference.

• Keep this manual for future reference and refer to it as necessary. This manual should be made available to those who repair or relocate the controller. Make sure that the manual is passed on to any future users.

Indicates a risk of death or serious injury.

Indicates a risk of serious injury or structural damage.

General precautions

WARNING

Do not install the unit in a place where large amounts of oil, steam, organic solvents, or corrosive gases, such as sulfuric gas, are present or where acidic/alkaline solutions or sprays are used frequently. These substances can compromise the performance of the unit or cause certain components of the unit to corrode, which can result in electric shock, malfunctions, smoke, or fire.

To reduce the risk of shorting, current leakage, electric shock, malfunctions, smoke, or fire, do not wash the controller with water or any other liquid.

To reduce the risk of electric shock, malfunctions, smoke or fire, do not operate the switches/buttons or touch other electrical parts with wet hands.

When disinfecting the unit using alcohol, ventilate the room adequately. The fumes of the alcohol around the unit may cause a fire or explosion when the unit is turned on.

To reduce the risk of injury or electric shock, before spraying a chemical around the controller, stop the operation and cover the controller.

To reduce the risk of injury or electric shock, stop the operation and switch off the power supply before cleaning, maintaining, or inspecting the controller.

If any abnormality (e.g., burning smell) is noticed, stop the operation, turn off the power switch, and consult your dealer. Continued use of the product may result in electric shock, malfunctions, or fire.

Properly install all required covers to keep moisture and dust out of the controller. Dust accumulation and water can cause electric shock, smoke, or fire.

CAUTION

To reduce the risk of fire or explosion, do not place flammable materials or use flammable sprays around the controller.

To reduce the risk of damage to the controller, do not directly spray insecticide or other flammable sprays on the controller.

To reduce the risk of environmental pollution, consult an authorized agency for proper disposal of remote controller.

To reduce the risk of electric shock or malfunctions, do not touch the touch panel, switches, or buttons with a pointy or sharp object.

To reduce the risk of injury and electric shock, avoid contact with sharp edges of certain parts.

To avoid injury from broken glass, do not apply excessive force on the glass parts.

To reduce the risk of injury, wear protective gear when working on the controller.

Precautions for moving or repairing the controller

WARNING CAUTION

The controller should be repaired or moved only by qualified personnel. Do not disassemble or modify the controller. Improper installation or repair may cause injury, electric shock, or fire.

Additional precautions

To avoid damage to the controller, use appropriate tools to install, inspect, or repair the controller.

This controller is designed for exclusive use with the Building Management System by Mitsubishi Electric. The use of this controller for with other systems or for other purposes may cause malfunctions.

To reduce the risk of shorting, electric shock, fire, or malfunction, do not touch the circuit board with tools or with your hands, and do not allow dust to accumulate on the circuit board.

To avoid discoloration, do not use benzene, thinner, or chemical rag to clean the controller. To clean the controller, wipe with a soft cloth soaked in water with mild detergent, wipe off the detergent with a wet cloth, and wipe off water with a dry cloth.

To avoid damage to the controller, provide protection against static electricity.

Names and functions of controller components

Controller interface

1234

Function buttons

7890

1 ON/OFF button

Press to turn ON/OFF the indoor unit.

2 SELECT button

Press to save the setting.

3 RETURN button

Press to return to the previous screen.

4 MENU button Page 20

Press to bring up the Main menu.

5 Backlit LCD

Operation settings will appear. When the backlight is off, pressing any button turns the backlight on and it will stay lit for a certain period of time depending on the screen.

When the backlight is off, pressing any button turns the backlight on and does not perform its function. (except for the ON/OFF button)

6 ON/OFF lamp

This lamp lights up in green while the unit is in operation. It blinks while the remote controller is starting up or when there is an error.

The functions of the function buttons change depending on the screen. Refer to the button function guide that appears at the bottom of the LCD for the functions they serve on a given screen. When the system is centrally controlled, the button function guide that corresponds to the locked button will not appear.

Main display Main menu

Main

Fri

Room

Set temp.

Cool Auto

Mode Temp. Fan

7890 7890

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Main display:

Cursor Page

Function guide

7 Function button F1

Main display: Press to change the operation mode. Main menu: Press to move the cursor down.

8 Function button F2

Main

display

: Press to decrease temperature.

Main menu: Press to move the cursor up.

9 Function button F3

Main

display

: Press to increase temperature.

Main menu: Press to go to the previous page.

0 Function button F4

Main

display

: Press to change the fan speed.

Main menu: Press to go to the next page.

Names and functions of controller components

Display

The main display can be displayed in two different modes: "Full" and "Basic." The factory setting is "Full." To switch to the "Basic" mode, change the setting on the Main display setting. (Refer to page 46.)

Full mode

* All icons are displayed for

explanation.

7 9

Basic mode

6 8

hgfedcb

Room

Cool Auto

Mode Temp. Fan

Cool

Set temp.

AutoSet temp.

Fri

3 i

Mode Temp. Fan

1Operation mode Page 14

Indoor unit operation mode appears here.

2Preset temperature Page 15

Preset temperature appears here.

3Clock (See the Installation Manual.)

Current time appears here.

4Fan speed Page 16

Fan speed setting appears here.

5Button function guide

Functions of the corresponding buttons appear here.

Appears when the ON/OFF operation is centrally controlled.

Appears when the operation mode is centrally controlled.

c Page 26, 28, 42

Appears when the On/Off timer (Page 26), Night setback (Page 42), or Auto-off timer (Page 28) function is enabled.

appears when the timer is disabled by the centralized control system.

d Page 30

Appears when the Weekly timer is enabled.

e Page 40

Appears while the units are operated in the energy-save mode. (Will not appear on some models of indoor units)

f Page 32

Appears while the outdoor units are operated in the silent mode.

Appears when the built-in thermistor on the remote controller is activated to monitor the room temperature (a).

Appears when the preset temperature is centrally controlled.

Appears when the filter reset function is centrally controlled.

0 Page 52

Indicates when filter needs maintenance.

aRoom temperature (See the Installation Manual.)

Current room temperature appears here.

b Page 36

Appears when the buttons are locked.

Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu screen. (Refer to page 20.)

appears when the thermistor on the

indoor unit is activated to monitor the room temperature.

h Page 22

Indicates the vane setting.

i Page 23

Indicates the louver setting.

j Page 23

Indicates the ventilation setting.

k Page 34

Appears when the preset temperature range is restricted.

Read before operating the controller

Menu structure

Main menu

Press the MENU button.

Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.

Vane•Louver•Vent. (Lossnay)

High power

Timer

On/Off timer Auto-Off timer

Weekly timer

OU silent mode

Restriction

Temp. range Operation lock

Energy saving

Auto return Schedule

Night setback Filter information Error information

Maintenance

Auto descending panel

Manual vane angle

Initial setting

Main/Sub Clock Main display Contrast

Display details Auto mode

Administrator password Language selection

Page 22 Page 24

Page 26 Page 28 Page 30 Page 32

Page 34 Page 36

Page 38 Page 40 Page 42 Page 52 Page 54

Refer to the Instructions Manual that came with the automatic elevating panel.

Page 44

Refer to the Installation Manual.

Page 25 Page 46 Page 47

Refer to the Installation Manual.

Page 48

Service

Main

Test run

Input maintenance info.

Function setting (Mr. Slim)

Function setting (City Multi)

Lossnay (City Multi only) Check

Self check Maintenance password Remote controller check

Not all functions are available on all models of indoor units.

Icon explanations

Controller operation

Timer

Refer to the indoor unit Installation Manual.

Refer to the Installation Manual.

Refer to page 50.

Refer to the Installation Manual.

Refer to the indoor unit Installation Manual. Refer to the Installation Manual.

Refer to the Installation Manual.

The table below summarizes the square icons used in this manual.

The administrator or maintenance user password must be entered on the password input screen to change settings. There is no settings that can skip this process.

Timer

Enter administrator password

Select:

Cursor

F1 F2 F3 F4

Indicates settings that can be changed only while the units are in operation.

Indicates settings that can be changed only while the units are operated in the Cool, Heat, or Auto mode.

F1 : Press to move the cursor left. F2 : Press to move the cursor right. F3 : Press to decrease the value by 1. F4 : Press to increase the value by 1.

*Changes cannot be made unless the

correct password is entered.

Indicates settings that can be changed

OFF

only while the units are not in operation.

Indicates functions that are not available when the buttons are locked or the system is centrally controlled.

Indicates settings that can be made only from the main remote controller.

Basic operations

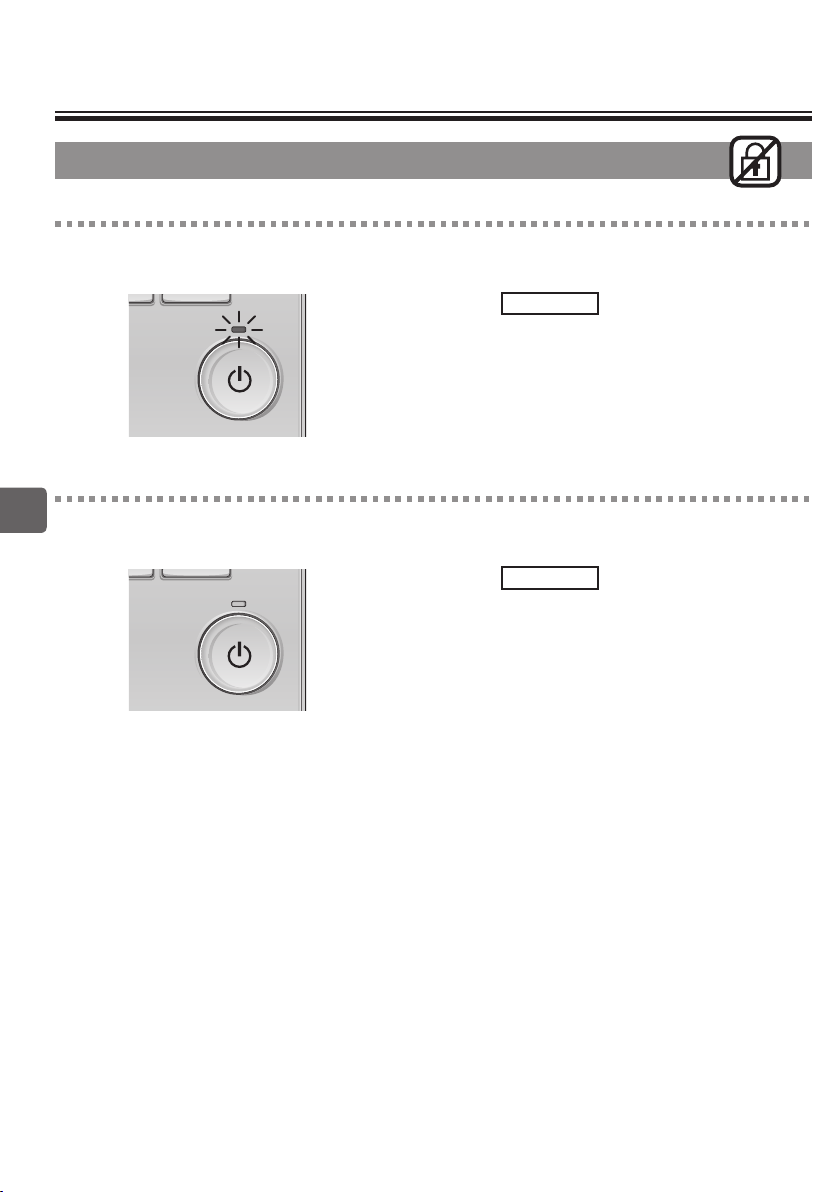

Power ON/OFF

Button operation

Press the ON/OFF button. The ON/OFF lamp will light up in green, and the operation will start.

OFF

Press the ON/OFF button again. The ON/OFF lamp will come off, and the operation will stop.

Operation status memory

Remote controller setting Operation mode Operation mode before the power was turned off Preset temperature Preset temperature before the power was turned off Fan speed Fan speed before the power was turned off

Settable preset temperature range

Operation mode Preset temperature range Cool/Dry 19 ~ 30 ºC (67 ~ 87 ºF) Heat 17 ~ 28 ºC (63 ~ 83 ºF) Auto (Single set point) 19 ~ 28 ºC (67 ~ 83 ºF) Auto (Dual set points) [Cool]

Fan/Ventilation Not settable

The settable temperature range varies with the model of indoor units.

Preset temperature range for the Cool mode

[Heat]

Preset temperature range for the Heat mode

Basic operations

Operation mode, temperature, and fan speed settings

Button operation

Operation mode

Press the F1 button to go through the operation modes in the order of "Cool, Dry, Fan, Auto, and Heat." Select the desired operation mode.

Cool Dry Fan

Auto Heat

•

Operation modes that are not available to the connected indoor unit models will not appear on the display.

Room

Cool

Mode Temp. Fan

F1 F2 F3 F4

What the blinking mode icon means

The mode icon will blink when other indoor units in the same refrigerant system (connected to the same outdoor unit) are already operated in a different mode. In this case, the rest of the unit in the same group can only be operated in the same mode.

When the operation mode is set to the Auto (dual set point) mode, two preset temperatures (one each for cooling and heating) can be set. Depending on the room temperature, indoor unit will automatically operate in either the Cool or Heat mode and keep the room temperature within the preset range.

Fri

AutoSet temp.

The graph below shows the operation pattern of indoor unit operated in the Auto (dual set point) mode.

Operation pattern during Auto (dual set point) mode

The room temperature

Preset temp. (COOL)

Preset temp. (HEAT)

changes corresponding to the change in the outside temperature.

Room temperature

HEAT COOL HEAT COOL

Preset temperature

Cool

Room

28.5

AutoSet temp.

Mode Temp. Fan

Fri

28.5

<Cool, Dry, Heat, and Auto (single set point)>

Room

Cool

Mode Temp. Fan

F1 F2 F3 F4

Preset temperature for cooling

Preset temperature for heating

Room

Auto

28 2

Mode Temp. Fan

AutoSet temp.

Auto

Fri

Press the F2 button to decrease the preset temperature, and press the F3 button to increase.

•

Refer to the table on page 13 for the settable temperature range for different operation modes.

•

Preset temperature range cannot be set for Fan/ Ventilation operation.

•

Preset temperature will be displayed either in Centigrade in 0.5- or 1-degree increments, or in Fahrenheit, depending on the indoor unit model and the display mode setting on the remote controller.

Example display

(Centigrade in 0.5-degree increments)

Fri

The current preset temperatures will appear. Press the F2 or F3 button to display the Settings screen.

F1 F2 F3 F4

Basic operations

Set Temp.

Preset temperature for cooling

Preset temperature for heating

Main display:

F1 F2 F3 F4

Cursor

Fan speed

Room

Cool

Mode Temp. Fan

Temp.

Press the F1 or F2 button to move the cursor to the desired temperature setting (cooling or heating). Press the F3 button to decrease the selected temperature, and F4 to increase.

•

Refer to the table on page 13 for the settable temperature range for different operation modes.

•

The preset temperature settings for cooling and heating in the Auto (dual set point) mode are also used by the Cool/Dry and Heat modes.

•

The preset temperatures for cooling and heating in the Auto (dual set point) mode must meet the conditions below:

• Preset cooling temperature is higher than preset heating temperature.

• The minimum temperature difference requirement between cooling and heating preset temperatures (varies with the models of indoor units connected) is met.

* If preset temperatures are set in a way that does not meet

the minimum temperature difference requirement, both preset temperatures will automatically be changed within the allowable setting ranges.

Navigating through the screens

• To return to the Main screen ...... RETURN button

Fri

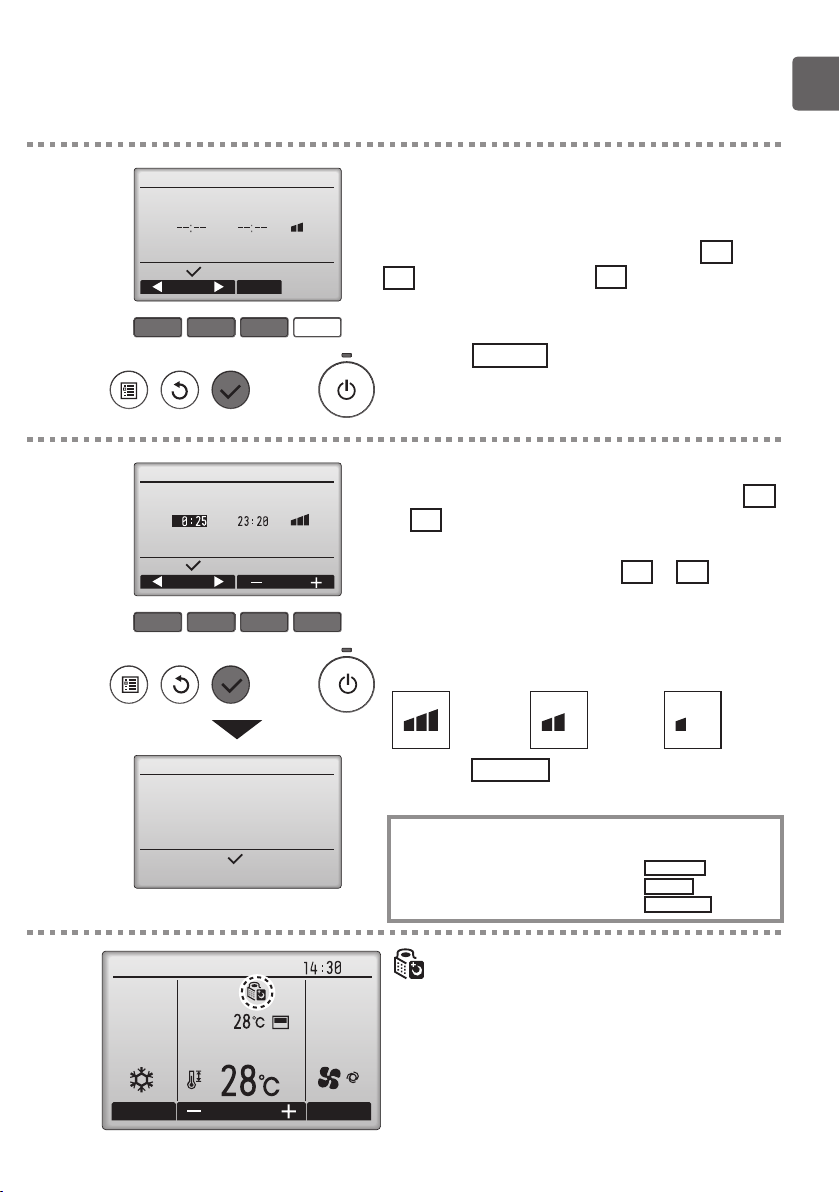

Press the F4 button to go through the fan speeds in the following order.

AutoSet temp.

Auto

F1 F2 F3 F4

•The available fan speeds depend on the models of connected indoor units.

Navigating through the menu

Main menu list

Setting and display

items

Vane•Louver•Vent. (Lossnay)

High power Use to reach the comfortable room temperature quickly.

Timer On/Off

timer

Auto-Off timer

Weekly timer Use to set the weekly operation On/Off times.

OU silent mode Use to set the time periods in which priority is given to quiet

Restriction Temp.

range

Operation lock

Energy saving

Auto return

Schedule Set the start/stop times to operate the units in the energy-save

Use to set the vane angle.

•Select a desired vane setting from ﬁ ve different settings.

Use to turn ON/OFF the louver.

•Select a desired setting from "ON" and "OFF."

Use to set the amount of ventilation.

•Select a desired setting from "Off," "Low," and "High."

•Units can be operated in the High-power mode for up to 30 minutes.

Use to set the operation On/Off times.

•Time can be set in 5-minute increments.

* Clock setting is required.

Use to set the Auto-Off time.

•Time can be set to a value from 30 to 240 in 10-minute increments.

•Up to eight operation patterns can be set for each day.

* Clock setting is required. * Not valid when the On/Off timer is enabled.

operation of outdoor units over temperature control. Set the Start/Stop times for each day of the week.

•Select the desired silent level from "Normal," "Middle," and "Quiet."

* Clock setting is required.

Use to restrict the preset temperature range.

•Different temperature ranges can be set for different operation modes.

Use to lock selected functions.

•The locked functions cannot be operated.

Use to get the units to operate at the preset temperature after performing energy-save operation for a speciﬁ ed time period.

•Time can be set to a value from 30 and 120 in 10-minute increments.

* This function will not be valid when the preset temperature ranges

are restricted.

mode for each day of the week, and set the energy-saving rate.

•Up to four energy-save operation patterns can be set for each day.

•Time can be set in 5-minute increments.

•Energy-saving rate can be set to a value from 0% and 50 to 90% in 10% increments.

* Clock setting is required.

Setting details Reference

page

Setting and display

items

Night setback Use to make Night setback settings.

•Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and the start/stop times can be set.

* Clock setting is required.

Filter information Use to check the ﬁ lter status.

•The ﬁ lter sign can be reset.

Error information

Maintenance

Initial setting

Service Function

Manual vane angle

Clock Use to set the current time. 25 Main

display

Contrast Use to adjust screen contrast. 47 Language

selection

setting

(City Multi)

Use to check error information when an error occurs.

•Error code, error source, refrigerant address, unit model, manufacturing number, contact information (dealer's phone number) can be displayed.

* The unit model, manufacturing number, and contact information

need to be registered in advance to be displayed.

Use to set the vane angle for each vane to a ﬁ xed position. 44

Use to switch between "Full" and "Basic" modes for the Main display.

•The default setting is "Full."

Use to select the desired language. 48

Use to make settings for indoor unit's functions. 50

Setting details Reference

page

Restrictions for the sub remote controller

Main

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Main display:

Cursor Page

The following settings cannot be made from the sub remote controller. Make these settings from the main remote controller. "Main" is displayed in the title of the Main menu on the main remote controller.

•Timer (On/Off timer, Auto-Off timer)

•Weekly timer

•OU silent mode

•Energy saving

(Auto return, Schedule)

•Night setback

•Maintenance

(Manual vane angle)

F1 F2 F3 F4

Page

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Navigating through the menu

F1 F2 F3 F4

Cursor

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Navigating through the Main menu

Button operation

Accessing the Main menu

Main

Item selection

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Main display:

Cursor Page

F1 F2 F3 F4

Press the MENU button.

The Main menu will appear.

Press F1 to move the cursor down. Press F2 to move the cursor up.

Navigating through the pages

Press F3 to go to the previous page. Press F4 to go to the next page.

Saving the settings

OU silent mode

Mon Tue Wed Thu Fri Sat Sun

Start Stop Silent

Setting display:

day

F1 F2 F3 F4

Select the desired item, and press the SELECT button.

The screen to set the selected item will appear.

Exiting the Main menu screen

Room

Cool

Mode Temp. Fan

F1 F2 F3 F4

AutoSet temp.

Fri

Press the RETURN button to exit the Main menu and return to the Main display.

If no buttons are touched for 10 minutes, the screen will automatically return to the Main display. Any settings that have not been saved will be lost.

Display of unsupported functions

Title

Not available

Unsupported function

Return:

F1 F2 F3 F4

The message at left will appear if the user selects a function not supported by the corresponding indoor unit model.

Controller operation-Function settings

Auto

Swing

Step 1 Step 2

Step 4Step 3

Swing

Step 5

Vane•Louver•Vent. (Lossnay)

Button operation

Accessing the menu

Main

Main display:

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Cursor Page

F1 F2 F3 F4

Vane setting

Fri

Swing Off Off

LouverVent .Va ne

Select "Vane•Louver•Vent. (Lossnay)" from the Main menu (refer to page 20), and press the

SELECT button.

Press the F1 or F2 button to go through the vane setting options: "AUTO," "Step 1," "Step 2," "Step 3," "Step 4," "Step 5," and "Swing." Select the desired setting.

F1 F2 F3 F4

(Sample screen on City Multi)

Fri

Room

Cool

Mode Temp. Fan

AutoSet temp.

Select "Swing" to move the vanes up and down automatically. When set to "Step 1" through "Step 5", the vane will be fixed at the selected angle.

• under the vane setting icon This icon will appear when the vane is set to "Step 5"

and the fan operates at low speed during cooling or dry operation (depends on the model).

The icon will go off in an hour, and the vane setting

will automatically change.

Louver setting

Off On

Fri

Press the F4 button to turn the louver swing ON and OFF.

F1 F2 F3 F4

(Sample screen on City Multi)

Vent. setting

F1 F2 F3 F4

(Sample screen on Mr. Slim)

Low

Vent .

Off

LouverVent .Va ne

Fri

Press the F3 button to go through the

Off On

ventilation setting options in the order of "Off," "Low," and "High."

* Settable only when LOSSNAY unit is connected.

Off Low High

• The fan on some models of indoor units may be interlocked with certain models of ventilation units.

Returning to the Main menu

Main

Main display:

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Cursor Page

F1 F2 F3 F4

Press the RETURN button to go back to the Main menu.

Controller operation-Function settings

High power

Function description

High-power operation function allows the units to operate at higher-than-normal capacity so that the room air can be conditioned to an optimum temperature quickly. This operation will last for up to 30 minutes, and the unit will return to the normal operation mode at the end of the 30 minutes or when the room temperature reaches the preset temperature, whichever is earlier. The units will return to the normal operation when the operation mode or fan speed is changed.

Button operation

Select "High power" from the Main menu during Cooling, Heating, or AUTO operation (refer to page 20), and press the SELECT button.

"High power" function is available only on the models that support the function.

Move the cursor to "YES" with the F3 or F4 button, and press the SELECT button.

Main

Main display:

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Cursor Page

F1 F2 F3 F4

High power

High power No / Yes

Select:

F1 F2 F3 F4

High power No / Yes

High power operation selected Main menu:

Cursor

High power

A confirmation screen will appear.

Navigating through the screens

• To go back to the Main menu ........... MENU button

• To return to the previous screen ....... RETURN button

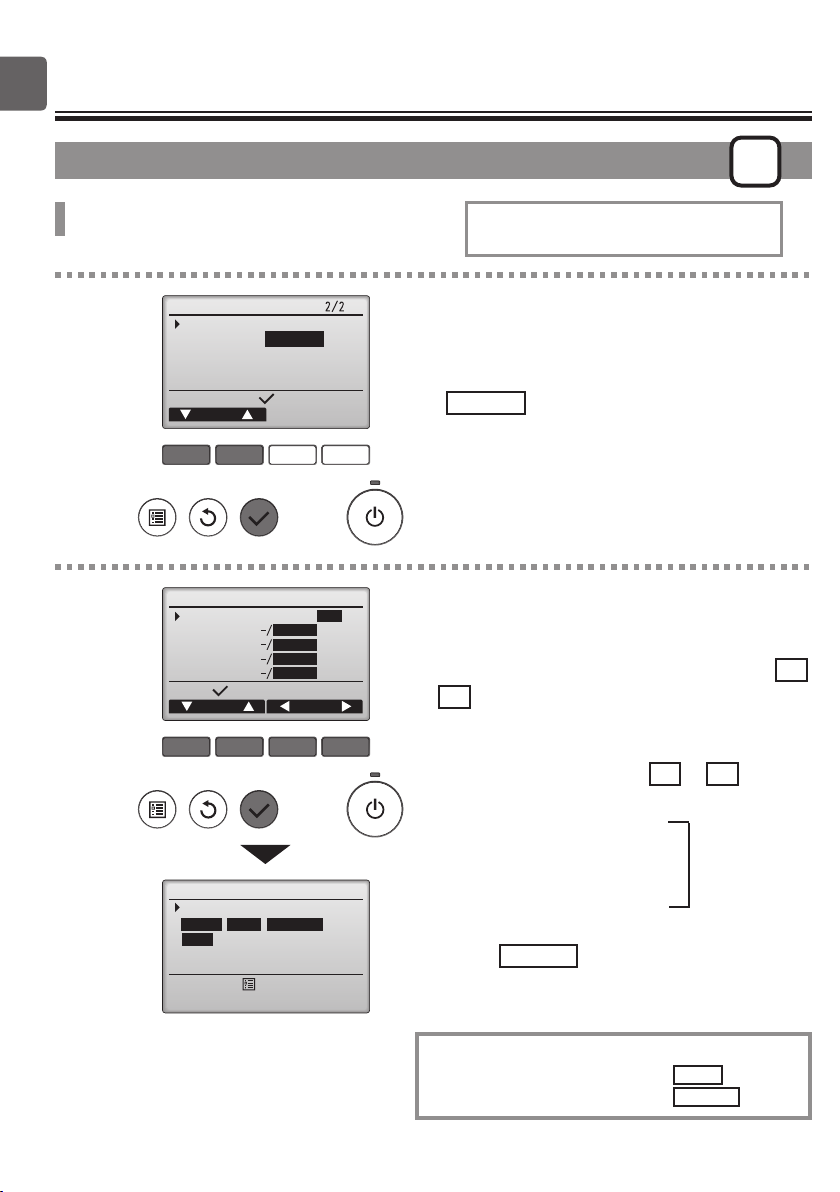

Clock

Button operation

Main Main menu

Maintenance Initial setting Service

Main display:

Cursor Page

F1 F2 F3 F4

Initial setting menu

Main/Sub Clock Main display Contrast Display details

Main menu:

Cursor Page

F1 F2 F3 F4

Select "Initial setting" from the Main menu (refer to page 20), and press the SELECT button.

Clock setting is required before making the following settings.

• On/Off timer

• Weekly timer

• OU silent mode

• Energy saving

• Night setback

Move the cursor to the "Clock" with the F1 or F2 button, and press the SELECT button.

Clock

yyyy / mm/ dd hh: mm

2 12 / 1 / 1

Select:

Cursor

F1 F2 F3 F4



Move the cursor to the desired item with the F1 or F2 button out of year, month, date, hour, or minute.

Increase or decrease the value for the selected item with the F3 or F4 button, and press the SELECT button. A confirmation screen will appear.

Navigating through the screens

• To go back to the Main menu .......... MENU button

• To return to the previous screen ...... RETURN button

Controller operation-Function settings

Timer

On/Off timer

Button operation

Main

Main display:

Setting display:

Main menu

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Cursor Page

F1 F2 F3 F4

Cursor

Timer

--- min

On/Off timer Yes On Off Repeat No Auto-off No Stop in

Main

Select "Timer" from the Main menu (refer to page

20), and press the SELECT button.

The On/Off timer will not work in the following cases:

when On/Off timer is disabled, during an error, during check (in the service menu), during test run, during remote controller diagnosis, when the clock is not set, during Function setting, when the system is centrally controlled (when On/Off operation or Timer operation from local remote controller is prohibited).

The current settings will appear.

Move the cursor to the On/Off timer, and press the SELECT button.

F1 F2 F3 F4

On/Off timer No / Yes On Off Repeat No / Yes

Select:

F1 F2 F3 F4

Timer

Cursor Cursor

The screen to set the timer will appear.

Select the desired item with the F1 or F2 button out of "On/Off timer," "On," "Off," or "Repeat."

On/Off timer No / Yes On Off Repeat No / Yes

Select:

F1 F2 F3 F4

Timer

Cursor Time

Change the setting with the F3 or F4 button.

•

On/Off timer: No (disable)/Yes (enable)

•

On: Operation start time

(settable in 5-minute increments)

* Press and hold the button to rapidly advance

the numbers.

•

Off: Operation stop time

(settable in 5-minute increments)

* Press and hold the button to rapidly advance

the numbers.

•

Repeat: No (once)/Yes (repeat)

On/Off timer No / Yes On Off Repeat No / Yes

Select:

F1 F2 F3 F4

On/Off timer No / Yes On Off Repeat No / Yes Changes saved

Main menu:

Timer

Cursor Time

Timer

Room

Cool

Press the SELECT button to save the settings.

A confirmation screen will appear.

Navigating through the screens

• To go back to the Main menu .......... MENU button

• To return to the previous screen ...... RETURN button

Fri

will appear on the Main display in the Full

mode when the On/Off timer is enabled.

appears when the timer is disabled by the

AutoSet temp.

centralized control system.

Mode Temp. Fan

Controller operation-Function settings

Timer

Auto-Off timer

Button operation

On/Off timer Yes On Off Repeat No Auto-Off No Stop in

Setting display:

F1 F2 F3 F4

Auto-Off No Yes Stop in min

Select:

Timer

--- min

Cursor

Auto-Off timer

Cursor Cursor

Main

Bring up the Timer setting screen. (Refer to page 26.)

Select "Auto-Off", and press the SELECT button.

The Auto-Off timer will not work in the following cases:

when Auto-Off timer is disabled, during an error, during check (in the service menu), during test run, during remote controller diagnosis, during Function setting, when the system is centrally controlled (when On/Off operation or Timer operation from local controller is prohibited).

The current settings will appear.

Move the cursor to the "Auto-Off" or "Stop in --min" with the F1 or F2 button.

F1 F2 F3 F4

Auto-Off timer

Auto-Off No Yes Stop in min

Select:

Cursor Time

F1 F2 F3 F4

Change the setting with the F3 or F4 button.

• Auto-Off: No (disable)/Yes (enable)

•

Stop in --- min: Timer setting (The settable

range is 30 to 240 minutes in 10-minute increments.)

Auto-Off timer

Auto-Off No Yes Stop in min

Select:

Cursor Time

F1 F2 F3 F4

Auto-Off timer

Auto-Off No Yes Stop in min

Changes saved

Main menu:

Room

Cool

Mode Temp. Fan

AutoSet temp.

Press the SELECT button to save the settings.

A confirmation screen will appear.

Navigating through the screens

• To go back to the Main menu .......... MENU button

• To return to the previous screen ...... RETURN button

Fri

will appear on the Main display in the

Full mode when the Auto-Off timer is enabled.

appears when the timer is disabled by the

centralized control system.

Controller operation-Function settings

Weekly timer

Button operation

Main

Vane·Louver·Vent. (Lossnay) High power Timer Weekly timer OU silent mode

Main display:

F1 F2 F3 F4

Mon Tue Wed Thu Fri Sat Sun

Setting display:

F1 F2 F3 F4

Main menu

Cursor Page

Weekly timer

No.

day Page

Main

Select "Weekly timer" from the Main menu (refer to page 20), and press the SELECT button.

The Weekly timer will not work in the following cases: when the On/Off timer is enabled, when the weekly timer is disabled, during an error, during check (in the service menu), during test run, during remote controller diagnosis, when the clock is not set, during Function setting, when the system is centrally controlled (On/Off operation, temperature setting, or Timer operation from local remote controller is prohibited).

The current settings will appear.

Press the F1 or F2 button to see the settings for each day of the week. Press the F4 button to see patterns 5 through 8.

Press the SELECT button to go to the setting screen.

Weekly timer

Weekly timer No / Yes

Select:

F1 F2 F3 F4

Cursor

The screen to enable (Yes) and disable (No) the weekly timer will appear.

To enable the setting, move the cursor to "Yes" with the F3 or F4 button, and press the SELECT button.

+ 87 hidden pages
