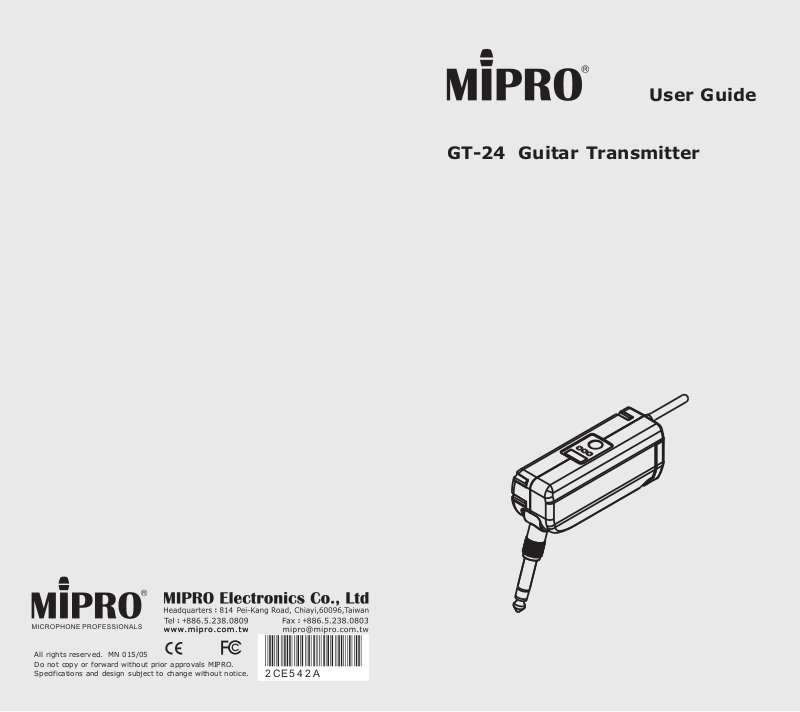

User Guide
GT-24 Guitar Transmitter
All rights reserved.
Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice.
MN 015/05
Guitar TransmitterGuitar Transmitter
Contents
1 Transmitter Controls and Indicators
3 Operating Instructions
Battery Insertion
6
MP-80 Battery Charger (Optional)
7
Transmitter Controls and Indicators
3 4
1
2
6
1
Housing: Holds internal PCB.
2
ACT Port: Align and sync frequency
798
automatically with a matching receiver.
3
Battery Indicator Lights: Shows the battery
level or charging status.
4
Power: Press and hold for 1~2 seconds to
power on or off.
5
Antenna: 1/4λtransmitting antenna.
6
6.3mm (1/4”) phone jack plug: Insert this
adjustable plug into the electric guitar or electric
bass.
7
Battery Charging Contact: Align contacts
during charging.
(a) Metal objects contact is forbidden.
(b) It is forbidden to contact metal objects.
0
1
5
8
9
Guitar TransmitterGuitar Transmitter
8
Battery Cover: Holds a single 18500
rechargeable battery.
9
Battery compartment & Battery: Inserts a
single 18500 rechargeable battery according to
correct polarity. Insert with plus (+) polarity end
of battery towards inside of the battery
compartment(see above graph). Wrong polarity
insertion will result in no connection and will not
damage the circuitry.
Operating Instructions
1. Power On & Off
a. Press & hold for 1~2 seconds.
b. Power On: battery indicator lights are lit
solidly.
c. Power Off: battery indicator lights are not lit.
2. Battery Indicator Lights
a. Recommend to charge the battery when one
single red indicator is solidly lit (25%) or
replace with a fully-charged battery.
100%
75% 50%
(green indicator)
25%
(red indicator)
2
3
Guitar TransmitterGuitar Transmitter
3. Ensure both the receiver and guitar transmitter
frequencies are synchronized to the same
channel and power is off on the guitar
transmitter before inserting the plug into the
electric guitar. Power on and adjust audio levels
after plug insertion.
4. A suction cup holder can be installed manually
for a secured fit for electric guitar/bass where
the output jack is situated in different body
area.
4
5
Guitar TransmitterGuitar Transmitter
Battery Insertion
1. Gently push down on the
2. Install a freshly charged
3. Then carefully close the
battery compartment latch
and swing the battery
compartment door open
(do not use force when
opening or closing the
battery door).
18500 rechargeable battery
with plus (+) polarity end
of battery towards inside.
battery door until the hinge
is properly locked and
secured.
MP-80 Battery Charger (Optional)
GT-24 guitar transmitter and/or an additional 18500
recharge battery can be both recharged
simultaneously in MP-80.
GT-24
18500
Rechargeable
Battery Adaptor
Insert the GT-24 into
a supplied battery
adaptor first before
place into the MP-80
for charging.
Batteries
Insert one or two
18500 rechargeable
batteries into MP-80
according to the
correct polarity.
Caution
Remove the batteries if unused for a long period of
time to prevent battery leakage, corrosion and
causes possible damage to electronics.
Notes
1. Refer to actual product in the event of product
description discrepancy.
2. Frequency range and maximum deviation comply
with the regulations of different countries.
6
7
Guitar TransmitterGuitar Transmitter
