ACT-32HC
2 CE4 9 5 A
Wireless Microphone
User Guide
All rights reserved.
Do not copy or forward without prior approvals MIPRO.
All rights reserved. Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice. MN 014/04
Specifications and design subject to change without notice.
MN 014/06
Rechargeable Handheld Transmitter
Rechargeable Handheld Transmitter
Contents
1 Handheld Controls and Indicators
3 Operating instructions for insertion &
removing battery
5

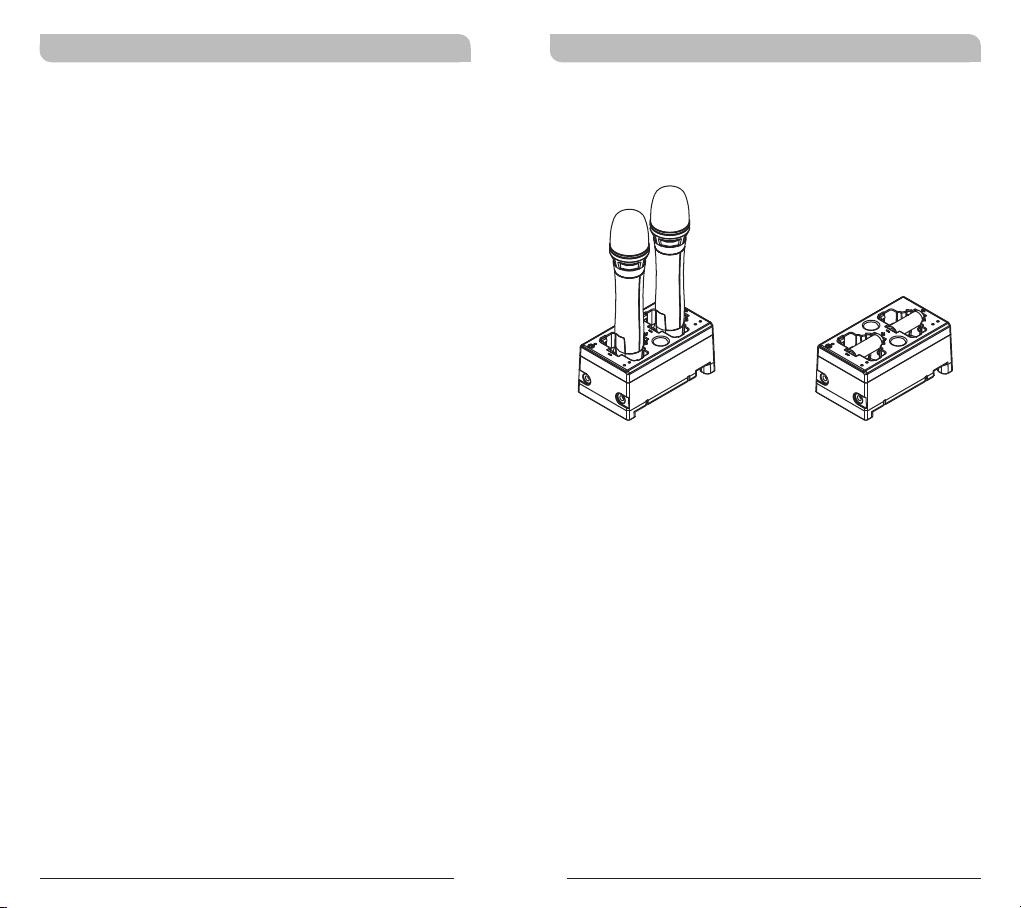

MP-80 Battery Charger (Optional)
6

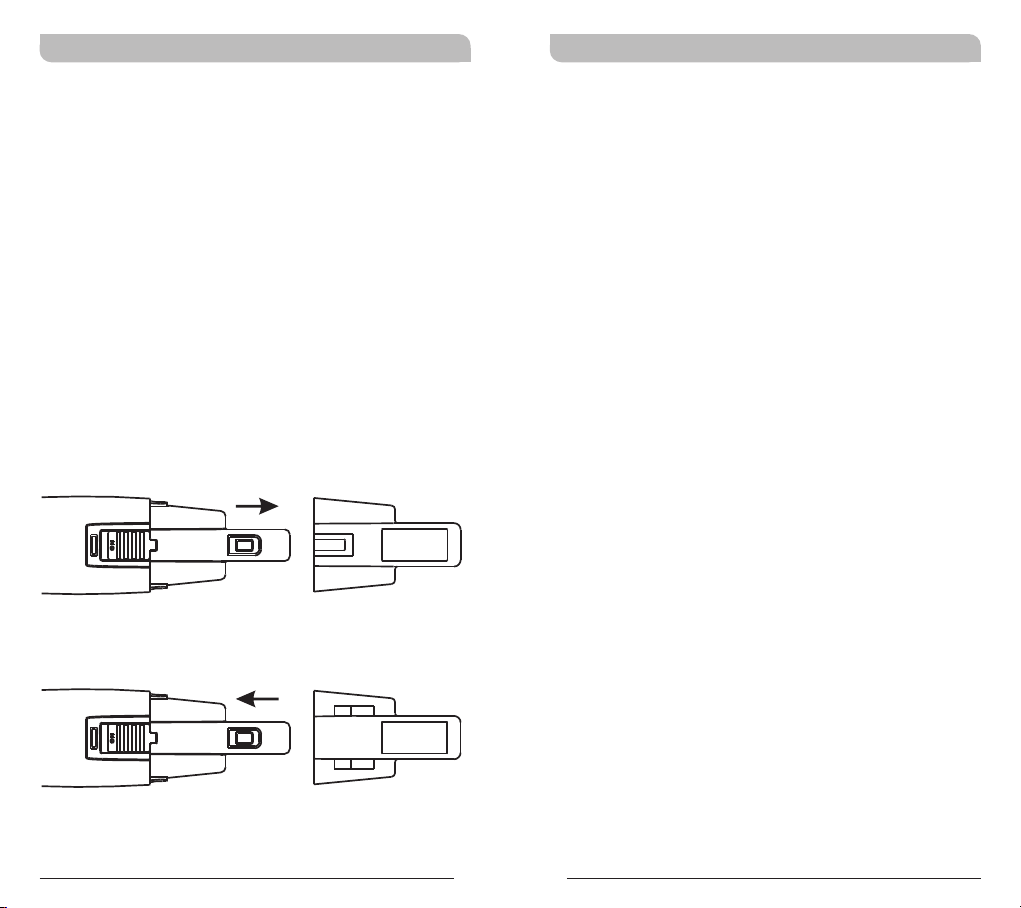

Rear cap has an On/Off switch protection
7
General tips for improving system
performance
Handheld Controls and Indicators
1
2
3
4
5
6
0
1
7
8
9
Rechargeable Handheld Transmitter Rechargeable Handheld Transmitter
Capsule Module: Protects detachable
1
microphone capsule module and internal foam
prevents breathing, wind and POP noises.
2
Fixed Ring
3
Battery Compartment: Accommodates one
18500 rechargeable battery.
4
Housing: Protects transmitter PCB, battery
compartment and battery.
5
Ascertain the power is turn "ON" to see battery
status.
! Normal Battery: Red indicator is on for a
second and goes off after power on.
! Weak Battery: Red indicator stays on
continuously after power on. Recharge or
insert a new recharged battery.
! No red indicator light: battery is
completely drained or polarity inserted
incorrectly.
6
Power On/Off Switch: Always power off the
transmitter to conserve battery life when not in
use.
7
ACT Infrared (IR) Sync Port: Receives signals
from receiver to synchronize frequencies
automatically.
8
Battery Charging Contact: Align contacts
during charging.
9
Color Coded Protection Cap: Protects against
accidental power on/off. Available in different
colors for channel differentiation.
Operating instructions for insertion &
removing battery
18500
rechargeable
lithium
battery
2
3
