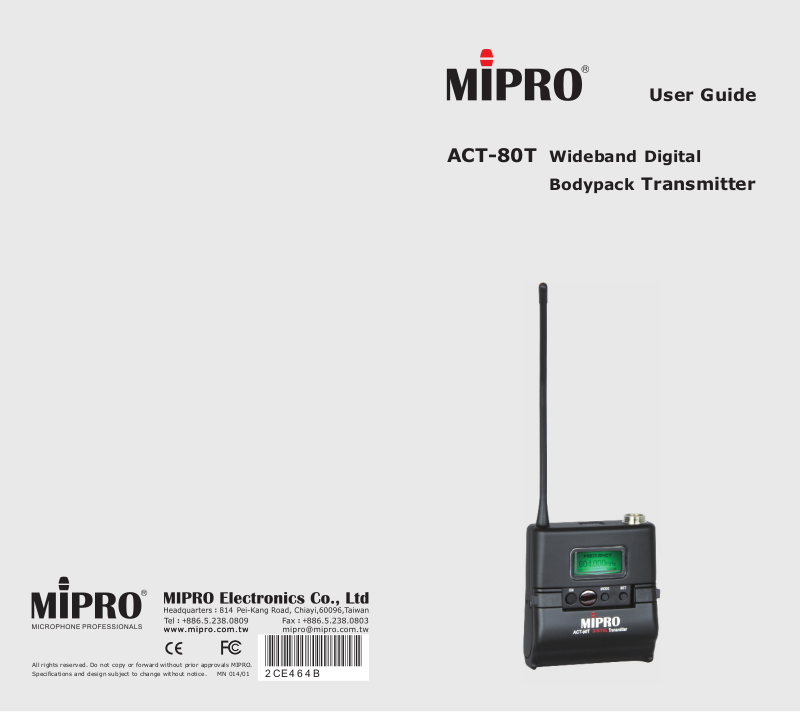

ACT-80T Wideband Digital

Bodypack Transmitter

Specifications and design subject to change without notice. MN 014/01

IC:

This device complies with Industry Canada licence-exempt RSS-123 ISSUE 2 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Digital Bodypack Transmitter

Contents

1 Key Features

3 Bodypack Controls and Indicators

6 O

perating Instructions

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

FCC ID label:

THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Disposal

2005 -08-1 3

Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations.

Disposing of used batteries with domestic waste is to be avoided!

Batteries / NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/ accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold.

By doing so, you contribute to the conservation of our environment!

7 LCD

Display Screen

How to Setup Transmitter Parameters

19 Battery Status

26 AF

27 B

MUTE Control Set-Up

Input Connections

attery Removal and Installation

Digital Bodypack Transmitter Digital Bodypack Transmitter

Key Features

! Industry's smallest and lightest digital bodypack

transmitter with extremely rugged low-profile metal housing.

! Detachable antenna, XLR input socket, mute

button and remote mute control input.

! Backlit LCD displays working band-code, group

channel, AF gain, limiter, low cut, phase, output power, mute, battery status, encryption status & error codes.

! Innovatively designed battery cover allows easy

access to operate buttons and prevents accidental operation.

! Mute button and remote-control jack is equipped

for easy activation of mute function.

! High efficiency, low power consumption and low

spurious PLL synthesized circuit is applied.

! An interference-free working channel can be

synchronized quickly and precisely by MIPRO's patented ACT™ function.

! Selectable AF input polarity for various

microphone capsule modules.

! Mini-XLR input connector for quick screw lock

with lavalier / headworn mics and guitar.

! 2 AA batteries for long operation time.

! Adjustable belt clip allows wearing transmitter in

any position.

Furnished Accessories:

! USER GUIDE ×1

Digital Bodypack Transmitter Digital Bodypack Transmitter

Bodypack Controls and Indicators

6 7

FREQ UENCY

485.000MHz

MODEON

SET

MUTE Button: To mute and un-mute the audio signal temporary.

Antenna: Flexible 1/ 4 wave transmitting antenna.

Transmitter Housing: Holds PCB board and wires.

LCD Panel: Display transmitter parameters.

SET Button: Parameter selection button.

MODE Button:

Allows access to 9 available

functions displaying in LCD panel.

Power Button: Press and hold 2 seconds to power ON or OFF.

ACT IR Port: Align and syncs the transmitter and receiver frequency automatically.

Battery Compartment: Holds 2 'AA' batteries.

Battery Cover: Hinged cover opens to provide access to 2 'AA' batteries.

External Mute Connector: When an external mute switch cable, MJ-70 (optional) is connected, user can manually mute and unmute the audio temporary.

Belt Clip: Detachable and reversible design allows the transmitter to be worn on a belt, waistband, or guitar strap ( .

Figure 1)

Audio Input Connector: TA4F mini 4-pin connector accepts any MIPRO lavalier, instrument and headset microphones and cables. (See 5 ways of connection on AF Input Connections)

Digital Bodypack Transmitter Digital Bodypack Transmitter

(Positive Wear) (Opposite Wear)

(Figure 1)

Operating Instructions

! Please make sure sensitivity level is set at

proper level.

! Guitar setting is recommended at LINE level.

!!Insert the lavalier, headset microphone or

instrument cable into the audio input connector before power ON the transmitter.

Tighten the connector screw clockwise direction as shown in (Figure 2) for a secured fit.

Capsule Connector

FREQU ENCY

485.000MHz

MODEON

Headset Lavalier

SET

The ridge on the connector must align and match the indentation on the socket when inserting for a proper fit.

(Figure 2)

Digital Bodypack Transmitter Digital Bodypack Transmitter

LCD Display Screen

Fully Lit LCD Display

 LCD Screen

 Parameters Screen

 AF (audio) MUTE

 Transmitter Battery Meter

GRP CH

0 1 0 2

How to Setup Transmitter Parameters

! MODE Button:

Press “MODE” button to access one of the NINE functions below.

! SET Button:

Press “SET” button and LCD wills start flashing. During flashing, press SET button to change parameters.

FREQU ENCY

485.000MHz

SET

MODEON

MODE SET

Digital Bodypack Transmitter Digital Bodypack Transmitter

GRP CH

0 1 0 2

ENC RYPTIO N

N O

RF P OWER

RF-LO W

Group and Channel

Frequency

Sensitivity Level

AF Low Cut

AF Limit

Encryption

RF Output Power

AF Phase

Parameters Lock & Unlock Status

MUTE MODE

FRE QUENC Y

485.000MHz

AF L IMIT

Y E S

AF P HASE

INVER T

AF G AIN

0 dB

AF L OW-CU T

LOW CUT

SET LOCK

UNLOC K

MUT E MODE

MANUA L

GRP CH: Displays Group and Channel Information

a. Press MODE and stop on the GRP CH function;

the display showing the current group and channel will be flashing. After 5 seconds, the display will stop flashing and the current group and channel selection will be set.

b. The group and channel information is now

shown on the display. Changing the current group and channel must be done on the receiver.

GRP CHGRP CH

0 1 0 2

**Note:

When programming a special frequency via monitoring software, the LCD screen cannot display the number. This is because this special channel is not in the preset group and channel. RF, the LCD panel will look like the illustration below.

GRP CH

Digital Bodypack Transmitter Digital Bodypack Transmitter

FREQUENCY: Displays Transmitter Frequency

Information

a. Press MODE and stop on the FREQUENCY

function; the display showing the current frequency will be flashing. After 5 seconds, the display will stop flashing.

b. The frequency information is now shown on the

display. Changing the current frequency must be done on the receiver.

**Note:

To modify the transmitter's group, channel and frequency, all three must be set at the receiver and the new setting transmitted to the transmitter via the ACT function.

FR EQ UE NC Y

485.000MHz

AF GAIN: Setup and Change of Input Sensitivity

a. Press MODE and stop on the AF GAIN function;

the display showing the current status will be flashing and is ready to be modified.

b. Every push of the SET button increases the dB

value by 6dB to a maximum of 18dB.

**Note:

1. The higher the gains are set, the lower the dynamic range for signal input and the greater the danger of unwanted noises and feedback getting into the system.

2. When using electronic guitar, gain should set at 0dB.

3. Please make sure input signal strength does not exceed 2 Vrms (gain=6dB) as it is the maximum input strength allowed for transmitter without causing distortion.

AF G AIN

-12 dB

AF G AIN

-6 dB

AF G AIN

0 dB

AF G AIN

18 dB

AF G AIN

12 dB

AF G AIN

6 dB

Digital Bodypack Transmitter Digital Bodypack Transmitter

AF LOW-CUT: Setup and Change of Low Frequency

Cut Off

a. Press MODE and stop on the AF LOW-CUT

function; the display showing the current status will be flashing and is ready to be modified.

b. Press the SET button while the display is

flashing to change to LOW CUT or FLAT as desired.

**Note:

When the AF LOW-CUT function is LOW CUT, the frequency response below 100Hz will decrease about 3dB with a slope of 6dB/Octave.

AF LO W-C U T

LOW CUT

AF LO W-C U T

FLAT

AF LIMIT: Setup and Change of Input Limit

a. Press MODE and stop on the AF LIMIT

function; the display showing the current status will be flashing and is ready to be modified.

b. Press SET while the display is flashing to change

the setting to ON or OFF.

**Note:

When the LIMIT is ON, the maximum output of the receiver is limited to 1V.

AF LI MI T AF LI MI T

Y E S N O

Digital Bodypack Transmitter Digital Bodypack Transmitter

ENCRYPTION: Displays Information of Encryption

a. Press MODE and stop on the ENCRYPTION

function; the display showing the current status will be flashing.

**Note:

1. The ENCRYPTION function displays status information only. Changing of the current status must be done from the receiver via the ACT function.

2. The ENCRYPTION function must be set at receiver first then using ACT to program the transmitter.

EN CRY PT IO N

N O

RF POWER: RF Power Selection

a. Press MODE button for selection of RF POWER.

Selection of RF-HI or RF-LOW can be selected once the RF POWER LCD starts blinking.

b. Press SET button to select and set RF-HI or

RF-LOW.

**Note:

RF-HI has 50mW transmitting power. RF-LOW has 10mW transmitting power. Set appropriate power to meet region/country regulations.

RF PO WE R

RF - H I

RF PO WE R

RF - L O W

Digital Bodypack Transmitter Digital Bodypack Transmitter

AF PHASE: Phase Selection of AF inputs

a. Press MODE button for selection of AF PHASE.

Selection of NORMAL or INVERT can be selected once the AF PHASE LCD starts blinking.

b. Press SET button to select and set NORMAL or

INVERT.

**Note:

AF PHASE function provides users a phase selection for different condenser microphones. The normal setting is NORMAL, and INVERT might be selected if two-wire condenser microphone is used.

AF PH AS E

NO R M A L

AF PH AS E

IN V E R T

SET LOCK: Setup and Change of Parameter Lock

a. Press MODE button once for SET LOCK display.

Once SET LOCK display starts blinking it is ready for selection.

b. Press SET button for UNLOCK or LOCK

selection.

**NOTE:

1. When locked (LOCK), receiver settings cannot be changed including the powering on & powering off. To power off it needs to be in unlock mode (UNLOCK).

2. A sudden lose of power will deactivate the LOCK Function.

3. MUTE function can be operated normally during LOCK mode.

SE T L OC K

UN L O C K

SE T L OC K

LO C K

Digital Bodypack Transmitter Digital Bodypack Transmitter

MUTE MODE

a. Press MODE button until MUTE MODE icon

appears and flashes.

b. Press SET button to select MANUAL, DISABLE

or PUSH-OFF setting.

c. Setting needs to be completed within 5 seconds

to be saved. Set again if flash stops before completion.

MUT E MODEMUT E MODEMUT E MODE

DISABLEMANUAL PUSH-OFF

d. MANUAL: e.Standard setting where mute function

can be controlled by mute button.

Audio is muted when MUTE button is pressed

and AF MUTE indicator starts flashing. Press MUTE button again to cancel.

AF MUTE cancels automatically when power

off.

f. PUSH-OFF:

!!Press and hold MUTE button to mute

continuously. Press and release MUTE button to un-mute.

Under this mode, an optional MJ-70, Remote Mute Switch (not included), can be used to MUTE and un-mute externally.

MUTE ON audio is muted. MUTE OFF audio is on.

MUTE ON MUTE OFF

MU TE MO DE

MA N U A L

DISABLE: function is cancelled.

MUTE button is disabled and mute

MU TE MO DE

MU T E

AF MU TE

AF MUTE blinks continuously

Digital Bodypack Transmitter Digital Bodypack Transmitter

Battery Status

Indicates the power remaining in the transmitter battery. When the battery has less than 10% power remaining it must be replaced or recharged. If an under voltage condition continues, the LCD will show “OFF...” and the system will shut down to prevent being overly discharged.

10 0% 80 % 60 % 40 % 20 % 10 %

“OFF...” : Power Off

1. Press and hold power button for 2 seconds to

power on & off.

2. When the power switch is turned off, the LCD

will show “OFF…” (for Power Off) first and then

the system will shut down and no further

messages will be displayed.

ERR: Error Code

If the LCD displays “ERR” after turning on the power, it indicates the operation is not correct. The error codes are as follows:

ROM-ER → Transmitter does not have the initial

data so the microphone is completely dead and cannot be programmed.

ERROR1 → Failure on RF circuitry, frequency

cannot be programmed.

NO----OR3 → Frequency to be programmed into

the transmitter exceeds the highest frequency of the designated frequency band of the transmitter.

NO----OR4 → Frequency to be programmed into

the transmitter exceeds the lowest frequency of the designated frequency band of the transmitter.

**Note:

NO----OR3 and NO----OR4 will not change the

transmitter's original frequency and the

transmitter will still operate normally with the

error message on display. To remove the error

message from the display panel, please switch

off the transmitter and switch it on again.

OF F. . .

Digital Bodypack Transmitter Digital Bodypack Transmitter

MUTE Control Set-Up

MUTE control enables audio to be muted or un-

muted temporarily.

Press MUTE button to mute audio temporarily.

Parameter values can be changed and ACT sync activate during this MUTE mode.

Press MUTE button to un-mute.

GRP CH

M U T E

AF MU TE

(GROUP/CHANNEL)

GRP CH

0 1 0 2

AF M UTE

(ENCRYPTION)

ENC RYPTIO N

N O

AF M UTE

(RF POWER)

RF P OWER

RF-LO W

AF M UTE

(FREQUENCY)

FRE QUENC Y

485.000MHz

AF M UTE

(AF LIMIT)

AF L IMIT

Y E S

AF M UTE

(AF PHASE)

AF P HASE

INVER T

AF M UTE

FR EQ UE NC Y

485.000MHz

AF MU TE

(AF GAIN)

AF G AIN

0 dB

AF M UTE

(AF LOW-CUT)

AF L OW-CU T

LOW CUT

AF M UTE

(SET LOCK)

SET LOCK

UNLOC K

AF M UTE

(MUTE MODE)

MUT E MODE

MANUA L

AF M UTE

External Mute Connector

! External mute connector is a 3.5mm jack. When

an external mute switch cable, MJ-70 (optional)

is connected, user can manually mute and un-

mute the audio temporary.

External mute connector

MJ-70 External Mute Switch (optional)

3.5mm jack.

External mute switch on/off button.

Note: Plug in the device before power on the bodypack transmitter.

Digital Bodypack Transmitter Digital Bodypack Transmitter

High Frequency Bypass

a. When other microphones are in use, some

changes may be needed to another microphone before adding it to the system in order to avoid high frequency interference, as illustrated in diagram (1).

b. When a high frequency radio wave causes

interference, it normally affects the system by generating a persistent noise or by deteriorating the frequency response. In an effort to ameliorate these problems, a 330PF bypass condenser can be added on the cartridge as shown in diagrams (1) and (2). If this method is not possible, another option is to add a bypass condenser on the 4-pin XLR connector as shown in diagrams (3) and (4).

**The Best Method

(1) Connect to two-wire condenser capsule

**Alternate Method

(3) Connect to two-wire condenser capsule

Add 330pF bypass capacitor

(4) Connect to three-wire condenser capsule

Add 330pF bypass capacitor

(2) Connect to three-wire condenser capsule

Add 330pF bypass capacitor

2625

Digital Bodypack Transmitter Digital Bodypack Transmitter

AF Input Connections

(1) 2-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

(2) 3-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

BIAS

(3) Dynamic Microphone

SHIELD

AUDIO

(4) Electric Guitar

SHIELD

AUDIO

Battery Removal and Installation

! Pushing down both snap locks on the sides to

open battery compartment cover. Take out the

two batteries. (Figure 3)

! Insert two fresh AA batteries (alkaline type is

recommended) into the battery compartment

according to the correct polarity (- and +) as

shown in (Figure 4). Then close the battery

compartment cover tightly.

(Figure 4)(Figure 3)

(5) Line-in (Impedance 8KΩ ATT. 10dB)

SHIELD

AUDIO

Caution:

Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes possible damage to electronics.

Digital Bodypack Transmitter Digital Bodypack Transmitter

Disassemble the Belt Clip

! Turn the bodypack transmitter

to the back side like the right diagram.

! Pull open one side of the belt

clip and make it depart from the slot of the bodypack transmitter like the right diagram.

! Then the other side of the belt

clip can be departed from the other slot easily. The whole belt clip is departed from the bodypack transmitter completely like the right diagram.

Assemble the Belt Clip

! Turn the bodypack transmitter

to the back side. Put the belt

clip to the right direction and

aim the one side of the belt

clip to the slot of

the bodypack

transmitter like

the right diagram.

! For opposite wear of bodypack

transmitter, just rotate the belt

clip by 180℃ like the right

diagram.

! Put one side of the belt clip to

the slot of bodypack

transmitter and fix it like the

right diagram.

! Pull open the other side of the

belt clip and put it to the

other slot of bodypack

transmitter and fix it like the

right diagram.

MIPRO ACT-80T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
