MIPRO ACT-50H User Manual
ACT-50H / ACT-52H
2 CE 4 9 4 A
Handheld Transmitter
User Guide
All rights reserved. Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice. MN 014/03
Handheld Transmitter
Handheld Transmitter
CONTENTS
2 HANDHELD CONTROLS AND INDICATORS

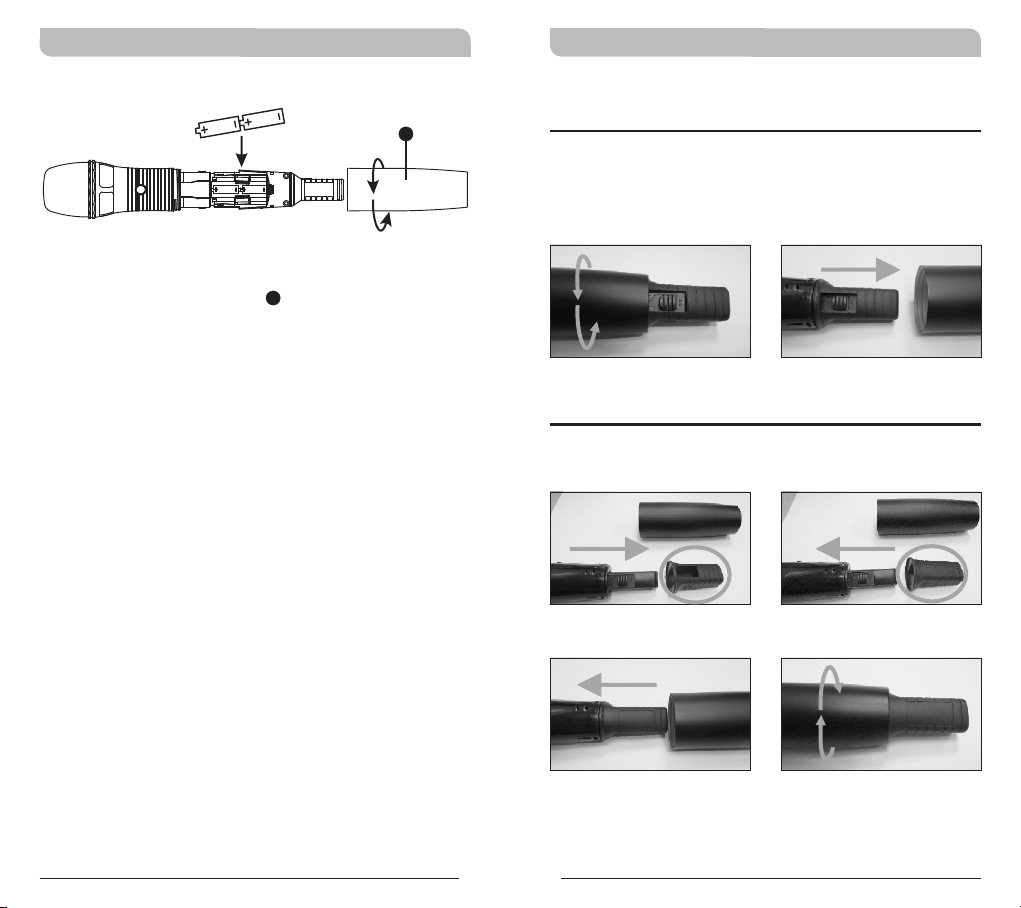

3 BATTERY INSTALLATION
4
PROPRIETARY DESIGN TO AVOID
ACCIDENTAL POWER ON/OFF
5

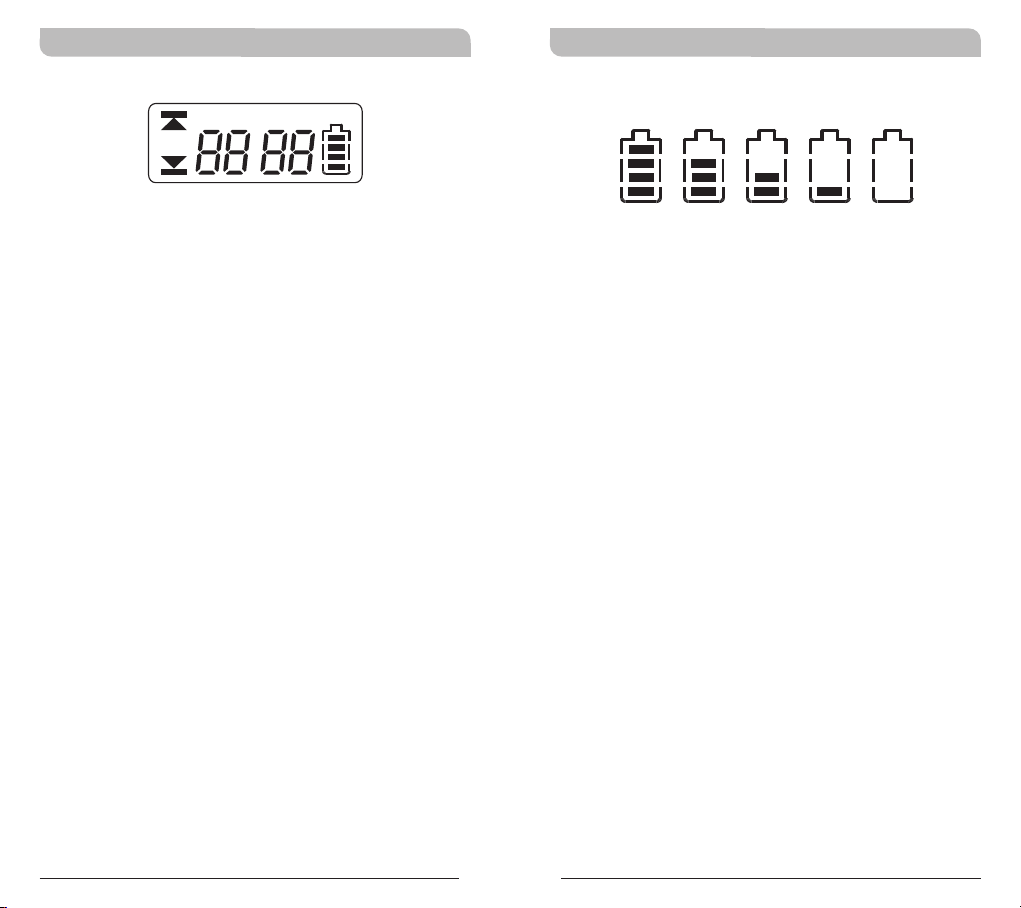

LCD SCREEN
6
BATTERY STATUS
7 CAUTIONS
HANDHELD CONTROLS AND INDICATORS
1
7
1
Top Grille: Protects detachable microphone
3 4
2
BAT
GROUP
CHANNEL
8
capsule module and internal foam prevents
breathing, wind and POP noises.
2
Upper Housing: Houses transmitter PCB and
battery compartment.
3
LCD Screen: Displays group, channel, battery
status and error code.
4
Lower Housing: Protects battery compartment
and holds batteries.
5
Power On-off Switch: Slide the power switch
to the “ON” position for use or to the “OFF”
position when not in use.
6
Color Coded Protection Cap: Protects against
accidental power on/off. Available in different
colors for channel differentiation.
7
ACT Infrared (IR) Port: Receives signals from
receiver to synchronize frequencies.
8
Battery Compartment: Accommodates two
1.5 Volt (AA) batteries.
5
6
1
2
