User Guide
Handheld Transmitter Microphone
All rights reserved.
Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice.
MN 014/07
ACT-30H
ACT-32H
ACT-30Hr
ACT-32HR
Handheld Transmitter Handheld Transmitter
Contents
1 Handheld Controls and Indicators

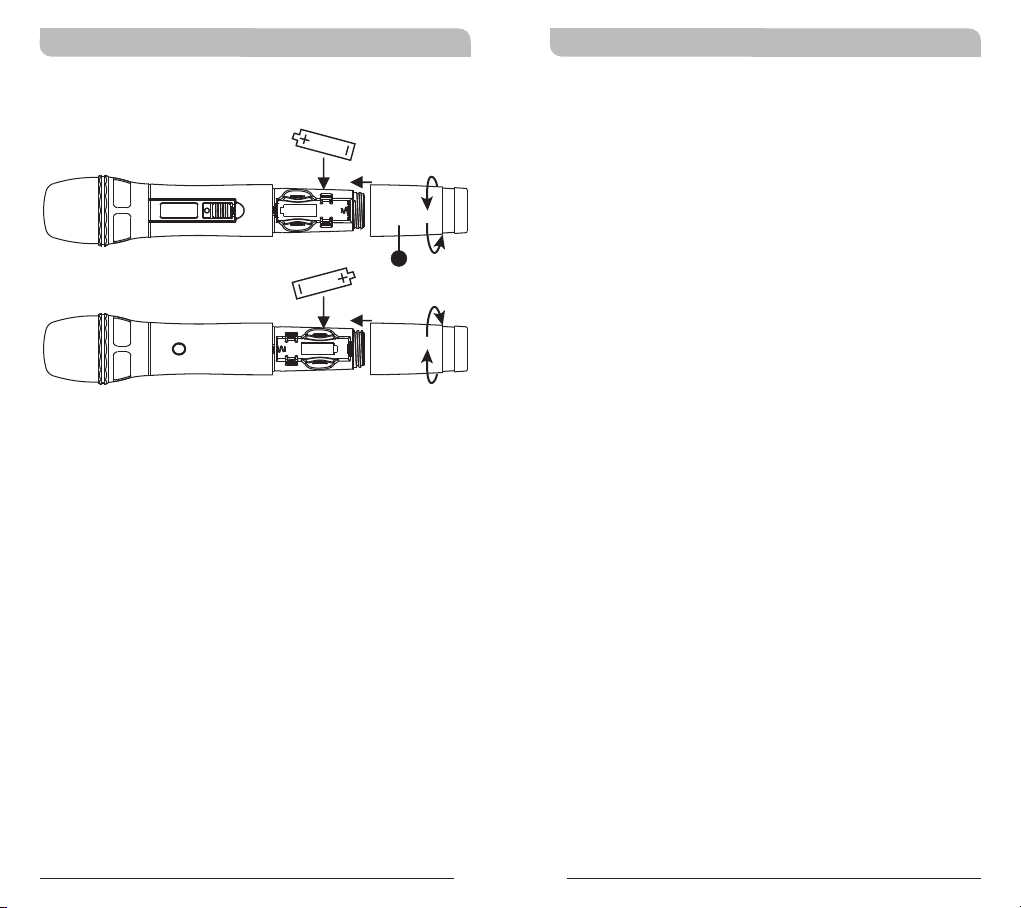

perating Instructions for Insertion &
4 O
Removing Battery
5 Operating Instructions

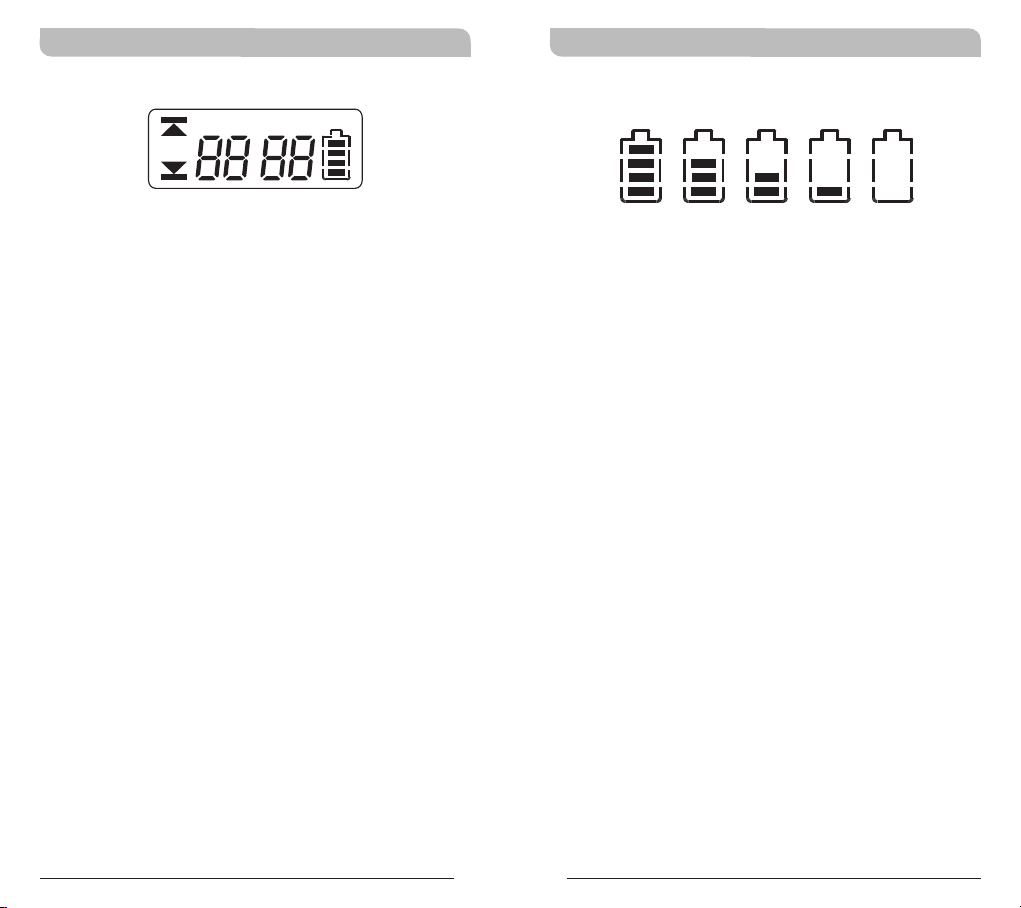

6 LCD Screen
7 Battery Status
8 General Tips for Improving System
Performance
Handheld Controls and Indicators
ACT-30H
ACT-32H
1
ERR
GROUP
2
3
4
5
6
7 7
10
CHANNEL
BAT
8
ACT-30Hr
ACT-32HR
9
ERR
GROUP
CHANNEL
BAT
0 1
11
Handheld Transmitter Handheld Transmitter
1
Top Grille: Protects detachable microphone
capsule module and internal foam prevents
breathing, wind and POP noises.
2
LCD Screen: Displays group, channel, battery
status and error codes.
3
Ascertain the power is turn "ON" to see battery
status.
! Normal Battery: Red indicator is on for a
second and goes off after power on.
! Weak Battery: Red indicator stays on
continuously after power on. Recharge or
insert a new recharged battery.
! No red indicator light: battery is
completely drained or polarity inserted
incorrectly.
4
Power On/Off Switch: Slide the power switch
to the “ON” position for use or to the “OFF”
position when not in use.
5
Lockable On/Off Switch: Slide the switch to
the “ON” position after power-on to avoid
accidental power off during performance. Slide
the switch to “OFF” position before power-off
and conserve battery power.
6
Housing: Upper portion connects to the
microphone capsule module. Internally it holds
the transmitter PCB and battery compartment.
7
Battery Compartment: Accommodates 2 AA
alkaline.
8
ACT Infrared (IR) Port: Receives signals from
receiver to synchronize frequencies.
9
Remote Volume Control Buttons: Press to
decrease or to increase volume loudness
wirelessly.
10
Battery Compartment Cover: Protects battery
compartment and holds batteries.
11
Color-Coded Ring: Available in different colors
for channel differentiation.
