Page 1
Engine
Engine Model Cat®C11 ACERT™
Gross Power – SAE J1995 242 kW 325 hp
Net Power – SAE J1349 237 kW 317 hp
Weights
Rated Payload 28.1 tonnes 31 tons
Body Capacities
Heaped SAE 2:1 16.9 m
3
22.1 yd
3
Ejector Cycle Times Eject Retract
12 Seconds 15 Seconds
730
Ejector
Articulated Truck
®
®
Page 2
2
730 Ejector Articulated Truck
The 730 Caterpillar®Ejector is a world-leading earthmoving solution
The 730 Ejector truck offers proven
reliability and durability, high performance,
low fuel consumption, operator comfort and
low operating costs.
Serviceability
Long service intervals and easy
maintenance provide better machine
availability, resulting in lower owning
and operating costs. pg. 11

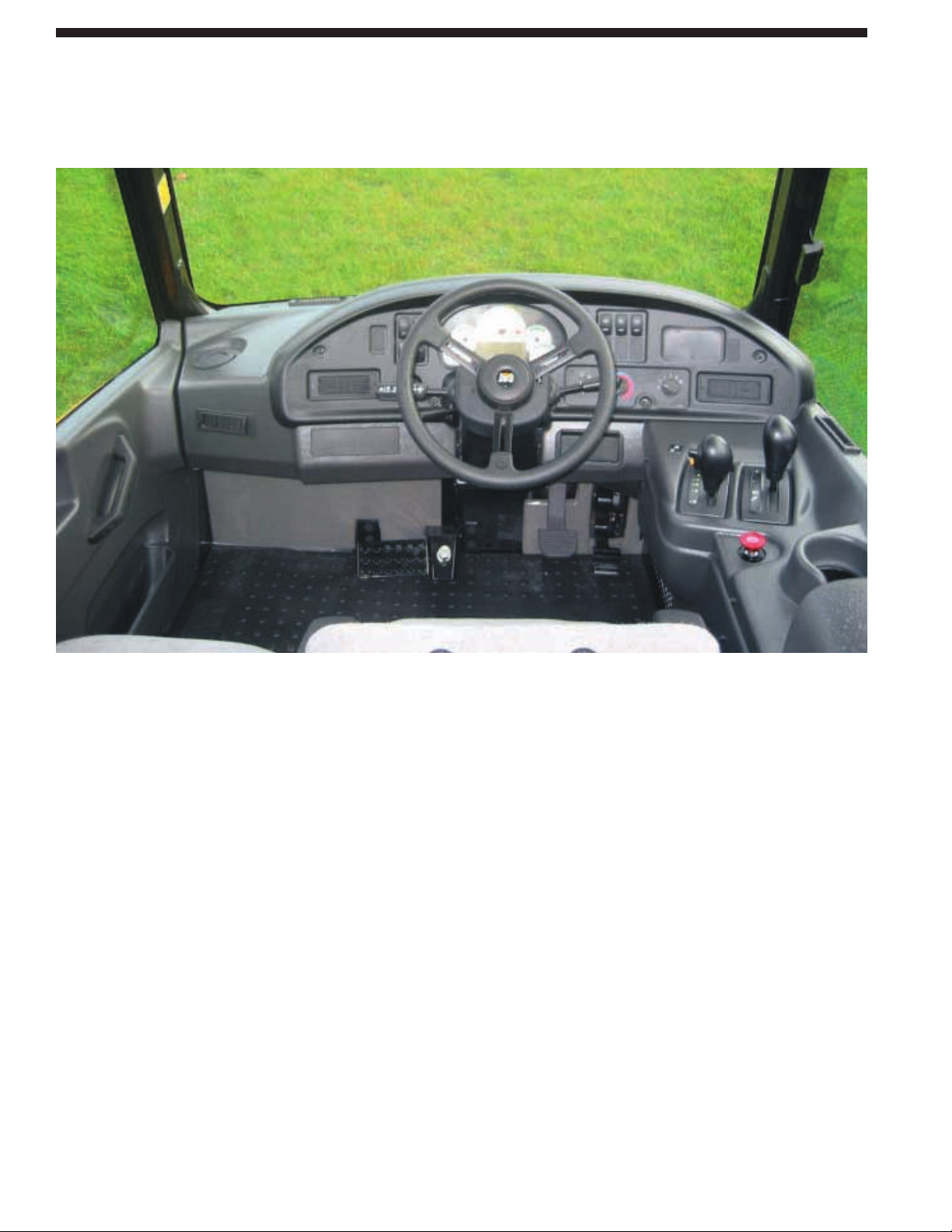

Ease of Operation
Ergonomically designed wrap-around
dash, tilt and telescopic steering wheel,
easy-to-reach controls and excellent
all-around viewing promote fast,
confident machine operation. pg. 10
✔
Performance and Productivity –
Suspension and Traction Control
Three-point front suspension provides
a smooth ride, allowing the operator
to travel at speed over rough terrain.
Cross-axle differential locking system
provides full driveline locking for
maximum performance in adverse
conditions. pg. 6
Performance and Productivity –
Power Train
The Cat C11 ACERT engine, matched
with the six-speed electronic controlled
transmission and a powerful retarder,
delivers the performance needed to
get the job done. pg. 5
✔
Cat®C11 Engine with ACERT Technology
The core concept behind ACERT
technology is advanced combustion.
ACERT engine technology carefully
controls the combustion process to reduce
pollutant levels while maintaining
performance and efficiency. pg. 4
✔
Page 3
✔ New Feature
3
Complete Customer Support
Your Cat dealer offers a wide range
of services that can be set up under a
customer support agreement when you
purchase your equipment. The dealer will
help you choose a plan that can cover
everything from machine configuration
to eventual replacement. pg. 12

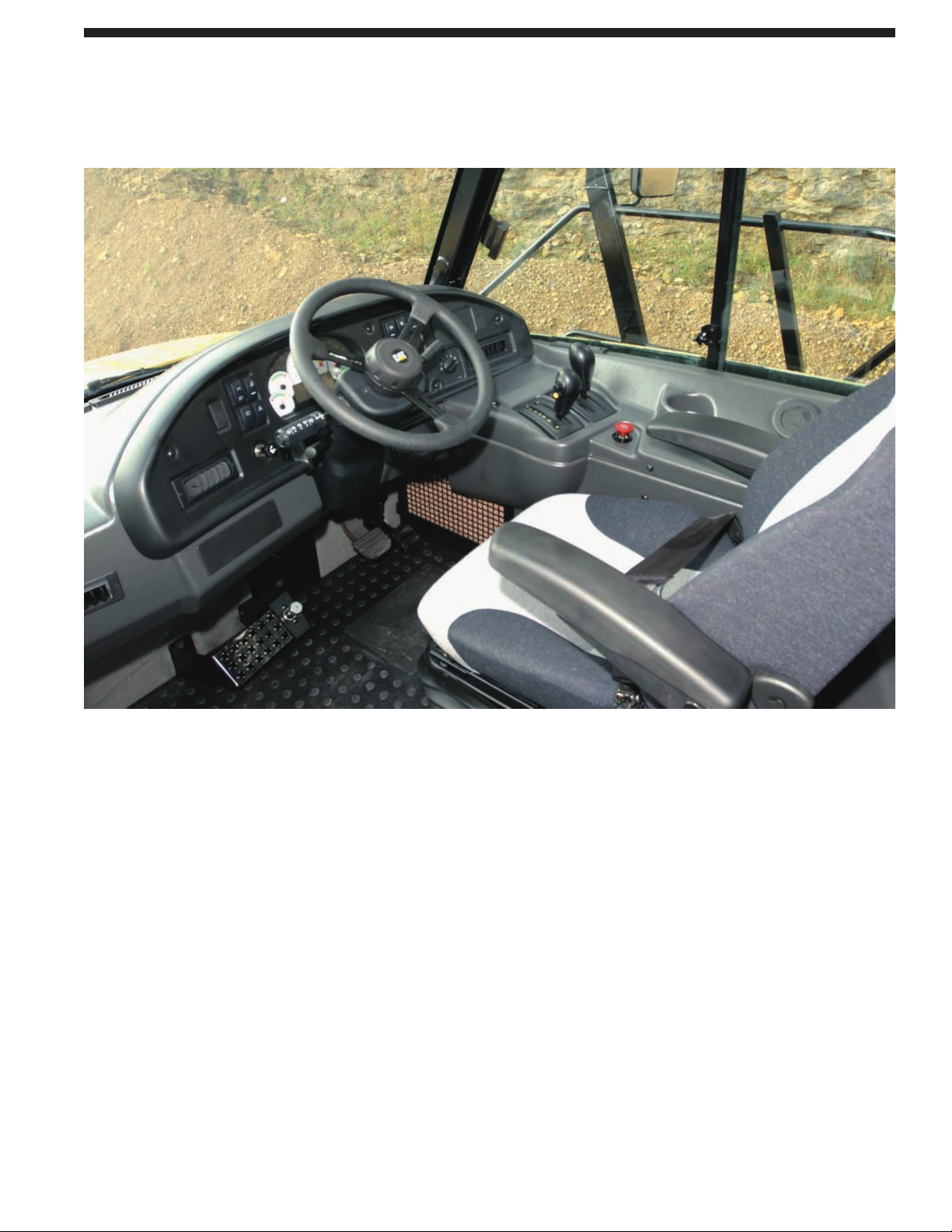

Operator Comfort
Large center-mounted cab, oscillating
front axle, air suspension seat, full-size
trainer seat and large storage space
provide exceptional operator comfort.
pg. 9
✔

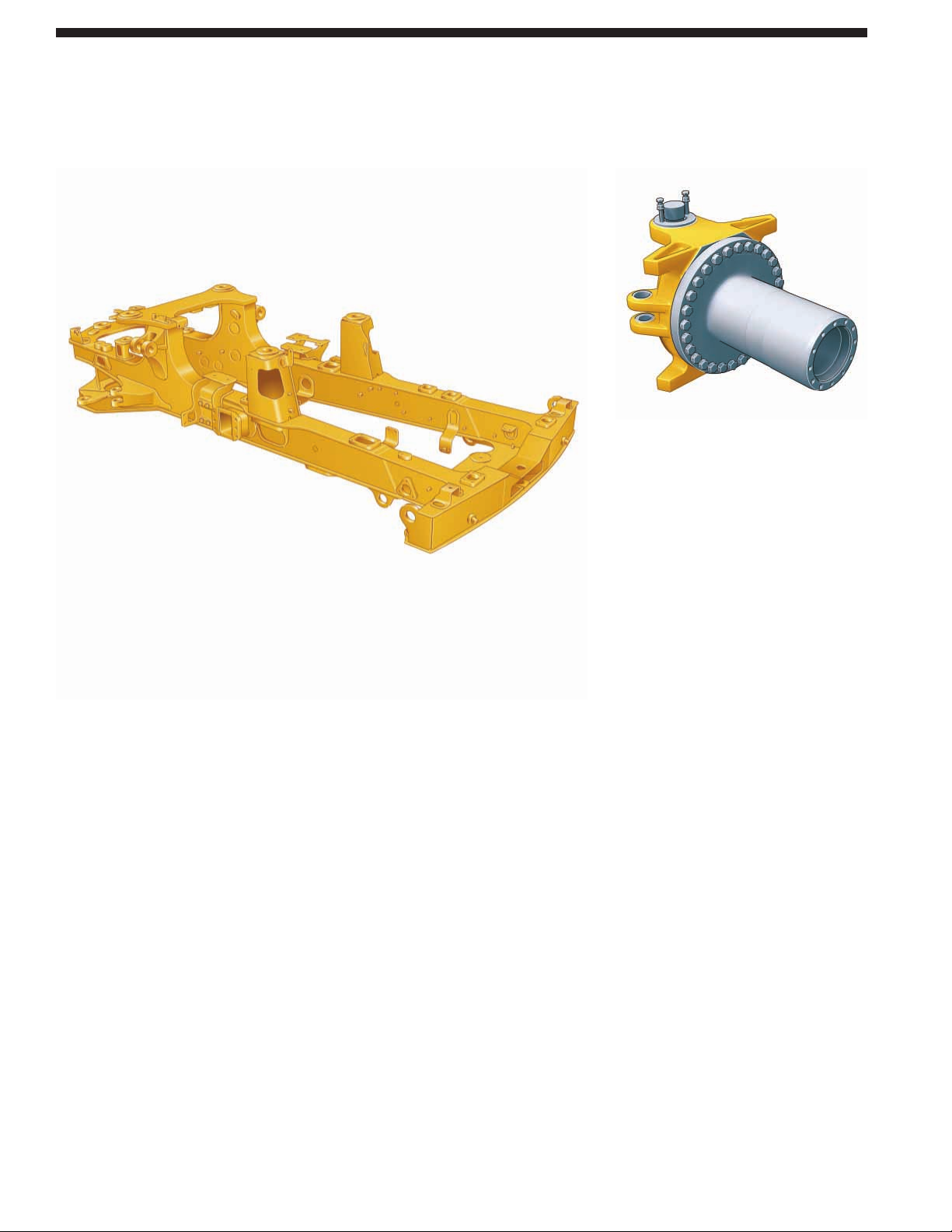

Durability and Reliability
The 730 Ejector has built-in durability
and reliability. Cat purpose-built
articulated truck drivetrain components,
front frame and hitch ensure maximum
performance in the toughest applications.
pg. 8
Performance and Productivity – Ejector
The truck body features on-the-go
ejecting capability and a self-cleaning
ejector design, which offers clean load
ejection and overcomes carry-back of
sticky materials. pg. 7
✔
Page 4
ACERT Technology. The C11 ACERT
engine introduces a series of evolutionary,
incremental improvements that provide
breakthrough engine technology built
on systems and components developed
by Caterpillar with proven reliability.
The technology capitalizes on Caterpillar
expertise in four core engine systems:
fuel, air, electronics and after treatment.
ACERT technology is a unique and
revolutionary systems solution that
enables Cat engines to meet today’s
clean air regulations, thus establishing
the building blocks for attaining
tomorrow’s more stringent standards.
C11 Block. The one-piece, gray iron
block features generous ribbing for
stiffness and heavy bearing bulkheads
for rigidity and strength as the crankshaft
turns. Straight O-ring connection points
reduce the loss of engine oil and fluids.
Cylinder Head and Piston Technology.
The C11 has a cross-flow cylinder head
with refined port geometry, which
improves breathing and provides better
combustion. The Monotherm/steel
pistons have a forged steel design, which
offers high strength, light weight and
tighter tolerances. The result is better
oil control, minimal blow-by and long
liner life.
Advanced Diesel Engine Management
(ADEM) A4 Engine Controller.
The ADEM A4 electronic control
module manages fuel delivery to get
the best performance per liter or gallon
of fuel used. The engine management
system provides flexible fuel mapping,
allowing the engine to respond quickly
to varying application needs. It tracks
engine and machine conditions while
keeping the engine operating at peak
efficiency.
Fuel Delivery. Multiple injection
fuel delivery involves a high degree
of precision. Precisely shaping the
combustion cycle lowers combustion
chamber temperatures, generating
fewer emissions and optimizing fuel
combustion. This translates into more
work output for your fuel cost.
Noise Reduction Technologies.
Noise reduction has been achieved
through design changes to the isolated
top cover, oil pan, multiple injection
strategy, insulated timing case cover,
sculpted crankcase and gear train
refinements.
4
Cat C11 Engine with ACERT Technology
A combination of proven systems and innovative new technologies, ACERT engines optimize
performance while meeting EPA Tier 3 and EU Stage 3a engine exhaust emission regulations.
Page 5
Mechanically Actuated Electronic
Unit Injection (MEUI). A highly evolved
fuel system with a proven record of
reliability in the field. It combines the
technical advancement of an electronic
control system with the simplicity
of direct mechanically controlled unit
fuel injection. It excels in its ability
to control injection pressure over the
entire engine operating speed range.
These features allow the C11 to have
complete control over injection timing,
duration, and pressure.
Air-to-Air Aftercooling (ATAAC).
ATAAC keeps air intake temperatures
down and, in concert with the tight
tolerance combustion chamber
components, maximizes fuel efficiency
and minimizes emissions. Significant
improvements in airflow are generated
by a turbocharger, unique cross-flow
head and a single overhead camshaft.
Wastegate Turbocharging. Single
wastegate turbocharger provides higher
boost over a wide range, outstanding
low-end performance with improved
peak torque and enhanced engine
response.
Electronic Transmission. The Caterpillar
six-speed electronically controlled
transmission is designed specifically for
the articulated truck and its applications.
It features anti-hunt shift strategy for
speed continuity.
Electronic Clutch Pressure Control.
ECPC technology works with Controlled
Throttle Shifting to manage shift torque
and provide exceptional shift smoothness.
Controlled Throttle Shifting (CTS).
Significantly reduces power train stress
and clutch wear by controlling engine
speed, torque converter lock-up and
transmission clutch engagements.
Engine Overspeed Inhibitor. Electronic
Transmission Control (ETC) protects
against engine overspeeding by shifting
the transmission up one gear at specified
rpm settings. If the transmission is in its
highest gear, torque converter lockup
disengages.
Directional Shift Management.
Regulates engine speed during directional
shifts to prevent damage caused by
high-speed directional changes.
Programmable Top Gear Selection.
Electronic Transmission Control lets
you electronically limit top gear selection
without the use of additional service
tooling or mechanical limiting of
the shift cane.
Retarder. Integral retarder with
high-power density design. Due to its
compact size, the unit quickly fills with
oil, providing more retarding power
and fast response times.
Usable Rimpull. Power train components
work together to offer more usable
rimpull at higher speeds on effective
grades. In first gear, the torque converter
overcomes grade resistance by sending
more torque to the wheels and preventing
engine lugging. On downhill grades,
the retarder acts like a brake by slowing
the machine.
Hydraulic Fan. The remote-mounted
hydraulic fan is temperature sensitive
providing variable speeds when needed,
which minimizes power requirements.
The result is more power to the ground
and faster cycle times.
5
Performance and Productivity – Power Train
Integrated power train with more power, greater performance and lower fuel consumption –
the power to do more work.
Page 6
Front Suspension. The three-point front
suspension permits the axle to oscillate
±6°, softening impact loads on structures
and components and providing a smooth
ride, so the operator can travel at speed
over rough terrain.
A-Frame Construction. The front
suspension uses an oscillating A-frame
with a lateral tie rod to control axle
sideways movement.
Front Suspension Cylinders. Large bore,
low pressure cylinders are purpose
designed for tough applications and
offer a soft, smooth ride.
Mounting Points. Suspension mounting
points are integrated into the axle housing,
increasing reliability.
Rear Suspension. Features a walking
beam geometry with Caterpillar designed
rear suspension mounts which provide
a reliable and stable ride for excellent
load retention.
Suspension Design. Center and rear
axle castings mount to A-frames, which
attach to the rear frame by lateral tie rods
and sealed, steel spherical bearings; steel
bearings increase load-carrying capacity.
The rugged low-maintenance system
allows oscillation and independent wheel
movement. The rear suspension design
optimizes stability, traction and flotation.
Traction Control. The traction control
system is comprised of a wet clutched
inter-axle differential and wet clutched
cross-axle differentials. All differentials
can be engaged and disengaged on-thego for maximum versatility. When used
together, the differentials provide
100 percent driveline locking.
Inter-Axle Differential Lock. Locks all
three axles in unison and modifies
torque distribution for excellent traction
in poor underfoot conditions and on
grades. It is operated by a switch
located at the footrest.
Cross-Axle Differential Locks.
Provides full driveline locking –
all three axles and all six wheels –
for maximum performance in the most
adverse conditions. Acts in unison with
the inter-axle differential lock when the
footswitch is actuated and the dashmounted switch is selected.
Exhaust Heat System. The body comes
exhaust heat ready.
Steering System. Cat articulated trucks
use a load-sensing steering system for
smooth, precise control. It features a
single, variable displacement pump.
Two double-acting, cushioned steer
cylinders allow the machine to articulate
45° to the left or right, permitting precise
positioning in tight areas. Its compact
Hand Metering Unit controls the
cylinders for responsive steering and
performance. An electronic secondary
steering system is standard.
Hydraulic Steering Cushioning System.
The 730 Ejector incorporates a
hydraulic cushioning system, resulting
in smooth, responsive steering. It also
increases operator comfort and reduces
shock loads to the machine components.
6
Performance and Productivity – Suspension and Traction Control
Suspension systems and traction control – delivering power to the ground in all conditions.
Page 7

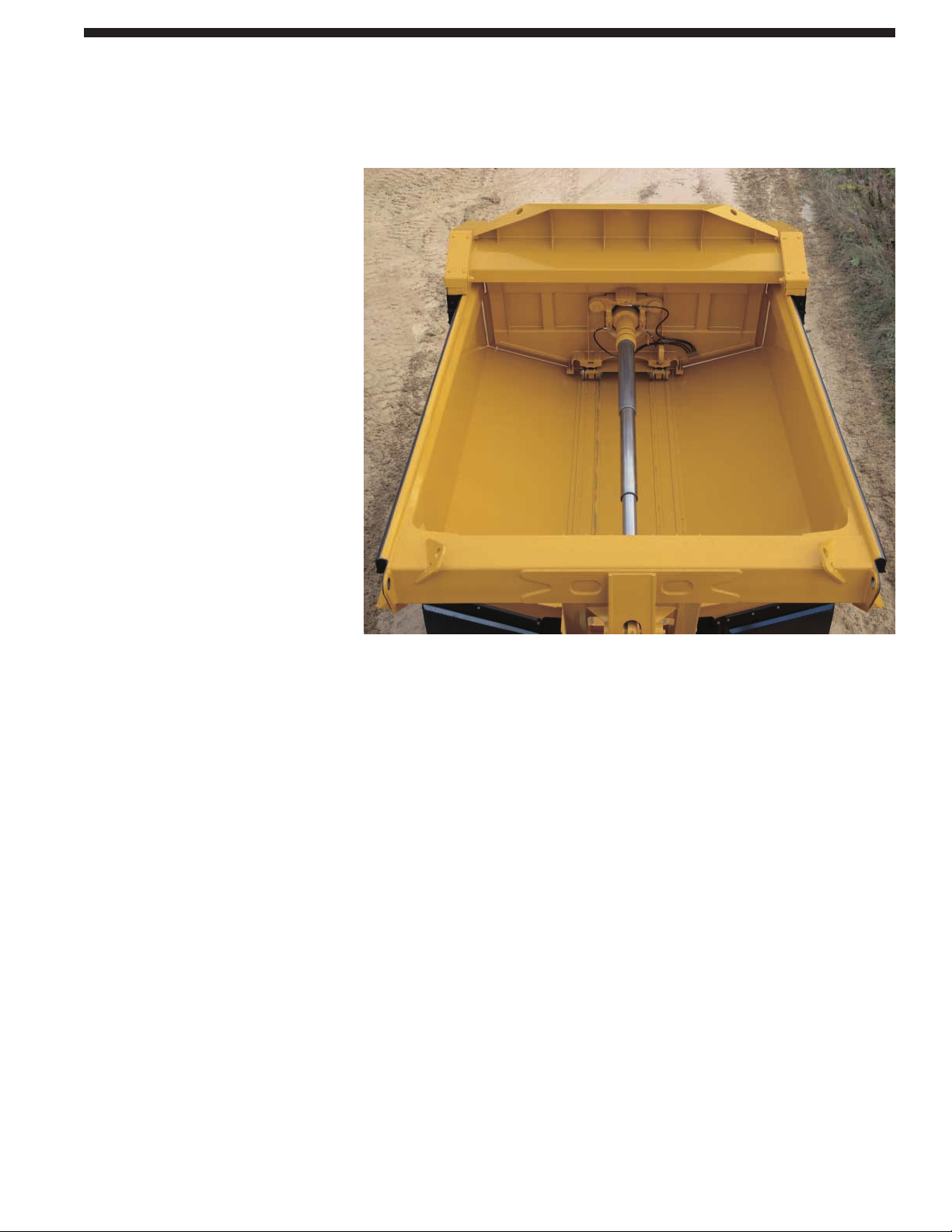

Ejector. The 730 Ejector is designed
to disperse the load on-the-go for faster
cycle times and lower spreading costs.
The ejector body also offers clean load
ejection and the capability to work in
areas with restricted overhead clearance
and soft underfoot conditions.
Versatility. The 730 Ejector is based
on the standard 730 Articulated Truck
and shares all its versatility. Similar in
design to the well proven 740 Ejector
model, the 730 Ejector can operate in
the same conditions. The 730 Ejector
offers a number of unique capabilities
that stretches the operation envelope.
Spreading. The truck can eject the
material and spread it out while moving,
reducing the size of additional spreading
and dozing equipment. This makes the
730 Ejector an ideal solution for road
building and landfill applications.
On-the-go ejecting results in faster cycle
times and reduced power train loads.
Stability. Ejecting the load without
raising the body increases stability,
allowing load dispersal on inclines,
side slopes, and in very soft underfoot
conditions such as landfill sites.
Generally, these conditions would be
unacceptable with a conventional truck,
but are ideal for the 730 Ejector.
Overhead Clearance. Because the body
is not raised when ejecting the load,
the truck can be utilized in areas with
reduced overhead clearance such as
when working around overhead lines,
conveyors, hoppers and bridges.
The ejector is also ideal for tunneling
and underground operations.
Carry-Back. The design of the ejector is
inherently self-cleaning and practically
eliminates material sticking to the body,
which increases productivity, improves
fuel efficiency and lowers cost per ton.
Body. Reinforced body is made from
thick high-yield, heat-treated Brinell
hardened steel (Brinell 450 on the base
and Brinell 400 on the sides) that provides
exceptional durability. Ejector top rails
are made from high-strength alloy steel.
For optimum durability and wear life,
the ejector body is designed to work in
applications where the material consists
of rocks smaller than 152 mm (6 in.)
in diameter.
Blade. The ejector blade is made from
high-strength steel and uses technology
similar to that proven in Cat wheel
tractor-scrapers.
Cylinder. A three-stage, high-speed,
double-acting cylinder is specifically
designed for horizontal mounting and
provides smooth load ejection. It is
centrally supported and nitride-hardened
to ensure a long service life.
Proven Technology. Much of the
730 Ejector design is carried over from
the standard Cat 730 Articulated Truck.
7
Performance and Productivity – Ejector
Designed to disperse the load on-the-go for faster cycle times and lower spreading costs.
Page 8
Front Frame. The front frame design
features a large box section and wide,
stiff frame beams to handle torque loads.
The divergent frame design decreases
stress in the hitch area and optimizes
suspension geometry. The frame design
makes maximum use of robotic welding
for increased durability.
Rear Frame. Twin-box construction
minimizes stress concentrations and
provides low weight with long life.
Castings. Front and rear frames make
extensive use of heavy-duty steel castings.
Suspension. Provides unparalleled
ride quality and protects the truck from
the most adverse road conditions by
absorbing shock loads that would
otherwise reach the frame.
Articulating/Oscillating Hitch.
The articulating hitch provides the
truck with steering articulation, and
the oscillation ensures all-wheel
ground contact in rough terrain.
Steer Cylinders In-Line with Hitch.
Steering cylinders are in-line with the
hitch, minimizing steer loads and stress
in the hitch area.
Hitch Construction. Two-piece bolted
hitch features a strong, durable cast
steel head bolted to a hard wearing
forged steel tube. The hitch tube has
large hardened bearing areas and
a hardened thrust face for reduced
maintenance and longer life.
Service Brakes. Features a dual-circuit,
all-wheel, three axle braking system.
Full-power hydraulic system actuates
self-cleaning caliper disc brakes with
independent front and rear circuits
and accumulators.
Parking Brake. Located on the center
axle in an elevated position out of the
dirt and designed to deliver higher heat
capacity and abuse resistance.
Cat Power Train Components.
The 730 Ejector features purposedesigned earthmoving components from
the engine through to the final drives.
Proven in articulated trucks and other
Cat equipment, these rugged building
blocks ensure long life and reliability.
Radiator Protection. The radiator is
located behind the cab for excellent
visibility. This design incorporates
three levels of protection:
1) Body Spill Guard.
2) Cab Steel Spill Guard.
3) High-Strength Surround.
8
Durability and Reliability
High availability leads to high productivity. Excellent durability keeps ownership costs low.
Page 9
Ride Comfort. The three-point front
suspension with its oscillating axle and
low-pressure ride struts, combined with
the center-mounted cab, offers unrivaled
levels of ride comfort for the operator
in all driving conditions. The operator
remains comfortable and productive
throughout the day.
Spacious Two-Person Cab.
The 730 Ejector features a large
two-person cab, offering comfortable
working space for both the operator
and trainer or trainee. All 700 Family
articulated trucks use the same spacious
cab design.
Air Suspension Seat. The air suspension
seat enhances operator comfort with a
cushioned upper high back, adjustable
damping with three settings, ride zone
indicator and adjustable lumbar settings.
It is fully adjustable to provide the
optimal driving position.
Storage Space. Plenty of storage space
to create a safe, secure and uncluttered
working environment.
Trainer Seat. Full-size trainer seat features
a fully padded seat with a backrest and
a wide, retractable seatbelt for a secure
and comfortable ride. The trainer seat
is positioned next to the operator seat,
giving both the operator and trainer a
clear view of the instrument panel,
controls and the road.
Heating/Ventilation/Air Conditioning.
Twelve vents provide air distribution
to keep the operator comfortable and to
provide rapid defrosting of all windows.
Heating, air conditioning and defrosting
are standard. The recirculation filter is
positioned for easy servicing.
Radiator Mounting. The radiator is
mounted at an angle to prevent heat
transfer to the cab.
Dual-Sliding Window. The right-hand
window is a dual-sliding window.
Opening this window with the left
rear-hinged window provides crossflow ventilation and enhanced
operator comfort.
Sound Levels. Cab mounts are designed
to reduce noise and vibration in the cab.
All connections to the cab are resiliently
mounted. The operator’s station makes
extensive use of sound-absorbing and
barrier materials to keep sound levels low.
Steering Column. A comfortable driving
position is provided by a telescopic and
tilt steering column.
9
Operator Comfort
The operator’s office – high productivity from a comfortable, motivated operator.
Page 10
Ergonomic Layout. The controls and
layout of the cab are designed to make
it as easy to operate as your car. Quick,
easy to read and simple to operate, the
controls and gauges allow the operator
to concentrate on production.
Dash. The Generation II wrap-around
dash puts all controls within easy reach of
the operator. Featuring LED illuminated
rocker switches, large LCD display and a
rear wash wipe rocker switch. It provides
an automotive feel with the industrial
strength you would expect from
Caterpillar.
Viewing Area. The low sloping hood
and placement of the cooling package
behind the cab give the operator excellent
all-around visibility. The large glass
area and central operator position also
provide excellent visibility.
Wipers. The wet arm wiper system
cleans more glass area and is bottommounted to keep it out of the operator’s
line of sight. Windows are tinted to
reduce glare.
Differential Lock Controls. The inter-axle
differential lock is engaged/disengaged
by using a raised switch incorporated into
the drivers foot rest, for ease of operation.
For 100% lock up, all three cross-axle
differential locks act in unison with the
inter-axle differential lock when the foot
switch is activated and a dash mounted
switch is selected. Disengaging the foot
switch opens all differential locks
immediately.
Transmission and Ejector Levers.
Finger tip controls allow easy operation
and low effort. The ejector and
transmission levers are positioned
for easy, comfortable operation, along
with the control for top gear limit,
transmission hold and neutral lock.
Blade Retraction Sequence. The ejector
blade returns to the loading position as
soon as the blade retract sequence is
initiated. The transmission is held in
the gear selected for the ejecting cycle
until this sequence is completed and the
ejector control lever is returned to the
float position.
Suspended Pedals. Easy to operate and
reach with plenty of leg and foot room.
Suspended pedals also make it easier
to clean the cab floor by keeping the
pedals out of the dirt.
Cat 2S Monitoring System. Provides an
improved method of monitoring critical
machine functions and alerts the operator
to an immediate or impending problem.
The system provides four levels of
warning.
10
Ease of Operation
Designed for simple, easy operation, the 730 Ejector allows the operator to focus on production.
Page 11

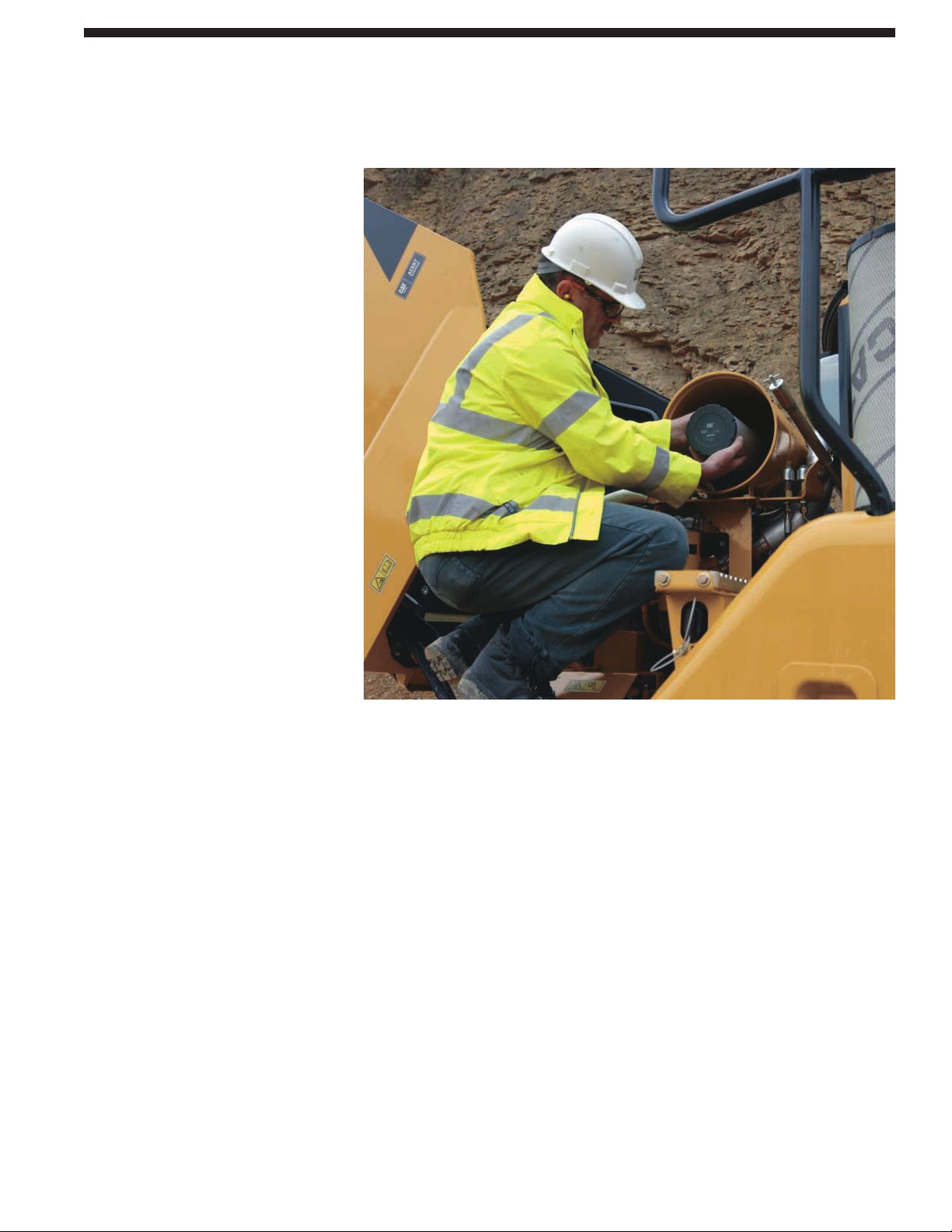

Long Service Intervals. Long engine oil
change and hydraulic oil change intervals
lower maintenance costs and downtime.
Wheel bearing adjustment is completely
eliminated.
Lube Points. Lube points are grouped at
the rear of the front frame and the front
of the rear frame. Universal joints are
lubed for life, eliminating servicing.
Autolube is optional.
Service Points. Engine and transmission
dipstick and fill caps, air and fuel filters,
and fuel priming pump are all mounted
on the left side of the engine under the
hood. Coolant level indicator and fill
cap are outside the cab.
Radiator. The radiator package is
located behind the cab, which provides
protection from frontal impacts and
offers access to both inlet and outlet
sides of the radiator.
Extended Life Coolant. Extends the
change interval and improves water pump
life by reducing aluminum corrosion.
Hood. The hood is raised and lowered
electrically, requiring minimal operator
effort when servicing.
Electrical Service Center. Located inside
the cab, this service center provides a
power port, diagnostic connector and
Cat Data Link connector.
Cat Data Link Connector. Provides a
connection point for a laptop computer
running Electronic Technician (ET)
software. The Cat Data Link port
performs programming functions
on all electronic controls.
Service Access. The cab tilts to the side
to provide easy access underneath, which
simplifies servicing of the transmission,
drive shafts and hydraulic pumps.
Machine electrical and hydraulic
interfaces are located on the right side
of the cab, behind a removable cab
body panel.
Integrated Transmission Package.
The transmission integrates the
transmission pump, torque converter
and retarder into a single package.
Because the transmission is an integral
design, it eliminates many of the
external hoses, resulting in less
servicing and higher reliability.
Engine and Transmission Removal.
The front frame design allows the
engine and transmission to be removed
and installed in one piece.
Truck Transport. The suspension system
design eliminates the need to lower the
suspension when transporting the truck,
reducing maintenance and downtime.
Output Transfer Gear. Provides lubrication
of all bearings and clutches using a
distributed-pressure lubricated and
filtered system. Good lubrication
translates into less service and repair.
11
Serviceability
More time on production, less time and money spent on servicing.
Page 12
Selection. Make detailed comparisons
of the machines you are considering
before you buy. What are the job
requirements, machine attachments
and operating hours? What is your need
for machine availability and do you
have the proper loading tool match?
Your Cat dealer can help.
Purchase. Look past the initial price,
look at the value the 730 Ejector offers.
Consider the resale value, compare
productivity and day-to-day operating
costs and fuel efficiency. Consult your
local Cat dealer for financing options.
Operation. For the best operating
techniques to increase productivity
and your profit, turn to your Cat dealer
for the latest training literature and
trained staff.
Maintenance. Repair option programs
guarantee the cost of repairs up front.
Diagnostic programs such as S•O•S
SM
and Technical Analysis help you avoid
unscheduled repairs.
Replacement. Repair or rebuild?
Cat articulated trucks are designed for
longer life with rebuildable components.
Your Cat dealer can help you evaluate
the cost involved so you can make the
right choice.
Product Support. The 730 Ejector
offers easy maintenance with combined
service points and extended service
intervals to keep the machine running
longer. Your local Cat dealership will
be with you every step of the way with
its unsurpassed worldwide parts support,
trained technicians and customer
support agreements.
Warranty. Your local Cat dealer is there
to support and protect you. Extended
warranty options are also available.
www.cat.com. For more complete
information on Cat products, dealer
services and industry solutions, visit
us on the Web at www.cat.com.
12
Complete Customer Support
Cat dealer services help you operate longer with lower costs.
Page 13
13
730 Ejector Articulated Truck specifications
Sound Levels
Interior Cab 76 dB(A)
• The operator sound exposure Leq (equivalent sound pressure
level) measured according to the work cycle procedures
specified in ANSI/SAE J1166 OCT 98 is 76 dB(A), for the
cab offered by Caterpillar, when properly installed and
maintained and tested with the doors and windows closed.
• Hearing protection may be needed when operating with an
open operator station and cab (when not properly maintained
or doors/windows open) for extended periods or in noisy
environments.
Operating Weights
Front Axle – Empty 13 980 kg 30,821 lb
Center Axle – Empty 5960 kg 13,140 lb
Rear Axle – Empty 5610 kg 12,368 lb
Total – Empty 25 550 kg 56,328 lb
Front Axle – Rated Load 900 kg 1,984 lb
Center Axle – Rated Load 13 610 kg 30,005 lb
Rear Axle – Rated Load 13 610 kg 30,005 lb
Total – Rated Load 28 120 kg 61,994 lb
Front Axle – Loaded 14 880 kg 32,805 lb
Center Axle – Loaded 19 570 kg 43,144 lb
Rear Axle – Loaded 19 220 kg 42,373 lb
Total – Loaded 53 670 kg 118,322 lb
Body Plate Thickness
Front 6 mm 0.24 in
Side 6 mm 0.24 in
Base 9 mm 0.35 in
Service Refill Capacities
Fuel Tank 360 L 95 gal
Cooling System 86 L 22.7 gal
Hydraulic System 125 L 33 gal
Engine Crankcase 37 L 9.8 gal
Transmission 36 L 9.5 gal
Final Drives/Differential 132 L 34.9 gal
Output Transfer Gear Box 18 L 4.8 gal
Engine
Engine Model Cat®C11 ACERT™
Gross Power – SAE J1995 242 kW 325 hp
Net Power – SAE J1349 237 kW 317 hp
Net Power – ISO 9249 239 kW 321 hp
Net Power – EEC 80/1269 239 kW 321 hp
Bore 130 mm 5.1 in
Stroke 140 mm 5.5 in
Displacement 11.15 L 680 in
3
• The power ratings apply at rated speed of 1,800 rpm when
tested under the conditions for the specified standard.
• The net power advertised is the power available at the
flywheel when the engine is equipped with alternator, air
cleaner, muffler and fan at minimum speed.
• Net power when the fan is at maximum speed is 225 kW
(302 hp) per the SAE reference conditions.
• The 730 Ejector meets EPA Tier 3/EU Stage 3a emission
specifications for the U.S. and Europe through 2010.
• No engine derating required below 3048 m (10,000 ft.).
Weights
Rated Payload 28.1 tonnes 31 tons
Body Capacities
Heaped SAE 2:1 16.9 m
3
22.1 yd
3
Struck 13.5 m
3
17.7 yd
3
Heaped SAE 1:1 20 m
3
26.2 yd
3
Transmission
Forward 1 7.64 km/h 4.75 mph
Forward 2 14.43 km/h 8.97 mph
Forward 3 21.95 km/h 13.64 mph
Forward 4 33.63 km/h 20.9 mph
Forward 5 46.82 km/h 29.1 mph
Forward 6 55.3 km/h 34.37 mph
Reverse 1 8.48 km/h 5.27 mph
Page 14
14
730 Ejector Articulated Truck specifications
Standards
Brakes SAE J/ISO 3450:1998
Cab/FOPS SAE J231:JAN81 and
ISO3449:1992 Level II
Cab/ROPS SAE J1040 May 1994 and
ISO 3471:1994
Steering ISO 5010 1992E
Ejector Cycle Times
Eject Time 12 Seconds
Retract Time 15 Seconds
Page 15
15
730 Ejector Articulated Truck specifications

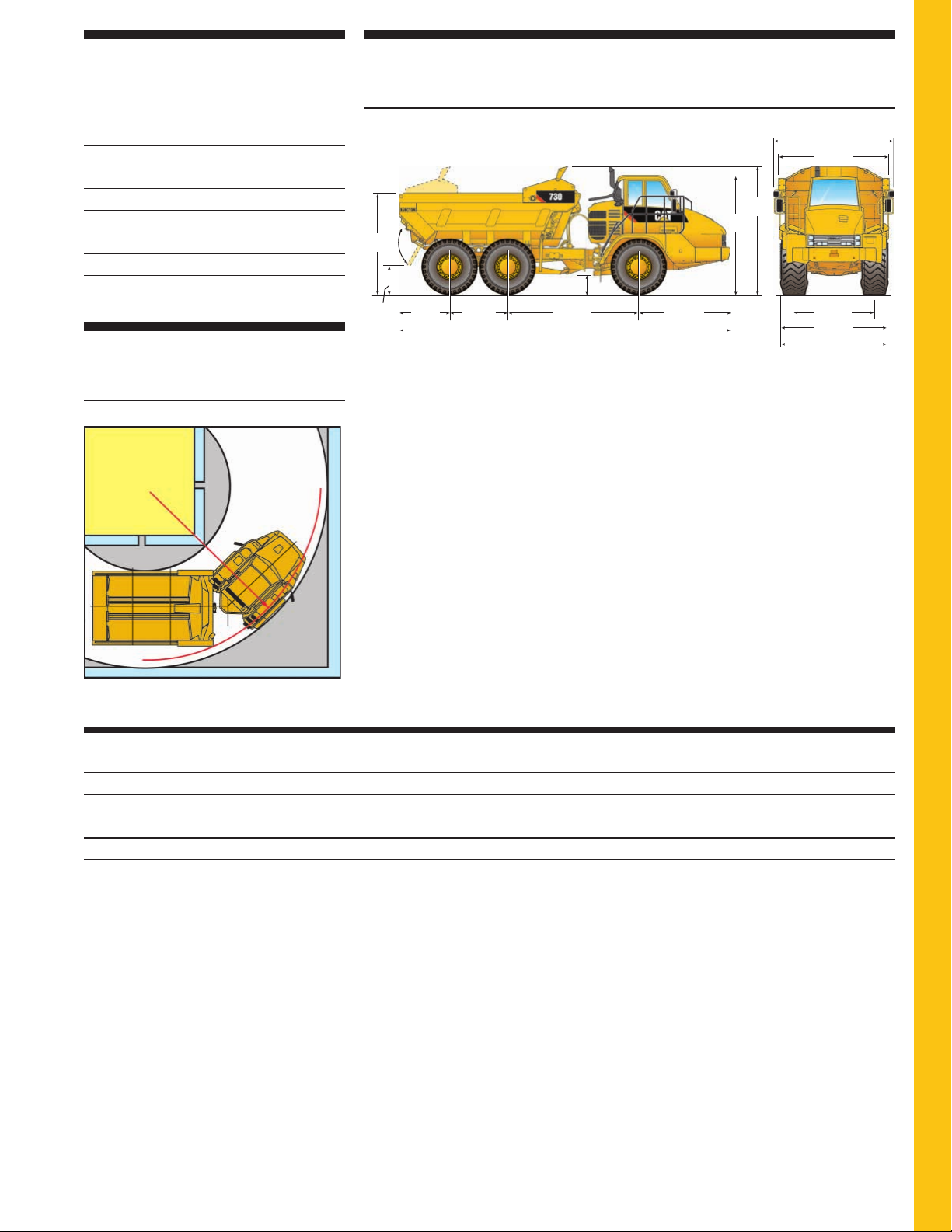

Turning Circle
W
Dimensions are for machines equipped
with 750/65 tires.
Turning dimensions
Dimensions
(approximate)
3544 mm
11.63'
3240 mm
10.62'
Steer angle — left/right 45°
SAE turning radius 7254 mm 285.6 in
Clearance radius 7694 mm 302.9 in
Inside radius 3575 mm 140.7 in
Aisle width 5166 mm 203.4 in
Steering
Lock to Lock 4.75 seconds @ 60 rpm
3050 mm
10.00'
905 mm
2.96'
1490 mm
4.8'
1700 mm
5.5'
495 mm
1.6'
3819 mm
12.5'
9730 mm
31.9'
2721 mm
8.9'
3755 mm
3455 mm
11.33'
12.32'
* Over fenders
2275 mm
7.46'
3042 mm*
9.98'
3065 mm
10.05'
Optimal Loader/Truck Pass Matching
Hydraulic Excavators 345C 330D
Passes 4-5 5-6
heel Loaders 972H 966H 962H 950H
Passes 3-4 4 4-5 5
An optimum system match gives you a major productivity advantage. The 730 Ejector is an excellent match for the Cat 345C and
330D Hydraulic Excavators; and Cat 972H, 966H, 962H and 950H Wheel Loaders. This results in increased production and lower
system costs per unit of volume moved.
Page 16
16
730 Ejector Articulated Truck specifications

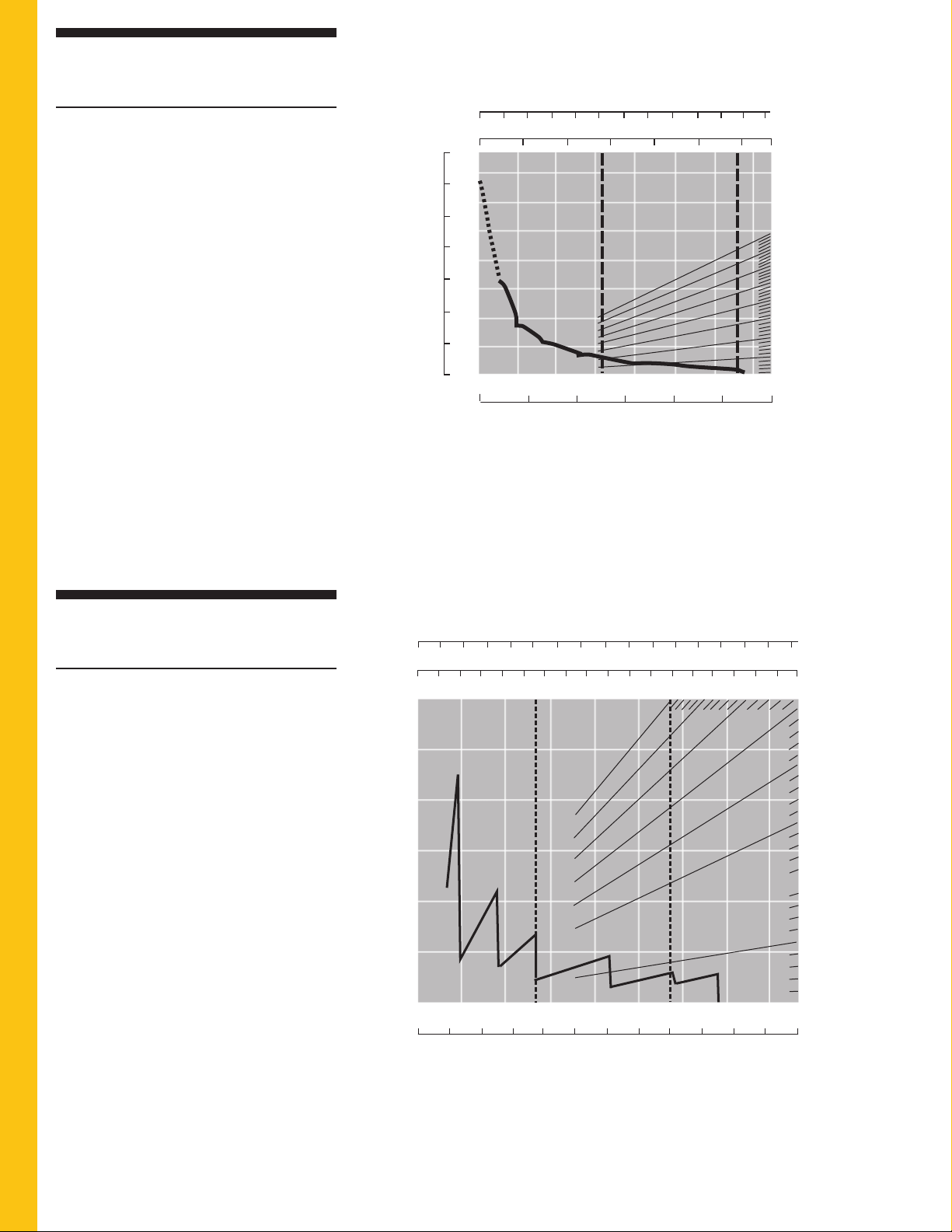

Gradeability/Speed/Rimpull
To determine performance, read from
Gross Weight down to % Total Resistance.
Total Resistance equals actual % grade plus
1% for each 10 kg/metric ton (20 lb/ton) of
Rolling Resistance. From this point, read
horizontally to the curve with the highest
attainable speed range. Then, go down to
Maximum Speed. Usable Rimpull depends
on traction available.
kg x 1000
35
30
25
20
15
RIMPULL
10
5
0
1A — 1st Gear
(Converter Drive)
1B — 1st Gear
(Direct Drive)
2 — 2nd Gear
EJECTOR*
GROSS WEIGHT
0
5 10 15 20 25 30 35 40 45 50 55 60
20 40 60 80 100 120
0
lb x 1000
70
60
50
1A
40
30
20
10
0
1B
2
0 5 10 15 20 25 30 35
0102030
E
3
4
5
6
40
50 60 km/h
SPEED
3 — 3rd Gear
4 — 4th Gear
5 — 5th Gear
6 — 6th Gear
E — Empty 25 550 kg (56,328 Ib)
L — Loaded 53 670 kg (118,322 Ib)
* at sea level
kg x 1000
lb x 1000
L
40%
35%
30%
25%
20%
15%
10%
5%
mph
TOTAL RESISTANCE %
(GRADE PLUS ROLLING RESISTANCE)
Retarding Performance
To determine performance, read from
Gross Weight down to % Effective Grade.
Effective Grade equals actual % favorable
grade plus 1% for each 10 kg/metric ton
(20 lb/ton) of Rolling Resistance. From this
point, read horizontally to the curve with
the highest attainable speed range. Then, go
down to Maximum Speed. Retarding effect
on these curves represents full application of
the retarder.
GROSS WEIGHT
0
10 20 30
60
40
200
40
50
60 8070
12010080 160 180140
40% 35% 30%
EL
1
2
3
4
5
510152025303540
0
0
10 20 30 40 50 60 km/h
6
kg x 1000
lb x 1000
25%
20%
15%
10%
5%
% EFFECTIVE GRADE (FAVORABLE)
mph
1 — 1st Gear
2 — 2nd Gear
3 — 3rd Gear
4 — 4th Gear
5 — 5th Gear
6 — 6th Gear
SPEED
E — Empty 25 550 kg (56,328 Ib)
L — Loaded 53 670 kg (118,322 Ib)
Page 17
17
730 Ejector Articulated Truck specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar dealer for details.
Seat, fully adjustable air suspension
Seat, padded companion/trainer
Seat belts, two retractable
Secondary steering – electronic
S•O•SSMsampling valves
Spill guard front, integral part of fabricated body
Starting receptacle, electric, remote
Storage: two cup holders, flask receptacle, under seat storage,
door pocket, behind seat storage, coat hook
Sun visor
Tailgate, hydraulic automatic
Three axle, six-wheel drive
Tilt and telescopic steering wheel
Tires, six 750/65/R25, radial
Tow pins front and rear
Vandalism protection: lockable caps for fuel tank and
hydraulic oil tank
Windows, opening side, tinted
Windshield wiper and washer, two speed, intermittent (front)
Windshield wiper and washer, two speed (rear)
Air conditioning with R134A refrigerant
Air vents, adjustable
Auto shift six-speed transmission
Back up alarm
Body, adapted for exhaust heat
Body including:
Ejector cylinder and blade with integrated spill plate
Cat C11 engine with ACERT Technology
CD/Radio ready
Differentials, standard with clutched cross-axle differential
locks for all axles
Dual circuit caliper disc brakes – all wheels
Electrical system, 24 volt, 5A 24- to 12-volt converter
Electro hydraulic hoist control
Ether starting aid
Glass windows, laminated and tinted (front), toughened
and tinted (rear)
Guards: rear window, radiator, crankcase and axle
Headlights, four
Heater and defroster with four-speed fan
Horn, electric
Lights: cab interior, front, side, rear, two reversing/working
lights, two stop/tail lights, front and rear direction indicators
Mirrors, main and auxiliary, left and right
Mud flaps, wheel arch and body mounted, with transportation
tie backs
Retarder
ROPS/FOPS cab, with full instrumentation, including:
– Instrument cluster display module
– Indicator lamps: left turn, secondary steering, primary
steering loss, front and rear brake temp (735/740 and
740 Ejector only), brake oil pressure, action lamp,
transmission fault, park brake, charging system status,
differential lock, body not in float, right turn, high beam,
transmission hold, machine filter warning, retarder,
retarder up shift warning
– Gauges: engine oil pressure, engine coolant temperature,
torque converter oil temperature, fuel level, and fuel tank
level gauge
– Meters: service hour meter, speedometer, tachometer
Page 18
18
730 Ejector Articulated Truck specifications
Optional Equipment
Optional equipment may vary. Consult your Caterpillar dealer for details.
Exhaust heated body
Fast fuel fill
Flashing Xenon Beacon
Heated rear-view mirrors
Product Link, Radio and Worldwide
Autolube installation for automatic greasing of bearings
Caterpillar Work Area Vision System (WAVS)
rear-view camera
CD/Radio, heavy duty
Cold weather start attachment
Cycle counter/operator monitoring kit
Page 19
730 Ejector Articulated Truck specifications
19
Notes
Page 20
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2007 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the
POWER EDGE trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.
AEHQ5634-03 (5-07)
Replaces AEHQ5634-02
730 Ejector Articulated Truck
R
Loading...
