Operating Instructions for the Powerbrushes
Instructions pour l’utilisation des brosses électriques
Manual de operaciones para los Cepillos eléctricos
SEB 213 / 213-2
SEB 217 / 217-2 / 217-3
en, fr, es - US, CA, MX
M.-Nr. 07 871 120
IMPORTANT SAFETY INSTRUCTIONS
Identifying the Components
Description of the Powerbrushes
Connecting the Powerbrush
Operation
Maintenance and Care
MESURES DE SÉCURITÉ IMPORTANTES Identification des pièces composantes Description des brosses électriques Raccordement de la brosse électrique Utilisation
Nettoyage et entretien
INSTRUCCIONES DE SEGURIDAD IMPORTANTES Información eléctrica
Identificación de las piezas Descripción de los cepillos eléctricos Conectando el cepillo eléctrico Operación
Mantenimiento y cuidados
2
en - IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, always observe basic safety precautions, including the following:
READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THESE ACCESSORIES FOR THE FIRST TIME.
KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE.
These accessories are intended for household use with a Miele vacuum cleaner only. Do not use it them on people or animals.
Damage can occur with improper use of these accessories, or if the accessories are used for purposes other than those for which they were designed. This includes connecting them to a non-Miele vacuum cleaner.
Use the accessories only as described in this manual.
To reduce the risk of fire, electric shock, or injury:
Do not use the vacuum outdoors or on wet surfaces.
Do not leave the appliance when plugged in. Unplug it from the outlet when not in use and before servicing.
The accessories are designed for direct connection to Miele vacuum cleaners ONLY. Do not use extension cords, modify the plugs, or attempt to connect any of the accessories to a non-Miele vacuum cleaner. Doing so could damage the powerbrush or other accessories and cause personal injury.
Only dry dirt should be vacuumed with these Accessoires.
The powerbrush, electric wands and electric hoses are not toys. Do not allow children to play with them, and pay close attention if they are used on or around children.
Check the voltage rating of the power-brush before connecting it to the vacuum cleaner. Your power supply should correspond to the voltage rating listed on the data plate of both the powerbrush and the vacuum cleaner. Use only AC outlets. Connecting the vacuum or powerbrush to a higher voltage than indicated on the data plate will damage the powerbrush and may result in personal injury.
If the appliances are not working correctly, have been dropped, damaged, left outdoors, or immersed in water, do not use them. Bring them to your Miele dealer for servicing.
Do not run the powerbrush over the vacuum cleaner cord or extension cords, and keep it away from heated surfaces.
3
en - IMPORTANT SAFETY INSTRUCTIONS
Do not handle the appliance with wet hands.
Turn off all controls before unplugging the vacuum or powerbrush.
Do not use the powerbrush to vacuum anything that may damage the rollers. Nails, safety pins, buttons, etc. should not be vacuumed.
The powerbrush will shut off automatically if the rollers are prevented from turning; for example if a large object has been vacuumed. Should this occur, unplug the vacuum cleaner before correcting the problem. Allow 2 - 3 minutes for this safety feature to reset itself before restarting the vacuum.
Keep hair, loose clothing, fingers and all parts of the body away from any openings or moving parts, and never touch a rotating roller brush.
Use extra care when vacuuming while on stairs.
Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or use it in areas where fumes may be present.
Do not use the vacuum or powerbrush to pick up liquids. This also applies to freshly shampooed carpets or rugs. Wait until they are dry before vacuuming.
Do not pick up items that are burning or smoking, such as cigarettes, matches, or hot ashes.
The vacuum and accessories should only be cleaned when disconnected from the power supply. Use a dry or slightly damp cloth ONLY. Never submerse the vacuum or accessories in water or use a dripping wet rag.
Use only Miele attachments and accessories. Use of non-Miele designed items will decrease the efficiency of your machine and may be dangerous.
Do not attempt any repairs other than those listed in the "Maintenance and care section. Any other required service should be performed by an Authorized Miele Service Agent.
Always unplug the machine before connecting or disconnecting any accessories from the vacuum cleaner.
SAVE THESE
INSTRUCTIONS
4
|
en - Identifying the Components |
Electric hose SES 100 or 105 |
Electric hose SES 113 |
|
5 |
en - Identifying the Components
Electric hose SES 116 |
|
|
|
Electric hose SES 117 |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
en - Identifying the Components
Electric hose SES 118 |
Electric hose SES 119 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7
en - Identifying the Components
Electric hose SES 125 |
Electric hose SES 130 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8
en - Identifying the Components
Electric Wand SET 210 / SET 220
The SET 210 / SET 220 is an electric wand that carries power to the Powerbrush through internal cabling. It can be identified by a small plug at the top rear and bottom rear of the wand.
9
en - Description of the Powerbrushes
SEB 213 |
SEB 217 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SEB 213 housing |
SEB 217 housing |
SEB 213 power cord |
Direct Connection |
Non-electric suction wand |
SET 210 / SET 220 |
10
en - Connecting the Powerbrush
Upright vacuums Connecting the SEB 217 to an upright vacuum cleaner.
11
en - Connecting the Powerbrush
Canister vacuums
The connection procedure will vary depending upon which vacuum, electric hose, suction wand and powerbrush model you purchased. Please find the combination of components you have on the following pages and use those instructions to connect the powerbrush to your vacuum cleaner.
12
en - Connecting the Powerbrush

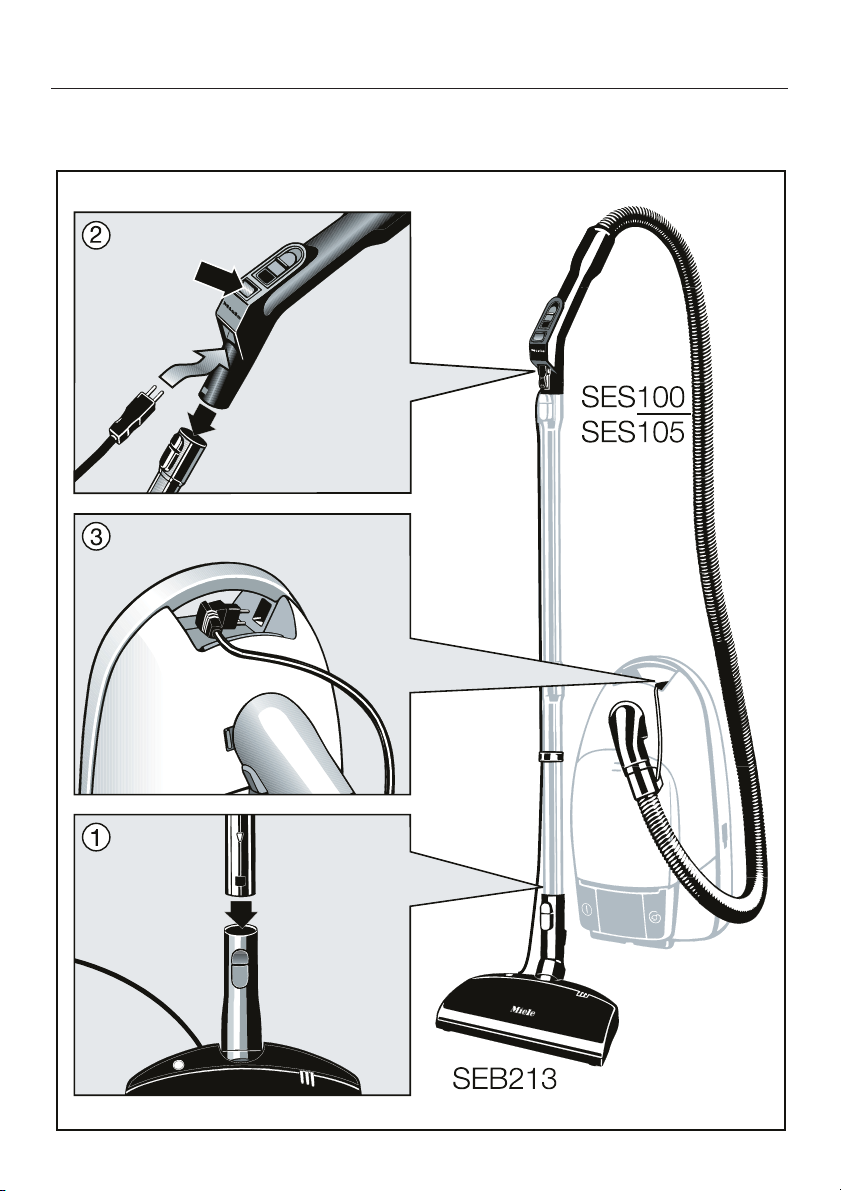

Combination 1 - SEB 213 and SES 100 or SES 105
13 |
en - Connecting the Powerbrush
Combination 2 - SEB 213-2 and SES 113 |
14 |
en - Connecting the Powerbrush
Combination 3 - SEB 217-2, SET 220 and SES 118 |
15 |
en - Connecting the Powerbrush
Combination 4 - SEB 217-3, SET 220 and SES 116 |
16 |
en - Connecting the Powerbrush
Combination 5 - SEB 217-3, SET 220 and SES 117 |
17 |
en - Connecting the Powerbrush
Combination 6 - SEB 217-3, SET 220 and SES 119 |
18 |
en - Connecting the Powerbrush
Combination 7 - SEB 217-3, SET 220 and SES 130 |
19 |
en - Operation
Recommended use
Observe the cleaning instructions of the floor manufacturer.
The Powerbrush is particularly suitable for cleaning and restoring crushed carpet pile of wall to wall carpeting and floor coverings subject to hard wear, especially in high traffic areas.
To clean hard flooring, it is better to use the floor brush.
Do not use the powerbrush on:
–Floors with a variable or uneven surface. The brush could come into contact with the floor and cause damage.
–High quality, hand knotted rugs, for example Berber or Persian rugs, as well as extremely long piled area rugs and carpets. There is a danger of the threads being pulled out. Turn the powerbrush off to vacuum these types of floor coverings and use only suction.
Turning on the Powerbrush
SEB 217 with an upright vacuum cleaner
The Powerbrush will start automatically when the vacuum cleaner is turned on.
SEB 213 and SEB 217
The powerbrush can only be turned on if the vacuum cleaner is also on. The switch that controls the power brush can be found on the hose handle.
Using the Powerbrush
To achieve the best results, slowly pass the Powerbrush back and forth over the carpet.
Operation
Indicator light
The electrobrush warning light has a double function.
It lights
–yellow, when the brush is in use
–red, if the brush roller is blocked. This can occur if enough threads wrap around it or if a large or long object has been vacuumed up.
Turn off the vacuum cleaner and unplug the power cord.
Remove the object preventing the roller from turning (see the "Maintenance and Care" section).
Wait approximately 2-3 minutes for this safety feature to reset before turning the vacuum cleaner back on.
20
en - Maintenance and Care
Always make sure the vacuum cleaner is unplugged and the Powerbrush is disconnected from the vacuum before attempting to clean or service the Powerbrush.
To remove threads or hair wrapped around the roller:
Cut the threads or hair using a pair of scissors. The pieces will be drawn into the Powerbrush by the suction power of the vacuum the next time it is used.
Stubborn tangles or other objects can be removed as follows:
Loosen the two lock screws on the bottom of the Powerbrush using a coin or screwdriver and remove the roller cover.
Pull up the roller brush until it releases from the main housing, and slide the drive belt over the end of the brush. The roller brush and roller brush compartment can now be cleaned.
