Operating instructions
Vacuum cleaners
S 560 / S 570
S 700 / S 800 series
These operating instructions apply to standard
models S 560 - S 578, S 711 - S 749
and S 812 - S 849 as well as to other models
which are distinguished by
names rather than numbers.
WO
M.-Nr. 06 050 861
Contents
Caring for the environment
Description of the appliance
Warning and Safety instructions
Preparing for use
Using the accessories
Floorhead. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Crevice nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Crevice nozzle extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dusting brush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Upholstery nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Operation
Unwinding and rewinding the mains cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Auto-reverse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Regulating the suction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Opening the air inlet valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Blowing out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting down, transportation and storage
Maintenance and care
Purchasing new dustbags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
When to change the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Replacing the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
When to change the exhaust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Exhaust filter change indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Replacing the "SUPER air clean" filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing the "ACTIVE air clean" filter and the "ACTIVE HEPA" filter . . . . . . . . . . 30
Replacing one type of filter with another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
When to change the dust compartment filter (motor protection). . . . . . . . . . . . . . 32
To replace the dust compartment filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
When to change the thread lifters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To replace the thread lifters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning and care
Problem solving guide
After sales service
Optional accessories
Electrical connection
2
Caring for the environment
Disposal of packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic, wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please recycle them.
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials, and can be disposed
of with the normal household waste, as
long as they have been used
exclusively for general household dust.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
3
Description of the appliance
Some models are supplied with a Miele Electrobrush or Turbobrush as standard
(not illustrated). These brushes are supplied with their own operating instructions.
4
Description of the appliance
a Hand piece
b Air inlet valve
c Locking button
d Telescopic tube *
e Slide control *
f Socket for Electrobrush * (only on models with a push button on the lid)
g Dust compartment lid catch
h Dust compartment filter (for motor protection)
i Dustbag
j Floorhead
k Carrying handle
l Parking attachment
m Exhaust filter *
n Mains cable with plug (plug varies depending on country)
o Cable rewind
p Suction power selector *
q Park system
r Exhaust filter change indicator (Re-set button 7) *
s Overheating warning light , *
t On / Off switch
u Accessories compartment
v Dustbag change indicator
w Release button for accessories compartment
x Hose connector
y Suction hose
The illustration shows the maximum number of features available on these Miele
vacuum cleaners.
Those features marked * depend on the model and may vary or not be available
on your model.
5
Warning and Safety instructions
Before using for the first time
This appliance meets statutory
safety requirements. Inappropriate
use can however lead to personal
injury and damage to property.
Read the operating instructions
carefully before starting to use this
appliance. They give important
information on the safety, operation
and care of the appliance. This way
you will prevent the risk of accident
or damage to the appliance. Please
keep these operating instructions in
a safe place for reference, and pass
them on to any future users.
Correct usage
This vacuum cleaner must only be
used in a domestic household
situation to vacuum dry floor surfaces.
Do not use on people or animals.
Any other usage is at the owner’s risk
and could be dangerous.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
Children
Do not let small children play with
the appliance or operate it. Please
supervise its use by older children and
the elderly or infirm.
packaging, the vacuum cleaner and
accessories for any signs of damage.
Do not use a damaged appliance.
frequency) match the mains electricity
supply. It is essential that they match to
avoid damage to the appliance.
Daily use
accessories and floor heads, especially
a Turbo- or Electrobrush.
dustbag, dust compartment filter and
exhaust filter in place.
normally close. Do not force it.
protect the user from electrostatic
discharges. Please make sure that you
keep your hand in constant contact with
this metal strip during vacuuming.
A damaged vacuum cleaner can
be dangerous. Check the
Ensure that the connection data on
the data plate (voltage and
It is important to switch the vacuum
cleaner off before changing over
To avoid the risk of damage, do not
use the vacuum cleaner without the
If a dustbag is not inserted, the
dust compartment cover does not
There is a metal inlay underneath
the handle, which is designed to
6
Warning and Safety instructions
Do not vacuum up liquids or damp
dirt. This will cause major faults
and could seriously impair the
functioning and electrical safety of the
appliance. Wait until any freshly
cleaned or shampooed carpets or floor
coverings are completely dry before
attempting to vacuum.
Do not vacuum up anything which
has been burning or is still glowing
e.g. cigarettes, ashes or coal, whether
glowing or apparently extinguished.
The cleaner might catch fire.
Do not vacuum up toner dust.
Toner, such as that used in printers
and photocopiers can conduct
electricity. The filter system in the
vacuum cleaner may not filter it
completely and so the toner could be
blown back into the atmosphere by the
fan.
Do not vacuum up any inflammable
or combustible liquids or gases
and do not vacuum in areas where
such substances are stored. The
cleaner might explode.
Do not pull or carry the appliance
by the cable. When disconnecting
from the mains socket pull by the plug
not by the cable.
- Keep the cable away from sharp
edges and do not let it be squashed,
for example, under a door.
- Avoid running the vacuum cleaner
over the cable.
A damaged cable, plug or socket is a
safety hazard. The appliance must not
be used if any of these have suffered
damage.
Monitor the change dustbag
indicator and change the dustbag
if necessary. Check the exhaust and
dust compartment filters at the same
time and change them too if necessary.
A full bag or blocked filter will reduce
the suction power of the cleaner. A
temperature limiter switches the
vacuum cleaner off automatically if it
gets too hot, see section "Problem
solving guide".
Do not vacuum up items which are
heavy, hard or have sharp edges.
They could cause a blockage and
damage the appliance.
Do not vacuum up building
materials such as plaster dust or
floor sanding dust. The filter system
may not completely filter all particles,
which may lead to a fire or explosion.
Floor attachments, accessories
and tubes must not be used at
head level to avoid the risk of injury,
e.g. to eyes and ears.
7
Warning and Safety instructions
Using accessories
The socket on the vacuum cleaner
(depending on model) must only
be used for the Miele Electrobrush
specified for use with this appliance.
To avoid the risk of injury when
vacuuming with a Miele Electro- or
Turbobrush do not touch the rotating
roller brush.
It is not advisable to vacuum
directly with the handle, i.e. without
an accessory attached as the rim could
get damaged and you could hurt
yourself on sharp edges. Danger of
injury.
Miele vacuum cleaner bags are
disposable and intended to be
used only once. Do not attempt to
re-use. Blocked pores reduce the
efficiency of the cleaner.
Use only genuine Miele dustbags,
filters and accessories. This ensure
optimum performance of the vacuum
cleaner throughout its life.
Cleaning, maintenance and
repairs
Repairs may only be carried out by
a suitably qualified and competent
person in accordance with national and
local safety regulations. Repairs and
other work by unqualified persons
could be dangerous.
If the cable is damaged it should
be replaced together with a
complete cable rewind by a Miele ser
vice technician.
-
Disposing of an old appliance
When disposing of an old
appliance cut the cable off the
appliance as close to the cleaner as
possible and cut the plug off. The plug
cut from the cord should be rendered
useless and then disposed of and on
no account be inserted into any socket
elsewhere in the house (electric shock
hazard). See section "Disposal of your
old appliance" earlier in this booklet for
further advice.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Always disconnect the vacuum
cleaner from the mains supply for
maintenance work and for cleaning.
Switch off at the wall socket and
remove the plug. Pull on the plug and
not the cable.
Do not let the vacuum cleaner get
wet. Clean only with a dry cloth or
slightly damp cloth when disconnected
from the mains supply. If moisture gets
into the appliance there is the risk of an
electric shock.
8
Attaching the suction hose
Insert the hose connector into the
^
suction socket until it clicks into
position.
To remove the suction hose
from the cleaner
^ Press the release buttons at the side
of the hose connector and lift the
hose from the socket.
Preparing for use
Connecting the suction hose
and the suction tube
^
To fit the handpiece of the suction
hose into the suction tube, line up the
guides on both parts and push in
until they audibly lock together.
^
To release the hand piece from the
suction tube press the locking button
(see arrow) and pull the hand piece
away from the suction tube.
9
Preparing for use
Connecting the suction tube
sections
(depending on model)
Both sections of the suction tube have
locating arrows marked on them. When
connecting the two sections, ensure
that the two arrows point towards each
other.
Adjusting the telescopic
suction tube
(depending on model)
One part of the telescopic tube is
packed inside the other and can be
adjusted to suit your height for
comfortable vacuum cleaning.
^ Press the telescopic tube release
button (see arrow) to release the
tubes and adjust to the required
height.
Adjusting the triscopic suction
tube
(depending on model)
The triscopic tube has three sections.
Two sections are packed into a third
outer tube.
^
Press release button a on the bottom
tube and pull the tube out as far as it
will go. It will click into position.
Press release button a to push the
tube back in again. It will engage
with a click.
^
Press button b to release the
telescopic tubes and adjust to the
required height.
10
Attaching the floorhead
Push the suction tube into the
^
floorhead and turn it clockwise or
anti-clockwise until it clicks into
position.
To release the floorhead from the
^
suction tube, press the locking button
(see arrow) and pull the suction tube
away from the floorhead.
The floorhead can be used for all
normal cleaning of carpets and rugs. It
can also be used with the brush
protruding to vacuum hard flooring
which is not susceptible to scratching.
For hard flooring, such as stone and
floors which are susceptible to
scratching, e.g. parquet, we
recommend using the special Miele
floor brush (see "Optional
accessories").
Preparing for use
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
Vacuum carpets and rugs with the
brush retracted:
^
Press the foot switch to the
position.
Clean hard flooring which is not
susceptible to scratching with the brush
protruding:
^
Press the foot switch to the
position.
ö
ä
Electrobrush / Turbobrush
Some models may be supplied as stan
dard with an Electrobrush or a Turbobrush in addition to the normal floorhead (see "Optional accessories").
-
Please refer to the separate operating
instructions supplied with these
brushes for instructions on use and
maintenance.
11
Preparing for use
Accessories supplied
Other tools, in addition to the floorhead(s), are supplied with the vacuum
cleaner to help deal with various types
of cleaning.
a Crevice nozzle
b Crevice nozzle extension
(depending on model)
c Dusting brush
d Upholstery nozzle
e Filter grille
The filter grille e is supplied separately
in the box only with those models which
are fitted with an "ACTIVE air clean" or
"ACTIVE HEPA" exhaust filter as standard. The filter grille is required if you
wish to replace one of these filters with
a "SUPER air clean" filter.
Adapter and blower
connection socket
(depending on model)
The adapter and blower connection
socket enable the vacuum cleaner to
be used for blowing out air, e.g. for
dusting off multi-layered radiators and
blowing dust out of inaccessible
corners (see "Operation - Blowing out").
12
To open the accessories
compartment
Press the release button and the lid
^
will open.
^ Take out the accessory you require.
^ Press down firmly on the lid to close
it.
Preparing for use
S 812 - S 849 series accessories
compartment
The extension for the crevice nozzle is
located in the compartment underneath
the crevice nozzle.
13
Using the accessories
The different tools can either be fitted to
the hand-piece or, as required, to the
suction tube.
Floorhead
Also for cleaning stairs.
Crevice nozzle
For cleaning in folds, crevices or
corners.
Crevice nozzle extension
(depending on model)
This accessory can be used to extend
the length of the crevice nozzle. Further
length is provided by pulling out the
inner section.
^
Press the locking button to pull the
extension piece out or to push it in.
14

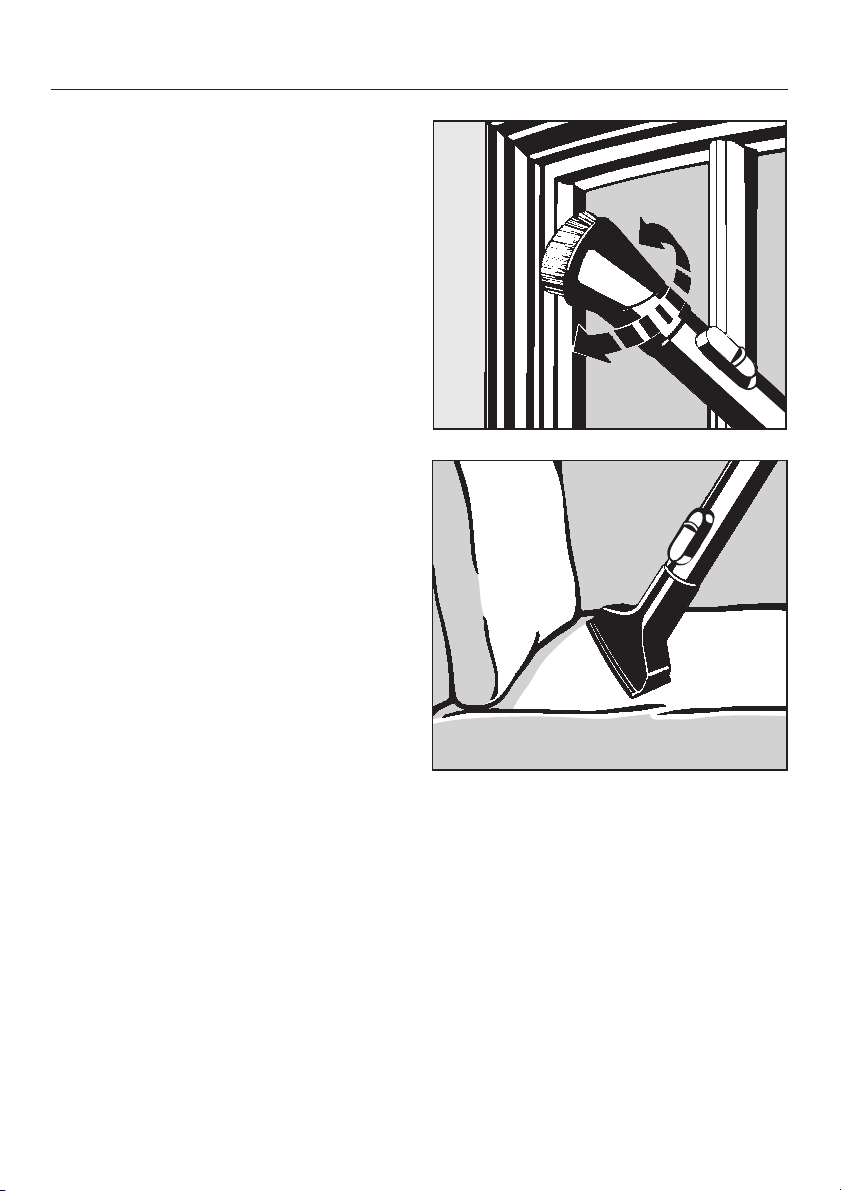

Dusting brush
For cleaning skirting boards, ornate or
carved articles, etc. The head of the
dusting brush can be swivelled to attain
the best cleaning position.
Upholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
Using the accessories
15
Operation
Unwinding and rewinding the
mains cable
Unwinding

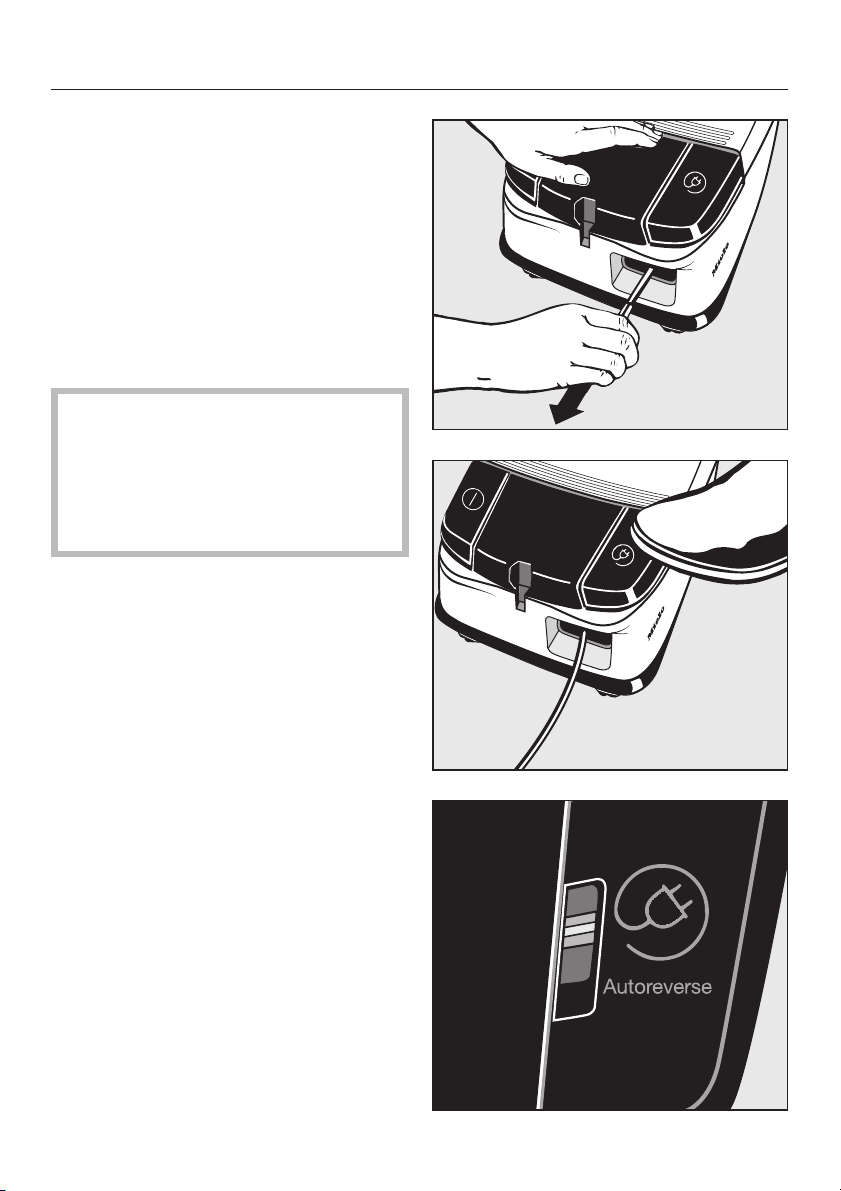

Hold the plug and unwind cable to
^
the required length:
S 560 - S 578: max. approx. 6.5 m
–
S 711 - S 749: max. approx. 6.5 m
–
S 812 - S 849: max. approx. 8.5 m
–
If vacuuming for longer than 30
,
minutes, pull the cable out to its
fullest extent, even when working
close to the wall socket. Otherwise
there is a danger of overheating and
damage.
Rewinding
^ Switch off at the wall socket and
remove the plug.
^ Press the rewind switch. The cable
will rewind automatically.
Auto-reverse
(depending on model)
To switch on this function, move the
slide switch to "Auto-Reverse". When
this function is switched on the rewind
brake on the cable drum is released. It
pays out the exact amount of cable
required and gathers in excess cable
so that the cable automatically adjusts
itself to the distance between the
appliance and the wall socket.
16
Switching on and off
Press the On-Off switch.
^
Vacuuming
When vacuuming pull the cleaner
^
behind you on its wheels. You can
stand it upright for vacuuming stairs
and curtains etc.
When vacuuming especially fine
,
dust, e.g. sawdust, sand, plaster,
flour, talcum powder etc.,
electrostatic charges build up
naturally. Under certain conditions
these charges will be released. To
avoid the unpleasant effects of these
discharges, a metal inlay has been
incorporated into the underside of
the handle. Please make sure that
you keep your hand in constant
contact with this metal strip during
vacuuming.
Operation
17
Operation
Regulating the suction
The suction power can be regulated to
suit the type of flooring. The higher the
wattage the more powerful the suction.
Reducing the suction power reduces
the amount of effort required to
manoeuvre the floorhead. Setting the
suction power selector according to the
degree of soiling and type of flooring
being cleaned will save energy. Smooth
or lightly soiled flooring is easily
cleaned using the Economy setting.
Fitted carpets and thick pile carpets
require the most powerful setting to
remove ingrained soiling.
Some models also have symbols on the
controls. The symbols indicate the type
of use the settings are suitable for.
a - curtains, lightweight fabrics
b - upholstery, cushions
c - thick pile carpets, rugs and
runners
d - for energy-saving daily use
e - lightly soiled textured carpets
f - textured hard flooring, and for
intensive cleaning of carpets
The controls vary from model to model.
These are described on the following
pages.
18
Rotary selector
Turn the rotary selector manually to
^
the suction power setting you require.
Operation
Slide selector
^
Move the slide selector manually to
the suction power setting you require.
19
Operation
+ / - controls
Press the controls to select the suction
power you require.
Press the
^
setting.
Press the
^
setting.
When switched on the vacuum cleaner
operates at the power setting last used.
A single short press on the control
moves the suction power up or down
one setting at a time. If the control is
held down, the suction power setting
will automatically move through the
power settings until the control is
released.
+ control to select a higher
- control to select a lower
+ / - controls with Automatic
setting
There are six power settings and an
Automatic setting available. The display
shows the power level in watts.
^
Press the + control to select a higher
setting.
^
Press the - control to select a lower
setting.
When switched on the vacuum cleaner
operates at the power setting last used.
A single short press on the control
moves the suction power up or down
one setting at a time. If the control is
held down, the suction power setting
will automatically move through the
power settings until the control is
released.
20
Automatic setting
If the Automatic setting is chosen the
vacuum cleaner automatically adjusts
the suction power to suit the surface
being cleaned. This ensures the correct
power setting for the type of floor or
carpet being cleaned.
Keep pressing the - control until the
^
Automatic setting is activated.
Press the + control to de-activate the
^
Automatic setting.
Do not use the Automatic setting
,
to vacuum lightweight materials or
curtains. These could be sucked in
and possibly damaged.
Operation
Opening the air inlet valve
Opening the air inlet valve reduces the
suction power quickly for brief periods,
e.g. to prevent damage to the fringes of
a rug when moving from cleaning a
carpeted floor to a rug, or to prevent
something being vacuumed up by
mistake.
^
Open the air inlet valve far enough to
reduce the suction power.
The floorhead will be easier to
manoeuvre. Close the valve up again
when you are ready to use full power
again.
21
Operation
Blowing out
(depending on model)
The adapter is used to attach the
suction hose connector to the blower
connection socket so that the vacuum
cleaner can be used to blow out air,
e.g. for dusting off multi-layered
radiators and blowing dust out of
inaccessible corners so that it can be
vacuumed up. It can also be used to
blow out the suction hose if it gets
blocked.
^ Press the release button for the dust
compartment lid and raise up the lid
up as far as it will go.
^ Take out the exhaust filter or the filter
grille if this has been fitted and
replace with the blower connection
socket.
^ Close the dust compartment lid.
^
Attach the adapter to the hose
connector.
^
Now open the accessories
compartment and insert the adapter
into the blower outlet.
After use, pull firmly on the adapter to
remove it from the hose connector.
Remove the blower connection socket
and refit the exhaust filter or filter grille.
22
Setting down, transportation and storage
Park system
A Park system has been designed for
conveniently parking the vacuum
cleaner during pauses.
Fit the lower clip on the floorhead into
^
the slot on the back of the vacuum
cleaner from above (see illustration).
Switching on and off with the Park
system
(depending on model)
Parking the floorhead in this way whilst
vacuuming automatically switches off
the cleaner. Lifting the floorhead out of
the Park system switches the cleaner
on again.
If your vacuum cleaner is equipped
with + / - suction power selector
controls you can de-activate or activate
the Park system’s On-Off function.

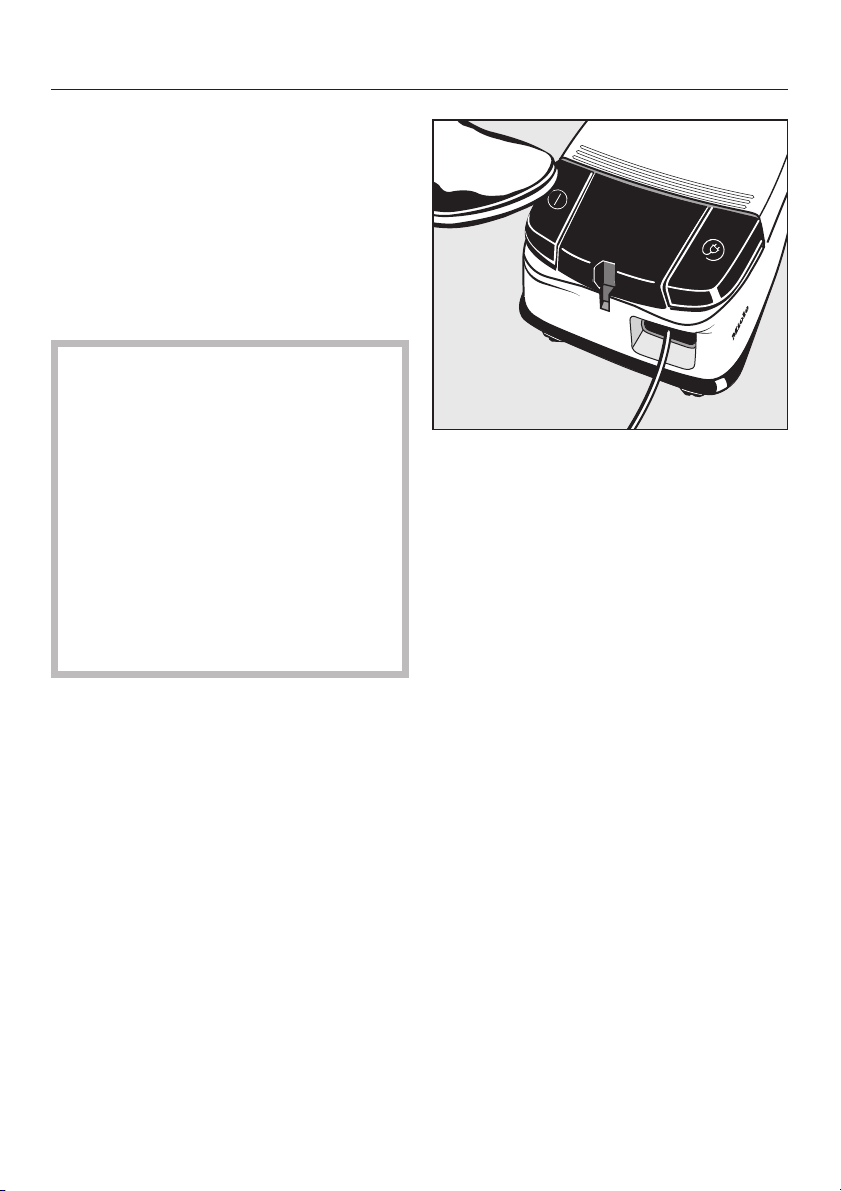

^ Switch the vacuum cleaner off with
the On-Off switch.
^
Press and hold the + and - controls in
and at the same time switch the
vacuum cleaner on with the On-Off
switch.
Transportation and storage
^
Stand the vacuum cleaner upright
when it is not being used and during
storage.
^
Fit both clips on the floorhead into the
two point holder on the side of the
cleaner.
This makes the cleaner easier to carry
or store.
23
Maintenance and care
Always disconnect the vacuum
,
cleaner from the electrical supply for
maintenance work and for cleaning.
Switch off at the wall socket and
remove the plug.
The Miele filter system consists of three
filters.
Dustbag
–
Exhaust filter
–
Dust compartment filter (for motor
–
protection)
These will need to be replaced from
time to time to ensure that your vacuum
cleaner performs efficiently.
Use only genuine Miele dustbags,
filters, accessories and optional
accessories. This ensures optimum
performance of the vacuum cleaner
and that the dustbag is used to
capacity.
Purchasing new dustbags and
filters
Replacement dustbags and filters can
be obtained from your local Miele
Dealer or directly from the Miele Spare
Parts Department.
When ordering dustbags for your
vacuum cleaner ask for bags with the
code
F/J/M for models S 560 - S 578 and
–
S 711 - S 749
G/N for models S 812 - S 849.
–
Always quote the model number given
on the data plate located underneath
the appliance.
A "SUPER air clean" filter and a dust
compartment filter are supplied with
every packet of Miele dustbags.
If you wish to purchase exhaust filters
or dust compartment filters separately,
please quote the model number of your
appliance when ordering to ensure you
get the correct items.
24
You can replace the exhaust filter
supplied with the vacuum cleaner with
one of the other Miele exhaust filters if
you wish (see "Replacing one type of
filter with another").
When to change the dustbag
Change the dustbag when the colour
marker in the dustbag change indicator
fills the display.
Dustbags are designed for single
use only. Do not attempt to re-use
them as suction would be reduced.
Checking the dustbag change
indicator
Attach the standard floorhead to the
^
suction tube. Do not use any of the
other floorheads or attachments as
they will cause the dustbag change
indicator to give a false reading.
^ Switch the vacuum cleaner on and
turn the rotary selector (if applicable)
to the highest power setting.
^ Lift the floorhead off the floor a little. If
the red marker completely fills the
dustbag change indicator you should
replace the dustbag with a new one.
Maintenance and care
How the dustbag change indicator
works
The indicator is designed to measure
the air permeability of a dustbag
containing common household dust.
Normal household dust would contain a
mixture of dust, hair, carpet fluff,
threads, grit etc.
However, if the vacuum cleaner has
been used to suck up fine dust, such
as plaster, brick dust, cement or flour,
the pores of the dustbag become
blocked very quickly. This affects the
air permeability of the bag and the
marker will indicate that the bag is "full"
even when it is not. If this happens you
must still change the dustbag because
suction power will be greatly reduced
by blocked pores in the dustbag.
If, on the other hand, you have
vacuumed up a lot of hair and carpet
fluff which typically contains a lot of air
the indicator may fail to react even
though the bag is full. You should still
change it!
Both these extremes can occur.
25
Maintenance and care
Replacing the dustbag
Press the release button for the dust
^
compartment lid and raise the lid as
far as it will go.
^ To remove the dustbag hold the bag
by the collar and pull it out of its
holder.
The dustbag has a closing flap which
closes automatically when the dustbag
is removed to prevent any dust
escaping.
It can then be disposed of with the
normal household waste as long as it
has only been used for vacuuming up
normal household dust.
Do not unfold the new bag when you
take it out of the packet. This way it will
not get trapped when you shut the dust
compartment lid again.
^
To insert a new dustbag, push the
collar securely into the frame as far
as it will go. Otherwise you will not be
able to shut the lid.
^
Close the dust compartment lid
firmly.
26

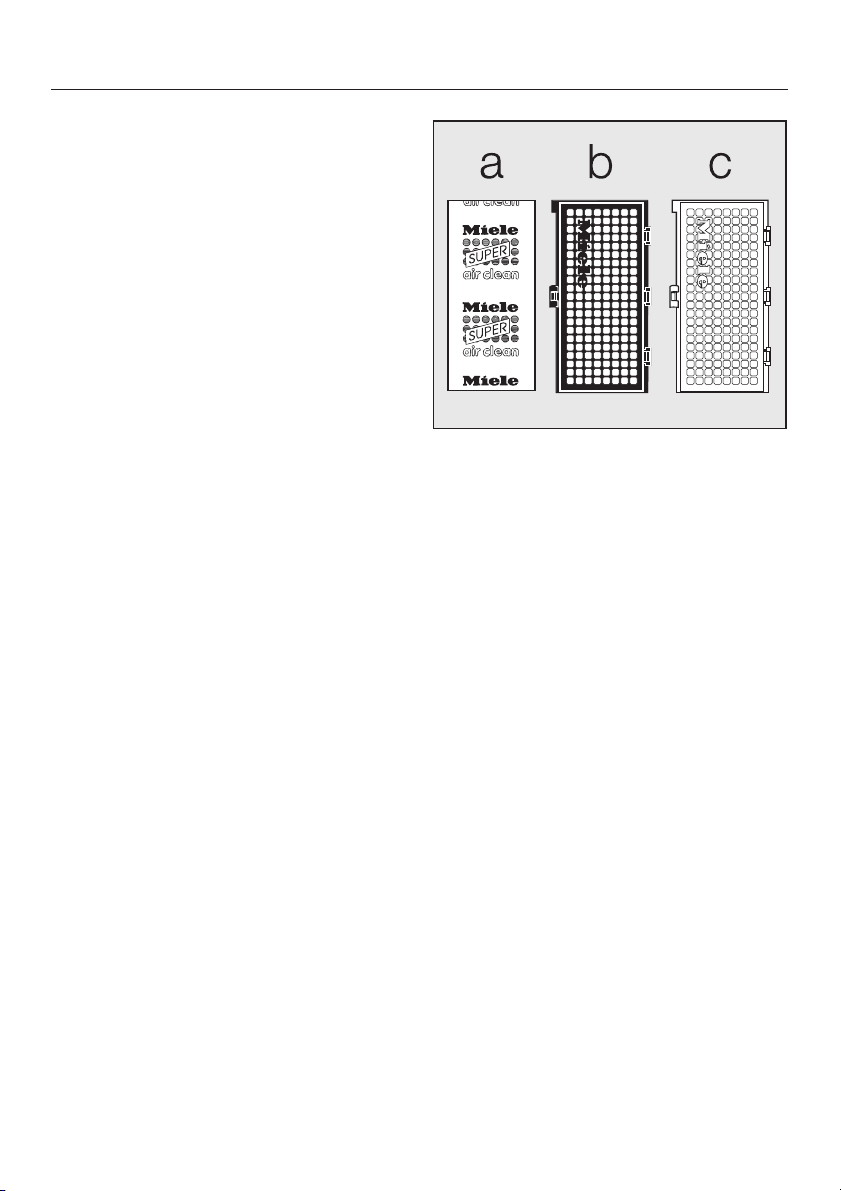

When to change the exhaust
filter
Depending on model your vacuum
cleaner will be fitted as standard with
one of the following exhaust filters:
a a SUPER air clean filter,
b an ACTIVE air clean filter or
c an ACTIVE HEPA filter
Replace the SUPER air clean filter
every time you start a new packet of
dustbags. A SUPER air clean filter is
supplied with every packet of Miele
dustbags.
Replace the ACTIVE air clean or the
ACTIVE HEPA filter
approx. once a year. It should be
replaced sooner if it is obviously soiled
or no longer effective. Make a note of
the date on the filter.
Maintenance and care
See "Accessories available as optional
extras" for descriptions of these two
filters.
27
Maintenance and care
Exhaust filter change indicator
Some models are equipped with an
exhaust filter change indicator (Re-set
button 7) which is designed for the
change cycle of an ACTIVE air clean or
an ACTIVE HEPA filter.
The indicator lights up after approx. 50
hours of operation which is equivalent
to about a year of average use. The
vacuum cleaner can still be used with
the exhaust filter indicator lit up.
However, the suction power will be
reduced as will the effectiveness of the
filter if it is not replaced in good time.
The filter change indicator light will
have no significance if a SUPER air
clean filter (a) has been fitted, but
should still be re-set. The indicator light
will go out when it is pressed.
You can replace the exhaust filter
supplied with the vacuum cleaner with
one of the other Miele exhaust filters if
you wish (see "Replacing one type of
filter with another").
28

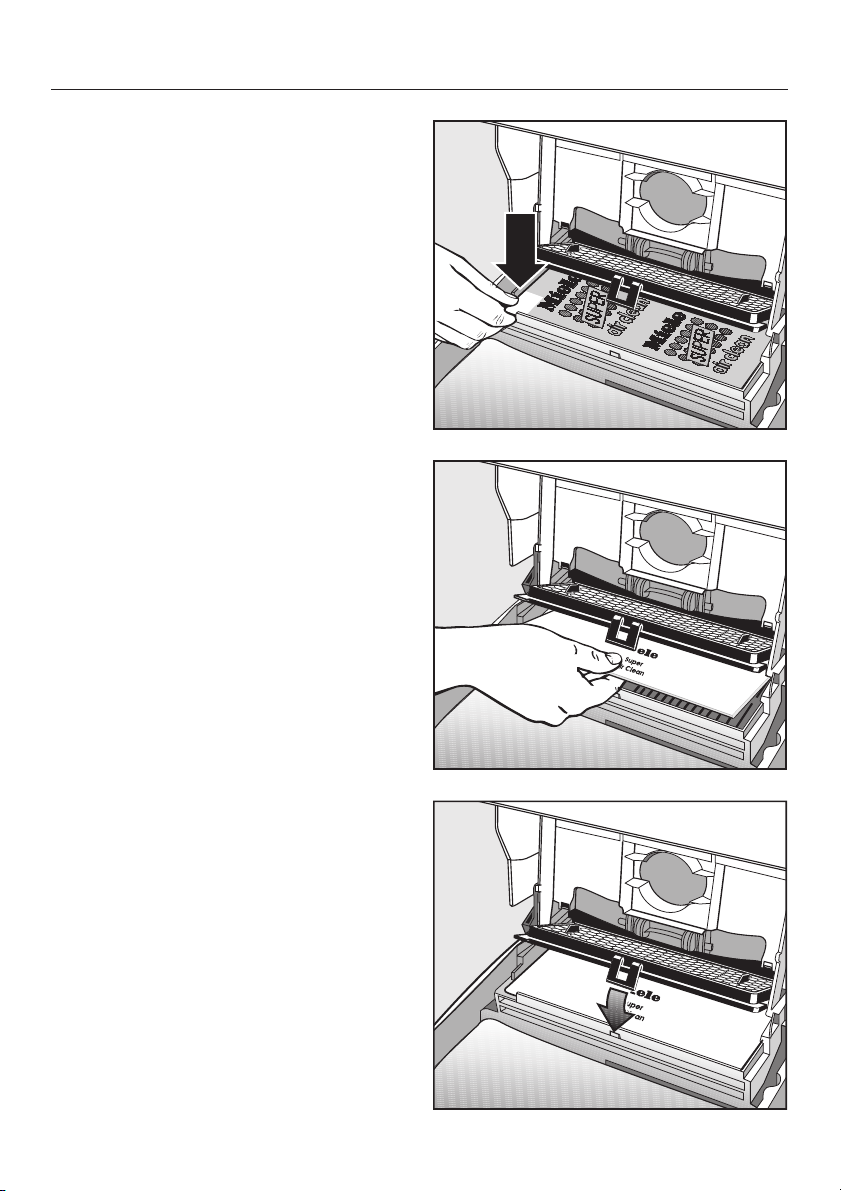

Replacing the "SUPER air
clean" filter
Open the dust compartment lid.
^
Release the filter grille and raise it
^
upwards. Grasp the used SUPER air
clean filter by the clean, unsoiled
section (see arrow) and take it out.
^ Replace it with a new SUPER air
clean filter. It can be inserted either
way up.
Maintenance and care
^
Lower and secure the filter grille back
in place.
^
Close the dust compartment lid
firmly.
29
Maintenance and care
Replacing the "ACTIVE air
clean" filter and the "ACTIVE
HEPA" filter
Open the dust compartment lid.
^
Release the catch and remove the
^
filter.
^ To insert the new filter, fit it so that it
engages at the back and then close
the catch.
^ Close the dust compartment lid
firmly.
Resetting the Exhaust filter change
indicator
If your vacuum cleaner is equipped
with an exhaust filter change indicator
(Re-set button 7), this needs to be
re-set each time the filter is replaced. To
do this the vacuum cleaner must be
connected to the electricity supply.
^
Press on the filter change indicator
light until it goes out. The display is
now back in the starting position
again.
30

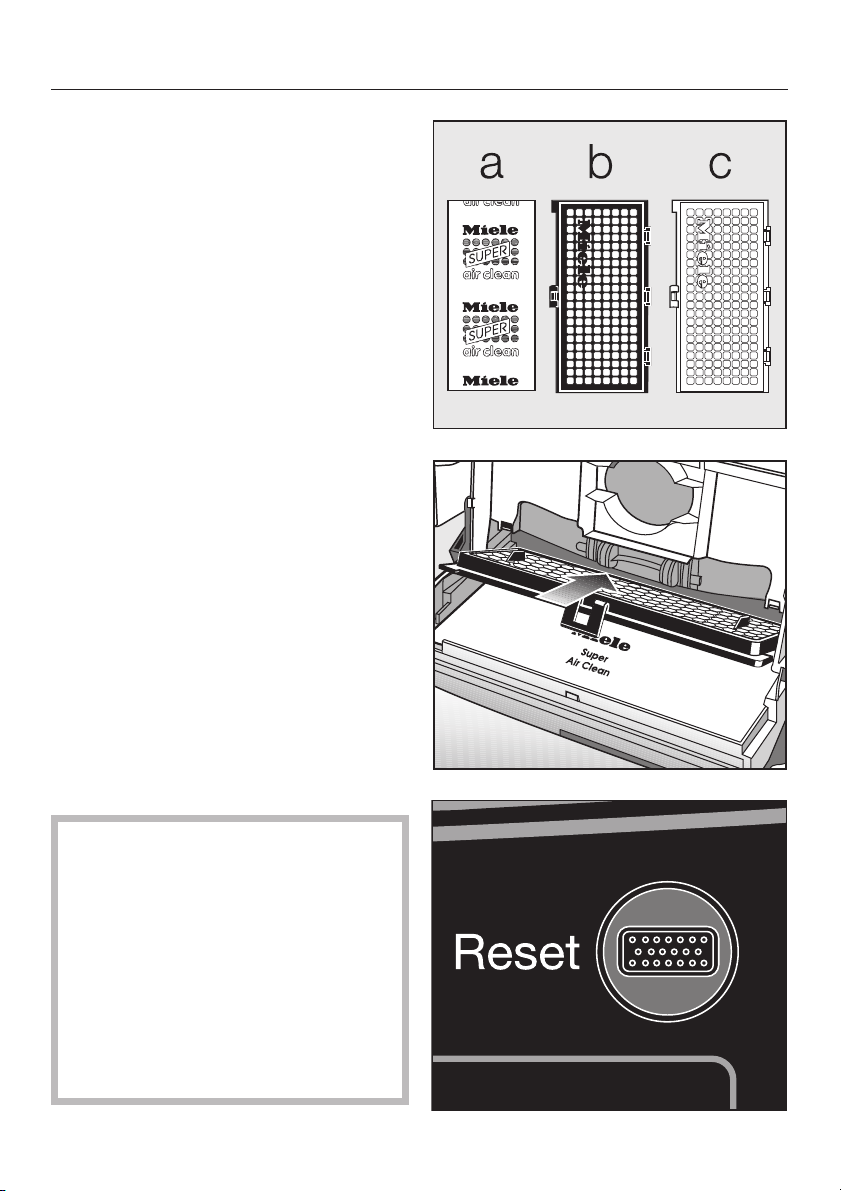

Replacing one type of filter
with another
Depending on model your vacuum
cleaner will be fitted as standard with
one of the following exhaust filters:
a SUPER air clean,
b ACTIVE air clean or
c ACTIVE HEPA
Please note
1. If you wish to replace the SUPER air
clean filter a with an ACTIVE air clean
filter b or an ACTIVE HEPA filter c,itis
essential that you remove the filter grille*
before fitting the new type of filter.
Maintenance and care
2. If you wish to replace the ACTIVE air
clean filter b or the ACTIVE HEPA filter c
with a SUPER air clean filter a, then it is
essential that you also fit the filter grille*.
* filter grille - see "Accessories
supplied" section.
Some models have a built-in exhaust
filter change indicator (Re-set button
7), which is designed for the
change cycle of an ACTIVE air clean
or an ACTIVE HEPA filter. The filter
change indicator light will have no
significance if a SUPER air clean
filter (a) has been fitted, but should
still be re-set by pressing on the filter
change indicator light until it goes
out.
31
Maintenance and care
When to change the dust
compartment filter (motor
protection)
Replace the dust compartment filter
every time you start a new packet of
dustbags.
A dust compartment filter is supplied
with every packet of Miele dustbags.
To replace the dust
compartment filter
^ Open the dust compartment lid.
^ Unclip the filter frame, remove the old
filter and replace with a new one.
^ Close the filter frame.
32
When to change the thread
lifters
The thread lifters on the suction inlet to
the floorhead and upholstery nozzle
can be replaced.
Check them from time to time and
replace them if the pile has worn down.
To replace the thread lifters
^ Use a suitable tool to remove them
from the slots.
^ Fit the new thread lifters.
Maintenance and care
If threads or hair have wound round
the bearing on the floorhead roller:
a Use a coin to release the roller pin
(bayonet connection) and pull out
the pin.
b Take out the roller.
Remove all threads and hair etc, then
replace the individual parts in the
correct order.
Spare parts are available from your
Miele dealer or from the Miele Spare
Parts Department.
33
Cleaning and care
Always disconnect the vacuum
,
cleaner from the electricity supply
for maintenance work and for
cleaning. Switch off at the wall
socket and remove the plug (pull on
the plug, not the cable).
Vacuum cleaner and accessories
External surfaces of the vacuum
cleaner and of the accessories can be
cleaned with a dry cloth or a slightly
damp cloth or with a proprietary
cleaner suitable for plastic.
Do not use abrasive cleaners,
,
glass cleaners or all-purpose
cleaners!
Because of their chemical
composition they could cause
serious damage to plastic
components.
Dust compartment
The dust compartment can, if
necessary, be cleaned using a dry
duster, dusting brush or, if available, a
second vacuum cleaner to vacuum the
dust out.
,
Do not let the vacuum cleaner
get wet. If moisture gets into the
appliance there is a risk of electric
shock.
34
The vacuum cleaner has switched
itself off automatically.
A temperature limiter switches the
vacuum cleaner off automatically if it
gets too hot. Some models also have a
warning light , which comes on to
indicate that it has overheated.
Overheating can occur if, for instance,
large articles block the suction tube or
the dustbag is full or contains particles
of fine dust. A heavily soiled exhaust or
dust compartment filter can also be the
cause of overheating. Switch off the
vacuum cleaner using the On-Off
switch.
After removing the cause, wait for a
period of approx. 20 - 30 minutes, to
allow the vacuum cleaner to cool down.
It can then be switched on again.
Problem solving guide
35
After sales service
In the event of a fault that you cannot
easily remedy, please contact
your Miele Dealer
–
or
the nearest Miele Service
–
Department. (See address on back
page).
Please note that telephone calls may
be monitored and recorded to
improve our service.
36
Optional accessories
Certain models are supplied as stan
dard with one or more of the following
accessories:
Electrobrush
Models designed to take an Electrobrush have a release button on the
cover cap to the connection socket. If
there is no release button on this cover
cap an Electrobrush cannot be fitted.
The Electrobrush is particularly suitable
for intensive vacuuming of carpets
which are subject to hard wear. It is
very effective at removing deep seated
dirt and preventing areas of frequent
use being trodden into a path.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
-
ACCU NOVA floorhead
This Electrobrush is battery operated
and therefore suitable for models
without an electrobrush accessory
socket.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
37
Optional accessories
Turbobrush
The Turbobrush is particularly suitable
for vacuuming cut pile carpeting. The
brush is operated by the suction power
of the vacuum cleaner. It has a rotating
brush and is very effective at picking
up thread, hairs and fluff.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
Hand-held Turbobrush
The hand-held Turbobrush is intended
for vacuuming upholstery, mattresses,
car seats, carpeted stairs and other
areas inaccessible to the standard
Turbobrush.
ALLERGOTEC floorhead
The level of cleanliness of the floor
shows in a colour "traffic light" display
when vacuuming. The ALLERGOTEC
floorhead is designed specially for the
daily hygienic cleaning of all floor
surfaces.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
38

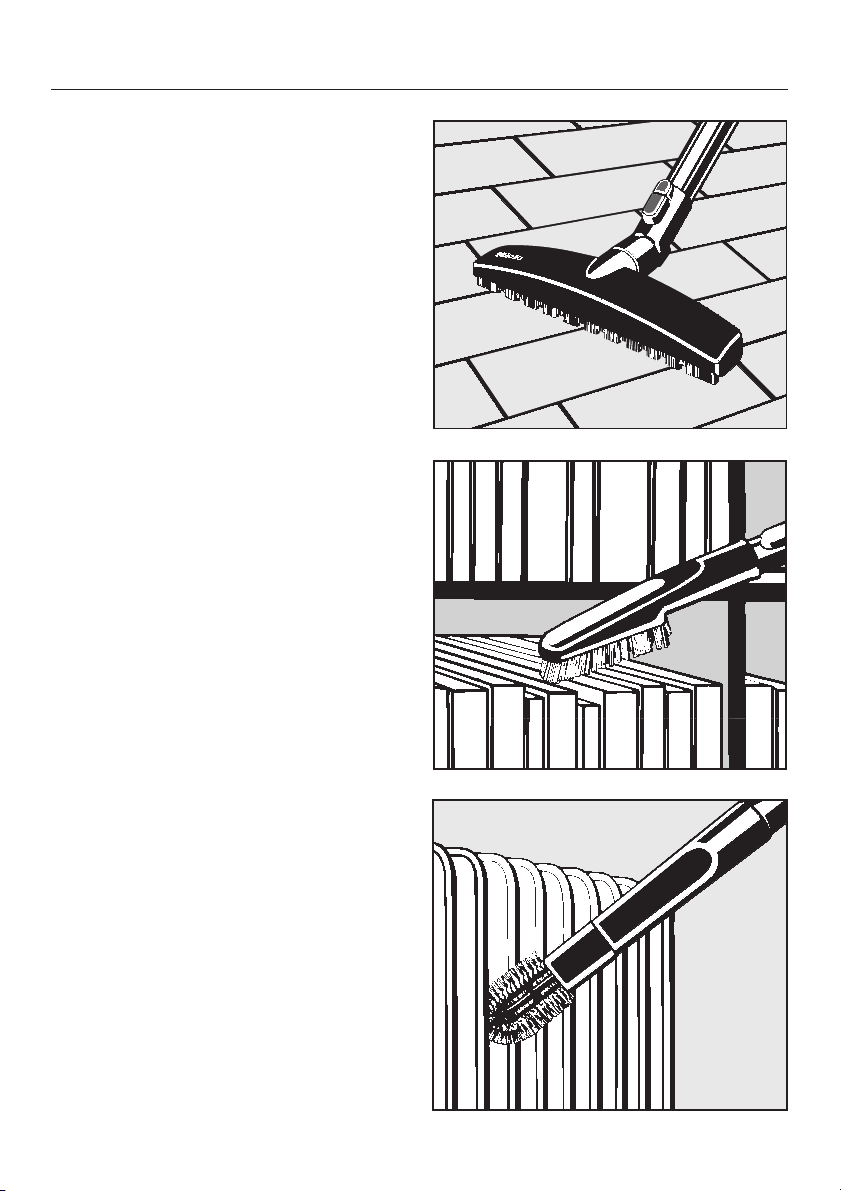

Floor brush
Special brush for cleaning hard floors
(parquet, stone, PVC), and flooring
which might be scratched, (e. g. with a
high shine).
Universal brush
For dusting books, shelves, etc.
Optional accessories
Radiator brush
(can only be used if attached to the
crevice nozzle)
For cleaning radiators, narrow shelves
and crevices.
39
Optional accessories
Mattress nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
Crevice nozzle (300 mm)
For cleaning in folds, crevices or
corners.
Hygiene seal with active charcoal
This prevents dust and odours from
escaping when the suction hose is
removed for transportation or storage.
It can be secured to the suction hose
during vacuuming.
40

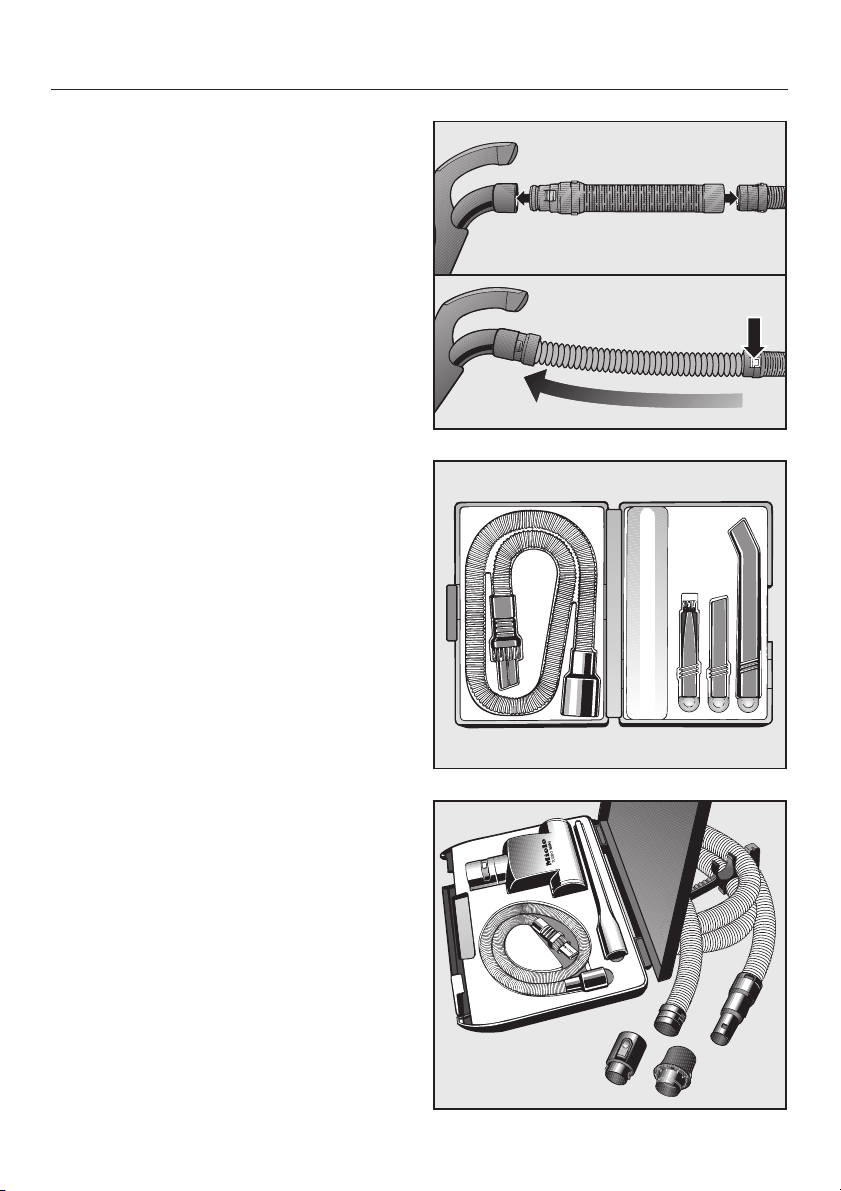

Hose adapter
For extending the suction hose by
approx. 1.5 m.
The adapter is fitted between the
handle and the suction hose.
MicroSet
This set is specially designed for
cleaning small objects and difficult to
reach areas (such as PC keyboards,
stereo equipment, intricately carved
furniture and ornaments, models etc).
It consists of:
– Micro-hose with combination nozzle
(crevice nozzle and dusting brush)
– Micro-dusting brush
Optional accessories
– Micro-crevice nozzle
–
Angled extension
CarClean Set Plus
The CarClean Set Plus has been
designed as an accessory for Miele
cylinder vacuum cleaners for valeting
the interior of cars.
It consists of:
–
Hand-held Turbobrush
–
Micro-hose with combination nozzle
(crevice nozzle and dusting brush)
–
Crevice nozzle (300 mm)
These are supplied in a carry case
together with a 3 m long suction hose
with hose clip.
41
Optional accessories
ACTIVE air clean filter
The ACTIVE air clean filter is a special
active charcoal filter which absorbs
odours from the dust collected in the
dustbag. It helps, therefore, to prevent
a build-up of odours occuring. Do not
use aroma capsules in your cleaner if
you use this filter. The charcoal in the
filter will absorb their aroma rendering
them ineffective. The ACTIVE air clean
filter can be used instead of the existing
exhaust filter. There is no difference in
filtration level between the ACTIVE air
clean filter and the SUPER air clean
filter. See "Replacing one type of filter
with another".
ACTIVE HEPA filter
This is a particle filter conforming to EN
1822 HEPA Classification 12. It is able
to filter out very fine particles and
micro-organisms. The active charcoal
layer absorbs odours from the dust
collected in the dustbag. Vacuum
cleaners equipped with this exhaust
filter are particularly suitable for allergy
sufferers and those concerned with a
high level of hygiene. The "ACTIVE
HEPA filter" can be inserted in place of
the existing exhaust filter. See
"Replacing one type of filter with
another".
Do not use aroma capsules in your
cleaner if it is fitted with this filter.
42
All electrical work should be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
The voltage and rated load are given
on the data plate located underneath
the vacuum cleaner. Please ensure that
these match the household mains
supply.
The appliance must be connected to a
230-240 V/50 Hz a.c. single phase
supply via a 10 A plug.
Important
The wires in the mains lead of this
appliance are coloured in accordance
with the following code:
Blue = Neutral
Brown = Live
Electrical connection
As the colours of the wires may not
correspond with the markings
identifying the terminals in your plug,
proceed as follows: The wire coloured
blue must be connected to the terminal
marked with the letter "N" or coloured
black. The wire coloured brown must
be connected to the terminal marked
with the letter "A" or coloured red.
Neither core is to be connected to the
earth terminal of a three-pin plug.
Test marks.....................Electrical safety
............................................C-Tick Mark
Electrically suppressed
according to.....................AS/NZS 1044
43
Alteration rights reserved / (560/570/700/800) - 3105
M.-Nr. 06 050 861 / 01
en-AU
Loading...
