Replacing one type of filter with another
Cleaning and care
Accessories available as optional extras
Problem solving guide
After Sales Service
Electrical connection for the UK
2
Disposal of packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic, wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please recycle them.
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials, and can be disposed
of with the normal household waste, as
long as they have been used
exclusively for general household dust.
The dustbag should only be disposed
of in this way if it has been used
exclusively for general household dust.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
3
Description of the appliance
4
Description of the appliance
1Floor attachment
2Dustbag change indicator
3Dust compartment lid catch
4Carrying handle with controls
5Accessories clip *
6Release catch
7Handle with wall hook grommet and anti-slip device
8Cable hooks for mains cable
9Mains cable
10Telescopic tube release catch *
11Cover to exhaust filter (at the back)
12Dust compartment filter (motor protection)
13Dustbag
14Socket for Electrobrush *
The illustration shows the maximum number of features available on these Miele
vacuum cleaners.
Some models are supplied with a Miele Electrobrush as standard (not illustrated).
Separate operating instructions are supplied with the Electrobrush.
Features marked * depend on model and may vary or not be available on your
model.
5
Warning and Safety instructions
Safety with children
This appliance meets statutory
safety requirements. Inappropriate
use can however lead to personal
injury and damage to property.
Read the operating instructions
carefully before starting to use this
appliance. This way you will prevent
the risk of accidents and damage to
the appliance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
Supervise its use by older children or
the elderly or infirm.
Before using for the first time
packaging, the vacuum cleaner and
accessories for any signs of damage.
Do not use a damaged appliance.
Do not let children play with the
vacuum cleaner or its controls.
A damaged vacuum cleaner can
be dangerous. Check the
Correct usage
This vacuum cleaner must only be
used in a domestic household
situation to vacuum dry surfaces. Do
not use on people or animals.
Any other usage is at the owner’s risk
and could be dangerous.
The manufacturer cannot be held
responsible for damage resulting from
improper or incorrect use of the
appliance.
Ensure that the connection data on
the data plate (voltage and
frequency) match the mains electricity
supply. It is essential that they match to
avoid damage to the appliance.
The plug must be fitted with a 13 A
fuse (UK).
6
Warning and Safety instructions
Daily use
It important to switch the vacuum
cleaner off before changing over
accessories and floor heads, especially
a Turbo- or Electrobrush.
To avoid the risk of damage, do not
use the vacuum cleaner without the
dustbag, dust compartment filter and
exhaust filter in place.
Do not vacuum up liquids or damp
dirt. This will cause major faults
and could seriously impair the
functioning and electrical safety of the
appliance. Wait until any freshly
cleaned or shampooed carpets or floor
coverings are completely dry before
attempting to vacuum.
Do not vacuum up anything which
has been burning or is still glowing
e.g. cigarettes, ashes or coal, whether
glowing or apparently extinguished.
The cleaner might catch fire.
Do not vacuum toner dust. Toner,
such as that used in printers and
photocopiers can conduct electricity.
The filter system in the vacuum cleaner
may not filter it completely and so the
toner could be blown back into the
atmosphere by the fan.
Do not vacuum up any inflammable
or combustible liquids or gases
and do not vacuum in areas where
such substances are stored. The
cleaner might explode.
Do not vacuum up items which are
heavy, hard or have sharp edges.
They could cause a blockage and
damage the appliance.
Floor attachments, accessories
and tubes must not be used at
head level to avoid the risk of injury,
e.g. to eyes and ears. Danger of injury.
Do not pull or carry the appliance
by the cable. When disconnecting
from the mains socket pull by the plug
and not by the cable.
- Keep the cable away from sharp
edges and do not let it be squashed,
for example, under a door.
- Avoid running the vacuum cleaner
over the cable.
A damaged cable, plug or socket is a
safety hazard. The appliance must not
be used if any of these have been
damaged.
Monitor the change dustbag
indicator and change the dustbag
if necessary. Check the exhaust and
dust compartment filters at the same
time and change them too if necessary.
A full bag or blocked filter will hamper
the suction power of the cleaner and
can cause it to get so hot that the
temperature limiter switches the cleaner
off automatically, see "Problem solving
guide".
7
Warning and Safety instructions
Using accessories
The socket on the vacuum cleaner
(depending on model) must only
be used for the Miele Electrobrush
specified for use with this appliance.
To avoid the risk of injury when
vacuuming with a Miele Electro- or
Turbobrush do not touch the rotating
rollerbrush. Danger of injury.
Miele vacuum cleaner bags are
disposable and intended to be
used only once. Do not attempt to
re-use. Blocked pores reduce the
efficiency of the cleaner.
Use only genuine Miele dustbags,
filters and accessories. This will
ensure optimum performance of the
vacuum cleaner throughout its life.
Cleaning, maintenance and
repairs
Always disconnect the vacuum
cleaner from the mains supply for
maintenance work and for cleaning.
Switch off at the wall socket and
remove the plug. Pull on the plug and
not the cable.
Never operate the appliance if it
shows any signs of damage,
particularly to the cable. A damaged
vacuum cleaner is dangerous. A
damaged cable must only be replaced
with a genuine original Miele cable.
Disposing of an old appliance
When disposing of an old
appliance cut the cable off the
appliance as close to the cleaner as
possible and cut the plug off. The plug
cut from the cord should be rendered
useless and then disposed of and on
no account be inserted into any socket
elsewhere in the house (electric shock
hazard). See section "Disposal of your
old appliance" earlier in this booklet for
further advice.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Do not let the vacuum cleaner get
wet. Clean only with a dry cloth or
slightly damp cloth when disconnected
from the mains supply. If moisture gets
into the appliance there is the risk of an
electric shock.
Repairs may only be carried out by
a suitably qualified and competent
person in accordance with national and
local safety regulations. Repairs and
other work by unqualified persons
could be dangerous.
8
Fitting the tube / telescopic
tube
Fit the tube with the square hole
^
facing upwards into the vacuum
cleaner housing and gently twist until
it engages.
To remove the tube:
Press the release catch (see inset)
^
and pull off with a gentle twist.
Fitting the hand piece
^ Fit the hand piece with the square
hole facing upwards into the tube /
telescopic tube and gently twist until
it engages.
To detach the two parts,
Preparing for use
^ Press the release catch (see arrow)
and pull the hand piece off with a
gentle twist.
The hand piece can also be fitted
directly to the vacuum cleaner housing.
The cleaner is then easier to use, e.g.
for vacuuming mattresses and
upholstery.
9
Preparing for use
The tube / telescopic tube can also be
used as a suction tube by fitting it
between the floor attachment and the
cleaner.
This extends the reach of the cleaner,
making it easier to vacuum underneath
low furniture.
Attaching the floor attachment
^ Attach the floor attachment either to
the vacuum cleaner connection stub
or to the end of the tube / telescopic
tube and gently and twist until it
engages.
To remove the floor attachment:
^ Press the release catch (see arrow)
and pull off with a gentle twist.
Rewinding the mains cable
When the cleaner is not in use the
cable can be wound around the two
cable hooks.
Secure the cable by clamping the plug
(depending on country) to the cable
(see inset).
10
Using the accessories supplied
The following are supplied with the
cleaner:
a Accessories clip
(depending on model)
b Crevice nozzle
c Upholstery nozzle
d Filter frame
The filter frame is supplied separately in
the box only with those models, which
are fitted with an "ACTIVE air clean" or
"HEPA" exhaust filter as standard. The
filter frame needs to be used if you wish
to replace one of these filters with a
"SUPER air clean" filter at a future date
(see "Replacing one type of filter with
another").
Accessories clip
(depending on model)
^ Attach the acccessories clip to the
tube / telescopic tube when needed
a.
^
Push the accessories clip down over
the cable hook ring until it clicks into
position b.
Fit accessories (crevice and upholstery
nozzles) to the clip as shown.
11
Using the accessories supplied
Crevice nozzle
for cleaning in folds, crevices or
corners.
Upholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, etc.
12
Unwinding the mains cable
The lower cable hook swivels round.
Turn it upwards so that the cable can
^
be removed easily.
Adjusting the telescopic tube
(depending on model)
One part of the telescopic tube is
packed inside the other and can be
adjusted to suit your height for
comfortable vacuum cleaning.
Use
^ Press the telescopic tube release
button (see arrow) to adjust to the
required length.
Switching on
^
Insert the plug into a suitable
switched socket (U.K.).
^
To prevent the cable from getting in
the way whilst you are vacuuming,
hang the unwound cable over the
cable hook in the handle (see inset).
This also takes the strain off the
cable-entry bush.
13
Use
Switching the vacuum cleaner
on and off
To enable the vacuum cleaner to be
conveniently operated in any
vacuum-cleaning situation, two
separate switches have been
integrated into the unit’s handle. Either
of the switches can be used to operate
the vacuum cleaner.
Double slide switch
0= Appliance is switched off
min = Reduced suction
max = Maximum suction
^ To turn the appliance on, slide either
switch to either the min or max.
^ To turn the appliance off, slide either
switch to the 0 position.
Select min for vacuuming lightweight
items such as rugs or curtains.
14
Adjusting the suction power
(depending on model)
On some models the suction power can
be regulated to suit the type of flooring.
The higher the setting the more
powerful the suction. Select the suction
setting to suit the amount of dirt and the
type of material to be vacuumed.
Slightly soiled and smooth floor
coverings can be cleaned at an
energy-saving medium setting,
whereas thick-pile and fitted carpets
require the highest setting to ensure
deep-seated dirt is thoroughly
removed. The highest setting should
also be selected if a Turbobrush is
used.
Adjusting the floor attachment
to the type of floor covering
Use
The floorhead can be used for all
normal cleaning of carpets and rugs. It
can also be used with the brush
protruding to vacuum hard flooring
which is not susceptible to scratching.
For hard flooring, such as stone and
floors which are susceptible to
scratching, e.g. parquet, we
recommend using one of the special
Miele floor brushes (see "Accessories
available as optional extras").
Vacuum carpets and rugs with the
brush retracted:
^
Press the foot switch to g.
Clean hard flooring which is not
susceptible to scratching with the brush
protruding:
^
Press the foot switch to h.
15
Setting down, transportation and storage
The end cap on the telescopic
handpiece is made from slip-proof
plastic. During short vacuuming breaks,
the appliance can be leaned upright
against a wall or furniture.
Before leaving the vacuum cleaner,
make sure it is switched off and if
you lean against the wall make sure
it is at a safe angle so that it cannot
fall over.
When using the floor brush or the
parquet floor brush we recommend that
you hang the vacuum cleaner up when
storing it, to protect the bristles.
For longer term storage, the vacuum
cleaner can also be hung on a wall
hook by using the grommet integrated
in the handle.
16
Always disconnect the vacuum
,
cleaner from the electrical supply for
maintenance work and for cleaning.
Switch off at the wall socket and
remove the plug.
The Miele filter system consists of three
filters which must be replaced from time
to time to ensure efficient suction.
a Dustbag
b Dust compartment filter (for motor
protection)
c Exhaust filter
Use only genuine Miele dustbags
and filters. This ensures optimum
performance of the vacuum cleaner.
Maintenance and care
c Exhaust filter
Depending on model, your vacuum
cleaner will be fitted with one of the
following exhaust filters:
a a SUPER air clean filter,
b an ACTIVE air clean filter or
c a HEPA filter
17
Maintenance and care
Dustbag change indicator
This indicates when the dustbag needs
to be changed.
The attachment used can affect the
function of the dustbag change
indicator. Therefore only test with the
floor attachment fitted.
Switch the vacuum cleaner on and
^
select the highest power setting.
Lift the floor attachment off the floor a
^
little.
If the red marker completely fills the
indicator window, the dustbag must be
changed, even if it is not completely
full.
Please note
This indicator measures the air
permeability of the dustbag.
Even if just a few grammes of flour, fine
cement of brick dust are sucked up,
these fine particles can also affect the
permeability of the dustbag, thus
causing the red scale indictor to show
that the bag is "full", athough it is
virtually empty. The dustbag should,
however, be changed in this case, as
the suction power is greatly reduced.
On the other hand the bag may be
bulging with wool or carpet fluff, but the
air permeability may still be high
enough not to activate the red indicator
to maximum. The dustbag should,
however, still be changed.
Both these extremes can occur.
Normally, however, common household
dust is composed of carpet fluff, hair
and grit, i.e. a mixture.
The Miele dustbag change indicator is
designed principally to deal with this
kind of use.
We recommend
1. If you vacuum up a lot of fine dust or
sand:
^
Change the dustbag as soon as the
red scale fills the window, even if the
bag is not full.
2. If you have vacuumed up a lot of
carpet fluff and hair and the dustbag
is full although the indicator only
shows half full (please check
regularly):
^
Change the dustbag.
18
Maintenance and care
When should the dustbag and
filter be changed?
Dustbag
When the red marker completely fills
the indicator window (please note the
information given in "Dustbag change
indicator").
Miele vacuum cleaner bags are
disposable and intended to be used
only once. Clogged pores in a used
bag will reduce the suction power of
the cleaner.
Dust compartment filter (for motor
protection)
Replace the dust compartment filter
every time you start a new packet of
dustbags.
A dust compartment filter is supplied
with every packet of Miele dustbags.
HEPA Filter
About once a year or as soon as air
permeability is reduced to an
unsatisfactory level.
Make sure that you purchase a
replacement in good time.
Purchasing new dustbags and
filters
Replacement dustbags and filters can
be obtained from your local Miele
Dealer or direct from the Miele Spare
Parts Department.
Order Miele dustbags with the letter
K/K.
A "SUPER air clean" exhaust filter and a
dust compartment filter are supplied
with every packet of Miele dustbags.
Exhaust filter
(see "Exhaust filter" in previous section)
SUPER air clean filter
Replace the SUPER air clean filter
every time you start a new packet of
dustbags.
A SUPER air clean filter is supplied with
every packet of Miele dustbags.
ACTIVE air clean filter
About once a year or as soon as the
filter no longer absorbs unpleasant
odours.
Make sure that you purchase a
replacement in good time.
19
Maintenance and care

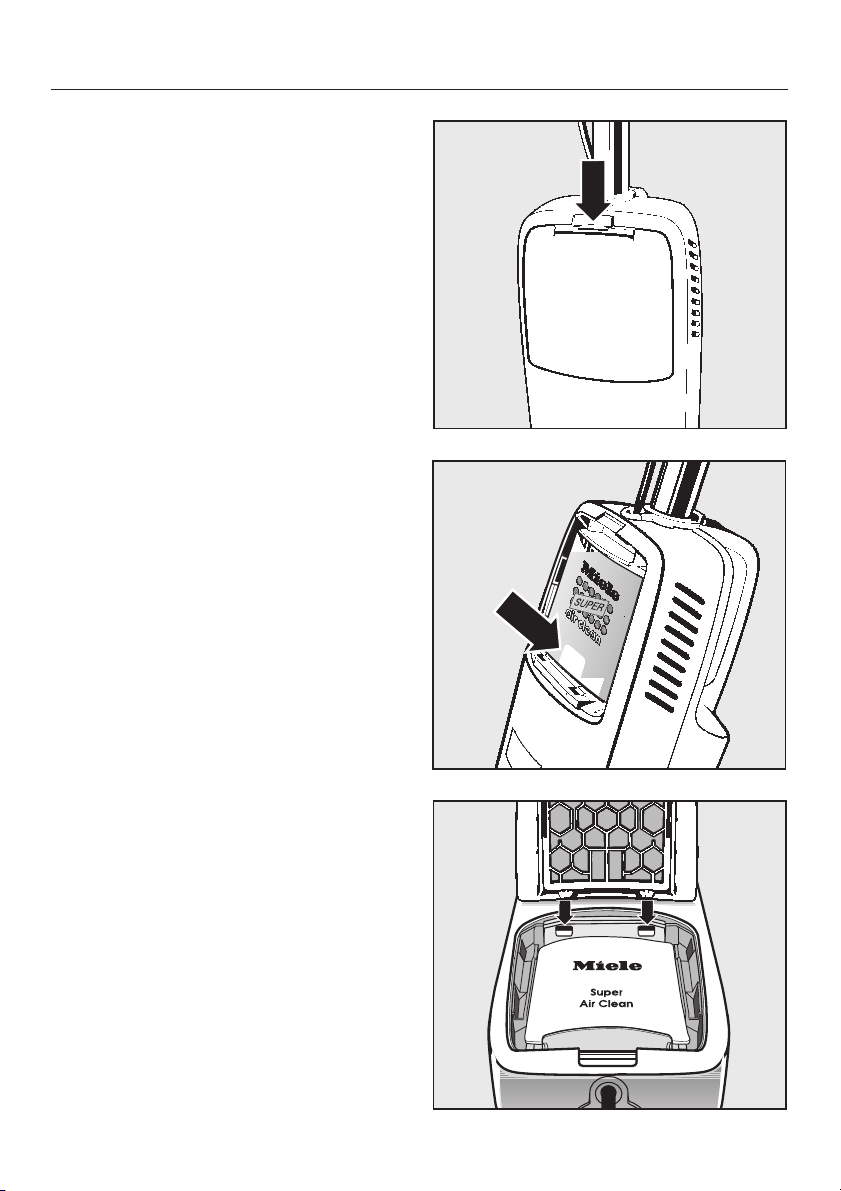

Replacing the dustbag
Press the release catch for the dust
^
compartment lid and raise the lid until
it clicks into place.
The dustbag has a collar which closes
automatically when the dustbag is
removed to prevent any dust escaping.
^ Holding the bag by the collar, lift it
away from the suction socket and
then pull it out of its holder.
The dustbag can be disposed of with
the normal household waste as long as
it has only been used for vacuuming up
normal household dust and not
hazardous materials.
Do not unfold the bag when you take it
out of the packet. Keeping it folded will
prevent it from getting trapped when
the dust compartment lid is closed.
^
Slide the collar of the new dustbag
into the empty holder until it is
secured in position.
^
Close the dust compartment lid
firmly. When the lid is closed the
holder automatically draws the bag
collar over the inlet stub.
,
If there is no dustbag in the
holder, or the dustbag has not been
inserted correctly, the compartment
lid will not close properly.
Do not attempt to force the lid shut.
20
Replacing the dust
compartment filter (motor
protection)
Press the release catch for the dust
^
compartment lid and raise the lid until
it clicks into position.
A new dust compartment filter is
included with every pack of Miele
dustbags.
^ Unclip the filter frame, remove the old
filter and replace with a new one.
^ Close the filter frame firmly.
Maintenance and care
^ Close the dust compartment lid
firmly.
21
Maintenance and care
Replacing a "SUPER air clean"
filter
Press the release catch for the
^
exhaust filter compartment lid located
on the rear of the vacuum cleaner
and remove the lid.
^ Remove the used filter, holding by the
clean, unsoiled section, and replace
it with a new one.
^
Replace the lid and close it again.
22

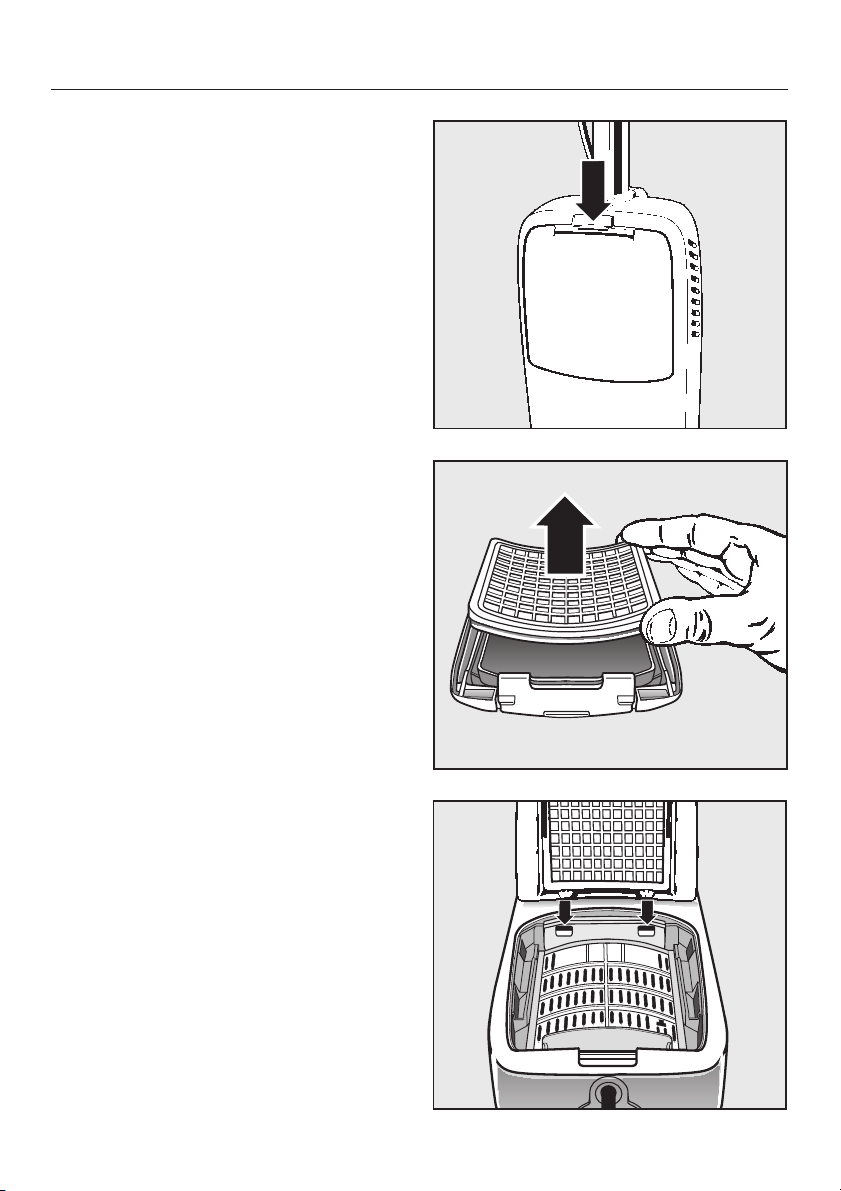

Replacing an "ACTIVE air
clean" or "HEPA" filter
Press the release catch for the
^
exhaust filter compartment lid located
on the rear of the vacuum cleaner
and remove the lid.
^ Remove the used filter from the lid
and replace it with a new one.
^ Make a note of the replacement date
on the label on the new filter.
Maintenance and care
^
Replace the lid and close it again.
23
Maintenance and care
Replacing the thread lifters
The thread lifters on the suction
aperture of the floor attachment and the
upholstery nozzle should be checked
from time to time and replaced if the
pile is worn.
Use a knife or similar object to
^
remove them from the slots.
Fit the new thread lifters.
^
These are available from your Miele
dealer or from the Miele Spare Parts
Department.
24
Replacing one type of filter with another
Depending on model, your vacuum
cleaner is fitted with one of the following
exhaust filters as standard:
a SUPER air clean
b ACTIVE air clean
c HEPA
You may use one of the other filters
instead of the one supplied as standard
with your vacuum cleaner if you wish.
See "Accessories available as optional
extras" for an explanation of the
differences between the filter types.
Please note
1. If you wish to replace filter a with filter
b or c, the filter frame in the lid of the
exhaust filter compartment must be
removed. The new filter should be fitted
in its place.
2. If you want to replace filter b or c with
filter a the filter frame must be fitted in
the lid of the exhaust filter
compartment.
To remove or insert the filter frame
^
Grasp the sides of the filter frame in
the positions shown by the arrows
and squeeze. The frame can then be
inserted or removed as desired.
25
Cleaning and care
Always disconnect the vacuum
,
cleaner from the electricity supply
for maintenance work and for
cleaning. Switch off at the wall
socket and remove the plug (pull on
the plug, not the cable).
Vacuum cleaner and accessories
External surfaces of the vacuum
cleaner and all plastic accessories can
be cleaned with a dry cloth or a slightly
damp cloth or with a proprietary
cleaner suitable for plastic.
Do not use an abrasive cleaner,
,
a glass cleaner or an all-purpose
cleaner.
Because of their chemical
composition they could cause
serious damage to the plastic
casing.
Dust compartment
The dust compartment can, if
necessary, be cleaned using a dry
duster, dusting brush or, if available, a
second vacuum cleaner to suck the
dust out.
,
Never immerse the vacuum
cleaner in water or let it get wet. If
moisture gets into the appliance
there is the risk of an electric shock.
26
Accessories available as optional extras
Turbobrush
The Turbobrush is particularly suitable
for vacuuming cut pile carpeting and is
operated by the suction power of the
vacuum cleaner. It has a rotating brush
which is very effective at picking up
thread, hairs and fluff.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
Hand-held Turbobrush
The hand-held Turbobrush is intended
for vacuuming upholstery, mattresses,
car seats, carpeted stairs and other
areas inaccessible to the standard
Turbobrush.
Electrobrush SEB 217
(standard or optional accessory
depending on model)
(Only for models with an Electrobrush
socket)
The Electrobrush is particularly suitable
for intensive vacuuming of carpets
which are subject to hard wear. It is
very effective at removing deep seated
dirt and preventing areas of frequent
use being trodden into a path.
It is also important to observe the
flooring manufacturer’s cleaning and
care instructions.
27
Accessories available as optional extras
Hard floor brush
(not available in all countries)
for vacuuming smooth flooring, such as
stone, tiles, PVC.
Parquet floor brush
(standard or optional accessory
depending on model)
Special brush with genuine horsehair
bristles for cleaning parquet floors,
floorboards and laminate flooring which
is susceptible to scratching.
28
Accessories available as optional extras
Cylinder vacuum cleaner accessories
Cylinder cleaner accessories can be
attached to the tube / telescopic
suction tube on your compact cleaner
to give greater versatility.
This can enable you, for example, to
reach high up areas, e.g. the tops of
door frames, book shelves and curtains
more easily.
Reaching underneath low pieces of
furniture such as wardrobes and beds
is also easier.
Important
When purchasing cylinder cleaner
accessories, make sure you give the
correct model number of your compact
vacuum cleaner.
29
Accessories available as optional extras
Dusting brush
For cleaning skirting boards, ornate or
carved articles, etc.
The head of the dusting brush can be
swivelled to attain the best cleaning
position.
Universal brush
For dusting books, shelves etc.
Accessories clip
(standard or optional accessory
depending on model)
This is used to hold the crevice nozzle
and upholstery nozzle.
30
Accessories available as optional extras
Radiator brush
For cleaning radiators, narrow shelves
or crevices.
Attach the radiator brush to the
^
crevice nozzle.
Mattress nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
31
Accessories available as optional extras
ACTIVE air clean filter
(standard or optional accessory
depending on model)
This is a special active charcoal filter
which absorbs odours from the dust
collected in the dustbag. It helps,
therefore to prevent the build up of
odours.
The ACTIVE air clean filter can used in
place of the existing filter. There is no
difference in filtration level between the
ACTIVE air clean filter and the SUPER
air clean filter. See "Replacing one type
of filter with another".
Do not use aroma capsules in your
cleaner if it is fitted with this filter.
HEPA filter
(standard or optional accessory
depending on model)
This is a HEPA class particle filter
conforming to EN 1822. It is able to
filter out very fine particles and
microorganisms.
Vacuum cleaners equipped with this
exhaust filter are particularly suitable for
allergy sufferers and those concerned
with a high level of hygiene.
The "HEPA filter" can be used in place
of the existing exhaust filter. See
"Replacing one type of filter with
another".
Do not use aroma capsules in your
cleaner if it is fitted with this filter.
32
The vacuum cleaner switches itself
off.
A temperature limiter switches the
vacuum cleaner off automatically if it
gets too hot.
This can occur if, for instance, large
articles block the suction tube or when
the dustbag is full or contains particles
of fine dust. A heavily soiled exhaust or
dust compartment filter can also be the
cause of overheating. In this case,
please switch off the vacuum cleaner.
After removing the cause, wait for
approx. 20 - 30 minutes, so that the
vacuum cleaner can cool down. It can
then be switched on again.
Problem solving guide
33
After Sales Service
In the event of a fault that you cannot
easily remedy, please contact
your Miele Dealer, or
–
the Miele Service Department
–
(see back cover for contact details).
When contacting your Dealer or the
Miele Service Department, please
quote the model and serial number of
your appliance. This information is
given on the data plate.
Please note that telephone calls may
be monitored and recorded to
improve our service.
34
Electrical connection for the UK
All electrical work should be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
The voltage and connected load are
given on the data plate located
underneath the vacuum cleaner. The
fuse rating is quoted on the plug.
Please ensure that these match the
household mains supply.
The appliance is supplied with a cable
and moulded plug ready for connection
to a 230-240 V/50 Hz a.c. single phase
supply.
Non-rewireable plugs BS 1363
The fuse cover must be re-fitted when
changing the fuse, and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug, (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
Important
The wires in the mains lead of this
appliance are coloured in accordance
with the following code:
Blue = Neutral
Brown = Live
35
Alteration rights reserved (S 140) - 4204
M.-Nr. 05 637 871 / 02
en-GB
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
