Operating and installation
instructions
Washing machine
To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.
en-GB |
M.-Nr. 11 894 270 |
Contents |
|
Caring for the environment .............................................................................. |
6 |
Warning and safety instructions ...................................................................... |
7 |
Operating the washing machine ...................................................................... |
15 |
Fascia panel ........................................................................................................ |
15 |
Sensor controls and touch display with sensor controls .................................... |
16 |
Main menu........................................................................................................... |
16 |
Examples of how to operate the appliance......................................................... |
17 |
Operating a launderette machine ........................................................................ |
19 |
Before using for the first time .......................................................................... |
20 |
Setting the display brightness............................................................................. |
21 |
Setting the date ................................................................................................... |
21 |
Selecting programme packages ......................................................................... |
22 |
1. Preparing the laundry.................................................................................... |
26 |
2. Loading the washing machine ..................................................................... |
27 |
3. Selecting a programme ................................................................................ |
28 |
4. Selecting programme settings..................................................................... |
29 |
5. Adding detergent........................................................................................... |
30 |
Adding fabric conditioner or liquid starch separately..................................... |
31 |
Adding starch separately................................................................................ |
31 |
6. Starting the programme – the end of the programme ............................... |
34 |
Timer................................................................................................................... |
35 |
Programme chart .............................................................................................. |
36 |
Extras.................................................................................................................. |
51 |
Pre-wash ....................................................................................................... |
51 |
Pre-rinse ........................................................................................................ |
51 |
Rinse plus ..................................................................................................... |
51 |
Soak .............................................................................................................. |
51 |
Intensive ......................................................................................................... |
51 |
Water plus ..................................................................................................... |
51 |
Pre-ironing ...................................................................................................... |
51 |
Rinse hold ..................................................................................................... |
51 |
Starch stop .................................................................................................... |
51 |
Special features in the programme sequence................................................ |
52 |
Spinning .............................................................................................................. |
52 |
Anti-crease .......................................................................................................... |
52 |
Changing the programme sequence ............................................................... |
53 |
Changing a programme....................................................................................... |
53 |
Cancelling a programme ..................................................................................... |
53 |
Switching on the washing machine after an interruption to the power supply ... |
53 |
Adding or removing laundry ................................................................................ |
54 |
Cleaning and care ............................................................................................. |
55 |
Cleaning the casing and fascia panel ................................................................. |
55 |
Cleaning the detergent drawer ............................................................................ |
55 |
2
Contents |
|
Cleaning the drum, suds container and drainage system................................... |
57 |
Cleaning the water inlet filters ............................................................................. |
57 |
Problem solving guide ...................................................................................... |
59 |
The wash programme does not start .................................................................. |
59 |
Programme cancellation and error message....................................................... |
60 |
A fault message appears in the display .............................................................. |
61 |
An unsatisfactory wash result ............................................................................. |
62 |
General problems ................................................................................................ |
63 |
The door will not open......................................................................................... |
65 |
Opening the door in the event of a blocked drain outlet and/or power cut ........ |
66 |
Miele Service ..................................................................................................... |
68 |
Contact in case of malfunction ........................................................................... |
68 |
Optional accessories........................................................................................... |
68 |
Installation.......................................................................................................... |
69 |
Front view ............................................................................................................ |
69 |
Rear view............................................................................................................. |
70 |
Installation locations............................................................................................ |
71 |
Installation notes ................................................................................................. |
71 |
Transporting the washing machine to its installation site.................................... |
72 |
Installation surface .............................................................................................. |
73 |
Removal of transit bars ....................................................................................... |
73 |
Fitting the transit bars ......................................................................................... |
75 |
Levelling the washing machine ........................................................................... |
76 |
Installing the appliance on vessels................................................................. |
77 |
External control equipment ................................................................................. |
77 |
Payment system............................................................................................. |
77 |
Water connection ................................................................................................ |
78 |
Cold water connection .................................................................................. |
78 |
Hot water connection*.................................................................................... |
79 |
Drainage .............................................................................................................. |
80 |
Drain pump..................................................................................................... |
80 |
Electrical connection ........................................................................................... |
81 |
Technical data.................................................................................................... |
82 |
Conformity declaration ........................................................................................ |
83 |
Supervisor level ................................................................................................. |
84 |
Opening Supervisor level .................................................................................... |
84 |
Code-based access ............................................................................................ |
84 |
Changing the code.............................................................................................. |
84 |
Closing the settings menu................................................................................... |
84 |
3
Contents |
|
Operation/display ................................................................................................ |
85 |
Language........................................................................................................ |
85 |
Language menu.............................................................................................. |
85 |
Set languages................................................................................................. |
85 |
Display brightness.......................................................................................... |
85 |
Clock display.................................................................................................. |
86 |
Date ................................................................................................................. |
86 |
Volume............................................................................................................ |
86 |
Visibility parameters ....................................................................................... |
86 |
Display off status............................................................................................ |
87 |
Machine off status.......................................................................................... |
87 |
Delay start ...................................................................................................... |
87 |
Memory .......................................................................................................... |
87 |
Temperature unit............................................................................................. |
88 |
Weight unit ..................................................................................................... |
88 |
Logo ............................................................................................................... |
88 |
Supervisor code ............................................................................................. |
88 |
Programme selection .......................................................................................... |
88 |
Controls.......................................................................................................... |
88 |
Programme packages .................................................................................... |
89 |
Favourite programmes ................................................................................... |
89 |
Special programmes ...................................................................................... |
90 |
Sort programmes ........................................................................................... |
90 |
Prog. colour allocation ................................................................................... |
91 |
Hygiene .......................................................................................................... |
91 |
Expert code .................................................................................................... |
91 |
Process technology............................................................................................. |
91 |
Anti-crease ..................................................................................................... |
91 |
Water level Cottons ........................................................................................ |
91 |
Water level Min. iron....................................................................................... |
91 |
Pre-wash temp Cottons ................................................................................. |
92 |
Wash time....................................................................................................... |
92 |
Pre-rinse Cottons ........................................................................................... |
92 |
Pre-rinse Minimum iron .................................................................................. |
92 |
Pre-wash Cotton/M-iron................................................................................. |
92 |
Cottons rinses ................................................................................................ |
93 |
Minimum iron rinses ....................................................................................... |
93 |
Disinfection rinse............................................................................................ |
93 |
Auto load control ............................................................................................ |
93 |
Controlled energy cons. ................................................................................. |
93 |
Service................................................................................................................. |
93 |
Clean drain pump ........................................................................................... |
93 |
Service interval ............................................................................................... |
94 |
4
|
Contents |
External applications ........................................................................................... |
94 |
Availability of Miele digital products............................................................... |
94 |
Empty sensor ................................................................................................. |
94 |
Early warning counter..................................................................................... |
94 |
Peak load signal ............................................................................................. |
95 |
Peak load prevention...................................................................................... |
95 |
COM module selection................................................................................... |
95 |
WiFi................................................................................................................. |
95 |
Network time .................................................................................................. |
96 |
Remote ........................................................................................................... |
96 |
RemoteUpdate ............................................................................................... |
96 |
SmartGrid ....................................................................................................... |
97 |
Machine parameters............................................................................................ |
98 |
Suds cooling................................................................................................... |
98 |
Water inlet ...................................................................................................... |
98 |
Low water pressure ........................................................................................ |
99 |
Automatic dispensing..................................................................................... |
99 |
CapDosing...................................................................................................... |
99 |
Legal information............................................................................................ |
100 |
Payment system.................................................................................................. |
100 |
Settings for payment systems........................................................................ |
100 |
External prog. lock ......................................................................................... |
101 |
Payment system lock ..................................................................................... |
101 |
Programme cancellation................................................................................. |
101 |
F-back signal to pay system .......................................................................... |
101 |
FOC programmes........................................................................................... |
102 |
Clear paid signal............................................................................................. |
102 |
Debounce time ............................................................................................... |
102 |
5
Caring for the environment
Disposal of the packing mater-
ial
The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.
Disposing of your old appli-
ance
Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
6
Warning and safety instructions
This washing machine complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.
Read the operating instructions carefully before using the washing machine. They contain important information on safety, installation, use and maintenance. This prevents both personal injury and damage to the washing machine.
In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the washing machine as well as the safety instructions and warnings.
Miele cannot be held liable for damage caused by non-compliance with these instructions.
Keep these operating instructions in a safe place and pass them on to any future owner.
When instructing other people how to use the washing machine, they must be made aware of these safety and warning instructions.
Appropriate use
The washing machine is only suitable for washing fabrics with a care label stating that they are suitable for machine washing. Any other applications may be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation of the machine.
This washing machine must be used as described in the operating instructions and must be checked on a regular basis to make sure it is functioning correctly. Maintenance must be carried out when necessary.
The washing machine is not suitable for outdoor use.
This washing machine may also be operated in public areas.
7
Warning and safety instructions
This washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.
Children under the age of 8 must not be allowed near the washing machine unless they are constantly supervised.
Children over the age of 8 may only use the washing machine without supervision if its operation has been clearly explained to them and they are able to use it safely. Children must be able to understand and recognise the possible dangers caused by incorrect operation.
Children may not carry out cleaning or maintenance on the washing machine unsupervised.
Always supervise any children in the vicinity of the washing machine. Never allow children to play with the washing machine.
Disinfection programmes must not be interrupted, as this can have a limiting effect on the disinfection result. It is the operator's responsibility to ensure that the standard of disinfection in thermal as well as chemo thermal procedures is maintained by carrying out suitable validation tests.
8
Warning and safety instructions
Technical safety
Before setting up the washing machine, check it for any externally visible damage. Do not set up or use a damaged washing machine.
The electrical safety of the washing machine can only be guaranteed when correctly earthed.
It is most important that this basic safety requirement is tested and in case of any doubt the on-site wiring system should be inspected by a qualified electrician.
Miele cannot be held liable for the consequences of an inadequate earthing system.
Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele approved service technician, otherwise any subsequent damage will not be covered by the warranty.
Do not make any alterations to the machine, unless authorised to do so by Miele.
The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault:
-switch off at the wall and disconnect the plug from the socket, or
-disconnect the fuse at the mains circuit board, or
-unscrew the on-site screw-in fuse.
See “Installation – Electrical connection”.
9
Warning and safety instructions
If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.
The appliance may only be operated when the following conditions are met:
-The ship’s hull is longer than 24 metres.
-The list of the vessel is not more than 2°.
-Any external vibration is no more than 150 Hz at an amplitude of 0.35 mm.
The safe operation and correct functioning of the appliance can only
be guaranteed if the above conditions are met.
The appliance may not be operated on an open deck.
Appliances that do not carry the “ETL C/US” safety mark comply with European safety regulations.
These appliances must not be operated in the USA.
This appliance must only be installed by a qualified person who has made sure that the conditions for its safe use are met.

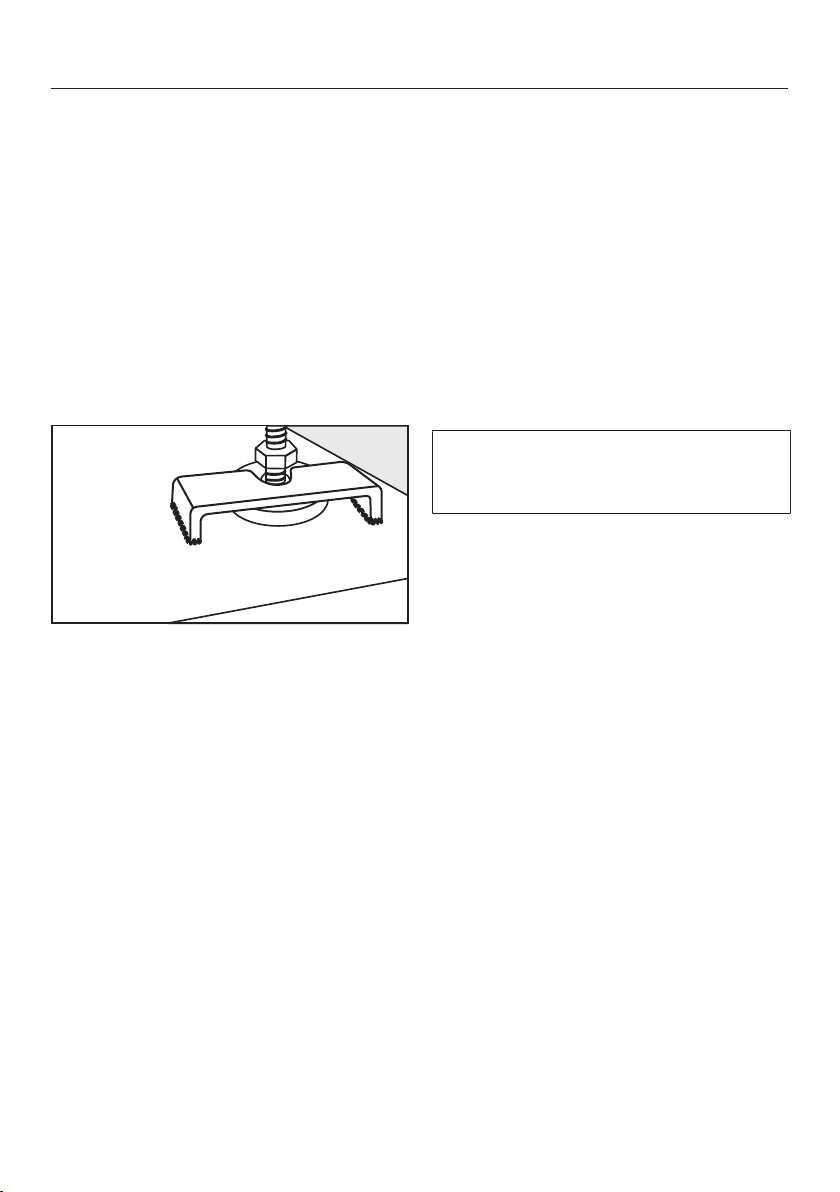

When installing this appliance, it must be securely fixed to the floor.
Failure to do this could result in personal injury, damage to the appliance and damage to other objects and installations.
The washing machine must only be connected to the on-site water supply using a new hose kit. Old hoses must not be re-used. Check the hose regularly for signs of wear. Replace it in good time to avoid the risk of leaks and subsequent damage.
10
Warning and safety instructions
Faulty components must only be replaced by genuine Miele original spare parts. Miele can only guarantee the safety standards of the machine when Miele replacement parts are used.
For reasons of safety, do not connect the machine to the mains electricity supply by an extension lead, multi-socket adapter, or similar. These can overheat and are a fire hazard.
Please observe the instructions in “Installation” and “Technical data”.
If the washing machine is equipped with an electrical plug connection, it must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.
If the appliance is hard wired, an on-site all pole circuit breaker must always be accessible to disconnect the washing machine from the mains.
This washing machine is supplied with a special lamp to cope with particular conditions (e.g. temperature, moisture, chemical resistance, abrasion resistance and vibration). This special lamp must only be used for the purpose it is intended for. It is not suitable for room lighting. Replacement lamps may only be fitted by a Miele authorised person or the Miele Service Department.
Reliable and safe operation of this washing machine can only be assured if it has been correctly connected to the mains electricity supply.
11
Warning and safety instructions
Correct use
The maximum dry laundry weight is 8.0 kg. The maximum recommended loads for individual programmes are given in the Programme chart.
Do not install your washing machine in a room where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
Before using the machine for the first time, check that the transit bars at the rear of the washing machine have been removed (see “Installation – Removing transit bars”). During spinning, transit bars which are still in place may result in damage to both the machine and adjacent furniture or appliances.
Close the stopcock if the machine is to be left for any length of time (e.g. while on holiday), especially if there is no floor drain (gully) in the immediate vicinity.
Danger of flooding! If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Hook the hose over the edge and secure. If the hose is unsecured, the force of the water flowing out of it can dislodge it from the basin.
Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum). Damaged components can damage the laundry.
For textiles that have been treated with solvent-based detergents, always check whether they can be washed in a washing machine. To check whether this is possible, refer to safety notes, information concerning the product's environmental properties, and other information.
12
Warning and safety instructions
Never use solvent based detergents, e.g. those containing benzine, in this machine. Doing so may result in damage to component parts and create toxic fumes. Risk of fire and explosion.
Benzine, petrol, paraffin, or any easily flammable liquid must not be stored or used near the machine. Risk of fire and explosion
If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use special non-corrosive descaling agents and strictly observe the instructions on the packaging. Special descaling agent is available from your Miele dealer or from Miele Service. Strictly observe the instructions for the descaling agent.
Only use dyes suitable for use in a washing machine. Always observe the manufacturer's instructions carefully.
Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this washing machine.
Avoid contact between stainless steel surfaces (front, lid, casing) and liquid detergents or disinfecting agents which contain chlorine or sodium hypochlorite. These agents can have a corrosive effect on stainless steel. Aggressive vapours containing chlorine can also be corrosive. Do not store open containers of these agents near the machine.
Do not use a pressure washer or hose to clean the washing machine.
It is particularly important to observe manufacturer's instructions when using a combination of cleaning agents and special application products. Products must only be used for applications approved by the manufacturer to avoid any material damage or the occurrence of strong chemical reactions.
13
Warning and safety instructions
If detergent has come into contact with the eyes, rinse out immediately with plenty of lukewarm water. If detergent has accidentally been ingested, seek medical advice immediately. People with damaged or sensitive skin should avoid contact with detergent.
When adding or removing laundry during the main wash, your skin may come into contact with detergent, particularly if the detergent is dispensed externally. Take care when placing your hands inside the drum. If suds have come into contact with the skin, rinse off immediately with lukewarm water.
Accessories
Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, warranty, performance, and product liability claims will be invalidated.
Miele tumble dryers and Miele washing machines can be installed as a washer-dryer stack. This requires a Miele washer-dryer stacking kit which can be purchased separately. Please ensure that the washer-dryer connection kit is suitable for the Miele tumble dryer and the Miele washing machine.
If installing the machine on a Miele plinth (available as an optional accessory), please make sure you order the correct one for this washing machine.
Miele cannot be held liable for damage caused by non-compliance
with these warning and safety instructions.
14
Operating the washing machine
Fascia panel
a Language sensor control
For selecting the current user language.
The system language is displayed again at the end of the programme.
b Back sensor control
For going back one level in the menu.
c Touch display
d Sensor control Start/Stop
For starting the programme selected and cancelling a programme once it has started. The programme selected can be started as soon as the sensor control starts flashing.
e Optical interface
For service technicians.
f Button
For switching the washing machine on and off. To save energy, the washing machine will switch off automatically. It is switched off 15 minutes after the end of the programme/anticrease phase, or after being switched on if no further selection is made.
15
Operating the washing machine
Sensor controls and touch dis-
play with sensor controls
The sensor controls , and
Start/Stop and the sensor controls in the display respond to finger tip contact. Every touch of a sensor is confirmed with an audible tone. You can adjust the volume of the keypad tone or switch it off (see information on “Supervisor level”).
The control panel with sensor controls and the touch display can be scratched by pointed or sharp objects, e.g. pens.
Only touch the display with your fingers.
Main menu
After switching on the washing machine, the main menu will appear in the display.
You access all the important submenus from the main menu.
Touch the sensor at any time to return to the main menu. Values set previously are not saved.
|
11:02 |
Programmes Favourites Supervisor
Help
Programmes
For selecting the wash programme.
Favourites
For selecting one of 12 favourite programmes which can be set up and saved by the supervisor (see “Favourite programmes” under “Supervisor level”).
Supervisor
You can alter the washing machine's electronics to suit changing requirements in the supervisor level (see “Supervisor level”).
16
Operating the washing machine
Examples of how to operate
the appliance
Option lists
Programme menu (single option list)
|
Programmes |
|
11:02 |
|
|
|
|
|
Whites |
Minimum iron |
Express |
|
|
|
|
|
Cottons |
Delicates |
Woollens |
|
|
|
|
|
|
|
|
You can scroll to the right or the left by swiping your finger across the screen. To do this place your finger on the touch display and swipe it in the direction you want.
The orange bar under the pictures shows that there are further options to choose from.
Touch a programme name to select the wash programme.
The display will change to the standard display for that programme.
Extras menu (multiple choice)
|
Extras |
11:02 |
|
|
|
Pre-wash |
Rinse plus |
|
Soak |
Intensive |
|
OK |
Touch one or several Extras to select it/ them.
Currently selected Extras are marked orange.
To deselect an Extra simply touch the
Extra again.
Use the OK sensor to activate all selected Extras.
Setting numerical values
You can set numerical values in some menus.
Time
14 |
02 |
13 |
01 |
|
|
12 |
00 |
|
|
11 |
59 |
10 |
58 |
OK |
Enter the numbers by swiping upwards or downwards. Place your finger on the number that you want to change and move your finger in the direction you want. Use the OK sensor to accept all set figures.
Tip: A numerical keypad may also appear to adjust the value for some settings.
17
Operating the washing machine
Time
| <![if ! IE]> <![endif]> |
14 |
02 |
|
13 |
01 |
||
12 |
00 |
||
|
|||
|
11 |
59 |
|
|
10 |
58 |
OK |
Briefly touching a number between the two lines will bring up the numerical keypad.
Time
1 2 3
4 5 6
12:00
7 8 9
|
0 |
OK |
Pull-down menu
The pull-down menu can be used to display information, e.g. about a wash programme.
|
Status |
11:02 |
|
|
|
|
|
|
Time left 2:27 h |
|
|
Coloured |
Main wash |
|
|
|
|
items |
|
|
|
|
|
|
Add laundry |
|
If an orange bar appears at the top of the screen in the middle of the display, you can open the pull-down menu. Touch the bar and drag down with your finger.
Exiting a menu
Once a valid number has been entered, the OK sensor control will be highlighted green.
Touch the sensor control to return to the previous screen.
Entries made before this which have not been confirmed with OK will not be saved.
Help display
With some menus Help appears along the bottom line of the display.
Touch the Help sensor control to display the text.
Touch the Close sensor control to return to the previous screen.
18
Operating the washing machine
Operating a launderette ma-
chine
The main menu will vary depending on the programming status (see “Supervisor level – Controls”).
Shortcuts are the easiest way to operate the machine. Operating staff are unable to change pre-set programmes.
Launderette, basic
|
11:02 |
60°CCottons |
40°CMinimum iron |
Woollens |
Delicates |
30°C |
40°C |
Help
A maximum of 12 programmes can be selected.
Depending on the setting at Supervisor level, the programmes can be displayed with or without a border.
Laundrette Logo
|
11:02 |
Cottons |
Minimum iron |
Woollens |
|
|
|
|
Help |
|
The first 3 programmes can be selected
directly. Up to 9 more programmes can
be selected from the list .
19
Before using for the first time
Damage resulting from incorrect installation and connection. Installing and connecting the washing machine incorrectly will cause serious property damage.
See “Installation”.
Emptying the drum
A swivel elbow for the drain hose and/ or assembly material may be stored in the drum.
Pull open the door. |
Remove the swivel elbow and assembly material.
Shut the door with a gentle swing.
Switching on the washing ma-
chine
Press the control.
The welcome screen will light up.
When commissioning the washing machine for the first time, you will have to define settings for daily use of the appliance. Some settings can only be configured during the initial commissioning process. After that, they must be changed by Miele Service.
Complete the initial commissioning process.
These settings are also described under “Supervisor level”.
Setting the language
You will be asked to select the language you require for the display. You can change the language at any time (see “Language” under “Supervisor level”).
Language
english
deutsch english (US) (CA)
english |
english |
(AU) |
español |
(GB) |
OK |
Scroll to the left or the right until the language you want appears.
Touch the sensor control for the language you want.
The selected language will be highlighted in orange and the display will change to next setting.
20
Before using for the first time
Reference to external appli-
ances
A reference to external hardware appears.
Confirm with the OK sensor control.
Before initial commissioning, connect the XCI box or adapter or slide a communication module into the slot on the back of the machine. The washing machine must be disconnected from the mains. Then start the commissioning process.
Setting the display brightness
You will be asked to select the brightness of the display.
Display brightness
|
|
|
Darker |
|
Brighter |
OK |
Touch the segment bars until you reach the required level of brightness.
The selected brightness level will be highlighted orange.
Confirm with OK.
The display will change to the next setting.
Setting the date
Date
21 |
May |
2023 |
22 |
June |
2022 |
23 |
July |
2021 |
24 |
August |
2020 |
25 |
September |
2019 |
OK |
Place your finger on the number that you want to change and move your finger in the direction you want.
Once all values have been selected, confirm with the OK sensor control.
The display will change to the next setting.
Confirm time request
The following question appears in the display:
Should the time of day display not be
shown?
Touch the sensor control yes or no.
If you select yes, the system will skip
the setting Clock display.
If you select no, the display will switch to the setting Clock display.
21
Before using for the first time
Setting the time of day
Time
14 |
02 |
13 |
01 |
|
|
12 |
00 |
|
|
11 |
59 |
10 |
58 |
|
OK |
Place your finger on the number that |
|
you want to change and move your |
|
finger in the direction you want. |
|
Confirm with the OK sensor control. |
|
The display will change to the next setting.
Selecting programme pack-
ages
You can select various programmes
from the programme packages. Any
programmes already active are marked
in orange.
Programme packages |
11:02 |
||
Label |
Sport |
|
|
Cottons |
Sportswear |
Trainers |
|
Cottons PRO |
Sport |
Hard items |
|
Microfibre |
|||
|
|
||
OK |
Scroll right until you reach a programme that is not marked in orange.
Touch the sensor control for the required programme.
The selected programme is marked in orange.
You can select further programmes.
Tip: You can disable a selected programme by touching the programme's sensor control again.
Exception: The programmes Cot-
tons and Cottons Pro cannot be disabled.
If you do not want to select any more programmes, confirm with the sensor control OK.
The display will change to the next setting.
22
Before using for the first time
Switching on automatic dis-
pensing
Automatic dispensing |
11:02 |
|
Off |
COM module |
|
|
|
|
XCI box
OK |
Touch the COM module or XCI box
sensor control if you want to dispense detergent externally.
Confirm with the OK sensor control.
The display will change to the next setting.
Setting up a payment system
If you wish to set up a payment system, read “Payment system” under “Supervisor level”.
These settings can only be changed during the initial commissioning process. If you wish to change the settings after the commissioning process, please contact Miele Service.
If you do not wish to set up a payment system, you can skip this stage.
Payment system |
11:02 |
No payment |
Timed |
system |
operation |
|
|
Programme
COM module
control
OK |
Touch the No payment system sensor
control.
The display will change to the next setting.
23
Before using for the first time
Select pre-wash water
Pre-wash |
11:02 |
Cold
Hot
OK |
Touch the cold sensor control if the washing machine is only connected to a cold water supply, or touch hot if the washing machine is connected to cold and hot water.
The display will change to the next setting.
Select main wash water
Main wash |
11:02 |
Cold
Hot
OK |
Touch the cold sensor control if the washing machine is only connected to a cold water supply, or touch hot if the washing machine is connected to cold and hot water.
Further information will appear on the display.
Removing the transit bars
The display will remind you to remove the transit bars.
Damage resulting from failure to remove the transit bars.
Failure to remove the transit bars can result in damage to the washing machine and to adjacent furniture or appliances.
Remove the transit bars as described in “Installation”.
Confirm that the transit bars have been removed with the OK sensor control.
Continue setting up as described in the op-
erating instructions appears in the display.
Confirm the message with the OK sensor control.
24
Before using for the first time
Completing commissioning
To complete commissioning, the Coloured items 60 °C programme must be run without laundry and without detergent.
If the power is interrupted prior to the start of the first wash programme (e.g. if the machine is switched off with the
button), the initial commissioning process can be completed again. Once a wash programme has been running for over 20 minutes, the initial commissioning process does not have to be performed again.
Open the stopcocks.
Touch the Programmes sensor control.
|
Programmes |
|
11:02 |
|
|
|
|
|
Whites |
Minimum iron |
Express |
|
|
|
|
|
Cottons |
Delicates |
Woollens |
|
|
|
|
|
|
|
|
Touch the Cottons sensor control.
|
Overview |
|
11:02 |
|
|
|
|
|
|
Temperature |
Spin speed |
|
60 °C |
1600 rpm |
|
|
|
|
|
|
Cottons |
Extras |
CapDosing |
|
0:59 h |
not selected |
not selected |
timer
Touch the Start/Stop sensor control.
When the programme has finished, your machine is ready for use.
If you have activated disinfection programmes, you must complete the
Thermal disinfection programme as the first programme; make sure you use a suitable detergent but do not load the machine.
25
1. Preparing the laundry
Emptying pockets
Empty all pockets.
Damage due to foreign objects.
Nails, coins, paper clips, and so on can cause damage to garments and components in the machine.
Check the laundry before washing and remove any foreign objects.
Sorting the laundry
Sort the laundry according to colour and the garment care label.
Pre-treating stains
Badly soiled areas and stains should be cleaned as soon as possible. Spillages should be carefully dabbed off using a soft, colourfast cloth.
Damage due to solvent-based detergents.
Detergents containing benzine, stain remover, etc., can damage plastic parts.
When pre-treating textiles, make sure that any plastic parts do not come into contact with the detergent.
Risk of explosion due to solventbased detergents.
When using solvent-based detergents, an explosive mixture may develop.
Never use solvent-based detergents in the washing machine.
General tips
-Do not machine wash items which are specified by the manufacturer as not washable on the care label ( ).
-Curtains: remove rollers and lead weights or place in a laundry bag.
-Sew in or remove any loose underwiring in bras.
-Turn garments inside out, if recommended by the manufacturer.
-Zip up or close any jackets with Velcro or hook and eye fastenings before washing.
-Fasten duvet covers and pillow cases to prevent small items from becoming rolled up inside them.
-Please refer to the Programme chart for more tips and tricks.
26
2. Loading the washing machine
Opening the door |
Closing the door |
Reach under the door grip and pull the door open.
Check the drum for foreign objects before loading it with laundry.
Unfold the laundry and load loosely into the drum.
Mixing both large and small items gives better wash results and also helps to distribute the load evenly during spinning.
The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creasing.
Make sure that no items are caught between the door and the seal.
Shut the door with a gentle swing.
27
3. Selecting a programme
Switching on the washing ma-
chine
Press the control.
The drum lighting will come on.
The drum lighting will go out automatically after 5 minutes or when the programme starts.
Selecting a programme
|
11:02 |
Programmes Favourites Supervisor
Help
There are different ways to select a programme.
You can select a programme from the
Programmes menu.
Touch the Programmes sensor control.
|
Programmes |
|
11:02 |
|
|
|
|
|
Whites |
Minimum iron |
Express |
|
|
|
|
|
Cottons |
Delicates |
Woollens |
|
|
|
|
|
|
|
|
Scroll to the right in the display until the programme you want appears.
Touch the sensor control for that programme.
The display will change to the standard menu for that wash programme.
Alternatively, you can select a programme from the Favourites menu.
The programmes under Favourites can be changed by the supervisor (see “Favourite programmes” under “Supervisor level”).
Touch the Favourites sensor control.
|
Favourites |
11:02 |
|
|
|
|
|
Cottons |
Minimum iron |
||
Woollens |
Delicates |
||
|
|
|
|
Scroll to the right in the display until the programme you want appears.
Touch the sensor control for that programme.
The display will change to the standard menu for that wash programme.
In the case of Favourite programmes, the majority of the programme settings are already fixed and cannot be changed.
28
4. Selecting programme settings
Selecting a load
To enable load specific dispensing, you can specify the load for some programmes.
Touch the Weight sensor control.
Enter a valid value for the load quantity.
The display will change to the Overview menu.
Selecting the temperature
You can alter the preset temperature of a wash programme.
Touch the Temperature sensor control.
Select the desired temperature.
The display will change to the Overview menu.
Selecting a spin speed
You can alter the preset spin speed of a wash programme.
Touch the Spin speed sensor control.
Select the spin speed you want.
The display will change to the Overview menu.
Selecting Extras
You can select Extras for some wash programmes.
Touch the Extras sensor control.
Select one or more Extras.
Confirm with the OK sensor control.
The display will change to the Overview menu.
See “Extras” for further information.
Activating CapDosing
You can use CapDosing for some wash programmes.
Touch the CapDosing sensor control.
The types of capsules which can be used with the programme will appear in the display.
Select the type of capsule you want.
CapDosing is now active.
The display will change to the Overview menu.
See “CapDosing” under “5. Adding detergent” for more information.
29
5. Adding detergent
There are several options for adding deAdding detergent
tergent to the washing machine.
Detergent drawer
You can use any detergent that is suitable for washing machines.
Detergent dispensing
Please follow the detergent manufacturer's instructions in relation to dosage.
Adding too much detergent will lead to excessive foaming.
Avoid adding excess detergent.
The amount to dispense will depend on:
-the amount of laundry
-the amount of soiling in the laundry
-the water hardness
Hardness |
Hardness |
Degree of |
range |
in mmol/l |
German hardness |
|
|
°dH |
|
|
|
I (soft) |
0-1.5 |
0-8.4 |
|
|
|
II (medium) |
1.5-2.5 |
8.4-14 |
|
|
|
III (hard) |
above 2.5 |
above 14 |
|
|
|
Check with your local water supplier if
you do not know the water hardness in
your area.
Pull out the detergent drawer and add detergent to the compartments.
Detergent for the pre-wash (divide the total recommended amount as follows: ⅓ to compartment and ⅔ to compartment )
Detergent for the main wash
/ Fabric conditioner, liquid starch
or capsules
For disinfection programmes, the compartments and can be filled with detergent for the main wash if you have not selected pre-wash.
30
