Operating instructions
Electro-Grill KM 88-2
@Q\ä}
M.-Nr. 03 999 470

Contents

Contents
Help to protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Grilling
Grilling over lava rock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grilling over the water trough. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and Care
Grill racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grill Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grill interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Facia panel / Control knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electrical connection and technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

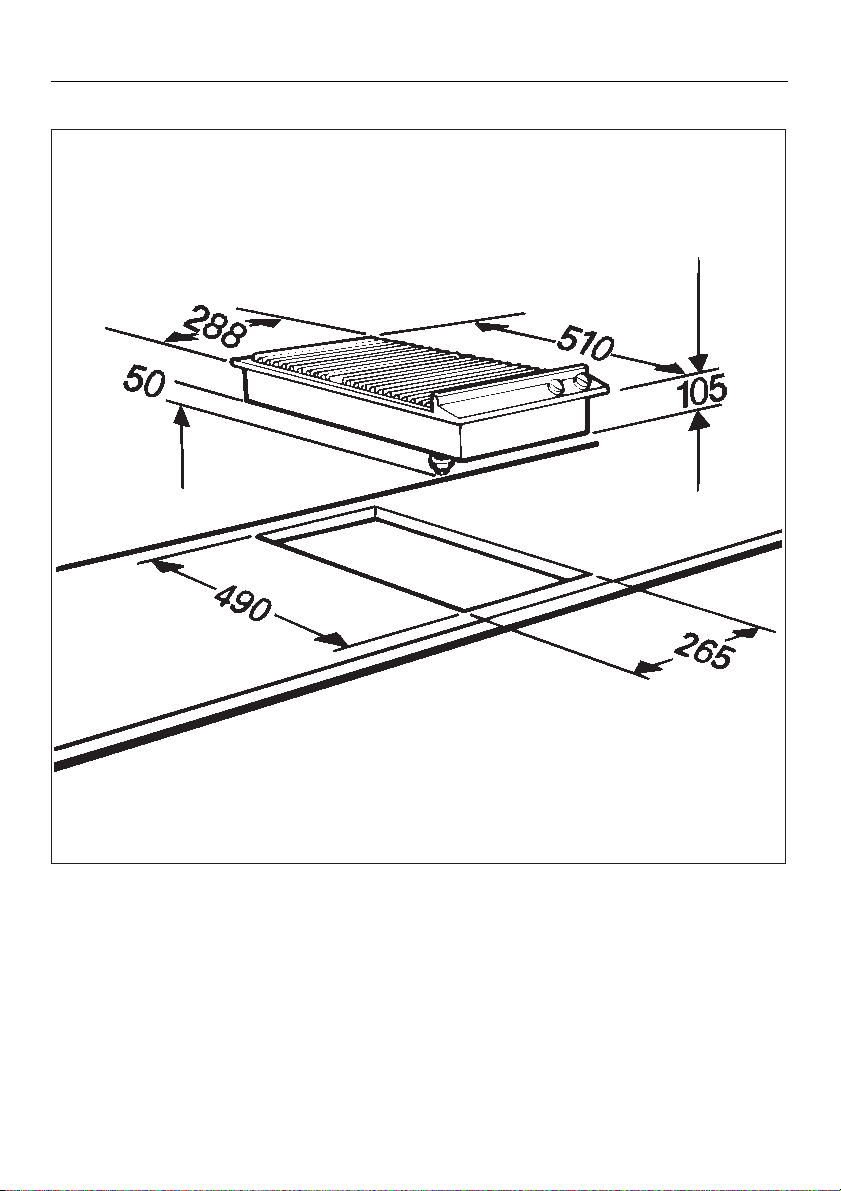

Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

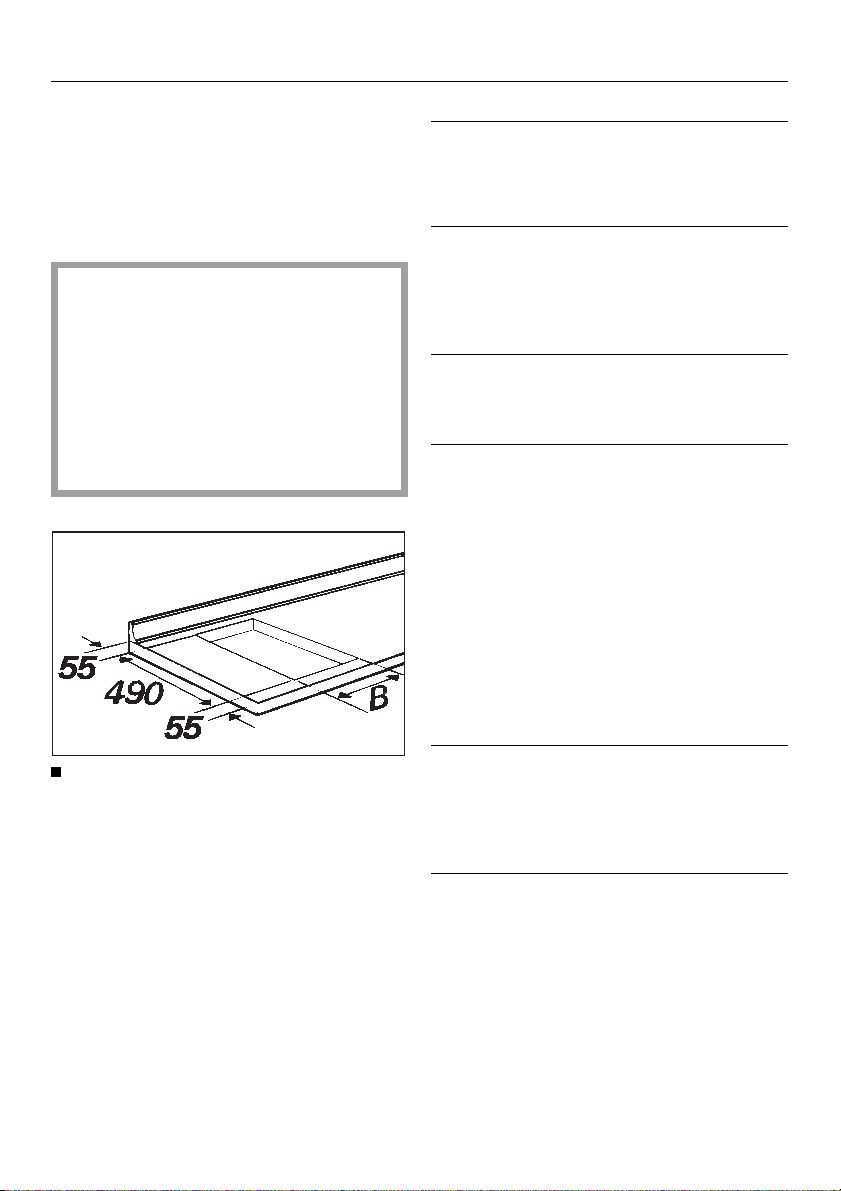

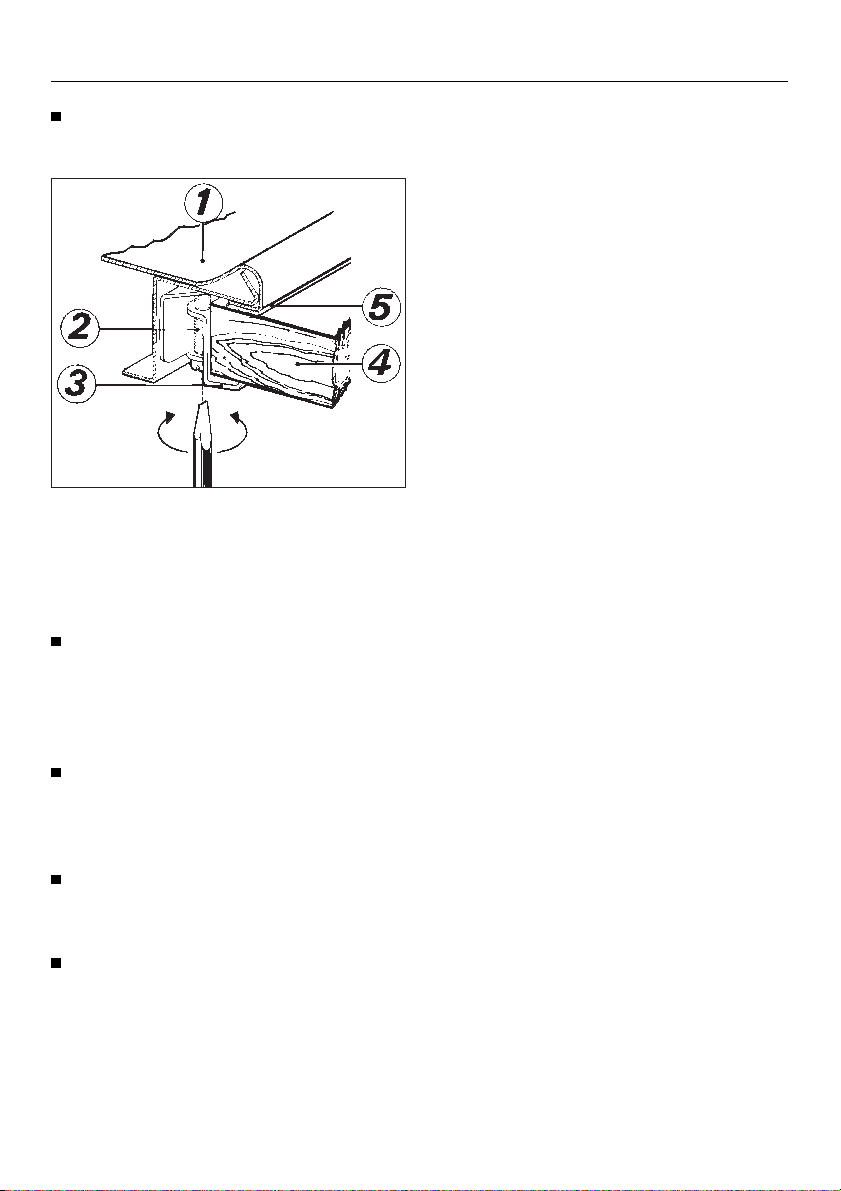

Instructions for building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Help to protect our environment

Help to protect our environment
Disposal of packaging
The transport and protective packing is mostly manufactured from the following re-usable materials:
. . . Corrugated paper / card - mostly from recycled materials. . . . Polyethylene foil (PE) ­partly from secondary raw materials.
Rather than just throwing these ma­terials away, please take them to the nearest local authority collection point for specific waste.
Disposal of your old machine
Old machines contain materials which can be recycled. Please contact your local authorities or scrap merchant about potential recycling schemes, before disposing of the appliance.
Read the notes on page 6 before dis­posing of the appliance.
3

Description of the appliance

Description of the appliance
2
1
10
7899
3
4
5
4
6
4
Description of the appliance
b Control panel c Grill racks d Stainless steel lid EA 80
(The grill must only be operated with the stainless steel lid EA 80 fitted)
e Heating elements
Description of the appliance
Data plate
Because the data plate is no longer visible once the appliance has been built in a 2nd data plate is supplied which should be stuck into the space provided on page 12 of these instruc­tions under After Sales Service.
f Lava rock container g Connection cable with plug,
approx. 1.10 m long. N.B. plug may vary according to country.
h Drain tap i Control for the front heating element
j
Indicator light
k Control for the rear heating element
Extra accessories
A grill plate (griddle) GP 88 can be pur­chased from specialist dealers for use with the KM 88-2 Electro-grill.
5

Warning and Safety Instructions

Warning and Safety Instructions
This appliance complies with all rele­vant legal safety requirements. Im­proper use of the appliance can, however, present a risk of both per­sonal injury and material damage. Before installation and before using the appliance for the first time read the operating instructions carefully. They give information on safety, on the operation and care of the ap­pliance. This way you will avoid the risk of accidents and damage to the appliance.
This appliance is intended for do-
mestic use. Should it be installed for commercial use the relevant regulations must be ob­served.
For safety reasons, this appliance
must only be operated as a built-in appliance. This is necessary to ensure that all electric components are shielded.
The electrical safety of the ap-
pliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system which complies with local and national regulations. It is most import­ant that this basic safety requirement is regulary tested by a qualified electri­cian. The manufacturer can not be held responsible for the consequences of an inadequate earthing system.
Installation work and repairs may
only be carried out by suitably qualified and competent engineers to ensure safety. Repairs and other work by unqualified persons could be dangerous.
Do not connect the appliance to the
mains electricity supply by an exten­sion lead. Extension leads do not guaran­tee the required safety of the appliance.
Please ensure that the domestic
supply corresponds to the informa­tion on the machine’s data plate.
The appliance is only completely
isolated from the electricity supply when it is switched off at the wall socket, or the mains fuse is withdrawn. Do not pull by the mains cable, but by the plug when withdrawing the plug from the socket.
The distance between the grill and a
cooker hood should be at least 650 mm. Exercise caution when using a cooker hood or downdraught extractor. Australia: 600 mm!
The grill must only be operated with
the stainless steel lid EA 80 fitted. When open (see illustration page 3) it forms a heat and backsplash shield.
Never switch on the grill when the
heating elements are raised. This could set fire to easily inflammable objects near the grill.
Do not let small children touch the
appliance during operation. Danger of burning. Supervise use of the grill by the elderly or infirm.
Never leave the grill unattended
when burning off residues from the elements. Residues of food such as meat which drop on to the lava rocks could flare up, the flames be drawn in by the extractor and be aggravated by the grease on the filter. This is a fire ha­zard.
6
Warning and Safety Instructions
Warning and Safety Instructions
Do not leave the appliance unat-
tended when cooking with oils and fats as these are fire hazards if over­heated.
Always ensure that food is suffi-
ciently cooked or reheated. Many factors will affect the overall cook­ing time, including the size and amount of food, its temperature and changes to the recipe. Some foods may contain micro organ­isms which are only destroyed by thor­ough cooking, therefore when cooking or reheating foods, e.g. poultry, select a longer cooking or reheating time.
Keep these instructions in a safe place and pass them on to any future user.
Disposal of discarded appliances
Before disposal of an old ap-
pliance, turn off at the mains, dis­connect and remove the appliance cable at both ends and render useless. This is intended to prevent the dis­carded appliance from being a hazard.
It is essential to ensure that food
has been evenly and sufficiently heated. To check that it is thoroughly cooked, turn during cooking if necess­ary.
When using kitchen appliances
connected to sockets near the grill ensure that the cable cannot touch the hot grill. This is a fire hazard.
Under no circumstances use a
steam-cleaning appliance to clean the grill. The steam could penetrate to live components and cause a short cir­cuit.
In countries which may be subject
to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surround­ings in a clean condition at all times. Any damage which might be caused by cockroaches or other vermin will not be covered by the appliance guarantee.
The manufacturer cannot be held liable for damage caused by non­compliance with safety instructions.
7

Operation

Operation
The grill is divided into two heating areas. Each element is regulated by an energy control. When the controls are switched on the relevant indicator light will come on. The power of the heating elements can be freely adjusted.
Grilling and keeping food warm
The separate control of the two parts of the grill makes it possible, . . .
. . . to grill meat etc. on the front area, . . . and keep already grilled food hot
on the rear area.
Switching the grill on
Switch the grill on by turning one or both controls to a setting.
The controls can be turned either clock­wise or anti-clockwise.
The heating element indicator light comes on.
The figures 1-12 are settings. From settings 1-11 respectively, the heating element becomes progress­ively hotter and the selected tem­perature is automatically controlled.
On setting 12, the heating element is fully heated and brought to glowing point.
For example sausages can be grilled and then kept hot.
See the chart on page 9 for a more detailed description of which setting to use for which foods.
The grill is fitted with two removable stainless steel racks. By turning the racks over, it is possible to grill at two different heights over the heating ele­ments. Select
the lower rack position for flat foodstuffs.
the higher rack position for larger items of food which take longer to cook.
After grilling / keeping food hot
To switch the grill off
Turn the controls back to setting ”0“. The indicator lights go out.
If there is heavy soiling on the heating element
turn the controls to setting ”12“. Any food remains should be com­pletely burnt off after about 10 minutes.
Turn the controls back to setting ”0“. Should any particles still remain, they can be removed with a wire brush.
8

Grilling

Grilling over lava rock
Before beginning to operate the grill, remove the grill racks and raise the heating elements. Take the lava rock out of its bag and put it into the lava rock container.
We recommend that the heating ele­ments are pre-heated at setting ”12“ for approx. 5 minutes.
This way the food to be grilled also re­ceives heat radiated from the lava rock.
Meat can be lightly brushed with oil be­fore grilling.
If you wish to add herbs to food for grill­ing, they can be sprinkled directly on to the meat or on to the lava rock, so that the aroma reaches the foodstuff.
The lava rocks . . . . . . absorb the fat which drops on to them, . . . are saturated with oil when the stones become dark. The rocks should then be changed.
Smoke will form when fat drops on to the hot lava rocks. With the DA 8 ex­tractor situated next to the grill, the smoke can be removed from the atmos­phere.
Grilling
Grilling over the water trough
Before switching on the heating ele­ments:
remove the lava rock container from the grill interior.
Check that the drain tap underneath is closed then fill the grill trough with approx. 2 litres of hot water, up to the lower marker rim.
We recommend pre-heating the heating elements at setting ”12“ for approx. 5 minutes.
This way food to be grilled is also heated by the steam. The grill trough will also be easier to clean.
Meat can be brushed with oil before being grilled.
Drops of fat are cooled immediately in the water trough, so that they cannot catch alight.
When grilling, watch the level of water in the trough; if necessary, add more water.
After grilling, drain away the water and oil through the drain tap (see ”Cleaning and Care“).
9
Grilling
Grilling
Cooking chart for grilling over lava rock / over the water trough
Food Setting Time in mins*
Fillet Steak (40Z) - On Elements
- On Racks
Pork Chop
Pork Kebab
Lamb Chop
Spare Ribs
Sausage
Burger
Mackerel ( Whole )
Fish Fillet
Vegetable Foil Parcels
Banana (In Skin)
Fruit Kebabs Please Note: The times given are for a pre-heated grill and should serve only as a guide - the actual
cooking time will depend on the size and quantity of food cooked. * Food should be turned over half way through the cooking time. Water trough times may be a little longer than lava rock times.
10 10 10
10
10
10
10
10
10
10
2 (Rare)
6 (Med.)
8
8
8
9
9
4 (Rare)
10 (Med.)
14
16
20
22
10
12
20
15
40
15
10
10

Cleaning and Care

Grill racks
The grill racks can be washed . . . . . . by hand, in a solution of washing­up liquid or . . . in a dishwasher .
If, after a while the racks become brown, the residue can be removed with a stainless steel cleaner.
Cleaning and Care
Grill interior
After grilling over the water trough, the liquid is drained out of the grill interior via the drain tap.
If the water is still hot, be careful when draining; if necessary, cool it down by adding cold water.
Grill Elements
After grilling residual meat and fat can be burnt off the heating element.
Turn the control to setting ”12“.
This can result in fat which may have built up in the lava rock burn­ing off with an open flame.
Be careful when using a DA 8 ex­tractor and do not leave the grill un­attended during this cleaning pro­cess! Any food remains should be com­pletely burnt off after about 10 minutes. Remove any stubborn remains with a wire brush.
Place a heat resistant container beneath the drain tap.
To open the tap, turn the lever 90° clockwise.
To close it turn the lever anti-clock­wise as far as it will go.
After cleaning remember to close the tap again.
The grill interior should be cleaned with hot water and washing up liquid.
Do not use abrasive cleaning agents or caustic cleaners.
Facia panel / Control knobs
Do not use any scouring agents or pads on the knobs or facia, as these could cause damage.
Clean the control knobs and the facia panel with hot water and a little wash­ing up liquid. After cleaning rub dry with a soft cloth.
11

After Sales Service

After Sales Service
In the event of any fault which you can­not correct yourself, or if the appliance is under guarantee, please contact:
Your Miele Dealer
or
The Miele Service Department

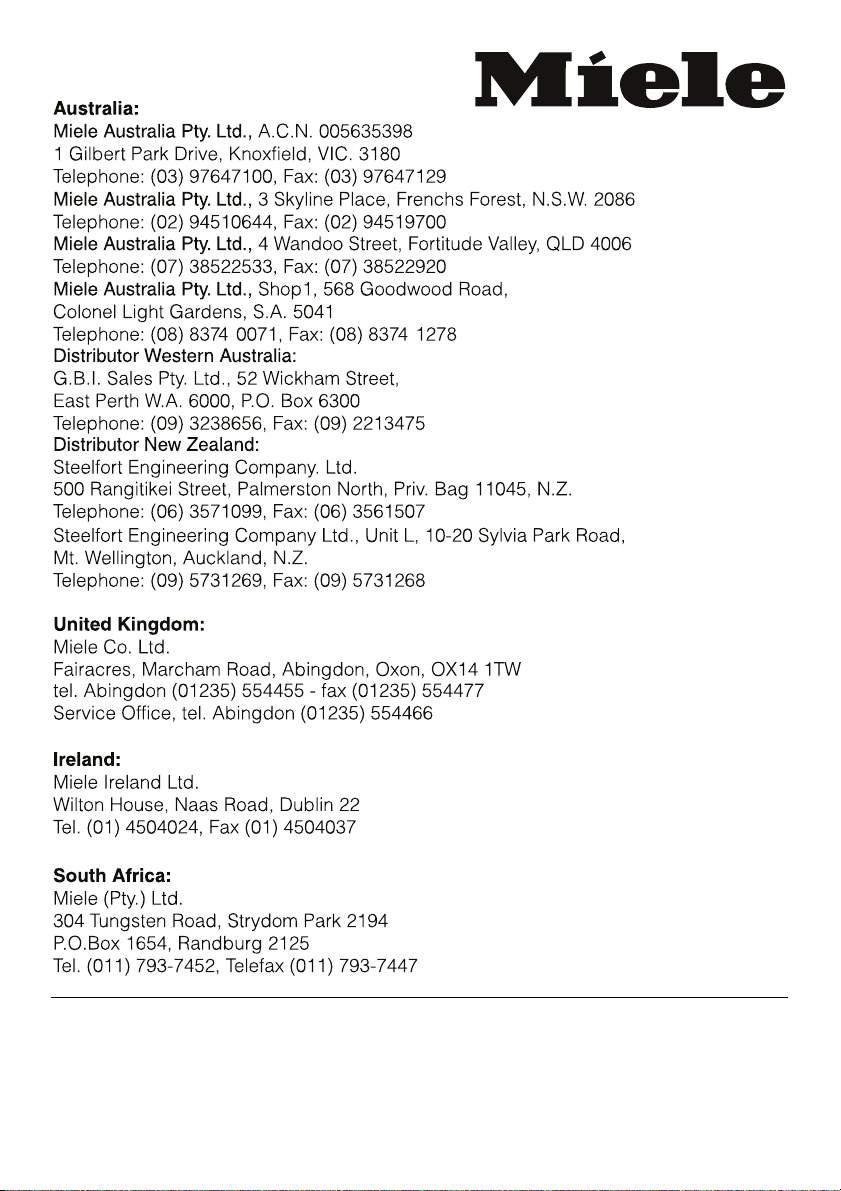

The address of the nearest Service De­partment is given on the back page.
When contacting the Service Depart­ment, please quote the Model and Ser­ial No. of the appliance, both of which can be found on the data plate.
Space for data plate supplied
12

Electrical connection and technical data

Electrical connection and technical data
Electrical connection
General notes
Electrical connection of the appliance should be undertaken by a qualified electrician in strict accordance with national and local safety regulations.
This appliance conforms to EN 55014. For extra safety it is advisable to install
a residual current device (RCD), with a trip current of 30 mA.
Electrical connection U.K., AUS (IRL, NZ, ZA)
The appliance is supplied for connec­tion to an a.c. single phase 240 V (230 V), 50 Hz supply. The fuse rating is given on the data plate.
For KM 88-2 connection should be made by a fused plug (U.K. only) and switched socket. The On-Off switch should be easily accessible after the appliance has been built-in.
The data plate gives the necessary data for connection. See page 11.
Important:
The wires in the mains lead are col­oured in accordance with the following code:
Green/yellow = earth Blue = neutral Brown = live As the colours of the wires in the mains
lead of this appliance may not corre­spond with the coloured mark-ings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the termi­nal in the plug which is marked with the letter E or by the earth symbol z or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
For U.K.: The wire which is coloured brown must be connected to the termi­nal which is marked with the letter L or coloured red.
For Australia: The wire which is col­oured brown must be connected to the terminal which is marked with the letter A or coloured red.
WARNING THIS APPLIANCE MUST BE EARTHED
13
Electrical connection and technical data
Electrical connection and technical data
Non-rewireable plugs BS 1363 (U.K.)
If this machine or appliance is fitted with a non-rewireable plug, the follow­ing information applies:
Technical data
Total connected load
– U.K., AUS . . . . . . . . . . . . . . . . 3480 W
– IRL, NZ, ZA. . . . . . . . . . . . . . . 3200 W
If the socket outlets are not suitable for the plug supplied with this product, it must be cut off and an appropriate plug fitted.
The plug cut from the flexible cord should be disposed of and on no ac­count be inserted into a 13 A socket elsewhere in the house (electric shock hazard).
The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost, the plug must not be used until a suitable replacement is ob­tained. The colour of the correct re­placement cover is that of the coloured insert in the base of the plug, or the col­our that is embossed in words in the base of the plug (as applicable to the design of plug fitted).
The correct fuse rating of the replace­ment fuses that are ASTA approved to BS 1362 should be fitted. Replace­ment fuse covers may be purchased from your local electrical suppliers, electricity showrooms, or Miele Service Agent.
Electrical connection
– U.K., AUS . . . . . . . . . . ~ 50 Hz 240 V
– IRL, NZ, ZA. . . . . . . . . ~ 50 Hz 230 V
Fuse rating
– U.K., IRL . . . . . . . . . . . . . . . . . . . 13 A
– ZA . . . . . . . . . . . . . . . . . . . . . . . . 10 A
Plug rating
– AUS, NZ . . . . . . . . . . . . . . . . . . . 15 A
Connection cable . . . . . . . . . . . 1.10 m
This appliance needs a 3 x 1.5 mm core cable, should the connection cable ever need to be replaced.
2
14

Appliance dimensions

Appliance dimensions
15

Instructions for building-in

Instructions for building-in
These hobs are classified as ”Y“ class for heat protection. There may be a wall at the rear and wall or tall units at one side. On the other side, however, no unit or divider must stand higher than the hob.
There must be a minimum distance of 250 mm between the hob and ad­jacent furniture, (e.g. tall unit) owing to the heat radiated from the ele­ments.
The distance between the grill and a cooker hood should be at least 650 mm.
2 zone Combiset
1 element 2 elements 3 elements 4 elements 5 elements
4 zone Combiset
1 elements 2 elements 3 elements
Combination
One 2 zone + one 4 zone
Two 2 zone + one 4 zone
Three 2 zone + one 4 zone
Depth
in
mm
490 490 490 490 490
490 490 490
490
490
490
Width
(= Dimen­sion B)
in mm
265 558
851 1144 1437
560 1143 1728
851
1143
1437
Prepare the worktop cut-out as illus­trated.
Dimension ”B“ applies for a combina­tion of appliances and is given on the chart.
16
One 2 zone + two 4 zone
Two 2 zone + two 4 zone
Extractor (e.g. DA 8-2)
For building in between two appliances:
- Dimension B increases by 90 mm.
For building in at the end of a combination:
- Dimension B increases by 98 mm.
490
490
1436
1729
Instructions for building-in
Instructions for building-in
Stick the seal provided f under the edge of the hob.
loosen
tighten
b Appliance c Tensioning screw d Clamp e Worktop f Seal
Turn the tensioning screws c in the clamps on the appliance anti-clockwise direction until a resist­ance is met and turn the clamps to the left.
b in an
When building-in several Combiset units, a spacer bar must be fitted be­tween the units. It is supplied with its own installation instructions.
Place the appliance into position, turn the clamps and tighten the ten­sioning screws until the clamps press into the worktop
Install the stainless steel lid EA 80. It is supplied with its own installation instructions.
Connect the appliance to the elec­tricity supply.
e.
171819
Alteration rights reserved / 22 / 002 AUS, GB, IRL,NZ, ZA - 4097
Loading...
