Operating and Installation Instructions
Ceramic cooktops with induction
To avoid the risk of accidents or damage to the appliance it is
imperative that you read these instructions before
installing the appliance and using it for the first time
.
en-CA M.-Nr. 09 166 590
Contents
Warnings and safety instructions ........................................................................ 4
Caring for the environment ................................................................................ 14
Overview............................................................................................................... 15
Cooktop................................................................................................................. 15
KM 6310 / KM 6311 / KM 6312........................................................................ 15
KM 6344 ........................................................................................................... 16
Controls/Indicators................................................................................................ 17
Burner data............................................................................................................ 19
Initial commissioning .......................................................................................... 20
Cleaning the cooktop for the first time.................................................................. 20
Turning on the cooktop for the first time ............................................................... 20
Induction .............................................................................................................. 21
How it works.......................................................................................................... 21
Noises.................................................................................................................... 22
Cookware .............................................................................................................. 23
Energy saving tips .............................................................................................. 24
Setting range........................................................................................................ 25
Operation.............................................................................................................. 26
Basic operation ..................................................................................................... 26
Turning the cooktop on ......................................................................................... 27
Selecting/Changing the power level...................................................................... 27
Switching off.......................................................................................................... 27
Residual heat indicator.......................................................................................... 27
Setting the power level - expanded setting range ................................................ 27
Auto Heat-up......................................................................................................... 28
Booster.................................................................................................................. 29
Keeping food warm ............................................................................................... 31
Timer..................................................................................................................... 32
Timer ..................................................................................................................... 32
Turning a cooking zone off automatically.............................................................. 34
Using both timer functions at the same time ........................................................ 35
Additional functions ............................................................................................ 36
Stop & Go.............................................................................................................. 36
Safety features..................................................................................................... 37
System lock/Safety lock........................................................................................ 37
Safety shut-off....................................................................................................... 38
2
Contents
Overheat protection............................................................................................... 39
Cleaning and care ............................................................................................... 40
Programming ....................................................................................................... 42
Frequently Asked Questions .............................................................................. 45
Optional accessories ..........................................................................................48
Miele@home / Con@ctivity ................................................................................ 49
Safety instructions for installation..................................................................... 51
Safety clearances ................................................................................................ 52
Cooktops with trim or bevelled edges ..............................................................56
Instructions for installation .................................................................................... 56
Installation dimensions.......................................................................................... 57
KM 6310 ........................................................................................................... 57
KM 6344 ........................................................................................................... 58
Installation ............................................................................................................. 59
Electrical connection ..........................................................................................60
Service..................................................................................................................62
Contact in case of a fault ...................................................................................... 62
Data plate .............................................................................................................. 62
Warranty ................................................................................................................ 62
3
Warnings and safety instructions
This appliance conforms to current safety requirements. However,
improper use can result in personal injury and damage to property.
To prevent accidents and damage to the cooktop, please read
these instructions carefully before using the cooktop for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for damage occurring as a result of
non-compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owners.
4
Warnings and safety instructions
Intended use
This cooktop is intended for domestic use and use in other similar
environments.
This cooktop is not intended for outdoor use.
The cooktop is intended to prepare food and keep it warm in
domestic use only. Any other use may be hazardous.
Persons who are unable to safely operate the cooktop due to
limited physical, sensory or mental abilities or because they lack
experience or knowledge may only use the appliance if they are
supervised while doing so. These persons may only use the cooktop
without supervision if they have been shown how to use it in a safe
manner, and if they are able to recognize and understand the
potential risks of improper use.
5
Warnings and safety instructions
Safety with children
Children under 8 years of age must be kept away from the
cooktop unless they are constantly supervised.
Children ages 8 and up may only use the cooktop without
supervision if they have been shown how to use it in a safe manner,
and if they are able to recognize and understand the potential risks
of improper use.
Children must not be allowed to clean the cooktop without
supervision.
Be sure to supervise any children in the vicinity of the cooktop,
and do not let them play with it.
The cooktop gets hot when in use and remains hot for some time
after being switched off. Keep children away from the cooktop until it
has cooled down and is no longer a burn hazard.
Burn hazard.
Keep the spaces above and behind the cooktop clear of any items
that could draw the attention of children. Otherwise, they can be
tempted into climbing onto the appliance.
Risk of burning or scalding.
Turn all handles away from the front of the cooktop so that children
cannot pull pots and pans down and burn themselves.
Risk of suffocation. Children may be able to wrap themselves in
packaging material or pull it over their heads with the risk of
suffocation. Keep children away from all packaging materials.
Activate the system lock to ensure that children cannot turn on the
appliance inadvertently. Use the safety lock when the cooktop is in
use to prevent children from altering the settings selected.
6
Warnings and safety instructions
Technical safety
Installation, maintenance and repair work should only be
performed by a Miele authorized service technician. Installation,
maintenance and repair work by unqualified persons can cause
considerable danger to users.
A damaged cooktop can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
Reliable and safe operation of the cooktop can only be
guaranteed if it is connected to the public power supply.
The electrical safety of this cooktop can only be guaranteed when
it is properly grounded. Compliance with this essential safety
requirement is absolutely necessary. If in any doubt, please have the
building's electrical system checked by a qualified electrician.
To avoid damaging the cooktop, make sure that the connection
data (voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
For safety reasons, the cooktop may only be used when it has
been fully installed.
This cooktop must not be used in non-stationary locations (e.g. on
a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the cooktop will endanger your safety
and may lead to cooktop malfunctions.
Do not open the casing of the cooktop under any circumstances.
Any repairs not performed by a Miele authorized service
technician will void the warranty.
7
Warnings and safety instructions
Miele can only guarantee the safety of the appliance if genuine
Miele spare parts are used. Defective components must only be
replaced by genuine Miele spare parts.
The appliance is not intended for use with an external timer switch
or a remote control system.
Connection of the cooktop to the electrical power supply must
only be performed by a qualified electrician (see "Electrical
connection").
If the power cord is damaged, it must be replaced with a special
connection cable typeH05VV-F (PVC insulated). See "Electrical
connection".
During installation, maintenance, and repair work, the cooktop
must be completely disconnected from the household electricity
supply. It is only completely isolated from the electricity supply
when:
– the main circuit breaker has been tripped, or
– the plug fuses have been fully unscrewed or
– the power plug (if present) is removed from the outlet. To do this,
pull the plug not the cord.
If the cooktop is fitted with a communication module, in addition
to disconnecting the cooktop, this module must also be
disconnected from the electrical supply during installation and
maintenance of the cooktop as well as while any repair work is being
carried out
Risk of electric shock.
If the ceramic surface of the cooktop is defective or chipped,
cracked or broken in any way, immediately turn the cooktop off and
do not continue to use it. Disconnect the cooktop from the power
supply and contact Miele.
8
Warnings and safety instructions
If the cooktop is installed behind a cabinet door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door and cause damage to the cooktop,
cabinetry and flooring. Do not close the door until the cooktop has
completely cooled down.
9
Warnings and safety instructions
Proper use
The cooktop gets hot when in use and remains hot for a while
after being turned off. A burn hazard is present until the residual heat
indicators go out.
Oil and fat can catch fire if overheated. Never leave the cooktop
unattended when cooking with oil and fat. If the oil or fat catches
fire, do not attempt to put the flames out with water.
Turn off the cooktop and smother the flames using a lid or a suitable
fire blanket.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a hood.
Spray canisters, aerosols and other flammable substances can
ignite when heated. Therefore, do not store such items or
substances in a drawer under the cooktop. Any cutlery inserts must
be heat-resistant.
Never heat empty cookware.
Do not heat or can food in closed containers, such as tins or
sealed jars, on the cooktop, as pressure will build up in the container
and cause it to explode.
If the cooktop is covered, there is a risk that the material of the
cover will ignite, explode or melt if the range is still hot or if it is
turned on inadvertently. Never cover the appliance with a cover,
cloth or protective foil.
If the cooktop is on or accidentally turned on, or if it is still hot,
metal objects on the cooktop can heat up. Other items may melt or
catch fire. Damp lids can become attached to the cooktop by
suction. Do not store items on the cooktop. Always turn the burners
off after use.
10
Warnings and safety instructions
You can burn yourself on a hot cooktop. When cooking on the
cooktop, protect your hands by using heat-resistant pot holders or
oven mitts. Only use dry pot holders and oven mitts. Wet or damp
textiles conduct heat more effectively and produce steam, which
poses a burn hazard.
When using an electrical appliance, e.g. a hand mixer, near the
cooktop, make sure that the power cable does not come into
contact with the hot cooktop. The cable's insulation could become
damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get onto pan bottoms. Make sure that the
ceramic surface and pan bottom are clean before placing any pans
on the cooktop.
Even light objects (such as a salt shaker) can cause damage to
the ceramic cooktop in certain circumstances. Do not drop anything
on the ceramic surface.
Do not place hot pans on the sensor buttons and display as this
could cause damage to the electronics underneath. Do not place hot
pans on the area around the display.
Do not allow solid or liquid sugar, or pieces of plastic or aluminum
foil, to get on the cooktop when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, turn off the
appliance immediately and scrape off all the sugar, plastic or
aluminum residues while still hot using a scraper blade. Wear oven
mitts when doing so. Allow the burners to cool down and clean them
with a suitable ceramic cleaning agent.
Pans that boil dry can damage the ceramic surface. Never leave
the cooktop unattended during use.
Pots and pans with rough bottoms can scratch the ceramic
surface. Only use pots and pans that are smooth on the bottom.
11
Warnings and safety instructions
Lift pans into position on the cooktop. Sliding them into place can
cause scuff marks and scratches.
Because induction heating works so quickly, the temperature of
the cookware bottom can quickly reach the ignition point of oils and
fats. Never leave the cooktop unattended when it is on!
Do not heat oils and fats for longer than one minute, and never
use the booster.
For people who have a heart pacemaker: Please note that an
electromagnetic field is created in the area immediately surrounding
the cooktop. It is very unlikely to affect a pacemaker. However, if in
any doubt, consult the manufacturer of the pacemaker or your
doctor.
Objects affected by electromagnetic fields, for instance, credit
cards, CDs and calculators, should be kept away from the cooktop
when it is on.
Metal utensils stored in a drawer under the cooktop can become
hot if the appliance is used intensively for a long time. Do not store
any metal items or utensils in a drawer under the cooktop.
This cooktop is equipped with a cooling fan. If a drawer is fitted
directly underneath the cooktop, ensure that there is sufficient space
between the drawer and its contents and the underside of the
appliance in order to ensure sufficient ventilation of the cooktop. Do
not store pointed or small items or paper in the drawer. They could
get in through the ventilation slots or be sucked into the housing by
the fan and damage the fan or impair cooling.
Do not use two pans on a cooking zone, a casserole cooking zone
or a PowerFlex zone at the same time.
If the cookware only partially covers the cooking or roasting zone,
the handle could become very hot.
Make sure to place the cookware in the middle of the cooking or
casserole cooking zone!
12
Warnings and safety instructions
Cleaning and care
Do not use a steam cleaner to clean the cooktop.
The steam could reach electrical components and cause a short
circuit.
If the cooktop is built in over a self-cleaning oven, the cooktop
should not be used while the self-cleaning process is being carried
out, as this could trigger the overheating protection mechanism on
the cooktop (see relevant section).
13
Caring for the environment
Disposal of the transport packaging material
The packaging material protects the
appliance from transport damage. The
packaging materials used are selected
from materials which are
environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also the
amount of waste. You can return the
packaging to your Miele dealer.
Disposal of your old appliance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to your health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with general waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, dealer, or with
Miele. By law, you are solely
responsible for deleting any personal
data from the appliance prior to
disposal. Ensure that it presents no
danger to children while being stored
for disposal.
14
Cooktop
KM 6310 / KM 6311 / KM 6312
Overview
a
Cooking zone with TwinBooster
b
Cooking zone with Booster
c
Cooking zone with Booster
d
Controls/Indicators
15
Overview
KM 6344
a
Cooking zone with TwinBooster
b
Cooking zone with Booster
c
Cooking zone with Booster
d
Cooking zone with Booster
e
Controls/Indicators
16
Controls/Indicators
h
40123 56789
8
8
88
8
8
a b
c
d
f
j
g
h
i
e
l
m
k
o
n
Overview
Sensor buttons
a
For switching the cooktop on and off
b
Control scale
- For setting the power level
- For setting the timer
c
For activating/deactivating the system lock/safety lock
d
For switching the Booster/TwinBooster on/off
e
For selecting the cooking zone
f
For activating/deactivating Stop&Go
g
Timer
- For turning on and off
- For switching between timer functions
- For selecting a cooking zone (see "Turning a cooking zone off automatically")
h
For switching the timer to hours
Indicator lamps
17
Overview
i
System lock/Safety lock activated
j
Booster/TwinBooster activated
l
Auto heat-up or extended power setting (see "Programming")
m
Shows cooking zone selection, e.g. rear right cooking zone
o
In half hours if the minute minder setting exceeds 99 minutes
k
Cooking zone display
Cooking zone ready for use
Keeping warm setting
to Power level
Level 1 TwinBooster
Booster/Level 2 TwinBooster
No or unsuitable cookware (see "Induction")
Residual heat
Auto Heat-up
n
Timer display
to Time in minutes
. to . Time in hours
System lock/Safety lock activated
Demonstration mode activated
18
Burner data
Burner KM 6310 / KM 6311 / KM 6312
Øin cm* Power in watts at 230 V**
Overview
18–28 normal
TwinBooster, Level 1
TwinBooster, Level 2
14–20 normal
Booster
10–16 normal
Booster
Total 7400
* Within the specified range, pots with any base diameter can be used.
** The specified power can vary depending on the size and the material of the pots and
pans.
Burner KM 6344
Øin cm* Power in watts at 230 V**
18–28 normal
TwinBooster, Level 1
TwinBooster, Level 2
10–16 normal
Booster
14–20 normal
Booster
2600
3000
3700
1850
3000
1400
2200
2600
3000
3700
1400
2200
1850
3000
14–20 normal
Booster
Total 7400
* Within the specified range, pots with any base diameter can be used.
** The specified power can vary depending on the size and the material of the pots and
pans.
1850
3000
19
Initial commissioning
Please affix the extra appliance data
plate supplied with this
documentation in the space provided
in the "Service" section of this
manual.
Remove any protective foil and
stickers from the cooktop.
Cleaning the cooktop for the first time
Before using it for the first time, wipe
down the cooktop with a damp cloth
and then wipe it dry.
Turning on the cooktop for the first time
Metal components are protected by a
conditioning agent. Smells and vapour
may occur when the appliance is used
for the first time. The heating of the
induction coils also causes odours in
the first few hours of operation. With
each subsequent use, the odour is
reduced until it disappears entirely.
The smell and any vapors that may
occur do not indicate a faulty
connection or defective appliance and
are not harmful to your health.
Please note that the heating-up time
for induction cooktops is very much
shorter than for conventional
cooktops.
20
Induction
How it works
An induction coil is located under each
burner. When a zone is turned on, this
coil creates a magnetic field that
interacts directly with the base of the
pan and heats it up. The burner itself is
heated up indirectly by the heat given
off by the pan.
An induction burner only works when a
ferromagnetic pan is placed on it (see
"Cookware"). The induction burner
automatically recognizes the size of the
pan.
The symbol is shown in the cooking
zone display and blinks alternately with
the preset power level, if
– the cooking zone has been switched
on without a pan in place, if the pan
is unsuitable (non-magnetic base),
– if the diameter of the base of the pan
is too small,
– or if the pan is taken off the cooking
zone when it is switched on.
When the appliance is switched
on either deliberately or by mistake,
or when there is residual heat
present, there is the risk of heating
up any metal items placed on the
cooktop.
Burn hazard!
Do not store items on top of the
cooking area. Switch the cooking
zones off after use by turning the
relevant sensor button.
If a suitable pan is placed on the
cooking zone within 3minutes, the
will go out and you can continue as
normal.
If no pan or an unsuitable pan is placed
on the cooking zone, the cooking zone
will switch off automatically after 3
minutes.
21
Induction
Noises
When you use an induction cooking
zone, the following noises may occur,
depending on the type and shape of the
cookware bottom:
On the higher power settings, it might
buzz. This will decrease or cease
altogether when the power setting is
reduced.
Cookware with bottoms made of
different materials (e.g. sandwich
bottoms) may produce a crackling
noise.
Whistling may occur if connected
cooking zones (see "Booster") are
simultaneously in use and cookware
with bottoms made of different
materials (e.g. in a sandwiched base)
are on them.
The electronics may produce a clicking
sound, especially at lower power
settings.
You might hear a whirring sound when
the cooling fan turns on. It turns on to
protect the electronics when the
cooktop is being used intensively. The
fan may continue to run after the
appliance has been turned off.
22
Induction
Cookware
Suitable cookware is made of:
– Stainless steel with a magnetic
bottom,
– enamel-coated steel,
– cast iron
Unsuitable cookware is made of:
– Stainless steel pans without a
magnetic bottom,
– Aluminium or copper,
– Glass, ceramics, earthenware,
stoneware.
To test whether a pot or pan is suitable
for use on an induction cooktop, hold a
magnet to the bottom of the pan. If the
magnet sticks, the pan is suitable.
If an unsuitable pan is used, the
symbol will flash alternately with the
power level set.
The composition of the pan bottom can
affect the evenness of the cooking
results (e.g., when making pancakes).
– Lift pans into position on the
cooktop. Sliding them into place can
cause scuff marks and scratches.
– The maximum diameter indicated by
manufacturers will often refer to the
diameter of the top rim of the pot or
pan. The diameter of the base
(generally smaller) is more important.

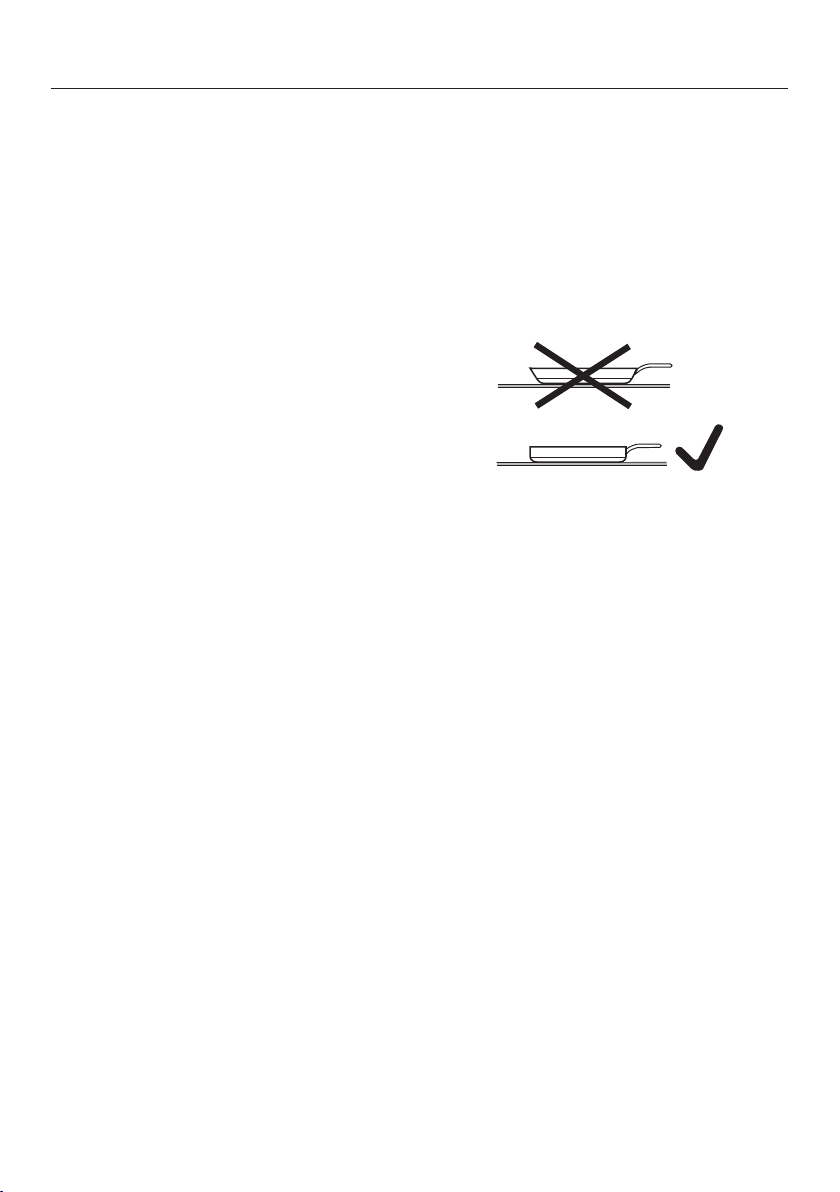

– If possible, use pans with straight
sides. If pans with sloped sides are
used, the induction also takes effect
around the edges of the pan. This
can cause the edge of the pan to
become discolored or the coating to
peel off.
– To make optimum use of the burners,
choose pans with diameters larger
than the innermost markings but
smaller than the outermost markings
(see "Burner data"). If the diameter of
the pan is smaller than the innermost
marking, the pan will not be
recognized and will flash alternately
with the power level set.
– Pots and pans with rough bottoms
can scratch the ceramic surface.
Only use pots and pans that are
smooth on the bottom.
23
Energy saving tips
– Use a lid whenever possible to
minimize heat loss.
– For small quantities, select a small
pan. A small pan on a small burner
uses less energy than a large, only
partially filled pan on a large burner.
– Cook with as little water as possible.
– Once food has come to the boil or
the pan is hot for frying, reduce the
heat to a lower power setting.
– Use a pressure cooker to reduce the
cooking time.
24
Setting range
The cooktop is programmed with 9 power levels at the factory. If you wish to finetune a setting, you can extend the power setting range to 17 power levels (see
"Programming").
Setting range
default
settings
(9 power
levels)
Keeping food warm h h
Melting butter
Dissolving gelatine
Melting chocolate
Making porridge 2 2–2.
Warming small quantities of liquid
Cooking rice
Thawing frozen vegetables (blocks) 3 2.–3
Making oatmeal 3 2.–3.
Warming liquid and semi-solid foods
Making omelettes or lightly frying eggs
Steaming fruit
Cooking dumplings 4 4–5.
Steaming vegetables or fish 5 5
Thawing and heating frozen food 5 5–5.
Gently frying eggs (without overheating the fat) 6 5.–6.
Bringing large quantities of food to a boil, e.g., casseroles.
Thickening custard and sauces, e.g., hollandaise
Gently frying fish, cutlets, sausages, fried eggs, etc.
(without overheating the fat)
Frying pancakes, potato fritters etc. 7 6.–7
Braising for stews 8 8–8.
Boiling large quantities of water
Bringing food to a boil
1–2 1–2.
3 3–3.
4 4–4.
6–7 6.–7
6–7 6.–7.
9 9
extended
settings
(17 power
levels)
These settings should only be taken as a guide. The power of the induction coils will vary
depending on the size and material of the pan. For this reason, it is possible that the
settings will need to be adjusted slightly to suit your pans. As you use the cooktop, you will
get to know which settings suit your pans best. When using new pans that you are not
familiar with, set the power level below the one specified.
25
Operation
Basic operation
The ceramic cooktop is equipped with
electronic sensor buttons that react to
finger contact. During activation, the
On/Off sensor button must be
pressed somewhat longer than the
other buttons for safety reasons.
Each reaction of the buttons is
acknowledged with an audible signal.
The cooking zones and the timer have
to be "active" when you want to set or
adjust a power level or the duration. To
activate the zone or the timer, tap the
selection button of the corresponding
zone or the timer. After the selection
button is tapped, the corresponding
zone or timer indicator light will flash.
While the indicator light is flashing, set
or adjust the power level or the
duration.
Exception: If there is only one cooking
zone in operation, you can set or adjust
the power level without activating it
first.
Malfunction can occur due to dirty
and/or covered sensor buttons.
The sensor buttons do not react or
unintentional switching procedures
result, perhaps even the automatic
deactivation of the cooktop (see
"Safety shut-off"). Hot cookware on
the sensor buttons/indicator lights
can damage the connected
electronic module.
Keep the sensor buttons and
indicator lights clean. Do not place
any objects on them, and do not put
hot cookware on them.
26
Operation
Fire hazard!
Do not leave the cooktop unattended
during operation!
Please note that the heating-up time
for induction cooktops is shorter
than for conventional cooktops.
Turning the cooktop on
Touch the sensor button.
appears in each of the cooking zone
indicators. If no further entry is made,
the cooktop will turn itself off after a few
seconds for safety reasons.
Selecting/Changing the power level
Briefly tap the selection button for the
desired cooking zone.
In the cooking zone indicator, will
flash alternately with the selected power
level.
Tap the sensor button for the desired
power level on the corresponding
control scale.
The set power level flashes in the
indicator for a few seconds and then
remains lit.
Switching off
Briefly tap the selection button of the
desired cooking zone twice to turn off
the zone.
Residual heat indicator
When a cooking zone is hot, the
residual heat indicator will light up after
deactivation.
The lines of the residual heat indicator
go out one after another as the cooking
zone cools down. The last horizontal
line only goes out when the cooking
zone is safe to touch.
The residual heat indicators flash if
there is a power cut during use or
while residual heat is still present or if
you have opened the programming
function while residual heat is still
present.
Burn hazard. Do not touch the
burners while the residual heat
indicators are on.
Setting the power level expanded setting range
Tap the control scale between the
sensor buttons.
The set power level flashes in the
indicator for a few seconds and then
lights up continuously. The intermediate
levels are shown with an illuminated dot
next to the number.
To turn off the cooktop and thus all
cooking zones, tap the sensor
button.
27
Operation
Auto Heat-up
When Auto Heat-up has been activated,
the cooking zone turns on automatically
at the highest level and then switches
to the previously selected continued
cooking level. The heat-up time
depends on which continued cooking
level has been chosen (see chart).
Activating
Briefly tap the selection button for the
desired cooking zone.
Touch the sensor for the cooking
setting you want for continued use
until an audible tone sounds and the
indicator light to the right of the
continued cooking setting lights up in
the cooking zone display.
During the Auto Heat-up time (see
table), the indicator light next to the set
continued cooking level lights up.
With extended power levels (see
"Programming"), alternatingly flashes
in the cooking zone display with the set
continued cooking level.
When you change the continued
cooking level, you deactivate Auto
Heat-up.
Deactivating
Briefly tap the selection button for the
desired cooking zone.
Continued
cooking level
1 approx. 0 : 15
1. approx. 0 : 15
2 approx. 0 : 15
2. approx. 0 : 15
3 approx. 0 : 25
3. approx. 0 : 25
4 approx. 0 : 50
4. approx. 0 : 50
5 approx. 2 : 00
5. approx. 5 : 50
6 approx. 5 : 50
6. approx. 2 : 50
7 approx. 2 : 50
7. approx. 2 : 50
8 approx. 2 : 50
8. approx. 2 : 50
9 –
* The continued cooking levels with a dot
are only available if the number of power
levels has been extended (see
"Programming")
Auto Heat-up
time
[min : sec]
Tap the selected continued cooking
level until the indicator light or goes
out.
or
Select a different power level.
28
Operation
Booster
The cooking zones are equipped with a
Booster or TwinBooster (see "Overview
– Cooking zone"). You can use the
Booster for a maximum of two cooking
zones at the same time.
When activated, the power is boosted
for a maximum of 15 minutes so that
large quantities can be heated quickly,
e.g., water for cooking pasta.
The booster can be used on a
maximum of two cooking zones at the
same time.
If the booster function is turned on
when
– no power level has been selected,
the cooking zone will revert
automatically to level 9 at the end of
the booster time or if the booster
function is turned off before this.
– a power level has been selected, the
cooking zone will revert automatically
to the setting selected at the end of
the booster time or if the booster
function is turned off before this.
Two cooking zones each are connected
with each other so that the power for
the booster can be provided. The
connected zone will operate at reduced
power while the booster is on. This has
one of the following effects:
– auto heat-up is deactivated
– the power level that is set will be
reduced
– the connected cooking zone will be
turned off.
29
Operation
Activating the booster
Briefly tap the selection button for the
desired cooking zone.
Select a power level if necessary.
Tap the B I/II sensor button.
The indicator light for the booster lights
up and the cooking zone indicator
starts to flash. After a few seconds,
lights up continuously and the indicator
light goes out.
TwinBooster level 1 activation
Briefly tap the selection button for the
desired cooking zone.
Select a power level if necessary.
Tap the B I/II sensor button.
The indicator light for the booster lights
up and the cooking zone indicator
starts to flash. After a few seconds,
lights up continuously and the indicator
light goes out.
Tap the B I/II sensor button
repeatedly until the booster indicator
light goes out and the selected power
level appears in the cooking zone
display.
or
Briefly tap the selection button for the
desired cooking zone.
Select a different power level.
TwinBooster level 2 activation
Briefly tap the selection button for the
desired cooking zone.
Select a power level if necessary.
Touch the B I/II sensor button twice.
The indicator light for the booster lights
up and the cooking zone indicator
starts to flash. After a few seconds,
lights up continuously and the indicator
light goes out.
Turning the Booster/TwinBooster off
Briefly tap the selection button for the
desired cooking zone.
30
Operation
Keeping food warm
The keep warm function is for keeping
food warm that has just been cooked,
i.e., food that is still hot. It is not for
reheating cold food.
The maximum holding time is 2 hours.
– Only use pans for keeping food
warm. Cover the pan with a lid.
– It is not necessary to stir the food
while it is being kept warm.
– Nutrients are lost when food is
cooked, and continue to diminish
when food is kept warm. The longer
the food is kept warm, the greater the
loss of nutrients. Try to ensure that
food is kept warm for as short a time
as possible.
Setting the keep warm function
Briefly tap the selection button for the
desired cooking zone.
Tap the control scale between the"0"
and "1" sensor buttons.
appears in the cooking zone indicator.
Turning off the keep warm function
Briefly tap the selection button for the
desired cooking zone.
Touch the "0" sensor.
31
Timer
h
The cooktop has to be turned on if
you wish to use the timer.
You can set a time between 1 minute
() and 9 hours (.).
The timer can be used for two different
functions:
– for setting the timer
– for turning off a cooking zone
automatically.
A time up to 99 minutes is set and
displayed in minutes:
In case of a time of more than 99
minutes, the timer must be switched to
hours (h). The time is set in half-hour
steps. Half-hours are indicated by a dot
following the number, for example, 2 h
30 min:
Timer
Setting the minutes
Example: You want to set a time of 15
minutes.
Turn the cooktop on.
Touch the sensor button.
appears in the timer display, and the
right flashes.
First the tens digit is set then the ones
digit.
Tap the sensor button on the control
scale that corresponds to the tens
position (1 in this case).
The timer display will change and will
start flashing on the right.
Tap the sensor button on the control
scale that corresponds to the ones
position (5 in this case).
The timer display will change. jumps
to the left and appears on the right.
After a few seconds the timer display
will light up continuously. The minute
minder time will begin to count down
32
Timer
Setting the hours
To set full hours, touch the respective
sensor on the control scale. To set half
hours, touch the space between 2
sensors on the control scale.
Example: You want to set a time of 2
hours and 30 minutes
Turn the cooktop on.
Touch the sensor button.
appears in the timer display, and the
right flashes.
Touch the sensor to switch the
display to hours.
Touch the area between the and
sensors.
After a few seconds, the timer display
will light up continuously. The minute
minder time will begin to count down.
Changing the timer
Touch the sensor button.
Set a new time, as described above.
Deleting the timer
Touch the sensor button until
appears in the timer display.
33
Timer
Turning a cooking zone off automatically
You can set a time after which the
cooking zone will turn off automatically.
This function can be used on all zones
at the same time.
If the programmed time is longer than
the maximum time allowed, the safety
shut-off function will turn off the
cooking zone automatically when the
maximum time has elapsed (see
"safety shut-off").
Select a power level for the cooking
zone you require.
Keep tapping the sensor button
until the indicator light for this
cooking zone starts flashing.
If several cooking zones are on, the
indicator lights flash in a clockwise
direction, starting with the left front.
Select the time you require.
If you want to set another cooking
zone to turn off automatically, follow
the same steps as described above.
If more than one turn-off time is
programmed, the shortest time
remaining will be displayed, and the
respective indicator light flashes. The
other indicator lights light up
continuously.
If you want to see the other remaining
times, keep tapping the sensor
button until the desired indicator light
flashes
34
Timer
Using both timer functions at the same time
The timer and automatic turn-off
functions can be used at the same time.
If you have programmed in one or more
turn-off times, and would like to use the
timer as well:
Tap the sensor button until the
indicator lights of the programmed
cooking zones light up continuously
and appears in the timer display.
Set a new time as described above.
If you have set the timer and would like
to program one or more turn-off times
as well:
Keep tapping the sensor button
until the indicator light for the desired
cooking zone starts flashing.
Set a new time as described above.
Shortly after the last touch, the shortest
remaining time will come up in the timer
display.
If you would like to call the other
remaining times so that they appear in
the display:
Tap the sensor button until:
– the indicator light for the desired
cooking zone starts flashing
(automatic turn-off).
– The timer display (minute minder)
starts flashing.
Starting with the shortest time
remaining which is shown in the
display, all cooking zones which are
turned on and the timer are selected
clockwise.
35
Additional functions
Stop & Go
When activated, the Stop & Go reduces
the power of all cooking zones in use to
power level 1.
The power levels of the zones and
setting of the timer cannot be changed
and the cooktop can only be turned off.
A set timer and booster time continue
to run. The Auto Heat-up time and set
times for automatic turn-off are
stopped.
When Stop & Go is deactivated, the
cooking zones will run on the power
level that was previously selected and
the Auto Heat-up time and automatic
turn-off times start to run again.
If the Stop & Go function is not
deactivated, the cooktop turns off
automatically after 1 hour.
Activation/deactivation
Touch the sensor button.
Use this function to clean the controls
quickly or if there is a danger of boiling
over.
36
Safety features
System lock/Safety lock
The system lock and safety lock are
deactivated if there is a power
outage.
Three-finger control is the default
setting. You can change the default to
one-finger control (see
"Programming").
Your cooktop is equipped with a safety
lock to prevent the cooktop and the
cooking zones being turned on or any
settings being altered
The system lock is activated when the
cooktop is turned off. When it is
activated, the cooktop cannot be turned
on and the timer cannot be used. The
cooktop is programmed so that the
system lock must be activated
manually. It can be programmed to be
activated automatically 5 minutes after
the cooktop has been turned off if the
system lock is not manually activated
first (see "Programming").
The safety lock is activated when the
cooktop is turned on. When the safety
lock is activated, the cooktop can be
operated only under certain conditions:
– The power levels for the cooking
zones and the timer settings cannot
be changed.
– The cooking zones, entire cooktop,
and the timer can be turned off, but
once turned off cannot be turned on
again.
If a locked sensor switch is touched
when the safety lock or the system lock
is activated, the indicator light comes
on and appears in the timer display
for a few seconds.
Activating
Tap the sensor button and
selection buttons of both right
cooking zones until appears in the
time display and the indicator light of
the safety lock lights up.
The indicator light and go out after
a short while.
Deactivating
Tap the sensor button and
selection buttons of both right
cooking zones until goes out in the
time display and the indicator light of
the safety lock extinguishes.
37
Safety features
Safety shut-off
Safety shut-off with an overlong cooking time
The safety shut-off is triggered
automatically if a cooking zone is
heated for an unusually long period of
time. This time depends on the power
level selected. If it has been exceeded,
the cooking zone turns off and the
residual heat indicator appears. If you
turn the cooking zone on and off again,
it is ready for operation again.
Safety shut-off if the sensors are covered
Your cooktop will turn off automatically
if one or several of the sensors remain
covered for longer than 10 seconds, for
example, by finger contact, food boiling
over or by an object such as an oven
glove or tea towel. flashes in the timer
display and a buzzer sounds every 30
seconds for 10 minutes.
When you remove the objects or
soiling, extinguishes, the buzzer goes
off, and the cooktop is ready for
operation again.
38
Safety features
Overheat protection
All induction coils and the cooling
elements for the electronics are
equipped with an overheating
protection mechanism. To prevent the
induction coils and cooling elements
from overheating, the overheating
protection mechanism works on the
affected cooking zone or on the entire
cooktop in the following ways:
Induction coils
– Any booster function in operation will
be turned off.
– The power level that is set will be
reduced.
– The cooking zone turns off
automatically. flashes in the timer
display alternatingly with .
You can use the cooking zones again as
usual when the fault message has gone
out.
Cooling elements
Any of the following can trigger the
overheat protection:
– Heating empty cookware.
– Fats or oils being heated at high
power settings.
– underside of cooking field
insufficiently ventilated.
– a hot cooking zone being switched
on after an interruption to the power
supply.
If, despite elimination of the cause, the
overheat protection is triggered again,
contact Miele Service.
– Any booster function in operation will
be turned off
– The power level that is set will be
reduced.
– The cooking zones turn off
automatically.
The affected cooking zones can only be
used again if the cooling element has
cooled down to a safe level.
39
Cleaning and care
Burn hazard.
The burners must be turned off and
allowed to cool completely.
Risk of injury.
The steam from a steam cleaner can
reach electrical components and
cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
The use of unsuitable cleaning
agents can discolour or alter the
external surfaces of the cooktop.
The external surfaces of the cooktop
are susceptible to scratching.
Immediately remove any residues left
by cleaning agents.
Allow the CombiSet to cool down
before cleaning.
The cooktop should be cleaned after
each use.
Dry the cooktop after using water to
clean it. This helps prevent lime
deposits.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
cooktop, do not use any of the
following when cleaning:
– Dishwashing liquid
– Cleaners containing soda, ammonia,
acids or chlorides
– Lime removers
– Stain or rust removers
– Abrasive cleaning agents, such as
powder or cream cleansers, pumice
stones
40
– Solvent-based cleaners
– Dishwasher cleaner
– Grill and oven sprays
– Glass cleaners
– Hard, abrasive brushes or sponges,
e.g. pot scourers, brushes or
sponges which have been previously
used with abrasive cleaning agents
– Magic erasers
Cleaning and care
Risk of damage from pointed
objects!
Do not use sharp, pointed objects to
clean the area between the glass
ceramic and the trim or between the
trim and the countertop.
Using dishwashing liquid to clean the
cooktop will not remove all soiling
and residues.
It forms an invisible coating which
will cause permanent discolouration
of the ceramic surface.
Clean the glass ceramic surface
regularly with a suitable ceramic
cooktop cleaning agent.
First, wipe away all coarse soiling
from the surface using a damp cloth.
Stubborn soiling may need to be
removed with a scraper blade.
Then, clean the glass ceramic surface
with the Miele ceramic and stainless
steel cleaner (see "Optional
accessories") or commercial glass
ceramic cleaner using a paper towel
or clean cloth. Do not put the cleaner
on a hot surface, as this may cause
spotting. Please follow the
manufacturer's instructions.
Spots from lime deposits, water, and
aluminum deposits (shiny metallic
spots) can be removed with a
ceramic and stainless steel cleaner.
Burn hazard!
Wear oven mitts when using a
scraper blade to remove sugar,
plastic or aluminum residues from a
hot cooktop.
Should any sugar, plastic or
aluminium foil spill or fall on to a hot
cooking zone while it is in use, first
switch off the appliance.
Then carefully scrape off all the sugar,
plastic or aluminium residues from
the hob whilst they are still hot using
a shielded scraper blade. Take good
care.
Afterwards, clean the glass ceramic
surface in its cooled state, as
described above.
Remove any cleaner residue with a
damp cloth and then dry the glass
ceramic surface.
Residues can burn onto the appliance
the next time it is used and cause
damage to the ceramic surface.
Ensure that all cleaning agent residues
are removed.
41
Programming
You can adapt the programming of the
cooktop to your personal needs.
Several settings can be changed in
succession.
After the programming function is
started, (program) and (status) will
appear in the timer display. With
cooktops that have 3 cooking zones, an
additional display appears at the back
left.
The program is displayed in the front
left and back left cooking zone displays.
Example:
Program 03 =
Front left, rear left
Program 14 =
Front left, rear left
The status is shown in the front right
cooking zone display.
After the programming function is
exited, an automatic reset is
performed. It is concluded when an
indicator light lights up briefly via the
sensor button.
Do not turn on the cooking zone until
the reset is concluded.
Starting the programming function
When the cooking zone is turned
off, tap the and sensor buttons
simultaneously until the indicator light
for the safety lock flashes.
Setting a program
To set the ones digit, touch the
sensor for the back left cooking
zone followed by the respective
number on the settings bar.
To set the tens digit, touch the
sensor for the front left cooking
zone followed by the respective
number on the settings bar.
Setting the status
Touch the sensor for the front right
cooking zone followed by the
respective number on the settings
bar.
Saving the settings
Touch the sensor until the
indicators go out.
How to avoid saving the settings
Touch the sensor until the
indicators go out.
42
Programming
Program
1)
P00 Demo mode and factory
default settings
Status
S0
2)
Settings
Demo mode on
3)
S1 Demo mode off
S9 Default settings reinstated
P01 Stop and Go S0 off
S1 on
P02 Number of power levels S0 9 power levels
4)
P03 Induction buzzer tone when
there is no or unsuitable
cookware
S1
17 power levels
S0 off
S1 quiet
S2 medium
S3 loud
P04 Tone when a sensor button is
touched
S0 off
S1 quiet
S2 medium
S3 loud
P05 Timer buzzer tone S0 off
S1 quiet
S2 medium
S3 loud
P06 System lock/safety lock S0 One-finger control with
S1 Three-finger control with
simultaneous tapping of and the
selection buttons of both right
cooking zones
P07 System lock S0 Manual activation of the system
lock
S1 Manual and automatic activation of
the system lock
P08 Auto Heat-up S0 off
S1 on
43
Programming
Program
1)
P10 Miele@home/Con@ctivity
- only on communicationenabled appliances retrofitted
with a communication
2)
Status
Settings
S0 not currently available
S1 logged off
S2 logged on
module/wireless stick -
P15 Buzzer tone if the sensors are
covered
S0 off
S1 on
P16 Sensor button reaction speed S0 slow
S1 normal
S2 fast
1)
Unlisted programs are not assigned.
2)
The factory setting is shown in bold.
3)
After the cooktop is activated, appears in the timer display for several seconds.
4)
The intermediate levels are shown on the cooking zone indicator with a dot after the
power level. Display of the Auto Heat-up through the flashing of the continued cooking level
alternating with .
44
Frequently Asked Questions
With the help of the following guide, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be remedied
without contacting the Service Department. This will save you time and money
because you won't need a service call.
This guide may help you find the reason for the fault and help you correct it.
Problem Possible cause and remedy
Cooktop or cooking
zones cannot be turned
on.
There is a strange smell
or vapours when the
cooktop is being used
for the first time.
In the burner display,
the symbol will flash
alternately with the
selected power setting
or .
After the cooktop is
activated, appears in
the timer display for
several seconds.
There is no power to the cooktop.
Check if the circuit breaker has tripped. Contact
an electrician or Miele Service (for the minimum
fuse rating, see data plate).
There may be a technical fault.
Disconnect the appliance from the electric power
supply for approx. 1minute by:
– tripping the relevant circuit breaker or screwing
the fuse out completely, or
– tripping the ground fault circuit interrupter
(GFCI).
If, after resetting/replacing the fuse or the GFCI,
the appliance still will not turn on, contact a
qualified electrician or Miele Service.
Metal components are protected by a conditioning
agent. Smells and vapour may occur when the
appliance is used for the first time. The smell and any
vapours do not indicate a faulty connection or a
defective appliance and are not harmful to your
health. With each subsequent use, the odour is
reduced until it disappears completely. The smell and
any vapours do not indicate a faulty connection or a
defective appliance and are not harmful to your
health.
There is no or unsuitable cookware on the cooking
zone.
Use a suitable pan (see "Cookware").
The system lock or safety lock is activated.
Deactivate the system lock or safety lock (see
"System lock/Safety lock").
45
Frequently Asked Questions
Problem Possible cause and remedy
flashes in the timer
display and the cooktop
turns off automatically.
After turning on the
cooktop, appears in
the timer display for
several seconds. The
cooking zones don't
heat up.
A burner turns itself off
automatically.
A cooking zone or the
whole cooktop turns off
automatically.
The booster has
automatically turned off
early.
The burner is not
working in the usual
way with the set power
level.
Power setting 9 is
automatically reduced if
you select power
setting 9 on two linked
burners or extended
zones at the same time.
Auto Heat-up is turned
on, but the food does
not start cooking.
One or more of the sensor buttons are covered, for
example by fingers, food boiling over or by an object.
Clean off any dirt or remove the object (see
"Safety shut-off").
The cooktop is in demo mode.
Deactivate demo mode (see "Programming").
A burner might have been operated for too long.
You can use the burner again by turning it back on
(see "Safety shut-off").
The overheat protection was triggered.
See "Overheat protection".
The overheat protection was triggered.
See "Overheat protection".
The overheat protection was triggered.
See "Overheat protection".
Operating both zones at power level 9 would exceed
the permitted maximum power for the cooktop.
Use another burner that is not linked.
Large amounts of food are being heated.
Start cooking at the highest power level, then
reduce the power level manually.
Pan is not conducting heat properly.
Use a different pan that is able to better conduct
heat on an induction cooktop.
46
Frequently Asked Questions
Problem Possible cause and remedy
A noise can be heard
after the appliance is
turned off.
One or more residual
heat indicators is
flashing.
The sensor buttons are
over-sensitive or do not
react at all.
Alternating with a
number flashes in the
timer display
The fan will continue running until the appliance has
cooled down. It will then turn itself off automatically.
There was a power failure during operation or when
residual heat was present.
You called the programming function while residual
heat was still present.
The sensitivity level of the sensor buttons has
changed.
Make sure that there is no direct light (from the sun
or from an artificial source) falling onto the
cooktop. The area surrounding the cooktop must
not be too dark.
Make sure that there is nothing covering the
sensor buttons or the cooktop.
Take any pans off the cooktop and wipe away any
food deposits.
Interrupt the power supply to the cooktop for
approx. 1 minute.
If the problem persists after power is restored,
please contact Miele Service.
The overheat protection was triggered.
See "Overheat protection".
or
The fan is blocked or defective.
Make sure it has not been blocked by something
like a fork. Remove the cause of the blockage.
If this fault code continues to appear in the
display, contact Miele Service.
and other numbers
There is a fault in the electronic module.
Interrupt the power supply to the cooktop for
approx. 1 minute.
If the problem persists after power is restored,
please contact Miele Service.
47
Optional accessories
Miele offers a wide range of useful
accessories as well as cleaning and
conditioning products for your Miele
appliances.
These accessories can be ordered from
the Miele website.
These can be ordered online or from
your Miele dealer (see end of this
booklet for contact details).
Cookware/bakeware
Miele offers a wide range of pans that
are perfect for Miele cooktops. Please
refer to the Miele website for more
details on individual products.
– Pots in a range of sizes
– Saucepan with cover
– Non-stick coated pan
– Wok
– Fry pan
Cleaning and care products
Ceramic and stainless steel cleaner
250mL
Removes heavy soiling, lime scale, and
aluminum residues.
Microfibre cloth
Removes fingerprints and light soiling
48
Miele@home / Con@ctivity
Your cooktop is communicationenabled and can
– be integrated into the Miele@home
system using an optional
communication module or
communication with the ventilation
hood (Con@ctivity).
– communicate with the ventilation
hood using the wireless USB stick
included with selected hoods
(Con@ctivity).
Miele@home system
Communication-enabled appliances
send operating status information to a
master appliance (SuperVision
appliance, Notebook, tablet etc.). The
system also enables integration into a
household bus system (Miele Gateway
or QIVICON Smart Home Platform).
Con@ctivity:
The cooktop sends information on its
operating status to the ventilation hood.
The operation of the hood is
automatically controlled by the power
setting of the connected cooktop.
Further information regarding
Miele@home and Con@ctivity is
available on the internet and in the
instruction manuals of the various
components.
49
Miele@home / Con@ctivity
If you want
– To log on to the Miele@home
system, first prepare the log-on
procedure on the master appliance.
– To log in to Con@ctivity, you must
first log on the ventilation hood.
Logging on the cooktop
When the cooking zone is turned
off, tap the and sensor buttons
simultaneously until the indicator light
for the safety lock flashes.
(program) and (status) will appear in
the timer display. On cooktops that
have 3 cooking zones, an additional
display appears at the back left.
Tap the selection button for the front
left cooking zone and then power
level 1 on the control scale (Set
Program 10).
Tap the selection button for the front
right cooking zone and then power
level 2 on the control scale (Set
Status 2 = log on).
The log-on process starts, and the
number "2" flashes on the cooking zone
indicator. The log-on process will take a
few minutes. The number "2" will light
up continuously when the process has
been completed successfully.
Logging off the cooktop
If you would like to log off the cooktop
from Miele@home, first prepare the
log-off procedure on the display
device
When the cooking zone is turned
off, tap the and sensor buttons
simultaneously until the indicator light
for the safety lock flashes.
(program) and (status) will appear in
the timer display. On cooktops that
have 3 cooking zones, an additional
display appears at the back left.
Tap the selection button for the front
left cooking zone and then power
level 1 on the control scale (Set
Program 10).
Tap the selection button for the front
right cooking zone and then power
level 1 on the control scale (Set
Status 1 = log off).
The log-off process starts, and the
number 1 flashes on the cooking zone
indicator. The log-off process will take a
few minutes. The number 1 will light up
continuously when the process has
been completed successfully.
To save the setting, touch the
sensor until the displays go out.
To save the setting, touch the
sensor until the displays go out.
Conclude the log-on process on the
hood/display devices (see the
corresponding instructions).
50
Safety instructions for installation
Only a qualified technician shall be permitted to install the cooktop and only
an authorized electrician shall be permitted to connect the power supply.
Install the upper cabinets and ventilation hood before installing the cooktop to
avoid damaging the appliance.
The veneer or laminate coatings of countertops must be treated
with 100°C heat-resistant adhesive which will not dissolve or
become deformed. Wall strips must also be heat-resistant.
The cooktop must not be installed above refrigerators/freezers,
dishwashers, or washer/dryers.
This cooktop must not be installed above ovens or cookers unless
these have a built-in cooling down fan.
Ensure that the power cord cannot be touched after the cooktop
has been installed.
After the installation of the cooktop, the electrical cord may not
come into contact with any moving kitchen parts (e.g. a drawer) or
be subject to mechanical stress.
Observe carefully the safety clearances listed on the following
pages.
All dimensions are indicated in mm.
51
Safety clearances
Safety clearance above the cooktop
For a ventilation hood positioned above
the cooktop, always use the clearance
specified by the hood manufacturer. If
no specifications are available from the
hood manufacturer, or if flammable
materials (e.g. wall shelf) are installed
above the cooktop, the clearance must
be at least 760mm.
If there is more than one appliance
installed below the ventilation hood,
each with a different safety
clearance, the largest clearance must
be used.
52
Safety clearances to the sides and back of the cooktop
Ideally, the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
cabinet or wall on one side (right or left)
(see illustrations).
Safety clearances
Minimum distance between the back
of the countertop cut-out and the rear
edge of the countertop:
50mm
Minimum distance on the right side
between the countertop cut-out and the
closest adjacent piece of furniture (e.g.
tall cabinet) or a room wall:
50mm
Minimum distance on the left side
between the countertop cut-out and the
closest adjacent piece of furniture (e.g.
tall cabinet) or a room wall:
50mm
Not permitted!
Highly recommended!
Not recommended!
Not recommended!
53
Safety clearances
Minimum clearance underneath the cooktop
To ensure proper ventilation of the
cooktop, a minimum clearance is
required between the appliance and an
oven, protective base, or drawer.
The minimum clearance from the
bottom of the cooktop to
– The top of an oven is 15mm.
– The top of an interim shelf is
15mm.
– The base of a drawer is 75mm.
Protective base
Installation of a protective base under
the cooktop is allowed but not required.
Leave a gap of 10mm at the back of
the shelf to accommodate the cable.
We recommend a gap at the front of the
shelf of 20mm to ensure good
ventilation.
54
Safety clearances
Safety distance from the wall covering
If a wall covering is installed, a minimum safety distance must be maintained
between the countertop cut-out and the covering, since high temperatures can
damage these materials.
If the covering is made of a flammable material (such as wood), the minimum
distance between the countertop cut-out and the wall covering must be 50mm.
For coverings made of non-flammable materials (such as metal, natural stone,
ceramic tiles) the minimum safety distance between the countertop cut-out and
the wall covering is equal to 50mm minus the thickness of the covering.
For example: thickness of wall covering 15mm
50mm - 15mm = minimum distance of 35mm
Flush-mounted cooktops Cooktops with trim or bevelled
edges
a
Masonry
b
Wall covering dimension x = thickness of wall covering
c
Countertop
d
Countertop cut-out
e
Minimum distance to
flammable materials: 50mm
non-flammable materials: 50mm - dimension x
55
Cooktops with trim or bevelled edges
Instructions for installation
Seal between the cooktop and countertop
Do not use sealant between the
cooktop and the countertop. Doing
so could result in damage to the
cooktop or countertop if the cooktop
ever needs to be removed for
servicing.
The sealing strip under the top edge
of the appliance provides an
adequate seal with the countertop.
Tiled countertop
The grouting and the shaded area
under the cooktop frame must be
smooth and flat so that the frame will sit
evenly on the countertop and so that
the sealing strip under the top edge of
the appliance can provide an adequate
seal with the countertop.
56
Cooktops with trim or bevelled edges
Installation dimensions

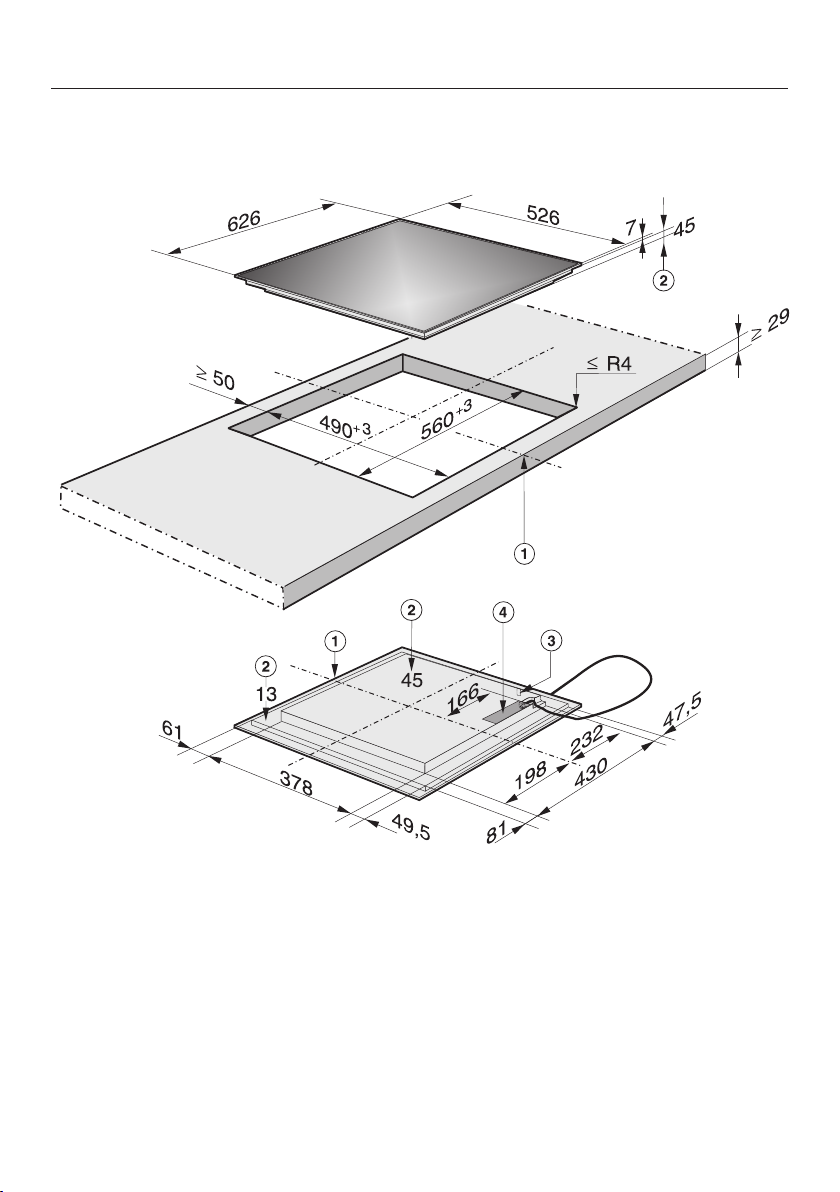

KM 6310
a
front
b
Installation height
c
Miele@home/Con@ctivity connection
d
Power supply connection box
The power cable (1440 mm long) is supplied separately with the cooktop.
57
Cooktops with trim or bevelled edges

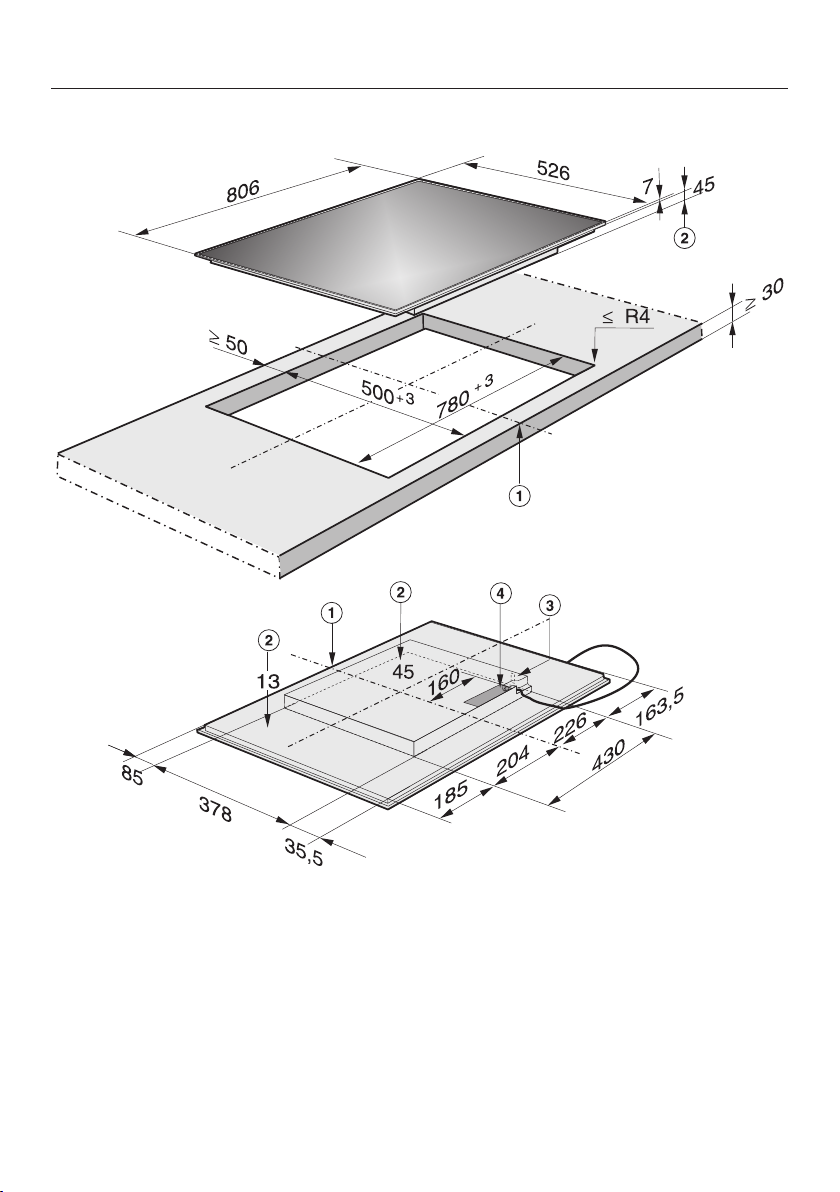

KM 6344
a
front
b
Installation height
c
Miele@home/Con@ctivity connection
d
Power connection box
The power cable (1440 mm long) is supplied separately with the cooktop.
58
Cooktops with trim or bevelled edges
Installation
Preparing the countertop
Create the countertop cut-out as
shown in the cooktop diagram.
Remember to maintain the minimum
safety distances (see "Safety
clearances").
Seal any cut surfaces on the wooden
countertop with a special varnish,
silicone rubber, or resin to prevent the
wood from swelling as a result of
moisture. The sealant must be
temperature-resistant.
Make sure that the sealant does not
get on countertop surface.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
trim and countertop will become
smaller over time.
Installing the cooktop
Feed the appliance power cord down
through the counter cut-out.
Center the cooktop in the cut-out.
Make sure that the seal under the
cooktop sits flush with the counter on
all sides. This is important to ensure
an effective seal.
Never seal the cooktop using
additional sealant (e.g. silicone).
If the seal does not sit flush with the
countertop in the corners, the corner
radius (≤R4) can be carefully cut to fit
using a jigsaw.
Connect the cooktop to the electrical
power supply.
Check that the cooktop works.
Connecting the power cable to the appliance
The mains power cable must only be
connected by a suitably qualified and
competent person.
Follow the instructions in the wiring
diagram (see "Electrical connection Wiring diagram").
59
Electrical connection
ATTENTION:
Before installation or servicing,
disconnect the power supply by
either removing the fuse, shutting off
the main power or manually
"tripping" the circuit breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.Installation, repair, and
maintenance work should only be
performed by a Miele-authorized
service technician. Work by
unqualified persons can cause
considerable danger to users. Miele
cannot be held liable for any damage
arising as a result of such work.
Before connecting the appliance to
the power supply, make sure that the
voltage and frequency listed on the
rating label correspond with the
household electrical supply. This
data must correspond to prevent
appliance damage.
Consult an electrician if in doubt.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of
the house checked by a qualified
electrician.
Installation, repair and maintenance
work should only be performed by a
Miele-authorized qualified electrician
in compliance with local regulations
and the Canadian Electrical Code,
Part I in Canada (CSA standard
C22.1).
Installer:
Please leave these instructions with
the customer.
For safety reasons, the cooktop may
only be used when it has been fully
installed into the countertop.
60
Electrical connection
Connection
Ensure that the connection data on
the data plate (voltage, frequency,
and fuse rating) match those of your
electrical supply.
The data plate is located underneath
the cooktop.
The cooktop is approved and ready for
connection to a grounded connector
with three connecting wires, sheathed
by a flexible metal hose.
It must be connected to an assigned
line in an approved connecting socket.
The appliance must be able to be
disconnected from the power supply on
all poles by disconnecting devices!
(When turned off, a contact distance of
at least 3mm must be present!) The
disconnecting devices are overcurrent
protection elements and protective
circuit breakers.
Black: Connect to L1 (hot)
Make sure that the connecting socket is
accessible after the installation of the
cooktop.
Further information can be found on the
included data plate.
WARNING:
THIS COOKTOP MUST BE
GROUNDED
Red: Connect to L2 (hot)
Green: Connect to GND (ground)
208/240V, 60 Hz, 40A
61
Service
Contact in case of a fault
In the event of any faults which you cannot remedy yourself, please contact your
Miele Dealer or the Miele Service Department.
Contact information for Miele Service can be found at the end of this document.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Space in which to stick the extra data plate supplied with the appliance. Make sure
that the model number matches the one specified on the back cover of this
document.
Warranty
This appliance comes with a one-year manufacturer's warranty.
For further information, please refer to your warranty booklet.
62
Importer
Miele Limited
Headquarters and Miele Centre
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone: 800-565-6435
customercare@miele.ca
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
Manufacturer
Canada
KM6310 / KM6344
M.-Nr. 09 166 590 / 09en-CA
Loading...
