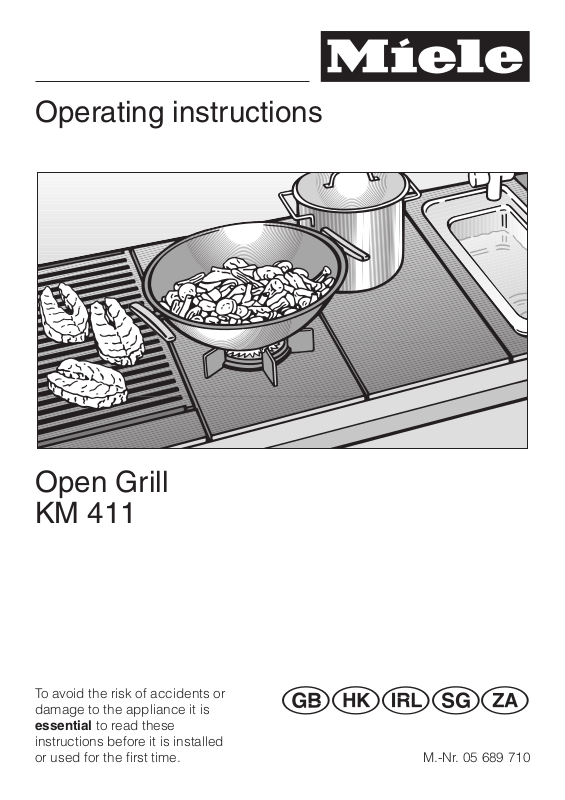

Page 1
Operating instructions
Open Grill
KM 411
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
or used for the first time.
GHirZ
M.-Nr. 05 689 710
Page 2
Contents
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
After grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rack, Lava rock container, Heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lava rocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grill trough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Stainless steel surround. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Glass control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2
Page 3
Guide to the appliance
a Grill rack
b Heating element (can be raised up; rating 2800 W)
c Lava rocks
d Lava rock container
e Operating indicator light
f Drain tap
g Control
h Grill trough
i Mains connection cable
j Plug
Depending on country of destination, the appliance may be supplied with or
without a plug. The plug shown is for illustration only.
3
Page 4
Warning and Safety instructions
This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, read
these instructions carefully before
using it for the first time. They
contain important notes on the
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place for reference and pass them
on to any future user.
Building in and connection
If the appliance is supplied without a
plug, or if the plug is removed, it must
be connected to the mains electricity
supply by a suitably qualified and
competent electrician in strict
accordance with local and national
safety regulations. The manufacturer
cannot be held liable for damage
caused by incorrect installation or
connection.
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
tested regularly, and where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
The electrical safety of this
appliance can only be guaranteed
Do not connect the appliance to
the mains electricity supply by an
This equipment may only be used
in mobile installations such as
4
Page 5
Warning and Safety instructions
A cooker hood above the grill
This appliance should not be used
in conjunction with a hood that
uses paper or carbon filters.
The open grill should not be used
with a recirculating cooker hood.
When placing this appliance below
an extractor, the outlet system of
the extractor must be metallic
throughout its length and heat proof.
The extractor outlet ducting must
comply with national and local
building regulations.
Should any additional mechanical
ventilation be present then the
effect of this additional ventilation on
the combustion and flame performance
of any existing appliances must be
determined before any cooking
appliances are used.
Distance from the grill to the hood
should be no less than 650 mm.
Correct usage
For safety reasons this appliance
must only be operated after it has
been built in. This is necessary to
ensure that all electrical components
are shielded.
This appliance is intended for
domestic use only and is not to be
used for commercial purposes.
Use this appliance for the
preparation of food only. Any other
usage is at the owner's risk and could
be dangerous. The manufacturer
cannot be held liable for damage
caused by incorrect or improper use of
the appliance.
Do not use the appliance to heat
up the room and never switch it on
with the heating element in the raised
position. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.
All fat filters in the extractor must
be cleaned regularly. Fat build up
in the filter is a potential fire hazard.
Your Miele sales agent or the Miele
technical service department will
be pleased to provide information on
the correct installation of any Miele
appliance.
This appliance must not be set up
or operated in the open air
When using the grill, the grill trough
must always be filled with water.
5
Page 6
Warning and Safety instructions
Safety with children
The appliance is only intended for
use by adults who have read these
operating instructions.
This appliance is not a toy! To
avoid the risk of injury keep
children well away and do not let them
play with it or use the controls. They
will not understand the potential
dangers posed by it. They should be
supervised whenever you are working
in the kitchen.
Older children may use the
appliance only when its operation
has been clearly explained to them,
and they are able to use it safely,
recognising the dangers of misuse.
Supervise its use by the elderly or
infirm.
The appliance gets hot when in
use and remains hot for quite a
while after being switched off. To
safeguard against burning, keep
children well away from the appliance
at all times.
To prevent the risk of children
burning themselves with potentially
hot fat or oil please make sure that they
cannot access the drain tap and open
it.
Packaging, e.g. cling film,
polystyrene and plastic wrappings
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Old appliances must be
disconnected from the power
supply, any plug rendered useless and
the cable cut off directly behind the
appliance to ensure it presents no
danger to children while being stored
for disposal.
Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
6
Page 7
Warning and Safety instructions
Protecting the appliance from
damage
When grilling or keeping food
warm, do not use pots and pans or
similar on the open grill and never
cover the rack (e.g. with aluminium foil)
or use disposable aluminium foil
containers. The resulting build-up of
heat could damage the rack.
Do not drop anything on the glass
surface. Even a light object could
cause damage in certain
circumstances.
Do not use a steam cleaner to
clean this appliance. The steam
could reach electrical components and
cause a short circuit. Pressurised
steam could also cause permanent
damage to the surface and to other
components, for which the
manufacturer cannot accept liability.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches and other vermin will not
be covered by the appliance
guarantee.
Protection from burning and
scalding
Never leave the grill unattended
while grilling is taking place.
Overheated oil or residues of food or fat
on the lava rocks could flare up and
even set the cooker hood alight.
Should anything catch fire despite
this do not attempt to put the
flames out with water. Instead
extinguish the flames using a suitable
fire blanket, damp towel or similar to
smother the flames.
For added protection, it is
advisable to use heat-resistant pot
holders or gloves when using the
appliance. Do not let them get damp or
wet, as this causes heat to transfer
through the material more quickly with
the risk of burning yourself.
Do not use the appliance as a
resting place for anything else.
This could lead to a danger of the
article beginning to melt or catching
fire, if residual heat were still present or
if the appliance was switched on by
mistake.
Do not cover the appliance, e.g.
with a cloth, kitchen foil, etc. This
could be a fire hazard if the appliance
was switched on by mistake.
Clean the lava rocks regularly and
replace them when necessary.
Rocks which are saturated catch fire
easily. The grill trough and the lava rock
container should be cleaned after each
use to keep them free of oil and fat.
7
Page 8
Warning and Safety instructions
Appliance faults
In the event of damage or a defect,
switch off the appliance immedi
ately. Disconnect completely from the
electricity supply. If the appliance has
not yet been fully installed, the
electricity cable must be disconnected
from the supply point. If connected via
a plug and socket, switch off at the
socket and withdraw the plug. Contact
the Service Department.
Do not reconnect the appliance to the
mains electricity supply until after it has
been repaired.
If there is any damage to the glass
surface the appliance must be
disconnected from the mains electricity
supply immediately and not used until it
has been repaired. Danger of electric
shock.
Repairs must only be carried out
by a suitably qualified and
competent person. Repairs and other
work by unqualified persons could be
very dangerous and could damage the
appliance. The manufacturer cannot be
held liable for unauthorised work. Never
open the housing of the appliance.
-
Further safety notes
When using an electric socket near
the appliance, care should be
taken that the cable of the electrical
appliance does not come into contact
with the hot appliance. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.
Always ensure that food is
sufficiently cooked or reheated.
Many factors will affect the overall
cooking time, including the size and
amount of food and its temperature.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking;
therefore when cooking or reheating
foods such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee is invalidated.
8
Page 9
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Packaging, e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation.
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. If
connected by a plug, the plug must be
rendered useless and the cable cut off
directly behind the appliance to prevent
misuse.
9
Page 10
Before using for the first time
General notes
Please stick the extra data plate for the
appliance supplied with this
documentation in the space provided in
the "After sales service" section of this
booklet.
Cleaning and heating up for
the first time
Before using for the first time clean the
grill trough and the rack with a solution
of hot water and washing up liquid. Dry
thoroughly with a soft cloth (see
"Cleaning and care").
Clean all other appliance surfaces with
a damp cloth only, and then wipe dry.
Metal components have a protective
coating which may give off a slight
smell when the appliance is heated up
for the first time. The smell and any
vapours will dissipate after a short time
and do not indicate a faulty connection
or appliance.
10
Page 11
Use
Switching on and off
To switch the grill on or off the control
can be turned in a clockwise or
anti-clockwise direction. "0" is off.
0
12
.
.
10
.
8
The operating indicator light to the left
of the control comes on when the grill
has been switched on. It goes off after
the grill is switched off.
Safety cut-out
A safety cut-out ensures that the
heating element is only heated when it
is lying horizontally and not when it is
raised up.
11
Page 12
Use
Before grilling
The grill can be used with or without the
lava rocks. Without the lava rocks the
rising steam keeps the food being
grilled moist. Grilling with the lava rocks
creates a particularly intensive aroma.
Prepare the grill as follows, before
switching it on:
Make sure the drain tap is closed.
^
Take off the rack, lift up the heating
^
element, and if not being used, take
the lava rock container out.
^ Fill the grill trough
– up to marker line a with approx. 2.5
litres of water when grilling without
lava rocks.
– up to edge b with approx. 1.2 litres
of water when grilling with lava
rocks.
If using lava rocks put the container
^
back in the grill trough.
Lower the heating element again,
^
and put the rack on it.
12
Page 13
Use
Grilling
When grilling, watch the level of
water in the trough. If necessary,
add more water.
Do not use pots and pans or similar
on the open grill and never cover the
rack (e.g. with aluminium foil) or use
disposable aluminium foil
containers. The resulting build-up of
heat could damage the rack.
Correct procedure:
Switch the appliance on.
^
Pre-heat the grill at setting "12" for
^
approx. 5 minutes.
Grill the food for a few minutes at the
^
highest setting.
Then switch down to "10" or "9" (with
^
food that tends to burn).
Turn the food once or more during
^
grilling.
13
Page 14
Use
Tips on grilling
To avoid spitting during grilling, dab
–
moist food dry with paper kitchen
towel.
Salt food after grilling, and not before
–
as it could dry out too much.
Marinating often improves the flavour
–
of food to be grilled.
Brush food that has not been
–
marinated with a little oil. Only use
oils that can be heated to a high
temperature.
Food Time in
minutes
Meat and sausages
Sausage 6 - 8
Fillet steak 8 - 10
Burgers 12 - 16
Chicken drumsticks 16 - 18
Pork chops 14 - 18
Lamb chops 8 - 10
Liver 4 - 8
Turkey steak 8 - 10
Kebabs 14 - 18
Cutlets / schnitzel 8 - 12
T-Bone steak 20 - 25
Fish
Trout 12 - 16
Salmon steak 10 - 12
Mackerel 10 - 12
Vegetables
Medium sized jacket
potatoes wrapped in
foil
Vegetable kebabs 5 - 6
Sweetcorn 20 - 25
Onions 14 - 16
Fruit
Pineapple slices 2 - 3
Apple slices 2 - 3
40 - 60
14
The times given are only a guide,
based on a pre-heated grill at settings
9 to 12. The lower power settings are
suitable for keeping food warm.
Page 15
Use
Safety cut-out
A safety cut-out automatically switches
the appliance off if the water level
drops too low.
Add some cold water.
^
As soon as the appliance has cooled
down, the grill element switches back
on again and you can continue grilling.
After grilling
Proceed as follows:
Switch the grill off.
^
Clean the grill after each use while it
^
is still warm to the touch (see
“Cleaning and care”).
After grilling check the appearance
^
of the lava rocks. If the rocks look
dark they are saturated with oil and
must be cleaned or replaced.
15
Page 16
Cleaning and care
General notes
Clean the appliance regularly,
preferably after each use. Allow the
appliance to cool down to a safe
temperature before cleaning.
When using cleaning agents for
stainless steel and glass surfaces
you must follow the manufacturers
instructions on the packaging.
Do not use a steam cleaner to clean
this appliance. The steam could
reach electrical components and
cause a short circuit. Pressurised
steam could cause permanent
damage to the surface and to
components, for which the
manufacturer cannot accept liability.
Do not use any sharp pointed
objects which could damage the
seal between the glass surface and
the surrounding frame and between
the frame and the worktop.
Do not use any of the following as
they can damage the surface:
cleaning agents containing sand,
soda, alkalines, acids or chlorides,
grill and oven sprays, dishwasher
cleaner, stain or rust removers,
scouring agents or cream cleaners,
abrasive sponges and brushes.
After cleaning use a soft dry cloth to
remove any moisture to prevent a
build up of limescale deposits.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals.
Aggressive cleaning agents and
sponges can, however, be used on
the grill element itself.
16
Page 17
Cleaning and care
Rack, Lava rock container,
Heating element
Clean the rack and lava rock container
after each use with a solution of hot
water and washing up liquid.
Soak to loosen any burnt on food which
can then be removed with a brush.
Use a gentle scourer on any residue left
on the heating element.
Dry throughly after cleaning.
Do not use cleaning agents for
stainless steel on the lava rock
container.
Lava rocks
Clean the lava rocks regularly.
Put the rocks into a suitable container
and fill with a solution of hot water and
washing up liquid. Leave to soak for a
while. Stir the rocks several times. Then
pour the washing up liquid solution
away and rinse the rocks two to three
times with clean water. Place the rocks
out to dry on a suitable towel.
17
Page 18
Cleaning and care
Grill trough
After grilling, allow the water in the
^
trough to cool down before draining
it.
Place a suitably large container
^
under the drain tap underneath the
grill.
Open the drain tap by turning it
^
anti-clockwise a as far as it will go.
^ After the water has drained out, close
the tap by turning it clockwise b as
far as it will go. Check that you
cannot turn it any further.
Ensure that the underside of the grill
is always easily accessible for
draining water. Always wait until the
water has cooled down before
draining to avoid the danger of
being scalded!
Do not use cleaning agents for
stainless steel on the grill trough.
^
Fill the grill trough with a solution of
hot water and washing up liquid and
wash out thoroughly.
^
Drain the suds solution into a suitable
container and then clean the drain
outlet with a bottle brush. Finally rinse
the grill trough out with hot water and
and then dry both the reservoir and
the drain outlet thoroughly.
18
Page 19
Cleaning and care
Stainless steel surround
Clean the stainless steel surround with
hot water and a little washing up liquid
applied with a soft sponge. Wipe dry
using a soft cloth. Soak stubborn soiling
first to loosen it.
Stainless steel surfaces can be cleaned
using a Miele E-Cloth or a proprietary
non-abrasive cleaning agent designed
specifically for use on stainless steel.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel,
such as Neoblank (available from the
Miele Spare Parts Department) can also
be used.
Follow the manufacturer's instructions
on the label and apply sparingly with an
even pressure following the direction of
the grain.
Glass control panel
Clean the glass surface and control
with a damp cloth only, and then wipe
dry.
If wished you can use a proprietary
glass cleaning agent afterwards. Follow
the manufacturer's instructions.
19
Page 20
Problem solving guide
Repairs to electrical appliances
must only be carried out by a
suitably qualified and competent
person in strict accordance with
current local and national safety
regulations. Unauthorised repairs
could be dangerous. The
manufacturer cannot be held liable
for unauthorised work.
What to do if ...
... after switching on, the appliance
does not heat up.
Check whether
the safety cut-out has been
–
activated. See "Safety cut-out".
the appliance has been switched on
–
at the mains and that the mains fuse
is in order. If the fuse has blown,
contact an electrician or the Service
department.
20
Page 21
Electrical connection
Electrical connection
All electrical work should be carried
out by a suitably qualified and
competent person in strict
accordance with current national
and local safety regulations
(BS 7651 in the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
The appliance must only be
operated when built-in. This is to
ensure that all electrical parts are
shielded. Live parts must not be
exposed.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
The voltage and connected load are
given on the data plate. Ensure that
these match the household mains
supply.
Connection should be made via a
suitable isolator or a double pole fused
spur connection unit which complies
with national and local safety
regulations and the on/off switch should
be easily accessible after the appliance
has been built in.
If the switch is not accessible after
installation (depending on country) an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
When switched off there must be an
all-pole contact gap of 3 mm in the
isolator switch (including switch, fuses
and relays).
Important U.K.
This appliance is supplied for
connection to a single phase 230-240 V
50 Hz supply with a 3-core cable.
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING
THIS APPLIANCE MUST BE
EARTHED
21
Page 22
Electrical connection
Important
The electrical safety of this appliance
can only be guaranteed when
continuity is complete between the
appliance and an effective earthing
system, which complies with local and
national regulations. It is most important
that this basic safety requirement is
present and tested regularly and if
there is any doubt the electrical wiring
in the home should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system such as an electric
shock.
The manufacturer cannot be held
liable for damage which is the direct
or indirect result of incorrect
installation or connection.
22
Page 23
After sales service
In the event of any faults which you cannot remedy yourself, please contact
Your Miele Dealer
–
or
The Miele Service Department (see address on back cover).
–
When contacting the Service Department, please quote the model and serial
number of your appliance. These are given on the data plate.
Please note that telephone calls may be monitored and recorded for training
purposes.
Data plate
Space in which to stick the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these operating
instructions.
23
Page 24
Alteration rights reserved / 4505
M.-Nr. 05 689 710 / 08
en-–
Loading...
