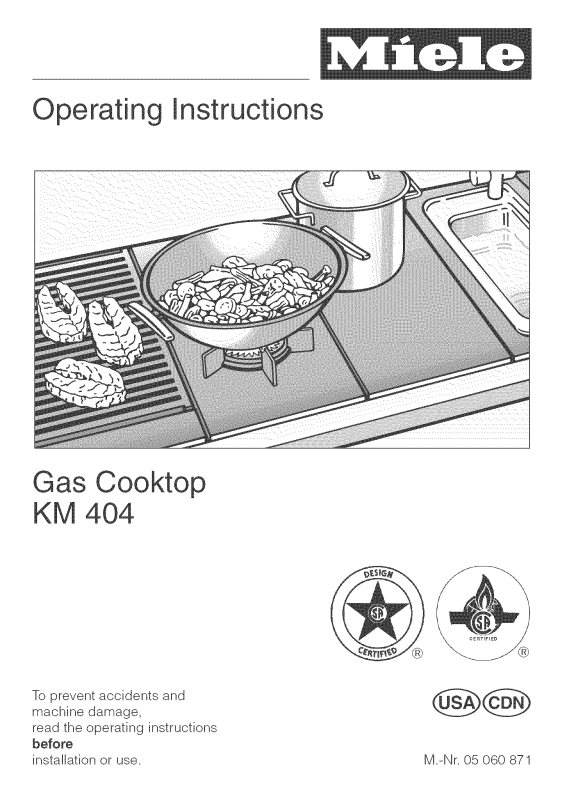

Operating Instructions

Gas Cooktop

KM 404

To prevent accidents and

machine damage,
read the operating instructions

before
installation or use, M-Nr, 05 060 871

= WHAT TO DO iF YOU SMELL GAS

® Do not try to Jight any appliance.
® Do not touch any etectricaJ switch.
® Do not use any phone in your building.
® immediately call your gas supplier from a

neighbor's phone. Follow the gas supptier's
instructions.

® if you cannot reach your gas supplier, call the

fire department.

installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(in Massachusetts a ticensed plumber / gas fitter)

Note to the installer:

PJease leave this instruction book with the

consumer for the tocat electrical / gas inspector's

use,

Contents

_iii}ii_i_i_i_iiiiiii_i_ii_i_i_i_ii_i_i`_`i_J_i_iii_iiiiiiiiiiiiiH_iiHiiiiii_i_i_i_`ii_i_iii_iii:_:_:_i_i_i!_ii_iii:iii_i_`_ii`iiiiii_i_iii_i_ii_i_i`i`i_i_iii_i_i_iii_HHiiiii_iii!_i_ii_i__i_i_iiil_iii__i_ii:ii_i_iiii_iiiiiiii!i!ii_i_`i_i_`Xi`iiiiiii_i_i_i_ii_ii`ii_i_ii_i_ii_ii_i_iii`i_i_iii_i_iii_i_iii_i_ii_i_i`ii_iiiiiiiii!i_i!i_ii!i_:_iii`iii_i_:_i_i_iii!_i_i!_i!_iii!_i_ii_ii_i_`_ii`ii_i_iiiHii_iiii!iiii_i_iii_iiiiiii!_i!_i_:i_ii_iii!`i:!:iiii_i_i_i_i_ii_i_i_ii_i_i_i_i_i_:iiii11i_i_i_i_i_ii_:_i_i_ii_

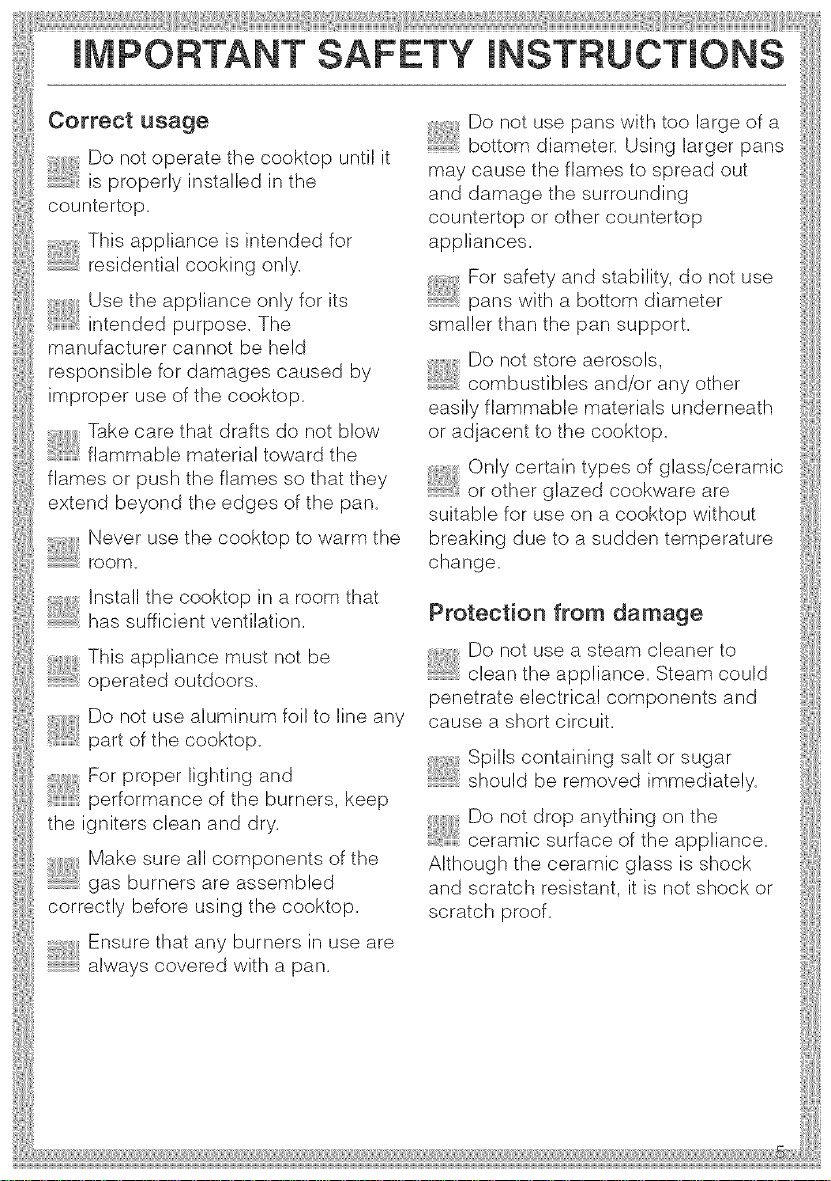

_MPORTANT SAFETY _NSTRUCT_ONS

_nstaHation and connection

follow basic safety precautions

Read all instructions before using
for the first time.

Becertainyourapp,ianceis

properly installed and grounded by

a qualified technician.

To guarantee the electrical safety
of this appliance, continuity must

exist between the appliance and an
effective grounding system. It is

imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified

electrician. The manufacturer cannot be
held responsible for damages caused

by the lack, or inadequacy, of an
effective grounding system.

Install the appliance so that the

power cord or gas piping does not
come in contact with any portion of the
cooktop which may become hot during

use,

Before servicing, turn off the gas

valveanddisconneetthepower

supply by either removing the fuse,
unplugging the unit or manually

"tripping" the circuit breaker.

This equipment has not been

designed for maritime use or for
use in mobile installations such as
aircraft or recreational vehicles.

However, under certain circumstances
it may be possible for installation in

these applications. Please contact the

nearest Miele Dealer or the Miele

Technical Service Department with

specific requirements_

After connecting the appliance test

for leaks according to the

installation instructions.

,fthereis_nydoubtconoern,ng

installation contact Miele's

Technical Service DepartmenL

1-800-999-1360

[e-mail]

1-800-565-6435

[e-mail]

Do not connect the appliance to

' themainelectricalsupplyusingan

extension cord. Extension cords do not
meet the safety requirements of this
appliance.

Guide to the cooktop

'_ Grate
_ Burner cap

'_ Notch
_ Burner
_¢ Ignition safety control
(_ Ignitor

'_ Burner base

'_©Front burner control
'_ Burner indicators

@ Rear burner control
,t3 Power cord

Before using the cooktop

C_eaning the cooktop

Before using for the first time clean the
appliance as follows:

[] Wash the removable parts of the gas

burner in a mild solution of warm

water and liquid dish soap,

[] Dry and reassemble them in the

proper order (see the "Cleaning and
care" section),

[] The ceramic surface can be cleaned

using water or a ceramic cooktop
cleaner and then wiped dry with a

soft cloth,

Metal components have a protective
coating which may give off a slight odor

the first time your new appliance is

heated,

The harmless odor will dissipate after a

short time and does not indicate a

faulty connection or appliance defect,

Using the cooktop

Turning on and off

The control knobs are used to turn the

burners on and to regulate the strength

of the flames.

Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
extend beyond the sides of the pan.
Flame tips which extend beyond the
sides of the pan are hazardous.

Turning off
[] Turn the knob clockwise to "®".

® Cooktop is turned off

Highest flame
Lowest flame

Turning on
[] To turn on the burner, press the

control knob down and turn it
counterclockwise to the large flame

symbol. The ignitor will click and
ignite the gas.

[] When the flame appears, keep the

control knob pressed in for
8-!0 seconds to allow the Ignition

Safety Control to reach operating

temperature and release it.

If the flame goes out, repeat the above
procedure, keeping the control knob
pressed in for a few extra seconds.

[] Adjust the knob to the desired

setting.

This stops the flow of gas and turns off
the burnen

flame symbol,

10

Using the cooktop

Pan size

- Set the cooktop to a high flame when
using a large diameter pan and low

flame when using a small diameter

pan.

- Generally, wide / shallow pans will
heat up quicker and cook more

evenly than narrow / tall ones.

- Using oversized pans may cause the

flames to spread out and damage
the surrounding countertop or other
countertop appliances.

- Do not use small pans with high

flame settings, the flame may climb
the sides of the pan.

- Pots with a smaller diameter than the

grate and pots that do not sit
securely (without wobbling) are

hazardous and should not be used.

Suitable pans

Any heat resistant pan can be used on

a gas burnen
Unlike pans used on an electric

cooktop, the bases do not need to be
even for good results.

Thick pan bases will give more even

results, hot spots are reduced due to
better heat distribution.

Thin pan bases will conduct the heat
faster but not as evenly as thick pan

bases. Stir the food frequently to
prevent burning.

11

Using the cooktop

Safety feature

This gas cooktop incorporates an

Ignition Safety Control which stops the
supply of gas if the flame goes out,

[] To reignite the burners, turn the

control knob clockwise to "®",then

follow the procedures outlined in

"Turning on and off",

This safety feature is not operated by

electricity, it will be active even if the
appliance is in use during a power

failure,

Using the cooktop during a
power failure

If there is an interruption to the
electrical supply, the gas can be
ignited using a match,

[] Press down on the desired control

knob and turn it counterclockwise to

the large flame symbol,

[] While holding down the knob, light

the gas at the burner with a match,

[] When the flame appears, keep the

control knob pressed in for
8 - 10 seconds to allow the Ignition

Safety Control to reach operating

temperature,

12

Cteaning and care

iii_i_i/iii_,,,,,,_iiiiiii............................................................................................................................................................_jiIIIIIIIIIId_IIiIIiIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIWji_?_iii

this cooktop. Pressurized steam
could cause permanent damage to
the surface and to components for

which the manufacturer cannot
accept responsibility.

i o not use a steam cleaner to clean

The ceramic surface can be cleaned
using a cleaner for ceramic

surfaces. Follow the manufacturer's
instructions on the packaging.

Ceramic surface

The ceramic surface should be cleaned

regularly, preferably after each use.

[] Let your appliance cool to a safe

temperature and remove the grate.

[] Wipe off spills using a damp cloth.

Stubborn spills are best removed

with a shielded scraper blade.

[] Sugar or syrup spills must be

cleaned before the cooktop cools
completely or the glass will dimple.

Keep the ignitor in the burner dry. If

[] Apply a cleaner for ceramic surfaces

using a soft cloth or paper towel. This

After cleaning, the ceramic surface

i it..... gets wet it will not spark.

must be thoroughly dried with a soft
cloth to prevent a build up of
limescale deposits.

will prevent any water marks caused

by water boiling over.

[] Clean the ceramic surface with a

damp cloth and dry with a soft cloth.

Do not use any sharp pointed
obiects which could damage the

seal between the ceramic surface
and the surrounding frame or

between the frame and the
cou ntertop.

Under no circumstances use a
steam cleaner to clean this cooktop.

Pressurized steam could cause
permanent damage to the surface

and to components, for which the
manufacturer cannot accept
responsibility.

13

Cleaning and care

Burners

The burners can be dismantled and

cleaned when completely cool

Dismantling and cJeaning

[] Remove the burner parts and wash

them in a solution of hot water and

liquid dish soap.

[] Dry them thoroughly. Make sure that

the flame holes are clean and

completely dry.

The shiny surfaces of the burner caps
will dul! with time and usage. This is

normal and will not affect the operation

of the cooktop.
[] Clean the burner base, the ignitor

and Ignition Safety Control with a
damp cloth and then dry with a soft

cloth.

The ignitor must be thoroughly dry, or it
will not spark.

Reassembling the burner

Be careful not to mix up the parts. Make
sure that all the locating tabs and

notches align exactly.

[] Place the burner head, @, onto the

burner base, ,'_, so that the Ignition
Safety Control and ignitor extend

through their respective holes.

14

[] Return the burner cap, '_@.
[] Return the grate.

Frequently asked questions

_i_iiiiiiiiiiiiiiiiiiiiiiiiiii_

All repairs should be performed by a
trained technician in strict

accordance with national and local
codes. Any repairs or maintenance

performed by unqualified personnel
could be dangerous.

Some minor problems can be resolved
as follows:

What to do if ,,,

,,, the burners do not ignite after
severaJ attempts?

Check if:
[] the burners are assembled correctly.

[] the gas valve is open.
[] the burners are dry and clean.

[] the flame holes in the burners are

clean and unblocked.

,,, the flame goes out after being lit?

[] Check whether the burners are

assembled correctly.

[] Make sure the gas holes in the

burner ring are clean and open.

,,, the igniter no longer work?

[] Check if there is food residue

between the ignitor and the burner.

[] Make sure the ignitor is dry.

,,, the flame appears different than
usual?

[] Check whether the burners are

assembled correctly.

[] the igniter are wet.
[] the cooktop is plugged in and that

the circuit breaker has not tripped. If

lack of power is the problem, the
cooktop can be lit with a match. See
"Using the cooktop during a power

failure".

15

After saJes service

In the event of a fault which you cannot
correct, contact the Miele Technical
Service Department:

1-800-999- !360

techserv@mieleusa,com

1-800-565-6435

service@miele,ca

When contacting the Technical Service

Department, please quote the model
and serial number of your appliance,

These are shown on the data plate,

Adhere data plate sticker here:

16

Help protect our environment

Disposam of packing materials

The cardboard box and packing

materials are environmentally friendly

for disposal, Please recycle,

Disposa_ of an o_d appliance

Old appliances contain materials that
can be recycled, Please contact your

local recycling center about the
possibility of recycling these materials,

power cord to prevent it from

i electrica! supply and cut off the

17

18

19

When contacting the Technical Service,
please quote the model and seria| number

of your appiianceo

MieJe, Jnc,

Nationam Headquarters
9 Independence Way

Princeton, NJ 08540
Phone: 800o843o7231

609=419m9898

Fax: 609m419=4298
www.mieUeusa.com

MieUe Limited

National Headquarters
55G East Beaver Creek Road

Richmond Hill, ON L4B 1E5
Phone: 800=643=5381

905=707=1t71

Fax: 905=707=0177
www.mieUe.ca

[e-mail] (general enquiries)

Technical Service & Support
Nationwide

Phone:800=999=1360
Fax: 888=586=8056

[e-mail](commercial

enquiries)

Mielecare Nationam Service
Phone: 800=565°6435

905=850=7456

Fax: 905=850=6651
[e-mail](-[ech. Service)

Alterations rights reserved / 0205 M,oNr, 05 060 871 / 01

en - US
