Miele KM3014 Installation and Operation Guide
Operating and installation instructions
Gas cooktops
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 09 317 790
This appliance can be used in countries other than those specified on the
appliance and in these operating and installation instructions. It is, however, set
up for connection to the gas and electricity supplies in the countries specified.
For trouble-free operation of the appliance, it is best to use it in the countries
specified for use.
For use in other countries, please contact Miele in your country.
2
Contents
Warning and Safety instructions.......................................................................... 5
Caring for the environment ................................................................................15
Overview............................................................................................................... 16
Cooktop................................................................................................................. 16
Control knobs........................................................................................................ 17
Burner.................................................................................................................... 18
Accessories supplied ............................................................................................ 19
Using for the first time ........................................................................................ 20
Cleaning the cooktop for the first time.................................................................. 20
Switching on the cooktop for the first time ........................................................... 20
Pans ...................................................................................................................... 21
Tips on saving energy ........................................................................................ 23
Operation.............................................................................................................. 24
Switching on.......................................................................................................... 24
Adjusting the flame................................................................................................ 25
Switching off.......................................................................................................... 25
Safety features..................................................................................................... 26
Thermo-electric ignition ........................................................................................ 26
Cleaning and care ...............................................................................................27
Ceramic surface .................................................................................................... 28
Pan supports ......................................................................................................... 29
Control knobs........................................................................................................ 29
Burner.................................................................................................................... 29
Problem solving guide ........................................................................................31
Optional accessories ..........................................................................................33
Safety instructions for installation..................................................................... 34
Safety distances .................................................................................................. 35
Installation notes ................................................................................................. 38
Building-in dimensions .......................................................................................39
KM 3014 ................................................................................................................ 39
Installation............................................................................................................ 41
3
Contents
Electrical connection ..........................................................................................43
Gas connection.................................................................................................... 45
Setting the gas pressure ....................................................................................... 47
Burner ratings ...................................................................................................... 48
Conversion to another type of gas ....................................................................49
Jet table................................................................................................................. 49
Changing the jets .................................................................................................. 49
Changing the main jets..................................................................................... 49
Changing the small jets.................................................................................... 50
Checking operation ............................................................................................... 51
After sales service, data plate, warranty........................................................... 52
4
Warning and Safety instructions
This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these
instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
5
Warning and Safety instructions
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
6
Warning and Safety instructions
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning!
Do not store anything which might arouse a child's interest in
storage areas above or next to the cooktop. Otherwise they could be
tempted into climbing onto the appliance.
Danger of burning or scalding!
Place pots and pans on the cooking zone in such a way that children
cannot pull them down and burn themselves.
Danger of suffocation! Children may be able to wrap themselves in
packing material or pull it over their head with the risk of suffocation.
Keep children away from any packing material.
7
Warning and Safety instructions
Technical safety
Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
A damaged appliance is dangerous. Check it for any visible
damage. Never install or attempt to use a damaged appliance.
Reliable and safe operation of this cooktop can only be assured if
it has been connected to the mains electricity supply.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency)
matches the mains electricity supply. This data must correspond in
order to avoid the risk of damage to the appliance.
Do not connect the cooktop to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
8
Warning and Safety instructions
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop is not intended for use with an external timer switch
or a remote control system.
Connection to the gas supply must be carried out by a suitably
qualified gas fitter. If the plug has been removed or the connection
cable is not supplied with a plug, the cooktop must be connected to
the mains supply by a suitably qualified electrician.
If the mains connection cable is damaged, it must be replaced
with a special connection cable typeH05VV-F (PVC insulated),
available from Miele, by a Miele approved service technician or
suitably qualified electrician in order to avoid a hazard. See
"Electrical connection".
During installation, maintenance and repair work, the appliance
must be completely disconnected from the mains electricity supply.
The gas supply must also be turned off. It is only completely isolated
from the gas and electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
– the gas inlet valve is closed.
Danger of electric shock!
Do not use the cooktop or switch it off immediately if it is faulty, or if
the ceramic surface is cracked, chipped or damaged in any way.
Disconnect it from the mains electricity supply and gas supply, and
contact Miele.
9
Warning and Safety instructions
If the appliance is installed behind a furniture door, do not close
the door while the appliance is in operation. Heat and moisture
would build up behind a closed furniture door, potentially causing
damage to the appliance, the furniture unit and the flooring. Wait
until the appliance has cooled down completely before closing the
furniture door.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
This cooktop is not suitable for installation and operation with
aftermarket lids or covers fitted.
10
Warning and Safety instructions
Correct use
The appliance gets hot when in use and remains hot for some
time after being switched off. Do not touch the appliance if there is a
possibility that it could still be hot.
Do not use the appliance to heat up the room. Due to the high
temperatures radiated, objects left near the appliance could catch
fire.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE
APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.
CUTLERY INSERTS MUST BE HEAT-RESISTANT.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
11
Warning and Safety instructions
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the appliance heating up, with the danger of
burning. Depending on the material, other items left on the appliance
could also melt or catch fire. Do not use the appliance as a resting
place. Switch the appliance off after use.
You could burn yourself on the hot appliance. Protect your hands
with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself on steam. Be sure to keep all textiles away from the
gas flames. Do not use oversized cloths, tea towels or other similar
materials.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Plastic and aluminium foil containers melt at high temperatures.
Do not use plastic or aluminium foil containers on the cooktop.
If a rangehood is installed above the cooktop, ensure that the
burners are always covered with a pan when in use. Otherwise
flames could reach the rangehood, parts of which could then be
damaged or even set on fire.
Switch the burner off when a pan is removed, even for a short
time.

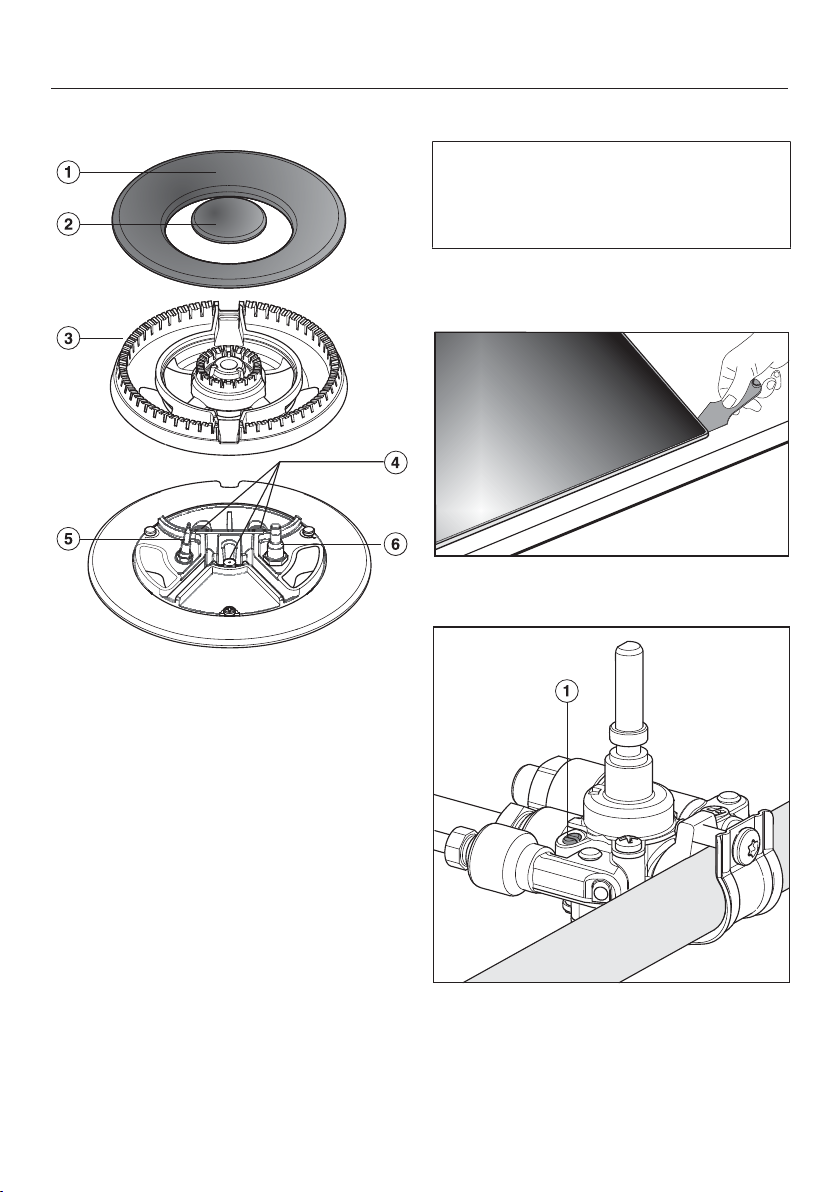

Make sure all the components of the gas burner have been
correctly assembled before switching on.
12
Warning and Safety instructions

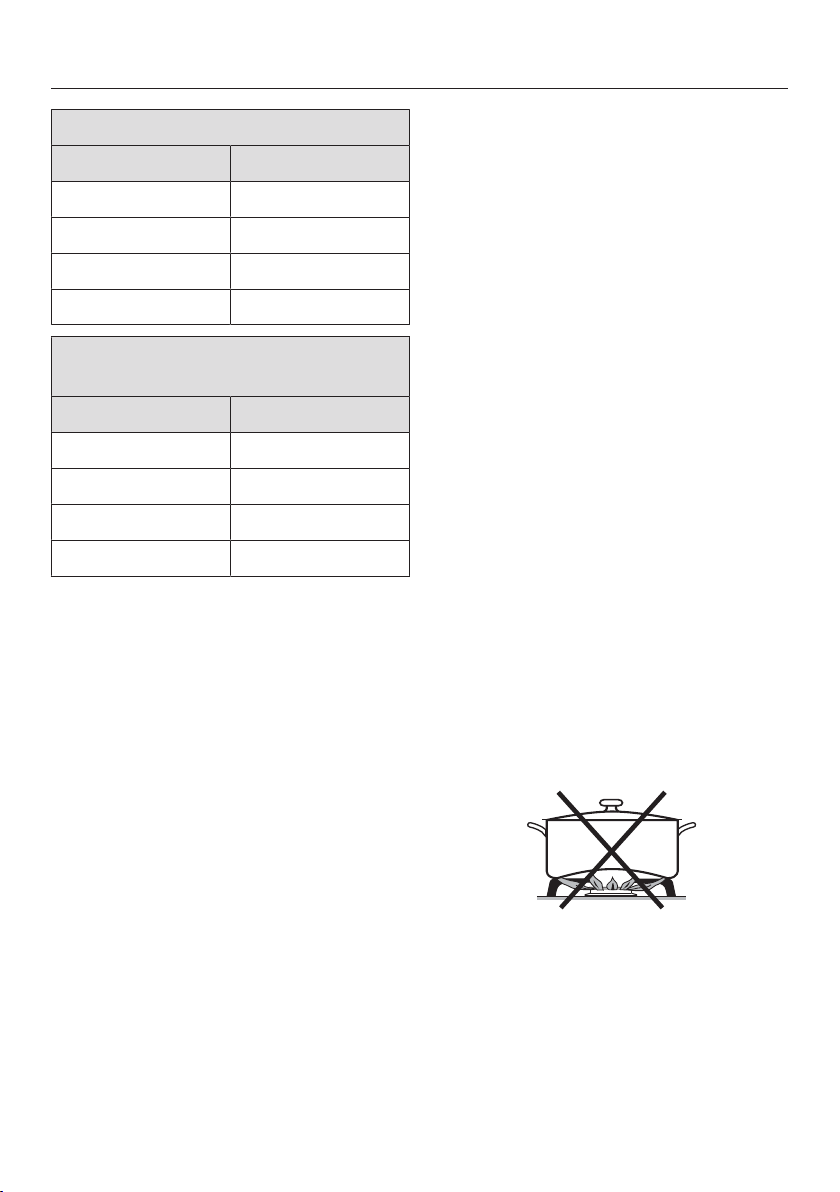

Pans must be the correct size for the burner they are used on (see
"Suitable Pans"). A pan which is too small will be unstable on the
pan support. If the pan diameter is too large, flames can spread out
to the sides and damage or burn the worktop, wall claddings or
surrounding units and also parts of the cooktop. Miele cannot be
held liable for this type of damage.
Ensure that the flames from the burner do not spread out beyond
the base and up the sides of the pan.
Do not use pans with very thin bases on this cooktop, and never
heat up empty pans as they could get damaged. This could also
damage the appliance.

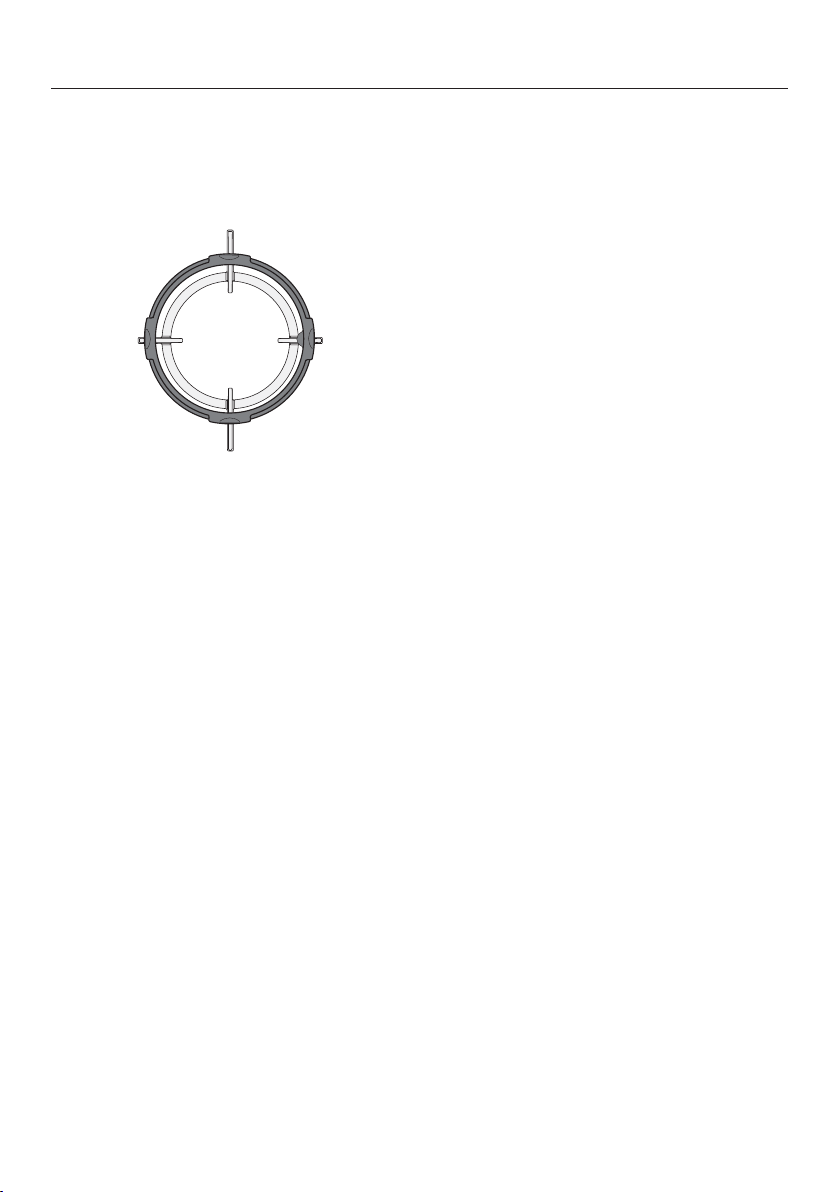

The pan supports supplied with the appliance must always be
used. Never place a pan on the burner itself.
Replace the pan supports carefully to avoid scratching the surface
of the cooktop.
Remove all grease spatters and other combustible (food) residues
from the cooktop as soon possible. They are a fire hazard.
The use of the gas cooktop creates heat, moisture and
combustion products in the room where it is installed. Make sure
that the appliance is installed in a location with sufficient ventilation.
Natural ventilation openings should not be blocked. Alternatively, a
mechanical ventilation device (e.g. a rangehood) can be installed.
If the cooktop is used for very long periods of time, additional
ventilation of the room may be necessary, e.g. by opening windows
or doors, or running the rangehood on the highest setting.
Do not use roasting dishes, pans or grilling stones that are large
enough to cover more than one burner. The resulting build-up of
heat could damage the appliance.
13
Warning and Safety instructions
If the appliance has not been used for a long period of time it
should be thoroughly cleaned before it is used again. It is also
advisable to have the appliance tested by a qualified person for
safety.
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
14
Caring for the environment
Disposal of the packing material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
15
Overview
Cooktop
a
Wok burner
b
Auxiliary burner
c
Semi-rapid burner
d
Pan support (1 pan support per burner)
e
Cooking zone allocation symbol
Controls knobs for the cooking zones:
f
Front right
g
Rear right
h
Left
16
Control knobs
Auxiliary, semi-rapid and rapid burners
Symbol Description
Burner off, the gas supply is turned off
Strongest flame
Weakest flame
Wok burner
Overview
Symbol Description
Burner off, the gas supply is turned off
Largest flame: Inner and outer burner at highest setting.
Large flame: Outer burner at lowest setting, inner burner at highest
setting.
Small flame: Outer burner off, inner burner at highest setting.
Smallest flame: Outer burner off, inner burner at lowest setting.
17
Loading...
