KF 2982 SF
MasterCool FrenchDoor
For high-end design andtechnology on a large scale.
EAN: 4002516322023 / material number: 11503040
Appliance category
Fridge-freezer •
Construction type
Built-in •
Built-in integrated •
Door hinge side Left
Convertible hinging •
Can be installed side-by-side •
Design
Front color Stainless steel/CleanSteel
Lighting BrilliantLight
Control panel
Freshness system MasterFresh
ComfortClean •
DynaCool •
NoFrost •
NoFrost •
DuplexCool Pro •
SoftClose door closing damper •
• Push2open for convenient dooropening assistance
• Food stays fresh for up to 3xlonger
thanks to SmartFresh
• Light floods the interior thanks to LED
elements – BrilliantLight
• Communication with the machine
could not be easier – WiFiConn@ct
• Convenient controlthanks to color
touch display MasterSensor
SelfClose •
IceMaker with plumbed water connection •
Push2open •
FullAccess •
EasyClean •
MaxLoad hinge •
Control
Electronic temperature display and control MasterSensor
Super Cooling •
No. of temperature zones 3
Sabbath mode •
Fridge / Fridge compartment
Height-adjustable toughened glass shelves 2
No. of PerfectFresh drawers 2
SlidingShelf •
Door rack for tins 2
Inner door racks for bottles 4
Freezer / Freezer compartment
Number of freezer baskets 2
Efficiency and sustainability
Energy Star Qualified •
Appliance networking
Miele@home •
WiFiConn@ct •
Safety
Lock function •
Overflow protection •
Acoustic door alarm •
Acoustic temperature alarm, freezer section •
Optical door alarm •
Optical temperature alarm •
More information at www.MieleUSA.com
For further information please see next page...
KF 2982 SF
MasterCool FrenchDoor
For high-end design andtechnology on a large scale.
Technical data
Appliance width in in.(mm) 35 3/4 (908)
Appliance height in in.(mm) 83 3/4 (2,127)
Appliance depth in in.(mm) 24 7/8 (629)
Climatic classification T
Fridge compartment volume in l 393
4-star freezer compartment volume in l 157
Current consumption in milliampere (mA) 4,000
Voltage in V 120
Fuse rating in A 10
Wire length in ft (m) 9 (3.0)
Standard accessories
Active AirClean filter •
For further information please see next page...
KF 2982 SF
MasterCool FrenchDoor
For high-end design andtechnology on a large scale.

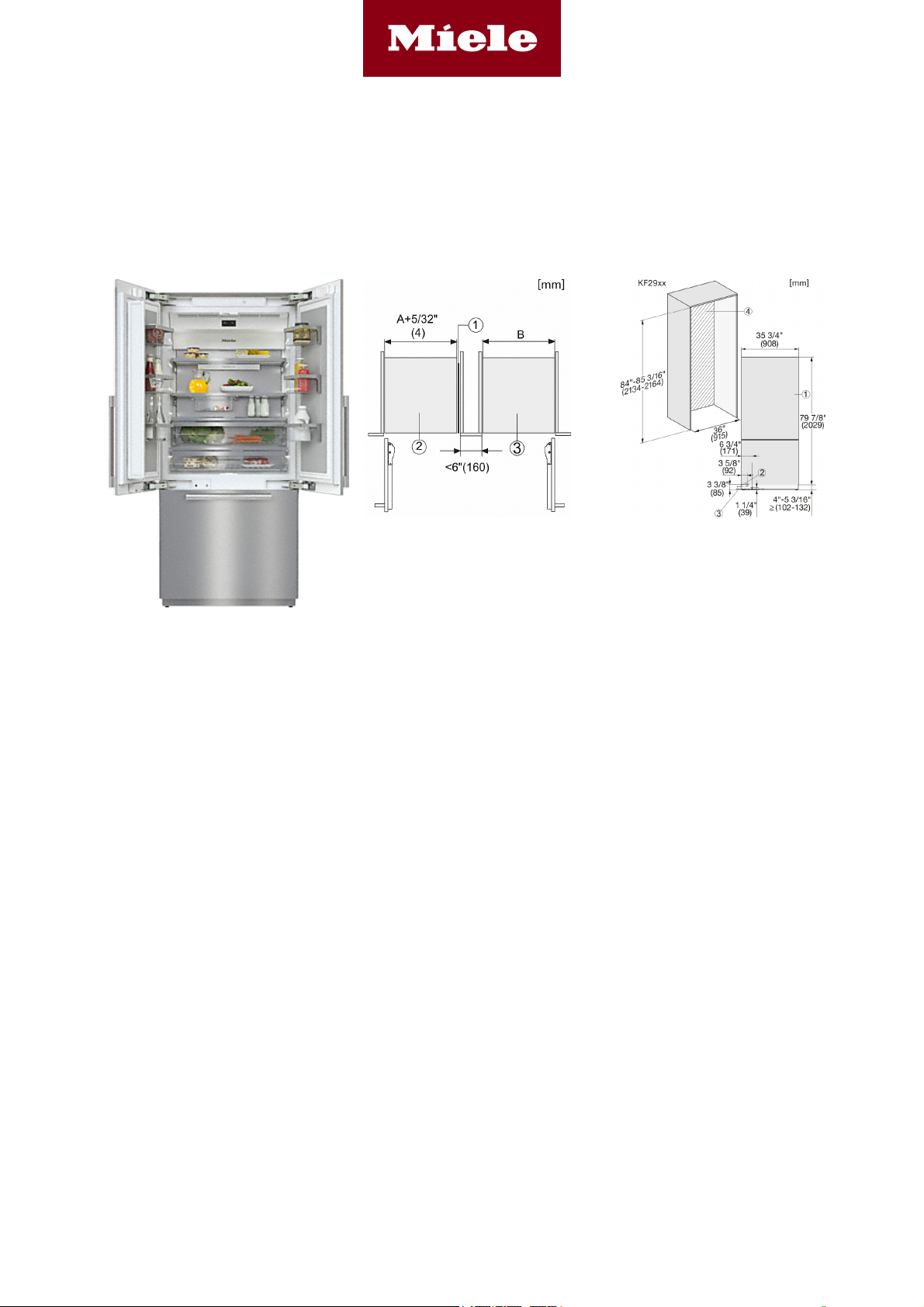

Side-by-side, MasterCool, without partition wall, with
heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US,
CA, MX, BR)
MasterCool, top view, doorway, installation drawings
KF2982SF, KF2981SF, installation, MasterCool, installation
drawings (US, CA)
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF,
KF2981Vi/SF, sideview, MasterCool, installation drawings
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002
2. Device A
For further information please see next page...
KF2902Vi/SF, KF2912Vi/SF, KF2982Vi/SF, KF2901Vi/SF,
KF2911Vi/SF, KF2981Vi/SF, installation, MasterCool
1. View from the front
KF 2982 SF
MasterCool FrenchDoor
For high-end design andtechnology on a large scale.
3. Device B
A = niche device A
B = niche device B
2. Mains Connection cable, L = 3000 mm (118 inch)
3. Water inlet positon, L = 2000mm (not for KON USA)
4. No water/ELT conections permitted in this area
