Operating and Installation Instructions

Fridge-Freezer Combination KF 1801 SF KF 1811 SF KF 1901 SF KF 1911 SF

To prevent accidents and machine damage read these instructions

before

installation or use.

en - US, CA

M.-Nr. 07 360 840

Contents

IMPORTANT SAFETY INSTRUCTIONS.................................4

Guide to the Fridge-Freezer combination ..............................7

Before use .......................................................9

Turning the appliance On/Off .........................................9

Settings.........................................................10

Turning the button sound On/Off ......................................11

Turning off for longer periods of time ..................................12

Alarm...........................................................13

Temperature alarm ................................................13

Door alarm .......................................................13

Setting the temperature............................................14

Setting the temperature in the refrigerator and freezer sections..............14

SmartFresh drawers ..............................................16

Storage temperatures ..............................................16

Humidity.........................................................16

Using the SmartFresh drawers .......................................16

Using the refrigerator efficiently ....................................18

Using the freezer efficiently ........................................19

Freezing food.....................................................19

Defrosting .......................................................20

Cooling drinks quickly ..............................................20

SuperCool.......................................................21

Ice cube maker ...................................................22

Automatic defrost ................................................23

Adjusting the interior fittings .......................................24

Moving the shelves ................................................24

Floating drawer ...................................................24

Removing the storage shelf from above the drawer .......................26

Ice cube container.................................................27

Small freezer basket ...............................................27

Large freezer basket with partition ....................................28

Cleaning and care ................................................29

Cleaning the interior and accessories ..................................29

Appliance door ...................................................29

Humidity filters ....................................................30

Ventilation slits ....................................................31

Contents

Door seals .......................................................31

Changing the light bulb .............................................32

Water filter ......................................................34

Exchanging the water filter ..........................................35

Filter Performance Data Sheet ......................................38

Frequently asked questions ........................................40

After sales service ................................................47

Caring for the environment.........................................50

Installation ......................................................51

Installation site ....................................................51

Installation options .................................................53

Dimensions......................................................55

Installing the appliance ............................................57

Before you begin ..................................................57

RemoteVision module installation .....................................59

Preparing the installation niche .......................................60

Sliding the appliance into the installation niche ..........................63

Aligning the appliance..............................................64

Attaching the appliance to the installation niche..........................65

Plumbing........................................................68

Electrical connection..............................................71

RemoteVision ....................................................72

IMPORTANT SAFETY INSTRUCTIONS

When using the appliance, follow basic safety precautions, including the following:

Read all instructions before installation and use to prevent accidents and machine damage.

This appliance is intended for residential use only. Use only as described in this Operating manual.

Only use the appliance for its intended purpose. The manufacturer cannot be held responsible for damages caused by improper use of this appliance.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

Keep these operating instructions in a safe place and pass them on to any future user.

Electrical Safety

Before installation, make sure that

the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.

Before installation or service,

disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

Do not use an extension cord to

connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g., danger of overheating).

Be certain your appliance is

properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer cannot be held responsible for damages caused by the lack, or inadequacy, of an effective grounding system.

Only connect power to the

appliance when all installation and plumbing work is complete.

IMPORTANT SAFETY INSTRUCTIONS

Installation

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

This appliance must be installed

and connected in compliance with the installation instructions.

Installation and repair work should

be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty.

Installation must comply with local

plumbing regulations and state laws. The manufacturer cannot be held liable for damage caused by a faulty connection to the water supply.

Do not operate any appliance with a

damaged cord or plug, or if the appliance has been damaged in any manner. Contact Miele’s Technical Ser vice Department.

This equipment is not designed for

maritime use or for use in mobile installations such as recreational vehicles or aircraft.

Do not install the fridge/freezer in a

room with too low an ambient temperature, e.g., a garage, as this may lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

In refrigerators with an automatic ice

maker, avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the ice maker. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

The ice cube maker is not suitable

for connection to a hot water supply.

Do not use water that is

microbiologically or chemically unsafe or of unknown quality without adequate disinfection or other treatment before or after the filter is used; the filter alone is not an adequate safeguard.

Use

Persons who lack physical, sensory

or mental abilities, or experience with the machine should not use it without supervision or instruction by a responsible person.

To reduce the risk of injury, do not

allow children to play in, on or near the appliance, especially in the door hinge

area.

After your appliance is in operation,

do not touch the cold surfaces in the machine, ice cubes or frozen food, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

Do not refreeze frozen foods which

have thawed completely.

IMPORTANT SAFETY INSTRUCTIONS

Do not handle frozen food or ice

with wet hands. Danger of injury.

Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

Do not deactivate the water filter

display.

Do not use sharp-edged objects to

remove frost and ice, or separate frozen foods and remove ice trays. They will damage the evaporator, causing irreversible damage to the appliance.

Do not use defrosting sprays or

de-icers, as they might contain substances which could damage the plastic parts or which could cause a build-up of gases and pose a danger to health.

Do not use any oils or grease on the

door seal, as these will cause the seal to deteriorate and become porous with time.

Do not block the ventilation gaps in

the plinth or the top of the appliance housing unit, as this can impair the efficiency of the appliance, increase the electricity consumption and cause damage to the appliance.

Never use a steam cleaner to clean

the appliance. Pressurized steam could damage electrical components and cause a short circuit.

Disposal of your old appliance

Before disposing of an old

appliance, first make the door latch or lock unusable.

Take off the doors.

Leave the shelves in place so that

children may not easily climb inside.

Consult with your municipal policy

on recycling.

Be careful not to damage any part of

the pipework while awaiting disposal by:

- puncturing the refrigerant

channels in the evaporator.

- bending any pipework.

- scratching the surface coating. Splashes of refrigerant can damage the eyes.

Your old refrigerator may have a

cooling system that used CFC's (chlorofluorocarbons). CFC's are believed to harm stratospheric ozone. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation. Make sure the CFC refrigerant is removed and disposed of by a qualified technician.

The manufacturer cannot be held liable for damage caused by non-compliance with these Important Safety instructions.

SAVE THESE INSTRUCTIONS

Guide to the Fridge-Freezer combination

a Hinged door shelf

b Shelves (height adjustable)

c Door shelves (height adjustable)

d Floating drawer

e Control panel

f Humidity filter

g Main switch to turn the appliance

On/Off

h SmartFresh drawer

i Water filter

j Small freezer basket

k Large freezer basket

l Ice cube container

Guide to the Fridge-Freezer combination

Control panel

a Access button "p"

activates the control panel

b Refrigerator

c Left SmartFresh drawer

d Right SmartFresh drawer

e Freezer

fTemperature display

X colder; Y warmer Allows you to set the desired temperature in the refrigerator or freezer section

g Food type(s) to be stored in the

SmartFresh drawer

h On/Off sensor button for the

SuperCool function

i On/Off sensor button for the ice cube

maker

j Sensor button for the temperature

and door alarm*

k Water filter change indicator*

* Only visible when the relevant

function is activated

Before use

Before using for the first time

The stainless steel surface of the appliance is protected with a plastic film, which protects it during shipping.

Do not remove this protective film until the appliance has been completely installed.

After removing the protective film clean the exterior surface with the supplied stainless steel agent. This will aid in preventing resoiling.

Clean the inside of the appliance and

the accessories with a mild solution of warm water and liquid dish soap. Dry with a soft cloth.

After installing the appliance, wait at least 30 minutes before turning the appliance on. During transport, fluids in the refrigeration system may have shifted and will need some time to settle.

Turning the appliance On/Off

Open the upper appliance door.

Turn the appliance On/Off with the

main switch.

The main switch is located on the right-side underneath the control panel.

All zones are switched on or off together.

Once on, the appliance begins cooling. When the doors are open, the interior lights come on.

The access button will light in the control panel.

The preset temperatures (factory default settings) are reached after a few hours. Do not put any food in the appliance until the preset temperatures are reached.

Turning off the appliance with the main switch does not safely isolate it from the power supply.

Settings

Using the settings

When a sensor button has been selected with a finger touch, it will appear yellow. A de-selected button will appear white.

Touch the access button "p"soit

turns yellow.

On the control panel you will now see the sensor buttons of the four appliance zones.

At the right of the control panel there is a sensor button to turn the ice maker on and off.

When the ice maker is in operation, the sensor button appears yellow.

Depending on the zone selected, you can now:

adjust the temperature,

–

select the SuperCool function, or

–

select settings for the SmartFresh

–

drawers by food type.

For additional information, see the corresponding sections in this manual.

To de-select a zone touch the sensor

button for that particular zone so that it turns white, or select another sensor button.

^ To leave the settings menu, touch the

access button "p" so it turns white. The last settings entered are stored. If the access button is not pressed the display will go out after approx. 30 secs.

The sensor buttons for the four appliance zones now disappear from the control panel.

To change settings (e.g., to set the temperature, etc.), touch the sensor button for the appliance zone you wish to set.

The selected sensor button appears yellow and depending on the zone selected additional sensor buttons may appear on the control panel.

Settings

Custom settings

In the custom settings mode you can select and change functions. The function possibilities are described in the respective chapters of this manual.

Function Display text

Temperature °C-°F

RemoteVision Module settings

Button sound on/off =

Confirm filter changes

Exit Custom Settings mode

†

;

Turning the button sound On/Off

If you prefer the buttons to be silent when touched, the button sound can be turned off.

Touch the access button "p"soit

turns yellow.

Touch the sensor button for the

refrigerator section so it turns yellow.

^ Note the position of the X button, but

do not touch.

^ Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

^ Place one finger on the position of

the X button and hold (the X button will not be visible).

While holding down the X button, press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until = appears in the display.

Touch the access button "p"to confirm.

Settings

By touching the X button, you can

choose between:

= 0 : Button sound is off = 1 : Button sound is on = – : Return to menu.

Touch the access button "p"to

confirm the setting.

Tap the X button until you see ; in

the display.

Touch the access button "p".

You have now left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Turning off for longer periods of time

If the appliance is not going to be used for an extended time (for example, during a vacation) some precautions should be taken.

Shut off the water supply line,

(several hours before switching off the appliance)

Take all food out of the appliance

Turn the appliance off at the main

switch

^ Unplug the appliance

^ Empty the ice cube container

^ Clean the interior

^ Remove and discard the water filter

(secure the filter cap)

^ Leave the doors open to prevent

odors

Alarm

The appliance is equipped with an alarm system, to ensure that the temperature does not rise unnoticed because of energy loss or open doors.

The alarm system is always operational, it does not need to be turned on.

Temperature alarm

If the temperature becomes too warm, an alarm sounds, the "alarm" indicator turns red and flashes. At the same time the affected zone flashes in the display.

If the freezer zone is affected, the temperature display shows the warmest temperature reached during the alarm.

The alarm will sound and the display will flash if:

– too much warm air flows into the

appliance, for example when food is being loaded, re-arranged, or taken out.

–

large amounts of food are being frozen at once.

–

the power fails.

Turning the temperature alarm Off

As soon as the alarm condition is corrected, the alarm signal turns off and the affected zone stops flashing in the display. The "alarm" indicator goes out.

To turn the alarm off early, press

the "alarm" sensor button. The alarm signal turns off. The "alarm" indicator remains red and the corresponding appliance zone continues to flash until the alarm condition is corrected.

If the temperature in the freezer zone reaches 0°F (-18°C) or higher, check that food has not defrosted.

Door alarm

If one of the appliance doors is left open for over 5 minutes, an alarm signal will sound and the "alarm" indicator will turn red.

Turning the door alarm Off

Once the door is closed the alarm turns off and the "alarm" indicator goes out. If the door has not been closed properly, the alarm will sound again after five minutes.

To turn the alarm off early, press the "alarm" sensor button. The "alarm" indicator and signal will turn off.

Setting the temperature

Setting the temperature in the refrigerator and freezer sections

The refrigerator and freezer sections can be set independently of each other.

Touch the access button "p"soit

turns yellow.

Touch the sensor button for the

refrigerator or freezer section so it turns yellow.

^ Use the X and Y buttons next to the

temperature display to set the temperature warmer or colder.

Tap the X and Y sensor buttons to raise/lower the temperature 1°, or hold them down to move through the temperature range more quickly.

Temperature range

The temperature can be selected within the following ranges:

Refrigerator:

–

36°F to 46°F (2°C to 8°C)

A temperature of 37°F (4°C) in the refrigerator section is recommended.

Freezer:

–

7°F to -11°F (-14°C to -24°C).

To freeze fresh food and store frozen food for an extended period of time, a temperature of 0°F (-18°C) is suggested.

The room temperature and the installation location can affect the time it takes for the appliance to get to the desired temperature. If the room temperature is too high, it may not be possible for the appliance to reach the lowest temperature.

The temperature display on the control panel always shows the desired temperature.

Setting the temperature

Temperature unit (Fahrenheit/Celsius)

The temperature can be displayed in degrees Fahrenheit (°F) or Celsius (°C).

Touch the access button "p"soit

turns yellow.

^ Touch the sensor button for the

refrigerator section so it turns yellow.

^ Note the position of the button X, but

do not touch.

^ Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

^ Place one finger on the position of

the X button and hold (the X button will not be visible).

By touching the X button you can

select either Fahrenheit or Celsius for the temperature display.

†0: Fahrenheit †1: Celsius † –: return to menu

Touch the access button "p"to

confirm the setting.

Tap the X button until a ; appears in

the display.

Touch the access button "p".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

While holding down the X button, press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until † appears in the display.

Touch the access button "p"to confirm.

SmartFresh drawers

The SmartFresh drawers provide the right combination of temperature and humidity. The result is freshness up to three times longer than in the other zones of the refrigerator.

Storage temperatures

For fresh foods that are not adversely affected by cold, the best range is 32° - 37°F (0° - 3°C). This helps to keep the food fresh considerably longer than in the rest of the refrigerator, spoiling is minimal.

The temperature is set to approx. 35°F (1.5°C).

Humidity

The closer the humidity in the appliance matches the moisture content of the food, the more moisture the food will retain, and the fresher and crisper it will stay over a longer period of time.

The optimal humidity is determined on the basis of the food stored in the appliance.

Proper humidity is assisted by 2 humidity filters located above the SmartFresh drawers. These filters allow air to pass through, yet retain moisture.

Using the SmartFresh drawers

Use the sensor button to select the

desired drawer.

The selected sensor button turns yellow, and the sensor buttons for the food choices appear.

The most recently selected food type(s) appear yellow.

^ Use the sensor buttons to select the

desired food type(s), so they appear yellow.

– Several food types can be selected

at the same time.

– To delete a food type, simply press it

again.

–

Depending on the food types selected, the optimal humidity is determined for the crispers.

–

The "deli" and "dairy" settings are the most energy efficient.

Touch the access button "p"to confirm the settings.

Place the food in the drawer.

For optimal storage conditions, it is always best to store similar foods together in one crisper.

Foods that are best stored under dry conditions

fresh fish and shellfish, meats,

–

poultry, sausage, dairy products and deli salads.

Foods that are best stored under moist conditions

fresh produce, e.g., vegetables,

–

lettuce, herbs, mushrooms, cabbage, fruit.

Remember that higher moisture levels can only be attained when the food is stored unpacked so air can circulate

freely.

SmartFresh drawers

Using the refrigerator efficiently

Different storage zones

Due to the natural circulation of air in the appliance, there are different temperature zones in the refrigerator. Cold, heavy air sinks to the lowest section of the appliance. Make use of these different zones when placing food in the appliance.

This appliance uses a dynamic cooling feature to establish a constant temperature during cooling. As a result, the differences between temperature zones are less pronounced.

Leave some space between items, so air can circulate freely around them. Make sure the ventilation slits are not covered - this is important for the cooling performance.

Warmest area

The warmest area is in the top section of the door (storage shelf). Use this area to store items such as butter and cheese.

Coldest area

The coldest area in the refrigerator is directly above the SmartFresh drawers. The temperature in the drawers themselves is even colder.

Use these cold areas in the refrigerator for all highly perishable foods, such as:

fish, meat, poultry,

–

deli meats, store-bought meals,

–

dishes or baked goods containing

–

eggs or cream,

fresh bread dough, pastry dough,

–

cake batters,

– dairy products.

If storing high-proof alcohol, make sure it is tightly closed and stored upright.

Do not store cooking oil in the refrigerator door. Traces of oil can cause stress cracks to occur in the plastic components in the door.

Do not allow food to touch the rear wall of the appliance, it may freeze to the wall.

Using the freezer efficiently

Freezing food

Fresh food should be frozen as quickly as possible. This helps maintain the nutritional value, vitamin content, appearance and taste of the food.

Never refreeze partially or fully defrosted food. Consume defrosted food as soon as possible, it will lose its nutritional value and spoil if left for too long. Do not refreeze defrosted food unless it has been cooked.

Before placing food in the freezer

^ When you are planning to freeze

large amounts of food (more than 4 ½ lbs [2 kg]), switch on the SuperCool function ahead of time (see "SuperCool"). This will provide the food already in the freezer with a protective boost of cold air.

Placing food in the freezer

Food to be frozen can be placed anywhere in the freezer section.

Use the large freezer basket for large quantities of food.

Load bearing capacity of the baskets:

Small

basket

KF 18X Vi/SF 30 lbs

(14 kg)

KF 19X Vi/SF 41 lbs

(19 kg)

^ Spread the food to be frozen across

the bottom of the freezer basket or across the shelves, so that it will freeze through to the core as quickly as possible.

^ When placing items in the freezer,

make sure the packaging and containers are dry, to keep them from sticking together when frozen.

Large

basket

72 lbs

(33 kg)

94 lbs

(43 kg)

When freezing, make sure that already frozen food does not come into contact with fresh food being frozen, this could cause the frozen food to defrost.

Using the freezer efficiently

Defrosting

Frozen food can be defrosted in different ways:

in a microwave oven,

–

at room temperature,

–

in the refrigerator (the cold given off

–

by the frozen food helps to keep the other food cold),

in a steam oven.

–

Poultry It is especially important to observe proper hygiene when defrosting poultry. Never save the liquid from defrosted poultry. Drain it away and promptly wash the container, the sink and your hands. Danger of salmonella poisoning.

Fruit should be defrosted at room temperature in its packaging, or in a covered bowl.

Most vegetables can be cooked while still frozen. Simply place directly into boiling water or hot oil.

Cooling drinks quickly

To cool drinks quickly, switch on the SuperCool function. See "SuperCool" for more information.

Do not leave bottles in the freezer for more than 1 hour, closed containers could burst.

SuperCool

When the SuperCool function is activated, the appliance is cooled as quickly as possible (to a factory-preset temperature).

SuperCool

When used with the refrigerator the SuperCool function is ideal for the rapid cooling of drinks and refrigerating large quantities of food.

When used with the freezer the SuperCool function is ideal for freezing large quantities of unfrozen food. The function should be switched on 4-6 hours before the fresh food is placed in the freezer. If the max. freezing capacity is used, 24 hours are recommended. This helps food to freeze quickly and retain its nutrients, vitamins, flavor and appearance.

Switching on SuperCool

The temperature in the appliance now begins to fall, with maximum cooling in the zone selected.

Switching off SuperCool

The SuperCool function automatically switches off after: Refrigerator: approx. 6 hours Freezer: approx. 52 hours The sensor button turns white, and the appliance continues running at normal power.

To save energy, the SuperCool function can be switched off early, once the food and/or drinks are sufficiently chilled.

^ Touch the SuperCool sensor button

so that it turns white.

The temperature display for the zone selected returns to the original temperature setting.

Touch the sensor for the refrigerator or freezer (as desired) so it turns yellow.

Touch the SuperCool sensor button so it turns yellow.

In the temperature display for the zone selected, the new temperature setting appears: Refrigerator: 35°F (2°C) Freezer: -22°F (-30°C)

The appliance now continues running at normal power.

Ice cube maker

For the automatic ice cube maker to operate, it must be connected to the household water supply. See "Plumbing".

Turning on the ice cube maker

Make sure that the ice cube container is under the ice cube maker, as far as possible.

Ice cubes will not be produced unless the container is completely closed.

^ Touch the sensor button for the ice

cube maker so that it turns yellow.

As soon as the freezer has cooled to a freezing temperature, the ice cube tray fills with water. Cold air is blown directly over the tray.

As soon as the ice cubes are frozen, they fall into the ice cube container.

The ice cube maker can produce approx. 120 ice cubes within 24 hours.

Do not use the ice cube container for rapid cooling of food or drinks. The ice cube maker may become blocked and be damaged.

Do not use the first batch of ice cubes from the ice cube maker. Discard the ice produced in the first 24 hours after switching on the ice cube maker. This applies for the very first use, and whenever the appliance has been out of service for an extended period of time.

The amount of ice cubes produced depends on the temperature in the freezer section. The lower the temperature, the more ice cubes will be produced in a given period of time.

Turning off the ice cube maker

The water supply line must be shut off several hours before the appliance or ice cube maker is switched off.

After the appliance is turned on for the very first time, it can take up to 10 hours for the first ice cubes to drop out of the ice cube maker and collect in the container.

Once the ice cube container is full, the ice cube maker switches off automatically.

Touch the sensor button for the ice cube maker so that it turns white.

Automatic defrost

Refrigerator section and SmartFresh drawers

The refrigerator and SmartFresh drawers defrost automatically.

During normal operation, condensate and frost can form on the rear wall of the refrigerator and drawers. You do not need to remove this build-up, it will defrost and evaporate automatically with the heat generated by the appliance.

Freezer section

The freezer section defrosts automatically.

The moisture generated in the appliance collects in the evaporator. It is automatically defrosted and dissipated by the condenser periodically.

This automatic defrosting system enables the freezer to remain permanently ice-free, while ensuring that the food stored in the freezer stays frozen.

Adjusting the interior fittings

Moving the shelves

The shelves can be adjusted according to the height of the food.

Using both hands, grasp the shelf

from underneath and lift slightly so that the rear of the shelf is slightly above the mountings.

Pull the shelf forward.

Move the shelf to the desired height,

then insert the (rear) hooks into place.

Make sure the shelf is level.

Floating drawer

The floating drawer can be moved to the left or right, moved to another shelf, or removed.

^ Pull the drawer straight out, so that it

passes over the catches and remove.

^ To replace the drawer slide it straight

in along the rails.

SmartFresh drawer

These drawers are set on telescopic tracks. They can be pulled in and out for loading and unloading, or removed for cleaning.

^ Open the drawer.

On the hinged-side of the door is a safety lock, which must be turned to a horizontal position before the drawer can be removed.

Using a suitable object, e.g., coin, turn the safety lock to a horizontal position a.

On both sides of the drawer, pull the latches b upward and lift the drawer out of the refrigerator.

Push the tracks back into the refrigerator to avoid injury.

The divider in the drawer can also be removed for cleaning.

Remove the drawer.

Lift the divider upward and out.

To re-insert the divider, slide it back down along the tracks.

Important: If the divider is not in place, the SmartFresh drawer will not work properly.

Replacing the SmartFresh drawer

Completely extend the telescopic

tracks.

^ Lay the drawer on the tracks so that it

connects in the front and back.

^ Turn the safety lock back to the

vertical position.

^ Slide the drawer in.

Adjusting the interior fittings

Adjusting the door shelves

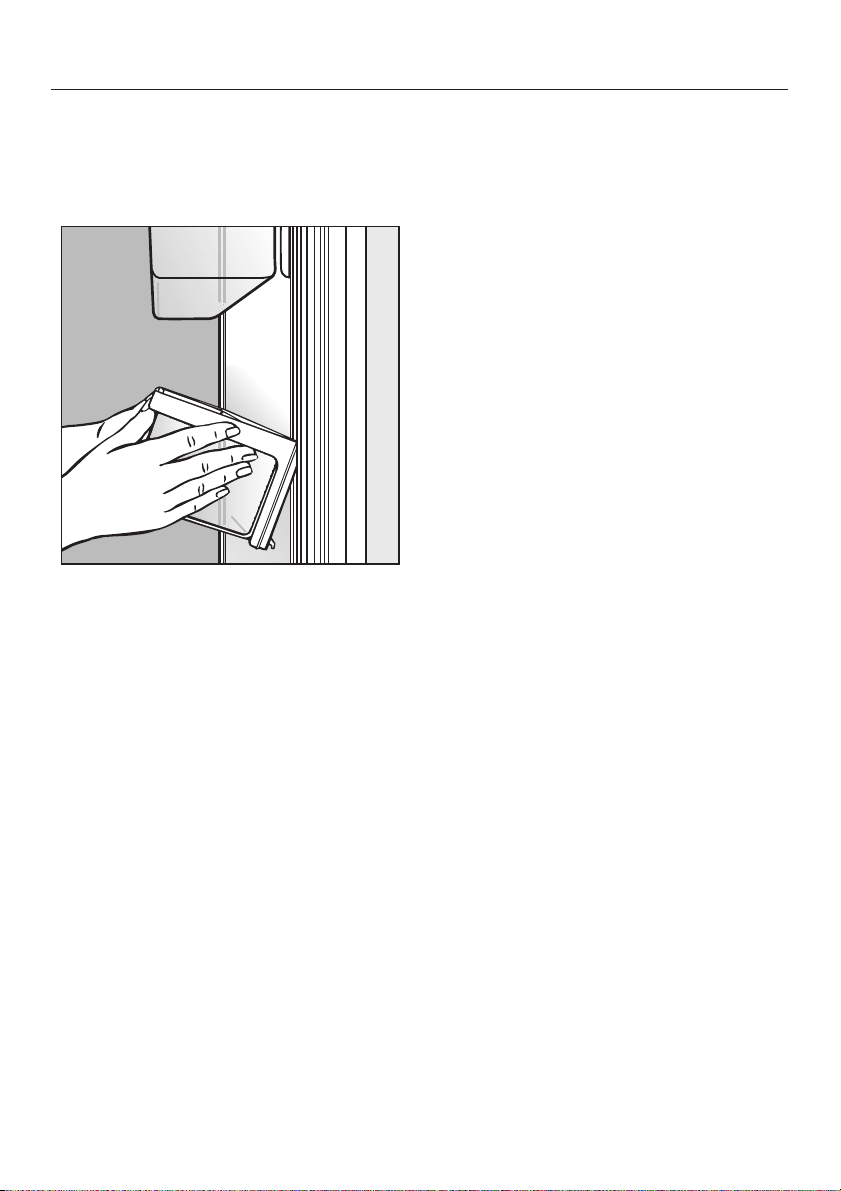

For easier loading, unloading, and cleaning, the door shelves can be shifted or completely removed.

^ Using both hands, grasp the door

shelf by the frame and tip it slightly forward.

^ Slide the tipped shelf up or down

along the slide-rails, and click it into place with the lower hooks.

Removing the hinged door shelf

Pull the stops upward and out of the

shelf, and remove the shelf lid upward.

Now remove the hinged container

upward and out.

Removing the storage shelf from above the drawer

Remove the rear finishing strip, move

the glass plate slightly toward the rear, and carefully lift it upward and out.

Make sure the shelf is level.

Removing a door shelf

Slide it upward all the way to the top of the slide-rails, until it can be removed.

Replacing a door shelf

Start at the top of the slide-rails and slide the shelf down into the desired position.

Adjusting the interior fittings

Ice cube container

The ice cube container is set on telescopic tracks, and can be removed for loading, unloading and cleaning.

Slide the container forward until

resistance is felt.

^ On both sides of the container, pull

the latches (see arrow) upward and lift the container out of the freezer.

Push the tracks back into the freezer to avoid injury.

Replacing the ice cube container

Completely extend the telescopic tracks.

Small freezer basket

The small freezer basket can be removed for cleaning.

Slide the basket forward until

resistance is felt.

On the hinged-side of the door is a safety lock, which must be turned to a horizontal position before the drawer can be removed.

^ Using a suitable object, e.g., coin,

turn the safety lock to a horizontal position a.

^ On both sides of the basket, pull the

latches b upward and lift the basket out of the freezer.

Lay the container onto the tracks so that it connects in the front and back.

Slide the container in.

Replacing the small freezer basket

Fully extend the telescopic tracks.

Lay the basket onto the tracks so that it connects in the front and back.

Turn the safety lock back to the vertical position.

Slide the freezer basket in.

Adjusting the interior fittings

Large freezer basket with partition

The large freezer basket can be removed for cleaning.

Lift the freezer basket out of the

freezer.

The partition in the basket can also be removed for cleaning:

^ Using a suitable object, e.g., coin,

turn the safety locks to a horizontal position, 1.

Replacing the partition

Arrange the fasteners in an upright

position and audibly click the partition into them.

Place the safety locks into the

fasteners. Using a suitable object, e.g., coin, turn the pegs into a vertical position.

Replacing the large freezer basket

Place the basket into the freezer,

making sure it is seated correctly in the connection holes.

Remove the safety locks from the fasteners, 2.

Pull the partition out of the basket.

To reduce the risk of electrical shock, disconnect the appliance from the power supply by shutting off the power main, tripping the circuit breaker or unplugging the power cord before maintenance.

Never use cleaning agents containing abrasive substances such as sand, soda, acids, chlorides or chemical solvents. Non-abrasive cleaning agents are also unsuitable, as they can cause matte areas to appear.

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner (available from Miele).

Cleaning and care

Before cleaning

Use the main switch to turn the

appliance off completely.

The main switch is located on the right side underneath the control panel.

Unplug the power cord.

Remove any food from the appliance

and store it in a cool place.

^ Take out any removable parts,

e.g., shelves.

Cleaning the interior and accessories

Only use a mild solution of warm water and liquid dish soap to clean this appliance.

Do not use a steam cleaner to clean this appliance. Pressurized steam could penetrate electrical components and cause a short circuit.

Do not allow water to get into the electronic unit or lights.

Use a mild solution of warm water and liquid dish soap. Wash all accessories and drawers by hand. Do not wash in a dishwasher.

Clean the appliance as needed.

After washing, wipe down the interior and accessories with a clean wet cloth, then dry with a soft cloth. Leave the appliance doors open for a short time, so the moisture can evaporate.

Appliance door

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner.

To help prevent resoiling, a conditioner for stainless steel can also be used. Apply sparingly with even pressure.

Cleaning and care

Aluminum frames

The shelf frames are made of aluminum.

Clean the frames with a mild solution

of warm water and liquid dish soap.

Aluminum is susceptible to scratches and nicks, treat with care.

The aluminum frames may become discolored or otherwise altered if soiling is not cleaned away promptly.

Do not use stainless steel cleaners; lime removers; scouring pads, such as pot scrubbers; or used sponges that still contain abrasive cleanser residue to clean the frames.

Humidity filters

Unhook the filter cover, 1. in each

side of the drawer and remove them along with the filters downwards starting from 2.

The two humidity filters, located above the SmartFresh drawers, must be removed for cleaning.

Remove the SmartFresh drawer.

^ Clean the filters by rinsing them with

lukewarm water.

Do not clean in a dishwasher or washing machine. This will damage the filter.

Air-dry the filters.

Place the filters back in the filter cover.

Put the filter cover back in place, inserting the rear hooks first.

Re-insert the SmartFresh drawer.

Cleaning and care

Ventilation slits

Check the ventilation slits in the base

panel regularly. Remove any dirt/dust with a vacuum cleaner or brush. Clean as needed.

Door seals

Do not use oil or grease on the door seals. This may cause the seals to deteriorate and become porous over time.

Clean the door seals with warm water

and dry thoroughly.

After cleaning

Return all shelves and accessories.

Place food back in the refrigerator

section, close the appliance doors, insert the plug in the power outlet and turn the appliance on.

Switch on the SuperCool function for

the freezer section. The freezer section will cool down quickly.

Once the temperature in the freezer

section is cold enough, place food in the freezer baskets and return them to the freezer.

Cleaning and care

Changing the light bulb

The lighting automatically switches off after the door has been open for approx. 5 minutes. This is not a fault.

After the bulb has cooled for a short time it will turn on again.

If the light does not come on when the door is opened briefly, the light bulb should be changed.

Use the main switch to turn the

appliance off.

To reduce the risk of electric shock, disconnect the appliance from the power supply by unplugging or tripping the circuit breaker.

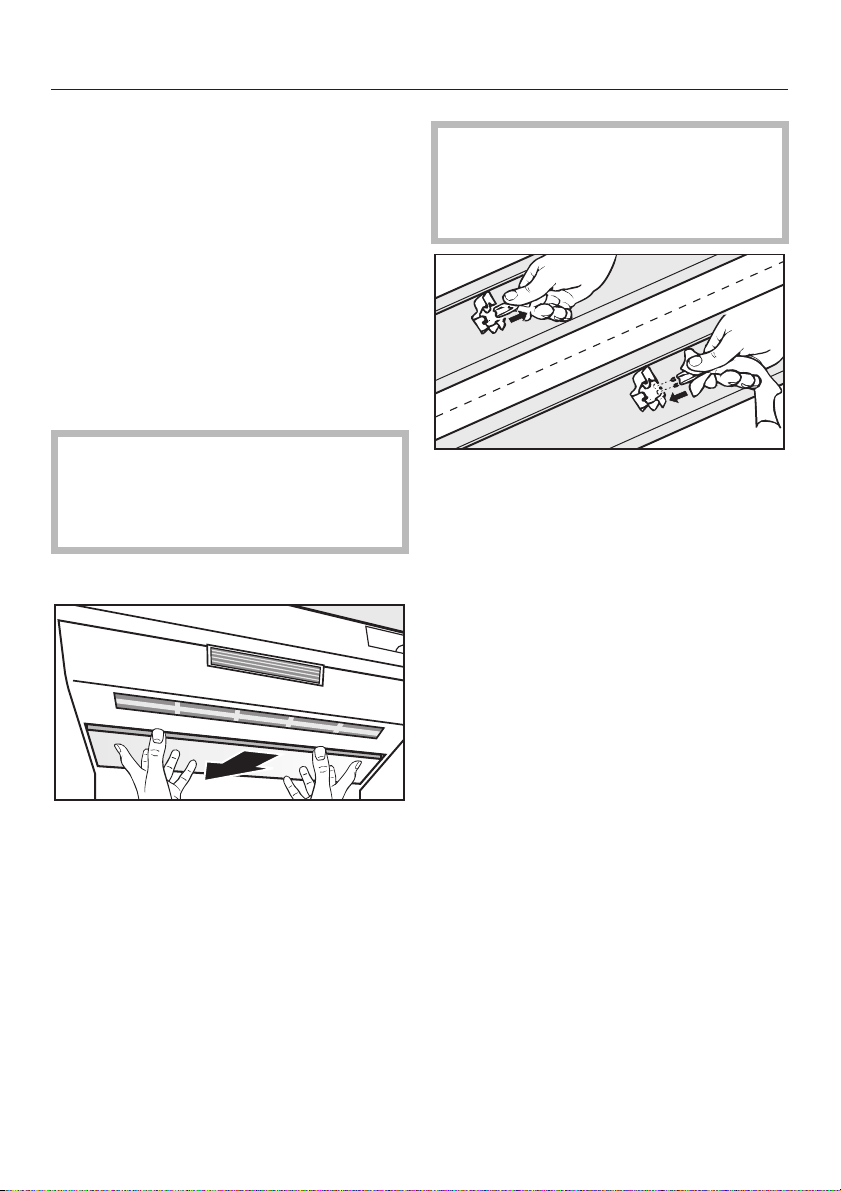

Upper lighting

Never touch a halogen bulb with bare fingers. When inserting a glass halogen bulb always hold it with a soft cloth.

^ Remove the defective light bulb.

^ Place the new bulb in the socket.

Halogen bulb type: 20 W/12 V/socket GY 6.35.

^ Slip the rear of the light cover back

into position, then pull it forward and into place.

Grasp the front of the light cover with both hands, and slide it back.

Carefully pull the cover forward and out.

Side lighting

Turn the light cover counterclockwise

and pull out.

Never touch a halogen bulb with bare fingers. When inserting a glass halogen bulb always hold it with a soft cloth.

Cleaning and care

Pull the defective light bulb from the socket.

Place the new bulb in the socket. Halogen bulb type: 5 W/12 V/socket G 4.

Put the light cover back on and turn clockwise into place.

Restore power to the appliance.

Water filter

The water filter improves the taste and smell of ice cubes by removing chlorine and other substances from the incoming tap water.

It is important to change the water filter regularly.

To avoid serious illness or death, do not use water that is microbiologically or chemically unsafe or of unknown quality without adequate disinfection or other treatment before or after use of a filter.

Note:

– After installing a new water filter and

switching on the ice maker, discard the first 24 hour's worth of ice production.

– If the ice maker has not been used

for a prolonged time discard any ice cubes in the freezer, empty the container and discard the ice production of the next 24 hours.

Depending on how many ice cubes

–

are produced, the filter will need to be changed approximately every 6 months.

When the filter indicator turns red,

–

the filter will need to be changed soon.

Replacement filters can be ordered from Miele.

– When the red filter indicator flashes,

it is time to change the filter.

–

If the appliance or ice maker have not been routinely used for several weeks or months, or if the ice cubes have an unpleasant odor, change the water filter.

Note: Air trapped in the system may cause water and the filter cartridge to eject forcefully. Use caution when removing.

Exchanging the water filter

Push in and rotate the filter cap on

the base panel of your appliance counterclockwise 180°, 1.

^ Pull the used filter cartridge out of the

appliance, 2.

Water filter

^ Push the filter cartridge with cap, in a

horizontal position, all the way into the opening in the base panel, 5.

^ Rotate the filter cartridge clockwise

180° until the cap is in a horizontal position, 6.

Remove the cap from the used filter,

Take a new filter cartridge out of the packaging and remove the protective cap.

Push the cap onto the new filter cartridge, 4.

The filter change needs to be confirmed before the "filter" indicator will go out. See "Re-setting the filter indicator".

Whenever you replace the filter, the system must be re-set. This will ensure the indicator light for the next filter change will come on at the right time.

Water filter

Re-setting the filter indicator

The filter indicator still flashes in the display.

Touch the access button "p"soit

turns yellow.

The various appliance zones are now visible.

^ Touch the sensor button for the

refrigerator so it turns yellow.

^ Note the position of the X button, but

do not touch.

^ Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

By touching the X button you can select the following settings:

^0: filter is installed ^1: filter is not installed (external filter) ^2: filter change confirmed ^-: return to menu

Tap the X button until ^2appears in

the display.

^1should only be selected if an external filter or bypass cartridge is being used. See "Deactivating the water filter".

^ Press and hold the access button "p"

for 2 seconds to confirm the filter change.

The filter is now reset.

Place one finger on the position of the X button and hold (the X button will not be visible).

While holding down the X button, press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until an ^ appears in the display.

Touch the access button "p" again.

Water filter

Tap the X button until ^-appears in

the display.

Touch the access button "p".

Tap the X button until ; appears in

the display.

Touch the access button "p".

You have left the Custom settings mode.

The "filter" indicator is no longer visible on the control panel.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

After installing a new water filter discard the first 24 hours of ice production.

Deactivating the water filter

The ice cube maker in this appliance can be operated without the installed water filter, for example if the household water supply already uses a water filter.

If you choose this option, it is important to insert a bypass cartridge. Only then can the performance of the appliance be ensured.

To purchase a bypass cartridge, contact Miele.

Filter Performance Data Sheet

State of California

Department of Public Health

Water Treatment Device

Certificate Number

177506 -

Date Issued: March 10, 2006

Date Revised: April 3, 2008

rademark/ModelDesignation

9000 077095 9000 077104

Miele 07134220 07134220

Manufactur

hewatertreatment devic

T 11

6830

of th

crobiological

Cysts

Turbidity

gani

c Contaminants

None

r: Cuno, Incorporated

(s)

liste

eHeal

th and Safety Codefor thefollowinghealth relate

Contam

donthiscertificatehavemetthetestingrequirements pursuant to Section

nants and Turbidity Inorganic/Radiological

eplaceme

nt Eleme

d contaminants:

None

nts

Contam

nants

ated Servic

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

740 galsR

Capac

ty: 0.75 gpm

Cond

iti

ons of Certification:

ated Servic

eFl

ow:

Filter Performance Data Sheet

Performance Data Sheet For Filter Model 07134220

Using Replacement Cartridge 07134220

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

System tested and certified by NSF International in Model 07134220 against NSF/ANSI Standard 53 for the reduction of Cysts and Turbidity and against Standard 42 for the reduction of Chlorine Taste and Odor; Nominal Particulate Class I.

To a capacity of 739.68 gallons (2800 liters).

Substance Average Inﬂuent Challenge Product Average Maximum Permissible Max. Min. % NSF Inﬂuent Concentration Water % Product Water Efﬂuent Reduction Test Concentration mg/L Concentration Reduction Concentration

Cysts* 166500 Minimum 50,000/L 1 99.99 99.95 1 99.99 516458-05

Turbidity 10.7 11 + 1 NTU 0.31 97.09 0.5 NTU 0.49 95.42 516456-05

Particulate Class I Particle size: At least 10,000 > 0.5 to < 1 um 5700000 particles/ml 30583 99.52 > 85% 69000 98.9 511079-03 Chlorine taste and odor 1.9 2.0 mg/L ± 10% 0.05 97.3 > 50% 0.06 96.84 511081-03

* Based on the use of Cryptosporium parvum oocysts

Application Guidelines/Water Supply Parameters

Water pressure 30- 120 psi (207 - 827 kPa)

Water temperature* 33°F - 100°F (0.6°C - 38°C)

Service ﬂow 0.75 gpm (2.83 lpm)

CAUTION: To avoid property damage due to water leakage, you MUST read and follow these operating instructions before installation and use of this

IMPORTANT: Must be installed and operated in accordance with application guidelines.

Failure to do so may void warranty. Change filter at least every 6 months.

Flush new cartridge for 3 minutes.

For estimated costs of replacement elements please visit your local appliance dealer or parts distributor.

product.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be

used on disinfected waters that may contain filterable cysts.

Note that while the testing was performed under standard laboratory conditions, actual performance may vary.

Frequently asked questions

With the aid of the following guide minor problems can be corrected without a ser vice call.

Repairs should only be carried out by a qualified and trained person in strict accordance with local and national safety regulations. Unauthorized repairs could cause personal injury or machine damage and may void the warranty.

Problems with temperature

Issue Possible fault Solution

The refrigerator or freezer section does not get cold.

The temperature in the refrigerator or freezer section is too low.

The machine is not turned on.

The machine is not plugged in.

Check that the fuse has not tripped.

The temperature is set incorrectly.

Select a warmer temperature.

The SuperCool function is still on.

Check whether the appliance is switched on at the main switch. The temperature display must be lit up.

Check that the plug is correctly inserted in the power outlet.

Reset the circuit breaker.

Check the display.

See "Selecting the correct temperature".

SuperCool automatically shuts off after: 6 hours for refrigerator;

52 hours for freezer.

The freezer section is too warm.

The door is not closed. Check that the doors have been

closed properly.

A large amount of food is being frozen at the same time.

The room temperature is lower than the ambient temperature for which the appliance is designed.

This makes the compressor run longer, causing the temperature in the freezer section to fall automatically.

Raise the temperature of the room. Operating the appliance in a room that is too cold will cause the cooling system to switch off for too long, causing the freezer section to become too warm.

Frequently asked questions

General problems

Issue Possible fault Solution

Water is flowing out of the appliance.

The door to the freezer section will not open.

The compressor kicks on very frequently and for too long.

Close the shut-off valve immediately.

Check whether the water pipe in the appliance is

Contact Miele Technical Service.

defective.

Check whether the water

Contact a plumber.

pressure is too low.

Check whether the correct water valve has been installed.

Self-tapping valves and

/16" (4.76 mm) saddle valves reduce the water pressure and can block the pipe.

This is not a fault. The suction caused by opening and closing the

Wait a few minutes, then try again. It should now open without force.

door too many times in succession prevents it from opening.

The ventilation slits are covered or dusty.

The doors have been opened too frequently, or a large amount of fresh food

Clean with a vacuum or brush.

Once the fridge gets down to the set temperature the compressor will turn off.

has been put in at once for freezing.

Nothing shows in the display.

The door is not closed. Check that the doors have

been closed properly.

Power is not reaching the appliance or there has

Check the power supply to the machine.

been a power failure.

Frequently asked questions

Alarm / Indicator warnings

Issue Possible fault Solution

The alarm is ringing. The appliance door(s)

have been open for longer than 5 minutes.

The alarm is ringing and the "alarm" indicator is flashing.

The filter display is red. This is a warning that the

The filter display is flashing red.

The door is not closed. Once the alarm condition

A large amount of food is being frozen at the same time.

There has been a power failure.

water filter needs to be changed soon.

The water filter needs to be changed.

Close the door(s).

has been corrected, the

alarm will turn off and the

"alarm" indicator will stop

flashing.

The temperature indicator

will indicate the highest

temperature reached

during the alarm.

Order replacement filters

from Miele.

See "Replacing the water

filter".

Frequently asked questions

Problems with the ice maker

Issue Possible fault Solution

The ice cube maker will not switch on.

The ice cube maker is not producing any ice cubes.

The appliance is not plugged in.

Check that the appliance is connected to the power supply.

When the appliance is turned on for the very first time, it can take up to 10 hours for the first ice cubes to drop out of the ice cube maker and collect in the container.

The appliance is not turned on.

The water supply line was

Check that the appliance is switched on.

Contact Miele. not primed (purged of air) before the appliance was used for the first time.

Check if: – the ice cube maker is

switched on.

See "Ice Cube Maker"

and/or "Plumbing" for more

information.

– the water supply line is

open.

– there are ice cubes stuck

together and blocking the exit.

–

the ice cube container is in the right position.

–

the freezer compartment temperature is too high.

–

the water pressure is too low. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).

Check whether the correct water valve has been installed.

Self-tapping valves and

/16" (4.76 mm) saddle valves reduce the water pressure and can block the pipe.

Frequently asked questions

Problems with the ice maker

Issue Possible fault Solution

The ice cubes are small.

The ice cubes have an unpleasant odor/flavor.

Other domestic appliances that use water are in operation.

Check whether the water filter needs changing.

Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).

Check whether the correct water valve has been installed.

When ice is stored for an extended period it may absorb odors, which affects the taste.

Check if the ice cube container is dirty.

Unsealed packages in the freezer will transfer odor/flavor particles to the ice cubes.

Avoid using such items as a dishwasher, washing machine or shower at the same time.

See "Water filter" for more information.

Consult a plumber.

Self-tapping valves and

/16" (4.76 mm) saddle valves reduce the water pressure and can block the pipe.

Use the ice maker more frequently.

Clean the container.

Check that food has been packed in airtight containers.

Frequently asked questions

Problems with the ice maker

Issue Possible fault Solution

The ice maker is not producing enough ice or the ice cubes are misshapen.

Ice is forming in the supply hose to the ice maker.

Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).

Check that the freezer temperature is not too low.

Change the water filter. See "Water filter".

Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).

Check whether the freezer compartment temperature is too high.

Contact a plumber.

See "Selecting the correct

temperature".

Contact a plumber.

See "Selecting the correct

temperature".

Frequently asked questions

The appliance is making noises.

Issue Possible fault Solution

Brrrrr... Humming noise made by the

compressor. This noise can get louder for brief periods when the motor is switching on.

Blubb, blubb.... A gurgling noise can be

heard when coolant is circulating through the pipes.

Click.... Clicking sounds are made

when the thermostat switches the compressor on and off.

Sssrrrrr.... On multi-zone and frost-free

appliances you can sometimes just hear the movement of air circulating inside the appliance.

Rattling, vibrating The appliance is uneven. Realign the appliance

The appliance is touching another appliance or piece of furniture.

These noises are not a

fault.

The noise of the

compressor and the

coolant circulating in the

system is unavoidable.

using a level, by raising or

lowering the screw feet

underneath the appliance.

Move it away.

Drawers, baskets or shelves are unstable or sticking.

Bottles or containers are unstable or knocking against each other.

The transport cable clips are hanging loose at the back of the appliance.

Check all removable

items and refit them

correctly.

Separate them.

Remove the clips.

After sales service

In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet.

When contacting the Technical Service Department, please quote the model and serial number of your appliance given on the data plate inside the appliance.

MieleCare

(USA only)

MieleCare, our Extended Service Contract program; gives you the assurance of knowing that your appliance investment is covered by 5 years of worry-free ownership. MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts. Only genuine Miele parts installed by factory-trained professionals can guarantee the safety, reliability and longevity of your Miele appliance.

Please note that unless expressly approved in writing by the Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

To learn more about MieleCare Extended Service Contracts, please contact your appliance dealer or visit us online at:

http://miele.com/mielecare

Installation instructions

To prevent accidents and machine damage read these instructions

before

installation or use.

Caring for the environment

Disposal of packing materials

The cardboard box and packing materials are biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags, etc., are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Disposal of an old appliance

Old appliances contain materials that can be recycled. Please contact your local recycling center about the possibility of recycling these materials.

Before discarding an old appliance, disconnect it from the gas and electrical supply and cut off the power cord to prevent it from becoming a hazard.

Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

Installation

Installation site

The appliance should be installed in a dry, well-ventilated room.

The manufacturer is not liable for damage to property due to an incorrect installation or water connection.

WARNING

This appliance is top-heavy and must be secured to prevent it from tipping forward. Keep the doors closed until the appliance is completely installed and secured as per the installation instructions.

Empty weight of your machine:

KF 18X1 SF ........455lbs(206 kg)

KF 19X1 SF.........498lbs(226 kg)

Do not install the appliance:

- outdoors

- in an environment with dripping water

- in rooms that are at risk of frost.

The installation location should not be exposed to direct sunlight, nor near a heat source, such as an oven, radiator, etc.

The ambient temperature should not drop below 55°F (13°C) or rise above 110°F (43°C), otherwise malfunctions may occur.

If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

–1

/4" (3 cm) from an electric cooktop

or oven.

–

12" (30 cm) from a gas cooktop or oven.

Installation

Base

A fully loaded appliance is very heavy. The load-bearing capacity of your floor must meet the following requirements:

KF 18X1 SF ........992lbs(450 kg)

KF 19X1 SF .......1,190 lbs (541 kg)

To ensure that the appliance is installed securely and functions properly, the base must be flat, level and made of a hard, rigid material.

If in doubt, contact Miele.

Furniture/fixtures

The new appliance will be mounted securely to adjacent and overhead furniture/fixtures. For this reason, it is essential that all attachable furniture/fixtures be connected securely to the floor or wall by a suitable means.

Ventilation

The air intake and outlet must not be blocked or covered in any way. They also need to be dusted/cleaned on a regular basis.

Installation niche

To ensure safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation dimensions. See "Niche dimensions".

The side walls of the installation cavity must be plumb.

The minimum thickness of the side walls and the top wall must be 5/8" (16 mm).

The minimum thickness of the toe-kick panel must be ½" (13 mm). A thickness

/4" (19 mm) is recommended.

Installation

Installation options

There are many different installation options. You are limited only by the design of the kitchen.

The door hinge cannot be exchanged.

Single column

The appliance can be installed at any preferred location in the kitchen.

However, be sure the door will open and close properly in the chosen location.

Side-by-side

This appliance can be installed "side-by-side" with another fridge/freezer using a "Merging Kit".

The "Merging Kit" can be obtained from Miele.

Contact Miele or your dealer for specific information about which combinations will work with your appliance.

. . . without partition

If the appliances are installed directly next to each other (without a partition), they will need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damage.

For instructions on how to attach the appliances and install the heating mat, please refer to the instructions included in the "Merging Kit" available from Miele.

Installation

. . . with partition

The minimum thickness of the partition

/8" (16 mm).

The "Merging Kit" can be obtained from Miele.

If there is a partition between the adjacent appliances, then each appliance is to be individually installed within its own niche.

A heating mat must only be installed if the partition wall is less than 6" (160 mm) wide:

Side panels

If one side of the appliance is visible, a side panel must be used.

The side panel must be firmly secured to the wall, the floor and the overhead furniture/fixtures before the appliance is placed in the cavity.

The dimensions of the side panel are taken from the opposite wall of the installation space. During installation, ensure that the cavity is square and the measurements are correct.

For instructions on how to install the heating mat please refer to the instructions included in the "Merging Kit".

Niche dimensions

Dimensions

KF 1801 SF, KF 1811 SF 30 ½" (774.6 mm) 30" (762 mm)

KF 1901 SF, KF 1911 SF 36 ½" (927 mm) 36" (915 mm)

Dimensions

1. Power supply

2. Water connection

KF 1801 SF, KF 1811 SF 15" (381 mm)

KF 1901 SF, KF 1911 SF 18" (458 mm)

Door dimensions (open min. 90°)

KF 1801 SF, KF 1811 SF 32

KF 1901 SF, KF 1911 SF 38

/8" (829 mm)

/16" (982 mm)

Installing the appliance

Before you begin

Read these instructions completely and carefully. Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

These installation instructions are intended for use by qualified installers. In addition to these instructions, the appliance must be installed in accordance with all local codes. In the absence of a local code, the following should be used:

– In the USA, the National Electric

Code, ANSI/NFPA 70 - latest edition/State and Municipal codes and/or local codes.

–

In Canada, the Canadian Electric code C22.1 - latest edition/Provincial and Municipal codes and/or local codes.

Tools needed for installation

Cutter with adjustable blade

–

Cordless screwdriver T 20

–

Torx screwdriver T 20

–

Hammer drill for drilling holes in wall

–

or floor

Wood drills in different sizes

–

Hammer

–

Open-ended wrench ½" (SW 13 mm)

–

Box-end wrench

–

/16" (8 mm) hex nut driver

– Adhesive tape

– Multi-grip pliers

– Level

– Metal tape measure

– Square

Other

–

Stepladder

–

Dolly, hand truck

–

Wooden beam (cross section min. 29 ½" x 39 [75 cm x 100 cm] as an alternative tilt protection, length depends on the width of the installation cavity)

/8"

–

Wood screws in different sizes

Optional Tool

–

"Merging Kit" for side-by-side installation.

Installing the appliance

Check the installation niche

To ensure a safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation requirements.

Check the base (see "Installation").

Check the dimensions of the cavity.

Check that the cavity is square.

Check the location of the power

outlet.

^ Check the location of the water

connection (see "Plumbing").

^ Check that all furniture parts in the

vicinity of the appliance are securely connected to the wall.

^ Check that the adjacent

furniture/fixtures do not collide with the open door.

Before installation

Caution - the appliance is very

heavy. Use caution when unpacking and opening the door, danger of tipping.

To protect the base from damage

during installation, attach a hard board, linoleum, etc., to the floor in front of the intended installation location.

Take the supplied accessories out of

the protective packaging.

There are transportation safety devices inside the appliance to protect the shelves and storage compartments until installation is complete. Do not remove them,or parts may be damaged.

^ Check the appliance for damage in

transit.

Do not install the appliance if it is visibly damaged. If in doubt, contact your dealer.

Loosen the bracket that holds the

appliance to the pallet.

Caution! The appliance is no

longer secured and may be unstable.

^ From the rear of the appliance

carefully lift it from the pallet.

Once the appliance is on the ground it can be wheeled around.

Installing the appliance

Unscrew the screws a on the cover

b and pull off the sticker c.

Remove the cover b.

RemoteVision module installation

Always disconnect the appliance from the power supply when performing installation, maintenance or service work. Install the RemoteVision module before placing the appliance in its installation niche. Once connected the RemoteVision module will increase the energy consumption of the appliance.

The slot for the RemoteVision module is located in the lower area of the back of your appliance.

Push the module into the slot until it locks into place.

Connect the appliance to the power supply and turn it on. After several seconds the indicator light will come on.

The indicator light will display different colors one after the other; any control light at the end indicates that the module was correctly installed.

Installing the appliance

If the indicator light does not come on, installation of the module was unsuccessful. In that case, repeat the process. If that does not correct the problem, contact Miele.

Pull the antenna d straight out.

^ Guide the cover b over the antenna

d and screw on the cover.

^ Angle the antenna d so that it faces

to the right or left.

^ If necessary, disconnect the power

supply and continue installing the appliance.

Preparing the installation niche

Keep the appliance doors closed until it is securely fastened in the niche. Tipping hazard.

If the installation niche is deeper than the appliance, a solid wooden beam a can be placed behind the anti-tip brackets b so the appliance can be securely attached to the base or wall.

The length of the wooden beam a should be to the width of the installation space.

If possible, always screw the wooden beam into existing studs.

Anti-tip brackets

The anti-tip brackets help keep the appliance safely secured to the installation niche to prevent tipping.

Two anti-tip brackets are recommended for each appliance or appliance combination (side-by-side).

The distance "D" between the anti-tip brackets b is the width of the appliance.

^ Position the anti-tip brackets b on

the left and right walls of the appliance niche.

Installing the appliance

Drill pilot holes:

/8"(3mm)for5x60mmwood

–

screws

/16"(2mm)for4x15mmwood

–

screws.

^ Tightly secure the anti-tip brackets in

the niche.

Be certain that the screws penetrate through the flooring and into the wall plate a minimum of

/4" (19 mm).

^ Mark the holes through the anti-tip

brackets b on the floor of the installation niche.

Set the brackets aside.

Assure that there are no electrical wires or plumbing in the area which the screws could penetrate-risk of injury and damage.

Installing the appliance

Securing an alternative anti-tip device

If the anti-tip brackets cannot be attached securely, an alternative anti-tip device can be used. Ensure that there is no "give" between the appliance and the anti-tip device.

If possible, always screw the wooden beam to existing studs.

The length is equal to the width of the installation niche.

If the installation niche is deeper than

–

the appliance, select a beam with a larger cross section, or attach two beams.

The beam must cover the appliance

–

by at least 2" (50.8 mm).

Mark the installation height (lower

edge of the beam) on the rear wall of the niche.

Select screws according to the

thickness of the wooden beam. Example: 3 ½" (89 mm) screw for 2x4 beam.

^ Determine the number of screws

based on the cavity width, to ensure that the beam will be attached securely.

^ Locate wall studs near the rear wall

of the cavity and mark drill holes in the beam.

Cut a wooden beam (cross section min. 29 ½" x 39 [75 cm x 100 cm]) to the required length.

Pre-drill the wooden beam.

Attach the wooden beam to the rear wall of the niche.

If a side-by-side installation is desired, connect the two appliances

/8"

together. See the Installation Manual included with the "Merging Kit".

Now prepare the water connection from the appliance to the main supply line (see "Plumbing").

Sliding the appliance into the installation niche

Installing the appliance

In the case of side-by-side installations, a separate outlet must be used for each appliance.

To prevent the power cord from

becoming caught: Tie a piece of string to the middle of the power cord and feed it forward under the appliance. When sliding the appliance in, pull the cable forward c.

Carefully slide the appliance into the

space until the height-adjustable wheels interlock with the anti-tip brackets d.

^ Unscrew the plinth.

To protect the corners of the installation space, attach the supplied edge protector a on both sides with adhesive tape.

Plug the appliance into the power outlet b.

If resistance is felt when attempting to slide the appliance into the installation niche - for example, because the floor is uneven,

^ Turn the rear adjustable wheels

slightly outward (see "Aligning the appliance"), then push the appliance in.

Be careful not to damage the water pipe or power cord attached to the floor.

Remove the edge protector a.

Installing the appliance

Aligning the appliance

Align the appliance with the custom

front.

The height-adjustable feet at the front and rear can all be adjusted from the front.

– Front: with an open-ended wrench

½" (SW 13). The feet can be adjusted from the top and bottom e.

–

Rear: with a driver via flexible shaft f.

/16" (8 mm) hex nut

A mark is located on the appliance base and is used as a standard gauge for height adjustment. When adjusting the height, align this mark at 1

/4"

(32 mm) above the floor.

Unscrew the height-adjustable feet

until the mark on the base has reached the indicated guide dimension 1

/4" (32 mm).

It is very important to comply with this dimension for the subsequent alignment of the custom door fronts.

Align the custom doors with a level.

Installing the appliance

Note:

Do not twist or jam the appliance

–

inside the niche. When unscrewing the height-adjustable feet, proceed gradually, alternating between left and right.

The adjustment of the rear feet is

–

aided if the appliance is lifted at the rear (tipped forward slightly).

If using a wooden beam as an

–

alternative anti-tip device, rotate the appliance all the way toward the wooden beam.

– Do not use a power tool to adjust the

rear feet!

Attaching the appliance to the installation niche

^ Open the appliance doors.

^ Fasten the appliance on the left and

right hand sides with the 3 (supplied) wood screws.

If there is a fairly large gap above the appliance, cut a wooden beam to fit exactly and place it in the gap.

Now connect the water supply to the appliance (see "Plumbing").

Installing the appliance

Attaching the toe-kick panel

The maximum height of the toe-kick panel is 4" (101 mm) from the top of the floor. Do not cover the ventilation slits in the base panel. Risk of damage to the appliance.

^ If required, cut the toe-kick panel to

the required length and height.

Attach the plinth to the appliance.

Put the included covering plate in place.

Attach the toe-kick panel to the plinth.

Mounting the air separator

The air separator keeps the supply and exhaust air separate. This prevents warm exhaust air from flowing into the machine, optimizing the energy performance of the unit.

^ If necessary, shorten the three parts

of the air separator.

Installing the appliance

^ Insert the foam pieces back into the

sides.

^ Clip the air separator, left and right of

the partition, in the exhaust grille. Be sure that it clicks into place and guides the foam partition under the exhaust grille.

Plumbing

All plumbing work should be carried out by a suitably qualified and competent person, in accordance with all applicable local and national regulations. The manufacturer is not liable for damage to property due to an incorrect installation or water connection.

The water quality must conform to country requirements for drinking water.

– The appliance is only suitable for

connection to the cold water supply.

– The water pressure must be between

25 and 120 psi (1.72-8.25 bar).

– A separate shut-off valve must be

installed, so that the water supply can be interrupted as needed.

– The maximum outer diameter of the

water pipe (without fittings):

/8" (10 mm).

The shut-off valve for the water connection must not be located behind the appliance. It is recommended to place the shut-off valve directly next to the appliance (base unit) or in another easily accessible location.

Preparing the water connection

The connection to the household water supply must be installed before the appliance is installed.

Turn off the main water valve to prevent

damage caused by leaking water.

Attach the connecting pipe to the

shut-off valve, according to the instructions supplied by the manufacturer of the ice cube maker installation kit.

Install the connecting pipe. Always

observe the indicated clearance dimensions to prevent damage to the connecting pipe when pushing in the appliance.

Plumbing

^ Secure the connecting pipe to the

floor with adhesive tape.

^ You may now proceed to install the

appliance. See "Installing the appliance".

Plumbing

Connecting the water supply

When connecting the water pipe to the solenoid valve of the appliance, follow the instructions supplied by the manufacturer of the ice cube maker installation kit.

When bending the water pipe, be sure not to kink it, otherwise there is a risk of leaks and water damage. Use bending aids.

Push the union nut and seal onto the

water pipe.

Push the end of the water pipe into

the appliance connection and screw on the union nut, 3. First tighten by hand.

Then use an open-ended wrench to

tighten the union nut. Do not over tighten.

Open the shut-off valve and the main

water connection. Check for leaks at the connection for the shut-off valve and to the appliance.

^ Switch the appliance on.

After a maximum of 10 hours the first ice cubes will drop out of the ice cube maker and collect in the drawer.

Remove the cap from the appliance connection, 1.

Bend the water pipe to suit the location of the connection on the appliance, 2.

Avoid the risk of electrical

shock

- Plug into a grounded 3-prong outlet.

- Do not move the ground plug.

- Do not use an adapter.

- Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Improper connection of the equipment grounding conductor may result in electric shock. If you are in any doubt as to whether the appliance has been properly grounded, have the appliance checked by a qualified electrician or service technician.

Electrical connection

The appliance comes with a UL-listed, 3-wire power supply cord.

The appliance requires a 3-wire receptacle.

The receptacle must be installed by a licensed electrician only.

In the case of side-by-side installations, a separate outlet must be used for each appliance. Ideally, the power outlet should be next to the appliance and easily accessible. Do not connect the appliance to the power supply by an extension cord. Extension cords do not guarantee the required safety of the appliance (danger of overheating).

If any changes are needed to the household wiring or power supply, this work must be performed by a qualified electrician.

Installation, repairs and other work by unqualified persons could be dangerous. The manufacturer will not be held responsible for damage or injury arising from unauthorized work.

Before installing the appliance, verify that the voltage, load and circuit rating information found on the data plate match the household electrical supply.

If there are any questions regarding the electrical connection of this appliance to the power supply, please consult a licensed electrician or call the Miele Technical Service.

U1-800-999-1360

V1-800-565-6435

RemoteVision

The Miele RemoteVision system is designed to send messages directly to Miele and/or your PC.

For information on set-up and installation of the RemoteVision module see the "Installation" section of this manual.

Be sure your wireless system meets the following requirements

Windows XP

–

system, Mac

Cable or DSL modem

–

Microsoft

–

or newer operating

OS X 10.3 or higher

Internet Explorer 6 or

higher, Safari 2.0 or higher, Firefox

1.5 or higher

* Please note that each wireless router manufacturer supplies their own device drivers and setup programs. Due to the differences in manufacturers, exact router setup instructions are not included in this manual. Wording and instructions may vary.

RemoteVision

Accessing the RemoteVision control panel

Touch the access button "p"soit

turns yellow.

Touch the sensor button for the

refrigerator section so it turns yellow.

Note the position of the button X, but

do not touch.

Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

^ Place one finger on the position of

the X button and hold (the X button will not be visible).

^ While holding down the X button,

press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until ; appears in

the display.

Touch the access button "p"to

confirm.

See the table on the following page for a description of each setting in the display.

Use the Y or X buttons to select the

RemoteVision options.

The module has been connected to the network when ; # appears in the display. If ; # does not appear, refer to the "Network options" section of the XKM 2000 Installation Instruction manual.

^ Press and hold the access button "p"

for 2 seconds to confirm the change.

^ To return to the main menu, tap the X

button until a solid ; - appears in the display.

Press the access button "p"to confirm.

Access to the Custom settings mode is now active for approximately 10 seconds.

Tap the X button until a ; appears in the display.

Touch the access button "p".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

RemoteVision

MasterCool control panel options for RemoteVision

Selectable

options

; - Back

; 2 Reboot the module

; 3 Reset the module to factory settings

; 4 Enter Ad-Hoc Mode

Note: If you cannot select any option (other than ; - "back"), the module has not been installed correctly.

Status indicators Description of function

Flashing ; ~ Module booting phase

Flashing ; | Connection to router established, no IP address assigned

Flashing ;< In Ad-Hoc Mode, not connected

Solid ;= In Ad-Hoc Mode, connected

Flashing ; ‡ No connection to Network

Solid ; # Connected to Network

Description of function

Alteration rights reserved / 3408

For the most updated manual see the Miele web site.

M.-Nr. 07 360 840 / 01

Miele KF1911SF, KF1811SF, KF1901SF, KF1801SF User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
