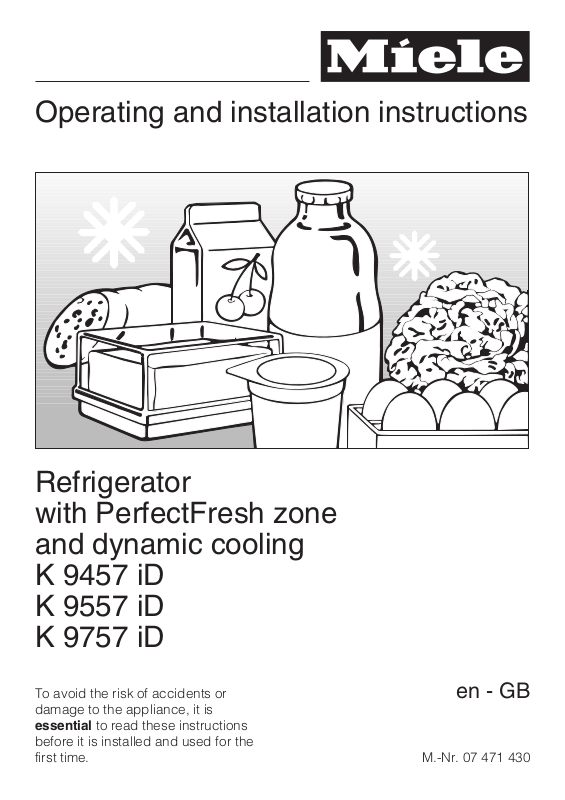

Operating and installation instructions
Refrigerator
with PerfectFresh zone
and dynamic cooling
K 9457 iD
K 9557 iD
K 9757 iD
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
en-GB
M.-Nr. 07 471 430
Contents
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time.........................................12
Safety lock .......................................................12
Switching off for longer periods of time .................................13
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
...intherefrigerator and the PerfectFresh zone .........................14
Dynamic cooling ..................................................14
Setting the temperature in the refrigerator...............................14
Temperature range ..............................................15
Setting the temperature in the PerfectFresh zone .........................15
Temperature display ...............................................16
Temperature display brightness....................................16
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching the alarm off early .........................................17
Switching on the alarm system .......................................17
Super cool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the refrigerator efficiently . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Different storage zones .............................................19
Food which should not be stored in a refrigerator.........................20
When shopping for food ............................................20
Storing food correctly ..............................................20
Unpacked meat and vegetables ...................................20
Using the PerfectFresh zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Storage temperature ...............................................21
Humidity level ....................................................21
Storing food in the dry and humidity-controlled compartments ..............21
The dry compartment ............................................21
Humidity-controlled compartment ..................................22
Contents
Adjusting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Moving the shelves ................................................23
Split shelf ........................................................23
Adjusting the condiment tray/bottle shelf ...............................24
Universal container ................................................25
Moving the bottle divider ............................................25
Automatic defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Refrigerator section and PerfectFresh zone .............................26
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the interior and accessories ..................................27
Ventilation gaps ...................................................28
Door seal ........................................................28
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
After Sales / Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Location .........................................................34
Climate range ..................................................34
Ventilation .......................................................34
Before installation .................................................35
Does your old appliance have a different hinging mechanism? ..............35
Stainless steel front..............................................35
Building-in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Adjusting the door hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing the door hinging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Appliance door ...................................................38
Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Weight of the furniture door ..........................................41
Building into a peninsular run ........................................41
Fitting a furniture door ..............................................45
Guide to the appliance
a Safety lock indicator light
b On/Off button
c Refrigerator temperature display
d Temperature selector buttons
(+ for warmer; – for colder)
e Super cool button and
indicator light
f Alarm off button
4
Guide to the appliance
a Fan for dynamic cooling
b Bottle rack
c Adjustable shelves
d PerfectFresh zone, dry compartment
e PerfectFresh zone, humidity
controlled compartments
(or compartment, depending on
model)
f Butter and cheese compartment
g Egg tray/Condiment tray
h Interior lighting
i Universal container*
j Condensate channel and
drain hole
k Bottle shelf
l Bottle divider*
m Regulator to set the humidity level in
the humidity controlled
compartments
(or compartment, depending on
model)
* Depending on model
5
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
6
Warning and Safety instructions
This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
This appliance is intended for
~
domestic use only for the cool storage
of food and drink.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
This appliance is not intended for
~
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
Safety with children
This appliance is not a toy! To avoid
~
the risk of injury, do not allow children
to play on or near it or to play with the
controls. Older children may only use
the appliance if its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
Keep children away from the
~
appliance at all times and supervise
them whilst you are using it.
7
Warning and Safety instructions
Technical safety
Before setting up the appliance,
~
check it for any externally visible
damage.
Do not install and use a damaged
appliance.
This appliance contains the coolant
~
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can be harmful to the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
The more coolant there is in an
~
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
Before connecting the appliance to
~
the mains supply, make sure that the
rating on the data plate corresponds to
the voltage and frequency of the
household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
The electrical safety of this
~
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
3
of
If the connection cable is faulty it
~
must only be replaced by a Miele
approved service technician to protect
the user from danger.
8
Warning and Safety instructions
Safe operation of the appliance is
~
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
This equipment may only be used in
~
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Installation work, maintenance and
~
repairs may only be carried out by
suitably qualified and competent
persons in accordance with national
and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
Ensure current is not supplied to the
appliance until after maintenance or
repair work has been carried out.
The appliance is only completely
~
isolated from the electricity supply
when:
–
it has been switched off at the wall
socket and the plug has been
withdrawn,
–
the mains fuse is withdrawn, or
–
the screw-out fuse is removed in
countries where this is applicable.
Do not connect the appliance to the
~
mains electricity supply by an extension
lead.
Extension leads do not guarantee the
required safety of the machine (e.g.
danger of overheating).
In countries where there are areas
~
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Correct use
Never store explosive materials in
~
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
Do not operate any electrical
~
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
If storing alcohol with a high
~
percentage proof, make sure it is tightly
closed and stored upright.
Danger of explosion.
Observe the "use by" dates given on
~
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on the food
manufacturer’s packaging on storage
conditions required.
9
Warning and Safety instructions
Do not use sharp edged objects to
~
remove frost and ice,
–
separate food which has become
–
frozen.
They will damage the evaporator,
causing irreversible damage to the
appliance.
Do not use defrosting sprays or
~
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
Do not use any oils or grease on the
~
door seal as these will cause the seal to
become porous with time.
Do not store cooking oil in the
~
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
Do not block the ventilation gap in
~
the plinth or the top of the appliance
housing unit as this would impair the
efficiency of the appliance, increase
the electricity consumption and could
cause damage to the appliance.
The appliance is designed for use
~
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Never use a steam-cleaning
~
appliance to clean this appliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
Disposal of your old appliance
Before disposing of an old
~
appliance first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
Be careful not to damage any part of
~
the pipework whilst awaiting disposal,
e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
10
How to save energy
Normal energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20°C.
Temperature setting with
a thermostat which is
approximate
(set in stages).
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Use Only open the doors when
Defrosting Defrost the freezer compartment
With a medium setting of 2 to 3. With a high setting: the lower the
Cellar section 8 to 12°C
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18°C
Wine storage section 10 to 12 °C
necessary and for as short a time
as possible.
Store food in an organised way. If food is not stored in an
Allow hot food and drinks to cool
down before placing them in the
appliance.
Store food covered or packaged. The evaporation or condensation
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance to
allow air to circulate.
when a layer of ice 0.5 cm thick
has built up.
Increased energy
consumption
Situated near to a heat source
(radiator, oven).
Where there is a high ambient
room temperature.
temperature in the compartment,
the higher the energy
consumption.
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Frequent opening of the doors for
long periods will cause a loss of
coldness.
organised way, searching for an
item will mean the door is open for
longer.
Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.
of liquids will cause a loss of
coldness in the refrigerator.
A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.
11
Switching on and off
Before using for the first time
The stainless steel trim to the interior
shelves and the door shelves has a
layer of protective foil to prevent
scratching during transportation.
Do not remove this foil until the
^
appliance has been built in.
Treat the stainless steel surfaces with
^
a proprietary stainless steel
conditioner immediately after
removing the foil (available from the
Miele Spare Parts Department or via
the internet on www.miele.co.uk).
Important! A stainless steel
conditioner gives long lasting
protection, and helps to prevent
resoiling.
^ Clean the inside of the appliance and
the accessories with warm water and
a little washing-up liquid, and then
dry with a soft cloth.
Switching on
Press the On/Off button.
^
The temperature display lights up, the
appliance starts cooling and the interior
light will come on when the door is
opened.
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching off
^ Press the On/Off button until the
temperature display goes out.
The cooling system is switched off. (If
this does not happen, the safety lock is
still activated).
Important:
To ensure the correct functioning of
the appliance, let it stand for
between 1½ and 2 hours after
transporting it to its final location
before connecting it to the mains.
12
Safety lock
The safety lock can be activated to
prevent the appliance being switched
off inadvertently.
Switching on and off
Activating or de-activating the safety
lock
Press and hold the Super cool button
^
pressed in for approx. 5 seconds.
The Super cool indicator light flashes,
and a
; flashes in the temperature
display.
Press the Super cool button again.
^
; will light up in the display.
^ You can now choose between
and
; 1 by pressing the temperature
selector buttons:
0: the safety lock is de-activated,
1: the safety lock is activated.
; 0
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
switch the appliance off,
^
switch off at the wall socket and
^
withdraw the plug,
clean the appliance out and
^
leave the door ajar to air the
^
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
^ Press the Super cool button to save
the setting.
The safety lock indicator light
light up when the safety lock has been
activated.
^
Press the On/Off button to come out
of the setting mode.
If you do not do this, the electronics will
switch over to normal operation
automatically after a couple of minutes.
X will
13
The correct temperature
It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
the more often the door is opened
–
and the longer it is kept open,
– if too much food is stored in it at
once,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator and the
PerfectFresh zone
We recommend a temperature of 4°C
in the refrigerator.
The temperature in the PerfectFresh
zone is controlled automatically, and is
maintained at 0to3°C.
Dynamic cooling
The dynamic cooling fan automatically
switches on when the cooling system
for the refrigerator switches on. It
distributes the temperature in the
appliance to all areas more evenly so
that all the food will be chilled to about
the same degree.
Setting the temperature in the
refrigerator
Use the two buttons underneath the
temperature display to set the
temperature for the refrigerator.
Press the
+ button : to raise the temperature
(it gets warmer)
– button: to reduce the temperature
(it gets cooler).
The temperature being set will flash in
the display.
When pressing the buttons, the
following information shows in the
display:
–
When first pressed, the last
temperature selected flashes.
–
Each subsequent press of the button
adjusts the temperature shown in
1 °C steps.
14
–
Keeping the button pressed in
adjusts the temperature continually.
The correct temperature
Approx. 5 seconds after letting go of
the button, the current average
temperature of the refrigerator is
automatically shown.
If you have adjusted the temperature,
wait for approx. 6 hours if the
appliance is not very full and for
approx. 24 hours if the appliance is
full, before checking the temperature
display, as it will take this long for the
display to give an accurate reading. If,
after this time, the temperature is still
too high or too low, you will need to
adjust it again.
Temperature range
The temperature can be adjusted from:
4°Cto9°C
The ambient temperature in the room
and the installation location can affect
the time it takes for the appliance to
reach the lowest temperature. If the
ambient temperature is too high, the
appliance may not reach the lowest
temperature.
Setting the temperature in the
PerfectFresh zone
The Super cool indicator light flashes,
and a
; flashes in the temperature
display.
Press one of the temperature selector
^
buttons repeatedly until a
in the display. Press the Super cool
button again.
= appears
= lights up in the display.
You can now adjust the temperature
^
in the PerfectFresh zone by pressing
the temperature selector buttons. You
can choose from settings 1 to 9:
1: lowest temperature,
9: highest temperature.
= 5 is the default setting for the
PerfectFresh zone. If a setting of
to
= 4 is selected, the temperature
can fall below 0°C. Food could
freeze!
^
Press the Super cool button to save
the setting.
= 1
The temperature in the PerfectFresh
zone is automatically held at 0 to 3 °C.
It can be raised or lowered, e.g. if you
want to use it for storing items like fish.
^
Press and hold the Super cool button
pressed in for approx. 5 seconds.
^
Press the On/Off button to come out
of setting mode.
If you do not do this, the electronics will
switch over to normal operation
automatically after a couple of minutes.
15
The correct temperature
Temperature display
During normal operation, the
temperature display on the control
panel shows the average temperature
in the refrigerator.
If the temperature is not within the
range that the appliance is able to
display, bars will flash in the
temperature display.
Temperature display brightness
The appliance is supplied with the
brightness of the temperature display
set as low as possible. However, if the
door is opened, a setting changed or if
the alarm is sounding, the temperature
display will appear much brighter.
The level of brightness can be
adjusted:
You can now adjust the level of
^
brightness by pressing the
temperature selector buttons. You
can choose from settings 1 to 5:
1: dimmest setting,
5: brightest setting.
Press the Super cool button to save
^
the setting.
Press the On/Off button to come out
^
of setting mode.
If you do not do this, the electronics will
switch over to normal operation
automatically after a couple of minutes.
^
Press and hold the Super cool button
pressed in for approx. 5 seconds.
The Super cool indicator light flashes,
and a
; flashes in the temperature
display.
^
Press one of the temperature selector
buttons repeatedly until
the display.
^
Press the Super cool button again.
^ appears in
^ lights up in the display.
16
Loading...
