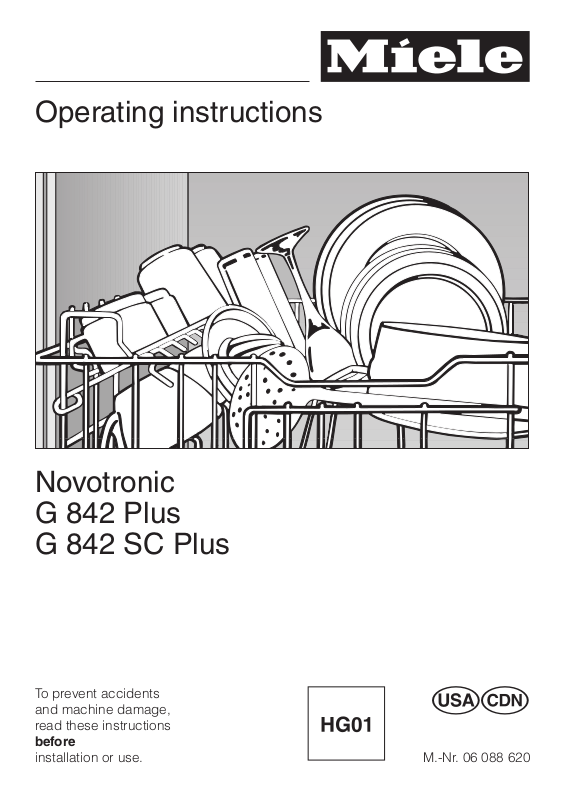

Operating instructions
Novotronic
G 842 Plus
G 842 SC Plus
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 06 088 620
Contents
IMPORTANT SAFETY INSTRUCTIONS
CONSIGNES DE SÉCURITÉ IMPORTANTES
Caring for the environment
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Guide to the dishwasher
Wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Checking the programmed water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher
Items not recommended for dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cutlery tray (SC units) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjustable cup racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coffee bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Foldable spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Vase / Bottle holder (select models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Basket accessories
2
Contents
Operation
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Running the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Program sequence indicator (14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Frequently asked questions
After sales service
Transport
User Maintenance Instructions
Cleaning and Care
Cleaning the filter in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the door and door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read all instructions before
installation or use of the dishwasher
to prevent injury and machine
damage.
The manufacturer cannot be held
responsible for damage or injury
caused by improper use of this
appliance.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Do not use an extension cord to
connect this appliance to
electricity. Extension cords do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Be certain your appliance is
properly installed and grounded by
a qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
Installation
Installation and repair work should
be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and could void the warranty.
Electrical safety
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
“tripping” the circuit breaker or
removing the fuse.
4
, WARNING - Fire hazard
Do not cover or crush the plug of
an electric appliance. Ensure that the
cabinet opening for the dishwasher
provides ample space for the plug.
Installing the dishwasher in a tight
space may crimp the power cord or put
pressure on the plug which may cause
overheating.
IMPORTANT SAFETY INSTRUCTIONS
This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
Inspect the dishwasher for
shipping damage. Do not install or
operate a damaged unit. Contact the
place of purchase.
Ensure that any plastic wrappings,
bags etc. are disposed of safely
and kept out of the reach of children.
Danger of suffocation!
This dishwasher should only be
installed under a continuous
countertop secured to adjacent
cabinetry.
Do not install this dishwasher
beneath a cooking surface, oven or
any appliance that radiates heat.
High temperatures from these units may
damage the dishwasher.
Do not, under any circumstances
cut the intake hose or submerge in
liquid. This hose contains electrical
components that could cause injury or
property damage if cut or submerged.
Use
Only use the dishwasher if all
panels are properly in place.
Do not tamper
with the controls.
To reduce the risk of injury, do not
allow children to play in, on, or
near the dishwasher.
Do not damage, sit, or stand on the
door or baskets of the dishwasher.
Under certain conditions, hydrogen
gas may be produced in a hot
water system that has not been used
for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water
system has not been used for such a
period, turn on all hot water faucets and
let water flow from each for several
minutes before using the dishwasher.
This will release any accumulated
hydrogen gas. Do not smoke or use an
open flame during this time.
Do not wash plastic items unless
they are labeled "dishwasher safe"
or the equivalent. For items not labeled,
check the manufacturer’s
recommendations.
5
IMPORTANT SAFETY INSTRUCTIONS
When loading tableware, place
sharp items away from the door
seal to prevent damage to the seal.
Load knives pointing downwards to
prevent injuries.
Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
Do not drink water from the
dishwasher! Harmful residues
could be present.
For dishwashers with a visible
heating element
Do not touch the heating element
during or immediately after use.
Disposal of an appliance
If the appliance is removed from its
installation and will not be used,
the door to the wash cabinet should be
removed to prevent children from being
locked in the machine. When
discarding an old dishwasher, unplug it
from the power outlet, remove the door
to the wash cabinet and cut off the
power cord.
SAVE THESE
INSTRUCTIONS
6
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT –
Lorsque vous utilisez votre
lave-vaisselle, veuillez prendre des
précautions essentielles, y compris
ce qui suit.
Lisez attentivement l’ensemble des
consignes avant d’installer ou
d’utiliser le lave-vaisselle afin de
prévenir les blessures et éviter
d’endommager l’appareil.
Le fabricant ne peut être tenu
responsable des dommages ou
blessures causés par une utilisation
inappropriée de l’appareil.
Utilisez le lave-vaisselle uniquement
aux fins auxquelles il a été conçu.
Cet appareil est destiné à un usage
domestique uniquement.
Conservez ces instructions dans un
lieu sûr et transmettez-les à tout
utilisateur ultérieur.
Sécurité électrique
Avant l’installation, assurez-vous
que la tension et la fréquence
indiquées sur la plaque signalétique
correspondent bien à celles de
l’alimentation électrique de la résidence
afin de prévenir les blessures et d’éviter
d’endommager l’appareil. Dans le
doute, consultez un électricien qualifié.
Avant de procéder à l’installation
ou à des travaux d’entretien,
coupez l’alimentation électrique, soit en
débranchant l’appareil, soit en faisant
basculer le disjoncteur, soit en enlevant
le fusible.
N’utilisez pas de rallonge pour
brancher l’appareil à la source
d’alimentation électrique. Les rallonges
ne garantissent pas la sécurité requise
pour l’appareil - si vous utilisez une
rallonge, cela peut causer une
surchauffe.
Assurez-vous que votre appareil
est installé correctement et mis à la
terre par un technicien qualifié. Pour
garantir la sécurité électrique de
l’appareil, il faut le raccorder à une
installation de mise à la terre
appropriée. Il est essentiel de respecter
cette exigence de sécurité élémentaire.
Dans le doute, faites vérifier
l’installation électrique de la résidence
par un électricien qualifié. Le fabricant
ne peut être tenu responsable de
dommages causés par l’absence d’une
installation de mise à la terre ou une
installation déficiente.
7
CONSIGNES DE SÉCURITÉ IMPORTANTES
Installation
L’installation et les réparations
devraient être effectuées
uniquement par un technicien de
service autorisé Miele. Les travaux
effectués par des personnes non
qualifiées peuvent s’avérer dangereux
et annuler la garantie.
, ATTENTION - Risque d’incendie
Ne recouvrez et n’écrasez jamais
la fiche d’un appareil électrique.
Assurez-vous que dans l’espace
occupé par le lave-vaisselle, il y a
suffisamment d’espace pour la fiche. Si
vous installez le lave-vaisselle dans un
espace trop petit, le cordon
d’alimentation pourrrait être comprimé
ou une pression pourrait être exercée
sur la fiche, ce qui risque de causer
une surchauffe.
Cet appareil n’est pas conçu pour
être utilisé sur un bateau ou dans
des engins mobiles, comme des avions
ou des véhicules récréatifs. Toutefois,
son installation est possible dans
certaines circonstances. Veuillez
communiquer vos exigences
particulières au détaillant Miele le plus
près de chez vous ou au Service
technique.
Vérifiez si votre lave-vaisselle n’a
pas subi de dommage lors du
transport. N’installez pas et n’utilisez
pas un appareil endommagé.
Communiquez avec le point de vente
où vous l’avez acheté.
Assurez-vous de vous débarrasser
correctement des emballages,
sacs, matières plastiques et autres et
de les tenir hors la portée de bébés et
d’enfants. Risque de suffocation!
Le lave-vaisselle doit être installé
uniquement sous un comptoir
continu fixé à des armoires adjacentes.
N’installez pas ce modèle de
lave-vaisselle sous une surface de
cuisson, un four ou tout autre appareil
qui diffuse de la chaleur.
Les hautes températures émanant de
ces appareils pourraient endommager
le lave-vaisselle.
En aucun cas, vous ne devez
couper le tuyau d’arrivée d’eau ou
l’immerger, car il contient des
composants électriques qui pourraient
causer des blessures ou des
dommages matériels.
8
CONSIGNES DE SÉCURITÉ IMPORTANTES
Utilisation
N’utilisez le lave-vaisselle que
lorsque tous les panneaux sont
bien en place.
Ne jouez pas avec les
commandes.
Afin de diminuer le risque de
blessures, ne laissez pas les
enfants jouer près de l’appareil ni
monter dedans ou dessus.
Évitez de malmener la porte ou les
paniers du lave-vaisselle ou de
vous y appuyer ou asseoir.
Dans certaines circonstances, un
système d’eau chaude qui n’a pas
servi durant deux semaines ou
davantage peut produire de
l’hydrogène. L’HYDROGÈNE EST UN
GAZ EXPLOSIF. Si le système d’eau
chaude n’a pas servi durant une telle
période, ouvrez tous les robinets d’eau
chaude et laissez l’eau couler plusieurs
minutes avant d’utiliser le lave-vaisselle.
Cette action libérera l’hydrogène qui
aura pu s’y accumuler. Entre-temps,
abstenez-vous de fumer et n’utilisez
pas de flamme nue.
Ne lavez pas des articles en
plastique qui ne portent pas la
mention "va au lave-vaisselle" ou une
formulation équivalente. Consultez les
recommandations du fabricant pour les
articles qui ne portent aucune mention
à cet égard.
Au moment de charger la vaisselle,
ne disposez pas les articles
coupants à proximité du joint
d’étanchéité de la porte afin d’éviter de
l’endommager. Placez les couteaux
avec la pointe vers le bas afin d’éviter
les blessures.
Utilisez seulement les détergents
et les produits de rinçage
recommandés pour les lave-vaisselle à
usage domestique. Conservez tous ces
produits hors de la portée d’enfants.
Ne consommez pas l’eau du
lave-vaisselle! Elle peut contenir
des résidus dangereux.
Lave-vaisselle munis d’un élément
chauffant visible
Ne touchez pas l’élément chauffant
pendant ou immédiatement après
l’utilisation.
Mise au rebut de l’appareil
Si vous désinstallez l’appareil et
comptez ne plus vous en servir,
détachez-en la porte pour éviter que
des enfants s’y retrouvent enfermés.
Lorsque vous mettez un lave-vaisselle
au rebut, débranchez-le de la source
d’alimentation électrique, détachez-en
la porte et coupez le cordon
d’alimentation.
CONSERVEZ
CES CONSIGNES
9
Caring for the environment
Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
For lowest energy consumption and
^
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
For fastest possible wash times, yet
^
higher energy consumption, connect
the dishwasher to a hot water source.
Make full use of the baskets without
^
overloading for the most economical
washing.
^ Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^ If baskets are only half full, select the
"Economy" program.
^ Use the correct amounts of detergent
and rinse aid.
10
Wash cabinet
Guide to the dishwasher
1 Upper spray arm (not visible)
2 Cutlery tray
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Four height adjustable feet
8 Triple Filter System
9 Salt reservoir
10 Detergent dispenser
11 Rinse aid reservoir
12 Data plate
11
Guide to the dishwasher
Control panel
13 "On/Off" button
14 Program sequence display
15 "Start" button
16 Program selector
Every dishwasher is tested before leaving the factory. Any water remaining in
the machine is from these tests and does not indicate that the machine has
been used.
17 Check/Refill indicators
18 Child Safety Lock
19 Door release
12
Before using for the first time
To open the door
^ Press the release catch inside the
door grip.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
restart.
To close the door
Child Safety Lock
The yellow key for the Child Safety
Lock is shipped on one of the spikes
at the front of the upper basket.
Remove the key before using the
dishwasher.
The Child Safety Lock is designed to
prevent children from opening the
dishwasher.
^
Push the baskets in.
^
Lift the door and push until it clicks
into position.
^
Use the provided key to lock or
unlock the dishwasher.
Horizontal:
the door is locked
Vertical:
the door can be opened
13
Before using for the first time
Water softener
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above
8 gr/gal (values are in US gallons)
(140 ppm), the water should be
softened. This takes place
automatically in the unit’s integrated
water softener.
Your local water authority will be able
–
to advise you of the water hardness
level in your area.
– The dishwasher must be
programmed to correspond to the
water hardness in your area.
– The water softener must be filled with
dishwasher salt for reactivation.
If your water hardness is consistently
lower than 8 gr/gal (140 ppm), you do
not need to add dishwasher salt.
However, the dishwasher must still be
programmed to correspond to the local
water hardness.
Where the water hardness fluctuates
e.g. between 9 - 17 gr/gal (160 - 310
ppm), always program the machine to
the higher value, 17 gr/gal (310 ppm) in
this example.
If there is a fault, it will help the service
technician to know the hardness of your
local water supply.
^ Please note the water hardness:
gr/gal
14
Programming the water softener
Your water hardness level must be
programmed into the dishwasher using
the program selector and buttons on
the control panel.
Make sure the dishwasher is turned
^
off.
Turn the program selector to "Stop".
^
Press and hold the "Start" button and
^
at the same time turn on the
dishwasher with the "On/Off" button.
Release the "Start" button within two
seconds.
The "Salt" indicator will flash.
If the "Rinse aid" indicator comes on,
the rinse aid dispenser needs to be
filled.
If any other indicator flashes or lights,
the above steps must be repeated.
Before using for the first time
^ Turn the program selector to the
position which corresponds to the
water hardness in your area (see
table).
gr/gal* ppm
1 - 4** 20 - 70 Normal Plus
5 - 7 90 - 130 Normal
8 - 10 140 - 180 Rinse & Hold
11 - 13 200 - 230 4 o’clock position
14 - 16 250 - 290 5 o’clock position
17 - 22 310 - 400 6 o’clock position
23 - 35 410 - 630 7 o’clock position
36 - 70 650 - 1260 8 o’clock position
Selector
setting
* US gallons
** factory preset
Example:
Water hardness is 20 gr/gal.
Turn program selector to "6 o’clock"
position.
15
Before using for the first time
Press the "Start" button.
^
The "Start" indicator will light.
Turn the program selector to "Stop".
^
Turn off the dishwasher with the
^
"On/Off" button.
The programmed water hardness is
stored.
Checking the programmed water
hardness
Make sure the dishwasher is turned
^
off.
Turn the program selector to "Stop".
^
Press and hold the "Start" button and
^
at the same time turn on the
dishwasher with the "On/Off" button.
Release the "Start" button within two
seconds.
The "Salt" indicator will flash.
If the "Rinse aid" indicator comes on,
the rinse aid dispenser needs to be
filled.
If any other indicator is lit or flashing,
the above steps must be repeated.
^ Turn the program selector clockwise
until the "Start" indicator comes on.
The position where the "Start" indicator
comes on corresponds to the
programmed water hardness (see table
"Programming the water softener").
16
^
Turn the program selector to "Stop".
^
Turn off the dishwasher.
Before using for the first time
Filling the salt reservoir
If your water hardness level is greater
than 8 gr/gal, the salt reservoir should
be filled before the first use and when
the "Salt" indicator lights.
Only use water softener salt specially
formulated for dishwashers. Other salts
may contain insoluble additives which
can impair the water softener.
The proper salt can be purchased from
your Miele dealer or Miele.
Inadvertently filling the salt
,
reservoir with dishwashing
detergent will damage the water
softener.
To fill the salt reservoir:
Remove the lower basket.
^
Unscrew and remove the salt
^
reservoir cap located on the floor of
the wash cabinet.
Place the provided funnel over the
^
salt reservoir.
The salt reservoir must be filled with
2 quarts (2 l) of water before adding
salt for the first time. Water does
not have to be added with
subsequent refills.
^
Carefully fill with salt. The salt
reservoir holds approximately 4.5 lbs
(2 kg) of salt. As it is filled, water will
run out.
^
Clean any excess salt from the
threads of the reservoir opening.
^
Screw the cap on firmly.
^
If the dishwasher will not be used
immediately, run the "Rinse & Hold"
program. This will remove any traces
of salt from inside the wash cabinet.
17
Before using for the first time
Salt indicator
When the salt reservoir is empty, the
"Salt-PC" indicator will light, indicating
that it should be refilled with
reactivation salt.
After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is started. The "Salt"
indicator will be lit during this process.
Bypassing the salt indicator
If your water is soft (below 8 gr/gal) the
salt reservoir should not be filled with
salt. The indicator will remain lit and
should be disregarded or bypassed.
Remove the salt reservoir cap.
^
Looking into the salt reservoir, you will
see the top of the float chamber on the
right hand side, a.
^
Using a screwdriver, carefully pivot
the float chamber towards the center
of the reservoir.
18
^
Using needle nose pliers, pull the
cap, b, off of the float chamber, and
remove the float, c.
Replace the float chamber cap, push
the chamber back into its upright
position, and replace the salt reservoir
cap. The "Salt" indicator should no
longer be lit.
Rinse aid
Rinse aid is recommended to prevent
spotting on dishes and glassware.
Filling the rinse aid reservoir with
,
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
Adding rinse aid
Before using for the first time
Pour liquid rinse aid into the reservoir
^
until it is visible on the surface of the
screen.
^ Press on the flap until you hear it
click shut. Failure to close it all the
way will allow water to enter the
reservoir during the wash program.
^
Add rinse aid before the first use and
whenever the "Rise aid" indicator
lights.
^
Press the button in the direction of
the arrow until the flap springs open.
^ Wipe up any spilled rinse aid. The
flap will remain closed during normal
operation.
19
Before using for the first time
Adjusting the dosage
The dosage selector is preset to 3. This
dispenses approximately 3 ml of rinse
aid per program. It can be adjusted
from 1 to 6.
^ Use a higher setting if spots appear
on dry glassware.
^ Use a lower setting if streaking
appears on dishes or glasses.
Rinse aid indicator
The rinse aid indicator on the control
panel will light when the rinse aid
reservoir needs refilling.
When the indicator first comes on, there
will be enough rinse aid left for 2 - 3
washes.
20
Do not wash items soiled with
,
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration or damage
to the dishwasher.
Scrape food from dishes before
^
placing in the dishwasher.
Do not rinse dishes.
^ Load dishes so that water can reach
all surfaces. Do not place dishes and
cutlery inside other pieces.
^ Hollow items such as cups and
glasses should be placed upside
down in the upper basket.
^ Concave based items, such as mugs
or bowls, should be placed at an
angle so that water does not pool.
Loading the dishwasher
The spray arms must not be blocked
^
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
Food residue and spilled liquids
^
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
^
To ensure good water coverage tall,
narrow, hollow pieces, such as a
vase, should be placed in the center
of the basket, rather than in the
corners.
^
Small cups and glasses should be
placed on the cup racks. Taller mugs
and glasses can be placed beneath
the rack.
^
Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
21
Loading the dishwasher
Items not recommended for
dishwashing
Cutlery with wooden handles.
–
Wooden cutting boards.
–
Glued items such as old knives with
–
handles glued together around the
shank of the blade.
Hand made craft items, antique,
–
metal trimmed or decorative
glassware.
Lead crystal.
–
Copper, brass, tin or pewter.
–
– Plastic items that are not heat
resistant.
– Dishes with color painted over the
glaze. These dishes may fade over
time.
– Cast iron pots and pans.
Glassware:
There are no standard guidelines for
–
washing glassware but, when in
doubt wash by hand.
Wash delicate glassware with a low
–
temperature program and without the
extended drying feature to reduce
the risk of clouding. See the
"Program guide".
If crystal or delicate glasses will be
–
washed frequently, connect the
dishwasher to cold, rather than hot
water.
– Clouding or etching may occur on
glasses after frequent washing.
– When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe.
Silver and aluminum:
– Silver or aluminum items may tarnish.
22
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–
If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
–
Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
Cutlery basket
^ For the best cleaning results, spoons
and forks should be placed in the
basket with handles down. Knives
and other pointed objects can be
loaded with their handles up to
prevent injuries.
Loading the dishwasher
^ Place small spoons into the slots on
either side of the cutlery basket.
23
Loading the dishwasher
Cutlery tray (SC units)
The removable cutlery tray makes
unloading flatware easy. Simply carry
the cutlery tray to where the flatware is
stored and put the entire basket away
in one trip.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Spoon heads should be placed in
contact with at least one of the serrated
retainers of the cutlery tray to ensure
that water runs off freely.
Place knives with the cutting edge and
forks with the prongs between the
holders. Spoons should be placed in
the opposite direction with the handles
between the holders.
Longer items such as soup ladles, cake
slices, mixing spoons and long knives
should be placed lengthwise in the
indentation of the cutlery tray.
24
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders.
Upper basket
Adjusting the upper basket
On select models, the upper basket
can be raised or lowered to
accommodate tall items.
Slide out the upper basket.
^
Loading the dishwasher
Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert bowls
and flat pans.
Long items such as soup ladles, mixing
spoons and knives can be set across
the front of the upper basket.
^ Pull up the levers at the sides of the
upper basket and adjust the basket
height.
^
Release the levers and the basket will
lock in place.
The basket can also be angled to fit tall
items in both, the lower and upper
baskets. The angles should not be set
to opposite extremes. This will block the
middle spray arm. Take care when
sliding the basket in and out in this
position.
25
Loading the dishwasher
Adjustable cup racks
Raise the rack to make room for tall
glasses. Lower it to double stack
smaller pieces.
Coffee bar
To allow water to run off the bottom of
coffee mugs, place them slanted on top
of the coffee bar. The bar can also be
used to separate two rows of glasses.
To stack wide items, flip the bar to the
right.
26
Loading the dishwasher
Lower basket
For larger and heavier items such as
plates, serving platters, sauce pans,
bowls.
Dishwasher with cutlery tray
Dishwasher with cutlery basket
27
Loading the dishwasher
Height limit
The guide at the front of the upper
basket determines the maximum height
for items placed in the lower basket so
that the middle spray arm is not
blocked.
Foldable spikes
Vase / Bottle holder (select models)
The bottle holder e.g. for milk or baby
bottles, can be inserted into the bottom
basket in more than one place. Position
in any area marked white in the
illustration. Do not place the insert in
the corners of the lower basket, water
cannot properly cover bottles in these
areas.
Two rows of spikes can be folded
down, to create more room for larger
dishware e.g. pots, pans and bowls.
^
Lift up the spike rows and fold them
one on top of the other.
28
Basket accessories
Additional inserts for the upper and lower baskets may be purchased from your
Miele dealer or the Miele Technical Service Department.
Vase / Bottle holder To wash milk or baby bottles
attaches to the lower basket
Mini Cutlery Basket To wash additional cutlery
for units with cutlery tray
attaches to the lower basket
Upper Basket Glassware Insert To wash long stemmed glassware
attaches to the upper basket
29
Operation
Adding detergent
Dishwasher detergents contain
,
irritant and corrosive ingredients.
Keep children away from detergent.
Do not fill the detergent dispenser
until you are ready to start the
dishwasher.
Only use powder detergents or
tablets formulated for residential
dishwashers. The use of gel or liquid
detergent is not recommended.
Never fill the detergent dispenser to
capacity.
Do not use more than the
recommended amount of detergent.
Continued use of too much
detergent may cause machine
damage.
The horizontal marks in Compartment II
indicate levels of approximately 1
3
1
/4and 2 tablespoons (20, 25 and
30 ml) respectively.
^ With the dishwasher door fully open
fill compartment II with 2 tablespoons
(30 ml) of powder detergent or one
detergent tablet.
1
/4,
^
To open, press the latch on the
detergent dispenser.
30
^ Close the cover. The cover will
always open at the end of a wash
program except in "Rinse & Hold".
2 tablespoons (30 ml) of detergent is
enough for most normally soiled loads.
For heavily soiled loads, or if food has
dried on the dishes, a program
containing a pre-wash cycle should be
selected. Add an extra tablespoon (15
ml) of detergent to compartment I.
Less detergent is needed in homes with
very soft water and when washing
lightly soiled dishes.
Operation
Running the dishwasher
^ Make sure the spray arms are not
blocked.
^ Close the door.
^ Turn on the dishwasher.
The "Start" indicator (15) will flash.
^ Select a wash program by turning the
program selector (16) to the left or
right. Refer to the "Program guide" for
details.
^
Press the "Start" button (15).
The program will begin.
Do not end a program prematurely!
Important program steps could be
omitted (e. g. reactivating the water
softener).
Waterproof System
All Miele dishwashers are specially
designed to shut off the water intake
and drain the wash cabinet in the rare
event of an internal water valve failure.
For this feature to be active, the
machine must be "On" (not necessarily
running) and the door must be closed.
Program sequence indicator
(14)
The current step of the program is
indicated by one of the program
sequence indicators (14).
31
Operation
At the end of a program
The "End" indicator will light when the
program has finished.
Turn the program selector (16) to
^
"Stop".
Turn off the dishwasher.
^
Open the dishwasher door slightly to
^
allow the dishes to cool before
unloading.
It is advisable to turn off the water
supply if the dishwasher will not be
used for a period of time (e.g. while
vacationing).
Interrupting a program
A program is interrupted as soon as the
door is opened.
If the door is closed, the program will
continue from where it was interrupted.
Water in the dishwasher may be
,
hot. There is a danger of being
burned! Only open the door if
absolutely necessary.
Changing a program
If a program is running:
^ Turn the program selector (16) to
"Stop" for at least one second.
^ Turn the program selector (16) to the
new program.
^ Press the "Start" (15) button to begin
the wash program.
32
If a program has not started:
^
Turn the program selector to the new
program.
^
Press the "Start" (15) button to begin
the wash program.
Operation
Program guide
Program When to use Program cycle
Main
wash
Interim
rinse
12
Pots & Pans for heavily soiled pots and pans with dried on food
Sani Wash extended wash time
Economy energy saving program
Normal Plus higher wash temperature helps to clean
Normal
Rinse & Hold for rinsing dishes when a complete cycle is not needed
1) Standard for Energy Label
Main wash temperature 170 °F (75 °C)
Run-time 142 min
for sanitizing normally soiled dishware with dried
on food
Main wash temperature 150 °F (65 °C)
Run-time 147 min
for normally soiled dishware
Main wash temperature 130 °F (55 °C)
Run-time 103 min
normally soiled dishware with stubborn dried on
food or greasy residues
Main wash temperature 150 °F (65 °C)
Run-time 145 min
1)
for normal soiled dishware
Main wash temperature 130 °F (55 °C)
Run-time 143 min
Run-time 11 min
Pre-
wash
12
XX X X - X X
-X X XX X X
-- X X- X X
XX X X - X X
XX X X - X X
-X - -- - -
Final
rinse
Dry-
ing
When washing a full load in Pots & Pans, Sani Wash and the Normal programs use at least 2
tablespoons (30 ml) of detergent.
For the Pots & Pans program add an additional teaspoon (5 ml) to compartment I.
If "Top Solo" is selected, reduce the amount of detergent to 1
Program times are based on a hot water connection. If the unit is connected to cold water, program
times will increase by approximately 25 minutes.
Usage:
Electric 0.06 - 2.4 (kWh)
Water 1.3 - 6.3 US gallons (5 - 24 L)
1
/4tablespoons (20 ml).
33
Frequently asked questions
With the aid of the following guide, minor problems can be fixed without a service
call.
Repairs should only be carried out by a qualified and trained person in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause personal injury or machine damage.
What if … Possible fault Fix
the dishwasher does not
start?
the dishwasher does not
start, after pressing the
"Start" button and
the "Start" indicator
flashes?
the dishwasher stops
during a program?
the "Intake/Drain"
indicator is lit or
flashing and the
dishwasher may have
stopped?
The door is not properly
closed.
The machine is not
plugged in.
The fuse is defective or
the breaker has tripped.
The program selector is
set to "Stop".
The fuse or breaker has
tripped.
The water valve is closed. Open the water valve.
The filter in the water inlet
is blocked.
The flow pressure at the
water inlet is less than
4.5 psi (0.3 bar).
The waterproof system
has activated.
Close the door firmly.
Insert the plug.
Reset the circuit breaker.
Make sure it is a 15 A
breaker.
– Turn the program
selector to the desired
program.
– Press the "Start" button.
Reset the circuit breaker.
Make sure it is a 15 A
breaker.
See maintenance
instructions.
Contact a plumber.
Call the Miele Technical
Service Department.
34
Frequently asked questions
What if … Possible fault Fix
the "Intake / Drain"
indicator flashes, the
program stops?
Water intake error
Drain error, water left in
the wash cabinet
–
–
–
–
–
– Clean the drain pump
– Remove any kinks in
Turn off the dishwasher
before fixing the
problem.
Open the water valve.
Clean the water intake
filter, see maintenance
instructions.
Turn off the dishwasher
before fixing the
problem.
Clean the triple filter.
See maintenance
instructions.
and the non-return
valve, see maintenance
instructions.
the drain hose.
35
Frequently asked questions
What if … Possible fault Fix
the "End", "Start" and
"Top Solo" indicators
flash at the same time at
the end of a program?
there is a knocking
noise in the wash
cabinet?
there is a rattling noise? Items are not secure in
there is a knocking
noise in the water
pipes?
dishes are not dry,
glasses and cutlery are
spotted?
There may be a technical
fault.
The spray arm is hitting
an item in the basket.
the wash cabinet.
This may be caused by
the installation or the
diameter of pipe.
The rinse aid setting may
be too low, or the rinse aid
reservoir is empty.
Dishes were taken out too
soon.
–
–
A few seconds later:
–
–
–
If the indicators flash
again, there is a technical
problem.
–
Interrupt the program,
rearrange items blocking
the spray arms.
Interrupt the program and
rearrange loose pieces.
This has no effect on the
dishwasher. If in doubt
contact a plumber.
Increase the dosage or
refill the reservoir, see
"Before using for the first
time".
Leave dishes in longer.
Turn the program
selector to ‘Stop".
Turn off the dishwasher.
Turn the dishwasher on.
Select the desired
program.
Press the "Start" button.
Call the Miele Technical
Service Department.
36
Frequently asked questions
What if … Possible fault Fix
dishes are not clean? The dishes were not
loaded correctly.
The program was not
powerful enough.
Not enough detergent
was dispensed.
The spray arm jets are
clogged.
The triple filter is clogged
or not correctly seated.
The drain pump or the
non-return valve are
blocked.
tea or lipstick stains
have not been
completely removed?
white residue is visible
on cutlery and dishes,
clouding occurs on
glassware and film can
be wiped off?
there is a bluish sheen
on the surface of
glasses and film can be
wiped off?
The wash temperature of
the selected program was
too low.
Not enough detergent
was used.
Not enough rinse aid was
used.
The salt reservoir is
empty.
The salt reservoir cap was
not correctly screwed on.
The programmed setting
of the water softener is too
low.
The rinse aid dosage is
set too high.
See, "Loading the
dishwasher".
Select a more intensive
program see, "Program
guide".
Use more detergent, see,
"Adding detergent".
Clean the spray arm jets,
see, maintenance
instructions.
Clean and/or reseat the
filter, see, maintenance
instructions.
Clean the drain pump and
the non-return valve, see
maintenance instructions.
Select a program with a
higher temperature.
Use more detergent.
Increase the dosage,
see "Before using for the
first time".
Add reactivation salt,
see "Before using for the
first time".
Reseat it making sure it
screws back on correctly.
Adjust the setting of the
water softener , see
"Before using for the first
time".
Reduce the dosage, see
"Before using for the first
time".
37
Frequently asked questions
What if … Possible fault Fix
glasses are dull and
discolored and film
cannot be wiped off?
plastic items are
discolored?
there are rust stains on
cutlery?
detergent is left in the
dispenser at the end of a
program?
the detergent dispenser
lid can not be closed
properly?
water remains in the
wash cabinet at the end
of a program?
Glasses are not
dishwasher safe.
Natural dyes e. g. from
vegetables may be the
cause. Not enough
detergent was used to
break down natural dyes.
The salt reservoir cap was
not screwed on properly.
The affected items are not
corrosion resistant.
The dispenser was damp
when detergent was
added.
Detergent residue is
blocking the catch.
The triple filter in the wash
cabinet is clogged.
The drain pump or the
non-return valve may be
blocked.
The drain hose is kinked. Remove the kink.
There is no remedy.
Only wash dishwasher
safe glasses.
Use more detergent, see
"Adding detergent".
Discoloration is
permanent.
Reseat and screw the cap
on firmly.
There is no remedy.
Only wash dishwasher
safe cutlery.
Dry the dispenser before
adding detergent.
Remove the residue.
Clean the filter,
see maintenance
instructions.
Clean the drain pump and
the non-return valve,
see maintenance
instructions.
38
After sales service
In the event of a fault which you cannot
correct yourself please contact the
Miele Technical Service Department.
U 1-800-999-1360
techserv@mieleusa.com
V 1-800-565-6435
service@miele.ca
When contacting the Miele Technical
Service Department, please quote the
model and serial number of your
appliance.
These can be found on the data plate
on the upper inside edge of the
dishwasher door.
Program update function - PC
The Program Correction (PC) allows a
technician to update the dishwasher to
make use of new technology.
MieleCare
MieleCare, our Extended Service
Contract program; gives you the
assurance of knowing that your
appliance investment is covered by 5
years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
For example, if a detergent with good
wash results using only cold water
becomes available, the wash programs
can be modified to take advantage of
this.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
www.store.miele.com
39
Transport
To transport the dishwasher, e.g. when
moving to a new home, note the
following:
Empty the dishwasher.
–
Secure any loose parts, e.g. hoses,
–
cables, cutlery baskets.
Transport the dishwasher in the
–
upright position. If unavoidable it
may be transported on its back. Do
not transport it on its side or on the
door. Residual water in the machine
could leak and cause electrical
damage.
40
User Maintenance Instructions
To prevent accidents
and machine damage,
read these instructions
before installation or use.
Cleaning and Care
Triple filter system
The triple filter system in the base of the
wash cabinet prevents food from being
redeposited on dishes. It also protects
the circulation pump from damage
caused by foreign objects (e.g. broken
glass, bones).
The filter system should be cleaned
every 4 - 6 months or whenever a
foreign object is trapped.
Cleaning the filter in the wash
cabinet
Lift the filter out of the machine.
^
Remove any solid particles and rinse
under running water. Scrub with a
nylon brush if necessary.
^
Turn off the dishwasher before
cleaning.
^
Turn the handle counterclockwise to
release the triple filter system.
42
Cleaning and Care
To clean the underside of the filter, the
flap must be opened:
^ Pull back the yellow clip.
^ Rinse all parts under running water.
Scrub with a nylon brush if
necessary.
^ Close the flap so that the clip
engages.
^ Return the filter so it lies flat in the
base of the wash cabinet.
^ Lock the filter by turning the handle
clockwise.
,
The dishwasher must not be
used without the filter locked in
place.
43
Cleaning and Care
Cleaning the spray arms
Sometimes particles of food get stuck
in the spray arm jets. The spray arms
should be inspected and cleaned every
4 - 6 months.
Turn off the dishwasher before
^
cleaning.
Remove the spray arms as follows:
Remove the cutlery tray (if present).
^
Press the top spray arm upwards to
^
engage the inner ratchet and
unscrew the spray arm.
Remove the lower basket.
^
^ Pull the lower spray arm firmly
upwards to remove.
^
Lift up the middle spray arm, a, to
engage the ratchet and unscrew the
spray arm, b.
44
^
Use a pointed object such as a
toothpick to push food particles into
the spray arm jets.
^
Rinse thoroughly under running
water.
^
Return the spray arms and check
that they rotate freely.
Cleaning and Care
Cleaning the wash cabinet
Generally, the wash cabinet is self
cleaning if the correct amount of
dishwasher detergent is used.
The wash cabinet can be cleaned with
a dishwasher cleaner such as Dis
Cleaner available from your Miele
dealer or the Miele Technical Service
Department.
Cleaning the door and door
seal
Wipe the door seal with a damp cloth
^
to remove any food particles.
^ Food residue and spilled liquids
should be wiped from the sides of the
dishwasher door. These are outside
of the wash cabinet and are not
cleaned by water from the spray
arms.
Cleaning the exterior
Never use abrasive cleaners,
,
scouring pads, steel wool or caustic
(oven) cleaners on the dishwasher.
They will damage the surface.
Plastic
All plastic surfaces and the control
panel can be cleaned with warm water
and liquid dish soap applied with a soft
sponge.
Wipe dry using a soft cloth.
Do not use too much water when
,
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainless steel colored controls
These controls may become discolored
or damaged if not cleaned regularly.
Do not use a stainless steel cleaner on
the knobs or buttons.
Wood
Panels made from wood should be
cleaned using a soft damp cloth and an
appropriate wood cleaner.
45
Cleaning and Care
Cleaning the water inlet filter
A filter is incorporated in the intake
hose attached to the dishwasher’s shut
off valve. If your water is hard, or the
pipes contain sediment, this filter may
clog and prevent enough water from
entering the wash cabinet.
Installing an in-line water filter
If your water contains a large number
^
of insoluble substances, a filter
between the water valve and the
intake hose connection is
recommended. These filters can be
purchased from Miele.
The plastic valve housing on the
,
intake hose contains electrical
components and should not be
submerged, or run through water.
Cleaning the filter:
Disconnect the dishwasher from
^
electricity (unplug it or "trip" the
circuit breaker).
Turn off the water valve.
^
Unscrew the intake hose.
^
46
^
Carefully remove the rubber seal.
^
Remove the filter using needle nose
pliers and rinse under running water.
^
Return the filter and seal. Make sure
they are seated correctly.
^
Screw the intake hose back on the
water valve, checking that it is not
cross-threaded.
^
Slowly turn on the valve and test for
leaks.
Cleaning the drain pump and
non-return valve
If the dishwasher is not completely
drained at the end of a program, the
drain pump or non-return valve may be
blocked.
Turn off the dishwasher.
^
Remove the triple filter (see "Cleaning
^
the filter in the wash cabinet").
Use a jug or bowl to scoop water out
^
of the wash cabinet.
Cleaning and Care
^ Pull out the non-return valve and
rinse well under running water.
^
Tilt the locking clamp to the side.
The drain pump is beneath the
non-return valve (see arrow).
^
Before returning the non-return valve,
check that the drain pump is not
blocked. Spin the propeller several
times in both directions to check for
obstructions.
^
Carefully refit the non-return valve
and secure it with the locking clamp.
^
Refit and lock the filter in place.
47
Alterations rights reserved / 3105
M.-Nr. 06 088 620 / 01
Loading...
