G4510
Operating Instructions
Dishwasher
G 4510
To prevent accidents
and appliance damage
read these instructions
before
installation or use.
en - US, CA
M.-Nr. 09 510 261
Contents
IMPORTANT SAFETY INSTRUCTIONS.......4
Guide to the dishwasher ............................................7
Control panel ......................................................8
Caring for the environment..........................................9
Before using for the first time.......................................10
To open the door ..................................................10
To close the door ..................................................10
Child safety lock ..................................................10
Water softener ....................................................11
Filling the salt container .............................................13
Refill salt message.................................................14
Rinse aid ........................................................15
Adding rinse aid ..................................................15
Adjusting the dosage...............................................16
Loading the dishwasher ...........................................17
Items not recommended for dishwashing ...............................18

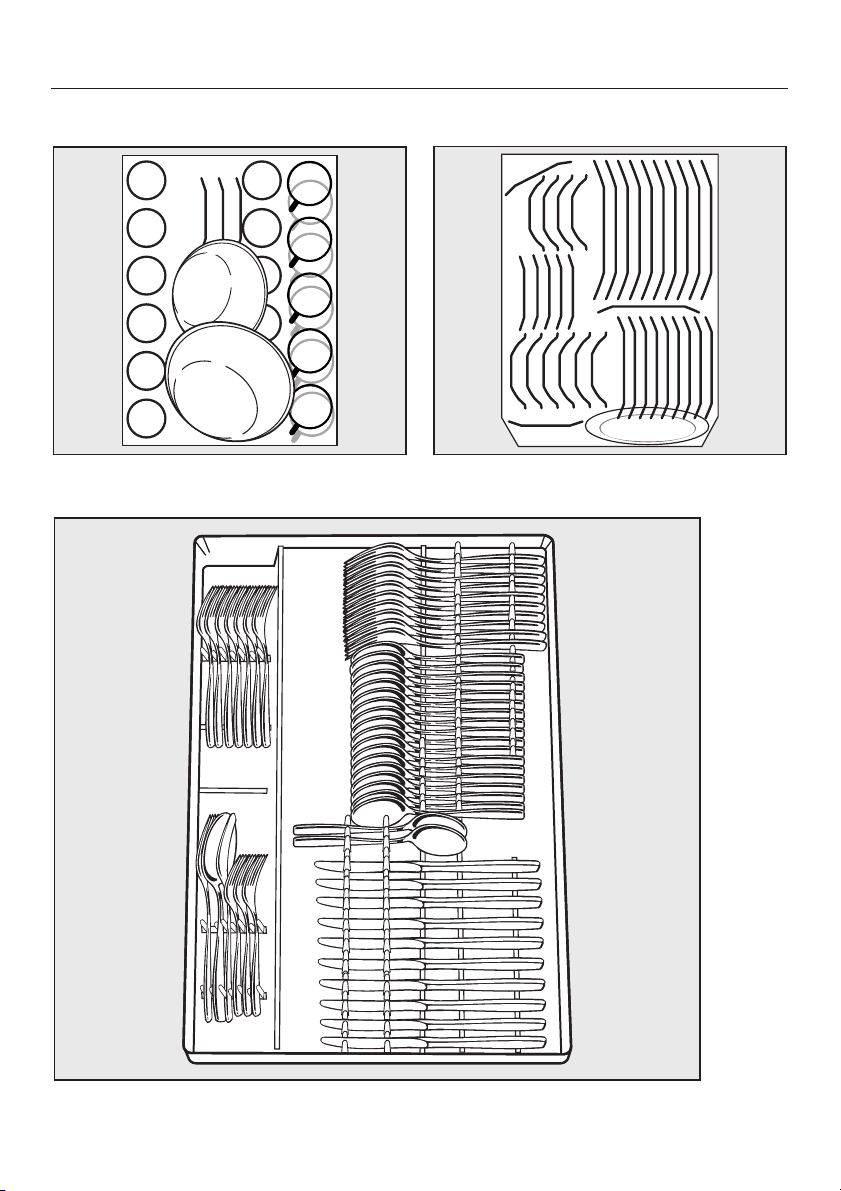

Typical load for 10 place settings .....................................19
Upper basket .....................................................20

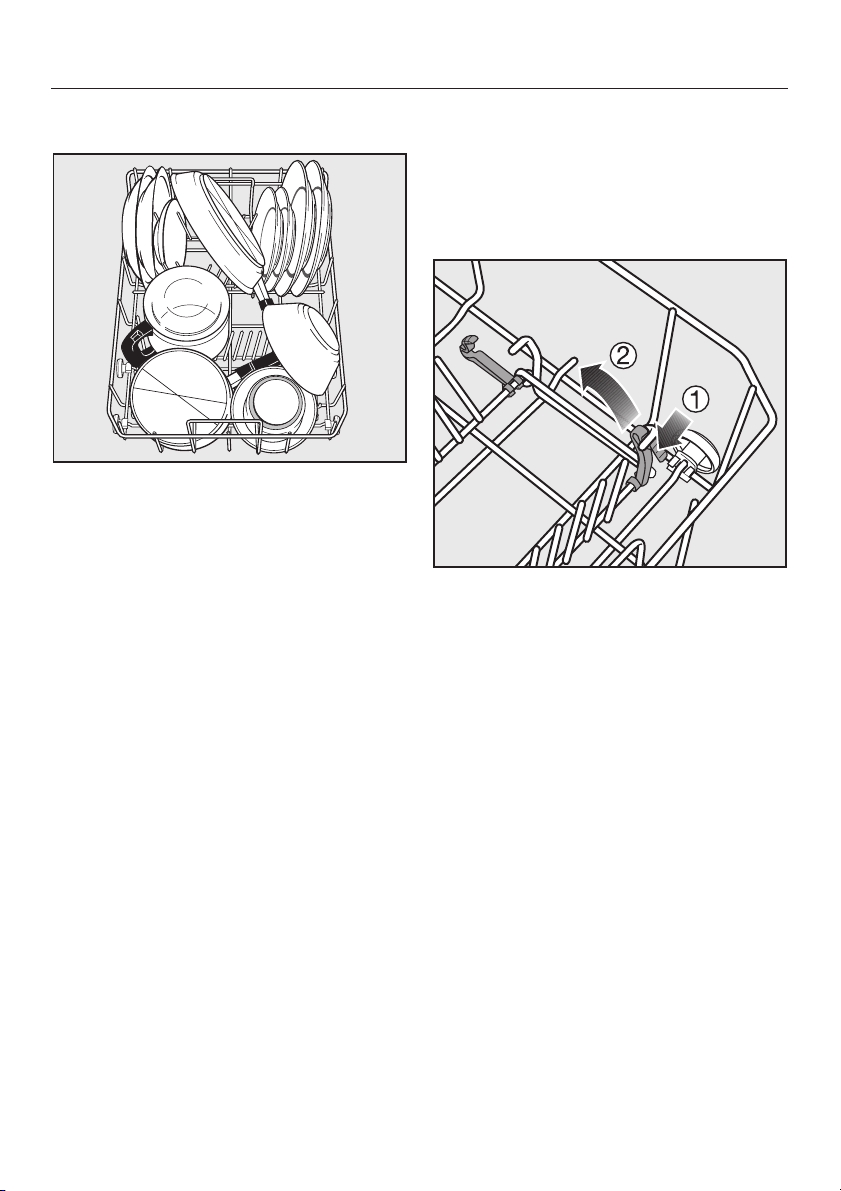

Adjusting the upper basket ..........................................21
Lower basket .....................................................22

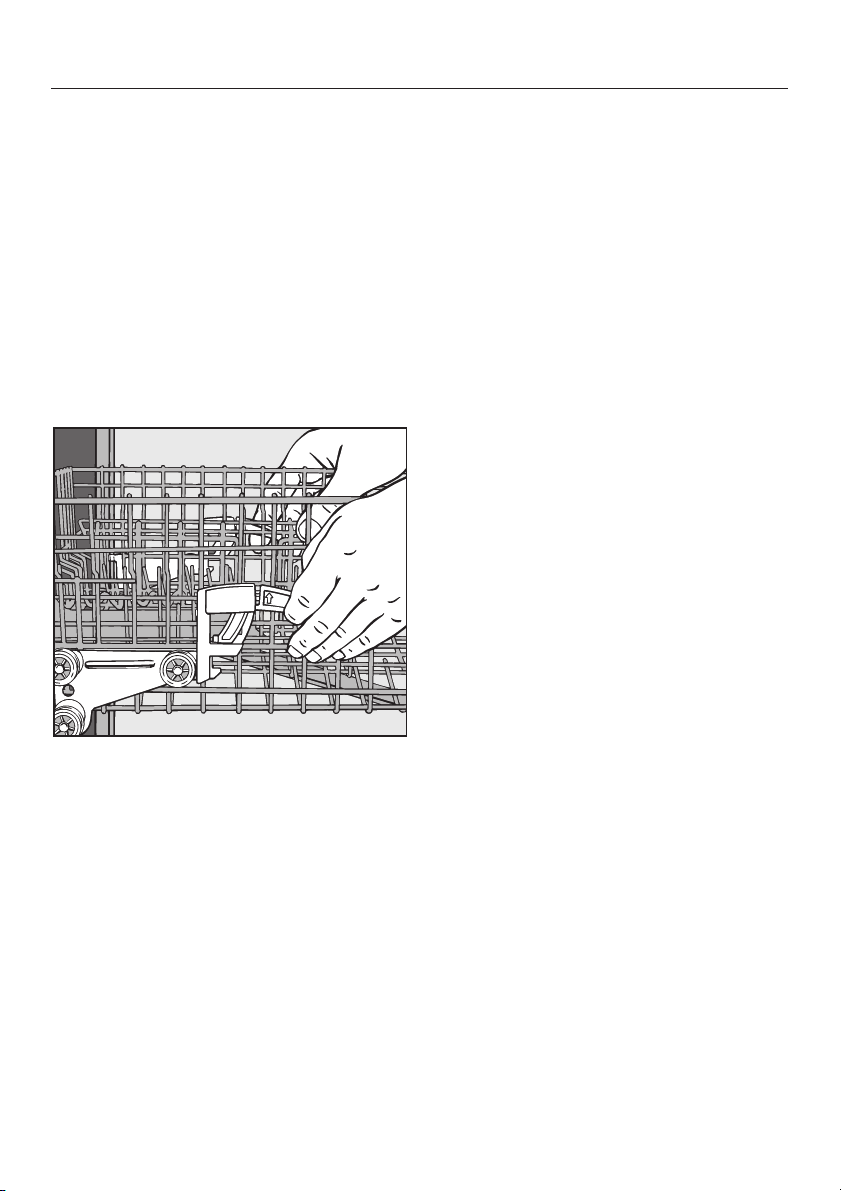

Foldable spikes.................................................22

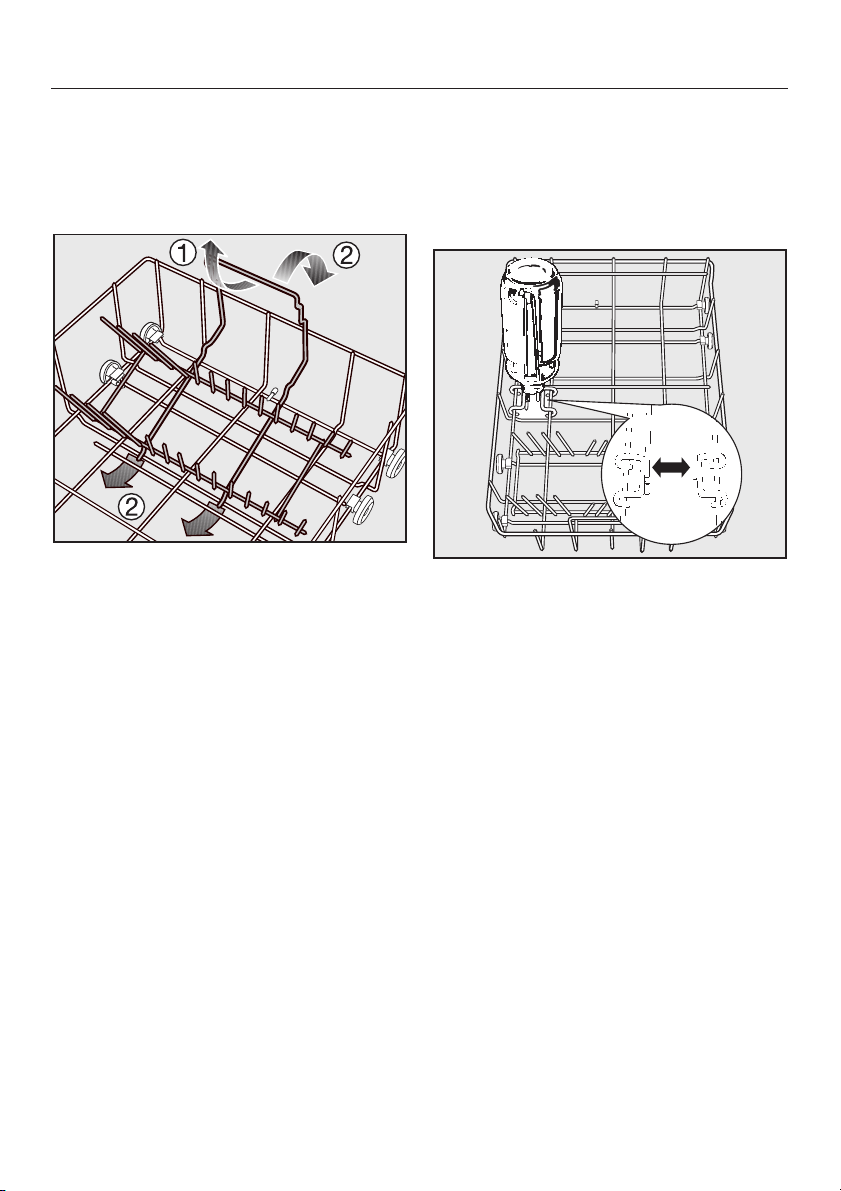

Bottle holder (depending on the model)..............................23

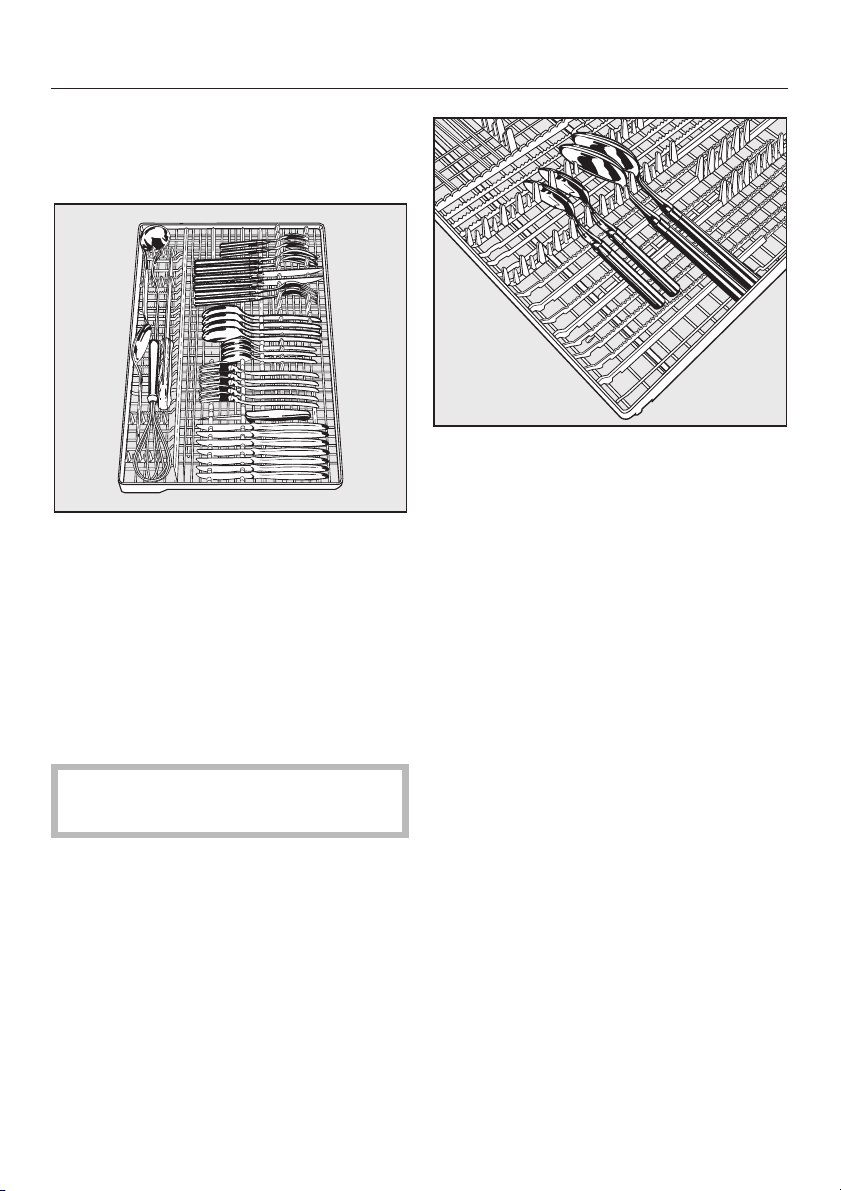

Cutlery tray.......................................................24
Optional accessories..............................................25
Use ............................................................26
Detergent ........................................................26
Adding detergent..................................................27
Turning on .......................................................28
Selecting a program ...............................................28
Starting a program.................................................28
Program sequence display ..........................................28
Program Guide ...................................................29
Standby .........................................................30
At the end of a program.............................................30
Preparing your appliance for an extended vacation .......................30
2
Contents
Interrupting a program..............................................31
Changing a program ...............................................31
Additional options ................................................32
Factory default ....................................................32
Frequently asked questions ........................................33
Technical faults ...................................................33
Problems water Intake / Drain ........................................34
General problems with the dishwasher .................................35
Sounds..........................................................36
Poor cleaning results ...............................................37

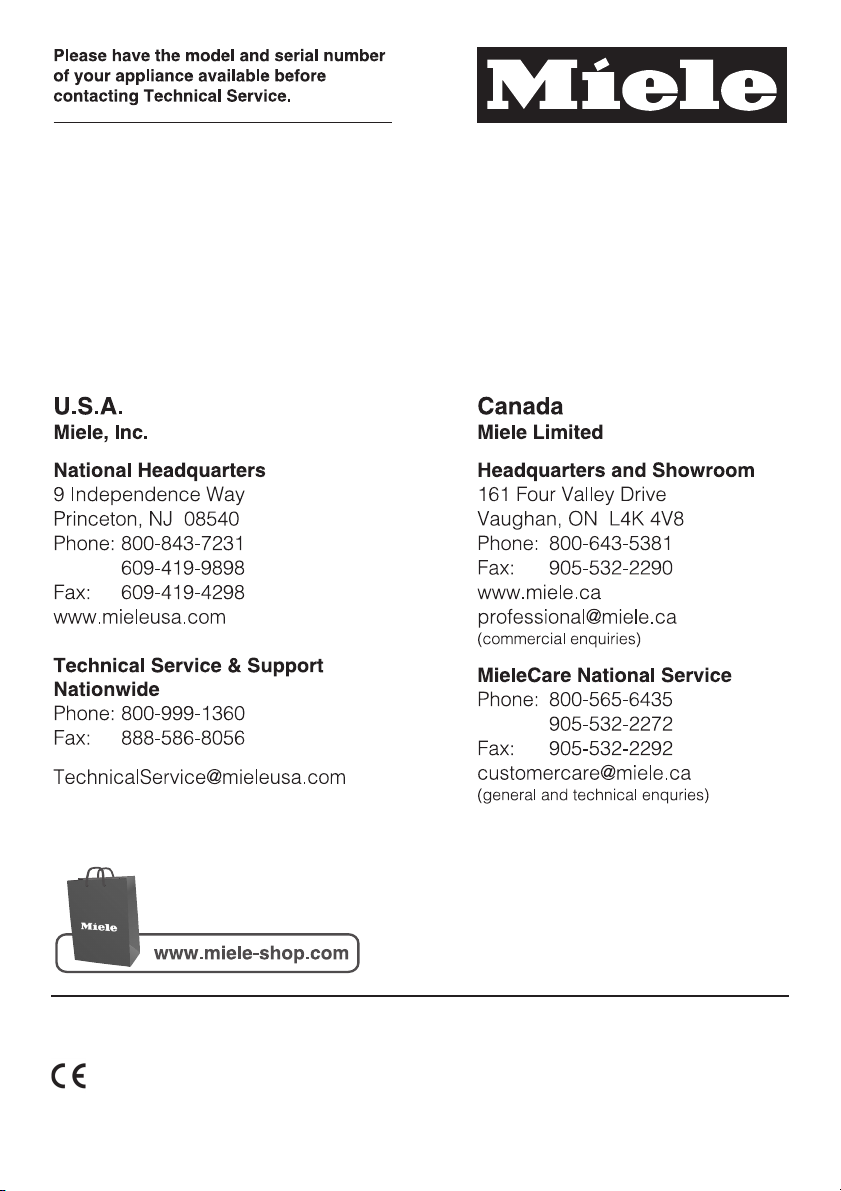

After sales service ................................................40
User Maintenance Instructions......................................41
Cleaning and Care ................................................42

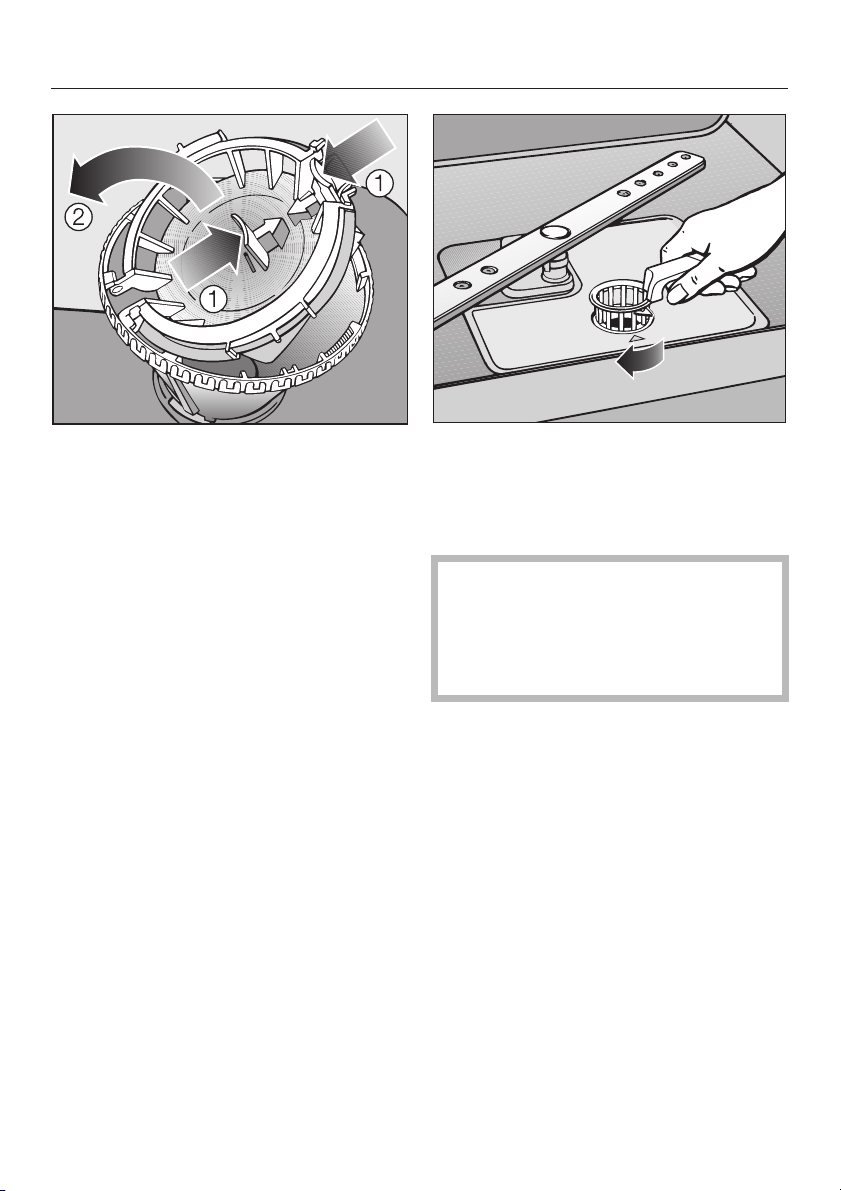

Triple filter system .................................................43

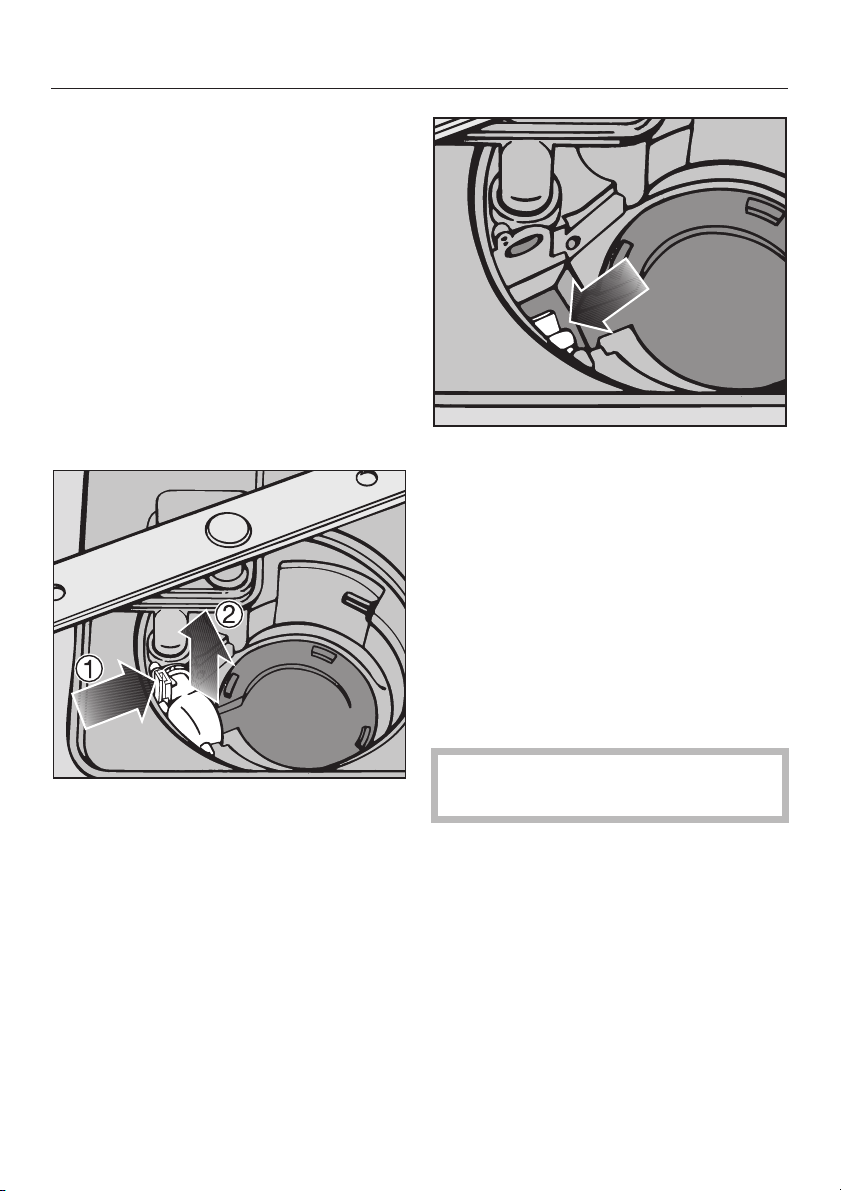

Cleaning the drain pump and non-return valve...........................47

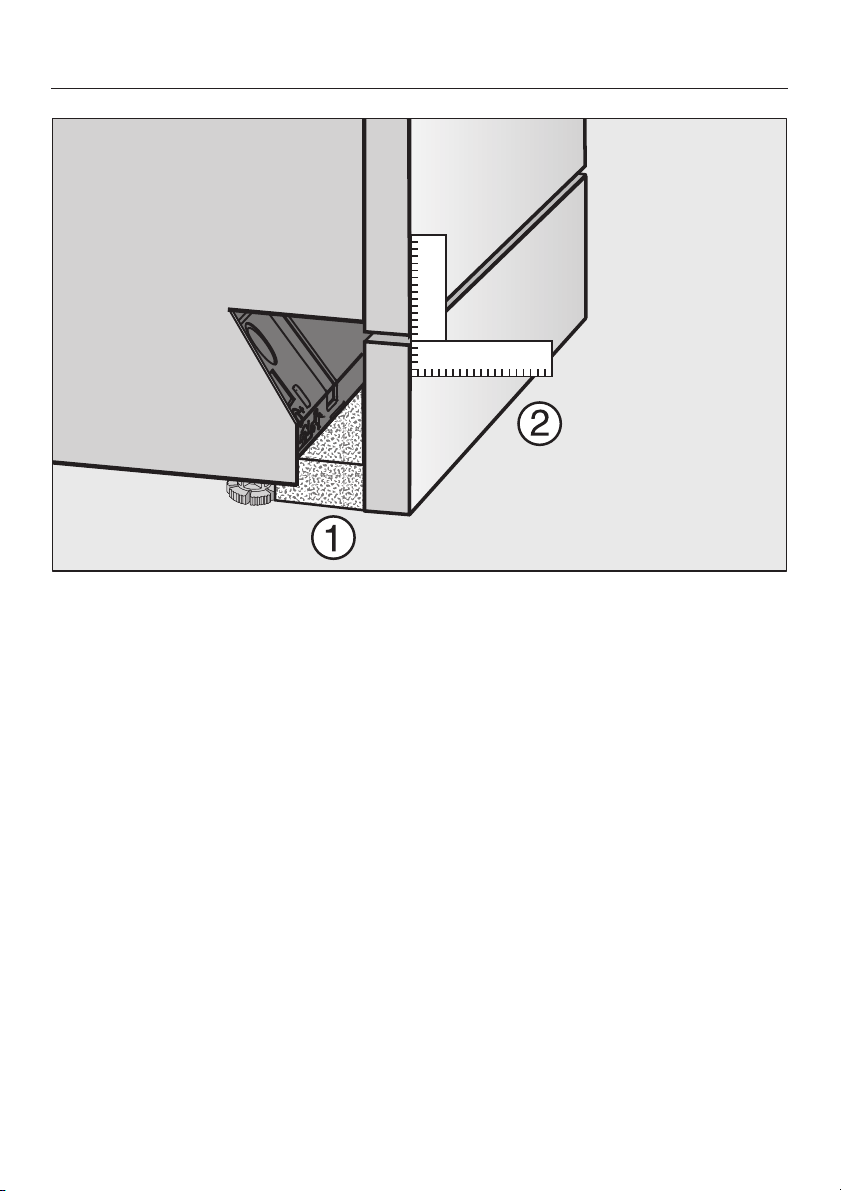

Installation instructions ...........................................49
Electrical connection..............................................50
Plumbing........................................................51
Waterproof system.................................................51
Connection to the water supply .......................................51
Drainage ........................................................53
Noise measurement...............................................54
General requirements for measuring noise ..............................54
Installation requirements for measuring noise............................54
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read the operating instructions and
installation diagram carefully before
installation or use of the dishwasher
to prevent injury and machine
damage.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
The dishwasher is not designed for
~
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as, shops, offices and showrooms
or guest houses.
The dishwasher is not intended for
~
outdoor use.
It must only be used as a domestic
~
appliance as specified in these
operating instructions, for cleaning
domestic cookware and cutlery. Any
other usage is not supported by the
manufacturer and could be dangerous.
Persons who lack physical, sensory
~
or mental abilities, or experience with
the appliance should not use the
dishwasher without supervision or
instruction by a responsible person.
Electrical Safety
Before installation, make sure that
~
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Before installation or service,
~
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
Do not use an extension cord to
~
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Be certain your appliance is
~
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
If the supplied power cord is
~
damaged it must only be replaced by a
Miele Service technician with a genuine
Miele power cord.
The outlet must be accessible at all
~
times after installation to disconnect the
dishwasher.
4
IMPORTANT SAFETY INSTRUCTIONS
Installation
The dishwasher must be installed
~
and connected in accordance with the
installation instructions.
Installation and repair work should
~
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
Do not install or use a damaged
~
dishwasher. A damaged appliance is
dangerous. Unplug the machine and
contact Miele Technical Service
Department.
Ensure that any plastic wrappings,
~
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
This appliance must not be used in
~
a non-stationary location (e.g. on a
boat).
, WARNING - Fire hazard!
~
Do not cover or crush the plug of the
appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug and cord.
Installing the dishwasher in a tight
space may crimp the power cord or put
pressure on the plug which could
cause overheating.
This dishwasher should only be
~
installed under a continuous counter
top secured to adjacent cabinetry.
Do not install this dishwasher
~
beneath a cooking surface, oven or any
appliance that radiates heat.
High temperatures from these units
may damage the dishwasher.
A toe-kick must be used with the
~
dishwasher. If the supplied toe-kick is
not used, a cabinet matching toe-kick
must be installed.
Do not install the dishwasher in an
~
area where it will be exposed to
temperatures below freezing.

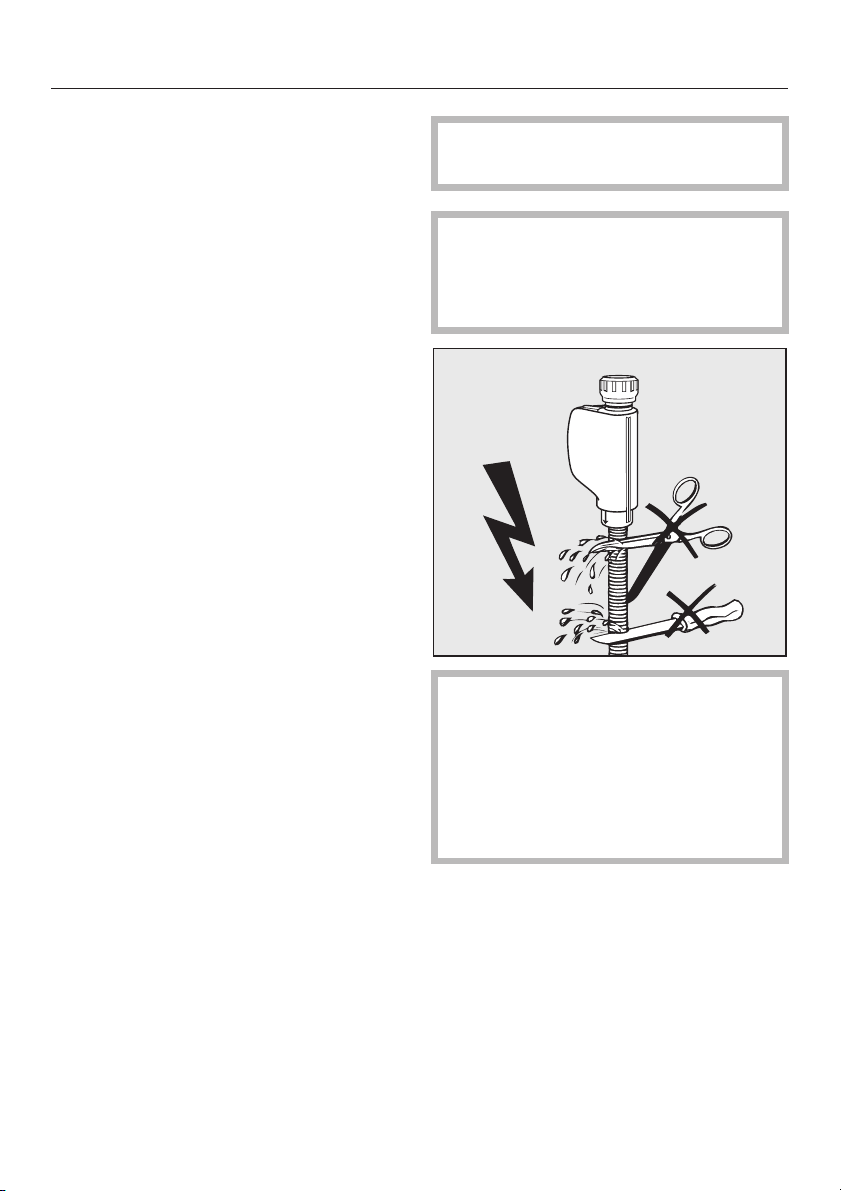

Do not cut the intake hose or
~
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
Only power up the dishwasher when
~
all installation and plumbing work is
complete.
Do not place hose or power cord
~
next to a heat source e.g. hot water
pipes.
Do not expose hose or power cord to
corrosive substances.
Damage of hose or power cord could
cause electrical shock or water
damage!
5
IMPORTANT SAFETY INSTRUCTIONS
Use
To reduce the risk of injury, do not
~
allow children to play in, on or near the
dishwasher. It is possible for small
fingers may be pinched in the door.
Only use the dishwasher if all panels
~
are properly in place.
Do not tamper with the controls.
~
Do not sit or stand on the door or
~
baskets of the dishwasher. Close the
door when not in use.
Under certain conditions, hydrogen
~
gas may be produced in a hot water
system that has not been used for two
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let water
flow from each for several minutes
before using the dishwasher. This will
release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
Be sure that all items placed in the
~
dishwasher are "dishwasher safe". For
items not labeled, check the
manufacturer’s recommendations.
When loading tableware, place
~
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
Only use detergents and rinse aids
~
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
Do not inhale or swallow detergents.
~
Dishwasher detergents contain irritant
and corrosive ingredients. They can
cause burning in the mouth and throat if
swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has
been swallowed or inhaled.
Do not drink water from the
~
dishwasher! Harmful residues could be
present.
Do not fill the rinse aid reservoir or
~
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
Dishes can be very hot at the end of
~
a program. Allow the dishes to cool
until they are cool enough to handle
before unloading them.
The water supply must be turned off
~
when the appliance is not used for a
longer period of time (e.g. during
vacations).
Disposal of an appliance
If the appliance is removed from its
~
installation site and will not be used,
remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
6
Guide to the dishwasher
a Upper spray arm (not visible)
b Cutlery tray
c Upper basket
d Middle spray arm
e Air inlet for drying
(depending on model)
f Lower spray arm
g Triple filter system
h Data plate
i Child Safety Lock in the door handle
(not visible)
j Rinse aid reservoir
k Dual compartment detergent
dispenser
l Salt container
7
Guide to the dishwasher
Control panel
a Program selection
b Program sequence display
c On/Off K button
d Check / Refill indicators
e Start / Stop button with indicator light
f Program selector button
8
Caring for the environment
Energy saving washing
This dishwasher is economical in the
use of water and electricity. For best
results follow these tips:
For lowest energy consumption you
^
may connect the dishwasher to a
cold water source.
For fastest possible wash times, with
^
slightly higher energy consumption,
connect the dishwasher to a hot
water source.
Make full use of the baskets without
^
overloading for the most economical
washing.
^ Use the correct amount of detergent
and rinse aid. Detergent dosage is
dependent upon the amount of
soiling and type of dishware being
washed. See the "Program Guide" for
more information.
^ When using powder or liquid
detergent, reduce the amount to
of the normal amount when washing
a small load.
2
/
3
Disposal of the packing
material
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet, cut
off its power cord and remove any
doors to prevent hazards.
^
Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
9
Before using for the first time
To open the door
^ Reach under the handle and pull the
door open.
If the door is opened during operation
the dishwasher will stop running. Once
the door is closed the program will
restart.
To close the door
Child safety lock
Te child Safety Lock is designed to
prevent children from opening the
dishwasher.
^ To lock the door, push the slider
below the door grip to the right.
^ To unlock the door, push the slider to
the left.
^ Push the baskets in.
^
Lift the door and push until it clicks
into place.
10
Before using for the first time
Water softener
To achieve good cleaning results, the
dishwasher needs soft water (water that
is low in minerals). Hard water results in
calcium deposits on dishware and in
the dishwasher.
If your tap water hardness is above 4 °d
(4 gr/gal) the water should be softened.
The built-in water softener is designed
for this purpose. The water softener is
suitable for a water hardness up to
70 °d (73 gr/gal).
The water softener requires
–
dishwasher salt.
If using "Tab" products which include
salt, you should still add salt to the
machine to achieve optimal cleaning
results.
– The dishwasher must be correctly
programmed to match the hardness
of your water.
– Your local water authority will be able
to advise you of the exact water
hardness level in your area.
In areas where the water hardness
fluctuates (e.g. 37-50 °d [39-52 gr/gal])
always program the machine to the
higher value (in this example 50 °d
[52 gr/gal]).
If there is a fault, it will help the service
technician to know the hardness of your
local water supply.
Please note your water hardness
^
below:
°d (gr/gal)
The water hardness was programmed
at 1-4 °d (1-4 gr/gal) by factory default.
If the hardness of your local supply
is constantly lower than 4 °d (4 gr/gal),
you do not need to add water
softener salt. However the water
hardness level must still be
programmed.
11
Before using for the first time
Programming the water softener
To exit the programming mode at
any time turn the dishwasher off with
the K button.
Press the K button to turn the
^
dishwasher off.
Press and hold the Start / Stop button
^
and turn the dishwasher on
simultaneously using the K button.
Keep the Start / Stop button pressed
for at least four seconds until the
"Start / Stop" indicator light comes on.
If it does not come on, start over.
^ Now press the program button twice.
The lower most program indicator light
flashes twice at a short interval and the
"Cleaning" indicator light flashes once
at a short interval (factory default).
The set value is indicated by the
flashing rhythm of the "Cleaning"
indicator light (see Table).
°d gr/gal Flashing rhythm
"Cleaning"
1 - 4 1 - 4 Once short
5 - 7 5 - 7 2 short
8 - 11 8 - 11 3 times short
12 - 15 12 - 16 4 times short
16 - 20 17 - 21 5 times short
21 - 25 22 - 26 6 times short
26 - 30 27 - 31 7 times short
31 - 36 32 - 38 8 times short
37 - 45 39 - 47 9 times short
46 - 70 48 - 73 Once long
^ Use the Start / Stop button to select
the flashing rhythm that corresponds
to your water hardness.
With each press of the button the
value will raise one level. Once the
highest value is reached the setting
will start again from the beginning.
12
Example:
Water hardness is 22 °d (23 gr/gal).
The "Cleaning" progress indicator
light flashes 6 times at a short
interval.
^
Press the K button to turn the
dishwasher off.
Before using for the first time
Every dishwasher is tested before
leaving the factory. Any water
remaining in the machine is from the
final factory test and does not
indicate that the machine has been
used.
Filling the salt container
Inadvertently filling the salt
,
container with dishwashing
detergent (including liquid
detergent) will damage the water
softener.
Only use water softener salt
,
specially formulated for
dishwashers. Other salts may
contain insoluble additives which
can impair the water softener.
If using "Tab" products which
include salt, still add salt to the
machine to achieve optimal cleaning
results and ensure long-term
functioning of the water softener.
^
Remove the lower basket from the
wash cabinet and unscrew the salt
container lid.
When opening the salt container,
water will run out. Open the
container only to refill salt.
Important: The salt container must
be filled with 1 quart (1 l) of water
before adding salt for the first time
so the salt can dissolve
properly. Water does not have to be
added with subsequent refills.
^ Place the provided funnel over the
salt container and carefully fill it with
salt. The salt container holds approx.
2.2 lbs (1 kg) of salt, depending on
the type of salt.
^
Clean any excess salt from the
threads of the container opening.
Screw the lid on firmly.
^
Immediately after each refill, run the "
Express" program without a load.
This will remove any traces of salt
from inside the wash cabinet.
13
Before using for the first time
Refill salt message
When the "Salt" indicator light comes
^
on, refill the salt after the program
has finished.
After the container has been filled, the
"Salt" indicator light can remain on for a
short time. It will go out once the
reactivation process is complete.
The "Salt" indicator light is turned off if
you have programmed the dishwasher
to a water hardness below 4 °d
(4 gr/gal)).
Immediately after each refill, run
,
the "Express" program without a
load. This will remove any traces of
salt from inside the wash cabinet.
14
Rinse aid
Rinse aid is needed to prevent spotting
on dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
Filling the rinse aid reservoir with
,
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "Tab" detergents rinse
aid is not needed.
Before using for the first time
Pour liquid rinse aid into the reservoir
^
until it its visible on the surface of the
screen.

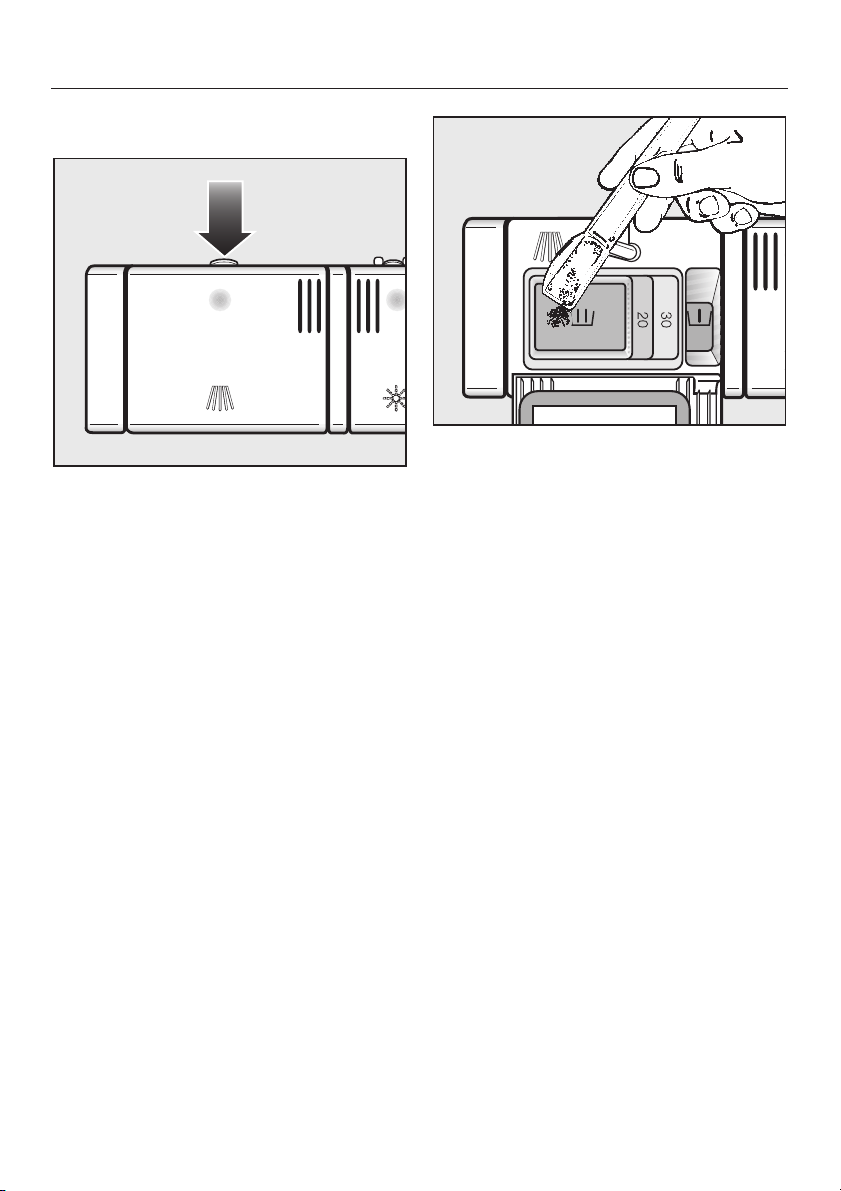

Adding rinse aid
^
Press the button in the direction of
the arrow until the flap springs open.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^ Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^ Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
15
Before using for the first time
Adjusting the dosage
In order to obtain an optimal cleaning
result you can adjust the dosing
quantity of the rinse aid.
The dosage selector is preset to 3. This
dispenses approximately 3 ml of rinse
aid per program. It can be adjusted
from0to6.
Use a higher setting if spots appear
–
on dry glassware.
Use a lower setting if streaking
–
appears on dishes or glasses.
^ Turn the dishwasher off "s".
^ Press the "Start / Stop" button and at
the same time turn the dishwasher on
s. Hold the "Start / Stop" button until
the "Start / Stop" indicator comes on.
If it does not come on, start over.
^ Press the program button three
times.
The lowest program indicator flashes
three times in intervals.
The amount set can be recognized by
the flashing rhythm of the "Cleaning"
indicator (see table).
Rinse aid
amount in ml
0–
1 Once
2 Twice
3 Three times
4 Four times
5 Five times
6 Six times
^ Select the desired setting with the
"Start / Stop" button. Every touch of
the button increases the level.
The programmed dosage is saved.
^ Turn the dishwasher off "s".
Flashing
rhythm
The "Cleaning" indicator flashes three
times in intervals.
A rinse aid amount of 3 ml is set by
default.
16
Do not wash items soiled with
,
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
Scrape food from dishes before
^
placing them in the dishwasher,
rinsing is not necessary.
^ Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.

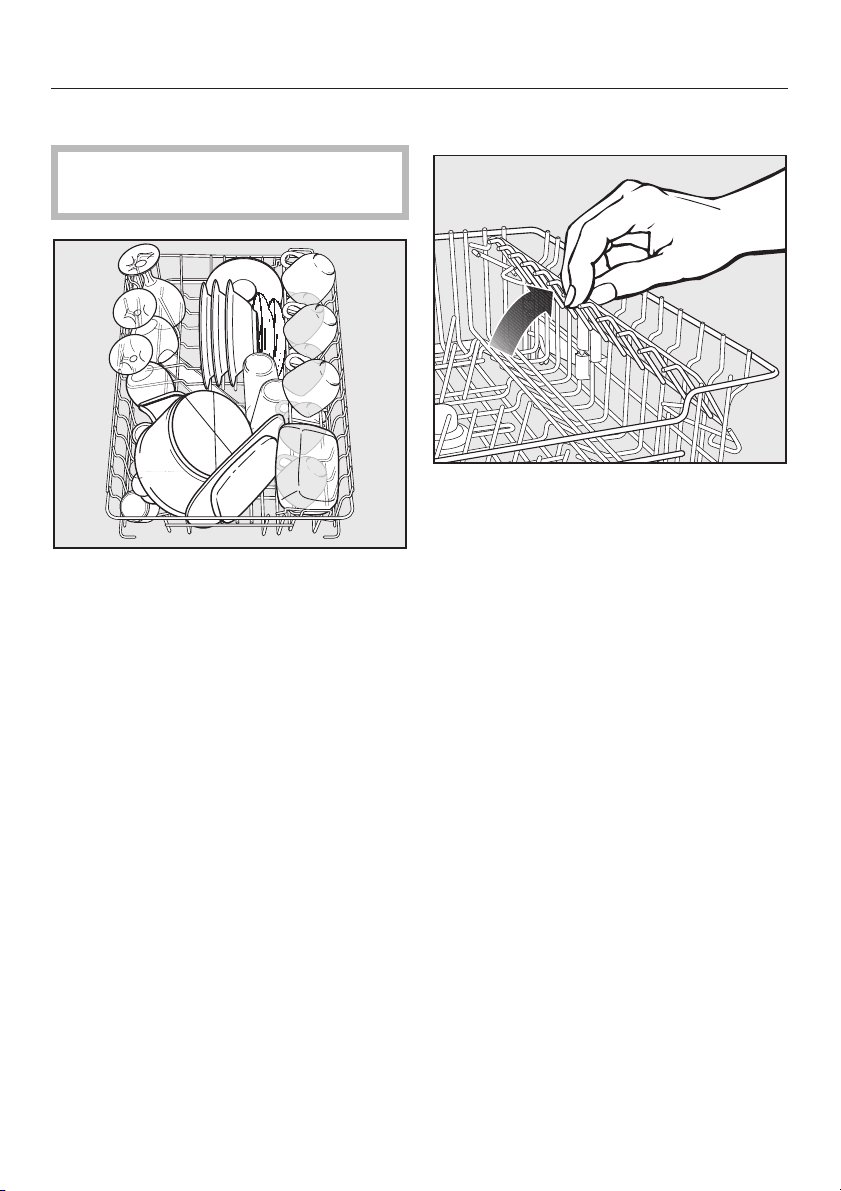

^ All items can be placed anywhere in
the baskets.
^ Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
Loading the dishwasher
The spray arms must not be blocked
^
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
Place very small items in the cutlery
^
tray or basket so they do not fall to
the bottom of the wash cabinet.
Food residue and spilled liquids
^
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
^
Make sure that all items are securely
positioned.
^
Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^
To ensure good water coverage, tall,
narrow and hollow items, i.e. vases
or champagne glasses, should be
placed in the center of the basket
rather than in the corners.
^
Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
17
Loading...
