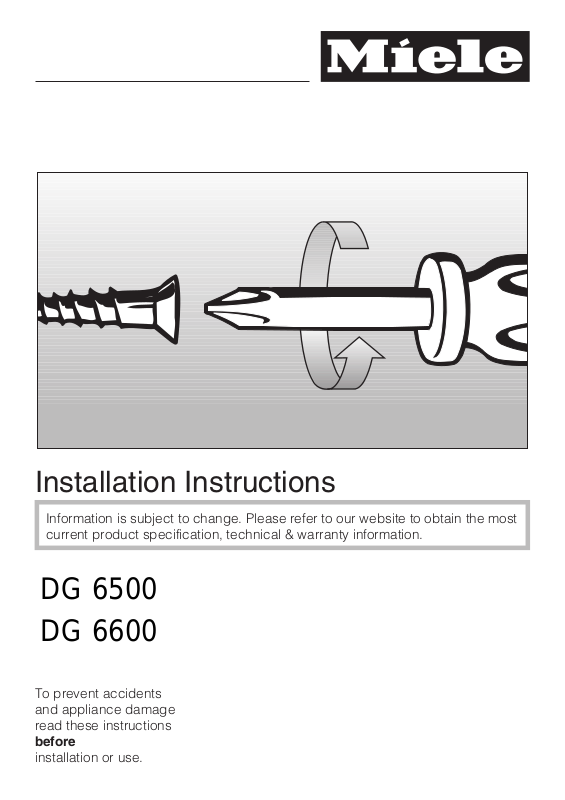

Installation Instructions
DG 6500
DG 6600
Information is subject to change. Please refer to our website to obtain the most
current product specification, technical & warranty information.
To prevent accidents
and appliance damage
read these instructions
before
installation or use.
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
Note to the installer:
WARNING - Read all instructions
,
before installation or use of the
steam oven to prevent injury and
machine damage.
Please leave these instructions with the
consumer of the appliance for the local
building inspectors use.
Before installation, make sure that
~
the voltage and frequency on the
appliance's data plate correspond with
the household electrical supply.
These ratings must match to prevent
damaging the steam oven. If in doubt,
consult a qualified electrician.
Installation, repair and maintenance
~
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Power bars or extension cords are
~
not safe (risk of fire). Do not use them to
connect the steam oven to the electrical
power supply.
The electrical outlet should be easily
~
accessible after the appliance has
been installed.
The appliance must be positioned
~
so that you can see the contents of a
cooking pan placed on the top level.
Otherwise you may risk scalding or
burning yourself with hot water and
food when taking pans out of the oven.
SAVE THESE
INSTRUCTIONS
96
Appliance and installation dimensions
Installation in a tall cabinet
* Appliances with glass front
** Appliances with metal front
a Built-in steam oven
b Installation niche
c Power cord - Connection on the appliance
d Recommended location of the electrical outlet
e Power cord
97
Appliance and installation dimensions
Installation under a countertop
If the appliance is to be installed under a cooktop, observe the instructions for
installation of the cooktop as well as its installation height.
* Appliances with glass front
** Appliances with metal front
a Built-in steam oven
b Installation niche
c Power cord - Connection on the appliance
d Recommended location of the electrical outlet
e Power cord
98
Appliance and installation dimensions
Installation in combination with an oven
* Appliances with glass front
** Appliances with metal front
a Built-in steam oven
b Installation niche
c Power cord - Connection on the appliance
d Recommended location of the electrical outlet
e Power cord
f Cut-out for ventilation when combined with a self-cleaning oven
g Oven
99
