Operating and installation instructions
Rangehood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 257 210
Contents
Warning and Safety instructions.......................................................................... 3
Caring for the environment ................................................................................ 12
Description of the functions............................................................................... 13

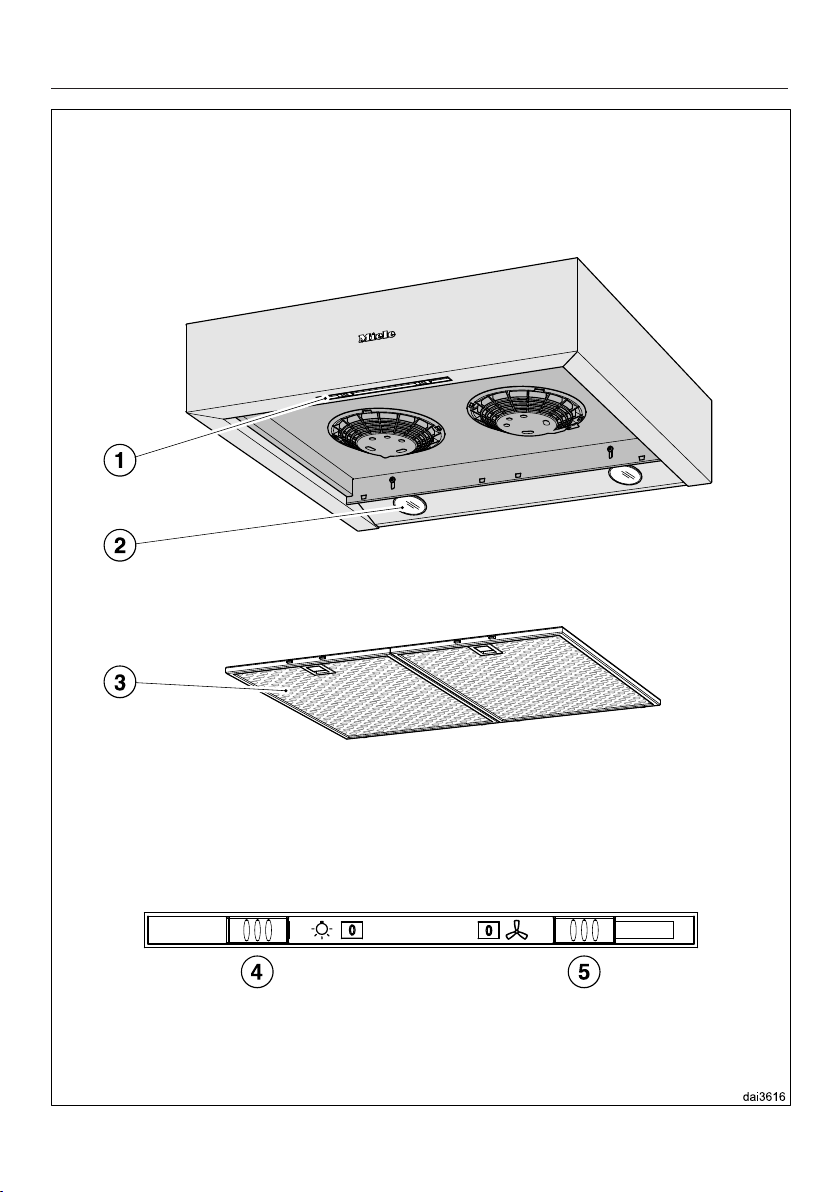

Guide to the appliance........................................................................................ 14
Operation.............................................................................................................. 16
Switching the fan on.............................................................................................. 16
Switching the fan off ............................................................................................. 16
Switching the cooktop lighting on/off ................................................................... 16
Energy saving tips ............................................................................................... 17
Cleaning and care ............................................................................................... 18
Housing ................................................................................................................. 18
Grease filters ......................................................................................................... 19
Changing a lamp ................................................................................................... 21
After sales service and warranty .......................................................................22
Position of the data plate ...................................................................................... 22
Installation............................................................................................................ 23
Before installation.................................................................................................. 23
Appliance dimensions ........................................................................................... 24
Safety distance (S) ................................................................................................ 25
Installation recommendations ............................................................................... 26
Protective foil......................................................................................................... 26
Wall installation...................................................................................................... 26
Mains connection .................................................................................................. 28
Electrical connection ..........................................................................................29
Connection for air extraction ............................................................................. 30
Technical data...................................................................................................... 32
2
Warning and Safety instructions
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please
read these instructions carefully before using it for the first time.
They contain important notes on the safety, installation, use and
maintenance of the appliance. Miele cannot be held liable for noncompliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
This rangehood is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
The appliance is not suitable for outdoor use.
It must only be used to extract vapours and remove odours from
cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
3
Warning and Safety instructions
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Children should be supervised near the appliance. Ensure that
they do not play with the appliance.
Danger of suffocation! Children may be able to wrap themselves in
packing material or pull it over their heads with the risk of
suffocation. Keep children away from any packing material.
4
Warning and Safety instructions
Technical safety
Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
Reliable and safe operation of this rangehood can only be assured
if it has been connected to the mains electricity supply.
Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency)
matches the mains electricity supply. This data must correspond in
order to avoid the risk of damage to the appliance. Consult a
qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. Extension leads are a fire
hazard and do not guarantee the required safety of the appliance.
5
Warning and Safety instructions
For safety reasons, this appliance may only be used after it has
been built in.
This rangehood must not be installed and operated in mobile
installations (e.g. on a ship).
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
If the mains connection cable is damaged, it must only be
replaced by a Miele authorised service technician or suitably
qualified electrician in order to avoid a hazard.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
6
Warning and Safety instructions
Using at the same time as other heating appliances that depend on the air from the room
Warning - danger of toxic fumes!
Great care should be taken when using the rangehood at the same
time and in the same room or area of the house as another heating
appliance which depends on the air in the room.
Such appliances include gas, oil, wood or coal-fired boilers and
heaters, continuous flow or other water heaters, gas cooktops, or
ovens which draw air in from the room and duct exhaust gases out
through a chimney or extraction ducting.
When in use, the rangehood draws air in from the room in which it
is installed and from neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating
appliance will be starved of oxygen, impairing combustion.
Harmful gases could be drawn out of the chimney or extraction
ducting back into the room, with potentially fatal consequences.
7
Warning and Safety instructions
In order to ensure safe operation, and to prevent gases given off
by the heating appliances from being drawn back into the room
when the rangehood and the heater are in operation
simultaneously, an underpressure in the room of 0.04 mbar (4 pa)
is the maximum permissible.
Ventilation can be maintained by sufficiently wide air inlets which
cannot be blocked, in windows, doors or outside wall vents, or by
other technical measures, such as ensuring that the rangehood
can only be switched on when the heating appliance is switched
off or vice versa. A ventilation brick alone is not generally sufficient
to ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas a qualified gas fitter (registered with an official gas safety body
in accordance with national safety regulations), must be sought.
8
Warning and Safety instructions
Correct use
Never use an open flame beneath the rangehood. To avoid the
danger of fire, do not flambé or grill over an open flame.
When switched on, the rangehood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The rangehood can become damaged when exposed to excessive
heat.
– When using the rangehood over a gas cooktop, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the rangehood on when a cooking zone is in use,
otherwise condensation may collect in the rangehood, which could
cause corrosion.
When cooking with oil or fat, chip pans and deep fat fryers etc.,
do not leave the pans unattended. Never leave an open grill
unattended when grilling. Overheated oil and fat can ignite and could
set the rangehood on fire.
9
Warning and Safety instructions
Do not use the rangehood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The rangehood can get very hot during cooking due to heat rising
from the cooktop.
Do not touch the housing or the grease filters until the rangehood
has cooled down.
Correct installation
Refer to the cooktop manufacturer's instructions as to whether a
rangehood may be operated above the cooktop.
Safety regulations prohibit the fitting of a rangehood over solid
fuel stoves.
Insufficient distance between the cooktop and the rangehood can
result in damage to the rangehood.
The minimum safety distances between the top of the cooktop and
the bottom of the rangehood given in the "Installation" section must
be maintained, unless the cooktop manufacturer states that a greater
distance is required.
If more than one cooking appliance is fitted beneath the rangehood,
and they have different minimum safety distances to the rangehood,
select the greater distance.
The distances given in "Installation" must be observed when
fitting the rangehood.
10
Warning and Safety instructions
All ducting, pipework and fittings must be of non-flammable
material. These can be obtained from builders' merchants.
The appliance must not be connected to a chimney or vent flue
which is in current use for exhausting fumes from appliances burning
gas or other fuels. Neither should it be connected to ducting which
ventilates rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the rangehood is not cleaned as described
in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the machine warranty.
Accessories
Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
11
Caring for the environment
Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of
your old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
12
Depending on the model of the
rangehood, the following options are
available:
Air extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Description of the functions
13
Guide to the appliance
14
a
Controls
b
Cooktop lighting
c
Grease filters
d
Sliding switch for the cooktop lighting
e
Sliding switch for the fan
Guide to the appliance
15
Operation
Switching the fan on
For light to heavy cooking vapours and
odours, select from power settings 1 to
3.
When frying or cooking food with strong
vapours or a strong aroma, select the
Intensive setting IS.
Switch the fan on with the fan switch
and select the power level you
want.
Switching the fan off
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering vapours and
odours in the air.
To switch off, move the fan switch to
0.
Switching the cooktop lighting on/off
The cooktop lighting can be switched
on and off independently of the fan.
Use the lighting switch to switch
the cooktop lighting on (1) or off (0).
16
This rangehood operates very efficiently
and economically. The following will
help you to save even more energy
when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the rangehood
cannot operate efficiently and this
causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
rangehood power level and therefore
benefit from reduced energy
consumption.
– Check the power level selected on
the rangehood. A lower power level is
generally sufficient for the majority of
cooking. Only use the intensive
setting when necessary.
Energy saving tips
– When a large volume of cooking
vapours are being produced, switch
to a high power level in good time.
This is more efficient than operating
the rangehood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
– Make sure that you switch the
rangehood off after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
17
Cleaning and care
Housing
General
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Do not use too much water when
cleaning the controls.
Water could penetrate into the
electronics and cause damage.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
Important for appliances with stainless steel surfaces
(This infomation does not apply to the
controls)
Stainless steel surfaces can be
cleaned with a proprietary nonabrasive cleaning agent designed
specifically for use on stainless steel,
e.g. Original Miele ceramic and
stainless steel cooktop cleaner.
To help prevent re-soiling, a
proprietary conditioning agent for
stainless steel (Original Miele Care
product for stainless steel) can also
be used. Follow the manufacturer’s
instructions on the packaging.
Apply sparingly with a soft cloth
following the instructions on the
packaging.
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
18
Cleaning and care
Important for the controls
Do not leave soiling on the controls
for any length of time.
Otherwise they may suffer
discolouration or damage.
Remove any soiling immediately.
Observe the general notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
rangehood.
An oversaturated filter is a fire
hazard.
When to clean the grease filters
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of grease.
Removing a grease filter
The grease filter can fall out when
you are handling it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
19
Cleaning and care
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use undiluted washing
up liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents,
– powder cleaners or cream cleaners,
– aggressive all-purpose cleaning
agents or spray cleaners for grease,
– oven sprays.
Cleaning the grease filters in the dishwasher
Place the filters as upright as possible
in the lower basket, with the short
sides upright, ensuring the spray arm
is not obstructed.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
refitting them.
When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
Replace the grease filters, making
sure that the locking clips are facing
down towards the cooktop.
If a grease filter is inadvertently
refitted upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Use a proprietary household
dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50 °C
and 65 °C.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
20
Cleaning and care
Changing a lamp
The halogen lamps become very hot
during operation.
They can cause burns even after
being switched off for some time.
Allow them to cool down for a few
minutes before changing them.
Disconnect the rangehood from the
mains electrical supply before
replacing the lamps (see "Warning
and Safety instructions").
Remove the grease filters.
Loosen the lamp's securing screw a
little.
Slide the screw and the lamp
downwards.
Then tighten the screw again.
Turn the halogen lamp anti-clockwise
and pull it out.
Replace it with a new lamp of the
same type: GU/GZ 10, 230 V, 50W.
Refit the lamp by reversing the steps
shown above. Please observe
manufacturer's instructions.
Refit the grease filters.
21
After sales service and warranty
In the event of a fault which you cannot
remedy yourself, please contact Miele.
The contact details for Miele are given
at the back of these instructions.
When contacting Miele, please quote
the model and serial number of your
appliance.
These can be found on the data plate.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty
The manufacturer's warranty for this
appliance is 2 years.
For further information, please refer to
your warranty booklet.
22
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.
Installation
23
Installation
598
500
102
Appliance dimensions
a
Exhaust connection 100mm.
b
120 mm cut-out ensures sufficient space through the wall for the extraction
ducting to flex.
c
Mains connection above or to the rear.
24
Installation
Safety distance (S)
The minimum distances between the highest part of a cooktop (including
trivets, dials - depending on model) and the bottom of the rangehood are as
follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See also "Warning and Safety instructions".
Cooking appliance Minimum
distance S
Electric cooktop 600 mm
Electric grill, deep fat fryer (electric) 650 mm
Multi-burner gas cooktop with maximum 45.4 MJ/h total output,
with no burner having a greater output than 16.2 MJ/h.
Multi-burner gas cooktop with total output greater than 45.4 MJ/h,
but with a maximum of 77.8 MJ/h, with no burner having a greater
output than 17.3 MJ/h.
Multi-burner gas cooktop with total output greater than 77.8 MJ/h,
with a single burner having a greater output than 17.3 MJ/h.
Single burner gas cooktop with a maximum output of 21.6 MJ/h. 650 mm
Single burner gas cooktop with an output greater than 21.6 MJ/h,
but with a maximum of 29.2 MJ/h.
Single burner gas cooktop with an output greater than 29.2 MJ/h. Not
650 mm
760 mm
Not
possible
760 mm
possible
25
Installation
Installation recommendations
– To achieve optimum vapour
extraction, the rangehood must cover
the cooktop. It should be positioned
centrally over the cooktop, not to the
side.
– The cooktop should be no wider than
the rangehood and, if possible, it
should be narrower, especially for
safety distances greater than 750
mm.
– The installation area must be easily
accessible. The rangehood should be
easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the rangehood.
Protective foil
The housing components of stainless
steel models have protective foil around
them to protect them from transport
damage.
Wall installation
Cut the drilling template to size and
position against the wall. The top
edge of the template indicates the
top edge of the rangehood. Please
refer to the safety distances (S) to the
cooktop in "Installation".
Mark and drill the four holes for the
mounting brackets (8mm).
Remove the drilling template.
Please remove the grease filters from
the appliance and remove this foil
from the housing components and
the frames of the grease filters before
installing the rangehood. The foil can
be peeled off easily.
26
Fix the mounting brackets to the wall
using the plugs and screws supplied.
The screws and plugs are designed
for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the rangehood.
Installation
Remove the lamps:
– Loosen the halogen lamp's securing
screw a little.
– Slide the screw and the lamp
downwards.
– Then tighten the screw again.
– Turn the lamp anti-clockwise and pull
it out.
27
Installation
Secure the exhaust ducting to the
exhaust connection, e.g. with a hose
clip (available as an optional
accessory) on flexible ducting.
Hang the rangehood on the brackets.
Tighten the screws at the back of the
rangehood on the left and right. This
will adjust the pitch of the rangehood
and secure it against being lifted off
the mounting plates.
Refit the lamps.
Refit the grease filters.
Mains connection
Refer to the notes in “Electrical
connection” and “Warning and
Safety instructions” before
connecting to the electricity supply.
28
Plug the connection cable into an
electrical socket.
All electrical work should be
undertaken by a suitably qualified
and competent person in strict
accordance with current national and
local safety and building code
regulations. Installation, repairs and
other work by unqualified persons
could be dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
The rangehood must be connected to a
suitably earthed socket (AC 230 V,
50Hz).
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
Connection of this appliance must be
made via a suitable isolator switch
which provides disconnection on all
poles and which complies with national
and local safety regulations. The
isolator switch should be easily
accessible after the appliance has been
built in.
Electrical connection
If the mains socket is not accessible
after installation, an additional means of
disconnection must be provided for all
poles. There must be an all-pole
contact gap of 3 mm in the switch
(including switch, fuses and relays).
The connection data is given on the
data plate (See "After sales service").
Ensure that this data matches the
household mains supply.
29
Connection for air extraction
Before installation, it is important
to read the information given on the
following pages as well as the
"Appliance dimensions" and the
"Warning and Safety instructions" at
the beginning of this booklet. This is
particularly crucial when using the
rangehood at the same time as a
heating appliance that relies on
oxygen from the same room, which
could result in the build-up of toxic
fumes.
The rangehood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
hoses made from non-flammable
materials for the extraction ducting.
Highly flexible, concertina type
ducting material will greatly reduce
the performance of the rangehood.
To achieve the greatest possible air
extraction with the lowest noise level,
please note the following:
– To ensure efficient air extraction, the
diameter of the exhaust ducting
should not be less than 100 mm. A
reduction in diameter will
compromise the extraction
performance of the rangehood.
– If flat ducting is being used, the
cross-sectional area must not be
smaller than the cross-sectional area
of the exhaust connection.
– The exhaust ducting should be as
short and straight as possible.
– Only use wide radius bends.
– The exhaust ducting must not be
kinked or compressed.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust is ducted through an
outside wall, a telescopic wall vent or
a roof vent (available as an optional
accessory) is recommended.
If the exhaust air is to be ducted into
a vent flue, the ducting must be
directed in the flow direction of the
flue.
When ducting is horizontal it must be
laid to slope away at at least 1 cm per
metre. This is to ensure that
condensate cannot drain back into
the rangehood.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas, the problem of condensation
30
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
Connection for air extraction
31
Technical data
Fan motor 2 x 120 W
Cooktop lighting 2 x 50 W
Total rated load 340 W
Voltage, frequency AC 230 V, 50 Hz
Fuse rating 10 A
Mains connection cable length 1.5 m
Weight 11.2 kg
32
www.miele.com.au
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
39 Harvey Street North
Eagle Farm, QLD 4009
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
205-207 Stirling Highway
Claremont, WA 6010
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd.
Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Telephone:
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
DA 1160 RV
M.-Nr. 10 257 210 / 01en-AU, NZ
Loading...
