Miele CS1322 User Manual
Operating and Installation
Instructions
Electric Barbecue
CS 1322
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use.
en-CA
M.-Nr. 07 374 400
Contents
IMPORTANT SAFETY INSTRUCTIONS.................................3
Description of the unit..............................................7
Before using for the first time........................................8
Use .............................................................9
Prepare the appliance ...............................................9
Turning On/Off .....................................................9
Grilling ..........................................................10
After grilling ......................................................10
Grilling times .....................................................11
Safety Feature ...................................................12
Overheat protection ................................................12
Safety cut-out feature...............................................12
Cleaning and care ................................................13
Frequently asked questions .......................................15
Technical Service.................................................16
Additional Accessories ............................................17

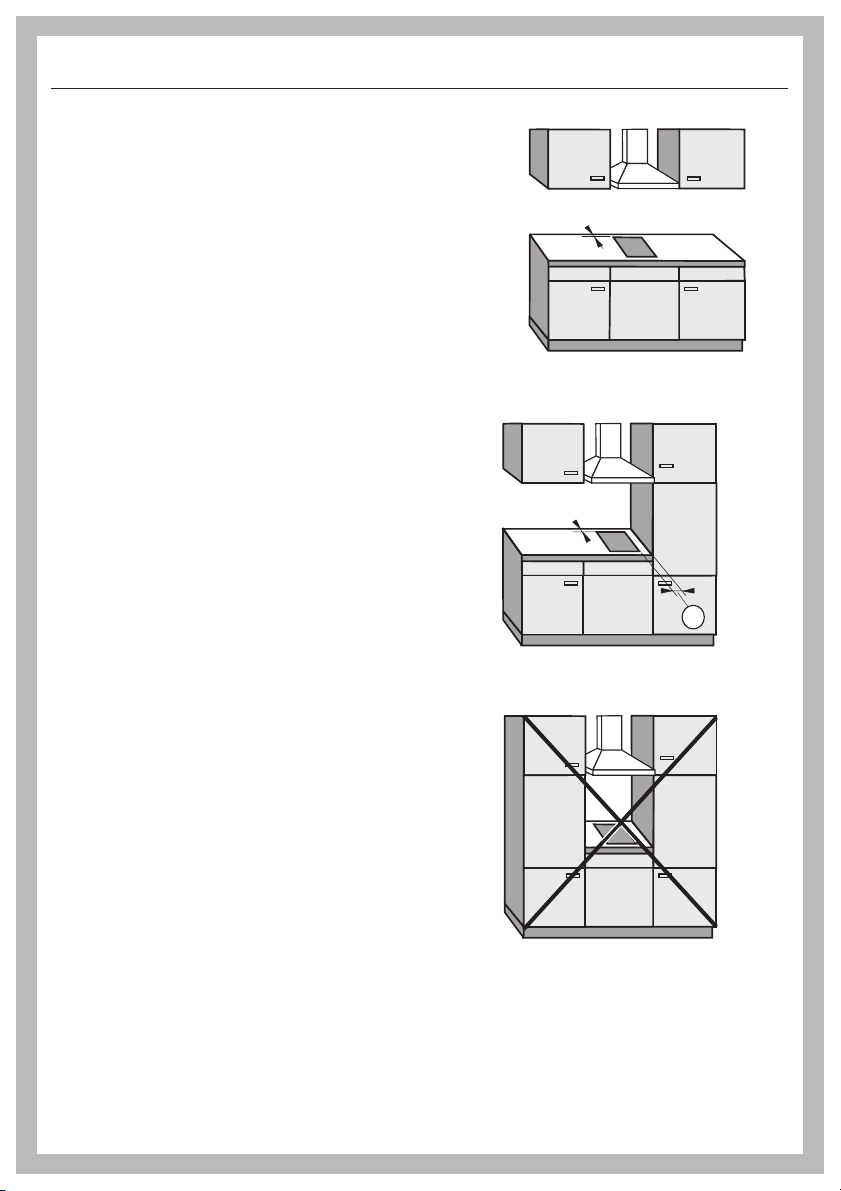

SAFETY INSTRUCTIONS FOR INSTALLATION.........................20
Installation ......................................................23

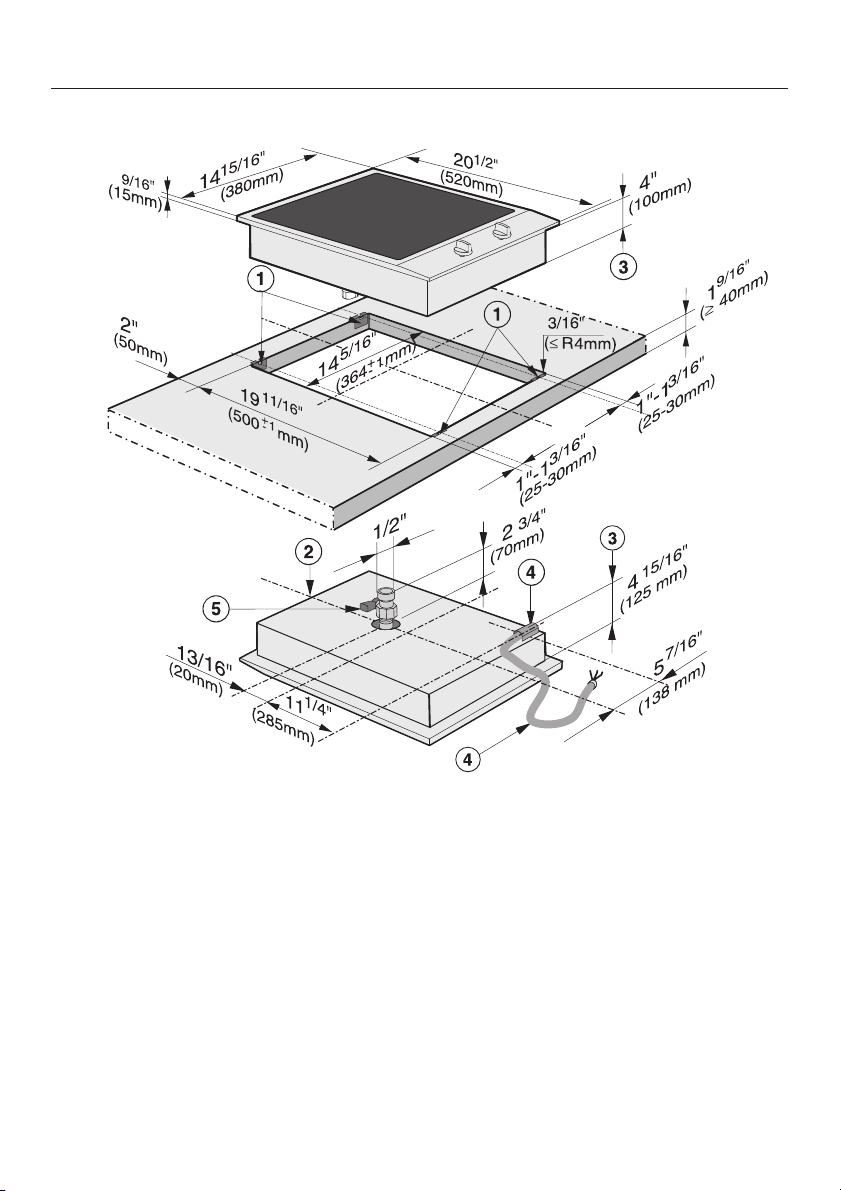

Installation dimensions .............................................24
Cutout..........................................................25

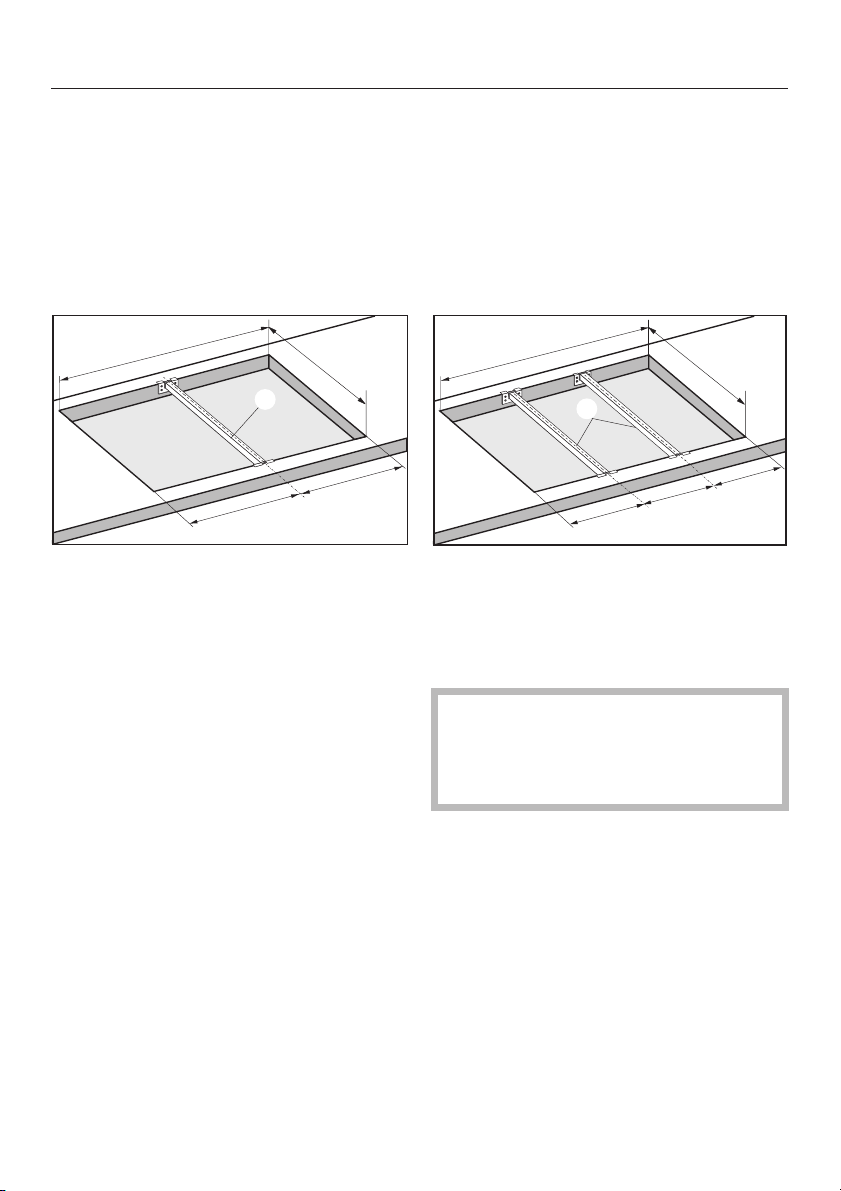

Installation of multiple appliances .....................................26

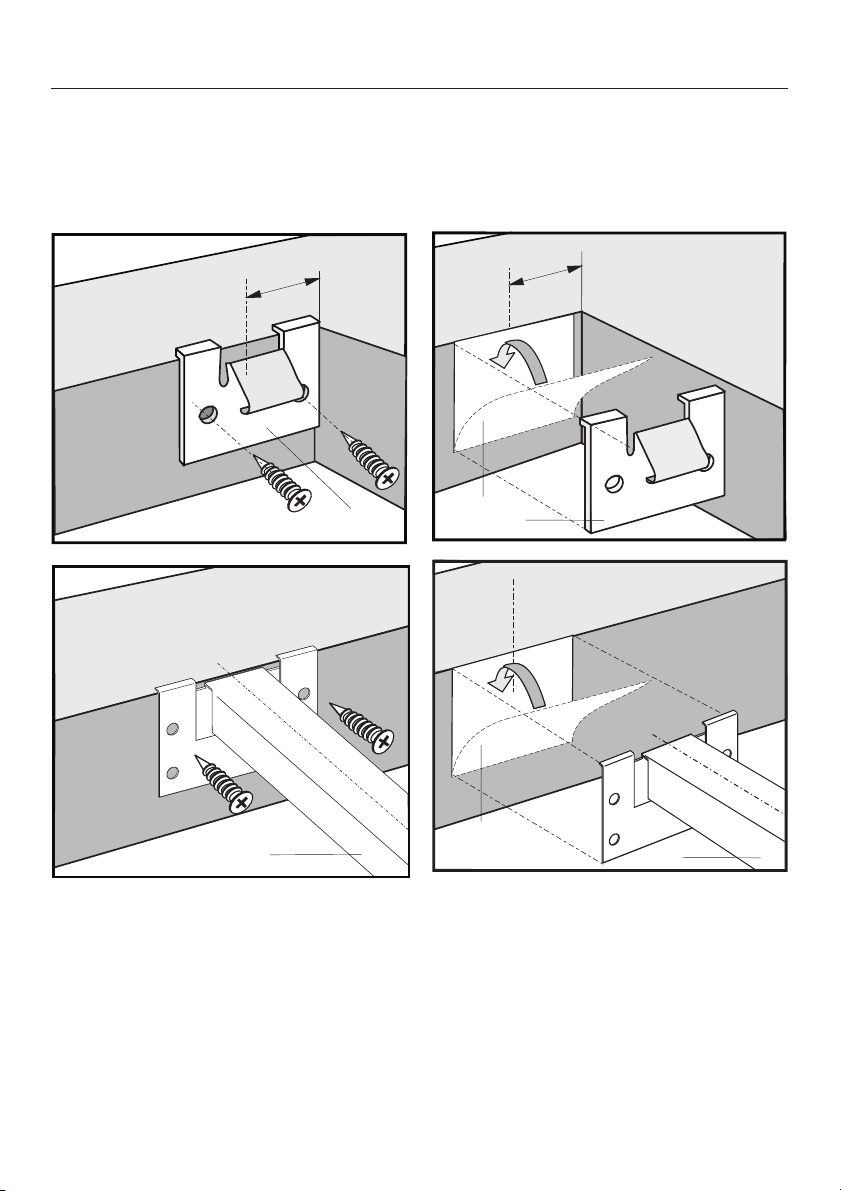

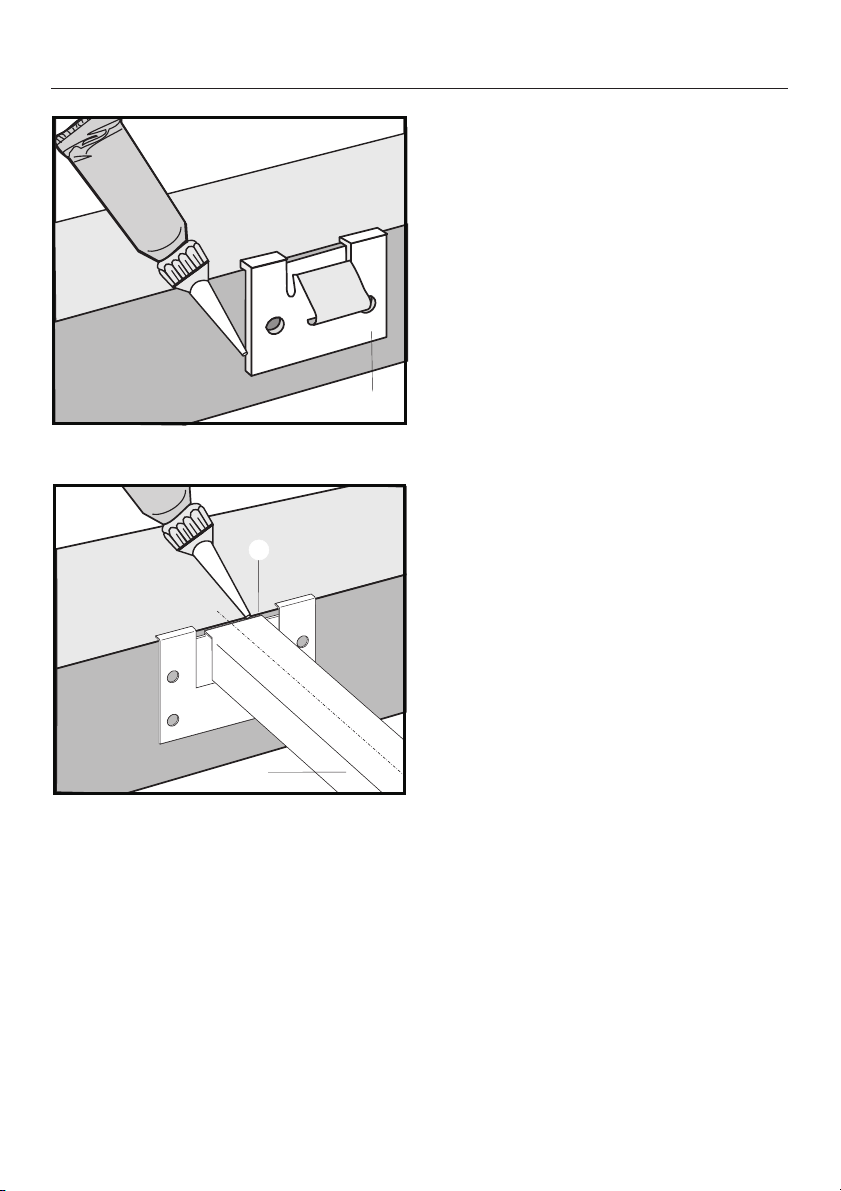

Attach the spring clips and support bars ...............................29
Installing the appliance .............................................31
Sealing ..........................................................32
Tiled surfaces ....................................................32
Electrical connection..............................................33
Help protect our environment.......................................34
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING- When using your
appliance follow basic
precautions, including the
following:
Read all instructions before
installation or use to prevent
injury and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations. The manufacturer
cannot be held responsible for
damage or injury caused by
improper use of this appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
Children
Children should not be left
~
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
The appliance is hot during use and
~
remains so for some time after being
switched off. Keep children away from
the appliance.
Ensure that any packing material, is
~
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
SAVE THESE INSTRUCTIONS
Correct usage
Only use this appliance for
~
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous. The manufacturer will
not be held liable for damage caused
by unauthorized use or improper
operation of any kind.
Persons who lack physical, sensory
~
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Be sure that children cannot access
~
the drain valve on the appliance,
potentially releasing hot water.
3
IMPORTANT SAFETY INSTRUCTIONS
Technical Safety
Installation, repair and maintenance
~
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Before installing the appliance,
~
check for externally visible damage.
Do not operate a damaged appliance.
To guarantee the electrical safety of
~
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
will not be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
Before installation, make sure that
~
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
Do not use an extension cord to
~
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
Before servicing, disconnect the
~
appliance from the main power supply.
Do not operate any appliance with a
~
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser
vice Department.
Under no circumstances open the
~
outer casing of the appliance.
While the appliance is under
~
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
In the event of any damage to the
~
appliance, it must be turned off immediately and disconnected from the main
power supply. Contact Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
Defective components should be
~
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
-
Do not use the appliance until it has
~
been properly installed in the
countertop.
4
IMPORTANT SAFETY INSTRUCTIONS
Safety
The appliance is hot during use and
~
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
Protect your hands with oven mitts
~
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
Do not heat unopened containers.
~
Built-up pressure may cause the
container to burst and result in injury.
Never use the appliance to heat a
~
room. Due to the high temperatures
radiated, objects left near the appliance
could catch fire.
Do not store items on the appliance
~
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
Be aware of loose fitting or hanging
~
garments when operating the
appliance, they may present a fire
hazard.
Never leave an appliance
~
unattended at high settings or when
cooking with oil or fat. Overheated oil
could ignite. Always heat oil slowly,
monitoring it as it heats.
Do not use water on grease fires.
~
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
Do not use aluminum dishes, pans,
~
pots or foil on the grill. Never cover the
grill grate with aluminum foil. Aluminum
will cause overheating and may
damage the grill grate.
Clean the lava rocks on a regular
~
basis and change them when needed.
Fat-saturated stones can easily catch
fire.
The water trough must always be
~
filled with water when the appliance is
being used.
Never cover the appliance with a
~
cloth. A fire may result.
Make certain that the power cords of
~
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
5
IMPORTANT SAFETY INSTRUCTIONS
To prevent burns and breathing
~
difficulty, allow the appliance to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
When wiping spills on a hot
~
appliance with a wet sponge or cloth,
be careful to avoid steam burns.
Do not let flammable materials,
~
i.e. cooking grease, accumulate on the
appliance.
Do not use a steam cleaner to clean
~
this appliance. Steam could penetrate
electrical components and cause a
short circuit.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these
Important Safety instructions.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
6
Description of the unit
a Grates
b Heating element, front
c Heating element, rear
d Lava rock container
e Drain valve
f Cooking area indicators
g Display
Control knobs:
h front
i rear
Display
j On/Off indicator
7
Before using for the first time
Clean the appliance
Clean the water trough and the grill
^
with a mild solution of warm water
and liquid dish liquid, then dry with a
soft cloth (see "Cleaning and care").
Wipe the other surfaces down with a
^
damp cloth and dry.
Heat the appliance
Metal components of the appliance
have a protective coating which may
give off a slight odor the first time the
appliance is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
8
Use
Prepare the appliance
You can use the electric barbecue with
or without the lava rocks.
Without the lava rocks: food will stay
more moist, from the rising steam.
With the lava rocks: the food will have a
more pronounced grilled aroma and
flavor.
Check that the drain valve is closed.
^
Remove the grate, raise the heating
^
element, and remove the lava rock
container (if desired).
^
If grilling without lava rocks fill the
water trough with water up to mark
a, with approx. 4.0 liters of water.
If grilling with lava rocks, fill the
water trough with approx. 1.8 liters of
water.
Turning On/Off
Do not leave the appliance
,
unattended while in use.
The electric barbecue is divided into
two heating areas, which can be used
and adjusted separately. For large
quantities, you can use the entire
surface for cooking. For smaller
quantities, you can, for example, cook
in the front and keep food warm at the
back, using a lower setting.
The heating elements can be switched
on and off by turning the appropriate
knob left or right.
When the appliance is switched on, the
On/Off indicator
when it is switched off.
N comes on. It goes out
^
Return the filled lava rock container
to the water trough (if desired).
^
The heating element can now be
turned down.
^
Replace the grates.
9
Use
Grilling
While grilling, watch the level of
water in the trough. If necessary,
add more water.
Do not use aluminum dishes, pans,
pots or foil on the grill. Never cover
the grill grate with aluminum foil.
Aluminum will cause overheating
and may damage the grill grate.
Turn one or both operating knobs to
^
power level "12".
Pre-heat the grill with both racks in
place for approx. 10 minutes.
Make sure the operating knob(s) are
set precisely to power level 12.
If the knobs are not set to the exact
position, the heating will not work with
maximum power.
^ Set the power level.
^ Grill food as desired.
Tips
To minimize splattering, dry moist
–
foods with paper towels before
grilling.
Marinate food before grilling, to
–
enhance the flavors.
To prevent sticking non-marinated
–
items should be brushed lightly with
oil before grilling. Only use oils that
can tolerate high temperatures.
You can shorten the grilling time for
–
potatoes in foil and corn on the cob,
by pre-cooking the potatoes for
approx. 15 - 40 minutes (depending
on the size) and the corn for approx.
10 - 15 minutes.
After grilling
^ Turn the appliance off.
^ After each use, clean the appliance
while it is still somewhat warm to the
touch (see "Cleaning and care").
^
After grilling with the lava rocks
check the condition of the rocks. If
they are dark in color, they are
saturated with fat and need to be
cleaned or replaced. See "Cleaning
and Care - Lava rocks".
10
Grilling times
Use
Food item Grilling time
in minutes
Meat and sausage
Boneless steak 8 - 10
Chicken breasts 16 - 18
Cutlets 8 - 12
Filet steak 4 - 10
Hamburgers 12 - 16
Kebabs 14 - 18
Lamb chop 4 - 8
Sausages 6 - 8
Spare Ribs 15 - 20
T-Bone Steak 10 - 20
Turkey cutlet 8 - 10
Fish / seafood
Salmon steak 10 - 12
Shrimp 2 - 4
Trout 12 - 16
Tuna steak 6 - 8
Food item Grilling time
in minutes
Vegetables
Corn (parboiled) 5 - 8
Eggplant 6 - 8
Potatoes in foil
(parboiled)
Tomato halves 2 - 4
Onions 14 - 16
Pepper strips 2 - 3
Vegetable kebabs 5 - 6
Fruit
Apple slices 2 - 3
Peach halves 2 - 3
Pineapple slices 2 - 3
Other
Toast/bread 2 - 3
Tofu 4 - 6
The times shown in the table serve as
guide only and apply for grilling at
power level 9 -12 on a pre-heated grill.
The grilling time depends on the type,
preparation, and thickness of the food
item.
10-20
11
Loading...
