Operating and Installation
Instructions
Gas Combiset
CS 1011
To prevent accidents and
appliance damage,
read these instructions
before
installation or use.
®
en-US
M.-Nr. 07 366 200
®
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
Do not store or use gasoline or other flammable
–
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
–
ß Do not try to light any appliance.
ß Do not touch any electrical switch.
ß Do not use any phone in your building.
ß Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ß If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gasfitter)
–
Note to the installer:
Please leave this instruction book with the
consumer for the local electrical/gas inspector’s
use.
2
Contents
IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the combiset ..............................................9
Burner ..........................................................10
Before using the combiset .........................................11
Use ............................................................12
Fast-Ignition System ...............................................12
Turning On/Off and Regulating .......................................12
On/Off indicator and Residual heat indicator ............................14
Cookware .......................................................15
Energy saving tips ................................................16
Safety features ...................................................17
Ignition safety control...............................................17
Safety cut-off .....................................................17
Cleaning and care ................................................18
Frequently asked questions ........................................20
Technical Service.................................................23
IMPORTANT SAFETY INSTRUCTIONS................................26
Installation ......................................................29
Installation dimensions .............................................30
Cutout..........................................................31
Installation of multiple appliances .....................................32
Attach the spring clips and support bars ...............................35
Installing the appliance / appliances...................................37
Removing the appliance ............................................37
Sealing ..........................................................38
Tiled surfaces ....................................................38
Electrical connection..............................................39
Gas connection ..................................................41
Gas pressure regulator .............................................42
Nominal ratings ...................................................43
Converting to another type of gas ...................................44
Help protect our environment.......................................45
3
IMPORTANT SAFETY INSTRUCTIONS
Only use the gas combiset for
WARNING- When using your gas
appliance follow basic
precautions, including the
following:
This gas combiset conforms to all
uniform safety codes and
regulations.
Read all instructions before
installation or use to prevent
injury and appliance damage.
These instructions contain
important information on
installation, safety, use and
maintenance of this appliance.
They will help you avoid injury
and damage to the appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
This appliance is not designed for
~
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–
shops, offices and similar work
environments,
~
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous.
Persons who lack physical, sensory
~
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
Children should not be left
~
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
The appliance is hot during use and
~
remains so for some time after being
switched off. Keep children away from
the appliance.
Keep all pots and pans out of the
~
reach of children. Danger of burning or
scalding.
Ensure that any packing material, is
~
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
–
by customers in hotels, motels, Bed
& Breakfasts or similar residential
environments.
This appliance is not intended for
~
outdoor use.
4
IMPORTANT SAFETY INSTRUCTIONS
Technical safety
Installation, repair and maintenance
~
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Before installing the combiset,
~
check for externally visible damage.
Do not operate a damaged appliance.
A damaged gas combiset is a hazard.
Before installation, make sure that
~
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
Be certain your appliance is
~
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of
~
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Install the appliance so that the
~
power cord and gas piping do not
come into contact with any portion of
the combiset which may become hot
during use.
The combiset is not designed for
~
use with an external timer or a remote
control system.
Do not use an extension cord to
~
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
Do not operate the appliance until it
~
has been properly installed in the
countertop.
Do not operate any appliance with a
~
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Service Department.
Defective components should be
~
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
Under no circumstance open the
~
outer casing of the appliance.
While the appliance is under
~
warranty repairs should only be
performed by a Miele authorized ser
vice technician. Otherwise the warranty
is void.
-
5
IMPORTANT SAFETY INSTRUCTIONS
Before servicing, turn off the gas
~
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually"tripping" the circuit
breaker.
This equipment has not been
~
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for installation in these
applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
After connecting the appliance test
~
for leaks according to the installation
instructions.
If there is any doubt concerning
~
installation contact Miele’s Technical
Service Department.
Safety
The appliance is hot during use and
~
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
Protect your hands with oven mitts
~
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
Be sure drafts do not blow
~
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
Be aware of loose fitting or hanging
~
garments when operating the combiset,
they may present a fire hazard.
Do not heat unopened containers.
~
Built-up pressure may cause the
container to burst and result in injury.
,
WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
Install the combiset in a room that
~
has sufficient ventilation.
This appliance must not be
~
operated outdoors.
Make sure all components of the
~
gas burner is assembled correctly
before using the combiset.
6
IMPORTANT SAFETY INSTRUCTIONS
Do not use pans that extend past
~
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
For safety and stability, do not use
~
pans with a bottom diameter smaller
than the burner grate.
Only certain types of glass, ceramic
~
or other glazed cookware are suitable
for use on a combiset without breaking
due to the sudden temperature change.
Do not use containers made of
~
plastic or aluminum. They may melt at
high temperatures.
The burner grates supplied with the
~
appliance must always be used. Never
place a pan on the burner by itself.
Do not use aluminum foil to line any
~
part of the combiset.
For proper lighting and performance
~
of the burner, keep the igniter clean
and dry.
Do not heat empty pots or pans,
~
they may be damaged.
For safety reasons the flame should
~
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
When more than one combiset is
~
installed next to each other, be sure not
to place hot pots or pans on the center
line. This could damage the seal.
Do not store items on the appliance
~
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
Never cover the burner with a cloth
~
or protective oven foil. If inadvertently
turned on or if there is residual heat, a
fire could result.
When more than one combiset is
~
installed next to each other, be sure not
to place hot pots or pans on the center
line. This could damage the seal.
Do not let cooking grease or other
~
flammable materials accumulate on the
appliance.
Do not use a steam cleaner to clean
~
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
Spills containing salt or sugar
~
should be removed immediately.
Do not leave the combiset
~
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
Do not use water on grease fires.
~
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
Ensure that the burner is always
~
covered with a pan.
Only use cooking utensils suitable
~
for combiset use.
Do not flambé under an exhaust
~
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
7
IMPORTANT SAFETY INSTRUCTIONS
If there is a drawer directly
~
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
Make certain that the power cords of
~
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
In the event of damage or defect,
~
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
Before discarding an old appliance,
~
disconnect it from the gas and
electrical supply, and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
8
a Wok burner
b Burner grate
c Control knob
Guide to the combiset
d Display
Indicators
e On/Off indicator
f "Residual Heat" indicator
9
Guide to the combiset
Burner
g Small burner cap
h Large burner cap
i Burner ring
j Burner
k Ignition safety control
(Thermocouple)
l Ignitor
m Burner base
Positioning the burner parts
The proper function of the burner is only guaranteed if the burner parts are
positioned correctly:
The notch a on the burner cap must securely fit into the recess of the burner
b.
The notch c on the burner must securely fit into the recess in the lower part of
the burner base d.
If the parts are positioned correctly the burner cannot be turned.
10
Before using the combiset
Cleaning the combiset
Before using for the first time clean the
appliance as follows:
Remove any protective foil.
^
Wash the removable parts of the gas
^
burner in a mild solution of warm
water and liquid dish soap.
Dry and reassemble the parts in the
^
correct order (see "Cleaning and
care").
Wipe down the stainless steel
^
combiset with a suitable cleaner and
dry thoroughly.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
11
Use
Fast-Ignition System
The gas combisets are equipped with a
Fast-Ignition-System which
incorporates the following features:
The knob must only be turned left to
turn the appliance on and right to
turn it off.
The control knob does not need to
–
be pressed until the flame lights.
If the flame goes out because of a
–
draft, for example, the burner is
automatically re-ignited.
If re-ignition is unsuccessful, the gas
supply is automatically interrupted
(see "Ignition safety control").
Turning On/Off and Regulating
The control knob is used to turn the
burner On/Off and to regulate the
strength of the flame.
Description of the settings
ß combiset is turned off
& Highest flame
Outer and inner burners are both at
the highest settings.
& High flame
Outer burner is on the lowest setting;
Inner burner is on the highest setting.
If the knob is :
- turned on without pressing it
down first,
- turned clockwise to turn on,
- used to turn the outside ring on
or off without pressing the knob
down, or
- turned counterclockwise to turn
the combiset off,
parts of the combiset might get
damaged.
& Low flame
Outer burner is off;
Inner burner is on the highest setting.
& Lowest flame
Inner burner is on the lowest setting.
12
Use
Turning on
To turn on the burner, press the
^
control knob down to pass the
resistance, then release the pressure
and turn it counterclockwise to the
largest flame symbol. The ignitor will
"click" and ignite the gas.
If the burner does not ignite or the
flame goes out, turn the control knob to
"ß". Try again after a few seconds.
If the burner still won't ignite after the
second attempt, turn the control knob
to "ß" and see "Frequently asked
questions".
^ Adjust the knob to the desired
setting.
Regulating the burners
The inner and outer burners are both
controlled by one control knob. There is
a stop at the 6 o’clock position that
requires you to press the knob down
while turning it, in order to get from the
high flame zone to the low flame zone.
To reduce the flames from a high to
^
low setting, turn the control knob
counterclockwise until resistance is
felt. Press the knob down to pass the
stop, then release the pressure and
set the combiset to the desired
setting.
^ To increase the flames from a low to
high setting, turn the control knob
clockwise until resistance is felt.
Press the knob down to pass the
stop, then let go. Now set the
combiset to the desired setting.
Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
spread beyond the sides of the pan.
Flames which extend beyond the sides
of the pan are hazardous.
Turning off
^
Turn the knob clockwise to "ß".
This stops the gas flow and turns off the
combiset.
13
Use
On/Off indicator and Residual
heat indicator
When the combiset is turned on, the
On/Off indicator lights up. Once a
pre-set temperature has been reached,
the residual heat indicator will also light
up. The On/Off indicator goes out when
the combiset is turned off. The residual
heat indicator will remain on until the
combiset is cool enough to touch.
Do not touch or place any heat
sensitive objects on the combiset
while the residual heat indicator is
on. Danger of damage or injury.
If the display is flashing, a fault has
occurred. See "Frequently asked
questions".
14
Min. base diameter
Pots / Pans - 5 7/8" (15 cm)
Max. top diameter
Pots / Pans - 11" (28 cm)
Follow the dimensions given in the
–
table. If the bottom diameter is too
small the cookware is not safe. If the
top diameter is too large, may cause
the flames to spread out and
damage the surrounding countertop
or other countertop appliances.
– Remember when buying cookware
that the diameter given is usually the
upper diameter, not the base
diameter.
– Any heat resistant cookware can be
used on a gas cooktop.
– Cookware with a thick bases
distributes heat well. Thin cookware
can overheat easily, requiring you to
stir more frequently.
Cookware
Wok ring
Use the supplied Wok ring to add
additional stability to the cookware, e.g.
round bottomed woks.
Be sure that the wok ring is in the
correct position and rests firmly (see
illustration).
Small pot ring
Use the supplied Small pot ring to help
prevent the small cookware from
wobbling.
–
The burner grates supplied with the
appliance must always be used.
Never place a pan on the burner by
itself.
–
Be sure to place the cookware on the
grates in a way that it does not tip. A
slight "wobble" can never be ruled
out.
–
Do not use pots or pans with
concave bottoms.
15
Energy saving tips
Whenever possible, keep pots and
–
pans covered while cooking. This
helps keep in the most possible heat.
Cook with a small amount of water.
–
Using a pressure cooker will greatly
–
reduce cooking time.
Lower the flame after browning or
–
parboiling.
– Generally, wide / shallow pans will
heat up quicker and cook more
evenly than narrow / tall ones.
16
Safety features
Ignition safety control
This appliance is equipped with an
Ignition Safety Control. This control cuts
the gas supply if the flame goes out
and reignition is unsuccessful.
To reignite the burner, turn the
^
control knob to"ß", then switch the
burner on as usual.
Safety cut-off
If a zone has been on for an unusually
long period of time (approx. 4 hours), it
will automatically shut off.
To reignite the burner, turn the
^
control knob to"ß", then switch the
burner on as usual.
17
Cleaning and care
Never use a steam cleaner to clean
this combiset. Pressurized steam
could cause permanent damage to
the surface and to components.
Do not use any sharp or pointed
objects which could damage the
seal between the frame and the
countertop.
Never use scouring agents, pads,
abrasive cleaning agents, or strong
cleaners, e.g. oven sprays, stain or
rust removers, these could damage
the surface of the appliance.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
Dry your combiset thoroughly after
cleaning it to prevent lime deposits.
Spills containing salt or sugar should
be cleaned immediately.
A variety of Miele cleaning a care
products are available from your
authorized Miele dealer or by visiting
the Mieleusa.com website.
Combiset
Let the appliance cool to a safe
temperature before removing the
grates.
Clean the grates, combiset and
^
knobs with a sponge and a mild
solution of warm water and liquid
dish soap.
Soak baked or hardened spills.
^
Dry the combiset and grates
thoroughly after cleaning.
The stainless steel surfaces can be
cleaned using a non-abrasive stainless
steel cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
These cleaning products are available
from Miele.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
18
Cleaning and care
Burner
The burner can be dismantled and
cleaned when cool.
Remove the burner parts and wash
^
them in a solution of hot water and
liquid dish soap. Dry them
thoroughly. Make sure that the flame
holes are clean and completely dry.
Wipe the burner base clean with a
^
damp cloth and then dry.
Gently wipe the ignitor and ignition
^
safety control with a slightly damp
cloth, and then wipe dry.
Make sure that no liquid gets into
the appliance.
Reassembling the burner
After cleaning the burner reassemble in
the correct order:
^ Place the burner head j onto the
burner base m, making sure that the
thermocouple k and ignitor l align
through the holes in the burner head.
The notch a on the burner cap must
securely fit into the recess of the
burner b.
The notch c on the burner must
securely fit into the recess in the
lower part of the burner base d.
^
Fit the burner ring i.
^
Seat the burner caps g and h into
place.
^
Put the grates in place.
Be careful not to mix up the parts.
19
Frequently asked questions
Repairs should only be carries out by an authorized technician in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
The burner does not ignite when the combiset is being used for the first
time or after an extended period of not being used.
Possible fault Solution
There could be air in the gas pipe. You may need to make several
attempts before the burner ignites
successfully.
The On/Off and residual heat indicators are flashing.
Possible fault Solution
There has been a power failure. Turn all the controls clockwise to "ß".
You can now operate the appliance as
normal.
The On/Off indicator is flashing.
Possible fault Solution
The gas supply has been cut-off. – Turn all the controls clockwise to
position "ß". You can now operate the
appliance as normal.
–
If the problem persists, disconnect
the appliance from the electrical
supply for a few seconds.
20
Frequently asked questions
The burner does not ignite after several attempts.
Possible fault Solution
Disconnect the appliance from the electrical supply for a few seconds. If the
problem persists, check if:
The burner is assembled incorrectly.
–
The gas valve is closed.
–
The burner is wet and soiled.
–
The flame slits are dry and
–
unblocked
The flame goes out after being lit.
Possible fault Solution
The flames are not touching the ignition safety control. Check if:
– The burner is assembled incorrectly.
– There is no soiling on the ignition
safety control.
The flame appears different than usual.
Possible fault Solution
The burner is assembled incorrectly. Reassemble the burner as shown in
The flame goes out during operation.
Possible fault Solution
Reassemble the burner as shown in
–
"Cleaning and Care - Burners".
Open the gas valve.
–
Clean the burners. See "Cleaning
–
and Care".
Dry the igniters.
–
– Reassemble the burner as shown in
"Cleaning and Care - Burners".
– See "Cleaning and Care".
"Cleaning and Care - Burners".
The burner is assembled incorrectly. Reassemble the burner as shown in
"Cleaning and Care - Burners".
21
Frequently asked questions
The igniter does not spark.
Possible fault Solution
The circuit breaker has tripped. Re-set the circuit breaker. Contact an
electrician for assistance if in doubt.
Food has deposited itself between the
ignitor and the burner cap.
Food has deposited on the ignition
safety control.
For safety reasons, after a spill on the combiset you may need to wait approx. 5
minutes before you are able to reignite the burner. Wait 5 minutes and ignite the
burner as usual.
See "Cleaning and care".
See "Cleaning and care".
22
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance.
Adhere rating label sticker supplied
with the appliance below.
Technical Service
23
Technical Service
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program; gives you the
assurance of knowing that your
appliance investment is covered by 5
years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by the Miele Service department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
24
Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
Information is subject to change. Please refer to our website to obtain the most
current product specification, technical & warranty information.
To prevent accidents
and appliance damage
read these instructions
before
installation or use.
IMPORTANT SAFETY INSTRUCTIONS
Installation
The minimum distances given in
these Installation instructions are to
combustible surfaces, and must be
observed to ensure safe operation.
Failure to do so increases the risk of
fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the combiset.
Gas appliances should only be
~
installed in a well ventilated area.
The countertop must be bonded
~
with heat resistant (212°F/100°C)
adhesive to prevent distortion or
dissolving.
This appliance must not be used in
~
a non-stationary location (e.g. on a
ship).
The combiset must not be installed
~
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the combiset may damage the
appliances.
Deep fat fryers must not be installed
~
directly next to gas combisets. Gas
flames can ignite splattering oil. A
distance of at least 11 5/16"" (288 mm)
should be maintained between these
two appliances.
Install the appliance so that the
~
power cord or gas piping does not
come into contact with any portion of
the combiset which may become hot
during use.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer after the appliance is
installed.
This appliance must be
disconnected from the gas supply
during any pressure testing of the
system performed in excess of ½ psi
(3.5 kPa). This appliance must be
isolated at test pressures equal to or
less than ½ psi (3.5 kPa).
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
26
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
IMPORTANT SAFETY INSTRUCTIONS
Safety distances above the
appliance
The minimum safety distance given by
the hood manufacturer must be
maintained between the combiset and
the hood above it. See the installation
instructions of the hood for these safety
measurements.
If the hood manufacturers instructions
are not available or if flammable objects
are installed over the combiset (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 30" (760 mm) must
be maintained.
If there is more than one appliance
beneath a hood (e.g. wok burner
and electric combiset), and they
have different minimum safety
distances always observe the
greater distance.
27
IMPORTANT SAFETY INSTRUCTIONS
Safety distances to the sides
of the appliance
The appliance should only be installed
as shown in the illustrations, while
maintaining the required safety
distances shown. Do not install the
appliance between two tall cabinets,
this is a fire hazard.
A distance of at least 2" (50 mm) must
be kept between the countertop cut-out
and the rear wall because of the high
temperatures radiated.
The minimum distance required from
the countertop cut-out to the side wall
a:
2" (50 mm) for CS 1112
CS 1122
CS 1212 / 1212-1
CS 1221
CS 1223
CS 1326
CS 1327
CS 1411
recommended
not recommended
2"
(50mm)
2 "
(50 mm)
1
6" (150 mm) for CS 1312
CS 1322
CS 1421
10" (250 mm) for CS 1011
CS 1012 / 1012-1
CS 1028
28
not allowed
Installation
Safety distance from the wall covering
If a wall covering is installed, a minimum safety distance must be maintained
between the countertop cut-out and the covering, since high temperatures can
damage these materials.
If the covering is made of a combustible material (such as wood), the distance
between the countertop cut-out and the wall covering must be a minimum of
2" (50 mm).
For coverings made of non-combustible materials (such as metal, marble, granite
or ceramic tiles) the minimum safety distance e between the countertop cut-out
and the wall covering must be 2" (50 mm) minus the thickness of the covering.
For example: thickness of wall covering 9/16" (15 mm)
2" (50 mm) - 9/16" (15 mm) = minimum safety distance 1 3/8" (35 mm).
a Wall frame
b Wall covering
x = thickness of the wall covering
c Countertop
d Countertop cut-out
e Minimum safety distance
with flammable materials 2" (50 mm)
with non-flammable materials 2" (50 mm) minus x
29
Installation
Installation dimensions
a Spring clips
b Appliance front
c Installation height
d Power supply box with connection cable,L=783/4" (2000 mm)
e Gas fitting
f Rating label
30
Installation
Cut out
Make the countertop cut-out for the
^
desired number of appliances.
Remember to maintain a minimum
safety distance from the back wall,
as well as from any tall unit or side
wall to the left or right of the
combiset.
See also the "IMPORTANT SAFETY
INSTRUCTIONS".
Seal the cut surfaces with a suitable
^
sealant to avoid swelling caused by
moisture.
The materials used must be heat
resistant.
If during installation the seal around the
frame does not sit flush with the
countertop in the corners, the corner
radius, maximum
carefully filed down to fit.
3
/16" (4 mm), can be
31
Installation
Installation of multiple
appliances

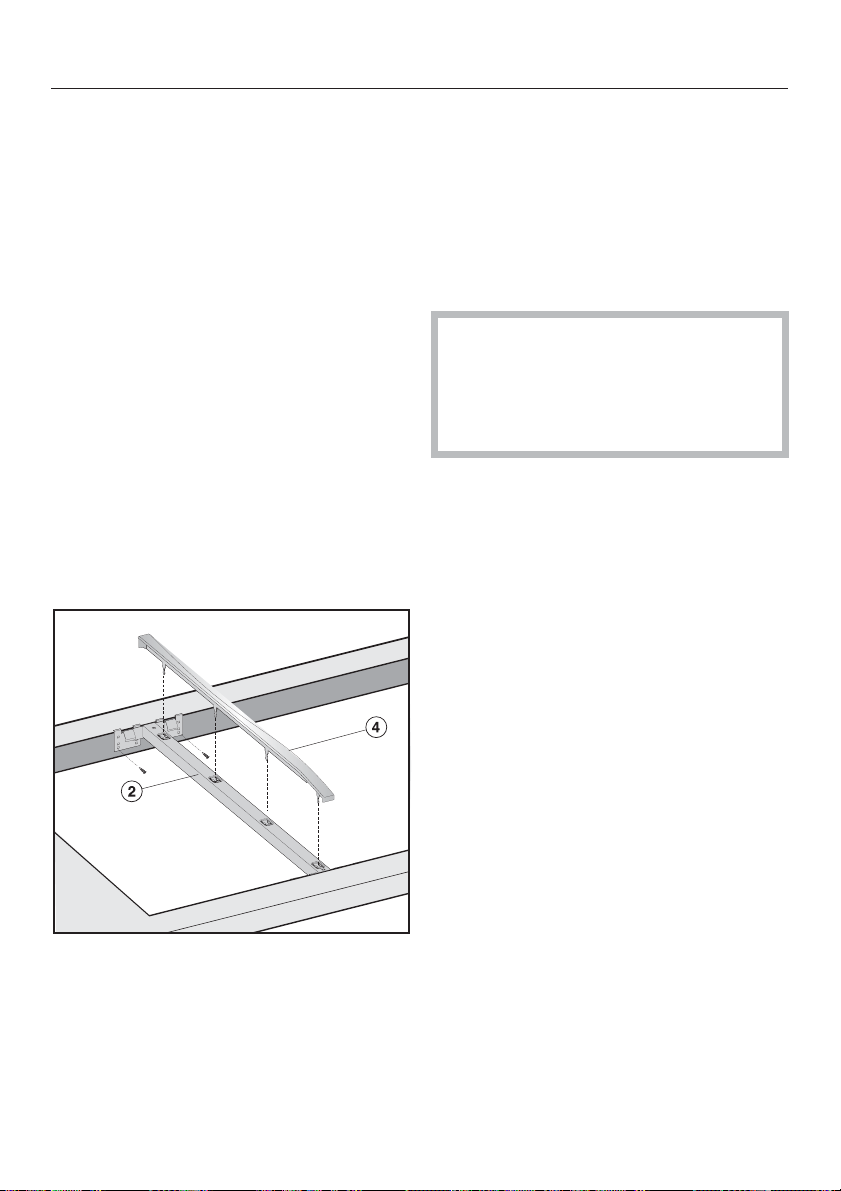

When installing more than one combiset appliance, a support bar b must be
installed between the appliances.
Countertop cut-out
two appliances
For the installation of two appliances
the width of the countertop cut-out D is
the sum of A and C.
A, B and C = appliance width
11 5/16", 15" or 22 11/16"
(288 mm, 380 mm or 576 mm)
minus 5/16" (8 mm) to allow for the
overhang
D = width of the countertop cut-out
Countertop cut-out
three appliances
For the installation of three appliances
the width of the countertop cut-out D is
the sum of A and B and C.
If more than three appliances are
being installed, you will need to add,
A, B or C for each additional
appliance.
32
Installation
Sample calculations for a countertop cut-out for three appliances
A
appliance width
minus 5/16"
(8 mm)
11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 33 3/8" (848 mm)
11" (280 mm) 15" (380 mm) 14 5/8" (372 mm) 40 5/8" (1032 mm)
11" (280 mm) 22 11/16" (576 mm) 22 3/8" (568 mm) 56 1/16" (1424 mm)
14 5/8" (372 mm) 11 5/16" (288 mm) 11" (280 mm) 37" (940 mm)
14 5/8" (372 mm) 15" (380 mm) 14 5/8" (372 mm) 44 1/4" (1124 mm)
14 5/8" (372 mm) 22 11/16" (576 mm) 22 3/8' (568 mm) 59 11/16" (1516 mm)
22 3/8" (568 mm) 11 5/16" (288 mm) 11" (280 mm) 44 3/4" (1136 mm)
22 3/8" (568 mm) 15" (380 mm) 14 5/8" (372 mm) 52" (1320 mm)
22 3/8" (568 mm) - 22 3/8" (568 mm) 44 3/4" (1136 mm)
appliance width
B
appliance width
C
minus 5/16"
(8 mm)
D
Countertop
cut-out
33
Installation
a Spring clips
b Support bars
c Space between support bar and countertop
d Cover
The illustration represents the attachment of spring clips a and support bars b
for 3 appliances.
An additional support bar is required for each additional appliance. The position
for attachment of an additional support bar depends on the width of appliance B.
34
Attach the spring clips and
support bars
Wood or solid surface countertops
Installation
^
Place the supplied spring clips a
and the support bars b at the
marked positions as shown above,
by laying them on the upper edge of
the cut-out and then securing them
with the
(supplied).
1
/8" x 1" (3.5 x 25 mm) screws
35
Installation
Granite countertop
The screws are not needed for
granite countertops.
Coat the side and lower edges of the
^
spring clips between a and b with
silicone.
^
Position and attach the spring clips
a and support bars b with strong,
double-sided tape c.
36
^
Fill the space e between the support
bars b and the countertop with
silicone.
Installation
Installing the appliance /
appliances
Feed the power cord down through
^
the cut-out.
Place the front edge of the appliance
^
into the cut-out.
With a hand on each side of the
^
appliance press down evenly on the
edges until it clicks into position.
When doing so make sure that the
appliance seal sits tightly on the
countertop to ensure it is sealed
correctly. This is important to ensure
an effective seal. Do not permanently
seal into the countertop.
^ Push the installed appliance to the
side until the holes in the support bar
are visible.
Place the front edge of the next
^
appliance into the cut-out.
Connect the appliance / appliances
^
to the main power supply (see
"Electrical connection").
Turn the appliance / appliances on
^
and check the function.
The appliance may be lifted out
using a special tool.
The appliance can also be pushed
up and out from underneath.
Note: push the rear out first.
Removing the appliance
If the appliance is accessible from
below, it can be pushed up and out of
the cut-out. Push up from the back first.
If the appliance is not accessible from
below, grip the appliance with both
hands at the back, pull forward, then lift
it up and out.
^
Insert the cover d into the holes in
the support bar b.
37
Installation
Sealing
The appliance must not be
permanently sealed into the countertop
when installed. The sealing strip under
the edge of the appliance provides a
sufficient seal for the countertop.
If the appliance is sealed into
position, the countertop or appliance
could be damaged if it needs to be
removed for maintenance or service.
Tiled surfaces
The grouting a and shaded area under
the appliance frame must be flat and
even so that the frame will lie evenly
and the sealing strip under the edge of
the upper part of the appliance can
provide an adequate seal against the
countertop.
38
Electrical connection
This appliance must be grounded
according to local or national codes.
All electrical work should be
performed by a qualified electrician
in accordance with local codes and
with the:
- National Electrical Code
ANSI / NFPA No. 70
for the USA
or
- Canadian Electrical Code Part I
for Canada
(CSA Standard C 22.1).
WARNING
,
Disconnect the appliance from the
main power supply before
installation or service. To reduce the
risk of electric shock, make sure that
the appliance is properly grounded
after installation.
Power supply
This appliance is equipped with a
three-prong grounding plug to
prevent shock hazards. It should be
plugged directly into a properly
grounded outlet. Do not cut or
remove the grounding prong from
the plug. If the plug does not fit the
outlet, have the proper outlet
installed by a licensed electrician.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of
the house checked by a qualified
electrician.
Note to the installer
Please leave these instructions with the
consumer or the appliance.
The automatic ignition requires that the
combiset be connected to a 120 VAC,
60 Hz power supply. The supply line
should be protected by a 15 A fuse.
Actual power consumption (during
ignition only) is 25 W.
This appliance is equipped with a
78 3/4" (2000 mm) long power cord that
is ready for connection to the
appropriate outlet.
Place the power outlet so that it is
accessible after the appliance has
been installed in the countertop.
39
Electrical connection
40
Gas connection
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
In Massachusetts a licensed
plumber/gas fitter is required.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer to turn on or shut off the
gas supply after the appliance is
installed.
This appliance and its individual
shut off valve must be disconnected
from the gas supply during any
pressure testing performed in
excess of ½ psi (3.5 kPa), or
isolated from the gas line by closing
its individual manual shut off valve at
test pressures equal to or less than
½ psi (3.5 kPa).
The gas connection must be made
in accordance with local codes or, in
the absence of local codes, with
- the National Fuel Gas Code,
ANSI Z 223.1/NFPA 54
for the USA
or
- the current Can/CGA B 149.1
and .2 Installation Codes for gas
burning appliances for Canada.
Make sure that the maximum gas
supply pressure before the gas
pressure regulator is never more than
½ psi for both natural gas or LP gas.
The minimum supply pressure to get
the required gas input is
4" w.c. for natural gas:
10" w.c. for LP gas.
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
41
Gas connection
Gas pressure regulator
A pressure regulator that is convertible
from natural to LP gas (Propane) or vice
versa is included with the appliance.
The included regulator corresponds
with the gas type of the combiset. Verify
before installing.
The adjusted pressure is:
natural gas - 4" w.c.
LP gas - 10" w.c.
a Combiset
b ½" NPT
c Regulator
For convenience, an AGA or CGA
approved flexible stainless steel gas
hose (accordion type) may be used
between the gas connection and the
regulator. This will allow the appliance
to be lifted out of the countertop for
cleaning or servicing. Make sure that
any drawers, cabinet doors, etc., do not
rub on this gas hose.
Do not use any regulator unless it
has been supplied by Miele. Doing
so may cause a gas leak.
If there is any doubt concerning
installation contact the Miele Technical
Service Department.
After connecting the appliance check
all fittings for gas leaks e.g. with
soapy water.
When installed properly, the flame will
be steady and quiet. It will also have a
sharp, blue inner core that will vary in
length proportional to the burner size.
Flame adjustment will not be
necessary.
As shown in the above diagram, the
included regulator must be used when
connecting the Miele combiset to your
gas supply. This item has been
customized by Miele to meet all
applicable safety requirements. Make
sure the regulator is easily accessible
for adjustment after the appliance has
been installed.
42
Nominal ratings
Maximum output
Gas type BTU/hr kW
Natural Gas (NG) 17,500 5.2
Propane (LP) 17,500 5.2
Minimum output
Gas type BTU/hr kW
Natural Gas (NG) 680 0.20
Propane (LP) 680 0.20
Gas connection
43
Converting to another type of gas
The combiset should have been
ordered for connection to either natural
gas or LP gas (propane).
If the combiset is not configured for the
proper type of gas connection please
contact your Miele Dealer.
44
Help protect our environment
Disposal of packing materials
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
454647
Alteration rights reserved / 3911
INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST
CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
M.-Nr. 07 366 200 / 03
Loading...
