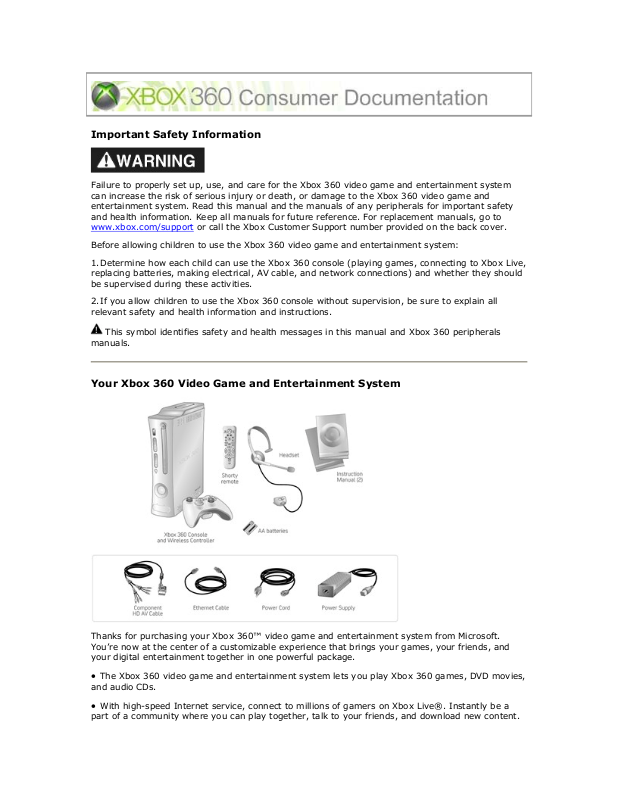

Important Safety Information
Failure to properly set up, use, and care for the Xbox 360 video game and entertainment system
can increase the risk of serious injury or death, or damage to the Xbox 360 video game and
entertainment system. Read this manual and the manuals of any peripherals for important safety
and health information. Keep all manuals for future reference. For replacement manuals, go to
www.xbox.com/support
Before allowing children to use the Xbox 360 video game and entertainment system:
1. Determine how each child can use the Xbox 360 console (playing games, connecting to Xbox Live,
replacing batteries, making electrical, AV cable, and network connections) and whether they should
be supervised during these activities.
2. If you allow children to use the Xbox 360 console without supervision, be sure to explain all
relevant safety and health information and instructions.
This symbol identifies safety and health messages in this manual and Xbox 360 peripherals
manuals.
or call the Xbox Customer Support number provided on the back cover.
Your Xbox 360 Video Game and Entertainment System
Thanks for purchasing your Xbox 360™ video game and entertainment system from Microsoft.
You’re now at the center of a customizable experience that brings your games, your friends, and
your digital entertainment together in one powerful package.
• The Xbox 360 video game and entertainment system lets you play Xbox 360 games, DVD movies,
and audio CDs.
• With high-speed Internet service, connect to millions of gamers on Xbox Live®. Instantly be a
part of a community where you can play together, talk to your friends, and download new content.

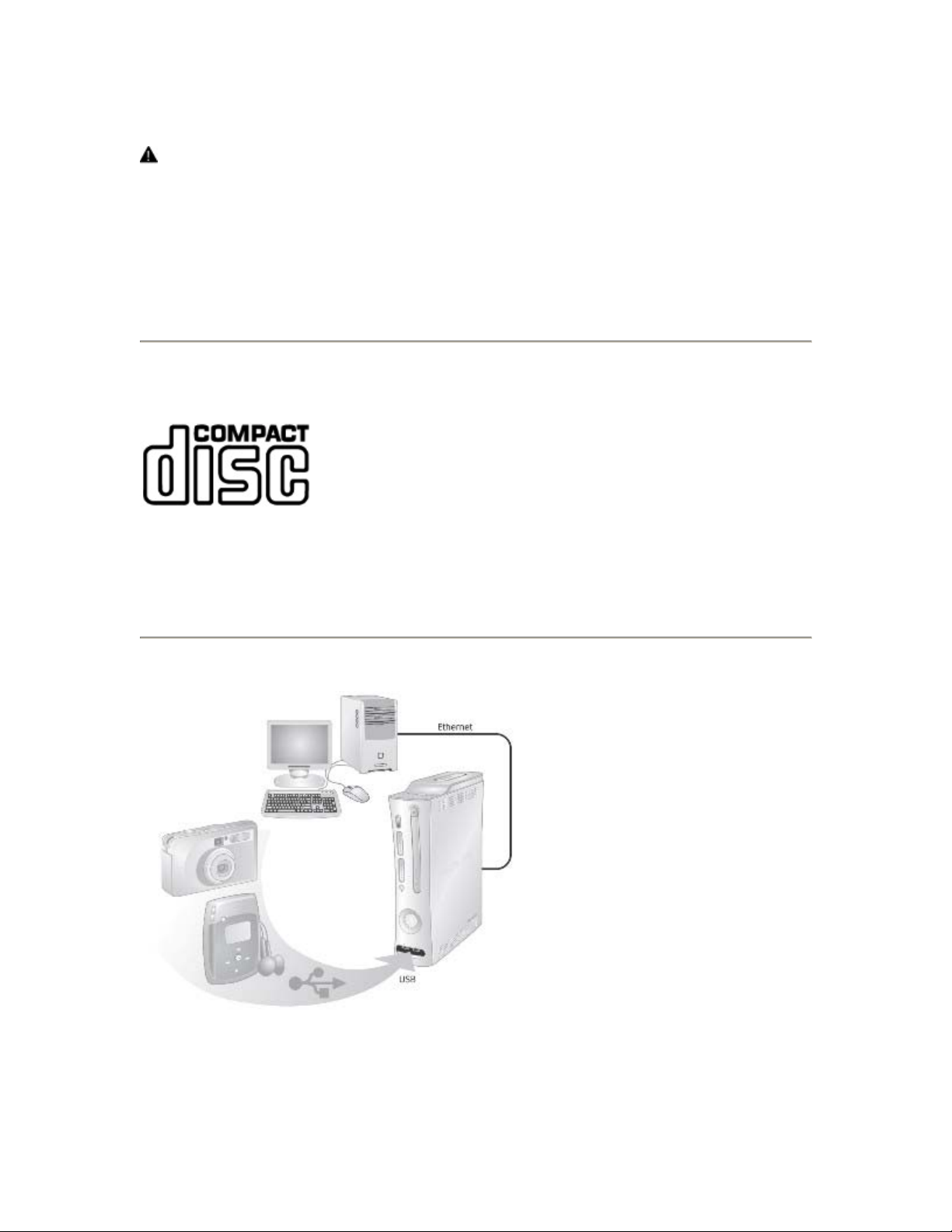

• Stream pictures, music, and more to your Xbox 360 console by connecting to your Microsoft®
Windows®-based PC or other devices such as digital cameras and portable music players.

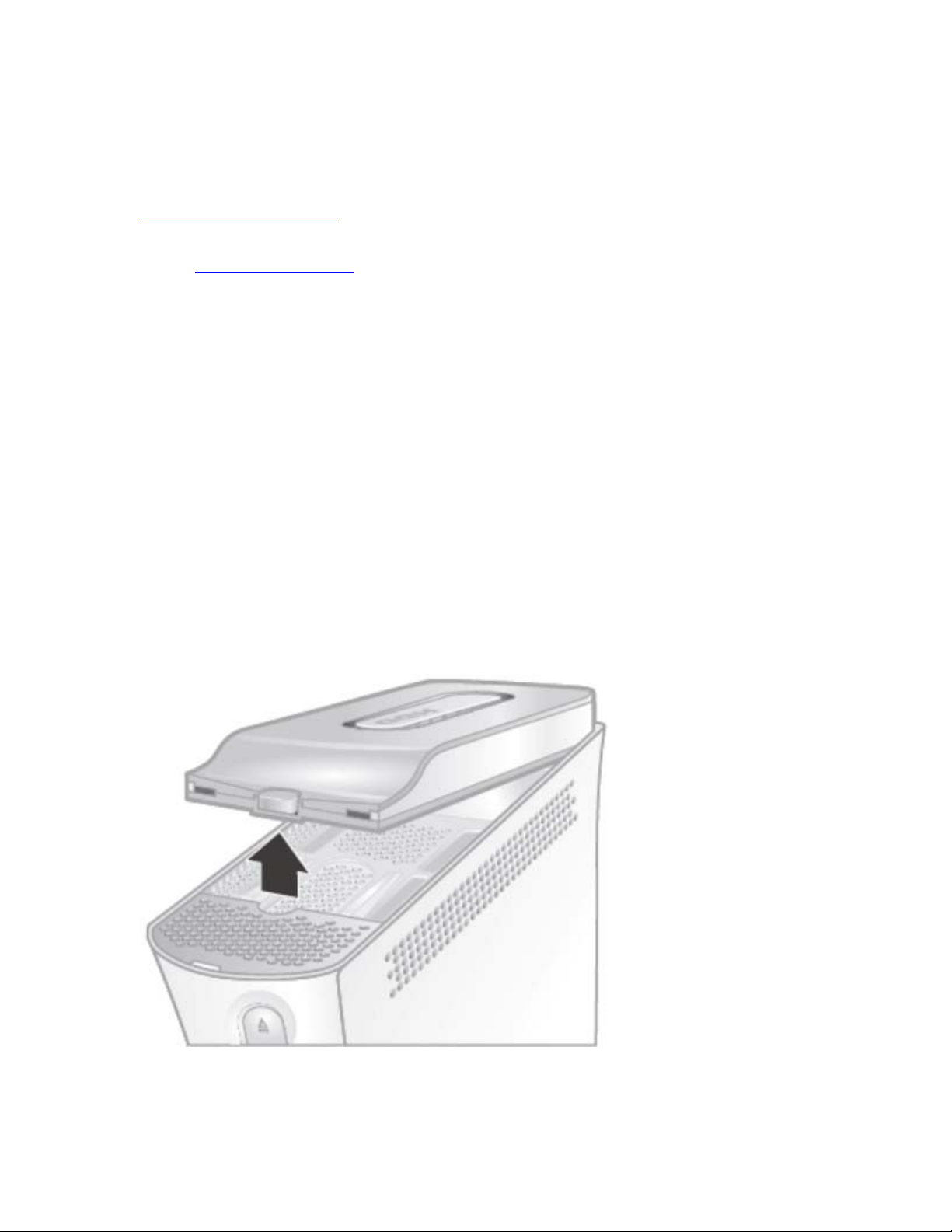

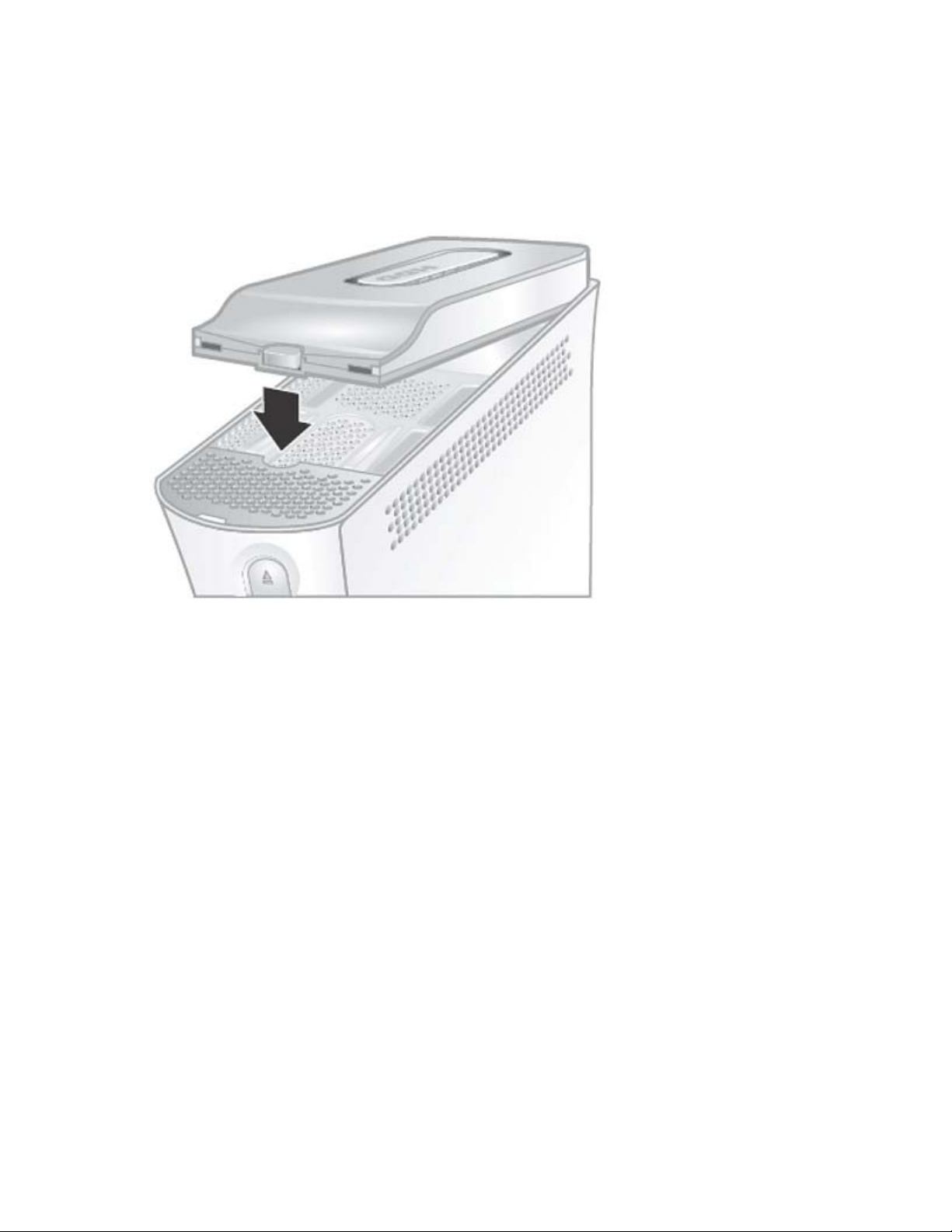

• Enjoy music and other content pre-installed with your Xbox 360 Hard Drive. For more information
about the Xbox 360 Hard Drive, go to www.xbox.com
.
Select a Location for the Xbox 360 Console
Prevent the Console from Falling
If the Xbox 360 console falls and hits someone, especially a small child, it could cause serious
injury. To reduce the risk of such injuries and damage to the Xbox 360 console, set it up according
to these instructions and place it on a surface that:
• Is flat and level.
• Is stable and not likely to tip over.
• Allows all four feet of the console to be in contact with the surface.
• Is not likely to allow the console to slip or slide off.
• Is clean and free of dust and debris.
If the surface or console feet become dirty or dusty, clean them with a dry cloth. If the console is
positioned vertically, put it on a surface where it is not likely to fall if it tips over.
Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on
them as they move around or walk through the area. When the console is not in use, you may need
to disconnect all cables and cords from the front and rear of the console to keep them out of the
reach of children and pets. Do not allow children to play with cables and cords.
Prevent the Console from Overheating
Do not block any ventilation openings on the console or power supply. Do not place the console or
power supply on a bed, sofa, or other soft surface that may block ventilation openings. Do not place
the console or power supply in a confined space, such as a bookcase, rack, or stereo cabinet, unless
the space is well ventilated.
Do not place the console or power supply near any heat sources, such as radiators, heat registers,
stoves, or amplifiers.
Avoid Smoke and Dust
Do not use the console in smoky or dusty locations. Smoke and dust can damage the console,
particularly the DVD drive.
Set Up Your Xbox 360 Video Game System
Connect the Component HD AV Cable
IMPORTANT
Stationary images in video games can “burn” into some TV screens, creating a permanent shadow.
Consult your TV owner's manual or manufacturer before playing games.
To connect your Xbox 360 console to a TV with standard, composite input:
1. Connect the component HD AV cable connector to the AV port on the console.
2. Set the switch on the AV port connector to regular TV.
3. Connect the color-coded connectors to the corresponding jacks on the TV: yellow to yellow
(video), red to red (right audio), and white to white (left audio).
NOTE
For monaural (mono) TVs, which have only one audio jack, connect either the right or left audio
connector to the audio jack.
4. Select the appropriate video input on your TV (see "No Picture" under "Troubleshooting" on
page ?? for further information).
NOTE
Your Xbox 360 Component HD AV Cable has two distinct sets of connectors on the TV end grouped
by audio and video. Do not confuse the red connector from the audio group with the red connector
from the video group.
To connect your Xbox 360 console to a TV with component input:
1. Connect the Xbox 360 Component HD AV Cable connector to the AV port on the console.
2. Set the switch on the AV port connector to regular TV or HDTV. The HDTV position should be
selected if your TV supports high definition resolutions such as 480p, 720p, or 1080i.
3. Connect the color-coded connectors in the video group to the corresponding jacks on the TV: red
to red (red video), green to green (green video), and blue to blue (blue video).
4. Connect the color-coded connectors in the audio group to the corresponding jacks on the TV: red
to red (right audio) and white to white (left audio).
5. Select the appropriate video input on your TV (see "No Picture" under "Troubleshooting" on
page ?? for further information).
See the Xbox 360 Warranty Manual (Volume 2) for information regarding static images and certain
types of TVs.
Other AV Input
You can also connect to additional TV input types by using the Xbox 360 S-Video AV Cable or the
Xbox 360 VGA HD AV Cable (both sold separately). For more information, go to
www.xbox.com/hardware
.
Connect to a Digital Audio Optical AV System (Optional)
If your system (typically, a receiver or amplifier) supports digital audio input, you can connect to
digital audio rather than to the standard left and right audio. Digital audio should produce higherquality sound.
To connect to digital audio:
1. Connect your video input as described before.
2. Connect your digital audio cable (not included) to the digital audio output on your AV cable and to
the digital audio input on your receiver.
After you've set up your console, you can configure additional console audio settings and test your
connection from the System area of the Xbox Dashboard. Before doing so, proceed through the
steps in the following pages for connecting to power, connecting your controller, and other initial
settings.
Connect the Console to Power
WARNING
As with many other electrical devices, failure to take the following precautions can result in serious
injury or death from electric shock or fire or damage to the Xbox 360 video game and
entertainment system.
Select an appropriate power source for your Xbox 360 console:
• Use only the power supply unit and AC power cord that came with your console or that you
received from an authorized repair center. If you are not sure if you have the correct power supply
unit, compare the model number on the power supply unit with the model number specified on your
console. If you need a replacement power supply unit or AC power cord, contact Xbox Customer
Support.
• Confirm that your electrical outlet provides the type of power indicated on the power supply unit
(in terms of voltage [V] and frequency [Hz]). If you are not sure of the type of power supplied to
your home, consult a qualified electrician.
• Do not use non-standard power sources, such as generators or inverters, even if the voltage and
frequency appear acceptable. Only use AC power provided by a standard wall outlet.
• Do not overload your wall outlet, extension cord, power strip, or other electrical receptacle.
Confirm that they are rated to handle the total current (in amps [A]) drawn by the Xbox 360
console (indicated on the power supply unit) and any other devices that are on the same circuit.
• Use a properly grounded electrical outlet that accommodates the three-prong grounding plug. Do
not remove the grounding prong. If the plug does not fit into your outlet, have an electrician replace
the obsolete outlet.
To avoid damaging the power cords and power supply:
• Do not wrap power cords around the power supply.
• Protect the power cords from being walked on.
• Protect cords from being pinched or sharply bent, particularly where they connect to the power
outlet, the power supply unit, and the console.
• Do not jerk, knot, sharply bend, or otherwise abuse the power cords.
• Do not expose the power cords to sources of heat.
• Do not wrap power cords around the power supply unit.
• Keep children and pets away from the power cords. Do not allow them to bite or chew on them.
• When disconnecting the power cords, pull on the plug—do not pull on the cord.
• Do not let the power supply hang from either power cord.
If a power cord or power supply becomes damaged in any way, stop using it immediately and
contact Xbox Customer Support for a replacement. Only use the power supply and AC power cords
supplied with your console or received from an authorized repair center.
Unplug your Xbox 360 console during lightning storms or when unused for long periods of time.
Always connect the power cords according to the following instructions:
1. Fully insert the power supply cord into the Xbox 360 console until it clicks.
2. Plug the AC power cord into the power supply until it stops.
3. Plug the other end of the AC power cord into the wall outlet.
The Xbox 360 Button
All controllers and remotes for your Xbox 360 video game system feature an Xbox Guide Button.
Press the Xbox Guide Button to show the Xbox Guide at any time.
The Ring of Light
The Xbox Guide Button on the controller and the power button on the console are both surrounded
by the Ring of Light, which is composed of four quadrants. When a controller is connected to your
console, it is assigned a quadrant, which glows green to indicate the controller's position. As more
controllers are added, each quadrant of the console glows green to reflect the added controller's
position. The Ring of Light on the console will flash combinations of red if there are system
problems. See "Troubleshooting" on page ?? for more details.
Prepare the Wireless Controller for Use
Insert Batteries
The wireless controller uses disposable batteries or the Xbox 360 Rechargeable Battery Pack (sold
separately). If you plan to use disposable batteries, you should familiarize yourself with the
"Disposable Battery Safety" section that follows.
Disposable Battery Safety
WARNING
Improper use of batteries may result in battery fluid leakage, overheating, or explosion. Released
battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if
swallowed. To reduce the risk of injury:
• Keep batteries out of reach of children.
• Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
• Do not leave batteries in the AA battery pack when it is not attached to the controller.
• Do not mix new and old batteries or batteries of different types (for example, carbon-zinc and
alkaline batteries).
• Remove the batteries if they are worn out or before storing your controller or remote control for
an extended period of time.
• If a battery leaks, remove all batteries, taking care to keep the leaked fluid from touching your
skin or clothes. If fluid from the battery comes into contact with skin or clothes, flush skin with
water immediately. Before inserting new batteries, thoroughly clean the battery compartment with a
damp paper towel, or follow the battery manufacturer's recommendations for cleanup.
• Dispose of batteries in accordance with Local and National Disposal Regulations, including those
governing the recovery and recycling of waste electrical and electronic equipment (WEEE).
To insert batteries into the wireless controller AA battery pack:
1. Press the tab on the top of the AA battery pack and pull down to detach it from the controller.
2. Insert two new AA (LR6) batteries with their positive (+) and negative (–) ends as shown on the
underside of the battery pack. For best performance, AA rechargeable batteries are not
recommended.
3. Slide the AA battery pack back into place on the controller and push in to close.
Remove Controller Batteries Aboard Aircraft
Before boarding any aircraft or packing the wireless controller in luggage that will be checked,
remove any batteries from the wireless controller. The wireless controller can transmit radio
frequency (RF) energy, much like a cellular telephone, whenever batteries are installed.

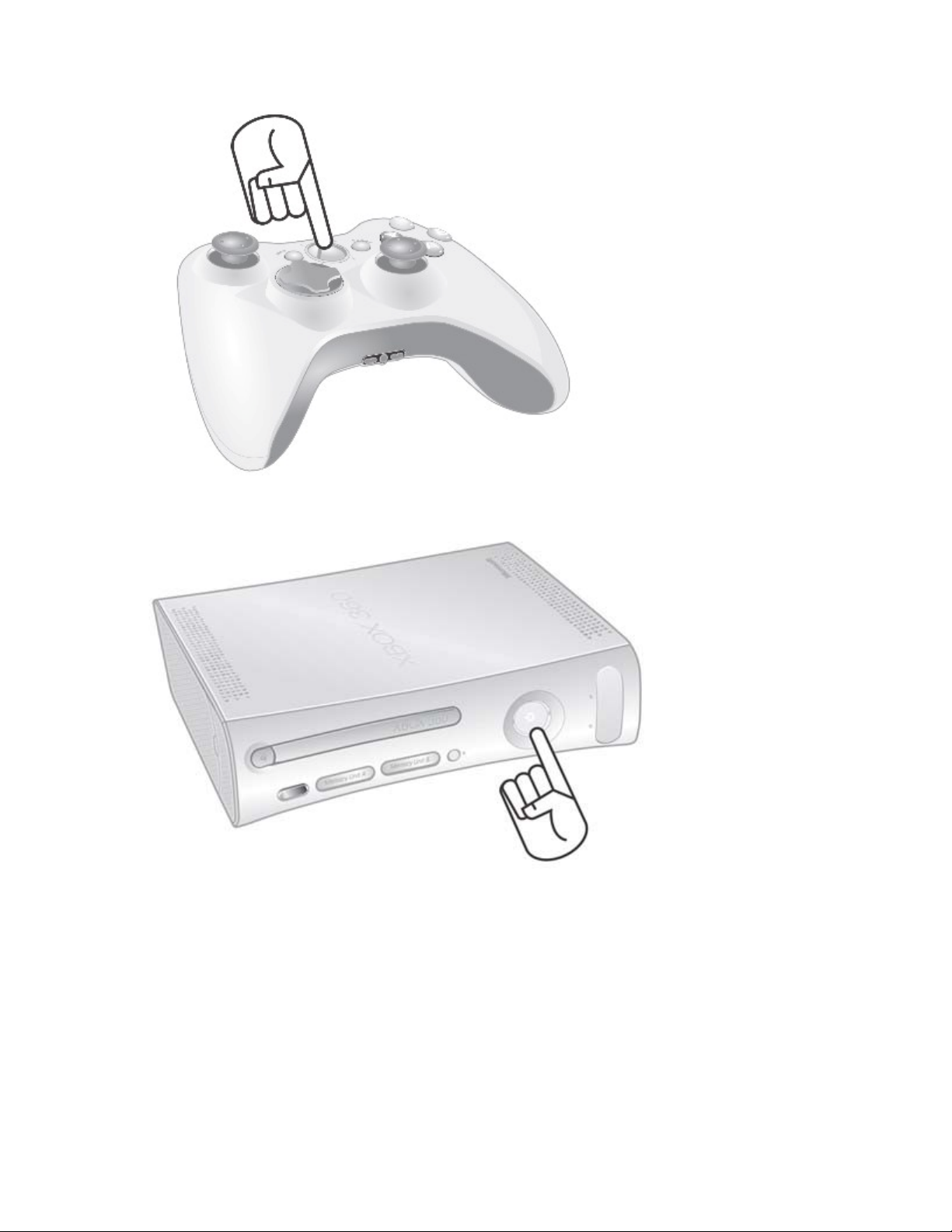

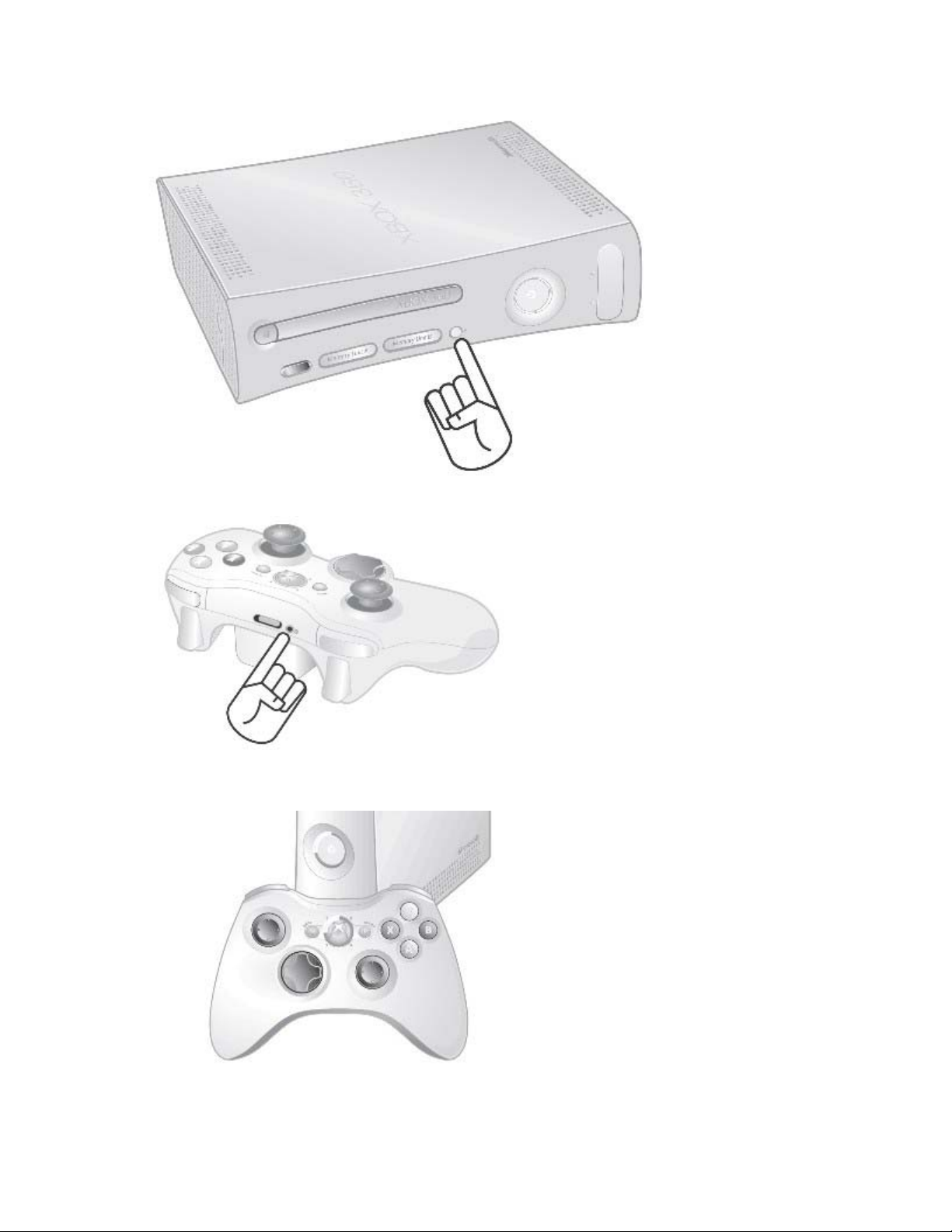

To turn on the console and wireless controller:
1. Press the Xbox Guide Button or the Start button on the controller to turn on the controller.
2. Press the Xbox Guide Button on the controller or the power button on the console to turn on the
console.
Select Language and Other Settings
The first time you turn on your Xbox 360 console, you'll be prompted to enter a language. Follow
the prompts to select a language for your console.
NOTE
You can change language and other console settings in the System area of the Xbox Dashboard
including time, audio, display, and automatic turn-off after six hours of non-use.
Family Settings
The new Family Settings feature for Xbox 360 gives parents and caregivers the ability to provide
age-appropriate entertainment through customized settings. Console settings can limit the games
and movies that can be played on your console. Xbox Live settings can customize the Xbox Live
experience for each child account, even when playing away from home.
Apply Family Settings
To apply Family Settings for your console and Xbox Live:
1. Select System, Family Settings.
2. Choose the settings you want to apply to your console and your Xbox Live accounts.
In the U.S. and Canada, Xbox 360 Family Settings are based on the ESRB (Entertainment Software
Rating Board) rating system and movie settings are based on the MPAA (Motion Picture Association
of America) rating system. By default, Xbox 360 Family Settings are set to Allow All for games and
movies.
Xbox Live Settings
You can make sure that your family has a positive experience on Xbox Live by setting limits for each
child account. Manage up to eight settings for each account and set different limits for each account.
Your child’s Xbox Live settings are pre-selected when their Xbox Live account is created. You can
make changes at any time by selecting System, Family Settings, Live Controls, and choosing
the child’s account.
Family Settings for Xbox Live includes these features:
• Parental approval for adding individuals to your child’s friends list.
• Limiting voice, video, and text chat to individuals on your child’s friends list.
• Blocking or limiting the display of your child’s profile information and online status.
• Blocking or limiting your child’s ability to view content created by other gamers.
• Blocking access to Xbox Live multiplayer games.
• Preventing your child from purchasing items on Xbox Live Marketplace.

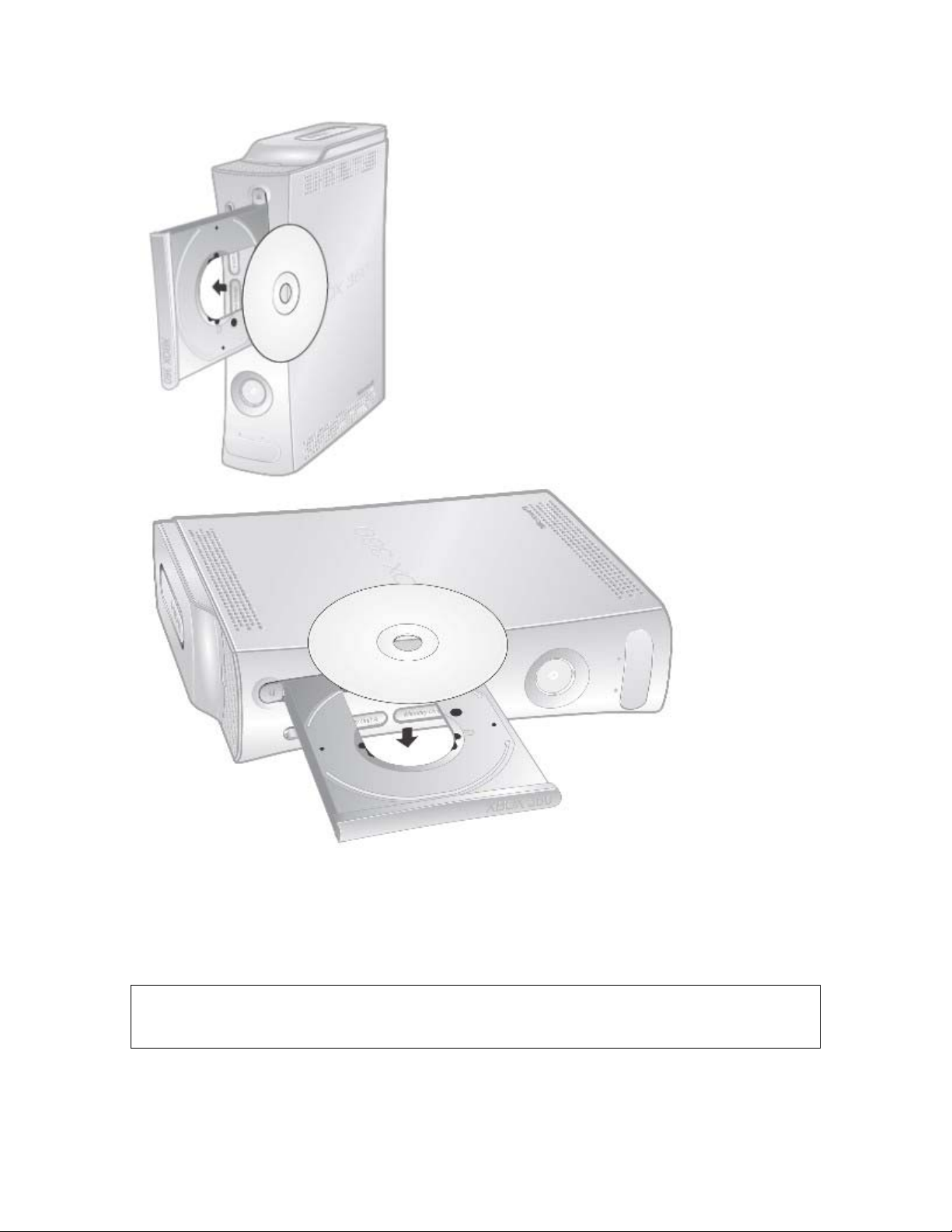

Using the Disc Drive
To insert a disc:
1. Press the eject button to open the disc tray.
2. Place the Xbox 360 game disc, audio CD, or DVD on the disc tray with the label facing out.
Loading...
