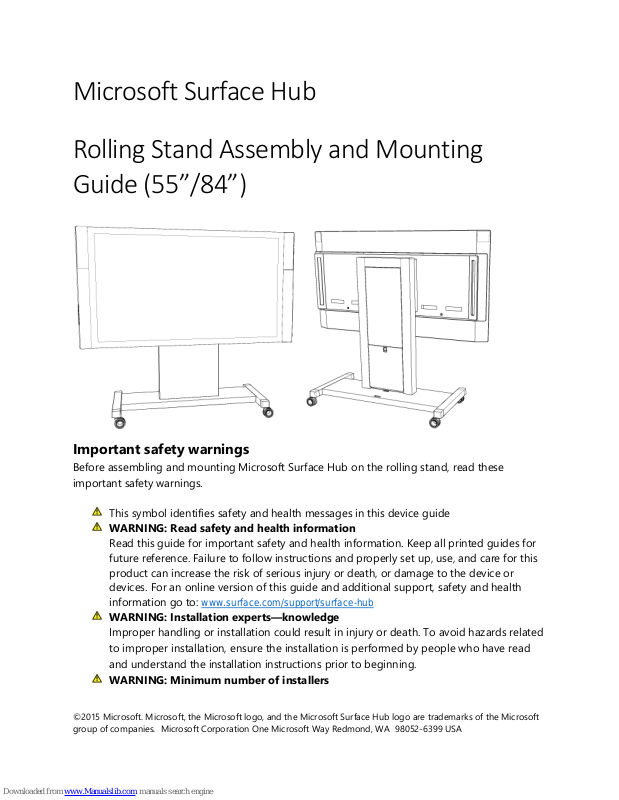

Microsoft Surface Hub 55 inch, Surface Hub 84 inch Assembly And Mounting Manual

Microsoft Surface Hub

Rolling Stand Assembly and Mounting Guide (55”/84”)

Important safety warnings

Before assembling and mounting Microsoft Surface Hub on the rolling stand, read these important safety warnings.

This symbol identifies safety and health messages in this device guide WARNING: Read safety and health information

Read this guide for important safety and health information. Keep all printed guides for future reference. Failure to follow instructions and properly set up, use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices. For an online version of this guide and additional support, safety and health information go to: www.surface.com/support/surface-hub

WARNING: Installation experts—knowledge

Improper handling or installation could result in injury or death. To avoid hazards related to improper installation, ensure the installation is performed by people who have read and understand the installation instructions prior to beginning.

WARNING: Minimum number of installers

©2015 Microsoft. Microsoft, the Microsoft logo, and the Microsoft Surface Hub logo are trademarks of the Microsoft group of companies. Microsoft Corporation One Microsoft Way Redmond, WA 98052-6399 USA

In order to reduce the risk of injury, the Microsoft Surface Hub 55” requires a minimum of two people and Microsoft Surface Hub 84” requires a minimum of four people to perform the installation.

WARNING: Handling and site preparation

Do not attempt to install the device with fewer than the required number of people. To reduce the risk of injury due to the size and weight of the device, keep the device upright. When placing the device onto the mount, be certain it is properly seated before releasing it. Keep the assembly area clear of packing materials. Remove materials after each step.

WARNING: Designated load capacity

Rolling stands are rated for a designated load capacity. To reduce risk of personal injury, death, or damage to the device, never exceed the designated load capacity of the rolling stand. Refer to the specification section for weights and load capacities.

WARNING: Tip-over and fall hazard

The rolling stand is designed to handle the weight of the device. To reduce the risk of injury or death, never allow anyone to hang from the unit. Never allow suspending anything other than the designated device.

WARNING: Do not attempt to repair or modify

Assemble stand components using only fasteners provided by Microsoft as shown the parts list. Do not attempt to take apart, open, service, or modify the product, accessories, or power supply. Doing so could present the risk of electric shock or other hazard. Any evidence of any attempt to open and/or modify this device, including peeling, puncturing, or removing any of the labels, will void the Limited Warranty. Heed all warnings and follow all instructions.

WARNING: Electrical outlet location

To reduce risks related to electric shock, ensure that there is an appropriate electrical outlet within reach of the power cord provided with the Surface Hub. Do not use extension cords, or a power cord other than what is provided with the display assembly.

WARNING: Before you begin

To minimize risk of improper installation, before you begin the assembly and installation process, ensure that all of the proper hardware and parts have been provided according to the parts list. Never use hardware other than what is provided by Microsoft and designed specifically for this product.

WARNING: Proper installation environment

To reduce risks related to the environment, the unit must be installed indoors only .

 Do not leave the unit near sources of high heat or steam or where condensation

is likely to occur, such as near air conditioners.

 Do not leave the unit on a structure that is prone to vibration or movement.  Do not leave the unit in such a manner as to block ventilation holes. Allow for

proper ventilation according to the device specifications.

 Do not install in areas with potentially explosive atmospheres. These areas are

often, but not always, posted and can include fueling areas, such as below decks

on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust or metal powders. The device should not be used in these areas. In such areas, sparks can occur and cause an explosion or fire.

WARNING: Pinch hazard

When assembling the stand and installing the device, take care to avoid pinching fingers.

WARNING: Choking hazard

This device or its accessories may contain small parts, which may be a choking hazard to children under 3. Keep small parts away from children.

WARNING: Small children

This device and its accessories are not toys. To reduce the potential for injury, death or product damage, do not allow small children to play with them. Never allow children to climb on or hang from the device or its stand.

WARNING: Cable routing

To reduce risks related to electric shock or trip hazards, ensure cables are routed in such a way as to prevent them from being pinched, crushed, cut, or tripped on.

WARNING: Proper transport—tip over

To avoid risk of injury or damage to the product due to tip-over or dislodging from the stand when transporting Microsoft Surface Hub on the stand:

 Use only the stand provided by Microsoft specific for the model display you have.  Never allow someone to hang from or place heavy weights on the display.  Disconnect the power cord and other cables as needed prior to moving.  Always use two adults to move the stand with the display.  Push or lift the stand only by its designated handles and never push or lift directly

on Microsoft Surface Hub.

 Avoid pushing or lifting on the screen while the screen is hanging on the stand.  Only adults should move Microsoft Surface Hub and its stand.  Move Microsoft Surface Hub and its stand slowly.  Apply force from the narrow side, not from the wide side.  Always push near the middle. Never apply force at the top.  Always push the stand. Do not pull the stand.  Use caution and move slowly when transporting up or down ramps.  Never leave the stand unattended on or near a ramp.

WARNING: Ensure hardware screws are securely tightened

To reduce the risk of the product falling, ensure that all screws are securely tightened before mounting the display. Do not overtighten as this may cause damage and weaken the holding strength.

Explanation of safety symbols to reduce tip-over risk

Safety symbol

Meaning

Do not allow children under 16 to move the stand. Only adults should move the stand. Move the stand slowly.

Use only the handles to move this unit. Push on the narrow side, not on the front.

Push near the middle. Never apply force at the top.

Push, don’t pull.

This document outlines the steps for assembling the Surface Hub 55” and Surface Hub 84”

Model

Device weight

Stand

weight

Handle

weight

Designated

load capacity

Surface Hub 55”

110 lb.

270 lb.

380 lb.

Surface Hub 84”

260 lb.

270 lb.

30 lb.

560 lb.

rolling stand. These stands require two people to assemble. Before beginning, make sure you have all of the components in the parts list.

IMPORTANT: Avoid damage to your device. The Surface Hub 55” is intended to be supported only by its bottom edge when not supported by the mounting system. Rest it only on its bottom edge, and support it to keep it vertical. The Surface Hub 84” is intended to be supported only by the lifting handles when not supported by the mounting system. Do not place either device on its face, back, top, or sides.

Specifications

Required tools (not included)

#2 Phillips screwdriver

5mm hex key (55” only) 6mm hex key (84” only)

13mm wrench

+ 9 hidden pages
