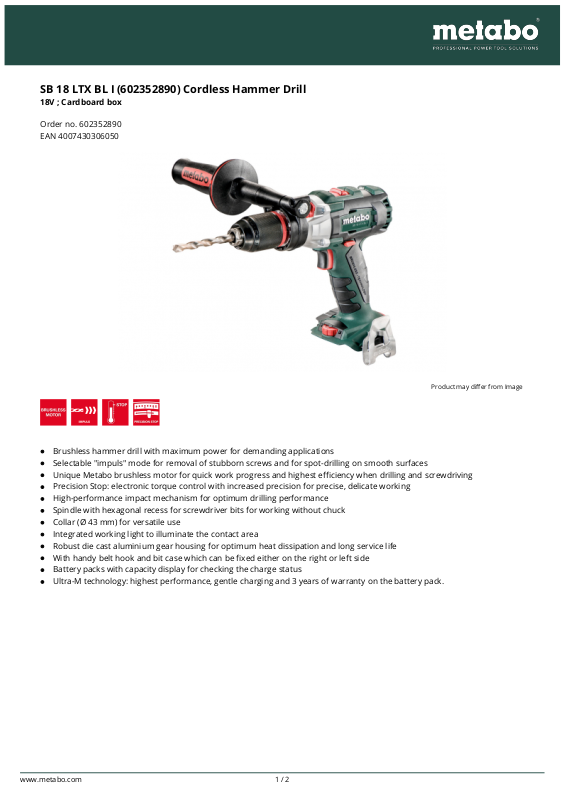

Metabo BS 18 L BL User Manual

SB 18 LTX BL I (602352890) Cordless Hammer Drill

18V ; Cardboard box

Order no. 602352890
EAN 4007430306050

Brushless hammer drill with maximum power for demanding applications
Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
Precision Stop: electronic torque control with increased precision for precise, delicate working
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
With handy belt hook and bit case which can be fixed either on the right or left side
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.

Product may differ from Image

www.metabo.com 1 / 2

Technical data

Characteristics

Battery pack voltage 18 V

Maximum torque - soft 60 Nm / 531 in-lbs

Pulse torque 65 Nm / 48 ft. lbs

Maximum torque, hard 120 Nm / 1062 in-lbs

Adjustable torque 1 - 20 Nm // 9 - 177 in-lbs

Drill-Ø masonry 16 mm / 5/8 "

Drill-Ø concrete 16 mm / 5/8 "

Drill Ø steel 13 mm / 1/2 "

Drill-Ø soft wood 65 mm / 2 1/2 "

No-load speed 0 - 500 / 0 - 1850 rpm

Maximum impact rate 32300 bpm

Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "

Weight (including battery pack) 2.2 kg / 4.9 lbs kg

Vibration

Drilling in metal 3.2 m/s²

Uncertainty of measurement K 1.5 m/s²

Impact drilling concrete 20.7 m/s²

Uncertainty of measurement K 1.5 m/s²

Noise emission

Sound pressure level 92 dB(A)

Sound power level (LwA) 103 dB(A)

Uncertainty of measurement K 3 dB(A)

Scope of delivery

Futuro Plus keyless chuck with metal sleeve

MetaLoc case insert

without battery pack, without charger

Side handle

Belt hook and bit case

www.metabo.com 2 / 2
