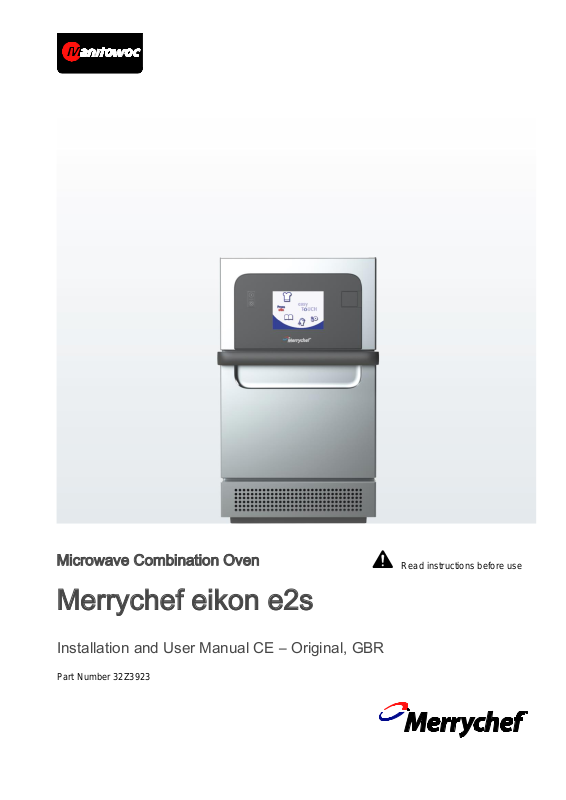

Merrychef eikon e2s Installation Manual

Microwave Combination Oven

Read instructions before use

Merrychef eikon e2s

Installation and User Manual CE – Original, GBR

Part Number 32Z3923

Customer documentation

 The customer documentation is part of the microwave combination oven.  Keep the customer documentation manuals handy at all times so that you can look up any required

information.

 Keep the customer documentation manuals for the entire life of the appliance.  Carefully read the Installation and User Manual before using, handling, and working on this appli-

ance.

 If you transfer the microwave combination oven to a new owner, make sure to give the new owner

the customer documentation manuals as well.

Contents

eikon e2s Installation and Operating Manual CE 3

Contents

1 General information 5

1.1 EC Declaration of Conformity 6

1.2 Environmental protection 7

1.3 Important Information 7

1.4 Identifying your microwave combination oven 8

1.5 Structure of customer documentation 9

1.6 About this Installation and User Manual 9

2 Design and function 11

2.1 Design and function of the microwave combination oven 12

2.2 Layout and function of the operating panel 13

3 For your safety 14

3.1 Basic safety code 15

3.2 Intended use of your microwave combination oven 20

3.3 Warning signs on your microwave combination oven 21

3.4 Summary of hazards 23

3.5 Hazards and safety precautions when moving the appliance 25

3.6 Hazards and safety precautions when setting up the appliance 26

3.7 Hazards and safety precautions during installing 27

3.8 Hazards and safety precautions when preparing appliance for use 28

3.9 Hazards and safety precautions during operation 29

3.10 Hazards and safety precautions during cleaning 31

3.11 Hazards and safety precautions when taking the appliance out of service 33

3.12 Safety devices 34

3.13 Requirements to be met by personnel and working positions 36

3.14 Personal protective equipment 37

4 Moving the appliance 39

4.1 Working safely with the appliance 40

4.2 Moving the appliance to the installation location 41

5 Setting up the appliance 42

5.1 Safe working when setting up the appliance 43

5.2 Requirements for the installation location 44

5.3 Unpacking the appliance 46

5.4 Taking the appliance off the pallet 48

5.5 Mounting the appliance on a work surface 48

6 Installation 49

6.1 Safe working during electrical installation 50

6.2 Planning the electrical installation 50

6.3 Electrical installation requirements 52

7 Preparing the appliance for use 54

7.1 Safe working when preparing the appliance for use 55

7.2 Procedure for preparing the appliance for use 57

Contents

eikon e2s Installation and Operating Manual CE 4

7.3 Main menu screen 59

7.4 The keyboard screen 60

8 Cooking procedures 61

8.1 Operating principles and instructions for cooking 62

8.1.1 Working safely with the appliance 63

8.1.2 Turning the oven on and off 65

8.1.3 How to cook 66

8.2 Operation instructions: Full Serve Mode 68

8.2.1 The Press&Go Menu 69

8.2.2 Using a cooking profile 70

8.2.3 Creating a cooking profile 71

8.2.4 Using a cooking profile 74

8.2.5 Managing cooking profile groups 77

8.2.6 Basic settings of your microwave combination oven 81

8.2.7 Using a USB stick 89

9 Cleaning procedures 91

9.1 Daily cleaning tasks 92

9.2 Cleaning chemicals 92

9.3 Items required for cleaning 93

9.4 Safe working when cleaning 94

9.5 Cleaning procedures 96

9.5.1 Cool down procedure before cleaning 97

9.5.2 Cleaning instructions 99

10 Taking the appliance out of operation and disposal 104

10.1 Safe working when taking the appliance out of operation 105

10.2 Taking the appliance out of operation and disposal 106

11 Technical data 107

11.1 Technical data 108

11.2 Dimensional drawings 110

12 Servicing information 111

12.1 Warranty information and contacting customer service 112

12.2 Rectifying faults: problems in operation 113

1 General information

eikon e2s Installation and Operating Manual CE 5

Page

EC Declaration of Conformity 6 Environmental protection 7 Important Information 7 Identifying your microwave combination oven 8 Structure of customer documentation 9 About this Installation and User Manual 9

1 General information

Purpose of this chapter

This chapter shows you how to identify your microwave combination oven and provides guidance on using this manual.

Contents

This chapter contains the following topics:

1 General information

eikon e2s Installation and Operating Manual CE 6

Authorised Representative (Brand Headquarters)

Factory

Manitowoc Foodservice UK Limited

Ashbourne House, The Guildway,

Provincial Park, Nether Lane,

Old Portsmouth Road

Ecclesfield

Guildford GU3 1LR

Sheffield S35 9ZX

United Kingdom

Generic Model Number

eikon e2s

Description

Commercial Combination Microwave Oven

EMC 2004/108/EC

RoHS 2011/65/EU

MD 2006/42/EC

EN 60335-2-90:2006 +A1 (excluding Annex EE ship board requirements)

EN 60335-1:2012

EN 62233:2008

EN 55014-2:1997+A2:2008 in accordance with Category IV requirements

- Electrostatic discharge

IEC 61000-4-2

- Radiated RF interference

IEC 61000-4-3

- Fast transient common mode, AC port

IEC 61000-4-4

- Mains surge, AC port

IEC 61000-4-5

- RF current, common mode, AC port

IEC 61000-4-6

- Mains voltage dips and interruptions

IEC 61000-4-11

- Flicker

IEC 61000-3-11

EN 55011:2009+A1:2010 Classification: Class A, Group 2

- Mains terminal disturbance voltage

Table 6

- Radiated disturbance, magnetic field

Table 9

- Radiated disturbance, electric field

Table 9

AS/NZS CISPR 11

- Radiated disturbance

CISPR 11:2009 Class A

- Conducted disturbance

CISPR 11:2009 Class A

1.1 EC Declaration of Conformity

Manufacturer

Equipment details

Declaration of Conformity with directives and standards

The manufacturer hereby declares that this commercial combination microwave oven complies with the following directives and standards.

Compliance with Directives

This commercial combination microwave oven complies with the relevant provisions of the following European Directives:

Harmonised standards applied

This commercial combination microwave oven complies with the relevant requirements of the following European standards:

1 General information

eikon e2s Installation and Operating Manual CE 7

Place and Date of issue: Guildford, 31st July 2015

Mr Philip Radford

Vice President Products: Merrychef

(on behalf of the Authorised Representative)

Manufacturer

Quality and environmental management

Manitowoc Foodservice UK Limited (Sheffield) employs a quality management system in accordance with EN ISO 9001:2008 and a certified environmental management system in accordance with EN ISO

14001.

1.2 Environmental protection

Statement of principles

Our customers' expectations, the legal regulations and standards and our company's own reputation set the quality and service for all our products.

We have an environmental management policy that not only ensures compliance with all environmental regulations and laws, but also commits us to continuous improvement of our green credentials.

We have developed a quality and environmental management system in order to guarantee the continued manufacture of high-quality products and to be sure of meeting our environmental targets.

This system satisfies the requirements of ISO 9001:2008 and ISO 14001:2004.

Environmental protection procedures

We observe the following procedures:

 Use of RoHS2-compliant products  REACH chemical law  Recycling of electronic waste  Environmentally friendly disposal of old appliances via the manufacturer

Join us in our commitment to protect the environment.

1.3 Important Information

Users are cautioned that maintenance and repairs should be performed by a Merrychef® authorised service agent using genuine Merrychef® replacement parts. Merrychef® will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorised parts or by unauthorised service agents. For a list of authorised service agents please refer to your distributor.

1 General information

eikon e2s Installation and Operating Manual CE 8

Model number

eikon e2s

Elements of the item number

Label

Meaning

Model

e2s

Power output convection

2200W

2200W / 1300W

2200W / 900W

Power output microwave

2000W (High Power version)

1000W (Standard Power version)

Voltage

230V

MV5

220-230V / 50Hz

MV6

208-240V / 60Hz

200V

220V

Frequency

50Hz

60Hz

Lead

A - Z

Example: H = L+N+E (4mm EU)

Plug

A - Z

Example: E = 3-pin plug

Communication

USB + LAN

USB

Version

A, B

A, B (pre-production)

1, 2, ...

1, 2, ... (serial production)

Accessory / Customer

"Trend" exterior

"Classic" exterior

Specific customer

Region / Country

Europe

United States of America

Elements of the serial number

Label

Meaning

Year of manufacture

2015

16, ...

2016, ...

Month of manufacture

January

02, ...

February, ...

Place of manufacture

2130

Sheffield (UK)

Production number

12345

Technical data

Date of manufacture

1.4 Identifying your microwave combination oven

Position of nameplate

The nameplate is located on the rear of your microwave combination oven.

1 General information

eikon e2s Installation and Operating Manual CE 9

Name of target group

Tasks

Equipment mover

Conveying within the establishment

Service technician

 Setting up the appliance  Preparing the appliance for first-time use and taking the appliance out of service  Instructing the user

Owner of the microwave combination oven

or Owner's member of staff

who is responsible for the appliance

 Made aware of all safety-related functions and devices of the microwave com-

bination oven by the service technician

 Instructed by the service technician on how to operate the appliance  Provides assistance as instructed with conveying the appliance within the

establishment and setting up the appliance

User

Essentially performs specific operating tasks such as

 Loading the microwave combination oven  Starting cooking profiles  Removing food  Cleaning the microwave combination oven  Fitting accessories in the microwave combination oven  Minor servicing tasks

Chapter/section

Purpose

General information

 Shows you how to identify your appliance  Provides guidance on using this Installation and User Manual

1.5 Structure of customer documentation

Contents of customer documentation

The customer documentation for the microwave combination oven includes the following documents:  Installation and User Manual (this document)

1.6 About this Installation and User Manual

Purpose

This Installation and User Manual is intended for all people who work with the microwave combination oven, and provides them with the necessary information for carrying out installation, operating tasks, cleaning jobs and minor servicing work properly and safely.

Who should read the Installation and User Manual

Parts of this document that must be read without fail

If you do not follow the information in this document, you risk potentially fatal injury and property damage.

To guarantee safety, all people who work with the microwave combination oven must have read and understood the following parts of this document before starting any work:

 The chapter 'For your safety' on page 14  The sections that describe the activity to be carried out

Chapters in the Installation and User Manual

1 General information

eikon e2s Installation and Operating Manual CE 10

Chapter/section

Purpose

Design and function

 Specifies the intended use of the appliance  Explains the functions of the appliance and shows the position of its compo-

nents

For your safety

 Describes the hazards posed by the appliance and suitable preventive

measures

 It is important that you read this chapter carefully.

Moving the appliance

 Specifies the basic appliance dimensions  Specifies the requirements for the installation position  Explains how to convey the appliance to the installation position

Setting up the appliance

 Explains how to unpack the appliance and specifies the parts supplied with the

appliance

 Explains how to set up the appliance

Installation

Provides information on installing the electrical supply

Preparing the appliance for use

Explains the procedure for preparing the appliance for first-time use

Cooking procedures

 Explains how to switch on the microwave combination oven  Contains the instructions for working procedures during cooking  Contains the instructions for handling operations on the microwave combina-

tion oven regularly performed during cooking

Cleaning procedures

 Contains the cleaning instructions  Describes the cleaning chemicals  Contains and refers to the instructions for handling operations on the micro-

wave combination oven regularly performed during cleaning

Taking the appliance out of operation and disposal

 Explains the procedure for taking the appliance out of service  Contains information on disposal

Technical data

Contains the technical data and dimensional drawings

Servicing information

Contains a catalogue of potential errors and faults and specifies the required actions

Safety alert symbol

Meaning

Warns of potential injuries. Heed all the warning notices that appear after this symbol to avoid potential injuries or death.

Hazard level

Consequences

Likelihood

Death / serious injury (irreversible)

Immediate risk

Death / serious injury (irreversible)

Potential risk

Minor injury (reversible)

Potential risk

NOTICE

Damage to property

Potential risk

Safety alert symbol

Form of warning notices

The warning notices are categorized according to the following hazard levels:

Decimal points

Decimal points are used throughout this manual in any language available.

2 Design and function

eikon e2s Installation and Operating Manual CE 11

Page

Design and function of the microwave combination oven 12 Layout and function of the operating panel 13

2 Design and function

Purpose of this chapter

This chapter describes the design and construction of the microwave combination oven and explains its functions.

Contents

This chapter contains the following topics:

2 Design and function

eikon e2s Installation and Operating Manual CE 12

Item

Name

Function

ON/OFF appliance switch

Used to turn the microwave combination oven on and off. Turning this switch off does not isolate the appliance from the electricity

supply.

easyToUCH® screen control panel

When the appliance is switched on the easyToUCH® screen illuminates the user interface.

See 'Cooking procedures' on page 61 for details.

Nameplate (no picture)

Located on the rear panel of the appliance the nameplate states the serial number, model type and electrical specifications.

USB port

A USB socket located under the cover allows updates to programs stored on the appliance.

See USB MenuConnect® Operating Instructions. See 'Cooking procedures' on page 61 section of this manual, for details of

updating cooking profiles.

Air outlets (no picture)

Air used to cool internal components and steam from the cavity escape through the air outlet vents located on the rear of the appliance. The air outlets must be kept free from obstruction and they will not allow microwave energy to escape into the environment.

Appliance door

The door is a precision-made energy barrier with three microwave safety interlocks. Always keep it clean and do not use it to support heavy objects.

See 'Cleaning procedures' on page 91.

Air filter

The air filter situated at the lower front of the appliance is part of the ventilation system. Keep it free of obstruction and clean it daily as described under ‘Cleaning procedures’ on page 91. The appliance will not operate without the air filter fitted.

Door handle

The door handle is a rigid bar which is pulled downwards and away from the appliance to open it.

2.1 Design and function of the microwave combination oven

Parts and their function

2 Design and function

eikon e2s Installation and Operating Manual CE 13

Item

Name

Function

Door seals

The door seals ensure a tight seal around the door. Always keep them clean and check regularly for signs of damage. At the first sign of wear have them replaced by a Merrychef approved service agent.

See 'Cleaning procedures' on page 91.

Air diffuser (not fitted to all appliances)

Keep the air diffuser clean and free of debris. Take great care when cleaning this area of the appliance noting the different requirements shown under ‘Cleaning procedures’ on page 91 in this manual.

Cavity

The cavity (cooking chamber) is constructed from stainless steel and used for cooking products. Keep it clean by following the cleaning instructions in the ‘Cleaning procedures’ on page 91 section of this manual.

Item

Name

Function

ON/OFF appliance switch

Switches the microwave combination oven on and off.

Touchscreen

Central controls of the appliance

 Appliance operated by touching icons on touchscreen pages  Status displays

USB port

For connecting a USB memory stick

Material

The interior and exterior structure of the appliance is made of stainless steel in either a brushed finish or colour-coded.

2.2 Layout and function of the operating panel

Elements and their function

3 For your safety

eikon e2s Installation and Operating Manual CE 14

Page

Basic safety code 15 Intended use of your microwave combination oven 20 Warning signs on your microwave combination oven 21 Summary of hazards 23 Hazards and safety precautions when moving the appliance 25 Hazards and safety precautions when setting up the appliance 26 Hazards and safety precautions during installing 27 Hazards and safety precautions when preparing appliance for use 28 Hazards and safety precautions during operation 29 Hazards and safety precautions during cleaning 31 Hazards and safety precautions when taking the appliance out of service 33 Safety devices 34 Requirements to be met by personnel and working positions 36 Personal protective equipment 37

3 For your safety

Purpose of this chapter

This chapter provides you with all the information you need in order to use the microwave combination oven safely without putting yourself or others at risk.

This is a particularly important chapter that you must read through carefully.

Contents

This chapter contains the following topics:

3 For your safety

eikon e2s Installation and Operating Manual CE 15

3.1 Basic safety code

Object of this safety code

This safety code aims to ensure that all persons who use the microwave combination oven have a thorough knowledge of the hazards and safety precautions, and that they follow the warning notices given in this Installation and User Manual and on the appliance. If you do not follow this safety code, you risk potentially fatal injury and property damage.

Referring to the this Installation and User Manual

Follow the instructions below:

 Read in full the chapter 'For Your Safety' on page 14 and the chapters that relate to your work.  Always keep to hand the Installation and User Manual for reference.  Pass on the Installation and User Manual with the microwave combination oven if it changes own-

ership.

Personal protective equipment for your personnel

Instruct your personnel to wear the correct personal protective equipment specified in the section 'Personal protective equipment' on page 37 in the 'For your safety‘ chapter for the relevant tasks.

Ground rules for installation

Installation must comply with all national and regional laws and regulations and comply with the local regulations of the relevant utility companies and local authorities and with other relevant requirements.

Working with the microwave combination oven

Follow the instructions below:  Only those persons who satisfy the requirements stipulated in this Installation and User Manual are

permitted to use the microwave combination oven.

 Only use the microwave combination oven for the specified use. Never, under any circumstances, use

the microwave combination oven for other purposes.

 Take all the safety precautions specified in this Installation and User Manual and on the microwave

combination oven. In particular, use the prescribed personal protective equipment.

 Only stand in the working positions specified.  Do not make any changes to the microwave combination oven, e. g. removing parts or fitting

un-approved parts. In particular, you must not disable any safety devices.

3 For your safety

eikon e2s Installation and Operating Manual CE 16

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

 Read all instructions before using the appliance.  Install or locate this appliance only in accordance with the provided installation

instructions.

Restrictions on use

 Only use utensils that are suitable for use in microwave combination ovens.

See 'Procedure for preparing the appliance for use'.

 Do not use corrosive chemicals or vapors in this appliance. This type of oven

is specifically designed to heat, cook or toast food. It is not designed for industrial or laboratory use.

 Never use the appliance to heat alcohol, e. g. brandy, rum, etc. Food con-

taining alcohol can more easily catch fire if overheated. Observe caution and do not leave the appliance unattended.

 Never attempt to deep fry in the oven.  Eggs in their shell and whole hard boiled eggs should not be heated in mi-

crowave ovens since they may explode even after microwave heating has ended.

 Do not operate the appliance using microwave only or combination function

without food or liquid inside the cooking chamber as this may result in overheating and may cause damage.

 The appliance should not be used to dry linen.  WARNING: Liquids and other foods must not be heated in completely sealed

containers as the build-up of steam may cause them to explode.

 Do not attempt to operate the appliance with: an object caught in the door,

door that does not close properly; a damaged door, hinge, latch, sealing surface or without food in the oven.

Precautions when using the microwave combination oven

 WARNING: Microwave heating of beverages can result in delayed eruptive

boiling. Therefore care must be taken when handling the container.

 When handling hot liquids, foods and containers, care should be taken to

avoid scalds and burns.

 As with any cooking appliance, care should be taken to avoid combustion of

the items within the appliance.

3 For your safety

eikon e2s Installation and Operating Manual CE 17

Instructions for safe use of the microwave combination oven

 When heating liquids using microwave only or combination function, the

contents should be stirred prior to heating to help prevent eruptive boiling.

 WARNING: The contents of feeding bottles and baby food jars must be stirred

or shaken and the temperature checked before consumption, in order to avoid burns.

 Items should be unwrapped when using convection and combination func-

tions.

 Excess fat should be removed during ‘roasting’ and before lifting heavy con-

tainers from the oven.

 Food with a skin, e. g. potatoes, apples, sausages, etc. should be pierced

before heating.

 When heating food in plastic or paper containers, keep an eye on the oven

due to the possibility of ignition.

 Food in combustible plastic or paper containers should be transferred to a

microwave/oven proof container to avoid the possibility of ignition.

 In the event of glass breaking or shattering within the oven, ensure that food is

totally free of glass particles. If in doubt, dispose of any food that was in the oven at the time of the breakage.

 Switch off the appliance at the end of all the cooking sessions for that day.

Requirements to be met by operating personnel

 This appliance is not intended for use by persons (including children) with

reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

 WARNING: It is hazardous for anyone other than a competent person to carry

out any service or repair operation that involves the removal of any cover which gives protection against exposure to microwave energy. See 'Re- quirements to be met by personnel, working positions' on page 36.

Requirements relating to the operating condition of the microwave combination oven

 As with all electrical appliances, it is recommended to have the electrical

connections inspected at least once a year.

 This appliance must be grounded. Connect only to a properly grounded outlet.

See 'Planning the electrical iInstallation' on page 50.

 Never remove the external covers of the appliance.  Never remove any fixed internal parts of the appliance.

3 For your safety

eikon e2s Installation and Operating Manual CE 18

 Never tamper with the control panel, door, seals, or any other part of the

appliance.

 Never hang dish towels or cloths on any part of the appliance.  WARNING: If the door or door seal is damaged, the appliance must not be

operated until it has been repaired by a competent person. See 'Requirements to be met by personnel, working positions' on page 36.

 The appliance must not be operated without the air filter in place.  If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

Requirements relating to the operating environment of the microwave combination oven

 The minimum height of free space necessary above the top surface of the

appliance is 50mm (2”).

 The floor adjacent to the appliance may be slippery. Clean up spillages

immediately.

 This appliance is not intended for mobile use, such as in marine or vehicle

applications.

Cleaning requirements

 The appliance should be cleaned regularly and any food deposits removed.  The cooking chamber of the appliance and the door seals should be cleaned

frequently. Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

 The appliance should not be cleaned with a water jet.  Details for cleaning door seals, cavities and adjacent parts are provided in the

'Cleaning procedures' section of this manual.

 The appliance must be disconnected from its power supply during mainte-

nance and when replacing parts. It is not necessary to disconnect the appliance from the power supply during routine daily cleaning tasks.

 When cleaning surfaces of door and oven that come together on closing the

door see the instructions on cleaning the door surface in the 'Cleaning pro- cedures' on page 91 section of this manual.

Emergency instructions

 If smoke is observed: switch off the appliance. Unplug or isolate it from the

electrical supply and keep the door closed in order to stifle any flames.

SAVE THESE INSTRUCTIONS

3 For your safety

eikon e2s Installation and Operating Manual CE 19

More on this ...

3 For your safety

eikon e2s Installation and Operating Manual CE 20

3.2 Intended use of your microwave combination oven

Intended use of your microwave combination oven

The microwave combination oven must only be used for the purposes specified below:  The microwave combination oven is designed and built solely for cooking different foodstuffs in

containers approved by the manufacturer. Microwave, convection and impingement are used for this purpose.

 The microwave combination oven is intended solely for professional, commercial use.

Restrictions on use

Some materials are not allowed to be heated in the microwave combination oven:

 No dry powder or granulated material  No highly flammable objects with a flash point below 270°C / 518°F, such as highly flammable oils,

fats or cloths (kitchen cloths)

 No food in sealed tins or jars

Requirements to be met by personnel

 The microwave combination oven must only be operated and installed by personnel who satisfy

specific requirements. Please refer to 'Requirements to be met by personnel, working positions' on page 36 for the training and qualifications requirements.

 Personnel must be aware of the risks and regulations associated with handling heavy loads.

Requirements relating to the operating condition of the microwave combination oven

 Do not operate the microwave combination oven unless it has been properly transported, set up,

installed and placed into operation as indicated in this manual and the person responsible for placing it into operation has confirmed this.

 The microwave combination oven must only be operated when all safety devices and protective

equipment are fitted, in working order and fixed properly in place.

 The manufacturer's regulations for operation and servicing of the microwave combination oven must

be observed.

Requirements relating to the operating environment of the microwave combination oven

Specified operating environment for the microwave combination oven:

 The ambient temperature lies between +4°C / 40°F and +35°C / 95°F  Not a toxic or potentially explosive atmosphere  Dry kitchen floor to reduce the risk of accidents

Specified properties of the installation location:

 No fire alarm, no sprinkler system directly above the appliance  No flammable materials, gases or liquids above, on, under or in the vicinity of the appliance  It must be possible to set up the microwave combination oven in the installation position so that it

cannot tip over or slide about. The supporting surface must comply with these requirements.

Mandatory restrictions on use:  The appliance must not be operated outdoors and not be shifted or moved during use.

Cleaning requirements

 Use only cleaning chemicals that have been approved by the manufacturer.  High-pressure cleaners or water jets must not be used for cleaning.  The appliance must not be treated with alkali or acid solutions or exposed to acid fumes.

3 For your safety

eikon e2s Installation and Operating Manual CE 21

3.3 Warning signs on your microwave combination oven

Warning and safety signs

3 For your safety

eikon e2s Installation and Operating Manual CE 22

Area

Warning sign

Description

Microwaves warning There is a risk of external and internal burns of body parts following exposure to

microwave energy.

Electric shock warning There is a risk of electric shock if the appliance is serviced without discon-

necting the electrical supply.

Fire / electric shock warning There is a risk of fire / electric shock if the appliance is operated without

respecting the minimum clearances.

Hot surface warning There is a risk of burns from high temperatures inside the cavity and on the

inside of the appliance door.

Electric shock warning There is a risk of electric shock if the electrical power is not connected to a properly grounded outlet.

Area

Safety symbol

Description

Protective Earth (Ground)

Equipotential bonding

Mandatory warning signs

The following warning signs / notices must be attached to the microwave combination oven and optional accessories in the area indicated so as to be easily visible at all times.

Safety symbols

The following safety symbols be attached to the microwave combination oven in the area indicated so as to be easily visible at all times.

3 For your safety

eikon e2s Installation and Operating Manual CE 23

3.4 Summary of hazards

General rules for dealing with hazards and safety precautions

The microwave combination oven is designed to protect the user from all hazards that can reasonably be avoided by design measures.

The actual purpose of the microwave combination oven, however, means that there are still residual risks; you must therefore take precautions to avoid them. A safety device can provide you with a certain degree of protection against some of these hazards. You must ensure, however, that these safety devices are in place and in working order.

The nature of these residual risks and what effect they have are described below.

Hazard points

The following illustration shows a Merrychef e2s microwave combination oven:

Excessive microwave energy

The microwave combination oven generates microwave energy. An operation with an open or damaged door or cavity can result in external and internal burns of body parts following exposure to microwave energy.

Heat generation (1)

The microwave combination oven becomes hot inside the cavity and on the inside of the appliance door. This poses a risk of burns on hot surfaces inside the microwave combination oven, and also on hot appliance parts, food containers and other accessories used for cooking.

Hot steam / vapour (2)

When cooking food the microwave combination oven may generate hot steam and vapour which escapes when the appliance door is opened and which is removed through the air vents on the rear of the microwave combination oven when the appliance door is closed. This poses a risk of scalding from hot steam when the appliance door is opened. Take particular care when opening the appliance door if the top door edge is below your field of vision.

3 For your safety

eikon e2s Installation and Operating Manual CE 24

Hot liquids

Foodstuffs are cooked in the microwave combination oven. These foodstuffs may also be liquid, or liquefy during cooking. This poses a risk of scalding from hot liquids, which may be spilled if not handled properly.

Live components (3)

The microwave combination oven contains live parts. This means a risk from live parts if the cover is not in place.

Contact with cleaning chemicals

The microwave combination oven must be cleaned using special cleaning chemicals. This poses a risk from cleaning chemicals, some of which can cause skin burns.

Parts moving against each other (4)

For various actions, such as opening/shutting the appliance door or cleaning the appliance door, there is the risk that you will crush or cut your hand.

Undercooking of food products

Ensure all food is hot before serving to protect your guests from microbiological contamination of foodstuffs.

3 For your safety

eikon e2s Installation and Operating Manual CE 25

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of injury from overstressing your body

When moving the appliance onto and off the moving equipment

 Use a forklift truck or pallet truck  Do not exceed safety limits for lifting

and carrying

 Wear personal protective equipment

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of body parts being crushed if the appliance is dropped

When moving the appliance

 Use suitable handling gear  Move the appliance slowly and care-

fully, and secure it against tipping over

 Make sure center of gravity is balanced  Avoid jolts

Risk of body parts being crushed if the appliance tips over or falls off

When placing the appliance down on the supporting surface

Always observe the requirements for the supporting surface while setting up the appliance; see 'Requirements for the installation location' on page 44

3.5 Hazards and safety precautions when moving the appliance

Safety hazard: moving heavy weights

Safety hazard: mechanical parts of the appliance

3 For your safety

eikon e2s Installation and Operating Manual CE 26

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of injury from overstressing your body

When moving the appliance

 Use a forklift truck or pallet truck to

place the appliance in the installation position or to move it to a new position

 Always use the correct number of

persons and observe the limits specified for lifting and carrying when adjusting the appliance position

 Observe the local occupational safety

regulations

 Wear personal protective equipment

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of body parts being crushed if the appliance is dropped

When lifting the appliance

 Make sure center of gravity is balanced  Avoid jolts

Risk of cuts from sharp edges

When handling sheet-metal parts

 Exercise caution when performing

these tasks

 Wear personal protective equipment

3.6 Hazards and safety precautions when setting up the appliance

Safety hazard: moving heavy weights

Safety hazard: mechanical parts of the appliance

3 For your safety

eikon e2s Installation and Operating Manual CE 27

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of electric shock from live parts

 Under covers  Under the operating panel  Along the mains power lead

 Work on the electrical system must only

be performed by qualified electricians from an authorised service company

 Professional working

Ensure that all electrical connections are in perfect condition and fixed securely before putting the appliance into use

On the appliance and on adjacent metal parts

Before preparing the appliance for use, make sure that the appliance is connected to an equipotential bonding system (EU).

Danger

Where or in what situations does the hazard arise?

Preventive action

Trapping fingers or body

When opening or closing the door

Use the handle and avoid the door hinges

3.7 Hazards and safety precautions during installing

Safety hazard: electrical power

Safety hazard: mechanical parts of the appliance

3 For your safety

eikon e2s Installation and Operating Manual CE 28

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of electric shock from live parts

 Under covers  Under the operating panel  Along the mains power lead

 Work on the electrical system must only

be performed by qualified electricians from an authorised service company

 Professional working

Ensure that all electrical connections are in perfect condition and fixed securely before putting the appliance into use

On the appliance and on adjacent metal parts

Before preparing the appliance for use, make sure that the appliance is connected to an equipotential bonding system (EU).

3.8 Hazards and safety precautions when preparing appliance for use

Safety hazard: electrical power

Additional safety hazards when preparing appliance for use

When preparing the appliance for use, read and follow the safety information given in this chapter and also the following sections in the chapter 'For your safety' on page 14 in this Installation and User Manual:

 'Hazards and safety precautions during operation'  'Hazards and safety precautions during cleaning'

3 For your safety

eikon e2s Installation and Operating Manual CE 29

Danger

Where or in what situations does the hazard arise?

Preventive action

A risk of burns from excessive microwave energy

If the door, the door seal or the cavity of the appliance are damaged persons standing in front of the appliance can be harmed by leaking microwave energy.

 Do not attempt to operate this oven

with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

 Do not place any object between the

oven front face and the appliance door or allow soil or cleaner residue to accumulate on sealing surfaces.

 Do not operate the oven if it is dam-

aged. It is particularly important that the oven door closes properly and that there is no damage to the (1) door (bent), (2) hinges, (3) door seals and sealing surfaces.

 The oven should not be adjusted or

repaired by anyone except properly qualified service personnel.

Danger

Where or in what situations does the hazard arise?

Preventive action

A risk of burns from hot surfaces

Inside the entire cavity, including all parts that are or were inside during cooking, such as

 Racks  Containers, baking sheets, shelf grills

etc.

On the inside of the appliance door

Wear specified protective clothing, in particular protective gloves

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of scalding from hot liquid

 Inside the cavity  Outside the appliance

 Only load containers holding liquid or

liquefying food into the cavity that allow a proper view inside the container, and always hold horizontally when removing

 Wear specified protective clothing, in

particular protective gloves

3.9 Hazards and safety precautions during operation

Safety hazard: microwave energy

Safety hazard: heat – hot surfaces

Safety hazard: heat – hot liquid

3 For your safety

eikon e2s Installation and Operating Manual CE 30

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk from microbiological contamination of food

When cooking is manually interrupted

 Never deliberately interrupt the cooking

process

 Do not store food temporarily in the

appliance

When cooking is interrupted because of a power failure

Once the appliance is running again, consider how the length of time taken to resume operation will affect the food condition.

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of crushing of body parts

While appliances are being moved on a wheeled platform

 Only move appliances forward for the

purpose of cleaning the case of the microwave combination oven or the floor under the appliances.

 Disconnect the appliance from the

electrical supply before moving it

 When operating the appliances, always

engage the parking brake on the wheels

 Check that wheel brakes are on before

operation each day

Risk of hands and feet being pinched

Risk of scalding from hot liquid food

Risk of electric shock from live parts

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of electric shock from live parts

If appliances on wheeled stands start moving unintentionally and the power supply is pulled off

 When operating the appliances, always

engage the parking brake on the wheels

 Check that wheel brakes are on before

operation each day

Danger

Where or in what situations does the hazard arise?

Preventive action

Risk of slipping from escaping condensate

In front of the appliance

Ensure that the floor around the appliance is dry at all times

Safety hazard: contamination of foodstuffs

Safety hazard: moving appliances supported on a wheeled base

Safety hazard: electrical power

Safety hazard: mechanical parts of the appliance

+ 84 hidden pages
