Medion MD 10544 user Manual

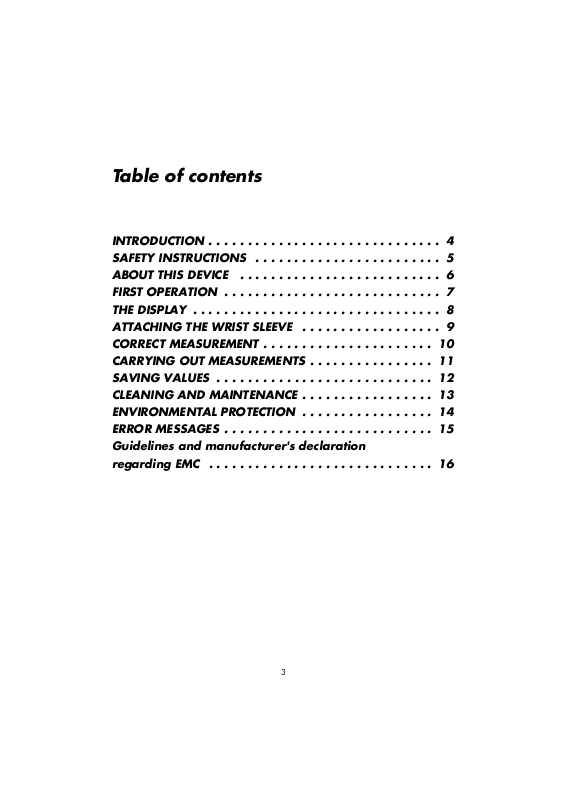

Table of contents

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . 5

ABOUT THIS DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . 6

FIRST OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

THE DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

ATTACHING THE WRIST SLEEVE . . . . . . . . . . . . . . . . . . 9

CORRECT MEASUREMENT . . . . . . . . . . . . . . . . . . . . . . 10

CARRYING OUT MEASUREMENTS . . . . . . . . . . . . . . . . 11

SAVING VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CLEANING AND MAINTENANCE . . . . . . . . . . . . . . . . . 13

ENVIRONMENTAL PROTECTION . . . . . . . . . . . . . . . . . 14

ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Guidelines and manufacturer's declaration

regarding EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3

INTRODUCTION

Thank you for the trust you have placed in us!

We congratulate you on the purchase of your new blood pressure device and are convinced
that you will be delighted with this modern piece of equipment.

In order to guarantee the optimum operation and performance of your blood pressure
measuring device at all times and in order to protect your personal safety, we would make the
following request:

• Please read these operating instructions thoroughly and follow them and the safety notes
in particular before using the appliance for the first time!

• Anything done to or with this appliance may only be undertaken as described in the
operating instructions.

• If you pass on your device to someone else, always include the operating instructions.

Packaging

Your blood pressure measuring device is wrapped in packaging to protect it against
transportation damage. Packaging is raw material and can be re-used or added to the
recycling system.

4

SAFETY INSTRUCTIONS

• The device is suitable for healthy adults. Use the unit for comparative measurements,
particularly during sporting activities. Do NOT use the unit for medical diagnosis. It can
not replace medical intervention.

• The unit is battery-operated. Batteries may endanger life if swallowed. For these reasons,
keep the unit out of reach of children. If a battery is swallowed, please obtain immediate
medical assistance.

• Do not use rechargeable batteries, as this could lead to incorrect measurements due to the
lower power of these batteries.

• Only start the air supply (ON/OFF button) once the unit is attached correctly to the arm.

• Do not drop the unit and do not place objects on top of it.

• Never immerse the unit in water. Do not expose it to water or moisture!

• Do not use the device under extreme temperature conditions!

• Do not bend the fixed part of the sleeve!

• Never try to open and/or repair the unit yourself. Repairs may only be undertaken by our
Service Centre or other appropriate specialist workshop.

This symbol means:
Caution: Please take note of the accompanying documents (operating instructions).

5

ABOUT THIS DEVICE

The device is used to measure blood pressure at the wrist. It is suitable for healthy people above
12 years of age and can be use to make comparative measurements – especially during
sporting activities.

If the values obtained give you cause to be concerned about your
health, take medical advice. Do not change your treatment/dosage of
medication as a result of the values unless you have discussed this
with your doctor!

When interpreting the values measured, please note that there can be differences in the values
measured at the wrist and arm. However, because the values measured at the upper arm and
wrist undergo the same changes the values measured at the wrist can be used for comparative
measurements.

The blood pressure measurement device displays blood pressure (systolic and diastolic values),
pulse, date and time. The following summary can help you to assess the values you measure:

The classification of blood pressure values is based on a definition and classification by the
WORLD HEALTH ORGANISATION from 1999. The WHO defines high blood pressure as
values above 140 mmHg (systolic value) and 90 mmHg (diastolic value).

6

FIRST OPERATION

1. Remove the cover of the battery compartment in the direction of the arrow.

2) Insert two 1.5V batteries, AAA, LR03 (alkaline). Pay attention to the polarity (the

negative terminal faces the spring).

3) Close the battery compartment.

Replace the batteries
– if the battery icon appears on the display,
– if the display remains blank after pressing the ON/OFF button.

Setting the date and time

Make the settings within 10 seconds; then the display moves to the next setting.

1. Press the button. The current month flashes.

2) Press the button repeatedly to set the current month.

3) Press the button. The day flashes.

4) Press the button repeatedly to set the current day.

5) Press the button. The hour flashes along with the "AM" (for the hours between

00:00 and 11:59) or "PM" (for the hours between 12:00 and 23:59).

6) Press the button repeatedly to set the current hour.

7) Press the button. The minutes flash.

8) Press the button repeatedly to set the current minutes. Date and time have been set.

The flashing bar disappears after 10 seconds.

7
