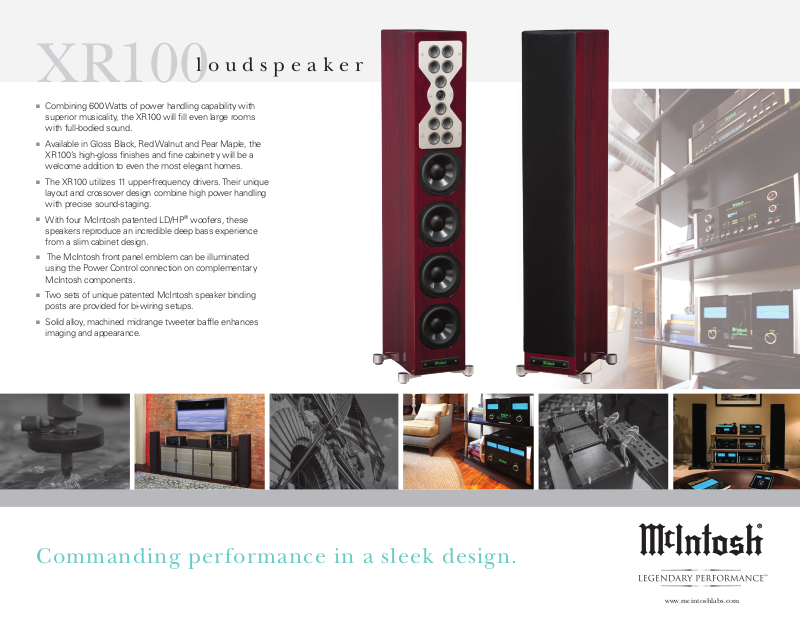

McIntosh XR100 Specification Sheet
XR100l o u d s p e a k e r
■■Combining 600 Watts of power handling capability with superior musicality, the XR100 will fill even large rooms with full-bodied sound.
■■Available in Gloss Black, Red Walnut and Pear Maple, the XR100’s high-gloss finishes and fine cabinetry will be a welcome addition to even the most elegant homes.
■■The XR100 utilizes 11 upper-frequency drivers.Their unique layout and crossover design combine high power handling with precise sound-staging.
■■With four McIntosh patented LD/HP® woofers, these speakers reproduce an incredible deep bass experience from a slim cabinet design.
■■The McIntosh front panel emblem can be illuminated using the Power Control connection on complementary McIntosh components.
■■Two sets of unique patented McIntosh speaker binding posts are provided for bi-wiring setups.
■■Solid alloy, machined midrange tweeter baffle enhances imaging and appearance.
Commanding performance in a sleek design.
www.mcintoshlabs.com
XR100l o u d s p e a k e r
General Specifications |
|
|
|
|
SystemType: |
MidrangeTweeters: |
Overall Dimensions (W x H x D): |
||
4-way, Rear Ported, Floor Standing |
Two 2” Inverted Titanium Domes |
8” (20.3cm) x 51” (129.5cm) |
||
|
|
x 18-1/2” (46.9cm) |
|
|
Nominal Impedance: |
Super Tweeter: |
|
|
|
8 Ohms |
One ¾” Titanium Dome |
Weight: |
|
|
|
|
68.5 lbs (31 kg) net |
|
|
Power Handling: |
Anechoic Response: |
83 lbs (37.6 kg) in shipping carton |
||
600 Watts |
30Hz to 45kHz |
|
|
|
|
|
Finishes: |
|
|
Woofers: |
Sensitivity: |
Available in three exclusive McIntosh finishes: |
||
Four 6” LD/HP®, Poly Cone, Cast Frame |
One Watt, One Meter, 87dB |
|
|
|
Midranges: |
Crossover Frequencies: |
|
|
|
Eight 2” Inverted Titanium Domes |
300Hz, 2kHz, 8kHz |
|
|
|
|
|
Gloss Black |
Red Walnut |
Pear Maple |
For the Consumer’s Protection:
In order to ensure the highest level of customer satisfaction, “new” McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be “used” and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
Companion Products
The McIntosh MX121 A/V Control Center, MC8207 Amplifier, MVP891 Audio Video Player, LCR80 Speaker and XR50 Bookshelf Speaker are logical companions for the XR100 Speaker.Your authorized dealer can provide additional information.
To learn more, please call us at 1.800.538.6576.
