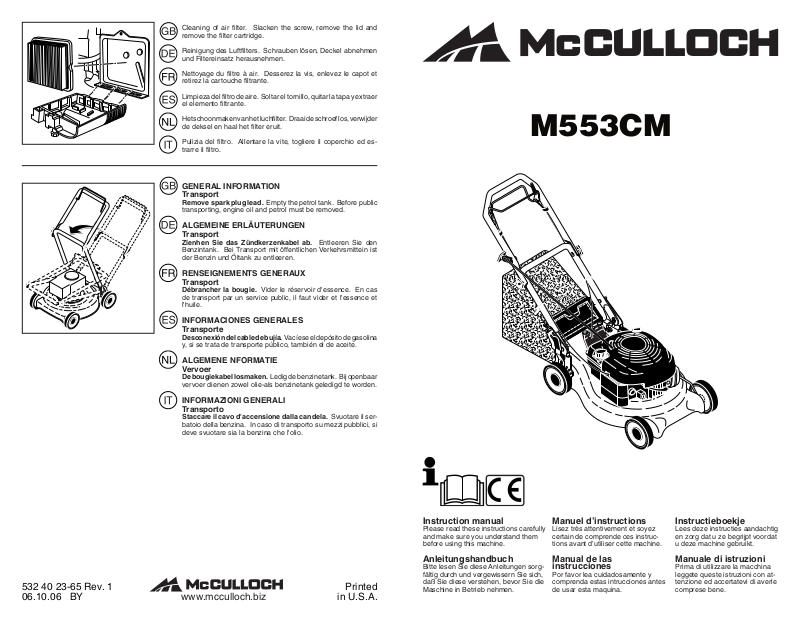

McCulloch M553CM User Manual

Cleaning of air ﬁ lter. Slacken the screw, remove the lid and remove the ﬁ lter cartridge.

Reinigung des Luftﬁ lters. Schrauben lösen, Deckel abnehmen und Filtereinsatz herausnehmen.

Nettoyage du ﬁ ltre à air. Desserez la vis, enlevez le capot et retirez la cartouche ﬁ ltrante.

Limpieza del ﬁ ltro de aire. Soltar el tornillo, quitar la tapa y extraer el elemento ﬁ ltrante.

Het schoonmaken van het luchﬁ lter. Draai de schroef los, verwijder de deksel en haal het ﬁ lter eruit.

Pulizia del ﬁ ltro. Allentare la vite, togliere il coperchio ed estrarre il ﬁ ltro.

GENERAL INFORMATION Transport

Remove spark plug lead. Empty the petrol tank. Before public

trans port ing, engine oil and petrol must be removed.

ALGEMEINE ERLÄUTERUNGEN Transport

Zienhen Sie das Zündkerzenkabel ab. Entleeren Sie den

Benzintank. Bei Transport mit öffentlichen Verkehrsmittein ist der Benzin und Öltank zu entleeren.

RENSEIGNEMENTS GENERAUX Transport

Débrancher la bougie. Vider le réservoir d'essence. En cas

de transport par un service public, il faut vider et l'essence et l'huile.

INFORMACIONES GENERALES Transporte

Desconexión del cable de bujía. Vacíese el depósito de gasolina

y, si se trata de transporte público, también el de aceite.

ALGEMENE NFORMATIE Vervoer

De bougiekabel losmaken. Ledig de benzinetank. Bij openbaar

vervoer dienen zowel olie-als benzinetank geledigd te worden.

INFORMAZIONI GENERALI Transporto

Staccare il cavo d'accensione dalla candela. Svuotare il ser-

batoio della benzina. In caso di transporto su mezzi pubblici, si deve svuotare sia la benzina che l'olio.

M553CM

532 40 23-65 Rev. 1 Printed

06.10.06 BY in U.S.A.

www.mcculloch.biz

Instruction manual

Please read these in struc tions care ful ly and make sure you un der stand them before using this ma chine.

Anleitungshandbuch

Bitte lesen Sie diese Anleitungen sorgfältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen.

Manuel d’instructions

Lisez très attentivement et soyez certain de comprende ces in struc tions avant d’utiliser cette machine.

Manual de las instrucciones

Por favor lea cuidadosamente y comprenda estas intrucciones antes de usar esta maquina.

Instructieboekje

Lees deze instructies aandachtig en zorg dat u ze begrijpt voordat u deze machine gebruikt.

Manuale di istruzioni

Prima di utilizzare la macchina leggete queste istruzioni con attenzione ed accertatevi di averle comprese bene.

CONTENTS

SAFETY RULES........................ PAGE 3-8

TECHNICAL DATA.................................. 9

OVERVIEW............................................ 10

ASSEMBLY....................................... 11-13

ADJUSTMENTS ............................... 13-14

START AND STOP ........................... 14-16

USE................................................... 16-17

MAINTENANCE................................ 18-20

GENERAL INFORMATION.................... 20

INHALTSVERZEICHNIS

SICHERHEITSREGELN ............SEITE 3-8

TECHNISCHE DATEN............................. 9

ÜBERSICHT .......................................... 10

MONTIEREN..................................... 11-13

EINSTELLUNG................................. 13-14

START UND ABSTELLEN ............... 14-16

GEBRAUCH DES RASENMÄHERS.. 16-17

WARTUNG........................................ 18-20

ALLGEMEINE ERLÄUTERUNGEN ...... 20

TABLE DES MATIERES

MESURES DE SÉCURITÉ ........ PAGE 3-8

DONNÉES TECHNIQUES ....................... 9

APERÇU ................................................ 10

MONTAGE........................................ 11-13

RÉGLAGE......................................... 13-14

MARCHE ET ARRÊT........................ 14-16

UTILISATION DE LA TONDEUSE ... 16-17

ENTRETIEN...................................... 18-20

RENSEIGNEMENTS GÉNÉRAUX ........ 20

INDICE

REGLAS DE SEGURIDAD..........SIVU 3-8

ESPECIFICACIONES TÉCNICAS........... 9

SUMARIO .............................................. 10

MONTAJE......................................... 11-13

REGULACIÓN ..................................13-14

ARRANQUE Y PARADA.................. 14-16

APLICACIÓN DEL CORTACÉSPED . 16-17

MANTENIMIENTO ............................ 18-20

INFORMACIONES GENERALES ......... 20

INHOUD

VEILIGHEIDSMAATREGELEN....PAG.3-8

TECHNISCHE GEGEVENS..................... 9

OVERZICHT........................................... 10

MONTEREN...................................... 11-13

INSTELLEN ...................................... 13-14

STARTEN EN STOPPEN..................14-16

GEBRUIK VAN DE MAAIER ............ 16-17

ONDERHOUD................................... 18-20

ALGEMENE INLICHTINGEN ................ 20

INDICE DEL CONTENUTO

NORME DE SICUREZZA........PAGINA 3-8

CARATTERISTICHE TECNICHE ............ 9

SOMMARIO ........................................... 10

MONTAGGIO.................................... 11-13

REGOLAZIONE................................ 13-14

AVVIAMENTO ED ARRESTO ..........14-16

USO DELLA FALCIATRICE ............. 16-17

MANUTENZIONI............................... 18-20

INFORMAZIONI GENERICHE............... 20

(1) OIL DRAIN PLUG

(1) ÖLABLAßSCHRAUBE

(1) BOUCHON DE VIDANGE D'HUILE

(1) TAPON DE DRENAJE PARA ACEITE

(1) AFTAPPLUG OLIE

(1) TAPPO DI SCARICO DELL'OLIO

Annually (After end of season)

Grinding and balancing the cutter blade. Remove the spark plug lead. Fitting and removing the blade require the use of

protective gloves. Unscrew the cutter blade and deliver it to a service workshop for grinding and balancing. Tighten the screw properly when re as sem bling.

Jährlich (nach Beendigung der Saison)

Schleifen und Auswuchten des Messers. (Achtung: Vor Demontage des Messers Zündkabel von der Zündkerze entfernen).

Die Klinge nur mit Schutzhandschuhen einsetzen und entfernen. Schrauben Sie das Messer ab und bringen dieses in eine ServiceWerkstatt. Bei der Montage die Schrauben richtig anziehen.

Annuellement (à ﬁ n de la saison)

Aiguisage et équilibrage de la lame. Débrancher la bougie. Mettre des gants de protection avant de mettre en place ou d’enlever la lame. Démontez-la et donnez-la à aiguiser à un professionnel. Bien resserer la vis après remontage.

Revisión anual (Al terminar la estación)

Aﬁ lado y equilibrado de la cuchilla. Se desconecta el cable del encendido de la bujía. El ajuste y la sustitución de la hoja

requiere el uso de guantes protectores. Se desmonta leugo la cuchilla que es entrega a un taller mecánico para su aﬁ lado y equilibrado. Apriétese bien la tuerca al volver a montar.

Jarlijks (na einde van het seizoen)

Slijpen en balanceren van het maaimes. De bougiekabel losmaken. Bij het afstellen en verwijderen van het mes moeten altijd

beschermende handschoenen worden gedragen. Schroef het mes er af en breng het naar de werkplaats voor slijpen en balanceren. Bij het weer aanbrengen de schroef goed vastdraaien.

Controllo annuale (All ﬁ ne della stagione)

Rettiﬁ ca e bilanciamento della lama. Rimuovere il cavo di accensione. Inserire e rimuovere la lama solamente indossando

guanti di protezione. Smontare la lama e consegnarla ad una ofﬁ cina di servizio per la rettiﬁ ca ed il bilanciamento. Stringere bene le viti nel rimontaggio.

Change oil after each season or after 25 hours running time. Run the engine warm, remove the spark plug lead. Remove the drain plug from bottom of engine and drain oil. Fill with new oil. SAE 30 can be used.

Ölwechsel einmal pro Jahr oder nach 25 Betriebsstunden. Den Motor warm laufen lassen, abstellen und das Zündkerzenkabel abziehen. Die Ölablaßschraube an der Unterseite des Motors entfernen und das Öl ablassen. Danach neues Öl auffüllen SAE 30.

Changez l'huile à chaque saison ou après 25 heures de marche. Allumez le moteur, arrêtez-le et enlevez le câble d'allumage. Enlevez le bouchon de vidange sous le moteur et vider l'huile. Puis remplissez avec de l'huile neuve (les huiles SAE 30 sont utilisables).

Cambiar el aceite cada temporada, o después de 25 horas de funcionamiento. Dejar funcionar el motor hasta que se caliente, pararlo y quitar el cable de encendido. Quitar el tapón de drenaje del lado inferior del motor y dejar salir el aceite. Poner después aceite nuevo. Pueden utilizarse los aceites SAE 30.

Ververs de olie elk seizoen, of na 25 u rijden. Laat de motor warmlopen, schakel de motor uit en demonteer de ontstekingskabel. Verwijder de aftapplug op de onderkant van de motor en tap de olie af. Vul daarna met verse olie: SAE 30.

Sostituire l'olio al termine di ogni stagione, oppure dopo 25 ore di esercizio. Scaldare il motore, spengerlo e staccare il cavo della candela. Togliere il tappo di scarico sotto il motore e far uscire tutto l'olio. Rifornire con olio nuovo SAE 30.

☞

Maintenance

Always remove the spark plug lead before repair, cleaning or

main te nance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest

point on the mower when it is tilted up.

Wartung

Ziehen Sie immer das Zündkerzenkabel ab, bevor Sie mit

der Reparatur, Reinigung oder mit Wartungsarbeiten beginnen. Nach den ersten 5 Betreibstunden alle Schrauben und Muttern überprüfen. Ölstand kontrollieren. Wenn der Rasenmäher gekippt wird, müssen sich die Zündkerze an der höchsten

Stelle beﬁ nden.

Entretien

Toujours debrancher la bougie avant réparation nettoyage

entretien. Après 5 heures d'utilisation, resserrer vis et écrous. Vériﬁ er l'huile. Lorsque la tondeuse est inclinée sur le côtc, il faut que la bougie occupent la position la plus élevée.

Inspeccion

Desconéctese siempre el cable del encendido de la bujía antes

de hacer una reparación, limpieza o trabajo de mantenimiento. Vovler a apretar tuercas y tornillos después de cinco horas de trabajo. Contrólose el aceite. Si se coloca el cortacésped de lado, el punto más alto debe ser la bujía.

Onderhoud

Voordag u begint met schoonmaken, reparaties of afstellen, altijd eerst de bougiekabel losmaken. Bouten en moeren kontroleren

ma vijf draaiuren. Oliepeil kontroleren en zonodig bijvullen. Als de maaier op de zijkant wordt gelegd, zorg dan dat de bougie naar boven zign gericht.

Manutenzione

Manutenzione: Staccare sempre il cavo di accensione

prima di riparazioni, pulizie o lavori di menutenzione. Dopo 5 ore di funzionamento stringere viti e dadi. Controllare l'olio. Piegando la falciatrice sul ﬁ ancolare attenzione che la candela

sia il punto più alto.

Regularly

Stop the engine and unscrew the dipstick. The level should be between FULL and ADD. NOTE: the dipstick must be screwed all the way down in order to indicate correct oil level. Avoid ﬁ lling with too much oil.

Regelmässig

Stellen Sie den Motor ab und schrauben Sie den Ölpeilstab heraus. De Ölstand soll swischen FULL and ADD liegen. ACHTUNG: der Ölpeilstab muss vollständig hineingeschraubt sein, damit der richtige Ölstand angezeigt werden kann. Vermeiden Sie zu viel Öl einzufüllen.

Régulièrement

Arrêter le moteur et vériﬁ er la jauge à julie. Le niveau doit être situé entre FULL (plein) et ADD (ajoutez). ATTENTION: il faut que la jauge soit vissé à fond pour obtenir un résultat correct. Evitez de mettre trop d'huile.

Periódicamente

Parar el motor para controlar el nivel de aceite del motor. Debe estar entre FULL y ADD. ATENCIÓN: la tapa tiene que estar bien puesta para que la indicación del nivel de aceite de la varilla sea correcta. Evitar relleno excesivo de aceite.

Regelmatig

Kontroleer het oliepeil bij voorkeur bij een koude motor. Het niveau moet tussen FULL en ADD staan. Nooit beneden de ADD mar ook nooit boven FULL. N.B. De peilstok moet geheel ingedraaid worden voor dejuiste meting. Niet teveel olie bijvullen.

Periodicamente

Arrestare il motore e controllare l'asta dell'olio. Ll livello deve trovarsi fra FULL e ADD. ATTENZIONE: l'asta dell'olio deve essere avvitata ﬁ no in fondo per vedere il livello correctto dell'olio. Evitare di versare troppo olio.

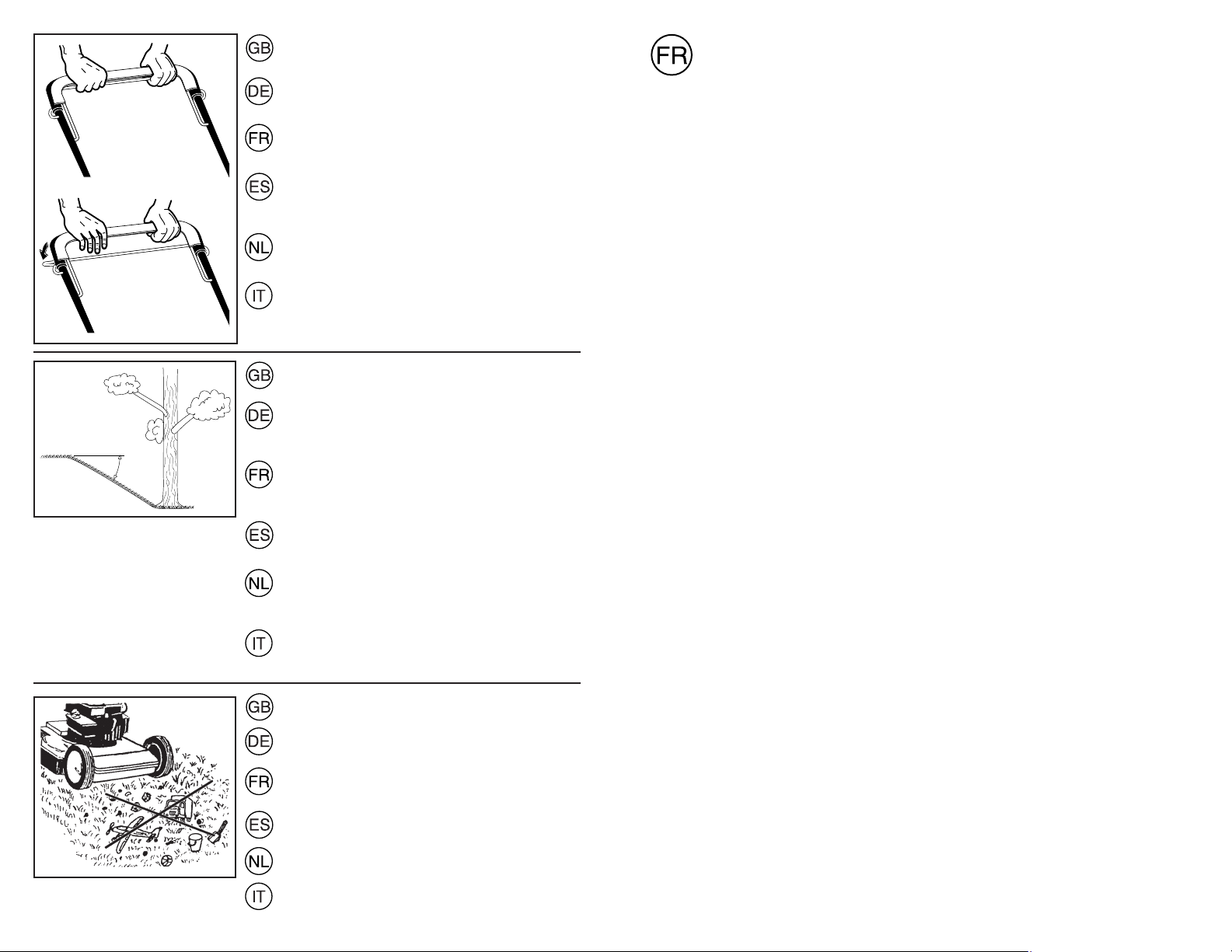

Safe Operation Prac tic es for Pe des tri an-Controlled Rotary Lawnmowers

IMPORTANT: This cutting machine is ca pa ble of am pu tat ing hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

I. Training

• Read the instructions carefully. Be fa mil iar with the con trols and the proper use of the equipment.

• Never allow children or people un fa mil iar with the ins truc tions to use the lawnmower. Local regulations may restrict the age of the operator.

• Never mow while people, especially children, or pets are nearby.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

II. Preparation

• While mowing, always wear sub stan tial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

• Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine.

• WARNING - Petrol is highly ﬂ ammable.

- Store fuel in containers speciﬁ cally de signed for this pur pose.

- Refuel outdoors only and do not smoke while re fu el ing.

- Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the en gine is hot.

- If petrol is spilled, do not attempt to start the engine but move the ma chine away from the area of spillage and avoid cre at ing any source of ig ni tion until petrol va pors have dis si pat ed.

- Replace all fuel tanks and container caps se cure ly.

• Replace faulty silencers.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or dam aged. Replace worn or damaged blades and bolts in sets to pre serve balance.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

III. Operation

• Do not operate the engine in a conﬁ ned space where dan ger ous carbon mon ox ide fumes can collect.

• Mow only in daylight or in good artiﬁ cial light.

• Avoid operating the equipment in wet grass, where feasible.

• Always be sure of your footing on slopes.

• Walk, never run.

• For wheeled rotary machines, mow across the face of slopes, never up and down.

• Exercise extreme caution when chang ing direction on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawnmower towards you.

• Stop the blade if the lawnmower has to be tilted for trans por ta tion when cross ing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed.

• Never operate the lawnmower with defective guards, or without safety de vic es, for example deﬂ ectors and/or grass catchers, in place.

• Do not change the engine governor settings or overspeed the engine. Op er at ing the engine at excessive speed may increase the hazard of personal injury.

• Disengage all blade and drive clutches before starting the engine.

• Start the engine or switch on the motor carefully according to instructions and with feet well away from the blade.

• Do not tilt the lawnmower when starting the engine or switch ing on the motor, except if the lawnmower has to be tilted for starting. In this case, do not tilt more than absolutely nec es sary and lift only the part which is away from the op er a tor.

• Do not start the engine when standing in front of the discharge chute.

• Do not put hands or feet near or under rotating parts. Keep clear of the dis charge opening at all times.

• Never pick up or carry lawnmower while the engine is running.

• Stop the engine and disconnect the spark plug wire:

- before cleaning blockages or un clog ging chute;

- before checking, cleaning or work ing on the lawnmower;

- after striking a foreign object. Inspect the lawnmower for damage and make repairs before re start ing and op er at ing the lawnmower;

- if the lawnmower starts to vibrate abnormally (check im me di ate ly).

• Stop the engine:

- whenever you leave the lawnmower;

- before refuelling.

• Reduce the throttle setting during en gine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

• Go slow when using a trailing seat.

IV. Maintenance and Storage

• Keep all nuts, bolts and screws tight to be sure the equip ment is in safe work ing condition.

• Never store the equipment with petrol in the tank inside a building where fumes may reach an open ﬂ ame or spark.

• Allow the engine to cool before storing in any enclosure.

• To reduce the ﬁ re hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease.

• Check the grass catcher frequently for wear or de te ri o ra tion.

• Replace worn or damaged parts for safety.

• If the fuel tank has to be drained, this should be done outdoors.
