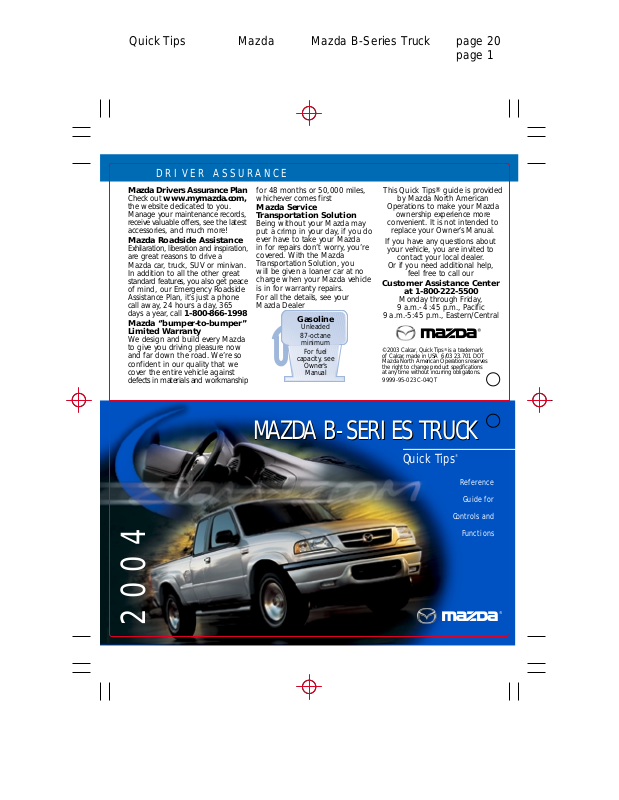

Mazda B4000 4WD Quick Tips

Quick Tips Mazda Mazda B-Series Truck page 20

page 1

DRIVER ASSURANCE

for 48 months or 50,000 miles, whichever comes first

Mazda Service Transportation Solution

Being without your Mazda may put a crimp in your day, if you do ever have to take your Mazda in for repairs don’t worry, you’re covered. With the Mazda Transportation Solution, you will be given a loaner car at no charge when your Mazda vehicle is in for warranty repairs.

For all the details, see your Mazda Dealer

Mazda Drivers Assurance Plan

Check out www.mymazda.com, the website dedicated to you. Manage your maintenance records, receive valuable offers, see the latest accessories, and much more!

Mazda Roadside Assistance

Exhilaration, liberation and inspiration, are great reasons to drive a Mazda car, truck, SUV or minivan. In addition to all the other great standard features, you also get peace of mind, our Emergency Roadside Assistance Plan, it’s just a phone call away, 24 hours a day, 365 days a year, call 1-800-866-1998

Mazda ‘’bumper-to-bumper” Limited Warranty

We design and build every Mazda to give you driving pleasure now and far down the road. We’re so confident in our quality that we cover the entire vehicle against defects in materials and workmanship

©2003 Calcar, Quick Tips®is a trademark of Calcar, made in USA 6/03 23.701 DOT Mazda North American Operations reserves the right to change product specifications at any time without incurring obligations.

9999-95-023C-04QT

This Quick Tips®guide is provided

by Mazda North American

Operations to make your Mazda

ownership experience more

convenient. It is not intended to

replace your Owner’s Manual.

If you have any questions about

your vehicle, you are invited to

contact your local dealer.

Or if you need additional help,

feel free to call our

Customer Assistance Center

at 1-800-222-5500

Monday through Friday,

9 a.m.-4:45 p.m., Pacific

9 a.m.-5:45 p.m., Eastern/Central

Gasoline

Unleaded

87-octane

minimum

For fuel

capacity, see

Owner’ s

Manual

2004

Reference

Guide for

Controls and

Functions

Quick Tips

MAZDA B-SERIES TRUCK

DRIVER’S VIEW

Driver’s

View

Quick Tips Mazda Mazda B-Series Truck page 2

page 3

Always check the Owner’s Manual for more operating information and safety features

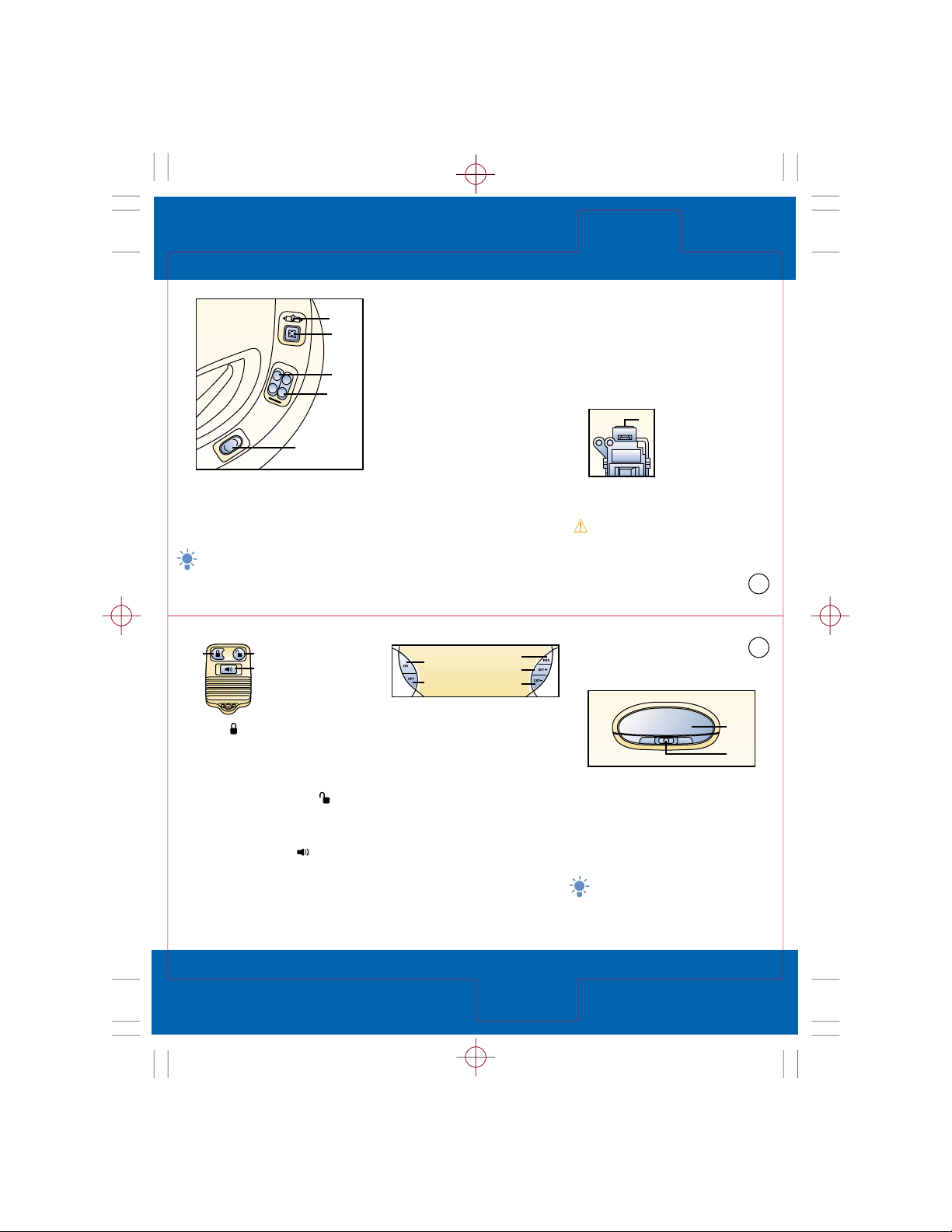

1. Power door locks*,

see Switches

2. Power window switches*,

see Switches

3. Dual power mirrors*,

see Switches

4. Lighting switch

Tail, parking and dashboard lights on: Rotate knob to first notch

Tail, parking, dashboard and headlights on: Rotate knob to second notch

5. Instrument panel lighting

To brighten/dim: Rotate thumb-wheel up/down

6. Fuse panel

7. Air vents

To open/close: Move thumb-wheel left/right To direct air flow: Move tab in center of vent

8. Side window defroster

9. Turn signals/headlight high beams/wiper/ washer lever,

see Driver Controls

10. Horn/Air bag

Press to sound horn

11. Hazard warning switch

Press on/off

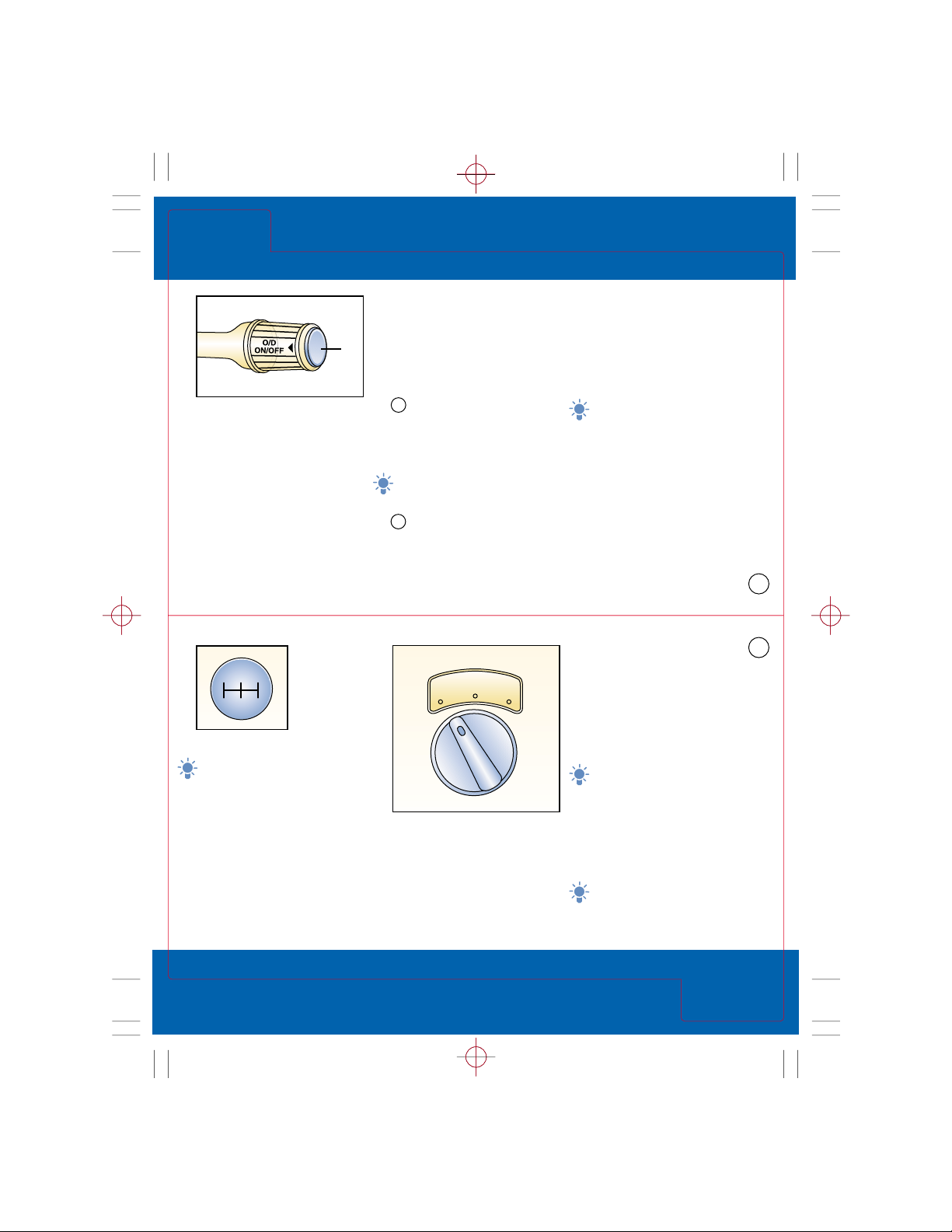

12. Gearshift lever (A/T)*,

see Transmission

13. 4x4 control*,

see Transmission

14. Power point electrical outlet

Use for optional electrical accessories, do not use cigarette lighter for accessories

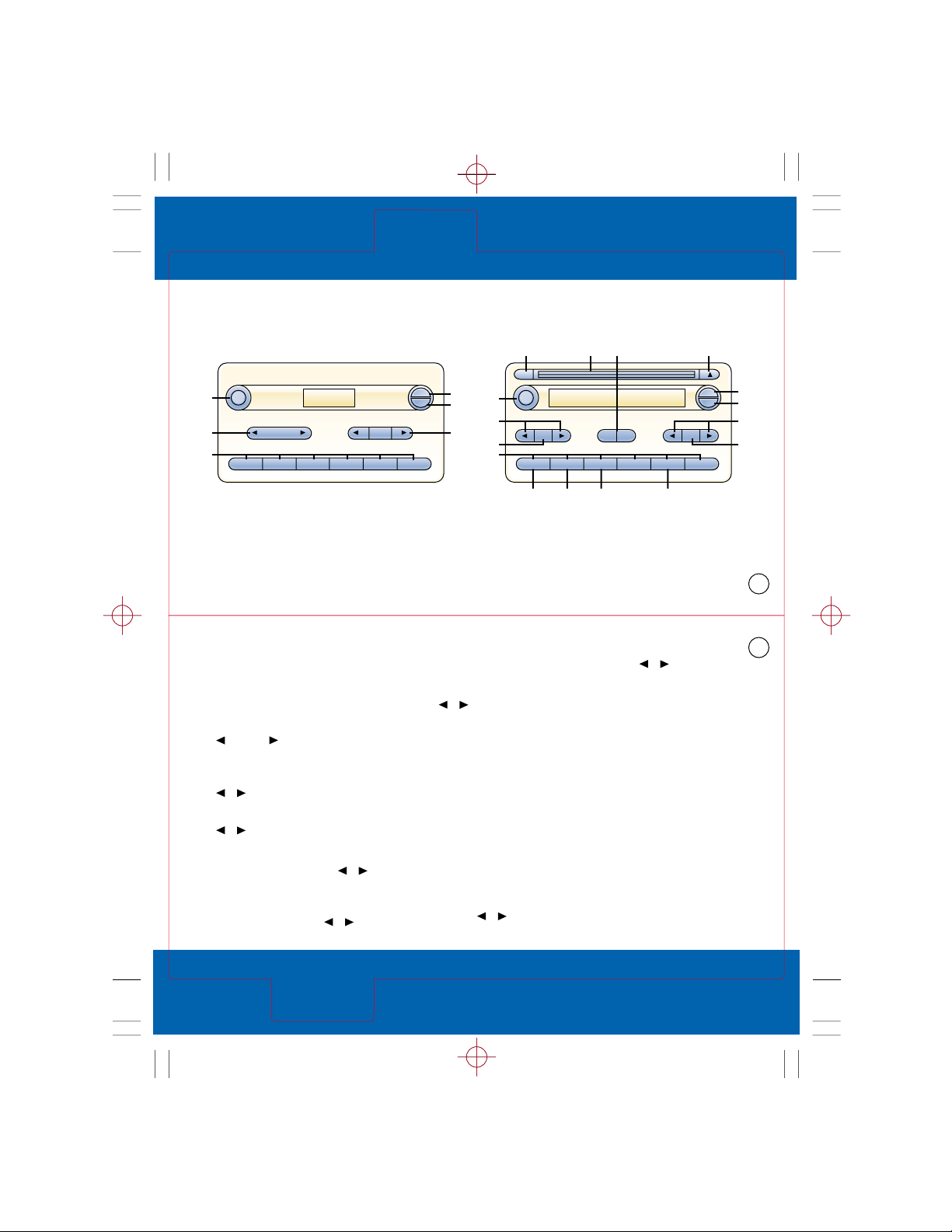

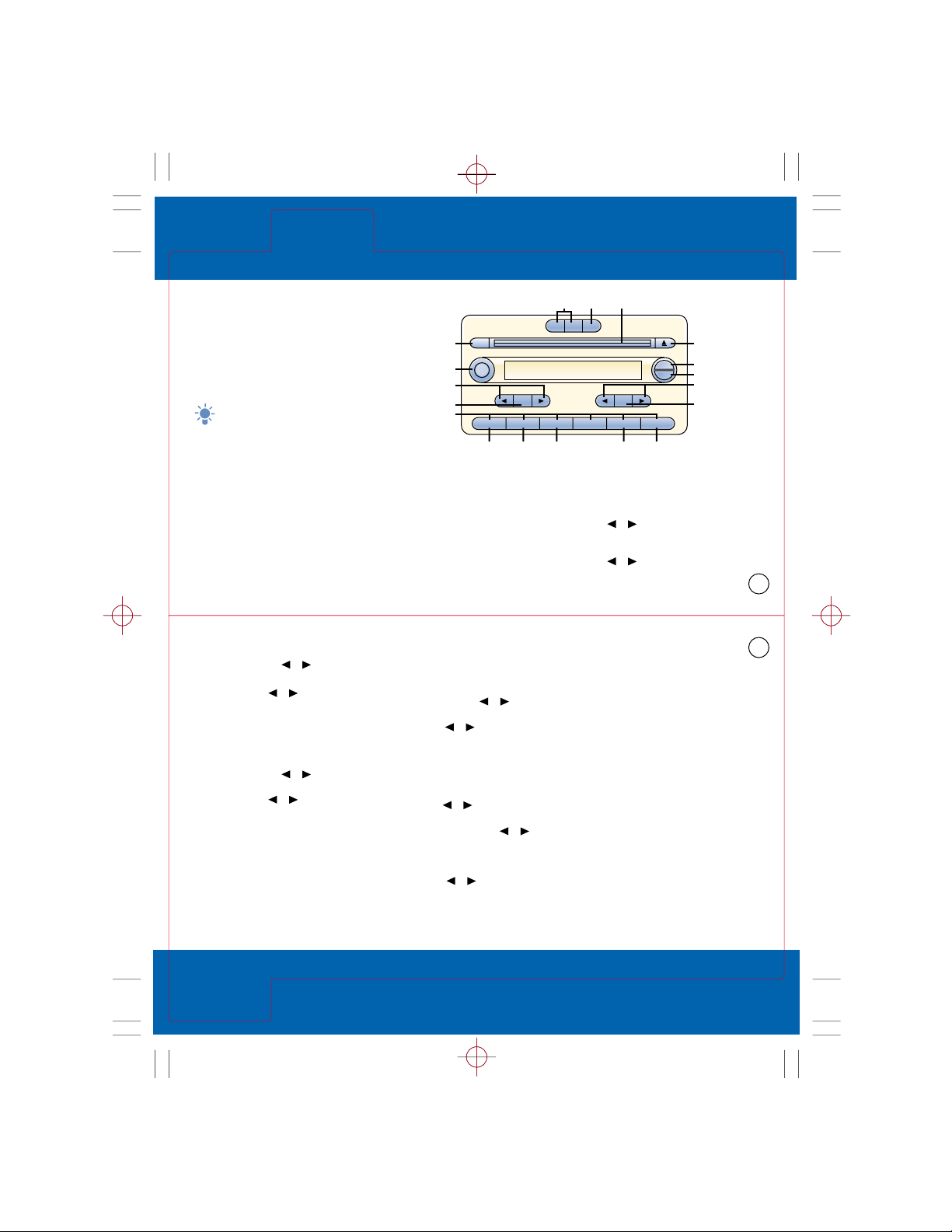

15. Audio system,

see Audio Systems

16. Fog light switch*

Press on/off; on with lowbeams/parking lights only

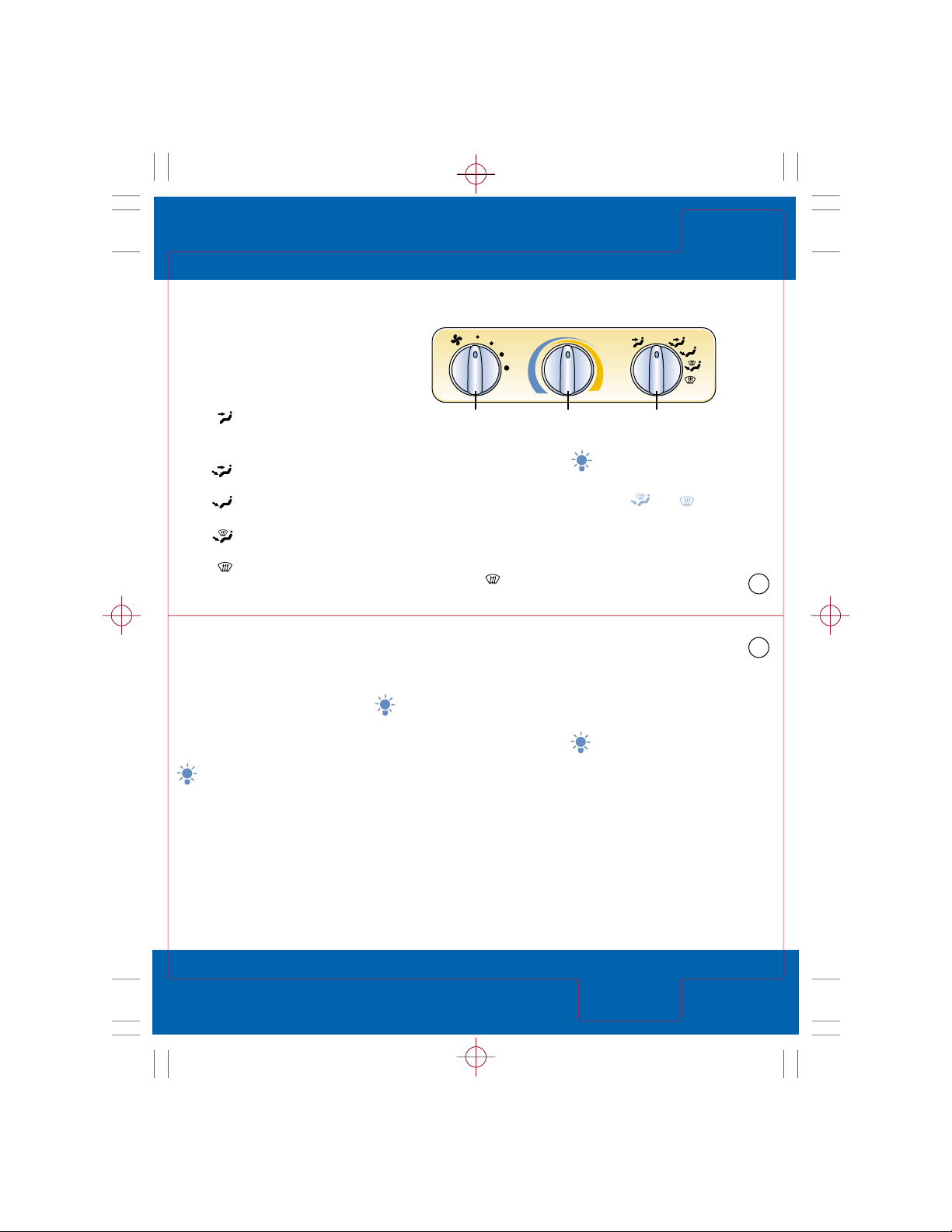

17. Climate control panel,

see Climate Control

18. Ashtray

To open/close: Pull out/push in

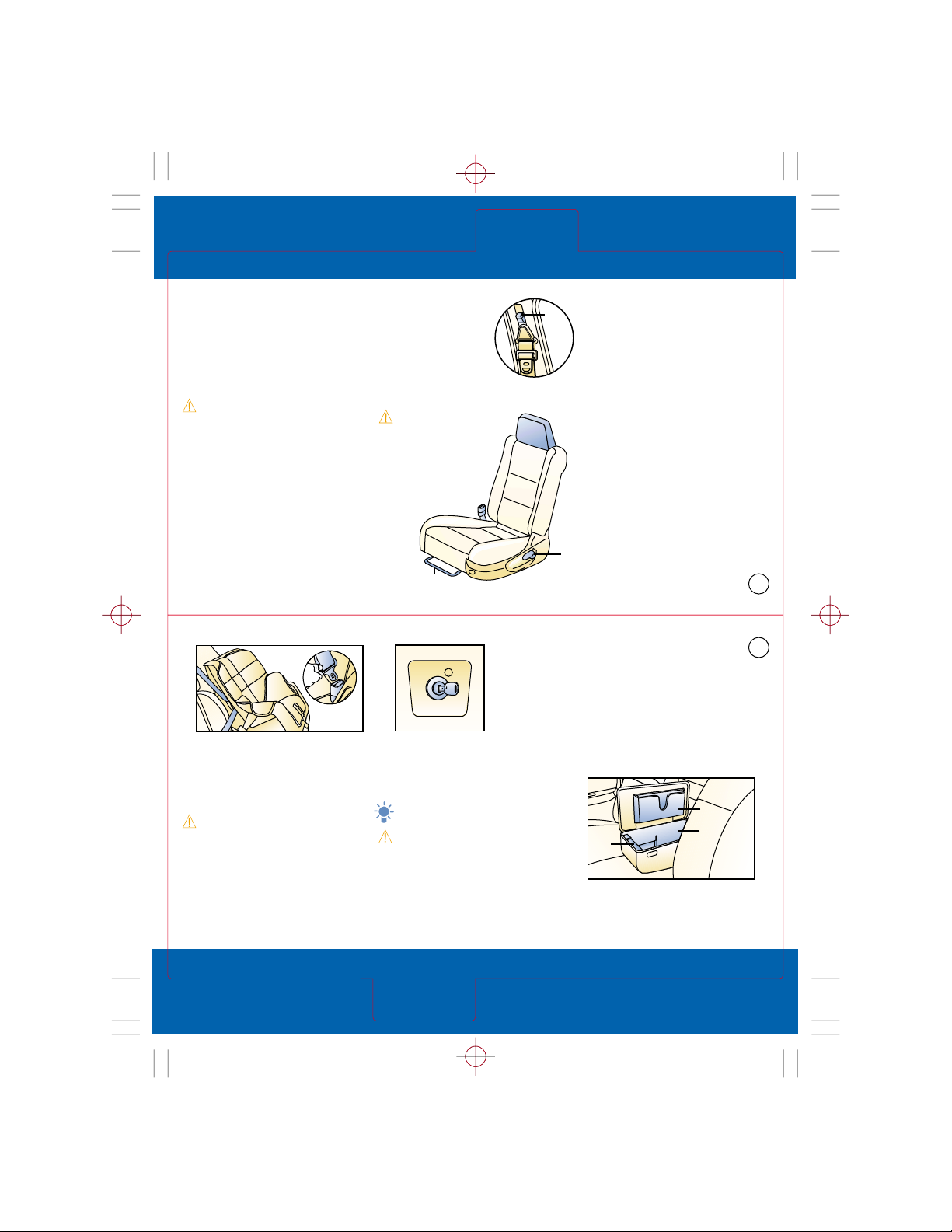

19. Passenger’s front air bag deactivation switch/light,

see Seats/Console

20. Cigarette lighter

21. Hood release handle

Pull to unlatch hood, see Under Hood

22. Cruise control*,

see Switches

23. Parking brake pedal

24. Parking brake release lever

25. Tilt steering-wheel lever*

To change position: Pull lever, tilt wheel up or down, release to lock

Key/number plate

Operates ignition and all locks

Tip: Use key number plate to purchase new key; store in safe place

SecuriLock™ passive anti-theft key

Electronically coded key activates ignition; without correct key, engine will not start

Keyless remote entry system*,

see Switches

*Denotes optional equipment

6 5 4 3 2

RPMx1000 MPH km/h

2425 23 19 18 17

121110

40 80

80 120

20 100

40 160

0 120

200

2022

14 15

INSTRUMENT CLUSTER

Always check the Owner’s Manual for more operating information and safety features

Instrument

Cluster

Driver

Controls

Quick Tips Mazda Mazda B-Series Truck page 4

page 5

40 160

2000

80 120

40 80

20 100

0 120

RPMx1000 MPH

4x4

LOW

4x4

km/h

315141211210 139 91614

8 51819 1720212223246 257

GAUGES

1. Tachometer

2. Engine coolant temperature gauge

If above normal range, stop truck and turn off engine; check coolant level when safe

3. Fuel gauge

Fuel tank capacity varies by model; see Owner’s Manual

4. Speedometer

5. Gearshift indicator* (A/T)

6. Trip odometer reset button

Push to reset

7. Odometer

8. Trip odometer

WARNING LIGHTS

9. Turn signals/hazard warning on

10. Engine coolant temperature

High engine coolant temperature; stop truck and turn off engine; check coolant level when safe

11. Air bag readiness

Air bag malfunction; dealer inspection required

12. Charging system warning light

Dealer inspection required

*Denotes optional equipment

13. High beams on

14. Cruise control on*

15. Check fuel cap

Fuel cap not securely tightened

16. Low fuel

17. Door ajar*

Door not completely shut

18. Always fasten safety belts

Light and chimes

19. Engine oil pressure

Immediately stop truck and turn off engine; check oil level

20. Brake system

Indicates parking brake on or low brake fluid level, if brake fluid level is low, have vehicle inspected by nearest Mazda Dealer

21. Anti-lock Brake System (ABS)

ABS malfunction, normal brakes only, dealer inspection required

22. / 4X4 HIGH/ 4X4 LOW Indicator*,

see Transmission

23. Anti-theft on*

24. Overdrive off indicator* (A/T)

When lit, transmission does not shift into overdrive

25. Check engine

Dealer inspection required

4x4

LOW

4x4

Turn signals/headlight high beams/wiper/ washer lever

High beams on/off: Push forward to detent/pull back To flash high beams: Pull rearward and release

To turn on wipers: Rotate knob forward; first 7 detents are progressively faster intervals, 8th detent is low speed, 9th is high

To activate washers: Push in end of knob; will also operate wipers
