M-AUDIO DIO2448 User Manual

Table Of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Product Features and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Minimum System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

About the DiO 2448 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

The DiO 2448 Adapter Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Quick Guide to Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Windows 98/95 Driver Software Installation . . . . . . . . . . . . . . . . . . . . . . . .6

Windows 98 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Windows 95 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Windows Driver Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Using the DiO 2448 with your Software Applications . . . . . . . . . . . . . . . .10

DiO 2448 Control Panel Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Windows Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

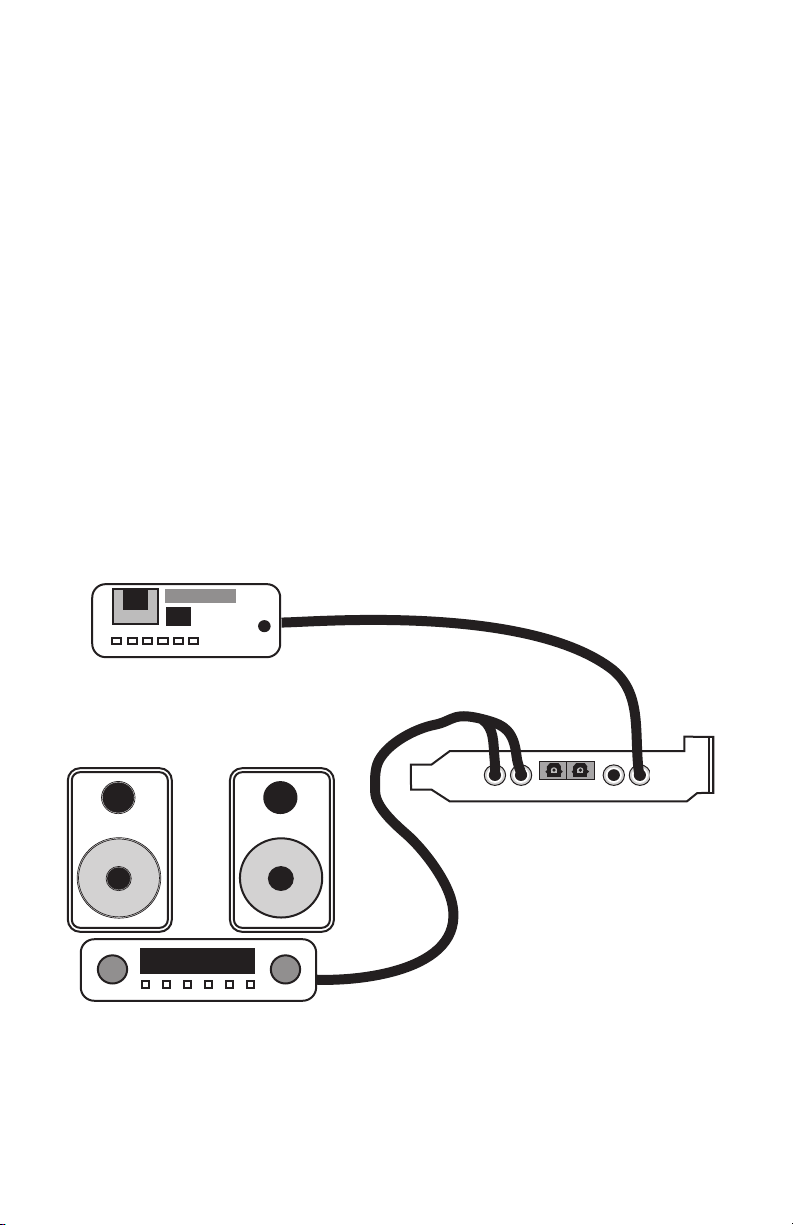

Typical DiO 2448 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Transferring From DAT TO DiO 2448 . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Transferring From DiO 2448 TO DAT, Monitoring with DAT . . . . . . . . . .16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting Tips for Frequently Asked Questions . . . . . . . . . . . . . . . .20

Lifetime Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Delta DiO-2448 Manual

version: D2448-110901

Introduction

Thank you for purchasing the DiO 2448 PCI Digital I/O Card by M Audio. Please take the time to read this instruction manual — we want you to get the most out of your DiO 2448. This manual contains valuable information on how to install, configure and operate your card. As soon as your DiO 2448 based system is up and running, you will be enjoying the world of digital audio from your computer.

What’s in the Box?

Your DiO 2448 box contains:

 This instruction manual.  The DiO 2448 adapter card.  Driver diskette for Windows 95/98 installation.  M Audio warranty registration card.

Product Features and Specifications

 2-in, 2-out 24-bit/48kHz full-duplex PCI audio interface.  S/PDIF coaxial inputs & outputs on gold-plated RCA jacks.  S/PDIF optical inputs & outputs on TOSlink style jacks.  Stereo analog output on gold-plated RCA jacks (consumer signal levels).  On-board headers accept analog audio from internal CD-ROM players.  On-board header accepts digital audio from internal CD-ROM players.  Built-in D/A converter may be used to monitor digital input or output.  Supports popular 44.1 kHz and 48 kHz sample rates.  Windows 95/98 drivers included.

Minimum System Requirements

 Windows 95 or 98  Pentium 200 MMX  32 MB of RAM  UDMA EIDE or SCSI 2 Hard Disk drive

About the DiO 2448

The DiO 2448 inputs and outputs support digital audio streams as wide as 24 bits, the highest resolution available at this time of printing. At sample rates of up to 48kHz, the DiO 2448 S/PDIF inputs may record a digital signal from your DAT, MiniDisc, CD player, or external A/D converter. The DiO 2448 S/PDIF and Analog outputs may be used to monitor the incoming S/PDIF signal or to output digital audio from your software applications. Below is a simplified block diagram of the DiO 2448. Please reference this diagram while reading the remainder of this section.

Basically, the DiO 2448 appears to your software as a stereo-input, stereooutput (2x2) audio card. There are three inputs to the card that may be recorded: Optical S/PDIF, Coaxial S/PDIF and internal CD-ROM S/PDIF. As you can see from the DiO 2448 block diagram the Optical and Coaxial S/PDIF streams are merged into one audio stream. This is not a true digital mixer, but instead a non-intelligent merger that combines the raw data streams. Therefore, only one of these jacks should be connected to an active signal at a time. Note also the CD-ROM S/PDIF header is wired directly to the Coaxial S/PDIF jack. In most cases, utilizing the internal CD-ROM S/PDIF header will prevent you from using the Optical and Coaxial S/PDIF inputs. Therefore, this header is primarily for using your DiO 2448 and computer as a “dedicated CD-ROM recording station” and not for recording from external S/PDIF devices.

S/PDIF-In

Format

Monitor

S/PDIF-In

Analog-Out

Software

WAV

Recording

Software

WAV

Playback

Analog

Inputs

Optical

Coax

S/PDIF Outputs:

Analog

Outputs

S/PDIF-Out

Source

Master

Volume

Optical

Coax

S/PDIF Inputs:

Control Panel Options

WAV

The DiO 2448 also supplies two CD-ROM analog audio headers internally, with both popular formats supported. These provide a connection to the analog output of your computer’s internal CD-ROM drive (if you have one installed). Only one of these headers may be connected at a time. CD-ROM analog audio may be monitored at the DiO 2448’s Analog output only and may not be recorded. In order to retrieve data from an audio CD-ROM, we recommend the use of a “CD Ripper” software program. These are widely available programs (sometimes even available as shareware on the Internet) that allow reading audio tracks directly from your CD-ROM and storing the retrieved data to WAV format audio files. The resulting WAV format files may be imported into most audio programs.

The DiO 2448 provides three sets of outputs: Optical S/PDIF, Coaxial S/PDIF and Analog Audio. Any combination of these outputs may be connected at any given time. The two S/PDIF outputs are wired in parallel and therefore carry the same audio stream. The S/PDIF outputs may carry data from a software application, or they may be used to monitor the audio received at the S/PDIF inputs. On the other hand, the Analog Audio outputs may carry a different audio stream than the S/PDIF outputs. The Analog Audio outputs are connected to the output of an integrated digital mixer controlled by the Windows Sound System, and are therefore more flexible than the digital outputs.

➊

➋

➌

➍

➎

➏

➐

The DiO 2448 Adapter Card

1. Coaxial S/PDIF Input: This RCA connector receives a S/PDIF stereo signal from an external coaxial S/PDIF device.

2. Coaxial S/PDIF Output: This RCA connector transmits a S/PDIF stereo signal to an external coaxial S/PDIF device.

3. Optical S/PDIF Input: This TOSlink connector receives an optical S/PDIF stereo signal from an external optical S/PDIF device.

4. Optical S/PDIF Output: This TOSlink connector transmits an optical S/PDIF stereo signal to an external optical S/PDIF device.

5. Analog Audio Outputs (Left & Right): These RCA connectors carry the left and right line-level signals to an external monitoring or mix-down device. The signal levels of these outputs are compatible with most consumer gear.

6. Internal CD-ROM headers, Analog: These headers (connectors) accept analog line-level audio from a CD-ROM player or similar source internal to the computer. Only one of these headers may be in use at one time.

7. Internal CD-ROM header, Digital: This header (connector) accepts a digital audio S/PDIF signal from a CD-ROM player or similar source internal to the computer. This header is wired in parallel to the coaxial S/PDIF input. Therefore only one of these connectors may be used at a time.

Quick Guide to Getting Started

Here is a list of the steps required to get your DiO 2448 up and running:

1. Physically install the card in your computer (see ‘Hardware Installation’).

2. Start Windows and allow Windows’ Plug-and-Play to prompt you for the DiO 2448 drivers via the Add New Hardware wizard.

3. Install drivers and support software (see ‘Driver & Software Installation’).

4. Configure your digital recording software to select the DiO 2448 ports as its active audio input and output devices (see ‘Using DiO 2448 with Software Applications’ and also your applications software manual).

5. Hook your digital audio gear up to the DiO 2448 (see ‘Typical DiO 2448 Setup’).

Hardware Installation

To mechanically install the DiO 2448, follow these steps:

1. Turn off your computer.

2. Remove the computer’s cover and position the computer so that you may easily access its PCI slots.

3. Select the PCI slot where you will install your DiO 2448 card. Make sure it is a PCI slot. If you don’t know what “PCI slot” means, check the owner’s manual for your computer. PCI slots are distinguishable from ISA slots by being shorter and set back farther from the outside of the computer, however some newer computers have only PCI slots.

4. Before removing the DiO 2448 from its protective anti-static bag, touch the metal power supply case of the computer in order to dissipate any static electricity your body may have accumulated. You might want to pick up a grounding wrist strap (available from electronics stores like Radio Shack) if you want to be doubly sure you aren’t carrying a static charge that could damage the card.

5. Remove the metal bracket that covers the access hole on the back of the computer. This bracket is usually fastened to the computer with a single screw. Save the screw for a later step.

6. Position the DiO 2448 card over the target PCI slot, fitting the card loosely over it with the DiO card upright. Press the card gently but firmly downward into the slot until the card is completely and squarely seated in the slot. If the card seems difficult to seat, a slight rocking motion may help.

7. Secure the DiO 2448 metal bracket down into the screw hole on the back of your computer using the screw you removed in step 5 above.

8. Connect the audio output of your internal CD-ROM player to the DiO 2448 if you wish to monitor it through the DiO 2448. A standard cable may have been supplied with the CD-ROM, either analog or digital, or one can be purchased at an electronics store. Please note that only one CD header may be used at a time.

9. Place the cover back on your computer.

Windows 98/95 Driver Software Installation

Included with the DiO 2448 is one or more Windows driver diskette(s) containing the software drivers for your particular operating system. To install the drivers, please follow these steps:

Windows 98 Installation

1. After installing the DiO 2448 hardware, boot your system and start Windows. During the Windows boot procedure, new hardware will be automatically detected as shown here.

2. The ‘Add New Hardware Wizard’ will now ask how you want to find the driver. “Search for the best driver for your device” is already selected. Click ‘Next>’.

3. Windows will give you a selection of locations to search. Make sure that ‘Floppy disk drives’ is checked, or click on the check box to do so. Insert the “DiO 2448 Windows 95/98 Driver” software disk into your disk drive. Click ‘Next>’.

4. The ‘Wizard’ reports that its Windows driver file search has found the M Audio DiO 2448. Click ‘Next>’.

5. Windows is now ready to install the driver files from the specified location. Click ‘Next>’. Windows will start to copy the files and show you a progress report screen.

6. The Wizard reports that Windows has finished installing the software. Click ‘Finish’. Your DiO 2448 is ready for action.

After completion of the driver installation, Windows may require you to restart Windows. If it does request a restart, remove the DiO 2448 disk from the disk drive and respond by clicking “Yes.” The system will restart and your DiO 2448 will be ready for play.

Windows 95 Installation

1. After installation of the DiO 2448 hardware, boot your system and start Windows. During the Windows boot procedure, new hardware will be automatically detected.

2. Choose the Install of “driver from disk provided by hardware manufacturer,” then click OK.

3. An “Install From Disk” dialog box will prompt you to copy files from the

A:\ drive (if your floppy drive is a different letter, change it at this time). Insert the DiO 2448 Windows 95/98 Driver software disk into the drive and click OK.

4. Windows will start to copy files, with a progress indicator on the screen. Once this process completes itself, your DiO 2448 will be ready for action.
