Marmitek MEGACAM1 User Manual

MEGACAM1TM

USER MANUAL 3

GEBRAUCHSANLEITUNG 6

GUIDE UTILISATEUR 9

GEBRUIKSAANWIJZING 12

2 MARMITEK

MegaCam 1 Colour surveillance camera

Thank you for purchasing the Marmitek MEGACAM 1. In order to optimise the use of this product we advise you to carefully read these instructions. Follow all instructions with relation to the safe use of this product.

1. SAFETY WARNINGS

• To prevent short circuits, this product (except the outdoor camera) should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.

• Do not expose the components of your systems to extremely high temperatures or bright light sources.

• Do not open the product: the device contains live parts. The product should only be repaired or serviced by a qualified repairman

• Adapters: Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

• In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.

2. APPLICATION AND FUNCTION

The MEGACAM 1 has many applications. It can be used outdoors (to guard parking spaces, gardens, front door, back door, garden sheds, caravans, etc) or indoors (play rooms, etc). The MEGACAM 1 is a colour video camera with a built-in microphone. The camera signal can be connected to every so-called composite Video In. This signal can be connected live to the Video and Audio In of e.g. a TV, surveillance monitor, PC with Video In, VCR etc. The connection cable (included) has RCA plugs and a Scart adapter. By connecting the MEGACAM 1 to a VCR, DVD (hard disc) recorder or PC, audio and video can be recorded (e.g. for surveillance camera evidence).

3MEGACAM 1TM

ENGLISH

3. SET CONTENTS

1. Camera, with a 15 meter connection cable (mini DIN connection)

2. Adapter cable mini DIN to power, RCA video, RCA audio

3. Scart adapter

4. Power adapter

5. Wall bracket

6. User manual

4. USING THE CAMERA

1. Select a suitable place to mount the camera. It is a good idea to connect the camera to a TV or surveillance monitor first; This allows you to see the camera image on screen and choose the best location to ensure a good field of vision. Avoid any direct sunlight falling onto the lens, as this affects the image clarity.

Make sure you place the camera in a sheltered location if the camera is mounted outdoors. The camera is splash-waterproof conforming to the IP44 norm. The camera can become wet, but heavy jets of water or torrential rain penetrating the camera may cause damage.

THE POWER ADAPTER SHOULD ALWAYS BE PLACED INDOORS

2. Attach the wall bracket included. Only use the wall bracket included in the set. Never drill holes into the camera casing.

3. If you want to feed the connection cable through walls, make sure you drill a large enough hole to allow the MINI DIN plug and the cable to pass through without being damaged. Don’t pull the cable too hard.

4 MARMITEK

ENGLISH

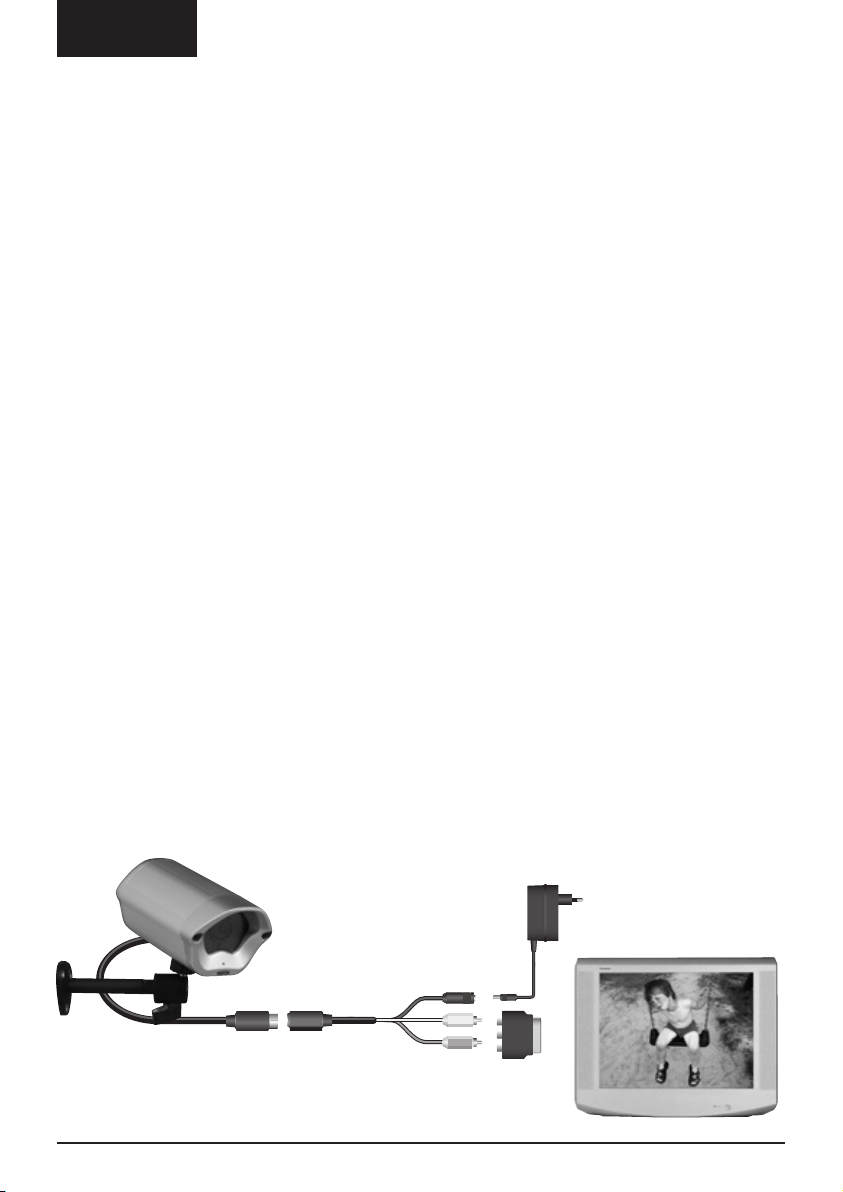

15 METER

MINI DIN

EXTENSION CABLE

POWER ADAPTER

SCART ADAPTER

4. There is a MINI DIN plug at the end of the cable. This plug can be connected to the extension cable included using an RCA plug for the audio and video signal and has a connection for the power adapter. Use the RCA plugs to connect the audio and video signal to e.g. the A/V In of your TV. Connect the yellow plug on the jack VIDEO and the white plug on the jack AUDIO LEFT. If your device has a scart connector, you may use the scart adapter provided. Ensure that the plug and socket colours match each other. Then connect the power adapter. Set your TV to the A/V channel (number 0 or the AV/Scart button on your remote control).

5. PROBLEM SHOOTING:

No image:

a. Check whether the camera is powered by the adapter included. Check whether the wall

socket is actually working.

b. Check whether the TV or monitor is turned on and set to the A/V channel (A/V or channel 0) c. If the camera is connected to the PC, check if the connection is a composite Video In.

No sound:

Connect the white plug to the white connection of the Scart adapter (left channel and Mono). If you have no sound, you can connect the white plug to the red connection of the Scart adapter (right channel).

6. TECHNICAL DATA:

Camera element: 1/3” CMOS Colour, PAL, 64º lens Min. Illumination: 3 Lux Sound: Built-in microphone Operational temperature: -10º / +40º C IP value: IP44, for outside mounting in a sheltered place Power: 12 VDC, 500mA, 230VAC/50Hz Power Adapter Dimensions: 130x60x72 mm

5MEGACAM 1TM

ENGLISH
