Model VC5400 User Guide

5 Disc DVD Changer

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference should the unit require maintenance, contact an authorized service location

(see service procedure).

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the product and receiver.

Connect the product into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTES ON COPYRIGHTS:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ___________________________________

Serial No. ___________________________________

2

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNERS MANUAL.

AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1.Read these instructions. - All these safety and operating instructions should be read before the product is operated.

2.Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3.Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4.Follow all instructions. - All operating and use instructions should be followed.

5.Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.

6.Clean only with dry cloth. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions. -

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

13.Unplug this product during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

INTRODUCTION

3

Table of Contents

Introduction

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2 IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6 About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front Panel and Display Window . . . . . . . . . . . . . . 7 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparation

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 10

Connecting to Optional Equipment. . . . . . . . . 11-12

Before Operation . . . . . . . . . . . . . . . . . . . . . . . 13-17

General Explanation. . . . . . . . . . . . . . . . . . . . . . 13

On-Screen Display . . . . . . . . . . . . . . . . . . . . 13-14

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 15-17

Initial Settings General Operation. . . . . . . . . 15

Language . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Parental Control. . . . . . . . . . . . . . . . . . . . . . 17

Operation

Operation with DVD and Video CD . . . . . . . . . 18-22

Playing a DVD and Video CD. . . . . . . . . . . . . . . 18Exchanging discs during playback . . . . . . . . 18Skipping discs . . . . . . . . . . . . . . . . . . . . . . . 18Exchanging the disc and starting playback . . 18 General Features . . . . . . . . . . . . . . . . . . . . . . . . 19

Moving to another TITLE/GROUP . . . . . . . . 19Moving to another CHAPTER/TRACK . . . . . 19Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Still Picture and Frame-by-Frame Playback . 19Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 19Random . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 20Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Time Search . . . . . . . . . . . . . . . . . . . . . . . . 203D Surround . . . . . . . . . . . . . . . . . . . . . . . . 20Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Marker Search. . . . . . . . . . . . . . . . . . . . . . . 21

Special DVD Features . . . . . . . . . . . . . . . . . . . . 21

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 21Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 21Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 21Changing the Audio Language . . . . . . . . . . . 21Changing the Audio Channel . . . . . . . . . . . . 21Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DVD Audio Discs . . . . . . . . . . . . . . . . . . . . . . . . 22

Moving to another GROUP . . . . . . . . . . . . . . 22Viewing another PAGE. . . . . . . . . . . . . . . . . 22

Operation with Audio CD and MP3/WMA Disc . 2324

Playing an Audio CD and MP3/WMA Disc . . . . . 23 Notes on MP3/WMA Recordings . . . . . . . . . . . . 23

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Moving to another Track . . . . . . . . . . . . . . . 24Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Random with MP3/WMA Disc . . . . . . . . . . . 24Repeat Track/ All/ Off. . . . . . . . . . . . . . . . . . 24Random with Audio CD . . . . . . . . . . . . . . . . 24Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 243D Surround . . . . . . . . . . . . . . . . . . . . . . . . 24Changing the Audio Channel . . . . . . . . . . . . 24Repeat Track/Disc/All/Off . . . . . . . . . . . . . . . 24

Operation with JPEG Disc. . . . . . . . . . . . . . . . . . . 25

Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . . 25

Moving to another File . . . . . . . . . . . . . . . . . 25Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . 25To flip the picture . . . . . . . . . . . . . . . . . . . . . 25

To rotate picture. . . . . . . . . . . . . . . . . . . . . . 25

Notes on JPEG Recordings . . . . . . . . . . . . . 25

Programmed Playback . . . . . . . . . . . . . . . . . . . 26-27

Programmed Playback with Audio CD . . . . . . . . 26 Programmed Playback with MP3/WMA disc . . . . 26 Programmed Playback with Video CD . . . . . . . . 26

Repeat Programmed Tracks . . . . . . . . . . . . 27Erasing a Track from Program List . . . . . . . . 27Erasing the Complete Program List . . . . . . . 27

Additional Information . . . . . . . . . . . . . . . . . . . . . 28

Screen Saver. . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Video Mode Setting . . . . . . . . . . . . . . . . . . . . . . 28 HDCD Playback. . . . . . . . . . . . . . . . . . . . . . . . . 28 Setting Remote control codes of DVD player . . . 28

Reference

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Speaker Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Language Code List . . . . . . . . . . . . . . . . . . . . . . . 31

Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . 32

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

About the symbols for instructions

Indicates hazards likely to cause harm to the unit itself or other material damage.

Indicates special operating features of this unit. Indicates tips and hints for making the task easier.

4

Before Use

Playable Discs

DVD video discs (8 cm / 12 cm disc)

DVD audio discs (8 cm / 12 cm disc)

Video CD (VCD) (8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit can play a HDCD, DVD-R, DVD±RW, Kodak PICTURE CD, SVCD, and CD-R or CD-RW that contains audio titles, MP3, WMA or JPEG files.

Notes

Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-R/±RW) disc itself, some CD-R/RW (or DVD-R/±RW) discs cannot be played on the unit.

Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added.

Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Regional code of the DVD player and DVDs





















This DVD player is designed and manufactured



1





for playback of region “1” encoded DVD soft-





















ware. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled “1” or “ALL”. If you try to play any other discs, the message “Check Regional Code” will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Disc-related terms

Title (DVD video discs only)

The main film content or accompanying feature content or additional feature content, or music album.

Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD video discs only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Group (DVD audio discs only)

The main audio content or accompanying feature content or additional feature content, or music album. Each group is assigned a group reference number enabling you to locate it easily.

Track (DVD audio discs, Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called “Scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.

A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

HDCD (High Definition Compatible Digital®)

HDCD® (High Definition Compatible Digital®) is a recording system that has improved audio CD sound in dynamic range, sound field reproducibility and vocal acoustics.

This DVD player is equipped with an HDCD decoder. The HDCD indicator illuminates when playing an HDCD-encoded audio CD.

, HDCD®, High Definition Compatible Digital® and Pacific Microsonicsare either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following patents: United States:

5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,872,531 and 5,864,311. Australia: 669114. Other patents pending.

INTRODUCTION

5

Before Use (Continued)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the exterior surfaces clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor.

Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.)

For details, please contact your nearest dealer.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

Distance: About 16 ft (5 m) from the front of the remote sensor.

Angle: About 30° in each direction of the front of the remote sensor.

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two R03

AAA

AAA

(size AAA) batteries with and









aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Notes on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the symbol display

” may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.

DVD-V DVD Video discs

DVD Audio discs

Video CDs with the PBC (playback control) function.

Video CDs without the PBC (playback control) function.

Audio CDs.

MP3 discs.

WMA discs.

6

Front Panel and Display Window





STANDBY

Disc Tray

Display window

OPEN/CLOSE ( / )

Lights red when the

Insert a disc here.

Shows the current

Opens or closes the

DVD player is standby.



status of the player.

disc tray.







INTRODUCTION



DISC SKIP

Remote Sensor



Moves to the next

POWER



available disc tray.



ON/STANDBY

Reverse Skip/Scan ( S / Q )

Switches the

player ON and



Go to beginning of current

STANDBY.

chapter/track or to PREVIOUS chap-





ter/track.



Press and hold for two seconds for a





fast reverse search.

Forward Skip/Scan ( R / T )

Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search.

DISC EX-CHANGE

PLAY ( 2 )

Changes a disc (other than the

Starts playback.

one playing) during playback STOP ( 9 ) Stops playback.

PAUSE ( ; )

Pause playback temporarily/ press repeatedly for frame-by-frame playback.

ANGLE Lights when multi angles are present.

A light will appear if a disc is in the disc tray. The current disc tray flashes.















TITLE Indicates current title number









DVD video disc inserted



















DVD



CHP/TRK Indicates current chapter or track number





















DVD audio disc inserted







A





DVD









Indicates total playing time/elapsed time













CD Audio CD inserted



























VCD Video CD inserted

PROG. Programmed playback active





HD CD HDCD disc inserted



MP3 MP3 or WMA disc inserted

RANDOM RANDOM playback active

Indicates current player function:

Playback, Pause, etc.

Indicates repeat mode

MP3 VCD HD CD DVD A

TITLE

CHP/TRK

PROG.

RANDOM ALL A

B

2

1











5











3

4











7

Remote Control

MARKER •

Marks any point during playback.

SEARCH •

Displays MARKER SEARCH menu.

POWER

Switches DVD Player ON and OFF.

AUDIO

Selects an audio language (DVD) or an audio channel (CD).

SUBTITLE

Selects a subtitle language.

0-9 number buttons

Selects numbered items in a menu.

Reverse SKIP/SCAN ( S ) •

Search backward*/ go to beginning of current chapter or track or go to previous chapter or track.

* Press and hold button for about two seconds.

PLAY ( 2) •

Starts playback.

Forward SKIP/SCAN ( T ) •

Search forward*/ go to next chapter or track.

OSD

Accesses On-Screen display.

MENU

Accesses menu on a DVD disc.

TOP MENU •

Displays the discs Top menu, if available.

SETUP •

Accesses or removes setup menu.

RETURN •

-Removes the setup menu.

-Displays the menu of a video

CD with PBC.

Setting Remote control codes of Remote control

OPEN/CLOSE

Opens and closes the disc tray.

ANGLE

Selects a DVD camera angle if available

RANDOM

Plays tracks in random order.

PROGRAM

Enters to the program edit mode or exits from that.

CLEAR

Removes a track number on the program list or a mark on the MARKER SEARCH menu.

• ZOOM

Enlarges video image.

STOP ( 9 )

Stops playback.

PAUSE/STEP ( ; )

Pauses playback temporarily/ press repeatedly for frame-by-frame playback.

SELECT/ENTER

Acknowledges menu selection.

SLOW ( , / . )

Reverse/ Forward slow playback.

1/2/3/4 (left/right/up/down)

- Selects an item in the menu.

REPEAT

Repeat chapter, track, title, group, all.

• A-B

Repeat sequence.

• DISC SKIP

Moves to the next available disc tray.

This remote control supports two remote control codes: C004 and C044.

When the unit is shipped from the factory, the remote control is set to C004.

To set the remote control to C044, hold down both the STOP button and "2" number button on the remote control for at least five seconds.

You can change the code of remote control only when NO DISC appears in the display window.

To set the remote control back to C004, hold down both the STOP button and "1" number button on the remote control for at least five seconds.

Also set the remote control codes of the player to the same setting as the remote control. (This setting is set to C004, when the unit is shipped from the factory.) (page 28)

8

Rear Panel

OPTICAL (Digital audio out jack)

Connect to digital (optical) audio equipment.

COAXIAL (Digital audio out jack)

Connect to digital (coaxial) audio equipment.

COMPONENT VIDEO OUT (Y, CB/PB, CR/PR)

Connect to a TV with Y, CB/PB, CR/PR inputs.

AUDIO OUT (Left/Right)

Connect to an amplifier, receiver, or stereo system.

INTRODUCTION

**REMOTE CONTROL

EXTERNAL/INTERNAL

Switch

* REMOTE CONTROL IN/OUT jack

VIDEO OUT

Connect to a TV with video inputs.

5.1 CHANNEL AUDIO OUT

Connect to a 5.1 channel receiver

center speaker connection

subwoofer connection

front speakers connections

rear (surround) speakers connections

S-VIDEO OUT

Connect to a TV with S-Video inputs.

RS232C Terminal

Control terminal for use by custom installers.

AC Power Cord

Plug into the power source.

* REMOTE CONTROL IN/OUT jacks

By connecting this DVD player to another Marantz audio component using a supplied System Control cable, you can remotely operate the components as a single system.

When connecting to component with a remote sensor, be sure to connect the “REMOTE CONTROL IN” jack of this DVD player to the “REMOTE CONTROL OUT” jack of the component with the remote sensor.

When connecting to component which is not equipped with a remote sensor, be sure to connect the component to the “REMOTE CONTROL OUT” jack of this DVD player.

** Remote switch

When using this DVD player independently, set this switch to “INTERNAL”. When using this DVD player in a system with a Marantz receiver equipped with a remote sensor, set the switch to “EXTERNAL”.

Caution

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

9

Connections

Tips

Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described below.

Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

For better sound reproduction, connect the player’s AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See “Connecting to Optional Equipment

on page 11-12.

Caution

Make sure the DVD Player is connected directly to the TV. Tune the TV to the correct video input channel.

Do not connect the DVD Player’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.

Do not connect your DVD Player via your VCR. The DVD image could be distorted by the copy protection system.

Connecting to a TV

Make one of the following connections, depending on the capabilities of your existing equipment.

Video connection

1Connect the VIDEO OUT jack on the DVD Player to the video in jack on the TV using the video cable (V).

2Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the audio cables.

S-Video connection

1Connect the S-VIDEO OUT jack on the DVD Player to the S-Video in jack on the TV using the S-Video cable (S).

2Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the audio cables.

Component Video (Color Stream®) connection

1Connect the COMPONENT VIDEO OUT jacks on the DVD Player to the corresponding in jacks on the TV using an Y, CB/PB, CR/PR cable (C).

2Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the audio cables.

Notes

Refer to the owner’s manual of your TV as well.

Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

Progressive Scan (Color Stream® pro) connection

If your television is a high-definition or “digital ready” television, you may take advantage of the DVD Player’s progressive scan output for the highest video resolution possible.

If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

1the DVD Player to the corresponding in jacks on the TV using an optional Y, CB/PB, CR/PR cable (C).Connect the COMPONENT VIDEO OUT jacks on

2the DVD Player to the audio left/right in jacks on the TV (A) using the supplied audio cables.Connect the Left and Right AUDIO OUT jacks of

Notes

Set the Progressive to “On” on the setup menu for progressive signal, see page 15.

Progressive scan does not work with the analog video connections (yellow VIDEO OUT and S-VIDEO OUT jack). (See “Video mode setting”, page28)

Rear of TV

S-VIDEO



COMPONENT VIDEO /

AUDIO INPUT

VIDEO

INPUT

PROGRESSIVE SCAN INPUT

INPUT







Pr

Pb

Y

L

R

L

S C A V

Rear of DVD player

Caution

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers.

10

Connections (Continued)

Connecting to Optional Equipment

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/ Pro Logic

Connect the Left and Right AUDIO OUT jacks on the DVD Player to the audio left and right in jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

1OUT jacks (OPTICAL O or COAXIAL X) to the cor-

responding in jack on your amplifier. Use an optional digital (optical O or coaxial X) audio cable.Connect one of the DVD Player’s DIGITAL AUDIO

You will need to activate the player’s digital output. 2 (See “Digital Audio Output” on page 16).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your DVD Player (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Caution:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Notes

If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

To see the audio format of the current DVD in the onscreen display, press AUDIO.

Rear of DVD player

O

X

A

OPTICAL

COAXIAL

L

R

DIGITAL INPUT

AUDIO INPUT

Amplifier (Receiver)

PREPARATION

11

Connections (Continued)

Connecting to Optional Equipment (Contimued)

Analog connection to a multi-channel A/V receiver with 6 Channel connectors (Dolby Digital)

This DVD Player contains a multi-channel decoder. This enables playback of DVDs recorded in Multi-channel Surround without the need for an optional decoder.

1 Connect the CENTER and SUB WOOFER jacks for the Center speaker and the Subwoofer (C) to the corresponding in jacks on your receiver.

Connect the Left and Right FRONT speaker jacks 2 (F) to the corresponding in jacks on your receiver.

Connect the Left and Right REAR speaker jacks 3 (R) to the corresponding in jacks on your receiver.

Make the appropriate Sound settings for Analog 4 Output and Speaker Settings in the setup menu.

See page 30.

Rear of DVD player

F

C

R

Center Subwoofer

Front R

Rear R

Front L

Rear L

ANALOG 5.1CH

AUDIO INPUT

Amplifier (Receiver)

Notes

Refer to the owner’s manual of your audio system as well.

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio.

The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo jacks.

To avoid possible damage to the audio system, you should take proper precautions when the AUDIO OUT jacks of the DVD video player is connected to an amplification system. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround decoder system must be connected to the DIGITAL OUT jack of the DVD video player.

Caution

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers.

12

Before Operation

General Explanation

This manual gives basic instructions for operating the DVD Player. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol appears on the TV screen, indicating that the operation is not permitted by the DVD Player or is not available on the disc.

On-Screen Display

General playback status can be displayed on the TV screen. Some items can be changed on the menu.

On-screen display operation

1 Press OSD during playback.

Press 3/4 to select an item.

2 The selected item will be highlighted.

3The number buttons can be also be used for setting

numbers (e.g., title number). For some functions, press SELECT/ENTER to execute the setting.Press 1/2 to change the setting of an item.

Temporary Feedback Field Icons

TITLE Repeat Title

CHAPT Repeat Chapter

GROUP Repeat Group (DVD audio discs only)

TRACK Repeat Track (non-PBC Video CDs and DVD audio discs only)

ALL Repeat All Tracks (non-PBC Video CDs only)

A B Repeat A-B

OFF Repeat Off

Resume play from this point

Action prohibited or not available

Notes

Some discs may not provide all of the features on the on-screen display example shown below.

If no button is pressed for 10 seconds, the on-screen display disappears.

PREPARATION

DVD-V



















































Function (Press 3/4 to select desired item)

Selection Method







































































































1 /3

Shows the current title number and total number of

1 / 2, or















































titles, and skips to the desired title number.

Numbers, SELECT/ENTER

































Number

























1 /12

Shows the current chapter number and total number of

1 / 2, or















































chapters, and skips to the desired chapter number.

Numbers, SELECT/ENTER





















































































































































0:20:09

Shows the elapsed playing time, and

Numbers, SELECT/ENTER













































searches the point by the elapsed time directly.























































Audio

language

ABC

1 ENG

Shows the current audio soundtrack language,

1 / 2, or









D

encoding method, and channel number, and









AUDIO







5.1 CH

changes the setting.



OFF

Shows the current subtitles language, and

1 / 2, or

changes the setting.

SUBTITLE











1 /1

Shows the current angle number and total number of

1 / 2, or

angles, and changes the angle number.

ANGLE











NORM.

Shows the current sound mode (NORMAL or 3D SUR-

1 / 2

ROUND), and changes the setting.















13

Before Operation (Continued)

On-Screen Display (Continued)

d

DVD-A

Items

Function (Press 3/4 to select desired item)

Selection Method

















Group Number









Shows the current group number and total number

1 / 2, or















2 /6

of groups, and skips to the desired group number.

Numbers, SELECT/ENTER





















Track Number

1 /12

Shows the current track number and total number

1 / 2, or



of tracks, and skips to the desired track number.

Numbers, SELECT/ENTER











Time search



0:10:15

Shows the elapsed playing time.(Display only)

_































DVD Audio

Output mode

Subtitle language

Page (or Angle)

VCD1.1





1

Shows the current encoding method, and channel

1 / 2, or





PPCM

number, and changes the setting.





AUDIO





5 CH

















Shows the current subtitles language, and

1 / 2, or

ABC

OFF

changes the setting.

SUBTITLE













Shows the current page (or angle) number and total number

1 / 2, or





1 /12





of pages (or angle), and changes the page (or angle) number.

ANGLE











or









1 /1



















Function (Press 3/4 to select desired item)

Selection Method





Shows the current track number, total number of tracks

1 / 2, or

1 /4

and PBC On mode, and skip to the desired track number.

Numbers, SELECT/ENTER





Shows the elapsed playing time (Display only)



0:20:09





Shows the audio channel, and





1 / 2, or















STER.

changes the audio channel.





Shows the current sound mode (NORMAL or 3D SUR-

AUDIO





1 / 2











NORM.



ROUND), and changes the setting.









14

Before Operation (Continued)

Initial Settings

You can set your own Personal Preferences on the player.

Initial Settings

1

Press SETUP.





The setup menu appears



















Disc Audio



Original







Disc Subtitle



English







Disc Menu



French







Rating



German







Country Code



Spanish







TV Aspect



Italian







Menu Language



Chinese







Progressive Scan



Polish







Digital Audio Output



Hungarian







5.1 Speaker Setup



Other – – – –





























Others



















2

Press 3/4 to select

item.

The screen will show

setting for the



selected item, as well

setting(s).

3

While the desired item

press 2, then

3/4 to select the desired

.



4

Press SELECT/ENTER

your selection.

Some items require

steps.



Press SETUP, RETURN,

to exit the

5 setup menu.





Language

Disc Language DVD-V

Select a language for the disc’s Menu, Audio, and Subtitle.

Original : The original language set for the disc is selected. Other : To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 31. If you enter the wrong language code, press CLEAR.











Disc Audio

Original





Disc Subtitle

English





Disc Menu

French





Rating

German





Country Code

Spanish





TV Aspect

Italian





Menu Language

Chinese





Progressive Scan

Polish





Digital Audio Output

Hungarian





5.1 Speaker Setup

Other – – – –











Others













Menu Language

Select a language for the setup menu. This is the menu you see when you press SETUP.











Disc Audio

English





Disc Subtitle

Spanish





Disc Menu

French





Rating







Country Code







TV Aspect







Menu Language














TV Aspect DVD-V

4:3 Letterbox: Select

a standard 4:3 TV is con-

nected. Displays

images with masking bars

above and below the









4:3 Panscan: Select



conventional TV set is

connected. The video



formatted in the Pan &

Scan style is played

that style (Both sides of the

picture are cut off).









16:9 Wide: Select

16:9 wide TV is connected.

























Disc Audio



4:3

Letterbox





Disc Subtitle



4:3

Panscan





Disc Menu



16:9 Wide





Rating











Country Code











TV Aspect











Menu Language











Progressive Scan











Digital Audio Output











5.1 Speaker Setup





















Others





















Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering.

If you are using the COMPONENT VIDEO OUT jacks, but are connecting the DVD Player to a standard (analog) television, set Progressive Scan to Off.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.











Disc Audio

Off





Disc Subtitle

On





Disc Menu







Rating







Country Code







TV Aspect







Menu Language







Progressive Scan







Digital Audio Output







5.1 Speaker Setup













Others













Caution

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit. Press STOP to stop any disc that is playing. Next, press STOP again and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.

PREPARATION

15

Before Operation (Continued)

Sound

Digital Audio Output

Each DVD disc has a variety of audio output options. Set the player’s Digital Audio Output according to the type of audio system you use.

DOLBY DIGITAL/PCM: Select “DOLBY DIGITAL/PCM” if you connected the DVD Player’s DIGITAL OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).

Stream/PCM: Select “Stream/PCM” if you connected the DVD Player’s DIGITAL OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.

PCM: Select when connected to a 2-channel digital stereo amplifier. The DVD player outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, HDCD, or MPEG2 recording system.











Disc Audio

DIGITALDOLBY /PCM





Disc Subtitle

Stream/PCM





Disc Menu

PCM





Rating







Country Code

Sample Freq.





TV Aspect

48 KHz





Menu Language

96KHz





Progressive Scan



















Digital Audio Output







5.1 Speaker Setup













Others













Sample Frequency

To change the Sample Frequency

first select

the desired Digital Audio Output

as above.

If your receiver or amplifier is NOT

of handling

96KHz signals, select 48KHz. When

choice is

made, this unit will automatically

any 96KHz

signals to 48KHz so your system

them.

If your receiver or amplifier is

handling

96KHz signals, select 96KHz. When

choice is

made, this unit will pass each type

through

without any further processing.



5.1 Speaker settings DVD-V

Select speaker settings, including volume balance and delay time, or test the speaker settings.

Speaker settings are only active on the Analog MultiChannel Output. (See “Speaker Settings”, page 30.)

Disc Audio

Disc Subtitle





Disc Menu

R





R





Front L







Rating







Country Code

Volume

0 dB







Size

Large





TV Aspect





Menu Language

Distance

1 ft









Progressive Scan

Test







Digital Audio Output

Return







5.1 Speaker Setup



























Others









Others

The DRC, Vocal, PBC and Auto Play settings can be changed.

Press 3/4 to select the desired item and press SELECT/ENTER. The setting of the selected item is changed between On and Off.





Disc Audio

DRC

On





Disc Subtitle

Vocal

On





Disc Menu

PBC

On





Rating

Auto Play

Off





Country Code



















TV Aspect









Menu Language









Progressive Scan









Digital Audio Output

















5.1 Speaker Setup

















Others





Dynamic



DVD-V

With the DVD format, you can hear a

sound-

track in the most accurate and

presentation

possible, thanks to digital audio

However,

you may wish to compress the

of the

audio output (the difference between

loudest sounds

and the quietest ones). Then, you

to a movie

at a lower volume without losing

sound. Set

DRC to On for this effect.



Vocal DVD-V





Set Vocal

only when a multi-channel karaoke

DVD is

. The karaoke channels on the disc will

mix into

stereo sound.



PBC





Set

Control (PBC) to On or Off.

On:

with PBC are played according to the PBC.

Off:

with PBC are played the same way as Audio

Auto DVD-V

disc automatinserted.

If Auto Play mode is set to On, this DVD player will search a title that playback time is long most and then play back the title automatically.

On: Auto Play function is activated. Off: Auto Play function is not activated.

Note

The Auto Play function may not work for some DVDs.

16

Before Operation (Continued)

Parental Control

Rating DVD-V

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country-dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.











Disc Audio

8











Disc Subtitle

7











Disc Menu

6





Rating

5





Country Code

4





TV Aspect

3





Menu Language

2





Progressive Scan

1





Digital Audio Output

Unlock





5.1 Speaker Setup

Change









Others













Select “Rating” on the Setup menu using the 1 3/4 buttons.

2 While “Rating” is selected, press 2.

When you have not entered a password yet.

3 Enter a 4-digit password using the numbered buttons to create a personal 4-digit security password. then press SELECT/ENTER. Enter the 4-digit password again and press SELECT/ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numbered buttons to confirm the personal 4-digit security password, then press SELECT/ENTER.

If you make a mistake before pressing SELECT/ENTER, press CLEAR and enter 4-digit security password again.

4tons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions.

Unlock: If you select Unlock, Parental Control is not active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, play-

back will stop. You must enter the 4-digit password or change the rating level in order to play the disc.Select a rating from 1 to 8 using the 3/4 but-

Press SELECT/ENTER to confirm your rating

5 selection, then press SETUP to exit the menu.

Country Code DVD-V

country/area whose standards were used to rate the DVD video disc, referring to the list (See “Country Code List”, page 32.).

Disc Audio

Code Set

Disc Subtitle

U S

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Select Country Code using the 3/4 buttons on

1 the setup menu.

2 While Country Code is selected, press 2.

3 Follow step 3 of “Rating” on left.

4 Select the first character using the 3/4 buttons.

Shift the cursor using 2 button and select the 5 second character using 3/4 buttons.

Press SELECT/ENTER to confirm your country 6 code selection, then press SETUP to exit the

menu.

Note

Confirmation of the 4-digit password is necessary when the code is changed (see “Changing the 4-digit code” below.).

Changing the 4-digit code

1Follow Steps 1-2 as shown above to the left (Rating).

2Enter the old code, then press SELECT/ENTER.

3Select Change using 3/4 buttons then press SELECT/ENTER.

4Enter the new 4-digit code, then press SELECT/ENTER.

5Enter exactly the same code a second time and verify by pressing SELECT/ENTER.

6Press SETUP to exit the menu.

If you forget your 4-digit code

If you forget your password, to clear the current password, follow the procedure below.

1Press SETUP to display the setup menu.

2Use the Number buttons to enter the 6-digit number “210499”.

The 4-digit password is cleared. “P CLr” appears on the display for a moment.

3Enter a new code as shown above to the left (Rating).

PREPARATION

17

Operation with DVD and Video CD

Playing a DVD and Video CD

Playback Setup DVD-V

Turn on the TV and select the video input source connected to the DVD player.

Audio system: Turn on the audio system and select the input source connected to the DVD player.

1 Press OPEN/CLOSE to open the disc tray.

Load your chosen disc in the tray, with the 2 playback side down.

Do not load a disc in the

left and light side position.

Center position

Discs can be loaded one at a time by pressing DISC SKIP to rotate the carousel.

Press OPEN/CLOSE to close the tray.

3 READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY.

In some cases, the disc menu might appear instead.

If a menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD which offer a menu.

DVD-V

1/2/3/4 buttons to select the title/chapter you view, then press SELECT/ENTER to start play-

TOP MENU or MENU to return to the menu

1/2/3/4 buttons to select an option you want, press SELECT/ENTER to view the option.

Use the number buttons to select the track you want to view.

Press RETURN to return to the menu screen.

Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 16.

Caution

Do not touch the loading drawer and carousel while they are in motion, and do not attempt to rotate the carousel by hand; doing so could result in incorrect operation of the player and/or damage to the discs.

18

Notes

If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see “Parental Control, on page 17).

DVDs may have a region code.

Your player will not play discs that have a region code different from your player. The region code for this player is 1 (one).

Exchanging discs during playback

Press DISC EX-CHANGE on the front panel during playback to open the disc tray.

Press DISC SKIP to rotate the disc trays to the desired position. The carousel will rotate clockwise by one disc increments.

Exchange the discs and press DISC EX-CHANGE or OPEN/CLOSE to close the disc tray.

Note

The disc tray presently loaded in the play position can not be exchanged.

Skipping discs

Press DISC SKIP during play or when playback is stopped.

Notes

When DISC SKIP is pressed, the disc tray rotates and playback begins from the beginning of the next disc.

If there is no disc on the next disc tray, the following disc tray will be selected.

When DISC SKIP is pressed during playback of disc 5, playback of disc 1 will start.

Exchanging the disc and starting playback

1.Press OPEN/CLOSE during playback or when playback is stopped.

Play stops (if pressed during playback), the disc tray opens and the disc that was in the play position comes to the front.

2.Exchange the disc.

3.Press OPEN/CLOSE or PLAY again.

The tray closes and playback begins (with the disc that was in front).

After operation

When the unit is not in use, remove the disc and press POWER to turn off the DVD player.

Notes

Do not move the DVD player during playback. Doing so may damage the disc and the DVD player.

Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.

Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’s fingers around the closing disc tray as there is a risk of personal injury.

Operation with DVD and Video CD

General Features





Note















Unless stated otherwise, all operations

use

the remote control. Some features

be

available on the Setup menu.





Moving to another TITLE/GROUP











































DVD-V



1 /3







1/6





















































When a disc has more than one title

, you can

move to another title/group as follows:



Press OSD, then press the



numbered



button (0-9) to select a title/group

.

Moving to another CHAPTER/TRACK

DVD-V

1 /12 1 /3 1 /12

When a title on a disc has more

chapter or a

disc has more than one track, you

to another

chapter/track as follows:



Press SKIP/SCAN .or >

playback to select the next chapter/track or to return to the beginning of the current chapter/track.

Press .twice briefly to step

previous

chapter/track.



To go directly to any chapter/track

DVD

playback, press OSD. Then, press

select the

chapter/track icon. Then, enter



number using the numbered

.

Note

For two-digit numbers, press the numbered buttons (0-9)in rapid succession.

Search DVD-V

1 Press and hold SKIP/SCAN .

for about

two seconds during playback.



The player will now go into SEARCH



2 Press and hold SKIP/SCAN .

repeatedly

to select the required speed: m

X4, mX16,

mX100 (backward) or MX2,

MX16,

MX100 (forward).



With a Video CD, the Search

mX2,

mX4, mX8, (backward) or M

X4, MX8,

(forward).



3 To exit SEARCH mode, press



Note



When using a DVD audio disc that

pictures,

this operation may be permitted in



segments.



Pause DVD-V

1Press PAUSE/STEP during playback.

2To return to playback, press PLAY.

Still Picture and Frame-by-Frame playback

DVD-V

1Press PAUSE/STEP during playback. The player will now go into PAUSE mode.

2You can advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly on the remote control.

Note

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

Slow Motion DVD-V

1Press SLOW tor Tduring playback.

The player will enter SLOW mode.

2Use the SLOW tor Tto select the required speed: t 1/16, t 1/8, t 1/4 or t 1/2 (backward), or

T1/16, T1/8, T1/4 or T1/2 (forward).

3To exit slow motion mode, press PLAY.

Notes

Slow motion playback in reverse is not applicable for Video CD.

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

Random Karaoke DVD

1Press RANDOM during playback or in stop mode. The unit automatically begins Random Playback and “RANDOM(1-3)” appears on the display window.

RANDOM1: Plays all the tracks on a single disc in random order and then stops.

RANDOM2: Plays all the tracks on current disc in random order and then plays all the tracks on each succeeding disc in random order and then stops.

RANDOM3: Plays 2 tracks randomly from a disc and then plays 2 tracks randomly from a different disc until all tracks on all discs have been played.

2To return to normal playback, press RANDOM until “RANDOM” disappears on the display window.

Tips

By pressing SKIP/SCAN >during Random playback, the unit selects another title (track) and resumes Random playback.

Notes

This function only works with DVD Karaoke discs and video CD without PBC.

DVD karaoke works only RANDOM 1 function.

On a Video CD with PBC, you must set PBC to Off on

setup menu to use the Random function. See page 16.

OPERATION

19

Operation with DVD and Video CD

General Features (continued)

Repeat A-B DVD-V

A *

A B

OFF

To repeat a sequence in a title or group:

1Press A-B at your chosen starting point.

“ A * ” appears briefly on the TV screen.

2Press A-B again at your chosen end point.

“A B” appears briefly on the TV screen, and the repeat sequence begins (“AsB” appears the display window).

3To cancel the sequence, press A-B.

Repeat DVD-V

CHAPT

TITLE

GROUP

TRACK

ALL

OFF

DVD Video Discs - Repeat Chapter/Title/All/Off

1To repeat the currently playing chapter, press REPEAT.

The Repeat Chapter icon appears on the TV screen.

2To repeat the title currently playing, press REPEAT a second time.

The Repeat Title icon appears on the TV screen.

3To repeat entire all disc contents, press REPEAT a third time.

The Repeat All icon appears on the TV screen.

4To exit Repeat mode, press REPEAT a fourth time.

The Repeat Off icon appears on the TV screen.

DVD Audio Discs - Repeat Track/Group/All/Off

1To repeat the currently playing track, press REPEAT.

The Repeat Track icon appears on the TV screen.

2To repeat the group currently playing, press REPEAT a second time.

The Repeat Group icon appears on the TV screen.

3To repeat entire all disc contents, press REPEAT a third time.

The Repeat All icon appears on the TV screen.

4To exit Repeat mode, press REPEAT a fourth time.

The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/Disc/All/Off

1To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the TV screen.

2To repeat the disc currently playing, press REPEAT a second time.

The Repeat Disc icon appears on the TV screen.

3To repeat entire all disc contents, press REPEAT a third time.

The Repeat All icon appears on the TV screen.

4To exit Repeat mode, press REPEAT a fourth time.

The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 16.

Time Search

DVD-V

















0:20:09







-:--:--





















































The Time Search function allows you to start playing at any chosen time on the disc.

1Press OSD during playback. The on-screen display appears on the screen.

The Time Search box shows the elapsed playing time of the current disc.

2Within 10 seconds, press 3/4 to select the Time Search icon in the on-screen display.

The “-:--:--” appears in the Time Search box.

3Within 10 seconds, use the number buttons to enter the required start time. Enter hours, minutes, and seconds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.

4Within 10 seconds, press SELECT/ENTER to confirm the start time.

Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

3D Surround

DVD-V

NORM.

3D SUR





This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multichannel audio from a home theater system.

1Press OSD during playback.

2Press 3 or 4 to select the sound option.

The sound option will be highlighted.

3Press 1 or 2 to to select “3D SUR”.

To turn off the 3D Surround effect, select “NORM”.

Zoom DVD-V

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1Press ZOOM during playback or still playback to activate the Zoom function.

If you press ZOOM repeatedly, the magnification level increases up to six steps.

2Use the 1/2/3/4 buttons to move through the zoomed picture.

3Press CLEAR to resume normal playback or return to the paused image.

Note

The zoom function may not work for some DVDs.

20

Operation with DVD and Video CD

General Features (continued)

Marker Search DVD-V

MARKER SEARCH

1/9

You can start playback from a memorized point. Up to nine points can be memorized.

To enter a mark, follow these steps.

1During disc playback, press MARKER when playback reaches the spot that you want to memorize.

The Marker icon will appear on the TV screen briefly.

2Repeat step 1 to enter up to nine Marker points on a disc.

To Recall a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Within 10 seconds, press 1/2 to select a Marker number that you want to recall.

3Press SELECT/ENTER.

Playback will start from the Marked scene.

4To remove the MARKER SEARCH menu, press SEARCH.

To clear a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Press 1/2 to select the Marker number that you want to erase.

3Press CLEAR.

The Marker number will be erased from the list.

4Repeat steps 2 and 3 to erase additional Marker numbers.

5To remove the MARKER SEARCH menu, press SEARCH.

Special DVD

DVD-V

Checking the contents of DVD Menus

DVDs may offer menus that allow you to features. To use the disc menu, press MENU.

press the appropriate number button to . Or, use the 1/2/3/4 buttons to highlight your selection, then press SELECT/ENTER.

Title Menu DVD-V

1

Press TOP MENU.





If the current title has a

the menu will appear on the



screen. Otherwise, the

may appear.

2

The menu can list

angles, spoken language



and subtitle options,

chapters for the title.

3

To remove the title

TOP MENU again.

Disc Menu DVD-V

1

Press MENU.





The disc menu is displayed



2

To remove the disc

MENU again.

1 /1

Camera Angle DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

Press ANGLE repeatedly during playback to select a desired angle.

The number of the current angle appears on the display.

Changing the Audio Language





1 ENG







1



DVD-V



D







PPCM





5.1 CH







5 CH



















Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Changing the

VCD2.0

Press AUDIO repeatedly during playback to ferent audio channel (STER., LEFT or RIGHT).

Subtitles

DVD-V

ABC

1 ENG





Press SUBTITLE repeatedly during playback to see the different subtitle languages.

Note

If appears, the feature is not available on the disc.

OPERATION

21

Operation with DVD and Video CD

DVD Audio Discs DVD-A

Viewing another PAGE DVD-A

1 /12

DVD Audio is a new disc format building on the success of DVD to provide high quality, uncompressed, multichannel audio for a new experience in audio quality. A DVD Audio disc can be identified by the DVD audio logo on the disc jacket or on the disc itself.

DVD Audio can provide higher quality stereo than Audio CDs with a sampling rate of up to 192kHz (compared to 44.1kHz for CDs). DVD Audio digital sound can be delivered with up to 24 bits of data (compared to 16 bits for a standard CD).

A typical DVD Audio disc contains up to seven times the data capacity of a CD. This additional space is used for music, either Advanced Resolution multi-channel sound quality that is closer to the artist’s master recording or for longer recordings. Many DVD Audio discs contain on-screen text, such as artist biographies, playlists, or lyrics. Some DVD Audio discs contain photo galleries or video clips.

Note

To enjoy maximum sound quality and surround effect of DVD Audio, you must use 5.1 channel analog audio output (5.1CH AUDIO OUT jacks on the DVD Player). If you use the DIGITAL OUT (OPTICAL or COAXIAL) for your audio connection, the sound will only be similar to CD-quality sound even though you’re playing a DVD Audio disc.

Moving to another GROUP

DVD-A

1/6





Some DVD Audio discs divide content into different groups. Your player enables you to quickly access different groups during playback via the on-screen display.

1Press OSD during playback on in stop mode.

2Press 3/4 to select Group icon.

3Press 1/2 or the numbered buttons (0-9) to select a group number.

Note

Sometimes the author of the disc creates hidden content that can only be accessed by entering a password. If the lock icon appears on the TV screen, enter the password (sometimes you’ll find it on the disc’s jacket cover or on a web site). This password control isn’t dictated by your DVD Player — it is a function of the disc. Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you’re playing.

Since DVD Audio discs can hold a lot of content, there are various ways to see what’s available on the disc.

1Press OSD during playback.

2Press 3/4 to select Page icon.

3Press 1/2 to select a page number.

What appears on the screen will vary from disc to disc because the information available depends upon the way the disc was created.

Note

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you’re playing.

22

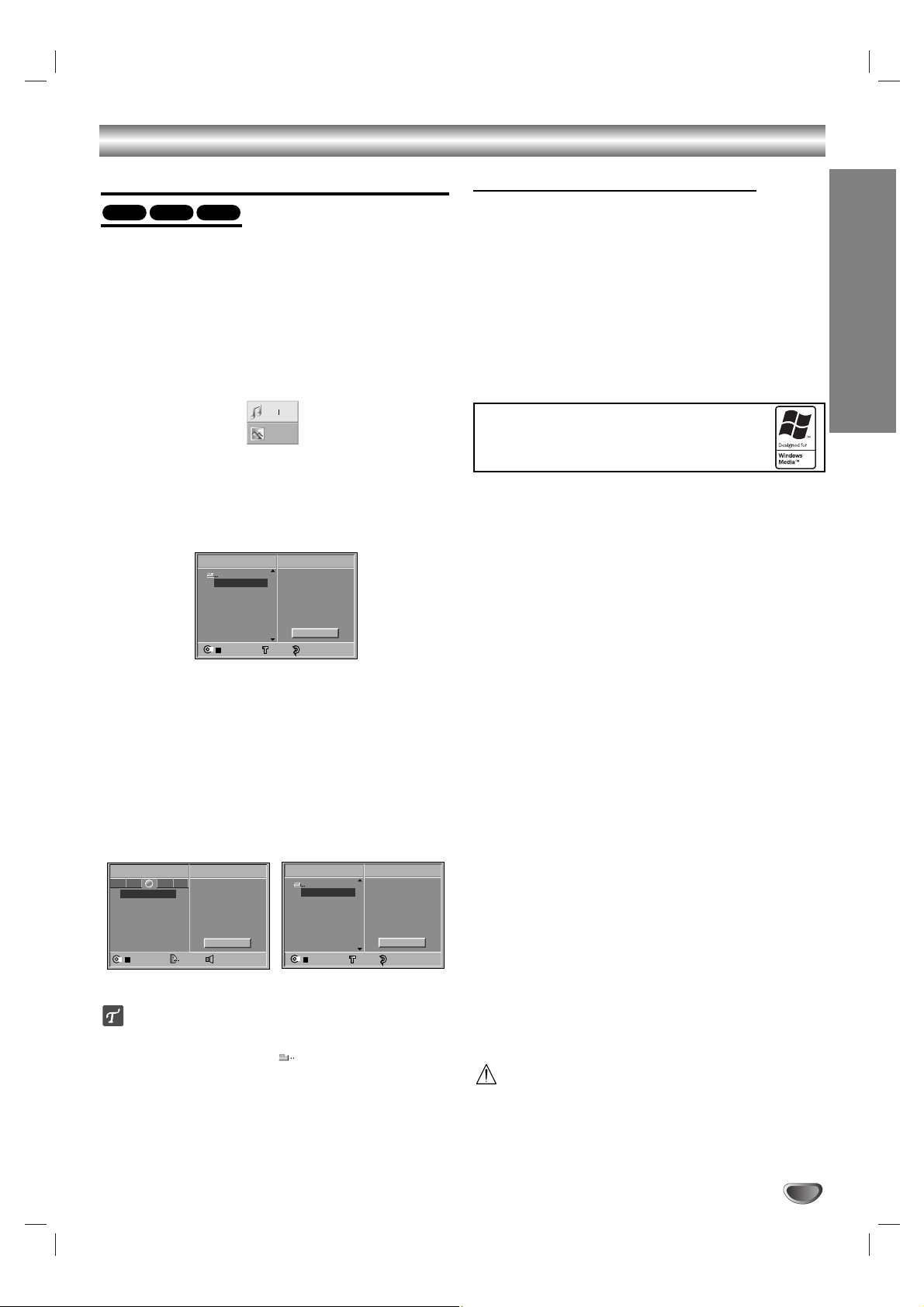

Operation with Audio CD and MP3/WMA Disc

Playing an Audio CD and MP3/WMA Disc

CD

The DVD Player can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs.

Before playing MP3/WMA recordings, read the notes on MP3/WMA Recordings on right.

1Insert a disc and close the tray.

Audio CD; Audio CD menu appears on the TV screen go to step 4.

MP3/WMA disc; The MP3/WMA-JPEG choice menu appears on the TV screen. Go to step 2

MP3 WMA

JPEG

2Press 3/4 to select the MP3/WMA then press

SELECT/ENTER.

The MP3/WMA menu appears on the TV screen. Press RETURN to move to the MP3/WMA-JPEG choice menu.

MP3/WMA



Program



TRACK 1.mp3







TRACK 2.mp3







TRACK 3.mp3







TRACK 4.mp3







TRACK 5.mp3







TRACK 6.mp3







TRACK 7.mp3



Clear All



TRACK 8.mp3









2

00:00

1

OFF

3Press 3/4 to select a folder, and SELECT/ENTER.

A list of files in the folder appears.

4Press 3/4 to select a track then press PLAY or

SELECT/ENTER.

Playback starts.

During playback, the current track’s elapsed playing time will appear on the display window and menu. Playback will stop at the end of the disc.

Press TOP MENU to move to the next page. Press MENU to move to the previous page.

CD

Program



3







TRACK 01







TRACK 02







TRACK 03







TRACK 04







TRACK 05







TRACK 06







TRACK 07



Clear All

3

0: 56: 18

STER.

NORM.

MP3/WMA



Program



TRACK 1.mp3







TRACK 2.mp3







TRACK 3.mp3







TRACK 4.mp3







TRACK 5.mp3







TRACK 6.mp3







TRACK 7.mp3



Clear All



TRACK 8.mp3









2

00:00

1

OFF

Audio CD menu

MP3/WMA menu

Tip

If you are in a file list and want to return to the Folder list, use the 3/4 to highlight and press SELECT/ENTER to return to the previous menu screen.

5 To stop playback at any other time, press STOP.

Notes on MP3/WMA Recordings

About MP3

An MP3 file is audio data compressed by using the MPEG1 audio layer-3 file-coding scheme. We call files that have the “.mp3” file extension “MP3 files”.

The player can not read an MP3 file that has a file extension other than “.mp3”.

About WMA(Window Media Audio)

An WMA file is a Microsoft audio compression technology.

WMA(Windows Media Audio) offers double the audio compression of the MP3 format.

Microsoft, Windows Media, and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in both the United States and other countries

MP3/WMA Disc compatibility with this player is limited as follows:

1.Sampling Frequency / only at 44.1kHz (MP3), 22.05 - 44.1kHz (WMA)

2.Bit rate / within 32 - 320kbps (MP3), 32 - 128kbps (WMA)

3.CD-R physical format should be “ISO 9660”

4.If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for example “Direct-CD” etc., it is impossible to playback MP3/WMA files. We recommend that you use “EasyCD Creator”, which creates an ISO9660 file system.

5.A single session disc requires MP3/WMA files in the first track. If there is no MP3/WMA file in the 1st track, it cannot playback MP3/WMA files. If you wish to playback MP3/WMA files, format all the data in the disc or use a new one.

6.File names should be named using 8 letters or less and must incorporate “.mp3” or “.wma” extension e.g. “********.MP3” or “********.WMA”.

7.Do not use special letters such as “/ : * ? “ < > ” etc.

8.Total number of files on the disc should be less than 650.

This DVD player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files). That require certain pre-existing conditions (see above) to insure compatible playback.

Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Caution

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

OPERATION

23

Operation with Audio CD and MP3/WMA Disc (Continued)

Pause CD

1Press PAUSE/STEP

2To return to playback, PAUSE/STEP again.

Moving to

CD

Press SKIP/SCAN .or >briefly playback to go to the next track or to beginning of the current track.

Press SKIP/SCAN .twice briefly the previous track.

In case of audio CD, to go directly the track number using the numbered during playback.

Search CD

1

Press and hold SKIP/SCAN

or

about



two seconds during







The player will now go into





2

Press and hold SKIP/SCAN

or





to select the required

X2,

mX8



(backward) or MX2,



.



Search speed and direction



menu



screen.





3

To exit SEARCH mode,





Random with MP3/WMA



MP3

1Press RANDOM during playback or stopped.

The unit automatically begins Random RANDOM or “RAND.” appears on and menu screen.

2To return to normal playback, press

edly until RANDOM or “RAND.” disappears on display window and menu screen.

Repeat Track/All/Off MP3

1To repeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu screen.

2To repeat all tracks on a disc, press REPEAT a second time.

The Repeat icon and “ALL” appears on the menu screen.

3To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and “OFF” appears on the menu screen.

Random with



CD



1 Press RANDOM during

stop mode.

The unit automatically begins



Playback and

“RANDOM(1-3)” appears on the



window.

• RANDOM1: Plays all the tracks



disc in random

order and then stops.







• RANDOM2: Plays all the tracks



disc in

random order and then plays all



on each suc-

ceeding disc in random order and



.

• RANDOM3: Plays 2 tracks



a disc and then

plays 2 tracks randomly from a

disc until all

tracks on all discs have been





2 To return to normal playback,

RANDOM until

“RANDOM” disappears on the

window.

Repeat A-B CD







To repeat a sequence







1 During disc

press A-B at your chosen start-

ing point.







The Repeat icon

” appears on the menu screen.

2 Press A-B again

chosen end point.

The Repeat icon

B” appears on the menu screen,

and the sequence

to play repeatedly.

3 To exit the

and return to normal play, press

A-B again.







The Repeat icon

appears on the menu screen.

3D Surround







This unit can produce

Surround effect, which

simulates multi-

playback from two

conventional stereo

instead of the five or

more speakers

to listen to multi-

channel audio from

theater system.

1 Press OSD during

.





2 Use 1 or 2 to

sound option.



The sound option

.





3 Use 3 or 4 to to

SUR”.









“NORM”.

Changing the

Channel

CD

Press AUDIO repeatedly during playback

a

different audio channel (STER., LEFT, or



Repeat Track/Disc/All/Off CD



1.To repeat the track currently



REPEAT.

The Repeat icon and “TRACK” appear



menu screen.

2.To repeat all tracks on a disc,



a

second time.







The Repeat icon and “DISC” appear



screen.

3.To repeat entire all disc contents,



REPEAT third

time.







The Repeat icon and “All” appears



screen.

4.To cancel Repeat mode, press REPEAT a fourth time.

The Repeat icon and “OFF” appear

screen.

24

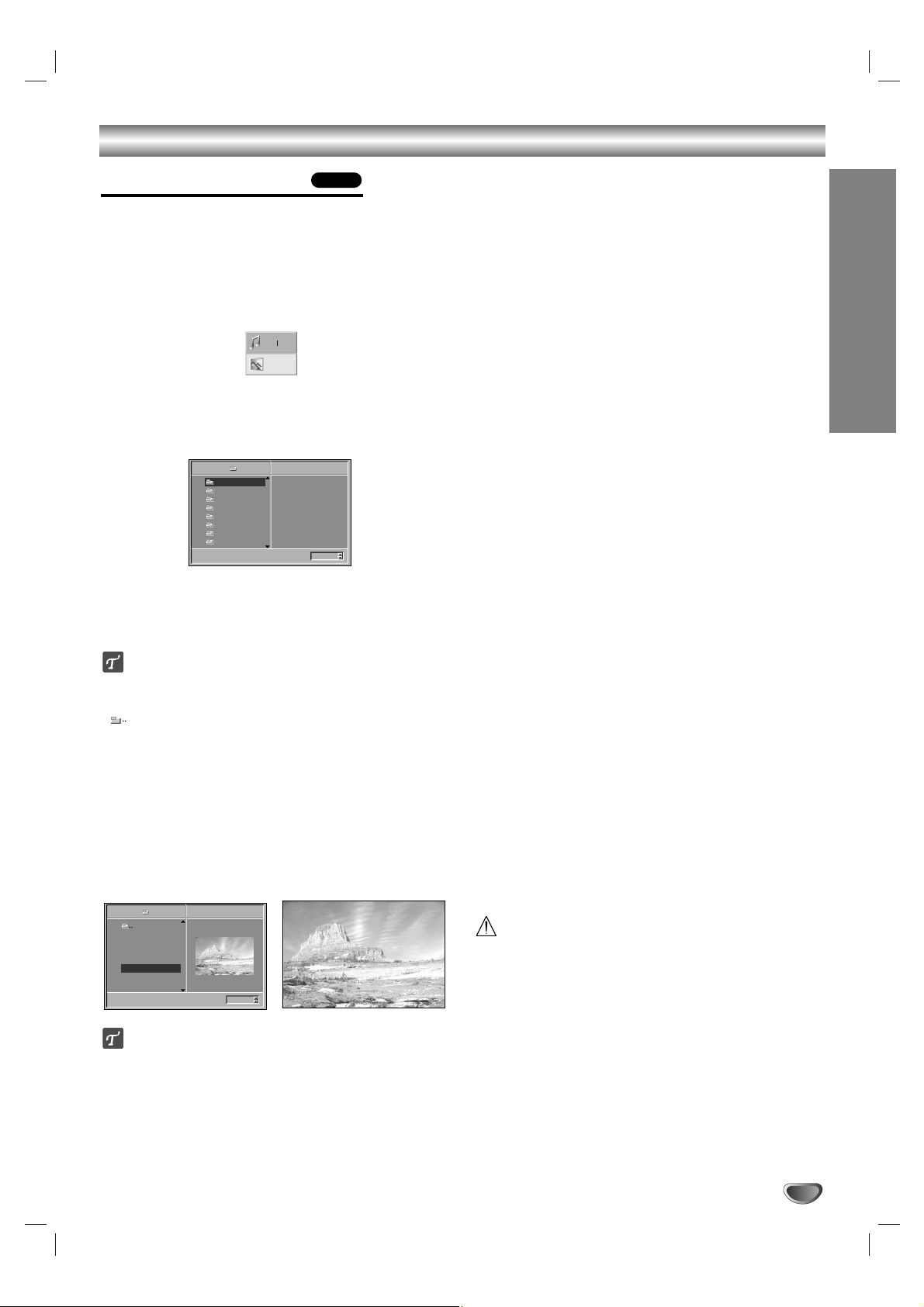

Operation with JPEG Disc

Viewing a JPEG disc JPEG

This DVD Player can play discs with JPEG files and Kodak picture CD. Before playing JPEG recordings, read the notes on JPEG Recordings on right.

1Insert a disc and close the tray.

The MP3/WMA-JPEG choice menu appears on the TV screen.

MP3 WMA

JPEG

2SELECT/ENTER.

The JPEG menu appears on the TV screen.Press 3/4 to select the JPEG then press

JPEG



Folder1



Folder2



Folder3



Folder4



Folder5



Folder6



Folder7



Folder8



Slide Speed

Off

3Press 3/4 to select a folder, and SELECT/ENTER.

A list of files in the folder appears.

Press RETURN to move to the MP3/WMA-JPEG choice menu.

Tip

If you are in a file list and want to return to the Folder list, use the 34 buttons on the remote to highlight

and press SELECT/ENTER to return to the previous menu screen.

4 If you want to view a particular file, press 3/4 to highlight a file and press SELECT/ENTER or PLAY.

Viewing the file proceeding starts.

During viewing a file, press RETURN to move to the previous menu (JPEG menu).

Press TOP MENU to move to the next page. Press MENU to move to the previous page.

JPEG

Folder1
























































































5/32

1024X768

Slide Speed

Off

5/32

1024X768


Tip

There are three viewing Slide Speed options: Fast, Normal, Slow, and Off. Press 1/2 to highlight the Slide Speed then press 3/4 to select the option you want to use, and press SELECT/ENTER.

To stop viewing at any other time, press STOP.

5 The JPEG menu appears.

Moving to another File

Press SKIP/SCAN .or >once during viewing a picture to advance to the next file or to the previous file.

Still Picture

1Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.

2To return to the slide show, press PLAY or press PAUSE/STEP again.

To flip the picture

Press 3/4 during showing a picture to flip the picture horizontally or a vertically.

To rotate picture

Press 1/2 during showing a picture to rotate the picture clockwise or counter clockwise.

Notes on JPEG Recordings

Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an onscreen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2 mega pixels and burn another disc.

Total number of files and folders on the disc should be less than 650.

Some disc may be incompatible due to different recording format or condition of disc.

When you are using software such as “Easy CD Creator” to burn the jpeg files into the CD-R, ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” files.

File names without “.jpg” extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in windows explorer.

Caution

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

OPERATION

25

Programmed Playback CD

The Program function enables you to store your favorite Programmed Playback with MP3/WMA tracks from any disc in the player memory.

Program can contain 30 tracks.

Programmed Playback with Audio CD

1mode to enter the Program Edit mode.

The E mark will appear to the right of the word Program on the right side of the menu screen.Press PROGRAM during playback or in the stop

Note

Press PROGRAM to exit the Program Edit mode.

The E mark will disappear.

Move to the Disc number selection column by 2 pressing 3 repeatedly.

3 Select an audio disc number using 1/2.

Select a track, then press SELECT/ENTER to 4 place the selected track on the Program list.

disc

Follow step 1 of “Programmed Playback with 1 Audio CD ” on left.

Select a track, then press SELECT/ENTER to 2 place the selected track on the Program list.

Repeat step 2 to place additional tracks on the 3 Program list.

MP3/WMA



Program

E







TRACK 8.mp3





TRACK 1.mp3



TRACK 2.mp3





TRACK 2.mp3



TRACK 4.mp3





TRACK 3.mp3









TRACK 3.mp3





TRACK 4.mp3















TRACK 5.mp3









TRACK 6.mp3









TRACK 7.mp3



Clear All





TRACK 8.mp3













2

00:00

3

OFF



MP3/WMA menu

Follow steps 6-9 of “Programmed Playback with 4 Audio CD ” on left.

Note

You must select a disc number of audio CD.

If selected track is other kind of disc (DVD or MP3 etc.), the track skips during programmed playback.

Repeat steps 2-4 to place additional tracks on 5 the Program list.

CD





Program

E

1

2

3

4

5

TRACK 12

2



TRACK 01





TRACK 08

2



TRACK 02





TRACK 10

1



TRACK 03





TRACK 01

3



TRACK 04











TRACK 05











TRACK 06











TRACK 07





Clear All











3



0: 56: 18

STER.

NORM.



Audio CD menu

6The programmed track you selected last is highlighted on the program list.Press 2.

Press 3/4 to select the track you want to start

7 playing.

Press TOP MENU to move to the next page. Press MENU to move to the previous page.

Press PLAY to start.

8 Playback begins in the order in which you programmed the tracks and “PROG.” appears on the menu screen.

Playback stops after all of the tracks on the Program list have played once.

9playback, select a track of CD list and then

press SELECT/ENTER.

“PROG.” indicator disappears on the menu screen.To resume normal playback from programmed

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 16.

1 Insert Video CD and close the tray.

Press PROGRAM while playback is stopped.

2 The VCD Program menu will appear.

VCD





Program

E

1

2

3

4

5

TRACK 04

2



TRACK 01





TRACK 03

2



TRACK 02





TRACK 01

3



TRACK 03











TRACK 04











TRACK 05



















Clear All

3



0: 56: 18

STER.

NORM.



Video CD menu

Note

Press RETURN or PROGRAM to exit the Program menu.

Follow steps 2-8 of “Programmed Playback with 3 Audio CD ” on left.

To resume normal playback from

4 programmed playback, press PROGRAM.

“PROG.” indicator disappears in the display window.

26

Programmed Playback CD

Repeat Programmed Tracks

To repeat the track currently playing, press REPEAT.

The Repeat icon and “TRACK” appears on the menu screen.

To repeat all tracks on the program list, press REPEAT a second time.

The Repeat icon and “ALL” appears on the menu screen.

To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and “OFF” appears on the menu screen.

Erasing a Track from Program List

1Press PROGRAM during playback (Audio CD and MP3/WMA disc only) or in the stop mode to enter the Program Edit mode.

The E mark will appear.

2Press 2 to move to the Program list.

3Use 3/4 to select the track that you wish to erase from the Program list.

4Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1Follow steps 1-2 of “Erasing a Track from Program List” as above.

2Use 3/4 to select “Clear All”, then press SELECT/ENTER.

The complete Program for the disc will be erased.

The programs are also cleared when the disc is removed.

OPERATION

27

Additional Information

Screen Saver

The screen saver picture appears when you leave the DVD Player in stop mode for about five minutes.

After the Screen Saver has been engaged for about five minutes, the DVD Player will automatically turn itself off.

Video Mode Setting

DVD-V

With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.

To change the video mode, press and hold OSD about 3 seconds during disc playback. The new video mode number selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.

Video mode change sequence:

MODE1 → MODE2 → MODE3 → MODE1

If you turn off the power, the video mode will be back to initial state (MODE1).

Detailed Descriptions for Video Modes

MODE1: The source material of the DVD video (film material or video material) is determined from disc information.

MODE2: Suitable for playing film based content or video based material recorded by the progressive scan method.

MODE3: Suitable for playing video based content with comparatively little motion.

Note

The video mode setting only works when the Progressive Scan mode is set to “On” in the Setup menu.

HDCD Playback

HDCD is a process that increases the fidelity of both specially encoded HDCD discs and standard CD audio discs. When an HDCD-encoded disc is playing, the special decoder is automatically activated and the HDCD Indicator lights. No user intervention is required.

To enjoy the benefits of HDCD, your DVD Player must be connected to your A/V receiver via the Analog Audio Outputs. However, if your A/V receiver or surround processor is equipped with built-in HDCD decoding, you may also use a Coaxial or Optical digital audio connection so that the HDCD processing is done there.

(see “Sound”, page 16)

Setting Remote control codes of DVD player

This DVD player support two remote control codes : C004 and C044.

When the unit is shipped from the factory, the remote code is set to C004.

To set the code of the player to C044, press PAUSE then input “9872” using number buttons.

To set the code of the player to C004, press PAUSE then input “9871” using number buttons.

You can change the code of the player only when NO DISC appears in the display window.

Changed Remote control codes is displayed in the Display window.

Set the remote control codes of the Remote control to the same setting (page 8).

Notes

This setting can not be used if a disc is playing.

If a DVD has been loaded, be sure to press STOP twice before proceeding.

28

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

























Symptom

Cause

Correction















No power.

The power cord is disconnected.

Plug the power cord into the wall outlet









securely.



REFERENCE









The power is on, but

No disc is inserted.

player appears on the TV screen.



Insert a disc. (Check that the DVD or,





the DVD player does



audio CD indicator in the display





not work.



window is lit.)





No picture.

The TV is not set to receive DVD signal

Select the appropriate video input mode







output.

on the TV so the picture from the DVD

















The video cable is not connected

Connect the video cable securely.







securely.



















The connected TV power is turned off.

Turn on the TV.















No sound.

The equipment connected with the

Select the correct input mode of the









audio cable is not set to receive DVD

audio receiver so you can listen to the







signal output.

sound from the DVD player.

















The audio cables are not connected

Connect the audio cable securely.







securely.



















The power of the equipment connected

Turn on the equipment connected with







with the audio cable is turned off.

the audio cable.

















The Digital Audio Output is set to the

Set the Digital Audio Output to the







wrong position.

correct position, then turn on the DVD









player again by pressing POWER.















The playback picture is

The disc is dirty.

Clean the disc.





poor.



















The DVD player does

No disc is inserted.

Insert a disc. (Check that the DVD, or





not start playback.



audio CD indicator in the DVD display is









lit.)







An unplayable disc is inserted.

Insert a playable disc. (Check the disc









type, color system, and Regional code.)

















The disc is placed upside down.

Place the disc with the playback side









down.

















The disc is not placed within the guide.

Place the disc on the disc tray correctly









inside the guide.

















The disc is dirty.

Clean the disc.

















The Rating level is set.

Cancel the Rating function or change









the rating level.















The remote control

The remote control is not pointed at the

Point the remote control at the remote





does not work properly.

remote sensor of the DVD player.

sensor of the DVD player.







The remote control is too far from the

Operate the remote control within 16 ft







DVD player.

(5 m).







There is an obstacle in the path of the

Remove the obstacle.







remote control and the DVD player.









The batteries in the remote control are

Replace the batteries with new ones.







exhausted.



























Remote control code is different

Set the remote control codes of both







between the DVD player and Remote

DVD player and Remote control to the





control.

same setting.













29

Speaker Settings

Make the following settings for the built-in 5.1 channel surround decoder.

Disc Audio

Disc Subtitle





Disc Menu

R





R





Front L







Rating







Country Code

Volume

0 dB







Size

Large





TV Aspect





Menu Language

Distance

1 ft









Progressive Scan

Test







Digital Audio Output

Return







5.1 Speaker Setup













Others









Select “5.1 Speaker Setup” using the 3/4 but-

1 tons on the setup menu.

While “5.1 Speaker Setup” is selected, press 2

2 button.

Press 1 / 2 buttons to select the desired speak-

3 er.

4 Adjust options by using 1/2/3/4 buttons.

Speaker selection

Select a speaker that you want to adjust. (Front speakers (Left), Front speakers (Right), Center Speaker, Rear speakers (Left), Rear speakers (Right), or Subwoofer)

Volume

Press 1 / 2 to adjust the output level of the selected speaker. (-10dB - 0dB)

Size

Press 1 / 2 to set a mode. (Large, Small or None)

If you have connected the system to a speaker with a low frequency of 100Hz or below, select “Large.”

If you have connected the system to a speaker without a low frequency of 100Hz or below, select “Small.” If you have not connected a subwoofer, always select “Large” for Front speaker (L/R).

When you do not have a certain speaker connected, select “None.”

Front L/R speaker’s size can be set to “Large” or “Small.”

If Front L/R speaker’s size is set to “Small,” Rear and Center speaker’s size can be set to “Small” or “None.”

Subwoofer’s size can be set only to “Large” or “None”.

Distance

If you connected speakers to your DVD Player, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time. (1 ft = 30.48 cm)

Test

Press SELECT/ENTER to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

Front Left (L) Center Front Right (R) Rear Right (R) Rear Left (L)

Return

Press SELECT/ENTER to return to the previous menu.

30

Language Code List

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 15).

Code

Language



Code

Language



Code

Language



Code

Language























6566

Abkhazian

7074

Fiji

7678

Lingala

8373

Singhalese























6565

Afar

7073

Finnish

7684

Lithuanian

8375

Slovak























6570

Afrikaans

7082

French

7775

Macedonian

8376

Slovenian























8381

Albanian

7089

Frisian

7771

Malagasy

8379

Somali























6577

Ameharic

7176

Galician

7783

Malay

6983

Spanish























6582

Arabic

7565

Georgian

7776

Malayalam

8385

Sudanese























7289

Armenian

6869

German

7784

Maltese

8387

Swahili























6583

Assamese

6976

Greek

7773

Maori

8386

Swedish























6588

Aymara

7576

Greenlandic

7782

Marathi

8476

Tagalog























6590

Azerbaijani

7178

Guarani

7779

Moldavian

8471

Tajik























6665

Bashkir

7185

Gujarati

7778

Mongolian

8465

Tamil























6985

Basque

7265

Hausa

7865

Nauru

8484

Tatar























6678

Bengali; Bangla

7387

Hebrew

7869

Nepali

8469

Telugu























6890

Bhutani

7273

Hindi

7879

Norwegian

8472

Thai























6672

Bihari

7285

Hungarian

7982

Oriya

6679

Tibetan























6682

Breton

7383

Icelandic

8065

Panjabi

8473

Tigrinya























6671

Bulgarian

7378

Indonesian

8083

Pashto, Pushto

8479

Tonga























7789

Burmese

7365

Interlingua

7065

Persian

8482

Turkish























6669

Byelorussian

7165

Irish

8076

Polish

8475

Turkmen























7577

Cambodian

7384

Italian

8084

Portuguese

8487

Twi























6765

Catalan

7465

Japanese

8185

Quechua

8575

Ukrainian























9072

Chinese

7487

Javanese

8277

Rhaeto-Romance

8582

Urdu























6779

Corsican

7578

Kannada

8279

Rumanian

8590

Uzbek























7282

Croatian

7583

Kashmiri

8285

Russian

8673

Vietnamese























6783

Czech

7575

Kazakh

8377

Samoan

8679

Volapük























6865

Danish

7589

Kirghiz

8365

Sanskrit

6789

Welsh























7876

Dutch

7579

Korean

7168

Scots Gaelic

8779

Wolof























6978

English

7585

Kurdish

8382

Serbian

8872

Xhosa























6979

Esperanto

7679

Laothian

8372

Serbo-Croatian

7473

Yiddish























6984

Estonian

7665

Latin

8378

Shona

8979

Yoruba























7079

Faroese

7686

Latvian, Lettish

8368

Sindhi

9085

Zulu























REFERENCE

31

Country Code List

Enter the appropriate code number for the initial setting “Country Code” (See page 17).



Code

Country



Code

Country



Code

Country



Code

Country





AD

Andorra



ER

Eritrea



LC

Saint Lucia



SC

Seychelles





























AE

United Arab Emirates



ES

Spain



LI

Liechtenstein



SD

Sudan





























AF

Afghanistan



ET

Ethiopia



LK

Sri Lanka



SE

Sweden





























AG

Antigua and Barbuda



FI

Finland



LR

Liberia



SG

Singapore





























AI

Anguilla



FJ

Fiji



LS

Lesotho



SH

Saint Helena





























AL

Albania



FK

Falkland Islands



LT

Lithuania



SI

Slovenia





























AM

Armenia



FM

Micronesia



LU

Luxembourg



SJ

Svalbard and Jan Mayen





























AN

Netherlands Antilles



FO

Faroe Islands



LV

Latvia





Islands





























AO

Angola



FR

France



LY

Libya



SK

Slovak Republic





























AQ

Antarctica



FX

France (European



MA

Morocco



SL

Sierra Leone





























AR

Argentina





Territory)



MC

Monaco



SM

San Marino





AS

American Samoa



GA

Gabon



MD

Moldavia



SN

Senegal





AT

Austria



GB

Great Britain



MG

Madagascar



SO

Somalia





























AU

Australia



GD

Grenada



MH

Marshall Islands



SR

Suriname





























AW

Aruba



GE

Georgia



MK

Macedonia



ST

Saint Tome and Principe





























AZ

Azerbaidjan



GF

French Guyana



ML

Mali



SU

Former USSR





























BA

Bosnia-Herzegovina



GH

Ghana



MM

Myanmar



SV

El Salvador





























BB

Barbados



GI

Gibraltar



MN

Mongolia



SY

Syria





























BD

Bangladesh



GL

Greenland



MO

Macau



SZ

Swaziland





























BE

Belgium



GM

Gambia



MP

Northern Mariana Islands



TC

Turks and Caicos Islands





























BF

Burkina Faso



GN

Guinea



MQ

Martinique (French)



TD

Chad





























BG

Bulgaria



GP

Guadeloupe (French)



MR

Mauritania



TF

French Southern





























BH

Bahrain



GQ

Equatorial Guinea



MS

Montserrat





Territories





























BI

Burundi



GR

Greece



MT

Malta



TG

Togo





























BJ

Benin



GS

S. Georgia & S. Sandwich



MU

Mauritius



TH

Thailand





























BM

Bermuda





Isls.



MV

Maldives



TJ

Tadjikistan





BN

Brunei Darussalam



GT

Guatemala



MW

Malawi



TK

Tokelau





BO

Bolivia



GU

Guam (USA)



MX

Mexico



TM

Turkmenistan





























BR

Brazil



GW

Guinea Bissau



MY

Malaysia



TN

Tunisia





























BS

Bahamas



GY

Guyana



MZ

Mozambique



TO

Tonga





























BT

Bhutan



HK

Hong Kong



NA

Namibia



TP

East Timor





























BV

Bouvet Island



HM

Heard and McDonald



NC

New Caledonia (French)



TR

Turkey





























BW

Botswana





Islands



NE

Niger



TT

Trinidad and Tobago





























BY

Belarus



HN

Honduras



NF

Norfolk Island



TV

Tuvalu





























BZ

Belize



HR

Croatia



NG

Nigeria



TW

Taiwan





























CA

Canada



HT

Haiti



NI

Nicaragua



TZ

Tanzania





























CC

Cocos (Keeling) Islands



HU

Hungary



NL

Netherlands



UA

Ukraine





























CF

Central African Republic



ID

Indonesia



NO

Norway



UG

Uganda





























CG

Congo



IE

Ireland



NP

Nepal



UK

United Kingdom





























CH

Switzerland



IL

Israel



NR

Nauru



UM

USA Minor Outlying





























CI

Ivory Coast



IN

India



NU

Niue





Islands





CK

Cook Islands



IO

British Indian Ocean



NZ

New Zealand



US

United States





CL

Chile





Territory



OM

Oman



UY

Uruguay





























CM

Cameroon



IQ

Iraq



PA

Panama



UZ

Uzbekistan





























CN

China



IR

Iran



PE

Peru



VA

Vatican City State





























CO

Colombia



IS

Iceland



PF

Polynesia (French)



VC

Saint Vincent &





























CR

Costa Rica



IT

Italy



PG

Papua New Guinea





Grenadines





























CS

Former Czechoslovakia



JM

Jamaica



PH

Philippines



VE

Venezuela





























CU

Cuba



JO

Jordan



PK

Pakistan



VG

Virgin Islands (British)





























CV

Cape Verde



JP

Japan



PL

Poland



VI

Virgin Islands (USA)





























CX

Christmas Island



KE

Kenya



PM

Saint Pierre and Miquelon



VN

Vietnam





























CY

Cyprus



KG

Kyrgyzstan



PN

Pitcairn Island



VU

Vanuatu





























CZ

Czech Republic



KH

Cambodia6



PR

Puerto Rico



WF

Wallis and Futuna Islands





























DE

Germany



KI

Kiribati



PT

Portugal



WS

Samoa





























DJ

Djibouti



KM

Comoros



PW

Palau



YE

Yemen





























DK

Denmark



KN

Saint Kitts & Nevis Anguilla



PY

Paraguay



YT

Mayotte





DM

Dominica



KP

North Korea



QA

Qatar



YU

Yugoslavia





DO

Dominican Republic



KR

South Korea



RE

Reunion (French)



ZA

South Africa





























DZ

Algeria



KW

Kuwait



RO

Romania



ZM

Zambia





























EC

Ecuador



KY

Cayman Islands



RU

Russian Federation



ZR

Zaire





























EE

Estonia



KZ

Kazakhstan



RW

Rwanda



ZW

Zimbabwe





























EG

Egypt



LA

Laos



SA

Saudi Arabia





































EH

Western Sahara



LB

Lebanon



SB

Solomon Islands



































32

Specifications

General

Power requirements

AC 120V , 60 Hz

Power consumption

14W

Dimensions (approx.)

17.3 X 3.2 X 16.2 inches (440 X 80 X 410 mm) (w x h x d)

Mass (approx.)

11.2 lbs (5.1 kg)

Operating temperature

5˚C to 35˚C (41˚F to 95˚F)

Operating humidity

5 % to 90 %

System



Laser

Signal system

Frequency response

Signal-to-noise ratio

Harmonic distortion

Dynamic range

Outputs

Video output

S-Video output

Component Video output

Audio output (coaxial) Audio output (optical) Audio output (analog 2ch) Audio output (analog 5.1ch)

Accessories

Semiconductor laser, wavelength 650 nm

NTSC

DVD (DVD Audio 192 kHz): 8 Hz to 88 kHz DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz CD: 8 Hz to 20 kHz

More than 100dB (ANALOG OUT connectors only) Less than 0.008%

More than 100 dB (DVD)

More than 95 dB (CD)

1 Vp-p 75 Ω, negative sync, RCA jack x 1

(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

(C) 0.3 V (p-p) 75 Ω

(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1 (CB/PB)/(CR/PR) 0.7 V (p-p), 75 Ω, RCA jack x 2

0.5 V (p-p), 75 Ω, RCA jack x 1 Optical connector x 1

2.0 Vrms , 600 Ω, RCA jack (L, R) x 1 2.0 Vrms , 600 Ω, RCA jack x 6

Video cable . . . . . . . . . . . . . . . . . . . . . . .1

Audio cable . . . . . . . . . . . . . . . . . . . . . . .1

Remote cable . . . . . . . . . . . . . . . . . . . . .1

Remote control unit (RC5400VC) . . . . . . .1

Batteries (AAA size) . . . . . . . . . . . . . . . . .2

Warranty card (for USA) . . . . . . . . . . . . .1

Warranty card (for CANADA) . . . . . . . . . .1

User Guide . . . . . . . . . . . . . . . . . . . . . . .1

Design and specifications are subject to change without notice.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

REFERENCE

33

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

JAPAN

Marantz Japan, Inc.

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan

U.S.A.

Marantz America, Inc.

1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE

Marantz Europe B.V.

P.O. Box 8744, 5605 LS Eindhoven, The Netherlands

















is a registered trademark.

P/NO: 3834RS0062R



Printed in China

03/2003 MIT-lg 31AW851250
