Model DV3001e User Guide
DVD Player
CLAS S 1
LASER PRODUCT
ENGLISH
WARRANTY
For warranty information, contact your local Marantz distributor.
RETAIN YOUR PURCHASE RECEIPT
Your purchase receipt is your permanent record of a valuable purchase.
It should be kept in a safe place to be referred to as necessary for insurance
purposes or when corresponding with Marantz.
IMPORTANT
When seeking warranty service, it is the responsibility of the consumer to
establish proof and date of purchase. Your purchase receipt or invoice is
adequate for such proof.
FOR U.K. ONLY
This undertaking is in addition to a consumer's statutory rights and does
not affect those rights in any way.
FRANÇAIS
GARANTIE
Pour des informations sur la garantie, contacter le distributeur local
Marantz.
CONSERVER L'ATTESTATION D'ACHAT
L'attestation d'achat est la preuve permanente d'un achat de valeur. La
conserver en lieu sur pour s'y reporter aux fins d'obtention d'une couverture d'assurance ou dans le cadre de correspondances avec Marantz.
IMPORTANT
Pour l'obtention d'un service couvert par la garantie, il incombe au client
d'établir la preuve de l'achat et d'en corroborer la date. Le reçu ou la facture constituent des preuves suffisantes.
DEUTSCH
GARANTIE
Bei Garantiefragen wenden Sie sich bitte an Ihren Marantz-Händler.
HEBEN SIE IHRE QUITTING GUT AUF
Die Quittung dient Ihnen als bleibende Unterlage für Ihren wertvollen
Einkauf Das Aufbewahren der Quittung ist wichtig, da die darin enthaltenen
Angaben für Versicherungswecke oder bei Korrespondenz mit Marantz
angeführt werden müssen.
WICHTIG!
Bei Garantiefragen muß der Kunde eine Kaufunterlage mit Kaufdatum
vorlegen. Ihren Quittung oder Rechnung ist als Unterlage ausreichend.
NEDERLANDS
GARANTIE
Voor inlichtingen omtrent garantie dient u zich tot uw plaatselijke Marantz.
UW KWITANTIE, KASSABON E.D. BEWAREN
Uw kwitantie, kassabon e.d. vormen uw bewijs van aankoop van een
waardevol artikel en dienen op een veilige plaats bewaard te worden voor
evt, verwijzing bijv, in verbend met verzekering of bij correspondentie met
Marantz.
BELANGRIJK
Bij een evt, beroep op de garantie is het de verantwoordelijkheid van de
consument een gedateerd bewijs van aankoop te tonen. Uw kassabon of
factuurzijn voldoende bewijs.
ESPAÑOL
GARANTIA
Para obtener información acerca de la garantia póngase en contacto con
su distribuidor Marantz.
GUARDE SU RECIBO DE COMPRA
Su recibo de compra es su prueba permanente de haber adquirido un
aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo
como referencia cuando tenga que hacer uso del seguro o se ponga en
contacto con Marantz.
IMPORTANTE
Cuando solicite el servicio otorgado por la garantia el usuario tiene la
responsabilidad de demonstrar cuándo efectuó la compra. En este caso,
su recibo de compra será la prueba apropiada.
ITALIANO
GARANZIA
L’apparecchio è coperto da una garanzia di buon funzionamento della
durata di un anno, o del periodo previsto dalla legge, a partire dalla data di
acquisto comprovata da un documento attestante il nominativo del
Rivenditore e la data di vendita. La garanzia sarà prestata con la sostituzione o la riparazione gratuita delle parti difettose. Non sono coperti da
garanzia difetti derivanti da uso improprio, errata installazione, manutenzione effettuata da personale non autorizzato o, comunque, da circostanze
che non possano riferirsi a difetti di funzionamento dell’apparecchio. Sono
inoltre esclusi dalla garanzia gli interventi inerenti l’installazione e l’allacciamento agli impianti di alimentazione.
Gli apparecchi verranno riparati presso i nostri Centri di Assistenza
Autorizzati. Le spese ed i rischi di trasporto sono a carico del cliente. La
casa costruttrice declina ogni responsabilità per danni diretti o indiretti
provocati dalla inosservanza delle prescrizioni di installazione, uso e
manutenzione dettagliate nel presente manuale o per guasti dovuti ad uso
continuato a fini professionali.
English
The DV3001e is in conformity with the EMC directive and
low-voltage directive.
Français
Le DV3001e est conforme à la directive EMC et à la direc-
tive sur les basses tensions.
Deutsch
Das Modell DV3001e entspricht den EMC-Richtlinien und
den Richtlinien für Niederspannungsgeräte.
Nederlands
De DV3001e voldoet aan de EMC eisen en de vereisten
voor laag-voltage.
Español
El DV3001e está de acuerdo con las normas EMC y las
relacionadas con baja tensión.
Italiano
Il DV3001e è conforme alle direttive CEE ed a quelle per i
bassi voltaggi.
PRECAUTIONS
CE MARKING
Dear Customers
May we take this opportunity to thank you for purchasing this
DVD/CD player.
We strongly recommend that you carefully study the operating
instructions before attempting to operate the unit and that you
note the listed precautions.
Safety information
Note:
This unit can be used only where the power supply is AC 220-240V,
50Hz. It cannot be used elsewhere.
CAUTION:
DVD PLAYER IS A CLASS 1 LASER PRODUCT.
HOWEVER THIS PLAYER USES A VISIBLE LASER BEAM
WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE
IF DIRECTED. BE SURE TO OPERATE THE PLAYER COR-
RECTLY AS INSTRUCTED.
WHEN THIS PLAYER IS PLUGGED TO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO
LOOK INTO THE INSIDE OF THIS PLAYER.
USE OF CONTROLS OR ADJUSTMENTS OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT ON HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS OR ATTEMPT TO REPAIR THIS
PRODUCT BY YOURSELF. ALWAYS REFER SERVICING TO
QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PIC-
TURE & SOUND INTERFERENCE, USE THE RECOMMENDED
ACCESSORIES ONLY.
This product incorporates copyright protection technology that
is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by
Macrovision . Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINI-
TION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED
IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT
THE USER SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARD-
ING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER, PLEASE CONTACT OUR CUS-
TOMER SERVICE CENTER.
Manufactured under license from Dolby Laboratories. “Dolby”
and the double-D symbol are trademarks of Dolby laboratories.
Confidential Unpublished Works, © 1992-1997 Dolby laborato-
ries, Inc. All rights reserved.
Precautions
Please read these precautions before operating this unit.
Power cord protection
To avoid a malfunction of this product and to protect against elec-
tric shock, fire or personal injury, please observe the following.
Hold the plug firmly when connecting or disconnecting the AC
power supply to this unit.
Do not connect or disconnect the AC power supply when your
hands are wet.
Keep the AC power cord away from heating appliances.
Never put heavy objects on the power cord.
Do not attempt to repair or reconstruct the power cord in any
way.
Placement
Avoid placing the unit in areas of:
Direct sunlight.
High temperature (over 35°C)or high humidity (over 90%)
High levels of dust
The internal parts may be damaged as a result.
Non-use Periods
When not in use, switch off the unit.
When left unused for a long period of time, the unit should be
unplugged from the household AC supply.
Foreign Objects
Touching internal parts of this unit is dangerous and may dam-
age the player. Never attempt to disassemble the unit.
Do not put any foreign objects on the disc tray.
Keep away from water / magnetic fields
The apparatus shall not be exposed to dripping or splashing,
and no objects filled with liquids, such as vases, shall be placed
on the apparatus. If liquids are spilled into the unit, serious
damage will occur.
Do not place magnetic objects (such as speakers) close to
this unit.
Stacking
Place the unit in a horizontal position. Do not place anything
heavy on top of it.
Do not place the unit on amplifiers or other appliances which
may generate heat.
Condensation
Moisture may form on the lens in the following conditions: -
Immediately after a heater has been turned on.
In a steamy or very humid room.
When the unit is moved from a cold environment to a warm one.
If moisture forms inside this unit, it may not operate properly. In
this case, turn on the power and wait about one hour for the mois-
ture to evaporate.
If there is noise interference on your TV channels
Depending on the reception conditions of the broadcast, interfer-
ence may appear on the TV while you are watching a channel with
the DVD player on. This is not a malfunction of the unit or the TV.
Should this occur, simply switch off the DVD player.
E n g l i s h
1
Features
Note 1: Some DVD-Video discs do not operate as described in
this manual due to the intentions of the discs’ producers.
Note 2: This unit can play DVD-RW discs recorded in DVD for-
mat or DVD video recording format. * The disc may not
be played back due to recording or properties of the
disc, dirt on the disc or the pickup or condensation on
the pickup lens.
Note 3: Discs that have not been finalized cannot be played.
Depending on the disc’s recording status, the disc may
be accepted or may not be played normally (the picture
sound may not be smooth, etc.).
Note 4: Some of CD-R/CD-RW discs may be incompatible
because of “scratch and stain of disc”, “Recording condition”, and “Characteristic of Recorder”.
Note 5: This unit supports DivX versions 3.11, 4.0, 5.0, 5.04,
5.11. The unit may not play DivX discs which are out of
the mentioned series.
Important:
Never playback the following discs:
• DVD-RAM
• CD-I
• Photo CD
• DVD-ROM for personal computers
• CD-ROM for personal computers
• Any other discs without compatibility indications
Digital video
(MPEG2)
Sound and pictures
8 cm
Usable disc Mark (logo) Recorded signals Disc size
DVD 12 cm
Video 8 cm
(note 1) 12 cm
DVD-R
DVD-RW
(note 2, 3)
CD Digital Audio
CD-R MP3
CD-RW Digital pictures
(Note 4) (JPEG)
Video CD 12 cm
Super VCD 8 cm
DiVX
(note 5)
Picture CD
8 cm
12 cm
12 cm
12 cmJPEG
Sound and pictures
DVD: a completely new dimension in video entertainment
Subtitles may be displayed in one of a maximum of 32
languages.
The audio soundtrack can be heard in up to 8 languages.
The multi-angle function allows you to choose the viewing
angle of which scenes were shot from many different angles
(limited to DVD discs recorded with multiple camera angles).
The number of the languages recorded is dependent on the software.
High quality digital audio
The Dolby Digital/MPEG2 audio/Linear PCM decoder is built
into the player which makes it possible to enjoy Multi-Channel
Surround sound.
With linear PCM sound of a 48 kHz/16 bit through 96 kHz/24
bit, audio quality exceeding that of Audio CD becomes possible.
The unit has a built-in MP3 audio file decoder
Many convenient features
Direct access of favorite scenes (title/chapter/time/track
search).
Programming of up to 3 scenes in memory (marker) DVD only
Parental lock setting to prevent play of discs unsuitable for
some audiences. DVD only
Compatible with PAL DVD /and NTSC DVD
This player can play discs recorded in either PAL or NTSC for-
mat. However, the player must be connected to a Multi-system
TV to play both PAL DVD /and NTSC DVD .
The use of a Multi-system TV is recommended.
Compatible with audio CDs as well as DVD.
Disc formats supported by this player: -
Selecting the type of disc compatible with your TV
DVD discs have material recorded in either PAL or NTSC format.
Refer to the table below to select the disc type compatible with
your TV.
The type of Disc TV Monitor
Connected TV
Multi-system PAL Played in the PAL system.
NTSC Played in the NTSC system.
NTSC PAL No clear images are showed
on the screen.
NTSC Played in the NTSC system.
PAL PAL Played in PAL system.
NTSC No clear images are showed
on the screen.
2
3
E n g l i s h
Getting Started:
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Selecting the type of disc compatible with your TV . . . . . . . . . 2
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Remote control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connection to TV & Audio Players (inc. Advanced Setup) . . . . 5
Audio connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Digital audio connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

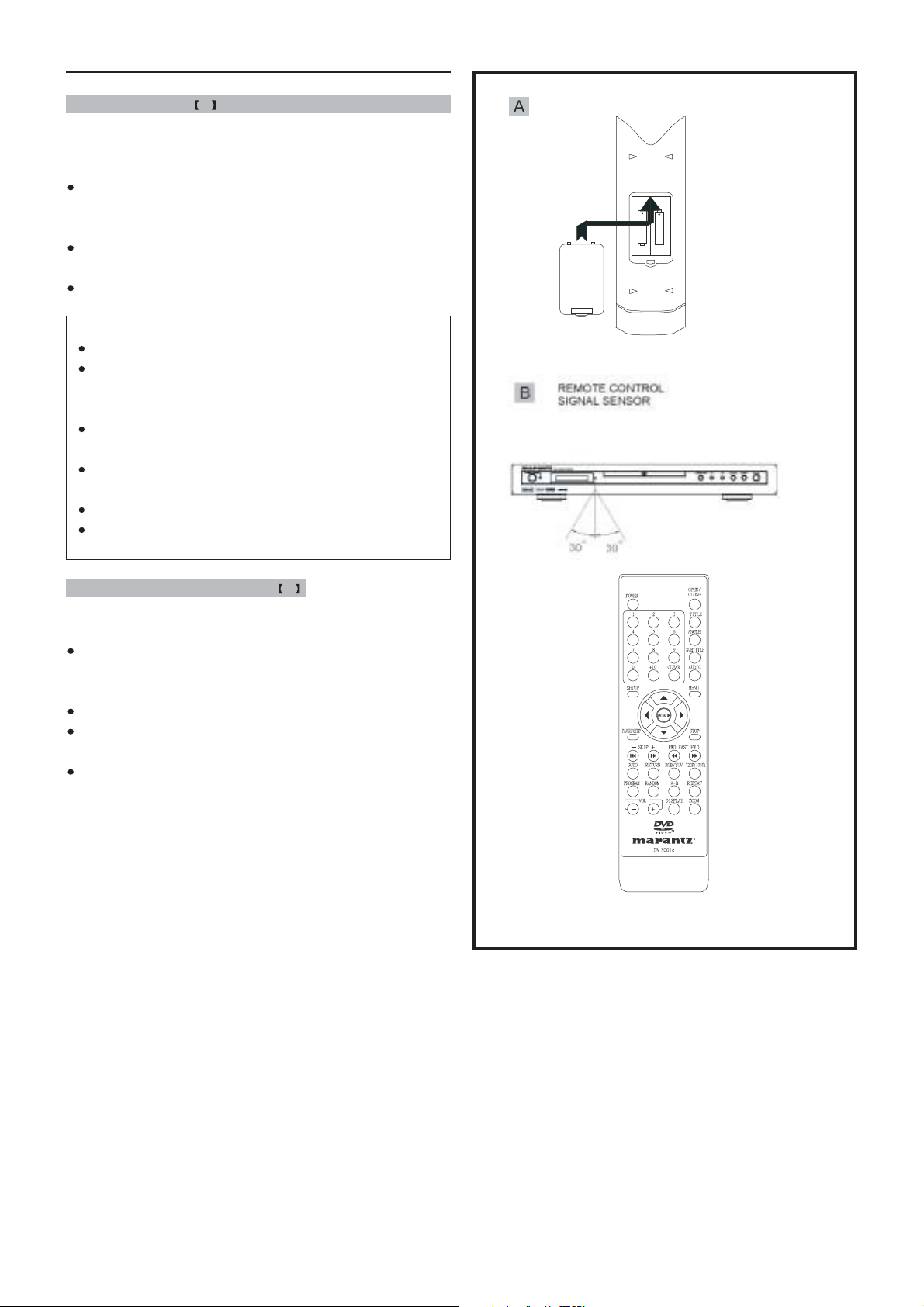

Remote control preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Basic operation:
Basic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Basic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Stopping play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Skipping +/- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fast FWD/RWD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pause/Step picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
MENU and TITLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing SUBTITLE language . . . . . . . . . . . . . . . . . . . . . . . 11
Change audio soundtrack language . . . . . . . . . . . . . . . . . . . 11
Viewing from another ANGLE . . . . . . . . . . . . . . . . . . . . . . . . 11
On screen DISPLAY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RANDOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
REPEAT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GOTO function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ZOOM picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
VOLUME CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
720P/1080i button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
RGB/YUV button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Playback of MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Playback of your DIVX Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Initial setting:
GENERAL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TV DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ANGLE MARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
OSD LANG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SCREEN SAVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AUDIO SETUP PAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SPEAKER SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DOWNMIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SPDIF OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
LPCM OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DYNAMIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Video Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PREFERENCE SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TV TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
AUDIO/SUBTITLE/DISC MENU . . . . . . . . . . . . . . . . . . . . . . . 17
PARENTAL CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DEFAULT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PASSWORD SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PASSWORD CHANGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
For your reference:
Disc handing and maintenance . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Definition of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table of contents
Control reference guide
1
2
29
8
10
3
12
15
19
23
27
4
5
9
6
7
16
20
24
28
14
18
22
26
11
13
17
21
25
Main unit
(1) POWER ON/OFF BUTTON
(2) POWER ON INDICATOR
(3) DISPLAY WINDOW
(4) REMOTE CONTROL SIGNAL SENSOR
(5) DISC TRAY
(6) OPEN/CLOSE BUTTON
(7) PREVIOUS BUTTON
(8) NEXT BUTTON
(9) PAUSE BUTTON
(10) STOP BUTTON
(11) PLAY BUTTON
Remote control unit
(1) OPEN/CLOSE button
(2) NUMERIC buttons
(3) TITLE button
(4) ANGLE button
(5) SUBTITLE button
(6) AUDIO button
(7) CLEAR button
(8) SETUP button
(9) MENU button
(10) CURSOR/ENTER buttons
(11) PAUSE/STEP button
(12) STOP button
(13) PREVIOUS button
(14) NEXT button
(15) FAST FORWARD button
(16) FAST REVERSE button
(17) GOTO button
(18) RETURN button
(19) 720P/1080i button
(20) RGB/YUV button
(21) PROGRAM button
(22) RANDOM button
(23) REPEAT button
(24) A-B REPEAT button
(25) VOLUME- button
(26) VOLUME+ button
(27) ZOOM button
(28) DISPLAY button
(29) POWER button
4
5
E n g l i s h
Connection to TV and Audio players
IMPORTANT! Ensure that ALL equipment to be connected is
SWITCHED OFF before proceeding, especially by using HDMI
or YUV connection.
We also recommend that you consult with the connecting
instructions of any equipment to be connected before you pro-
ceed.
Connecting to Stereo TV (configuration) A
1. TV set
2. DVD player
3. L/R (Front) Audio Output (White / Red – RCA connectors)
4. S-video Output (Video option 1)
5. To Audio In on Stereo Amp (White / Red – RCA connectors)
6. To 21 pin SCART input on TV (Video option 2)
7. To S-video input connector on TV (Video option 1)
8. HDMI Output
9. To HDMI IN on TV (Video Option 5)
10. 21 pin SCART connector on DVD (Video option 2)
11. To RCA Video In on TV (Video option 3)
12. RCA Type AV cord to Video Out on DVD (Video option 3)
13. Y, Pb/Cb, Pr/Cr Output (Video option 4)
14. To Y, Pb/Cb, Pr/Cr input connector on TV(Video option 4)
Note: There are five ways to connect the video out of this player
to the TV set. Option 1: S-Video. Option 2: SCART to SCART.
Option 3: RCA Video Out. Option 4: Y, Pb/Cb, Pr/Cr(If your TV has
the P-SCAN or COMPONENT VIDEO INPUT function, you can
select this option.). Option 5: HDMI digital video out
Use only one of the above options to avoid picture interference.
Connecting to monaural TV set B
1. TV set
2. DVD player
3. 21 pin SCART to SCART cable (not supplied)
4. To SCART connector on TV
5. To SCART connector on DVD player
Connecting to audio equipment C
1. Audio equipment (i.e. Hi-Fi system)
2. TV set
3. DVD player
4. L/R (Front) Audio Output (White / Red – RCA connectors)
5. To Audio In on Stereo Amp (White / Red – RCA connectors)
Note:
When playing a DVD, the TV volume may be a different level to
that of TV broadcasts, etc. If this is the case, simply adjust the
volume on the remote control to the desired matching level.
If this player is connected to the TV through a video cassette
recorder, the picture may not be play back normally with some
DVDs. If this is the case, do not connect the player via the VCR.
Note:
When the DVD player’s video outputs is connect with the TV and
the TV is broadcast normally. Please cut off the other connections
from the DVD player’s video outputs to the TV, in order to avoid
the interference and insure the quality of the pictures.
A
B
Audio connections
Connection to a TV via HDMI A
This player supports the full digital connection HDMI ( High
Definition Multimedia Interface).
When the player is connected via HDMI to the TV set you can
experience best digital video and audio quality with one single
wire. For the correct reproduction of the sound via your TV set
speaker, please check setting in the setup of the player. Go to
Audio Setup and check SPDIF OUTPUT is set to SPDIF PCM. If
something else is selected you will not able to hear the sound via
the speakers built into your TV set. HDMI video resolution you can
select via the 720P/1080i button on the remote handset.
1. TV set
2 DVD player
3. HDMI cable
Connecting to a TV amplifier with 5.1ch input connector
supporting Dolby Digital decoder B
This player contains Dolby Digital decoder. This enables the play-
back of DVDs recorded in Dolby Digital surround without the need
for an external decoder with Dolby Digital processing.
When the player is connected to an AV amplifier with 5.1ch input
connectors, you can enjoy theater quality audio right in your home
when playing discs recorded in Digital Surround Sound.
1. TV set
2 DVD player
3. S-video connector or 21 pin SCART connector or Y, Pb/Cb,
Pr/Cr connector
4. Amplifier with 5.1ch input connector
5. Audio cords (optional)
6. To audio input connector (CENTER)
7. To audio input connector (SUBWOOFER)
8. To audio input connector (SURROUND L.R)
9. To audio input connector (FRONT L.R)
10. Center speaker
11. Front speaker (left)
12. Front speaker(right)
13. Subwoofer
14. Surround speaker (left)
15. Surround speaker (right)
(all sold separately)
The surround speakers should be installed at an equal distance
to (or further away from) the front speakers relative to the
listening position.
6
7
E n g l i s h
Digital audio connections
Connecting to a decoder with Dolby Digital processing
or MPEG processing A
When DVDs recorded in Dolby Digital or MPEG audio are played,
Dolby Digital bitstream or MPEG audio bitstream is sent to the
player’s OPTICAL digital audio output connector or COAXIAL
digital audio output connector. When the player is connected to a
Dolby Digital or MPEG audio decoder via one of these output
sockets, you can enjoy theater-quality audio in your home. An
optical digital cable or coaxial audio cable (both optional) is required
when a Dolby Digital decoder or MPEG audio decoder is used.
Notes when connecting an optical digital cable: -
(
B) Remove the dust protection cap from the connector.
Ensuring both cable and socket are of the correct configuration,
connect the cable firmly (the plug will ‘click’ into place).
Keep the dust protection cap and always re-attach the cap
when not in use to protect the optical socket from dust and dirt.
Audio output from the optical/coaxial digital audio output
connectors: -
Disc Sound recording Optical/coaxial digital audio
format output from connector
DVD Dolby Digital Dolby Digital bitstream (2-5.1ch)
or PCM (2ch)(48kHz/16bit)
Linear PCM Linear PCM(2ch)
(48/96 kHz (48kHz sampling/16 bit only)*
2
16/20/24 bit ) or no output*
1
MPEG1 MPEG2 MPEG2 audio bitstream or
PCM(2ch)(16 bit)*
1
CD Linear PMC Linear PCM (44.1 kHz sampling)
*1 The type of audio output from the connector can be selected
by the initial settings.
*2 Audio having 96kHz sampling is converted into 48kHz sam-
pling when it is output from the players optical/coaxial digital
audio output connector.
For your reference:
Dolby Digital is a digital sound compression technique devel-
oped by the Dolby Laboratories Licensing Corporation.
Supporting 5.1-channel surround sound, as well as stereo (2-
channel) sound, this technique enables a large quantity of
sound data to be efficiently recorded on a disc.
Linear PCM is a signal recording format used in CDs. While CDs
are recorded in 44.1 kHz/16 bit, DVDs are recorded in 48kHz/16
bit up to 96kHz/24 bit.
If you have a Dolby Pro Logic Surround decoder, you will obtain
the full benefit of Pro Logic from the same DVD movies that pro-
vide full 5.1-channel Dolby Digital soundtracks, as well as from
titles with the Dolby Surround mark.
Caution for the optical/coaxial digital audio output connector:
Do not connect an amplifier (with an optical/coaxial digital input
connector) which does not contain the Dolby Digital or MPEG
audio decoder.
An attempt to play DVDs through an amplifier without the cor-
rect or MPEG decoder, may produce extreme levels of noise.
This could damage both your ears & your loudspeakers.
Audio CDs can be played as normal.
Remote control preparation
Battery installation A
Insert the batteries while observing the correct (+) and (-) polari-
ties as illustrated.
Service life of batteries
The batteries normally last for about one year although this
depends on how often and for what operations the remote con-
trol is used.
If the remote control unit fails to work even when it is operated
near the player, replace the batteries.
Use 2 x ‘AA’ type batteries.
Notes:
Do not use rechargeable (Ni-Cd) batteries.
Do not attempt to recharge, shot-circuit or disassemble
batteries. Never place batteries close to a heat source such
as radiators or heaters.
Dispose of batteries in a responsible manner. Never throw
batteries on a fire.
Do not drop or step on the remote control unit. This may
damage the parts or lead to malfunction.
Do not mix old and new batteries.
If the remote control unit is not going to be used for long
time, always remove the batteries to prevent leakage.
Remote control operation range B
Point the remote control unit no more than about 7 m from the
remote control sensor and within 60o from the front of the unit.
The operating distance may vary according to the brightness of
the room.
Notes:
Do not point bright lights at the remote control sensor.
Do not place objects between the remote control unit and the
remote control sensor.
Do not use this remote control unit while simultaneously oper-
ating the remote control unit of any other equipment.
8
9
E n g l i s h
Basic operation
Preparations
Switch on the TV and select “Video” as the input source.
Switch on the stereo system if the player has been connected
to a stereo audio amplifier.
Basic play
1. Press POWER ON button on the main unit to switch on the
power.
2. Press OPEN/CLOSE by the main unit or remote control unit to
open the disc tray.
Open
3. Place a disc onto the disc tray.
Hold the disc without touching either of its surfaces, position it
with the printed side facing up, align it with the guides and
place it on the disc tray.
(1) 8cm disc
(2) 12cm disc
4. Press the OPEN/CLOSE button again or PLAY on the main unit
or remote control will close the disc tray and display:
Close Loading
The player will automatically play.
When a menu screen appears on the TV monitor:-
In case of interactive DVDs with playback control, a menu
screen appears on the TV. With DVDs, you can use CURSOR to
select which item you want to enjoy and press ENTER .
Note:
The disc continues to rotate while the menu is displayed even
after the player has finished playing a particular item. When no
further selections are to be played, be sure to press the STOP
button to clear the menu display.
If the disc is placed in the tray upside down (and it is a single
sided disc), the DVD display will indicate “NO DISC”.
For your reference:
When appears while a button is being operated, it means that
the corresponding operation is prohibited by the player or the
disc.
1
4
7
0
2
5
8
+10
3
TITLE
ANGL
E
AUDIO
MENU
SETU
P
STOP
DSKIP
GOTO VRMT RETURN P/
I
A-B RE PEAT
VOL DISPLAY ZOOM
RWD FAST FW
6
9
CLEAR
OPEN/
CLOS
E
2
4
2
OPEN/
CLOSE
ENTER/
PLAY
4
10
Playing Audio CD’s
Press the Power button then the OPEN/CLOSE button to open
the CD drawer. Place the audio CD on the tray with the label
facing up. Press the OPEN/CLOSE button once again to close
the CD drawer.
The player will read the disc contents and automatically play.
To view the CD information such as track number and track
time on the TV (OSD), press the DISPLAY button on the remote
control.
You should use SKIP+/- to choose next or previous song, also
you could use number key to select song directly.
Stopping play
Press STOP
For you convenience:
Memory Stop. DVDs can utilize a function called Memory Stop.
This allows you to temporarily stop a movie and restart it from the
same point later. While playing a disc, pressing STOP once will set
the player into Memory Stop mode. At this point, pressing PLAY
re-starts the movie from the same point. Pressing STOP a second
time will stop the disc completely (i.e. the Stop Memory is lost).
Note that some DVD discs will not allow the use of Memory Stop.
Skipping + or -
Skipping +
Press SKIP+ during play.
A chapter (DVD) or a track (CD) is skipped each time the button is
pressed.
Skipping -
Press SKIP- during play.
A chapter (DVD) or a track (CD) is skipped each time the button is
pressed.
Fast FWD/RWD
Using either the Remote Control or the Front Panel controls,
press FAST FWD ( ) or FAST RWD ( ) during play.
For you reference:
Press FAST FWD or FAST RWD button once, the disc will be
played forward or backward at double (x2) speed. With each sub-
sequent press, the disc will be played back at x2, x4,x8 x16 or x32
speed and PLAY. Press PLAY button to return to normal play.
Pause/Step picture
Press PAUSE/STEP during play.
For your reference:
l When playing, pressing the PAUSE button pause playback.
Press the PAUSE button again to enter step status. The picture
will go ahead frame by frame. To return to normal play, press the
PLAY button.
MENU and TITLE
Press MENU or TITLE by the remote control unit
DVD discs usually are divided into several titles and subdivided
into chapters. CD discs are divided into tracks.
Press TITLE on the remote and the disc playing will automati-
cally return to the title program. Press the CURSOR buttons on
the remote to select the option, then press ENTER button to
play it. Note it is possible that some DVD discs will not have this
function.
Press MENU button on the remote, the disc playing will auto-
matically return to the chapter menu. Press CURSOR buttons
on the controller to select chapter and then press the ENTER
button to play.
Changing SUBTITLE language [DVDs only]
SUBTITLE
01/03
SUBTITLE
02/03
SUBTITLE
03/03
SUBTITLE
OFF
1/3 2/3 3/3
TITLE ELAPSED
TT 01/01 CH 10/11
00:03:27
TITLE REMAIN
TT 01/01 CH 10/11
00:03:27
DISPLAY OFF CHAPTER REMAIN
TT 01/01CH10/11
00:03:27
CHAPTER ELAPSED
TT01/01CH10/11
00:03:27
TOTAL REMAIN
TRACK 07/16 02:50
SINGLE ELAPSED
TRACK 07/16 01:57
TOTAL ELAPSED
TRACK 07/16 38:39
SINGLE REMAIN
TRACK 07/16 31:39
AUDIO 1/2:AC3 5.1CH AUDIO 2/2:AC3 5.1CH
MONO
LEFT
MONO
RIGHT
MIX-MONO STEREO
It is possible to change the subtitle language from the one
selected, if available. This operation works only with discs on
which multiple subtitle languages have been recorded).
Press the SUBTITLE button on the remote. The alternative lan-
guage subtitle will appear with each press. (Different discs have
different display.)
When no subtitles are recorded, “ ” will be displayed on the
TV screen.
For your reference:
If the power is reset or the disc is removed, subtitles will appear
in the default language set by the DVD player. If this language
is not recorded on the disc, they will appear in the disc’s default
language.
Changing the audio soundtrack language
It is possible to change the audio soundtrack language from the
default standard to another, if available. This operation works
only with discs on which different audio soundtrack languages
are recorded. (Different discs have different display.)
DVD:
Some DVDs have multi-audio output function. Pressing the
AUDIO button on the controller repeatedly selects the available
audio tracks.
Viewing from another ANGLE [DVDs only]
Some DVDs may contain scenes that have been shot simulta-
neously from a number of different angles. For these discs, the
same scene can be viewed from each of these different angles
using the ANGLE button. The recorded angles will differ
depending on the disc being played.
When playing a DVD with multi-angle viewing, for example, if
the disc has three angles available, pressing the ANGLE button
on the controller will step you through all available views. The
screen OSD will show 1/3 then 2/3 then 3/3 and then back to
1/3 again.
When no multi-angle are recorded, “ ” will be displayed on
the TV screen.
On screen DISPLAY
During playback, you can press the DISPLAY button on the remote
to show the various information available.
For DVDs, the DISPLAY function button will allow you to view:
E n g l i s h
When no audio soundtrack language are recorded, “ ” will be
displayed on the TV screen.
CD:
For CD pressing the AUDIO button on the controller repeatedly
selects the available audio tracks.
For CD discs, the DISPLAY functions allows you to view the
following:
Elapsed play & remain times of the current program
11
RETURN
SHUFFLE
TITLE 06/06
CHAPTER 02/08
CHAPTER
TITLE ALL
TRACK ALL
a A B
DISC GO TO:__:__
TRACK GO TO:__:__
SELECT TRACK:__:/16
PROGRAM : TT(01)/CH(01)
1. TT01 CH01 6. TT__CH__
2. TT__CH__ 7. TT__CH__
3. TT__CH__ 8. TT__CH__
4. TT__CH__ 9. TT__CH__
5. TT__CH__ 10. TT__CH__
EXIT START NEXT:
PROGRAM : TRACK(01-16)
1. 5 6. ____
2. 3 7. ____
3. 6_ 8. ____
4. ______ 9. ____
5. ______ 10. ____
EXIT START NEXT:
If you use the RETURN button on the remote control, the disc
playing will automatically return to the root menu if available.
RANDOM
If you use this button you can paly the disc in shuffle mode:
Repeat the steps above, select chapter 2.
For CD discs, press GOTO button on the controller, the following
will be displayed: -
REPEAT
Press the REPEAT button during play
If you play a DVD disc, the screen will display:
If you play a CD disc, the screen will display:
Repeat A-B (allows you to play a small section of
the disc repeatedly)
Press the A-B button on the remote at the point where you wish
the repeat play to start. The display will show REPEAT A-. Press
A-B button again at the point where you wish the repeat play to
finish. The display will show REPEAT A-B SET. The A-B seg-
ment will now repeat continuously until the A-B button is
pressed for a third time.
Press the GOTO button again you can see:
Press the GOTO button three times, you will see:
You can select the right sing you want by the numeric button.
Program
DVD
If you want to play the TITLE/CHAPTER that yourself like. press
PROGRAM button on the remote, and then press numeric key to
select.
you can use CURSOR buttons to choose “START” , and at last
press ENTER to start program play.
GOTO function
You may directly enter a time, title or chapter number to search
fast on a disc, the player plays from that point.
For DVD discs, press GOTO button on the remote, the display
will show the following:-
You can get some information in this menu.
For DVD go to a title or a chapter.
(For example, go to chapter 2 in title 6)
Press GOTO on the remote, the screen show the menu above.
Then press ENTER/PLAY button to change the TITLE.
Press 06 to select title 6.
CD
If you want to play songs such as 5, 6, 3, etc, press PROGRAM
button on the remote control, and then press numeric button 5, 6,
3, you’ll see on the TV screen like(right):
you can use CURSOR buttons to choose “START” , and at last
press ENTER to start program play.
CLEAR
If you enter a wrong number when selecting a track, title, etc., you
can press CLEAR to delete them.
12
RETURN
2X 3 4X X1/2
X1/3X1/4
If you use the RETURN button on the remote control, the disc
playing will automatically return to the root menu if available.
You can select the Disc with up/down cursor you wanted. If you
select disc 1, you may see the menu like :
In the ZOOM mode, you can use CURSOR buttons to move the
picture for optimum viewing.
VOLUME control
Press VOLUME + on the remote control continuously to
increase volume.
Press VOLUME - on the remote control continuously to
decrease volume.
720P/1080i button
You can select with the 720P/1080i button the resolution for the
HDMI output. Chosen resolution will be displayed for a few sec-
onds on the TV screen. Changing resolution is only possible while
no disc is insert into the system. If your TV set doesn't support the
selected resolution the screen might stay black or the displayed
image is distored. In this case press 720P/1080i button again until
you will see a correct image.
E n g l i s h
MENU 2
In this menu you can select the song you want. You also can get
some information in the menu .
2) Press left button to go back to the menu 1, then you can select
the disc you wanted.
3) Press REPEAT button time by time you can select the play
mode. The all kinds of play mode will be displaied at the left
bottom of the menu.
4) Press the DISPLAY button you can see some change in the
menu in the menu 2. In the menu’s first line the current playing
sing’s elapsed thime will changed into the song’s remain time .
Press the DISPLAY button again to go back.
5) When the song is playing you can use UP/DOWN button to
select the song you want.
6) The other buttons such as : FAST FWD/ RWD., A-B , STOP also
can be used as usual.
RGB / YUV button
You can select the video output mode for scart and component
video output between RGB or YUV by pressing this button.
Chosen video format will be displayed on the screen. If you change
to RGB the HDMI output will be automatically switched off.
Playback of MP3 Files
This unit is compatible for the reproduction of recorded pieces in
MP3 format. Refer to the following instructions for a correct use:
1) Press the Power button and then the OPEN/CLOSE button to
open the drawer. Insert the disc containing the recorded pas-
sages in MP3 format with the label facing upwards. Press the
OPEN/CLOSE button again to close the drawer. After some
seconds, on the TV screen will appear a menu with all the direc-
tory in the disc like :
MENU 1
13
Playback of your DIVX Disc
Single Elapsed
0:00:30
Single Remain
0:00:06
Display off
When a DIVX disc is inserted, the TV screen will display a main
menu (such as menu 1) automatically. You can use UP/DOWN
CURSOR button to select the directory and the file you want in
the disc.
STOP button and MENU button
When a file is selected and start playing , if you press STOP or
MENU button you can see the TV screen will go back to the menu
like menu 3. You can select another file you want to continue.
DISPLAY button
When playing with a DIVX disc if you press DISPLAY button con-
tinually. You can see the TV screen will display:
MENU 1
MENU 2
The other buttons such as: PAUSE/STEP , SKIP +/- , FAST
RAW/FWD , CLEAR , A-B , ZOOM, VOL +/- also can be used as
usual. They have the same operation which has already intro-
duced in other pages of this manual.
NOTE :
Different Divx disc will has its own display menu. Above operation is just given you a reference. Please follow the actual
Divx disc menu for proper operation.
Disc supported by this DVD player is : 3.11, 4.0,5.0,5.04 and
5.11. This DVD player may be not able to playback certain
Divx movie if out of the series. A software up-date may be
required.
Because MPEG 4 or DIVX disc is big in compressing, the time
to read the disc may be relatively long. While broadcasting
MPEG 4 or DIVX disc, if you press some buttons such as SKIP
button, to some disc big in amount of information, the picture
may be standstill temporary, it will return to normal after a
while.
MENU 3
14
15
E n g l i s h
Initial settings
Once the initial setting have been set, the player will always oper-
ate with the same parameters. The setting will be retained in the
memory even after switching off the power.
Initial settings must be in the setup mode, but function can be
set in all mode.
Using the setup menu, you may choose the play mode setting,
the various outputs, etc.
During STOP mode, press SETUP button on the remote, you will
see on the screen like picture 1.Press SETUP button again to
quit the setup menu and return to the TV DISPLAY.
Select the menu item desired by using up/down CURSOR button,
and then press the ENTER button. You should see such as pic-
ture 2. In each menu page, the menu items are showed on the
left. Use the right CURSOR button on the remote to the option
list or setting on the right. Then use up/down CURSOR button
on the option list, press ENTER to choose. Use the left CUR-
SOR button to go back to the left menu item to change others.
Use RIGHT/LEFT CURSOR button to select General Setup Page,
Audio Setup Page, Video Setup Page, Preference Page,
Password Setup Page. If you in the menu like picture 2,you must
use left cursor first to go back to the menu like picture 1, then use
RIGHT/LEFT CURSOR to select the Audio Setup Page and so on.
NOTE:
When you select the function on the Menu, the notation of the
function is showed at left bottom. If you want to select the
Preference Page the DVD must during the Stop mode.
GENERAL SETUP
Press SETUP on the remote control, the screen shows GENERAL
SETUP PAGE. You can use up/down CURSOR to select TV DIS-
PLAY, ANGLE MARK, OSD LANG and SCREEN SAVER (picture 2)
TV DISPLAY
NORMAL/PS—4X3Pan Scan
Choose this setting you will see the
movie fill the entire screen of your TV.
But you won’t see part of the picture
(particularly the right and left edge).
NORMAL/LB—4x3Letterbox
Choose this setting if you want to see
movies in their original aspect ratio. You
will see the entire frame of the movie,
but it will occupy a smaller portion of
the screen.
WIDE—16x9Wide screen
Choose this setting if your DVD player is
connected to a widescreen TV.
ANGLE MARK (picture 3)
You can see the DVD picture in various angle when this function
is on.
OSD LANG (picture 4)
The On Screen Display language can be English or other lan-
guages delegated by the factory’s design.
SCREEN SAVER (picture 5)
When this DVD player is idle, the screen saver can be activated to
prolong the TV monitor’s life. You can press any button on the
remote to continue. If the DVD player is kept in the screen saver
mode , it will be turn off automatic after a few minutes.
PICTURE 1
PICTURE 2
PICTURE 3
PICTURE 4
PICTURE 5
16
AUDIO SETUP
Speaker Setup (picture 6)
Press UP/DOWN CURSOR to select the items in the Speaker
Setup
DOWNMIX (picture 7)
LT/RT or STEREO: If you connect only two speakers, you
should choose these.
5.1CH: When you play a disc with Dolby Digital, you should
choose this best. When you select it, the left menu item CENTER
SPEAKER and REAR SPEAKER will be selectable.
CENTER SPEAKER / REAR SPEAKER: The speaker could be
turn large, small or off in their item.
FRONT SPEAKER
The speaker could be turn large or small in its item
SUBWOOFER/ Test Tone:
The speaker could be turn on or off in their item.
SPDIF OUTPUT (picture 8)
Press the LEFT button go back to the Audio Setup Page, then use
up/down to select SPDIF setup.
OFF: the output signal is Analog format, the default setting. You
should select this when you are playing the disc through the
SPDIF OUTPUT Right & Left jacks on your DVD player. No sig-
nal output from the coaxial port when selecting this function.
SPDIF/RAW: Select this when the DVD player is connected with
a power amplifier through DIGITAL OUT coaxial port. The power
amplifier to be connected must have Dolby Digital decoding.
Please choose this setting when you connect the player via
HDMI to your multichannel AV-Receiver.
SPDIF/PCM: Select this when the DVD player is connected with
a 2-CHANNEL DIGITAL MODE OR STEREO AMPLIFIER. When
a Dolby Digital or MPEG disc is played, the coaxial port will out-
put in PCM 2-channel format. These program features an
uncompressed digital stereo sound track for improved fidelity,
when played, discrete stereo sound will be heard from the front
right and left speakers. Please choose this setting if you con-
nect your TV set directly via HDMI to get the sound be repro-
duced by the speakers built into the TV set.
LPCM OUT (picture 9)
LPCM 48k: In the linear PCM setting,”48K” means “the digital
audio output maximum sampling rate is 48KHz, there-
fore, when the title’s encoding sampling rate* is 96KHz,
the output will be forced conversion to 48KHz .
LPCM 96k: If “96k” is selected, then the maximum output sam-
pling rate is 96k and no conversion will take place.
Audio Setup
DYNAMIC: This function allows you to alter the dynamic sound
output. High volume outputs(gunfire, explosions) are softened
enabling you to watch your favorite movie without disturbing
others. (picture 10)
PICTURE 6
PICTURE 7
PICTURE 8
PICTURE 9
PICTURE 10
17
E n g l i s h
Video Setup
Component
You will get OFF, YUV or RGB of Component signal if you choose
different item like picture 11.
OFF: The video frequency output has video and S- video.
YUV: The video frequency output has video, S- video and YUV.
In this function the TV MODE is effective. You can select INTER-
LACE or P-SCAN.
RGB: The video frequency output has video, S- video and RGB.
HDMI: In this mode HDMI, YUV, S-Video and Video are available.
PREFERENCE SETTING
The DVD player must be in the stop mode or have the DVD door
open to access the preference menu. To put the player in the stop
mode, you must press the STOP button twice
TV TYPE
According to the system of TV to be connected, set the type of
the video output to match the TV as picture 12
1. If the TV used is PAL, select PAL output signal;
2. Or select MULTI if TV is multi-system.
3. If it is NTSC, select NTSC output signal;
Note:
To obtain the best DVD picture, it is strongly recommended to use
Multi-system TV to play DVD movie at ‘MULTI’ mode.
AUDIO/SUBTITLE/DISC MENU
The DVD player will play with your selected language at the AUDIO,
SUBTITLE or DISC MENU. If the disc not recorded your selected
language, the player will use defaults of the disc. (picture 13)
Note:
Audio and Subtitle language is subject to the availability of the
disc menu.
PARENTAL CONTROL (picture 14)
When selecting one of the
PARENTAL items, the screen
will be changed to the
PASSWORD VERIFY PAGE.
When playing disc with parent
lock function, you may select an age control grade according to
grade of disc and your desired. For example: Select PG-R, you
Could see picture like right, input the password to set the parental
level, and then you cannot play DVD video disc rate higher the
PG-R grade. Parental control grades are listed from low too high,
kids is lowest grade adults is the highest grade.
DEFAULT (picture 15)
If you select the RESET, each function setting returns to the initial
status setting by the factory.
Note:
It does not, however, reset either the password or the parental
control level.
PICTURE 11
PICTURE 12
PICTURE 13
PICTURE 14
PICTURE 15
18
PASSWORD SETUP Picture(16)
PREFERENCE function works only with DVD discs.
Select this to adapt the code, the screen shows: You may enter
the old password You may enter the old password first (picture
17), then input new password (picture 18), at last enter new pass-
word again to confirm.
Notes:
The original password is 0000 when the unit is first time turned on.
PICTURE 16
PICTURE 17
PICTURE 18
19
E n g l i s h
For Your Reference:
Disc handling and maintenance
Handling precautions
Hold the disc by the edges so the surface will not be soiled with
fingerprints. A
Fingerprints, dirt and scratches can cause skipping and distortion.
Do not write on the label side with a ballpoint pen or other writ-
ing utensils.
Do not use record cleaning sprays, benzine, thinner, static elec-
tricity prevention liquids or any other solvent.
Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc tray.
Do not try to close the disc tray when the disc is not installed
properly. B
Be sure to store the disc in its exclusive case when not in use.
If the surface is soiled C
Wipe gently with a soft, damp (water only) cloth.
When wiping discs, always move the cloth from the center hole
toward the outer edge.
(If you wipe the discs using a circular motion, circular scratches
are likely to occur, which will cause noise.)
If the disc is brought from a cold to a warm environment, moisture
may form on the disc.
Wipe this moisture off with a soft, dry, lint-free cloth before using
the disc.
Improper disc storage
You can damage discs if you store them in the following places:
Areas exposed to direct sunlight
Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance
Maintenance
Be sure to turn the unit off and disconnect the AC power cord
before maintaining the unit.
Wipe this unit with a dry soft cloth.
If the surfaces are extremely dirty, wipe clean with a cloth,
which has been dipped in a weak soap-and-water solution and
wrung out thoroughly. Then wipe again with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other
chemicals. Do not use compressed air to remove dust.
Troubleshooting
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Symptom (Common)
No power
Play fails to start even when PLAY is pressed.
Play commences but then stops immediately.
No picture.
No sound.
Distorted sound.
Picture is distorted during rapid advance or
rapid reverse.
No rapid advance (or rapid reverse) play.
No 4:3 (16:9) picture.
No on-screen display.
No surround sound.
No operations can be performed with the remote
control.
No key operation (either front panel and/or
remote control).
OSD menu not displayed or only partially displayed
on the TV Screen.
Remedy
Insert the power plug securely into the power outlet.
Condensation has formed: wait about 1 to 2 hours to allow the player to
dry out.
This player cannot play discs other than DVDs, CDs.
This disc may be dirty and may require cleaning.
Ensure that the disc is installed with the label side up.
Ensure that the equipment is connected properly.
Ensure that the input setting for the TV is correct.
Ensure that the equipment is connected properly.
Ensure that the input settings for the TV and stereo system are proper.
Adjust the master volume using the buttons on the remote control.
The picture will be somewhat distorted at times: this is normal.
Some discs may have sections, which prohibit rapid advance
(or rapid reverse).
Choose the correct setup “TV Aspect” item that matches the TV set used.
The “Off” setting is selected for “On-screen Messages”: select “On”.
Choose the correct setup at the “Audio Output” which matches your
stereo system.
Check the batteries are installed with the correct polarities(+/-)
The batteries are depleted: replace them with new ones.
Point the remote control unit at the remote sensor and operate.
Operate the remote control unit at a distance of not more than 7 meters
from the remote control sensor.
Remove the obstacles between the remote control unit and remote
control sensor.
Turn the unit off and then back to on. Alternatively, turn off the unit,
disconnect the AC power cord and then reconnect it. (The player may
not be operating properly due to lightning, static electricity or some other
external factor.)
Select the appropriate TV screen type by consulting the operation
manual of the TV.
20
Symptom (DVD)
Play does not commence even when title is selected.
Audio soundtrack and/or subtitle language is not the
one selected at the initial settings.
The menu is displayed in French (for example).
No subtitles.
Alternative audio soundtrack (or subtitle) languages
fail to be selected.
Angle cannot be changed.
No Image via HDMI.
No audio out on TV via HDMI is connected.
No multichannel signal on AV receiver while
connected via HDMI.
Red image via component video output
Pure picture quality via Scart output is bad or distored
Remedy
Confirm the “Ratings” setting.
If the audio soundtrack and/or subtitle language does not exist on the
disc, the language selected at the initial settings will not be seen/heard.
The setup “Menus” of “Disc Languages” is set to French: select English.
Subtitles appear only with discs, which contain them.
Subtitles are cleared from the TV monitor. Press “SUBTITLES” button to
display the subtitles.
An alternative language is not selected with discs, which do not contain
more than one language.
In the case of some discs, the alternative language cannot be selected
by operating the AUDIO or SUBTITLE button. Try selecting it from the
DVD menu if one is available.
This function is dependent on software availability. Even if a disc has a
number of angles recorded, these angles may be recorded for specific
scenes only (when the ANGLE indicator on the unit lights up.)
Change via the 720P/1080i button on remote the resolution. Current resolution
will be shown on the TV screen. If the image doesn't come up change
connect the composite video to the TV set and check correct setup.
Ensure in Audio Setup the SPDIF OUTPUT is set to SPDIF PCM.
Ensure in Audio Setup the SPDIF OUTPUT is set to SPDIF RAW.
Ensure in Video Setup YUV is selected for the Setup Component field.
Ensure in Video Setup RGB is selected for the Setup Component field.
These can be changed via button RGB / YUV on the remote as well.
E n g l i s h
21
Definition of terms
Angle
Recorded onto some DVD discs are scenes, which have been
simultaneously shot from a number of different angles (the same
scene is shot from the front, from the left side, from the right side,
etc.). With such discs, the ANGLE button can be used to view the
scene from different angles.
Chapter number
These numbers are recorded on DVD discs. A title is subdivided into
many sections, each of which is numbered, and specific parts of
video presentations can be searched quickly using these numbers.
DVD
This refers to a high-density optical disc on which high-quality
pictures and sound have been recorded by means of digital sig-
nals. Incorporating a new video compression technology (MPEG)
and high-density recording technology, DVD enables esthetically
pleasing full-motion video to be recorded over long periods of
time (for instance, a whole movie can be recorded).
Subtitle
These are the printed lines appearing at the bottom of the screen,
which translate or transcribe the dialogue. They are recorded on
DVD discs.
Time number
This indicates the playtime recorded on DVD discs. When a disc
contains two or more movies, these movies are numbered as title
1, title 2, etc.
Track number
These numbers are assigned to the tracks which are recorded on
CDs. They enable specific tracks to be located quickly.
Specifications
Power Requirements: AC 220-240V, 50Hz
Power Consumption: 25W
Signal system: PAL/NTSC
Weight 2.2kg
Dimensions: 440(W)x250(D)x54(H)mm
(excluding protrusions)
Operating temperature range: +5 to +35°C
Operating humidity ranger: 5 to 90% (no condensation)
Discs played:
(1) DVD-VIDEO disc
12cm single-sided, single-layer
12cm single-sided, double-layer
12cm double-sided, double-layer (one layer per side)
8cm single-sided, single-layer
8cm single-sided, double-layer
8cm double-sided, double-layer (one layer per side)
(2) compact disc (CD-DA)
12cm disc
8cm disc
S-video output:
Y output level: 1 Vp-p (751)
C output level: 0.300 Vp-p (751)(PAL)
0.286 Vp-p (751)(NTSC)
Output connector: S terminal (1 system)
Video output: Output level: 1 Vp-p (751)
Output connector: Pin jack (2 systems)
Audio output: Output level: 2 Vrms (1kHz, 0dB)
Output connector: Pin jack
5.1ch mixed output: 1 system (2ch)
5.1ch discrete output: 1 system (5.1ch)
Audio signal output characteristics:
(1) Frequency response:
DVD (linear audio):
4Hz-22kHz (48kHz sampling)
4Hz-22kHz (96kHz sampling)
CD audio:
2Hz-20kHz (EIAJ)
(2) S/N ratio:
CD audio: 115dB (EIAJ)
(3) Dynamic range:
DVD (linear audio): 102dB
CD audio: 99dB (EIAJ)
(4) Total harmonic distortion:
CD audio: 0.0025% (EIAJ)
Digital audio output:
Optical digital output: Optical connector
Coaxial digital output: Pin jack
Pickup: Wave length: 655nm
Laser power: CLASS 1
Specifications are subject to changer without notice.
Weight and dimensions are approximate.
22
23
www.marantz.com
2005/08
Loading...
