Marantz DV8300 User Manual

2.04 Mb

R

Model DV8300 User Guide

SACD/DVD Player

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CONGRATULATIONS ON YOUR PURCHASE OF THIS FINE MARANTZ PRODUCT.

MARANTZ is on the leading edge of SACD DVD research for consumer products and this unit incorporates the latest technological developments.

We are sure you will be fully satisfied with the SACD DVD player.

Thank you for your support.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Do not remove the cover from the equipment.

Do not insert anything into the equipment through the ventilation holes.

Do not handle the mains lead with wet hands. Make a space of about 0.1 meter around the unit.

IMPORTANT NOTICE [For U.S. model]

The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

The use of optical instruments with this product will increase eye hazard.

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES-003.

[Pour le modèle Canadien]

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

[For Canadian model]

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE

DANS LA BORNE CORRESPON-DANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CAUTION:

LASER SAFETY: This unit employs a LASER. Only a qualified person should remove the cover or attempt to service this device, due to possible eye injury.

“CAUTION-USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.”

2

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

• This player is not suitable for commercial use.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated.

RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference.

HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS — All operating and use instructions should be followed.

CLEANING — Unplug this product from the wall outlet before cleaning. The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

POWERSOURCES—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION – The appliance should be installed in a stable location.

NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

GROUNDING OR POLARIZATION

OBJECT AND LIQUID ENTRY — Never push objects

• If thisproductisequipped with apolarizedalternating



of any kind into this product through openings as

current line plug (a plug having one blade wider



they may touch dangerous voltage points or short-

than the other), it will fit into the outlet only one



out parts that could result in a fire or electric shock.

way. This is a safety feature. If you are unable to



Never spill liquid of any kind on the product.

insert the plug fully into the outlet, try reversing the

SERVICING — Do not attempt to service this product

plug. If the plug should still fail to fit, contact your



yourself as opening or removing covers may expose

electrician to replace your obsolete outlet. Do not



you to dangerous voltage or other hazards. Refer

defeat the safety purpose of the polarized plug.



all servicing to qualified service personnel.

• If this product is equipped with a three-wire

DAMAGE REQUIRING SERVICE — Unplug this

grounding type plug, a plug having a third (grounding)



product from the wall outlet and refer servicing to

pin, it will only fit into a grounding type power



qualified service personnel under the following

outlet. This is a safety feature. If you are unable to



conditions:

insert the plug into the outlet, contact your electrician

• When the power-supply cord or plug is damaged.

to replace your obsolete outlet. Do not defeat the

• If liquid has been spilled, or objects have fallen into

safety purpose of the grounding type plug.



the product.

POWER-CORD PROTECTION — Power-supply cords

• If the product has been exposed to rain or water.

should be routed so that they are not likely to be

If the product does not operate normally by

walked on or pinched by items placed upon or



following the operating instructions. Adjust only

against them, paying particular attention to cords at



those controls that are covered by the operating

plugs, convenience receptacles, and the point



instructions as an improper adjustment of other

where they exit from the product.



controls may result in damage and will often require

OUTDOOR ANTENNA GROUNDING — If an outside



extensive work by a qualified technician to restore

antennaorcable system is connected totheproduct,



the product to its normal operation.

be sure the antenna or cable system is grounded so

• If the product has been dropped or damaged in any

as to provide some protection against voltage



way.

surges and built-up static charges. Article 810 of

• When the product exhibits a distinct change in

the National Electrical Code, ANSI/NFPA 70,



performance — this indicates a need for service.

provides information with regard to proper

REPLACEMENT PARTS — When replacement parts

grounding of the mast and supporting structure,



are required, be sure the service technician has

grounding of the lead-in wire to an antenna discharge



used replacement parts specified by the

unit, size of grounding conductors, location of



manufacturer or have the same characteristics as

antenna-discharge unit, connection to grounding



the original part. Unauthorized substitutions may

electrodes, and requirements for the grounding



result in fire, electric shock, or other hazards.

electrode. See Figure A.

SAFETY CHECK — Upon completion of any service

LIGHTNING — For added protection for this product



or repairs to this product, ask the service technician

during a lightning storm, or when it is left unattended



to perform safety checks to determine that the

and unused for long periods of time, unplug it from



product is in proper operating condition.

the wall outlet and disconnect the antenna or cable

WALL OR CEILING MOUNTING — The product

system. This will prevent damage to the product



should not be mounted to a wall or ceiling.

due to lightning and power-line surges.

HEAT — The product should be situated away from

POWER LINES — An outside antenna system should



heat sources such as radiators, heat registers,

not be located in the vicinity of overhead power



stoves, or other products (including amplifiers)

lines or other electric light or power circuits, or



that produce heat.

where it can fall into such power lines or circuits.





When installing an outside antenna system,





extreme care should be taken to keep from touching





such power lines or circuits as contact with them





might be fatal.





OVERLOADING — Do not overload wall outlets,





extension cords, or integral convenience





receptacles as this can result in a risk of fire or





electric shock.









ANTENNA





LEAD IN WIRE

GROUND

ANTENNA

CLAMP



DISCHARGE UNIT





(NEC SECTION 810-20)

ELECTRIC

GROUNDING CONDUCTORS

SERVICE

(NEC SECTION 810-21)

EQUIPMENT





GROUND CLAMPS

Fig. A

POWER SERVICE GROUNDING

ELECTRODE SYSTEM





(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

English

3

WARNING: Slot and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, to prevent fire hazard, the openings should never be blocked and covered with items, such as newspapers, table-cloths, curtains, etc. Also do not put the apparatus on the thick carpet, bed, sofa, or fabric having a thick pile.

Operating Environment

Operating environment temperature and humidity:

+5°C – +35°C (+41°F – +95°F); less than 85%RH (cooling vents not blocked)

Do not install in the following locations

÷Location exposed to direct sunlight or strong artificial light

÷Location exposed to high humidity, or poorly ventilated location

THX

With their experience in movie making and DVD mastering, Lucasfilm engineers researched the capabilities of the DVD format. They have identified many key areas of importance within the DVD player system that are necessary to ensure the highest quality possible for video and audio playback.

The THX select DVD specification was created to realize the full potential of the format.

The THX DVD program is a number of technical and performance specifications developed to make certain that the audio and video quality of every DVD recording is reproduced as accurately as possible.

Thus exploiting the medium’s maximum potential.

Lucasfilm and THX are trademarks of Lucasfilm Ltd.

On the bonnet of the unit.

4



Table Of Contents



1

Before You Start





Features ....................................................................................

6



What’s in the box ...................................................................

7



Putting the batteries in the remote control ....................

7



Using the remote control ....................................................

7



Discs compatible with this player .....................................

8



DVD Video regions ................................................................

9



MP3 compatibility information ..........................................

9

2

Connecting Up





Easy Setup ............................................................................

10



Home theater video connections .....................................

11



Home theater audio connections ....................................

12

3

Controls & Displays





Display ....................................................................................

13



Remote control ....................................................................

14



Front panel ............................................................................

15

4

Getting Started





Using the FL menu ...............................................................

16



Using the Setup Navigator ................................................

17



Playing discs .........................................................................

20



Navigating DVD disc menus ..............................................

22



Navigating Super VCD/Video CD PBC menus .............

22



Navigating DVD-RW discs menus ....................................

22

5

Playing Discs





Introduction ..........................................................................

23



Finding what you want on a disc .....................................

23



Still Frame/Slow Play/Frame advance playback ...........

24



Switching camera angles ....................................................

25



Switching subtitles ..............................................................

25



Switching audio language ..................................................

26



Switching audio channel (DVD-Audio) ..........................

26



Switching audio channel





(DVD-RW/Super VCD/Video CD/CD/MP3) ...............

26



Making a program list .........................................................

27



Programming tips .................................................................

28



Using random play ..............................................................

29



Using repeat play ................................................................

30



Bookmarking a place in a disc





(LAST MEMORY) .................................................................

31



Memorizing disc settings





(CONDITION MEMORY) ..................................................

32



Using setup menu shortcuts





(FUNCTION MEMORY) .....................................................

33



Displaying disc information ..............................................

34

6

Playing MP3s





Playing MP3s ........................................................................

35



Searching for folders and tracks ......................................

36



Using random play ..............................................................

36



Using repeat play ................................................................

36



Displaying MP3 information .............................................

36



Using the MP3 Navigator ..................................................

37



Making a program list of MP3 tracks ..............................

38

7

DVD Setup Menu





Using the Setup menu ........................................................

39



Setup Menu Mode ...............................................................

39



OSD Settings ........................................................................

40



Audio settings.......................................................................

40



Video settings .......................................................................

47



Language settings ................................................................

52



General settings ...................................................................

55

8

Additional Information





Handling discs ......................................................................

58



Storing discs .........................................................................

58



Discs to avoid .......................................................................

58



Cleaning the pickup lens ...................................................

58



Problems with condensation ............................................

58



Hints on installation ...........................................................

59



Moving the player ................................................................

59



Glossary .................................................................................

60



Troubleshooting ...................................................................

62



Resetting the Player ............................................................

65



Country Code List ...............................................................

66



Language code list ..............................................................

66



Specifications .......................................................................

69

English

5

1Before You Start

Features

525 line digital progressive-scan component video output

Compared to standard interlaced video, progressive scan effectively doubles the amount of video information fed to your TV or monitor. The result is a stable, flicker-free image. (Check your TV/ monitor for compatibility with this feature.)

For the very highest picture quality, try watching a movie on DVD-Video on a progressive-scan compatible TV.

Superlative audio performance with DVD-Audio, Dolby*1 Digital and DTS*2 software

Logos: 1 R

The DV8300 delivers breathtaking sound quality with Dolby Digital and DTS discs.

TruSurround*3

Logo:

When used with stereo sources, TruSurround creates a realistic surround-sound effect using just two speakers (see page 42).

MP3 compatibility

This player is compatible with CD-R, CD-RW and CD-ROM discs that contain MP3 audio tracks (see pages 9, 35).

Video Adjust

This new type of DNR (Digital Noise Reduction) for encoding video enables you to adjust the video settings on a more detailed and exact level. There are three possible settings to choose from. These include: TV (CRT), PDP, and Professional. This technology can remember which setting you've chosen and employ it at the proper time. (see page 49).

High quality 24-bit/192kHz DAC

The high specification 24-bit/192kHz DAC delivers dynamic, smooth and expansive analog sound from CDs and DVDs.

Graphical Setup Navigator

Setting up your DVD player is easy using the graphical Setup Navigator. Answer the questions that appear on-screen and the Setup Navigator makes the necessary audio, video and language settings for you (see page 17).

*1 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved.

*2 “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

*3 TruSurround and the ® symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

6

Before You Start

What’s in the box

Thank you for buying this MARANTZ product. Please confirm that the following accessories are in the box when you open it.

Remote control

AA/R6P dry cell batteries x2

Audio/Video cable (yellow/red/white)

System control cable

Power cable

These operating instructions

Putting the batteries in the remote control

1 Open the battery compartment cover on the back of the remote control.

2 Insert two AA/R6P batteries into the battery compartment following the indications (ª, ·) inside the compartment.

3 Close the cover.

Note

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

Don’t mix new and old batteries together.

Don’t use different kinds of battery together— although they may look similar, different batteries may have different voltages.

Make sure that the plus and minus ends of each battery match the indications in the battery compartment.

Remove batteries from equipment that isn’t going to be used for a month or more.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

1

Using the remote control

English

Keep in mind the following when using the



remote control:

Make sure that there are no obstacles between the remote and the remote sensor on the unit.

Use within the operating range and angle, as shown.

30

30

5m (17 feet)

Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.

Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

Replace the batteries when you notice a fall off in the operating range of the remote.

Note

When using this player independently, set a

REMOTE CONTROL switch on the rear panel to

INTERNAL. (page 10)

7

1Before You Start

Discs compatible with this player

Any disc that displays one of the following logos should play in this player. Other formats, including DVD-RAM, DVD-ROM, CD-ROM (except those that contain MP3 files) and Photo CD will not play.

DVD Video compatibility:

Logos:

Single-sided or double-sided discs

Single layer or dual layer discs

Dolby Digital, DTS, MPEG or Linear PCM digital audio

MPEG-2 digital video

Discs are generally divided into one or more titles. Titles may be further subdivided into chapters.

DVD Audio compatibility:

Logos:

Single sided discs

Single layer or dual layer discs

Linear or packed PCM digital audio

Some discs may contain MPEG-2 video, and Dolby Digital, DTS or MPEG digital audio

Discs are generally divided into one or more groups. Groups may be further subdivided into tracks.

DVD-R compatibility:

This unit can play DVD-R discs. Please note the following points when using these discs:

Logo:

This unit can play DVD-R discs recorded as DVD video format.

DVD-RW compatibility:

This unit can play DVD-RW discs. Please note the following points when using these discs:

Logo:

This unit can play DVD-RW discs recorded as DVD video format or DVD video recording format.

DVD-RW discs that were recorded with copyonce only permission cannot be played. The message, ‘COPY PROTECT PROGRAM, UNPLAYABLE’ appears in the display during these parts of the disc.

When playing a DVD-RW disc that was edited on a DVD recorder, the screen may go momentarily black at the edited point.

When playing a DVD-RW disc that was edited on a DVD recorder, you may see scenes from just before the edited point.

Up to 20 characters of a title name can be displayed.

Audio CD compatibility:

Logos:

12cm (5in.) or 8cm (3in.) discs

Linear PCM digital audio

CD-Audio, CD-R* and CD-RW* formats CDs are divided into tracks.

*This unit can play CD-R and CD-RW discs recorded in CD Audio or Video CD format, or with MP3 audio files.

Video CD compatibility:

Logo:

12cm (5in.) or 8cm (3in.) discs

MPEG-1 digital audio

MPEG-1 digital video

Video CDs are divided into tracks.

SACD compatibility:

Logo:

Single layer, dual layer or Hyblid layer

12cm (5in.) or 8cm (3in.) discs

Digital audio (DSD)

SACDs are divided into tracks.

8

Before You Start

DVD Video regions

All DVD Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompatible regions will not play in this player. Discs marked ALL will play in any player.

MP3 compatibility information

The CD-ROM must be ISO 9660 compatible.

Files should be MPEG1 Audio Layer 3 format, 44.1 or 48kHz. Incompatible files will not play and “UNPLAYABLE MP3 FORMAT” will be displayed.

Not compatible with some variable bit-rate (VBR) files.

VBR files may not show play times correctly.

This player only plays tracks that are named with the file extension “.mp3” or “.MP3”.

This player is not compatible with multi-session discs. If you try and play a multi-session disc, only the first session will be played.

Use CD-R or CD-RW media for recording your MP3 files. The disc must be finalized in order to play.

Audio encoded at 128Kbps should sound close to regular audio CD quality. Although this player will play lower bit-rate MP3 tracks, the sound quality becomes noticeably worse at lower bit-rates.

Only the first 8 characters of folder and track names (excluding the “.mp3” extension) are displayed.

This player can recognize a maximum of 250 folders and 250 tracks. Discs containing more than 250 folders or tracks will play, but only the first 250 folders/tracks.

Caution!

DVD-R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

Unfinalized DVD-R/RW discs cannot be played.

Unfinalized CD-R/RW discs can be played, but not all time information (playing time, etc.) will be displayed.

For more information on using DVD-R/RW and CD-R/RW discs, see Handling discs starting on page 58.

1

English

9

2Connecting Up

Easy Setup

This easy setup is the minimum set of connections you need to start watching DVD video discs. Both sound and picture are fed directly to your TV using the supplied audio and video cables. For other possible connections, see pages 11 and 12.

Important

Before making or changing any rear panel connections, make sure that all components are switched off and unplugged from the wall outlet.

1 Connect to a composite video input on your TV using the supplied Audio/ Video cable.

Y























CB /PB









































L

L

CENTER

CR /PR

























VIDEO















R

R

SUB W.

COMPONENT

1

2

S1/S2

IN

OUT EXTERNAL INTERNAL

OPTICAL COAXIAL

1

2





SURR.













DIGITAL



FRONT









VIDEO OUTPUT





REMOTE CONTROL





AUDIO OUTPUT











OUTPUT









2 Connect to a pair of stereo audio inputs on your TV using the supplied Audio/ Video cable.

Connecting audio and video cables

Be sure to insert each plug fully for the best

connection. The plugs and jacks are colour-

coded to make connection easier.

Connecting system control connections

By connecting this DVD player to another Marantz audio component using a supplied System Control cable, you can remotely operate the components as a single system.

When connecting to component with a remote sensor (such as the SR-14, SR-18, SR-19), be sure to connect the REMOTE CONTROL IN jack of this DVD player to the REMOTE CONTROL OUT jack of the component with the remote sensor.

When connecting to component which is not



equipped with a remote sensor, be sure to



connect the component to the REMOTE

10

CONTROL OUT jack of this DVD player.





3 Plug into a standard AC wall outlet.

Synchronized power on and off

Connect with the remote control output jack of a component (such as the SR-14, SR-18, SR-19) which is compatible with Marantz remote control system. The remote control allows to switch the power of this DVD player to “POWER ON and Standby mode”.

Note

Be sure to leave power switch on the Front panel in the power mode.

Remote switch

When using this DVD player independently, set this switch to INTERNAL. When using this DVD player in a system with a Marantz tuner or timer equipped with a remote sensor, set the switch to EXTERNAL.

Connecting Up

Home theater video connections

This player outputs video in a number of different ways. Choose the one most suitable for your system using the guide below.

Important

Before making or changing any rear panel connections, make sure that all components are switched off and unplugged from the wall outlet.

2

English

1 If your TV has a component video input, we recommend using it to connect directly to the COMPONENT VIDEO OUT of this player. Use the standard 3-jack component video ouput.

Y























CB /PB









































L

L

CENTER

CR /PR

























VIDEO















R

R

SUB W.

COMPONENT

1

2

S1/S2

IN

OUT EXTERNAL INTERNAL

OPTICAL COAXIAL

1

2





SURR.













DIGITAL



FRONT









VIDEO OUTPUT





REMOTE CONTROL





AUDIO OUTPUT











OUTPUT









2 If a component input is not available to you, connect this player to your TV or AV receiver using either the VIDEO or S-VIDEO jacks.

Connecting S-Video cables

S-Video cables will only plug in one way, so make sure the plug is correctly lined up with the jack before inserting. Be sure to fully insert for a good connection.

S-Video or composite video?

S-Video should give a better picture, so if you have an S-Video input, use it. S-Video cables are available from any good audio/visual dealer.

11

OPTICAL

2Connecting Up

Home theater audio connections

This player outputs multi-channel audio in both analog and digital form. Check the manual for your amplifier/receiver to see what equipment it is compatible with (especially which digital formats—Dolby Digital, DTS, etc.—it can decode).

1 If your amplifier has stereo inputs only, connect them here.

Important

Before making or changing any rear panel connections, make sure that all components are switched off and unplugged from the wall outlet.

2 If your amplifier has 5.1 channel analog inputs, connect them here. Connect to the FRONT L (left)/R (right), SURROUND L/R, CENTER and SUBWOOFER inputs of your amplifier.

Y























CB /PB









































L

L

CENTER

CR /PR

























VIDEO















R

R

SUB W.

COMPONENT

1

2

S1/S2

IN

OUT EXTERNAL INTERNAL

OPTICAL COAXIAL

1

2





SURR.













DIGITAL



FRONT









VIDEO OUTPUT





REMOTE CONTROL





AUDIO OUTPUT











OUTPUT









3 Connect to the coaxial or optical input of your amplifier, if it has digital inputs.

Connecting analog audio cables

Be sure to fully insert each plug for the best connection. The plugs and jacks are colourcoded to make connection easier.

Connecting optical cables

Optical interconnects only plug in one way, so make sure the plug is

correctly lined up with the jack before insert-

ing. When inserting the plug, the protective

shutter will open and you should hear it click into position when fully inserted. Be careful that you do not force the plug, because this could result in damage to the

protective shutter, the cable, or the unit itself.

4 Plug into a standard AC wall outlet.

Connecting coaxial cables

Use an interconnect with a pin-type (also



called RCA or phono)



plug on each end to

COAX

connect up digital



coaxial-type jacks.



Make sure that the



plug is pushed fully



home.



Note

If you listen to multichannel DVD-Audio through one of the digital outputs, it will be downmixed to stereo. Also, high sampling rate DVD-Audio (192kHz or 176.4kHz) will be downsampled to 96kHz, 88.2kHz, 48kHz or 44.1kHz, depending on the disc. Multi channel and high sampling rate DVD-Audio is only available through the analog outputs.

Some DVD-Audio and all SACD audio is output only through the analog outputs.

12

Controls & Displays

3

Display

1 2 3 4 5 6 7 8 9 0 - = ~ ! @ # $ %

V-PART





192kHz

PROGRESSIVE

GRP

V OFF

VCD

96kHz

LAST COND

TITLE

D OFF

TRK

CHP

TOTAL REMAIN

^





































































































































































































































































































































































































































































































& * ( ) _ + ¡

















SURROUND



































DOLBY D























5.1CH













































DOWN MIX













































L

C

R

























LFE



















































































































































LS

S

RS

















































































































£



¢











1 3– Lights when a disc is playing

2V-PARTLights during playback of the video part of DVD discs

3Lights during a multi-angle section of a DVDVideo disc

4V OFF – Indicates that video output is turned off

5 Lights during repeat play

6VCD – Lights when a Audio CD/Video CD is loaded

7192kHz/96kHz – Indicates a DVD disc containing high-sampling rate (192kHz/ 96kHz) audio is playing

175.1CH – Lights when the audio ouput is set to 5.1 channel

18DOWNMIX – Lights when multi-channel DVD-Audio, Dolby Digital, DTS or MPEG audio is downmixed, for example to two channel stereo

198– Lights wheh a disc is paused

20GRP – Indicates that the number below in the character display is a DVD-Audio group number

21TITLE – Indicates that the number below in the character display is a DVD-Video title number

22D OFF – Lights wheh unit is set to Digital Out

8 DVD – Lights when a DVD is loaded

9DVD-AUDIOLights when a DVD-Audio disc is playing

10 Lights when a Super Audio CD (SACD) is loaded

11LAST – Lights when the disc has a bookmark memory (see page 31)

12PROGRESSIVE – Lights when unit is outputing 525 line progressive scan (noninterlaced) video.

13COND – Lights when the disc has had preferences set (see page 32)

14SURROUND – Lights when playing a disc with TruSurround switched on

15DOLBY D – Lights when a disc with Dolby Digital audio is playing

16 – Lights when Remote Control Signal is received

off

23TRK – Indicates that the number below in the character display is a DVD-Audio, CD, Super VCD/Video CD or MP3 track number

24CHP – Indicates that the number below in the character display is a DVD-Video chapter number

25Character display

26TOTAL – Indicates that the time shown in the character display is the total playing time of the disc

27REMAIN – Indicates that the time shown in the character display is the remaining playing time of the disc

28Lights when a disc with DTS audio is playing

29L, C, R, LS, S, RS, LFE – show which channels are recorded on the disc playing

English

13

3Controls & Displays

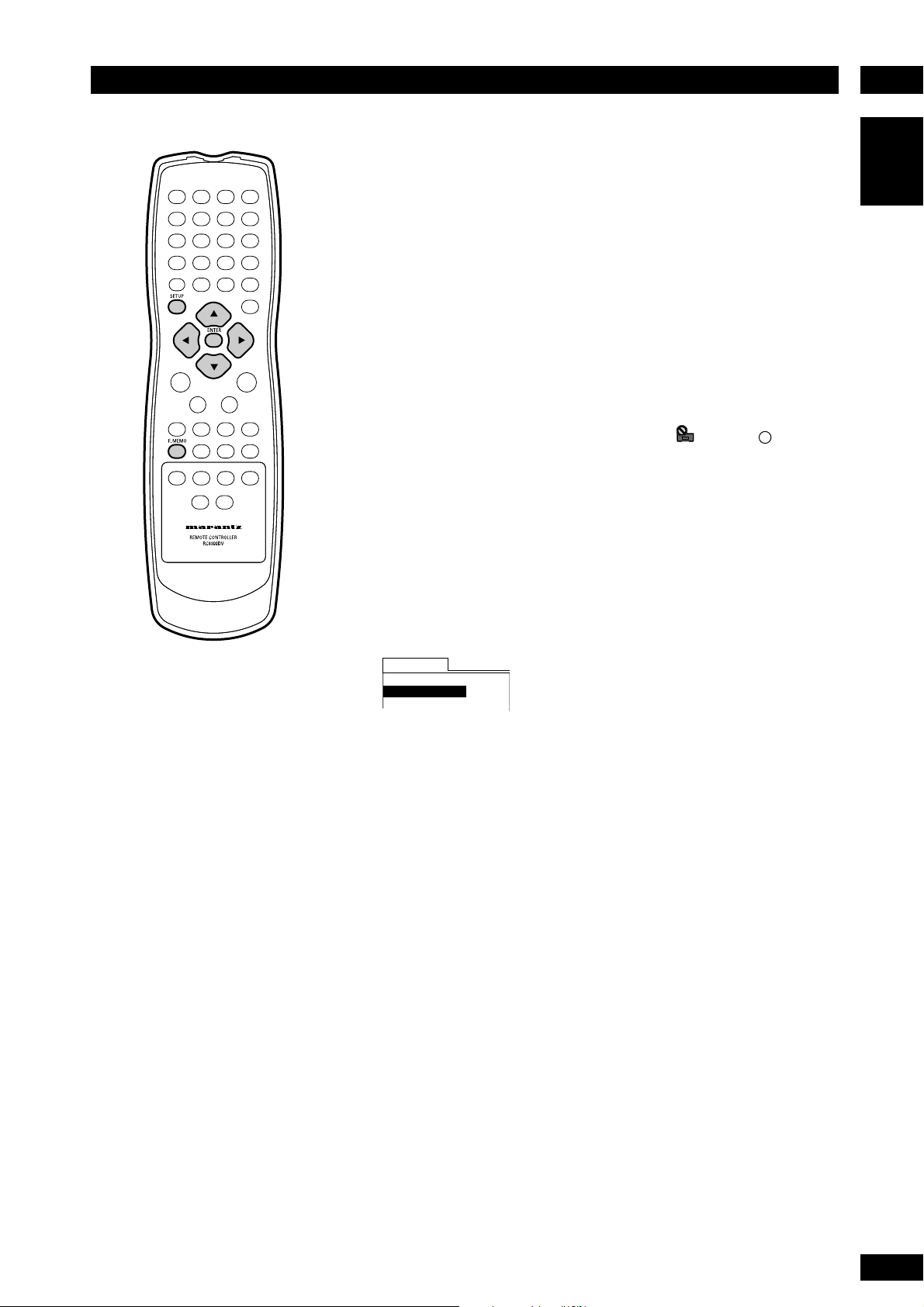

Remote control

1

2

3

4

5

6

7

8

9

0

-

=

~

!

@

#

$

%

^

&

*

(

)

_

+

¡

£

1VIDEO ON/OFF – press to turn video output off and on (page 51)

2 OPEN/CLOSE – Disc tray open/close

3 Number buttons pages 21, 22

4 RETURN – Return

5 PROGRAM pages 27, 38

6 SETUP pages 17, 39

7 Joystick / ENTER button page 22

8 7– Stop

9 4 ¢ – Skip

108– Pause

11RANDOM pages 29, 36

12F.MEMO – Function memory (page 33)

13VIDEO ADJ. – Video adjust (page 49)

14DISPLAY pages 34, 36

15ANGLE page 25

16LAST MEMO page 31

17DIMMER – Press to change the display brightness

18POWER – switches player on or into standby.

19CLEAR – Clear

20TOP MENU page 22

21SEARCH page 23

22MENU page 22

233– Play

241 ¡ – Scan

25REPEAT — A-B page 30

26AUDIO page 26

27SUBTITLE page 25

28CONDITION MEMO page 32

This remote control supports two remote control codes: DVD1 and DVD2.

When the unit is shipped from the factory, the remote control is set to DVD1.

To set the remote control to DVD2, hold down both the “7(Stop)” button and the “2” number button on the remote control for at least five seconds. (If the batteries in the remote control are replaced while the remote control is set to DVD2, the setting will revert to DVD1.)

To set the remote control back to DVD1, hold down both the “7(Stop)” button and the “1” number button on the remote control for at least five seconds.

To check which remote control code is set at any time, hold down both the Stop and Pause buttons; the current setting (either “DVD1” or “DVD2”) will be displayed in the display window on the main unit.

Also set the REMOT CODE on the FL menu to the same setting as the remote control. (This setting is set to DVD1 when the unit is shipped from the factory.) (page 16)

14

Controls & Displays

Front panel

1

2

3

4

5



SACD/DVD PLAYER DV8300

PAUSE

STOP

PLAY





STANDBY

V-PART





192kHz

PROGRESSIVE

SURROUND











GRP

V OFF

VCD

96kHz

LAST COND

DOLBY D

5.1CH





POWER ON/OFF

TITLE

D OFF

TRK

CHP

TOTAL REMAIN

DOWN MIX

FL OFF

OPEN/CLOSE













L

C

R



















LFE



















LS

S

RS







6

7

8

9

0

1

POWER ON/OFF

7 FL OFF – Lights when the display is switched

2

Disc tray

off using the FL OFF button and DIMMER

button on the remote unit.









3 8– Pause

8 0– Disc tray open/close

4 7– Stop

9 4/1– Reverse scan/skip

5 3– Play

10 ¡/¢– Forward scan/skip

6 Display page 13

3

English

15

4Getting Started

Using the FL menu

The FL menu has been designed to set

“DISP MODE”, “AUTO P OFF” and “REMOT CODE”.

The FL menu can not be used if a disc is playing.

It is recommended to set the FL menu before loading a DVD.

If a DVD has been loaded, be sure to press STOP 7 twice before proceeding.

(If “RESUME” is displayed in the FL display, press STOP 7.)

Selecting the FL menu

Press SETUP for longer than 1 sec.

The FL OFF indicator on the player turn on and off.

FL menu is displayed in the FL display.



FL OFF







SACD/DVD PLAYER DV8300





PAUSE

STOP

PLAY

POWER

DISP MODE

FL OFF

OPEN/CLOSE





FL menu

Move the cursor control joystick down to select the FL menu you want as follows.

(Example)

DISP MODE

AUTO P OFF

REMOT CODE

To exit the FL menu

When you have compleated setting up the FL menu or if you want exit the FL menu. Press SETUP to close the FL menu.

DISP MODE setting

Select DISP MODE, then press ENTER.

Move the cursor control joystick down to select the type of DISP MODE you want to set as follows.

16

(Example)

DISP OFF *

DISP ON

* Factory setting

Press ENTER you want to set.

The menu select is set.

If you replay a CD or SACD while DISP ON is selected, FL display and video output shut off automatically. FL display and video output are on during Stop and Pause. And if you push the

Dimmer Button on the remote control during DISP ON, for three seconds, only FL display is displayed.

AUTO P OFF setting

Select AUTO P OFF, then press ENTER.

Move the cursor control joystick down to select the type of AUTO P OFF you want to set as follows.

(Example)

ON 30 MIN *

OFF

* Factory setting

Press ENTER you want to set.

The menu select is set.

The standby mode is automatically selected to save power if the player is left in the stop mode for about 30 minutes.

REMOT CODE setting

Select REMOT CODE, then press ENTER. Move the cursor control joystick down to select the type of REMOT CODE you want to set as follows.

(Example)

DVD 1 *

DVD 2

* Factory setting

Press ENTER you want to set.

The menu select is set.

The DVD player support two remote control codes: DVD 1 and DVD 2.

Set the remote control code of the Remote

Control to the same setting.

See page 14 for more information.

Getting Started

4

Using the Setup Navigator

Before playing any discs, we strongly recommend using the Setup Navigator. This makes all the basic DVD player settings for you.

1 Press POWER button on the front panel to switch on.

Also turn on your TV and make sure that it is set to the correct video input.

• The POWER button on the remote switches the player between standby and on.

• If a disc that’s already loaded starts to play, press 7to stop it.

Note

When it is required to remote control the power mode of this DVD player, be sure to leave this switch in the power on mode.

2Press SETUP.

The Setup Navigator on-screen display (OSD) appears:

Audio1 A2 Video1 V2 Language General

Setup Navigator

Setup Navigator

Start



Auto Start Off

Setup using the Setup Navigator





Move

ENTER Select SETUP Exit

Navigate all of the following OSDs using these controls:

Joystick up/down – cursor up/down

ENTER – select the highlighted menu option

Joystick left – go back to the previous question.

The control possibilities for the current OSD are shown at the bottom of each screen.

English

3 Select ‘Start’.

Audio1 A2 Video1 V2 Language General

Setup Navigator

Setup Navigator

Start



Auto Start Off

Setup using the Setup Navigator





Move

ENTER Select SETUP Exit

Remember

Press ENTER to select an option.

If you decide you don’t want to use the Setup Navigator, select Auto Start Off here instead.

17

4Getting Started

4 Choose an OSD menu language.

Audio1 A2 Video1 V2

Language

General



Setup Navigator

English









français







Language

Deutsch







OSD Language

Italiano









Español







Select the On Screen Language





Move

ENTER

Select

SETUP

Exit

5 Select the type of TV you have.

Audio1 A2 Video1 V2

Language

General



Setup Navigator











TV Connection











TV Type

Widescreen(16:9)





Standard(4:3)





Widescreen TV











16:9 aspect ratio











Move

ENTER

Select

SETUP

Exit

See Aspect ratio in the Glossary on page 60 if you’re unsure of the difference between widescreen and standard TVs.

6Select the type of analog audio connections you made to your amplifier/receiver.

Audio1 A2 Video1 V2

Language

General



Setup Navigator











Amp Connection

2 ChannelDolby Digital/DTS

Analog Jacks

5.1Channel







Not Connected



2channel jacks for L/R









Move

ENTER

Select

SETUP

Exit

If you connected the audio output directly to your TV following the Easy setup on page 10, choose 2 Channel.

7If you selected 5.1 Channel audio connections in step 6, confirm which speakers are connected to your amplifier.

Audio1 A2 Video1 V2 Language General

Setup Navigator

Amp Connection

Center Speaker PresentDolby Digital/DTS

Not Present

Center speaker is connected to an amplifier

Move ENTER Select SETUP Exit

Audio1 A2 Video1 V2 Language General

Setup Navigator

Amp Connection

Surround Speakers PresentDolby Digital/DTS

Not Present

Surround speakers are connected to an amplifier

Move ENTER Select SETUP Exit

Audio1 A2 Video1 V2

Language

General



Setup Navigator











Amp Connection











Sub–woofer

PresentDolby Digital/DTS



Not Present





Sub–woofer is connected









to an amplifier











Move

ENTER

Select

SETUP

Exit

8Confirm the digital audio formats your amplifier is compatible with (if you made a digital connection).

Audio1 A2 Video1 V2

Language

General



Setup Navigator

Dolby Digital







Dolby Digital/DTS



Amp Connection

Dolby Digital/MPEG



Digital Jack

Dolby D/DTS/MPEG





PCM











Not Connected



Compatible with Dolby Digital







Move

ENTER

Select

SETUP

Exit

All options (except Not Connected) assume PCM compatibility. The PCM option means only compatible with PCM.

More information on these audio formats is available in the Glossary on page 60.

Consult the manual that came with your amplifier if you’re unsure about compatibility with any of these formats.

18

Getting Started

9Confirm whether your amplifier is compatible with 96kHz audio.

Audio1 A2 Video1 V2

Language

General



Setup Navigator











Amp Connection

No









96kHz PCM Audio

Yes











Don't Know





Digital jack not compatible with 96kHz



Move

ENTER

Select

SETUP

Exit

You won’t see this screen if you selected Not Connected in step 8.

Selecting Don’t Know has the same effect as selecting No: any 96kHz audio will be downsampled to 48kHz. This is a more compatible sampling frequency. See Sampling frequency in the Glossary on page 61 for more on this.

10 Select ‘Save Changes’ to make the settings.

Audio1 A2 Video1 V2

Language

General



Setup Navigator













Save Changes



Exit Setup Navigator

Delete Changes





Start Again





Changes are saved











Move

ENTER

Select

SETUP

Exit

11Press SETUP to exit.

You may not need to do this step, depending on when you use the Setup Navigator.

Congratulations, set up is complete!

If you want to use the Setup Navigator again at any time, it is available from the General menu. Also, each individual setting can be changed using the appropriate menu option—chapter 7 explains all menu options in detail.

4

English

19

4Getting Started

Playing discs

The basic playback controls for playing discs are covered here. Further functions are detailed in the next chapter.

Note

Throughout this manual, the term ‘DVD’ means DVD-Video, DVDAudio and DVD-R/RW. If a function is specific to a particular kind of

DVD disc, it is specified.

1Switch the player on.

If you’re playing a DVD or Video CD, also turn on your TV and make sure that it is set to the correct video input.

2 Press OPEN/CLOSE to open the disc tray.

3Load a disc.

Load a disc with the label side facing up, using the disc tray guide to align the disc (if you’re loading a double-sided DVD disc, load it with the side you want to play face down).

4Press 3to start playback.

If you’re playing a DVD or Video CD, a menu may appear. See page 22 for how to navigate these.

20

Getting Started

Basic playback controls

Button

What it does

3Starts playback.

DVD and Video CD: if the display shows RESUME, playback starts from the resume point.

8Pauses a disc that’s playing, or restarts a paused disc.

7Stops playback.

DVD and Video CD: Display shows RESUME. Press 7again to cancel the resume function.

11. Press & hold for fast reverse scanning. Release to resume normal playback.

2. Press once to start reverse scannning. Press again to increase the scan speed. (SACD, CD and Video CD have two scan speeds; DVD has three.) Press 3to resume normal playback.

During pause, press 1for longer than one second to perform reverce slow playback.

¡1. Press & hold for fast forward scanning. Release to resume normal playback.

2. Press once to start forward scannning. Press again to increase the scan speed. (SACD, CD and Video CD have two scan speeds; DVD has three.) Press 3to resume normal playback.

During pause, press ¡for longer than one second to perform slow playback.

4Skips to the start of the current track or chapter, then to previous tracks/chapters.

¢Skips to the next track or chapter.

Numbers

1. If the disc is stopped, playback starts



from the selected title/group (DVD) or



track number (SACD/CD/Video CD).



2. If the disc is playing, playback jumps



to the start of the selected chapter or



track (within the current group for DVD-



Audio).





+10

Selects titles/groups/chapters/tracks 10



and over. (For example, for 24, press +10,



+10, 4.)





Important

While using the DVD playback controls, you may see the or mark displayed on-screen.

means that the operation is not allowed by the player.

means that the operation is not allowed by the disc.

4

English

21

4Getting Started

Navigating DVD disc menus

Many DVD discs contain menus. Sometimes these are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU. For DVD Audio discs, use

TOP MENU.

Note

Some DVD-Audio discs feature a ‘bonus group’. To access this group you have to input a password, which you can find on the disc’s packaging. See page 57 for more information.

Button

What it does

TOP MENU

Displays the ‘top menu’ of a DVD disc—this



varies with the disc.





MENU

Displays a DVD disc menu—this varies with



the disc and may be the same as the ‘top



menu’.





RETURN

Returns to the previously displayed menu



screen.



On some DVD-Audio discs featuring



browsable pictures, press to display the



browser screen.





Joystick

Moves the cursor around the screen.





ENTER

Selects the current menu option.





Numbers

Selects a numbered menu option (some discs



only).





+10

Selects a numbered menu option 10 and over.



(For example, for 24, press +10, +10, 4.)



(Some discs only.)





Navigating Video CD PBC menus

Some Video CDs have menus from which you can choose what you want to watch. These are called PBC (Playback control) menus.

You can play a PBC Video CDs without having to navigate the PBC menu by starting playback using a number button to select a track, rather than the 3button.

Button

What it does

RETURN

Displays the PBC menu.





Numbers

Selects a numbered menu option.





+10

Selects a numbered menu option 10 and



over. (For example, for 24, press +10,



+10, 4.)





4Displays the previous menu page (if there is one).

¢Displays the next menu page (if there is one).

Navigating DVD-RW discs menus

1 Press MENU.

2Move the Joystick left/right buttons to toggle between Original and Play List.

The Original screen shows the contents of the disc as recorded. The Play List screen shows the contents in the order programmed by the person who recorded the disc (not all DVD-RW discs contain a Play List).

You can’t switch between Original and Play List while a disc is playing.

3Move the Joystick up/down buttons to highlight a menu item in the list, then press ENTER to select it.

Use the 4and ¢to see the previous/next page.

To preview the first frame of the highlighted menu item, move the Joystick right .

To display this disc menu during playback, press

MENU.

22

Playing Discs

Introduction

• Many of the functions covered in this chapter apply to DVD discs, Video CDs, SACDs and CDs, although the exact operation of some varies slightly with the kind of disc loaded.

• When playing DVD discs, if the or icon appears onscreen when you try and use a particular function, either the player or the disc doesn’t allow the use of that function.

• When playing Video CDs, some of the functions are not available in PBC mode. If you want to use them, start the disc playing using a number button to select a track.

Finding what you want on a disc

You can directly access any point on a disc using one of the search modes. Use these search modes while a disc is playing, or when it’s stopped. Playback jumps to the point specified.

1 Press SEARCH repeatedly to choose between:

Title/Group search (DVD only)

Chapter/Track search

Page search (DVD-Audio discs with browsable pictures only)

Time search (DVD-Video and Video CD only)

Frame & Time search (DVD-Video only)

(The Frame Search option in the Video1 menu must be On to use this) (page 47)

Off

2 Enter the title/chapter/group/track number or time (minutes & seconds).

For example, for title 4, press 4.

For chapter/track 12, press 1 , 2.

For 45 minutes into the disc, press 4, 5, 0, 0.

3 Press 3to start/restart playback.

5

English

23

5Playing Discs

24

Still Frame/Slow Play/Frame Advance Playback

The video images on DVD and Video CD can be viewed as a still frame, played back at slow speeds and even advanced frame by frame.

Viewing a still frame

Press 8.

When viewing a DVD, if the paused picture shakes, select the [Field] setting in the Setup screen Video menu [Still Picture] setting as described on page 51.

To return to normal playback

When viewing a still frame playback, pressing 8or 3restores normal playback operation.

Viewing slow playback

Press ¡for longer than one second during Pause.

Slow playback is engaged.

During slow playback, the player return to pause when pressing 1.

1/16 – 1/8 – 1/4 – 1/2

Press 1for longer than one second during Pause.

Slow playback in the reverse direction is engaged.

During slow playback, the player return to pause when pressing ¡.

1/2 – 1/4 – 1/8 – 1/16

To return to normal playback

When viewing still frames or slow playback, pressing 3restores normal playback operation.

Frame by frame advance playback: Viewing one frame at a time

With this function, DVDs can be viewed in both forward and reverse directions. Video CDs can only be moved in the forward direction.

1 Press 8.

2Press ¡or 1rapidly.

¡: The picture advances one frame each time the button is pressed.

1: The picture backs up a DVD a few frames each time the button is pressed.

To return to normal playback

When viewing frame by frame playback, pressing 8or 3restores normal playback operation.

Note

There is no sound when viewing still frames or slow playback, or when advancing one frame at a time.

Still frame, slow play, or frame advance playback may not be possible with certain titles. In this case, the mark is displayed.

If a Browsable picture (page 60) is recorded on a DVD-Audio disc, frame advance playback is possible.

Playing Discs

Switching camera angles

Some DVD Video discs feature scenes shot from two or more angles—check the disc box for details: it should be marked with a icon if it contains multi-angle scenes.

To switch the camera angle, press ANGLE.

If the disc was paused, playback starts again with the new angle.

To hide the TV angle indicator, choose Angle Indicator > Off from the

Video 2 menu (see page 51).

Switching subtitles

Many DVD Video discs have subtitles in one or more lan- guages—the disc box will usually tell you which subtitle languages are available. You can switch subtitle language anytime during playback.

• To display/switch the subtitle language, press SUBTITLE repeatedly.

The current subtitle language is shown on-screen.

To switch off subtitles, press SUBTITLE then CLEAR.

To set subtitle preferences, see page 53.

5

English

25

5Playing Discs

Switching audio language

When playing a DVD Video disc recorded with dialog in two or more languages, you can switch audio language anytime during playback.

To display/switch the audio language, press AUDIO repeatedly.

The current audio language is shown on-screen.

To set audio language preferences, see page 52.

Switching audio channel

Depending on the disc, you may be able to switch channels, when playing DVD-Audio discs—see the disc box for details.

To switch the audio channel, press AUDIO repeatedly.

Switching audio channel

On Video CDs, CDs and MP3s you can switch between stereo, just the left channel or just the right channel.

On DVD-RW discs that have both L and R audio channel, you can switch between the L, R, or a mix of both.

To switch the audio channel, press AUDIO repeatedly.

The current playback channel(s) are indicated on-screen.

26

Playing Discs

Making a program list

This feature lets you program the play order of titles/groups/chapters/tracks on a disc. You make a program list via an on-screen display, using the cursor buttons to navigate and the number buttons to enter titles/chapters/tracks.

Note that programmed playback is not available for DVD-RWs.

1 Press PROGRAM.

Program Chapter Program Title

Program Chapter Program Title

Current:

Title



7

Chapter 1

Current:

Title

2(/20)



Title

1



(Chapter 1~18)











Program Memory — Off







Program Memory — Off





Move

ENTER

Play



PROGRAM Exit



Move

ENTER

Play

PROGRAM Exit

2Move the Joystick left/right to select ‘Program Chapter’ or ‘Program Title’.

3 Move the Joystick down to the program list window.

If you selected Program Chapter, move the Joystick up and enter a title number (all the programmed chapters will come from this title).

4Enter the title/chapter numbers for your program list.

For titles/chapters 1–9, use the corresponding number buttons. For 10 and over, use the +10 button (+10, +10, 4 for 24, etc.)

You can program a pause instead of a title/chapter: press 8instead of entering a number in the program list. (A pause can't be the first or last step in the list.)

A program list can contain up to 24 steps.

5

English

5If you want to save the program list, move the Joystick down to ‘Program Memory’ and set it to ‘On’.

Program Chapter

Program Title



Current:

Title



7 Chapter 1

Title



1



(Chapter 1~18)

09

07

18







Program Memory

On









Off





Move

ENTER

Select PROGRAM Exit

If you do this, the program list is automatically recalled when you next load the disc.

You can save program lists for up to 24 discs.

After setting to On, move the cursor back up to the program list window.

27

5Playing Discs

6Press ENTER or 3to start playback immediately, or PROGRAM to exit if you want to start playback later.

During program play, you may occasionally see the start of a chapter that was not programmed when the chapter number changes. This is not a malfunction.

Note

You can’t program track numbers over 100 on SACDs.

For Video CDs that feature PBC, make sure that the disc is stopped before you start.

1 Press PROGRAM.

Program Track

Current:



Track

1(/10)













Total Time







0.00

























































































































































































































Move

ENTER Play PROGRAM Exit

2Enter the track numbers for your program list.

For tracks 1–9, use the corresponding number buttons. For 10 and over, use the +10 button (+10, +10, 4 for 24, etc.)

You can program a pause instead of a track/chapter: press 8instead of entering a number in the program list. (A pause can't be the first or last step in the list.)

A program list can contain up to 24 steps.

3Press ENTER or 3to start playback immediately, or PROGRAM to exit if you want to start playback later.

You can't start playback later with a PBC Super VCD/Video CD; press ENTER or 3to start.

Programming tips

To view the program list press PROGRAM.

To delete a step in the program list, position the cursor on the title/group/chapter/track and press CLEAR.

To insert a step into the program list, position the cursor where you want the new step to appear, then enter the title/group/chapter/ track number.

All the following steps move up one.

To add the currently playing title/group/ chapter/track to the program list, press and hold PROGRAM for about a second.

If there is no current program list, a new one is created (for DVD, if the last list created was a title list then the a title program list is created, otherwise a chapter program list is created).

To delete the program list, stop playback (press 7), then press CLEAR.

The program list is also erased when you remove the disc from the player or turn the power off (standby).

To delete a memorized DVD program list, load the DVD, press PROGRAM, then change the

Program Memory option to Off. Press ENTER to confirm.

28

Playing Discs

5

Using random play

Use the random play function to play titles/chapters/groups/tracks (DVD) or tracks (CD or Video CD) in a random order.

You can’t use random play with DVD-RW discs, SACD or Video CD playing in PBC mode.

1Press RANDOM repeatedly to select a random play mode.

The mode is displayed on-screen:

• Random Chapter/Track (from within the current title)

• Random Title/Group

• Random (random play starts immediately)

2DVD only: Press ENTER or 3to start random play.

To stop the disc and cancel random playback, press 7.

To cancel random playback without stopping playback, press CLEAR. The

rest of the disc plays out.

Tip

During random play, the 4and ¢buttons function a little differently to normal: 4returns to the beginning of the current track/chapter/. You can't go back further than this. ¢selects another track/chapter at random from those remaining.

You can't use random play together with program or repeat play.

English

29

5Playing Discs

Using repeat play

You can set the player to repeat individual tracks on CDs or VideoCDs, chapters/tracks or titles/group on DVD discs, or the whole disc. It's also possible to loop a section of a disc.

You can use the repeat together with the programming mode to repeat the tracks/chapters in the program list (see page 27 for how to make a program list).

You can’t use any repeat mode or looped play with a Video CD playing in PBC mode.

Looped playback is not possible with SACD.

Note

You can’t use repeat and random play at the same time.

If you switch camera angle during repeat play, repeat play is cancelled.

1 Press REPEAT during playback to select a repeat mode.

Each press switches the repeat mode:

Repeat Chapter/Track

Repeat Title/Group

Repeat Off

Repeat Track

Repeat All

Repeat Off

2To resume normal playback, press CLEAR.

Tip

You can use repeat play with program play. During program play, press

REPEAT.

Looping a section of a disc

1Press (REPEAT) A-B once at the start of the section you want to repeat, then again at the end.

Playback immediately jumps back to the start point and plays the loop round and round.

On a DVD disc, the start and end points of the loop must be in the same title/group.

2To resume normal playback, press CLEAR.

You can also repeat a section of a disc just once by pressing 3to mark the end point (instead of A-B).

30

Playing Discs

Bookmarking a place in a disc (LAST MEMORY)

If you watch only part of a DVD Video disc with the intention of picking up later where you left off, you can bookmark the place then resume playback at a later date without having to manually search for the right place.

You can use this feature for up to five discs (after that the oldest bookmark is deleted to make space for a new one).

Bookmarking also works with Video CDs, but for one disc only, and you must leave the disc in the player—opening the disc tray erases the memory. Last Memory may not work reliably with some PBC Video CDs.

You can’t use bookmarking with DVD-Audio and DVD-RW discs. Depending on the disc, you may not be able to use bookmarking with DVD-Video or Video CD discs.

At the point from which you want to resume playback next time, press LAST MEMO.

Press 7if you want to stop playback here.

To resume playback, load the disc and press LAST MEMO.

If the disc starts auto playback, stop it first.

To clear the bookmark for the disc loaded, press LAST MEMO then CLEAR while ‘Last Memory’ is displayed on-screen.

5

English

31

5Playing Discs

Memorizing disc settings (CONDITION MEMORY)

If you have a particular set of preferences for a disc, you can memorize them using the Condition Memory function. Once memorized, your settings will be recalled automatically whenever you load that disc. The player can store settings for 15 discs; after this, memorizing another replaces the oldest one stored.

Condition Memory does not work with DVD-Audio and DVD-RW discs.

The settings memorized are:

Multi-Angle (page 25)

Subtitle Language (page 25)

Audio Language (page 26)

On Screen Display (page 40)

Video Adjust (page 49)

Parental Lock level (page 55)

To memorize settings for the current disc, press CONDITION MEMO during playback.

To recall memorized settings, just load the disc.

The display shows COND_MEM and ‘Condition Memory’ appears on-screen.

To clear memorized settings, load the disc and press CLEAR while ‘Condition Memory’ is displayed on-screen.

32

Playing Discs

Using setup menu shortcuts (FUNCTION MEMORY)

You can create a shortcut menu of up to 5 setup menu items that you often access. Rather than navigate through the whole setup menu each time you want to alter a setting, you can access the setting straight from the shortcut.

To add a menu item to the shortcut list:

1 Press SETUP.

2 Select the menu item you want to add.

3 Press F.MEMO.

The item is marked FM. (Some items in the Setup menu cannot be

added to the shortcut menu. In this case, the



mark or i This item





cannot be registered in the function memory’ is displayed on-screen.)

4Repeat steps 2 and 3 to add up to five items to the shortcut menu.

5 Press SETUP to exit.

To use the shortcut menu:

1 Press F.MEMO.

Function Memory

On Screen Display

Digital Out

2 Select the item you want using the Joystick and press ENTER.

3The Setup menu opens on the item you selected.

Select from the options in the normal way.

4 Press SETUP to exit.

To delete an item from the shortcut menu:

1 Press SETUP.

2Select the menu item you want to delete from the shortcut menu.

It should be marked FM.

3 Press F.MEMO to clear the FM mark.

4 Press SETUP to exit.

5

English

33

5Playing Discs

Displaying disc information

Various track, chapter and title information, as well as the video transmission rate for DVD discs, can be displayed on-screen while a disc is playing, or while it’s stopped.

To show/switch the information displayed, press DISPLAY.

When a disc is playing, the information appears at the top of the screen. Keep pressing DISPLAY to change the displayed information.

Example:

Play

2–1

0.24

Track

–6.05/

6.29

DVD-Audio display









Play

3

9.2

Tr. Rate :



DVD display showing the data transmission rate

When a disc is stopped, all title/group/chapter, or track information for the disc loaded appears on-screen. Press DISPLAY again to exit the screen.

Information: DVD









Title

Chapter

Title

Chapter

01

1 ~ 30

06

1

~ 10



02

1 ~ 21

07

1

~ 13



03

1 ~ 46

08

1

~ 5



04

1 ~ 12

09

1

~ 4



05

1 ~ 8

10

1 ~ 8





1/2



DISPLAY

Exit

Titles and number of chapters in each title

Information: Compact Disc







Total time



72 . 04





Track

Time

Track

Time



01

5 . 23

06

6 . 51



02

4 . 55

07

3 . 18



03

6 . 13

08

6 . 50



04

5 . 45

09

4 . 16



05

5 . 10

10

3 . 22



1/2





DISPLAY

Exit

Total playing time of disc, tracks and track times

disc name (if programmed)

Information: DVD-RW





Information: DVD







Disc







Group

Track

Group

Track

Title

Original

1 ~ 6



01

1 ~ 1

06

1 ~ 1



02

1 ~ 1

07

1 ~ 1



Play List

1 ~ 3



03

1 ~ 1

08

1 ~ 1









04

1 ~ 1

09

1 ~ 4









05

1 ~ 1









DISPLAY Exit





1/1





DISPLAY Exit

Disc name (if programmed) and number of













Groups and number of tracks in each group

titles in the Original recording and the Play List

Information: SACD 2ch Area







Total time



72 . 04





Track

Time

Track

Time



001

5 . 23

006

6 . 51



002

4 . 55

007

3 . 18



003

6 . 13

008

6 . 50



004

5 . 45

009

4 . 16



005

5 . 10

010

3 . 22



1/2





DISPLAY

Exit

Total playing time of disc, tracks and track times

34

Playing MP3s

Playing MP3s

This player can play MP3 files on a CD-ROM disc. MP3 is a popular audio format on computers and the Internet because file sizes are small (compared to uncompressed CD audio), while the sound quality remains surprisingly good.

1 Switch the player on.

2 Press OPEN/CLOSE button to open the disc tray.

3 Load a CD-ROM containing MP3 tracks

4 Press 3to start playing the first MP3 track on the disc.

• It may take a few seconds for the player to locate the track on the disc, depending on the complexity of the file structure. During this time, ‘Please wait a moment’ is displayed.

The track name is displayed for the first five seconds of the track. After the selected track has played out, the next track recorded on the disc starts playing.

Press 8while a track is playing to pause. Press again to restart

playback.

Press 4 / ¢ to skip to the previous/next track on the disc.

Press and hold 1 / ¡ to scan backward/forward.

Press 7to stop playback. Except in program or random play, the player remembers the current folder as long as the disc remains in the player. Press 3to restart playback from the first track of that folder.

6

English

35

6Playing MP3s

Searching for folders and tracks

1Use the SEARCH to choose between:

Folder search

Track search

Off

2Enter the folder/track number.

For example, for folder 4, press 4. For track 12, press 1 , 2.

3Press ENTER or 3to start/restart playback.

Using random play

Files can be mono or stereo. Use the random play feature to play tracks on a disc in a random order. Playback stops when all the tracks have played.

1 Press RANDOM to start random play.

2To cancel random play, press 7.

Random play is also canceled if the disc tray is opened, you press PROGRAM, or you use the number buttons to jump to another track.

Using repeat play

Use the repeat play feature to repeat the current track, or all the tracks on the disc.

1During playback, press REPEAT to select a repeat play mode.

Each press changes the repeat play mode:

Repeat Track

Repeat Folder

Repeat Disc

Repeat Off

If you stop playback or open the disc tray, repeat play is also canceled.

Displaying MP3 information

1Press DISPLAY repeatedly during playback to display various MP3 information onscreen.

There are four information screens:

Displays when playing

current track number/











total number of tracks in folder

elapsed time of current track































Play

1/7



0.07





Track

TRACK1~1





















track name











«







current folder number/total number of folders

elapsed time of current track































Play

2/3

0.07





Folder

FOLDER~1





















folder name











«







current folder number/current track number

elapsed time of current track































Play

2–1

0.07





Track

–3.13/

3.20















remaining time of current track

total time of current track





«







current folder number/current track number

elapsed time of current track































Play





0.07





2–16





Tr. Rate:



128kbps

















transmission rate level

«

Display off

Displays when stopped

Information: MP3











Folder

Track

Folder

Track



001

1

~ 9

006

1

~ 10



002

1

~ 11

007

1

~ 13



003

1

~ 3

008

1

~ 5



004

1

~ 22

009

1

~ 4



005

1

~ 15

010

1

~ 8



1/2







DISPLAY

Exit

Folders and number of tracks in each folder

36

Playing MP3s

Using the MP3 Navigator

Use the MP3 Navigator to make searching for the track(s) you want to play easier. You can also use it to add or clear tracks from the program list.

1Load a CD-ROM containing MP3 tracks.

2Press MENU to enter the MP3 Navigator screen.

The left side of the screen shows a list of folders containing MP3 tracks.

If you display the MP3 Navigator when a disc is playing, the currently playing folder and track numbers are shown at the top left of the screen.

Total number of Track

Current :

3 1-1



MP3 Navigator



Folder

Track





1.FOLDER~1

1.TRACK1~1



2.FOLDER~2

2.TRACK2~2



3.FOLDER~3

3.TRACK3~3



4.FOLDER~4

4.TRACK4~4



5.FOLDER~5







6.FOLDER~6









ENTER

Play

MENU

Exit

Total number of Folder

On the right side is a list of MP3 tracks from the first folder in the list.

Current :

3 1-1





MP3 Navigator

1~10



Folder



Track

1~4



1.FOLDER~1



1.TRACK1~1





2.FOLDER~2



2.TRACK2~2





3.FOLDER~3



3.TRACK3~3





4.FOLDER~4



4.TRACK4~4





5.FOLDER~5











6.FOLDER~6









CLEAR

Del PGM

ENTER

Play

MENU

Exit

Navigate using the following controls:

Joystick left/right – Select folder and tracks from the current screen.

Joystick up/down – Select the previous/next of folders and tracks. To move rapidly up or down a long list of folders or tracks, press and hold the Joystick up/ down.

ENTER – Play the currently selected folder or track. MP3 tracks that are unplayable on this player are automatically skipped and the display shows

‘UNPLAYABLE MP3 FORMAT’.

MENU – Exit the MP3 Navigator

PROGRAM – Add the currently selected track to the program list. (Tracks in the program list are marked .) Pressing PROGRAM repeatedly will add the track to the program list repeatedly.

See Making a program list of MP3 tracks on page 38 for how to use program play.

(Press MENU to exit the MP3 Navigator first.)

CLEAR – Clear the currently selected track from the program list.

6

English

37

6Playing MP3s

Making a program list of MP3 tracks

1Press PROGRAM to enter the MP3 Program screen.

If you added tracks to the program list from the Using the MP3 navigator on page 37, the tracks are displayed here.

Total number of folder or track

Folder name Track name

MP3 Program

Folder : 001~25 – – – – – – – – : – – – – – – – –

– – –:– – –

– – –:– – – – – –:– – – – – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –



– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

– – –:– – –

Move ENTER Play PROGRAM Exit

From this screen you can enter folder and track numbers directly to build up a program list.

2Use the number buttons to enter a three-digit folder number.

The number of folders on the disc is displayed in the top-left of the screen.

Once you’ve entered a valid folder number, the name of the folder appears.

MP3 Program

Track 001~10

FOLDER1~ : – – – – – – – –



001:– – –

– – –:– – –

– – –:– – –

– – –:– – –



– – –:– – –

– – –:– – – – – –:– – – – – –:– – –



– – –:– – – – – –:– – – – – –:– – – – – –:– – –









– – –:– – – – – –:– – – – – –:– – – – – –:– – –



– – –:– – – – – –:– – – – – –:– – – – – –:– – –





Move

ENTER

Play

PROGRAM Exit

3Use the number buttons to enter a three-digit track number.

The number of tracks in the current folder is displayed in the top-left of the screen.

MP3 Program

Folder 001~25

– – – – – – – – : – – – – – – – –



001:008

– – –:– – –



– – –:– – –

– – –:– – –







– – –:– – –

– – –:– – –

– – –:– – – – – –:– – –







– – –:– – – – – –:– – – – – –:– – – – – –:– – –







– – –:– – – – – –:– – – – – –:– – – – – –:– – –







– – –:– – – – – –:– – – – – –:– – – – – –:– – –





























Move

ENTER

Play

PROGRAM Exit

Navigate using the following controls:

Joystick – Navigate the program list.

CLEAR – Clear the currently selected item in the program list.

ENTER – Start playing the program list.

PROGRAM – Exit the MP3 Program screen.

38

DVD Setup Menu

Using the Setup menu

The Setup menu gives you access to all the player’s settings. Press SETUP to display/leave the menu and the Joystick and ENTER buttons on the remote to navigate and select options. In some screens you can press RETURN to leave the screen without making any changes. The controls for each menu are shown at the bottom of the screen.

If an option is grayed out it means that it cannot be changed at the current time. This is usually because a disc is playing. Stop the disc, then change the setting.

The current setting for any option is marked with a colored box. The color of the box indicates what kind of disc the setting is applicable to: blue for DVD only; yellow for DVD and Video CD; orange for DVD-Audio and SACD/CD; green for any type of disc.

Note

The language options shown in the on-screen display illustrations on the following pages may not correspond to those available in your country or region.

Setup Menu Mode

• Default setting: Expert

The Expert setup menu gives you access to all the player’s settings. Switch to Basic for a reduced set of more commonly used settings. The Basic menu also features an information bar which tells you more about what the currently highlighted option means.

Sections below marked with the icon are available only in Expert mode.

Audio1 A2 Video1 V2 Language General

Setup Menu Mode Expert

Setup Navigator Basic

Parental Lock — Off (us)

Bonus Group

Auto Disc Menu — On

Group Playback — Single

Move

SETUP Exit

7

English

39

7DVD Setup Menu

OSD Settings

OSD Language

Set in Setup Navigator (default: English)

Choose the language you want the OSDs in.

Audio1

A2

Video1

V2



Language

General





OSD Language



English







Audio Language





français



Subtitle Language





Deutsch



Auto Language





Italiano



DVD Language





Español



Subtitle Display

— On





Subtitle Off

— Selected Subtitle

























Move







SETUP Exit

On Screen Display

• Default setting: On

If you prefer not to have the operation displays shown on-screen, change the setting to Off.

Audio1 A2 V1 Video2 Language General

Background — Black

Video Adjust

Still Picture

— Auto

On Screen Display



On





Angle Indicator





Off









Move





SETUP Exit

Audio settings

Audio DRC

• Default setting: Off

When watching Dolby Digital DVDs at low volume, it’s easy to lose the low level sounds completely— including some of the dialog. Switching on Audio DRC (Dynamic Range Control) can help things by bringing up the low level sounds, while keeping the lid on high level peaks.

The Off setting leaves the original dynamics intact; On ‘squashes’ the dynamics; but exactly how much difference you can hear between the settings will depend on the material you’re watching.

Audio1

A2

Video1

V2

Language

General







Audio DRC

Off



Dolby Digital Out

On





DTS Out

— DTS 3PCM



Linear PCM Out

— Down Sample On





MPEG Out

— MPEG 3PCM





Digital Out

— On



SACD Playback

— 2ch Area

















Move



SETUP Exit

Remember

Audio DRC is only effective with Dolby Digital audio sources.

The effect of Audio DRC depends on your speakers and AV amplifier settings.

40

DVD Setup Menu

Dolby Digital Out

• Default: Dolby Digital

You only need to make this setting if you connected this system to another component (AV amplifier, etc.) using one of the digital outputs.

If your AV amplifier (or other connected component) is Dolby Digital compatible, set to Dolby Digital, otherwise set to Dolby Digital 3PCM.

Audio1

A2

Video1

V2

Language

General







Audio DRC

— Off



Dolby Digital Out

Dolby Digital





DTS Out

Dolby Digital 3PCM



Linear PCM Out

— Down Sample On





MPEG Out

— MPEG 3PCM





Digital Out

— On



SACD Playback

— 2ch Area

















Move



SETUP Exit

DTS Out

• Default setting: DTS 3PCM

You only need to make this setting if you connected the player to another component (AV amplifier, etc.) using one of the digital outputs.

If your AV amplifier (or other connected component) has a built-in DTS decoder, set this to DTS, otherwise set to DTS 3PCM. Check the manual that came with the other component if you’re unsure whether it is DTS compatible.

Audio1

A2

Video1

V2

Language

General







Audio DRC

— Off



Dolby Digital Out

— Dolby Digital





DTS Out

— DTS



Linear PCM Out



DTS3PCM













MPEG Out

— MPEG 3PCM





Digital Out

— On



SACD Playback

— 2ch Area



















Move





SETUP Exit

Important

If you set to DTS with a non-DTS compatible amplifier, noise will be output when you play a DTS disc.

Linear PCM Out

• Default setting: Down Sample On

You only need to make this setting if you connected the player to another component (AV amplifier, etc.) using one of the digital outputs.

If your AV amplifier (or other connected component) is compatible with high sampling rates (96 kHz), set this to Down Sample Off, otherwise set it to Down Sample On (96 kHz audio is converted to a more compatible 48 kHz). Check the manual that came with the other component if you’re unsure whether it is 96 kHz compatible.

Audio1

A2

Video1

V2

Language

General







Audio DRC

— Off



Dolby Digital Out

— Dolby Digital





DTS Out

— DTS 3PCM



Linear PCM Out



Down Sample On













MPEG Out





Down Sample Off





Digital Out

— On



SACD Playback

— 2ch Area





















Move







SETUP Exit

Note

Even when set to Down Sample Off, some discs won’t output audio through the digital outputs, while others may only output down sampled audio (48kHz or 44.1kHz).

High sampling rate DVD-Audio discs always output down-sampled audio (between 44.1kHz and 96kHz depending on the disc) through the digital outputs.

7

English

41

7DVD Setup Menu

MPEG Out

• Default setting: MPEG 3PCM

You only need to make this setting if you connected the player to another component (AV amplifier, etc.) using one of the digital outs.

If your AV amplifier (or other connected component) is compatible with MPEG audio, set this to MPEG, otherwise set it to MPEG 3PCM (MPEG audio is converted to more compatible PCM audio). Check the manual that came with the other component if you’re unsure whether it is MPEG audio compatible.

Audio1

A2

Video1

V2

Language

General







Audio DRC

— Off



Dolby Digital Out

— Dolby Digital





DTS Out

— DTS 3PCM



Linear PCM Out

— Down Sample On





MPEG Out

MPEG





Digital Out

MPEG 3PCM



SACD Playback

— 2ch Area

















Move



SETUP Exit

Digital Out

• Default setting: On

If at any time you need to switch off the digital audio output, set this to Off, otherwise leave it On. Note that you can’t switch on/off the optical and coaxial outputs individually.

Audio1

A2

Video1

V2

Language

General







Audio DRC

— Off



Dolby Digital Out

— Dolby Digital





DTS Out

— DTS 3PCM



Linear PCM Out

— Down Sample On





MPEG Out

— MPEG 3PCM





Digital Out

On



SACD Playback

Off

















Move



SETUP Exit

SACD Playback

• Default setting: 2ch Area

SACD discs can be divided up into several different areas – stereo audio, 5.1 channel audio and, for hybrid SACDs, standard CD audio. The SACD Playback setting enables you to select which area of the disc you want to play.

Audio1

A2 Video1 V2

Language General





Audio DRC

— Off





Dolby Digital Out

— Dolby Digital





DTS Out

— DTS 3PCM





Linear PCM Out

— Down Sample On





MPEG Out

2ch Area





Digital Out

Multi-ch Area





SACD Playback

CD Area





Move

SETUP

Exit



Note



If you select an area that isn’t on the disc loaded,



a different area of the disc will play. For example, if



you choose standard CD audio but the disc



loaded is not a hybrid SACD, the stereo SACD

42

audio will play.





Virtual Surround

• Default setting: Off

If you connected your DVD player using only the stereo analog outputs and set Audio Out (see below) to 2 Channel, you can simulate surround sound by setting Virtual Surround to TruSurround.

A1

Audio2

Video1

V2

Language

General























Virtual Surround



Off













Audio Out





TruSurround



Speaker Setting











Gain Setting — Fix



CD Digital Direct — Off



Move

SETUP Exit

Note

There is no effect when the audio source is DVDAudio, DTS or 96 kHz LPCM or during CD, MP3 or SACD playback.

The digital audio output level is reduced when playing 2 channel Dolby Digital DVDs or Video CDs with TruSurround selected. If you play a multichannel Dolby Digital DVD with Dolby Digital to PCM conversion (see page 41) and TruSurround selected, there is no digital output.

How good the surround effect is varies with the disc.

TruSurround

TruSurround uses technology that simulates multichannel surround sound using only two speakers.

DVD Setup Menu

Audio Out

Set in Setup Navigator (Default: 2 Channel)

If you connected this player to your amplifier using the 5.1 channel analog outputs (front, surround, center and subwoofer outs), set this to 5.1 Channel; if you connected only the stereo outs, set to 2 Channel.

A1

Audio2

Video1

V2

Language

General





















Virtual Surround — Off





Audio Out



2 Channel



Speaker Setting



5.1 Channel

Gain Setting — Fix



CD Digital Direct — Off



Move

SETUP Exit

About source audio output

Note

Even if you set Audio Out to 5.1 Channel, you’ll only get sound from all speakers when playing a multi-channel DVD-Audio disc, or Dolby Digital, DTS or MPEG encoded DVD disc.

If you set to 2 Channel, Dolby Digital, DTS and MPEG audio is mixed down to two channels so you still hear all the audio recorded on the disc.

Some DVD-Audio discs don’t allow down-mixing of audio. These discs always output multi-channel audio regardless of the setting made here.

When the source output mode has been switched between the 5.1 Channel and 2 Channel mode settings using the Audio Out setting in the Setup screen Audio 2 menu, audio output for each source will be as shown on the following table.



AUDIO

OUTPUT

AUDIO OUT (2 CH)



AUDIO OUT (5.1 CH)



DIGITAL OUTPUT (S/PDIF)























CONTENTS

MODE

L, R (Front L,R)

Center



Surround L,R

Sub Woofer

Dolby Digital or





Dolby Digital or









MPEG 3PCM





MPEG



Dolby

5.1 CH

Front Lch, Rch

Center



Surround LS, RS



LFE

2 ch DOWNMIX

































Dolby Digital



Digital

































Lch, Rch







2 CH

2 ch DOWNMIX Lch, Rch





MUTE























































Dolby

5.1 CH























Digital



Lch, Rch





MUTE



Lch, Rch





Dolby Digital

















Karaoke

2 CH

















































































LPCM

5.1 CH/

Lch, Rch





MUTE



Lch, Rch



2 CH































DVD



5.1 CH

Front Lch, Rch

Center



Surround LS, RS



LFE



























DTS

















DTS



2 CH

2 ch DOWNMIX Lch, Rch





MUTE











































































5.1 CH

Front Lch, Rch

Center



Surround LS, RS



LFE











MPEG















Lch, Rch





MPEG



2 CH

Lch, Rch





MUTE



















































DVD

5.1 CH

Front Lch, Rch

Center



Surround LS, RS



LFE

























2 ch DOWNMIX Lch, Rch*2



















-Audio

2 CH

2 ch DOWNMIX Lch, Rch*1





MUTE













CD

5.1 CH/

Lch, Rch





MUTE



Lch, Rch



2 CH



































5.1 CH

Front Lch, Rch

Center



Surround LS, RS



LFE











SACD



















MUTE



2 CH

2 ch DOWNMIX Lch, Rch





MUTE

























Video CD

5.1 CH/

Lch, Rch





MUTE



Lch, Rch

2 CH

































DVD-RW

5.1 CH/

Lch, Rch*3





MUTE



Dolby Digital, MPEG or





2 CH













PCM (Lch, Rch)

*1: Discs that prohibit downmixing will be output as 5.1channel even if 2 Channel is selected.

*2: Discs that prohibit downmixing also mute the digital output.

*3: If the sound is mono, Lch and Rch audio will be the same.

7

English

43

7DVD Setup Menu

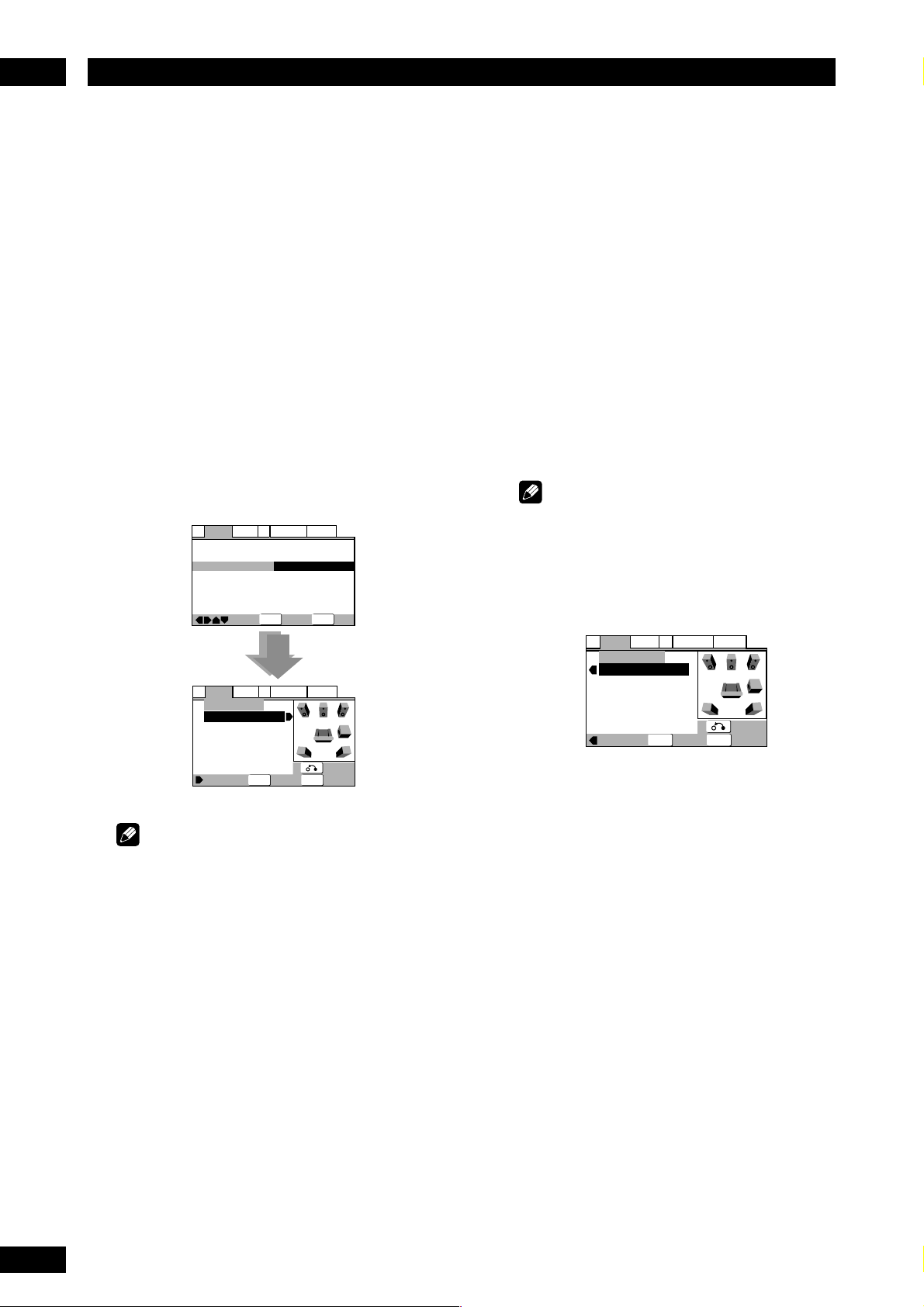

Speaker Setting

Set in Setup Navigator (default: Center: Large |

Sub: On | Surround: Large | Distance: all 3.0m)

You only need to make this setting if you connected this player to your amplifier using the 5.1 channel analog outputs. This setting does not affect digital audio output.

Follow the on-screen displays to describe which speakers are in your system and their sizes and positions.

Set the size of your speakers in the Size screen. The front left/right (L/R) speakers have a fixed setting of Large. The center (C), left surround (LS) and right surround (RS) speakers can each be set to Large, Small or Off. Set a speaker to Large if the main speaker cone is 12cm or more; set to Small if the it’s less than 12cm. Note that the LS and RS speakers cannot be set independently.

The subwoofer (SW) can only be set to On or Off.

A1

Audio2

Video1

V2

Language

General





Virtual Surround

— Off









Audio Out

— 2 Channel







Speaker Setting

Start









Gain Setting

— Fix







CD Digital Direct — Off





















Move

ENTER Select

SETUP Exit

Press ENTER

A1

Audio2

Video1 V2

Language

General





Speaker Setting













Size



L

C

R



L/R

Large













C

Large







SW



LS

Large











LS

RS





RS

Large

















SW

On





Return



Distance



ENTER

Select

SETUP

Exit



Note

When listening to a DVD audio source, the C, LS, and RS speakers will automatically be set to the Large size setting. However, the sound will not be affected by the change. Listening to another source will return the speakers to their original settings.

For DVD-Audio only, if the C, LS, or RS speakers is set to Off, the audio is automatically downmixed to stereo.

The graphic on the right of the screen represents your speaker setup, with the currently selected speaker’s name highlighted in blue, and the speakers set to On highlighted in yellow.

Set the distance from your main listening position to each speaker in the Distance screen. The distance setting for any speaker that was set to Off in the Size screen will be grayed out. For the other speakers, enter the distance to the nearest 0.1m (10cm). You can set the distance for the L/R speakers between 0.3m and 9m. Note that you must set the C and SW speakers within 2m of the L/R setting. The LS and RS speakers must be set within -6m and +2m of the L/R setting. The graphic on the right of the screen represents your speaker setup, with the currently selected speaker’s name highlighted in blue, and the speakers set to On highlighted in yellow.

Note

If your subwoofer is placed beyond the adjustment range (L/R±2m), set to the nearest

setting possible. Surround sound cohesion should not be affected very much.

This setting does not apply to SACD playback.

A1

Audio2

Video1 V2

Language

General





Speaker Setting













Distance

L

C

R



L/R

0.3m













C

0.3m







SW



LS

0.3m











LS

RS





RS

0.3m

















SW

0.3m





Return



Size



ENTER

Select

SETUP

Exit



44

DVD Setup Menu

Gain Settings

• Default setting: Fix

You may want to make this setting if you connected this player to your amplifier using the 5.1 channel analog outputs.

Under the default setting, all channels are output at the relative volumes they were recorded at. Change the setting to Variable if you want to adjust the relative volume levels of any of the speakers. Adjustment is in the range of -6dB to +6dB, in steps of 0.5dB.

When set to Variable, the overall output level may sound quieter than when set to Fix. This is not a malfunction.

Note

Gain settings are not effective when playing a CD with

CD Digital Direct set to On.

A1

Audio2

Video1 V2

Language

General





Virtual Surround

— Off









Audio Out — 2 Channel







Speaker Setting











Gain Setting

Fix







CD Digital Direct

Variable









Move

ENTER Select

SETUP

Exit

Press ENTER

A1

Audio2

Video1 V2

Language

General



Gain Setting









L

0.0 dB

L

R



C

0.0 dB











R

0.0 dB





SW



RS

0.0 dB









LS

RS



LS

0.0 dB





SW

0.0 dB





Return

Test Tone



ENTER Select

SETUP

Exit

To help you gauge the correct gain levels, set the Test Tone to On (test tone from just that speaker) or Auto (test tone from each speaker in turn, excluding the subwoofer) then adjust the gain so that all speakers appear to be the same volume from your listening position.

Follow the on-screen displays to select speakers and set the channel levels.

You can adjust the Test Tone setting only when the player is stopped.

Many AV amplifiers allow you to make similar settings at the amplifier stage. In this case, set the channel levels at the player or the amplifier, not both.

As the test tone plays through a speaker, its name is highlighted in yellow on-screen.

A1

Audio2

Video1 V2

Language

General



Test Tone









L

Off

L

R



C

Off











R

Off





SW



RS

Off









LS

RS



LS

Off





SW

Off





Return



Gain



ENTER

Select

SETUP

Exit

Remember

You can't use the test tone function when the Audio Out setting is 2 Channel (see page 43).The test tone will not work with the disc tray open, or while a disc is playing.

7

English

45

7DVD Setup Menu

CD Digital Direct

• Default setting: Off

Setting this to On increases CD audio quality by bypassing certain audio circuits in the player that audio signal would otherwise pass through.

However, this must be set to Off for proper playback of DTS encoded CDs.

A1

Audio2

Video1 V2

Language

General





Virtual Surround

— Off









Audio Out — 2 Channel







Speaker Setting











Gain Setting

On







CD Digital Direct

Off









Move



SETUP

Exit

Remember

If this setting is set to On when a DTS CD is playback, noise is produced.

46

DVD Setup Menu

Video settings

TV Screen

Set in Setup Navigator (Default: 16:9 (Wide))

If you have a widescreen TV, select the 16:9 (Wide) setting—widescreen DVD software is then shown using the full screen area. When playing software recorded in conventional (4:3) format, the settings on your TV will determine how the material is presented—see the manual that came with your TV for details on what options are available. If your TV does not have settings for how 4:3 sources look, choose the 16:9(Compressed) setting. The picture you see on your TV will be determined by the disc. See page 68 for more information.

If you have a conventional TV, choose either 4:3 (Letter Box) or 4:3 (Pan & Scan). In Letter Box mode, widescreen software is shown with black bars at the top and bottom of the screen. Pan & Scan chops the sides off widescreen material to make it fit the 4:3 screen (so even though the picture looks larger on the screen, you’re actually seeing less of the movie).

Audio1 A2 Video1 V2 Language General

TV Screen

— 4:3(Letter Box)

Video Out



4:3(Pan&Scan)

S-Viveo Out



16:9(Wide)





Frame Search



16:9(Compressed)

Screen Saver

— Off







Move



SETUP Exit

Note

You cannot change this setting when a disc is playing.

Some discs will not allow you to change the aspect ratio.

S-Video Out

• Default setting: S2

You only need to make this setting if you connected this player to your TV using an S-Video cord.

If you find that the picture is stretched or distorted on the default S2 setting, try changing it to

S1.

Audio1

A2

Video1

V2

Language

General







TV Screen

— 16:9(Wide)





Video Out

— Video





S-Video Out

— S1





Frame Search



S2











Screen Saver

— Off





















Move





SETUP Exit

Frame Search

• Default setting: Off

Set this to On if you want to be able to do frameaccurate searching of DVD discs (see page 23 for how to do a time & frame search). On the default setting, the time & frame search is not available.

Audio1

A2

Video1

V2

Language

General







TV Screen

— 16:9(Wide)





Video Out

— Video





S-Video Out

— S2





Frame Search

— On





Screen Saver



Off

































Move





SETUP Exit

Screen Saver

• Default setting: Off

If a constant image is displayed on a conventional CRT-type TV, it can “burn in” leaving a ghost image on the screen. Switch to On to make sure that a constant image is not displayed for a dangerously long time.

If the Screen Saver comes on when the Speaker Setup test tone is playing, the test tone will stop (page 45).

Audio1

A2

Video1 V2

Language

General







TV Screen

— 16:9(Wide)









Video Out

— Video









S-Video Out

— S2









Frame Search

— Off









Screen Saver

On











Off









Move



SETUP

Exit

7

English

47

7DVD Setup Menu

Background

• Default setting: Black

This specifies what the screen shows when the player is stopped.

Audio1

A2

V1

Video2



Language

General







Background — Gray









Video Adjust



Black





























Still Picture — Auto







On Screen Display — On







Angle Indicator — On





























Move

SETUP Exit

Component Video

Compared to a standard interlaced TV picture, a progressive scan TV is capable of stable, flickerfree images.

Set only if you connected the COMPONENT VIDEO OUT to a progressive scan-compatible TV or monitor.

Make changes to the Component Video setting in the Setup screen Video 1 menu.

Audio1 A2 Video1 V2 Language General

TV Screen

— 16:9(Wide)

Component Video

Progressive

S-Video Out

Interlace

Frame Search

— Off

Screen Saver

— Off





Move

SETUP Exit

Progressive – Use this setting with TVs and monitors that have progressive scan component video inputs. Check the TV’s instruction manual if you are not sure about this.

Interlace – (default setting) use this setting with regular TVs that are not compatible with progressive scan. Check the TV’s instruction manual if you are not sure about this.

Tip

If this player is set to output progressive-scan video, it’s possible that the picture will appear stretched when playing discs recorded in 4:3 format. This happens when the TV’s aspect ratio is set ‘Full’. To see the picture in its correct aspect ratio, change the TV setting to ‘Normal’.

If your TV doesn’t have settings to change the aspect ratio of the picture, set this player to

16:9(Compressed).

Note

If you connect a TV that is not compatible with a progressive scan signal and choose one of the progressive scan settings, you will not be able to see any picture at all. With your TV connected using either the composite or S-Video terminals, choose the Interlace setting in the Component Video menu.

Compatibility of this unit with progressive-scan TVs.

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION” OUTPUT.

48

DVD Setup Menu

Video Adjust

There are several preset picture quality settings that suit different kinds of display device (TV, Plasma display, etc.). Alternatively, set up your own and save them in the player’s memory.

Audio1 A2

V1 Video2

Language

General





Background — Black







Video Adjust — Start







Still Picture — Auto





On Screen Display — On





Angle Indicator — On







Move



SETUP

Exit

Selecting a preset

1Select ‘Start’.

You can also access these settings by pressing

VIDEO ADJ..

2 Select ‘Video Memory Select’.

Video Memory Select

Video Setup

3 Select a preset.









TV(CRT)

PDP

Professional



Memory 1

Memory 2

Memory 3











TV (CRT) – optimized settings for a standard television set.

PDP – optimized for a plasma display.

Professional – (default setting) optimized for a professional monitor.

Memory 1, 2, 3 – User presets (see page 51 for more on these)

You can highlight a preset while a disc is playing (before you press ENTER to select it) to see the effect on the picture immediately.

Note

Depending on the disc and your TV/monitor, the effect of these settings may not be clear.

7

English

49

7DVD Setup Menu

Creating your own setting (1)

1Select ‘Start’.

You can also access these settings by pressing VIDEO ADJ..

2 Select ‘Video Setup’

Video Memory Select

Video Setup

3Move the Joystick up/down to select a picture quality parameter, then move the Joystick left/right to adjust that parameter.

Prog. Motion

fast













slow

Move

ENTER Select

DISPLAY Check

Prog. Motion – When using progressive scan, this adjusts the motion and still picture quality.

PureCinema – When watching DVD movies, PureCinema optimizes the picture quality. The default setting is Auto1, but if the picture appears unnatural, then set to Auto2, On or Off as desired and adjust the Prog. Motion setting (see above). See PureCinema in the Glossary starting on page 61.

YNR – Adjusts the amount of noise reduction (NR) applied to the Y (brightness) component.

CNR – Adjusts the amount of noise reduction (NR) applied to the C (colour) component.

MNR (Mosquito Noise Reduction) – Adjusts the amount of noise reduction applied to the mosquito noise (video artifacts on the edge of the image resulting from MPEG compression).

BNR (Block Noise Reduction) – Adjusts the amount of noise reduction applied to the block noise.

Sharpness High – Adjusts the sharpness of the high-frequency (finely detailed) elements in the picture.

Sharpness Mid – Adjusts the sharpness of the mid-frequency (less detailed) elements in the picture.

Detail – Adjusts how sharp edges appear in the picture.

White Level – Adjusts the intensity of white in the picture.

Black Level – Adjusts the intensity of black in the picture.

Black Setup – For correction of floating black colour.

Gamma – Adjusts the brightness of the darker images in the picture.

Hue – Adjusts the overall colour balance between red and green.

Chroma Level – Adjusts how saturated colours appear.

Chroma Delay – Compensates for misalignment of the Y (brightness) and the C (colour) components.

4 Press ENTER to save your changes.

50

DVD Setup Menu

Creating your own setting (2)

1Select ‘Start’.

You can also access these settings by pressing VIDEO ADJ..

2

Select ‘Video Setup’



















3

Press DISPLAY.









































































Page 1/2







Prog. Motion



fast











slow







PureCinema



Auto1



Auto2

On Off







YNR



off











max







CNR



off











max







MNR



off











max







BNR



off











max







Sharpness High

soft











fine







Sharpness Mid

soft











fine







Memory



Off



1

2

3

















































































Page 2/2







Detail

Level



off











slow























White

min











max







Black Level

min











max























Black Setup





0 IRE



7.5 IRE







Gamma















+







Hue

green











red







Chroma Level

min











max







Chroma Delay













+







Memory



Off



1

2

3



































4Move the Joystick up or down to select a picture quality parameter, then move the Joystick left or right to adjust that parameter.

5To save your changes in one of the user presets, highlight Memory 1, 2 or 3 and press ENTER.

Still Picture

• Default setting: Auto

The player uses one of two processes when displaying a still frame from a DVD disc. The default Auto setting automatically chooses the best setting each time.

Field – produces a stable, generally shake-free image.

Frame – produces a sharper image, but more prone to shake than field stills.

Audio1 A2 V1 Video2 Language General

Background — Gray

Video Adjust

Still Picture — Field

On Screen Display



Frame

Angle Indicator



Auto











Move



SETUP Exit

Angle Indicator

• Default setting: On

If you prefer not to see the camera icon on-screen during multi-angle scenes on DVD discs, change this setting to Off.

Audio1 A2

V1 Video2

Language

General





Background — Gray







Video Adjust









Still Picture — Auto





On Screen Display — On





Angle Indicator — On









Off







Move



SETUP

Exit

Video ON/OFF

Press Video OFF button to turn the Video Output (Video, S1/S2 and Component off and then picture is disappeared.

And press it again to turn the all of Video output on.

7

English

51

7DVD Setup Menu

Language settings

Audio Language

• Default Setting: English

This setting is your preferred audio language for DVD discs. If the language you specify here is recorded on a disc, the system automatically plays the disc in that language (although this depends on the Auto Language setting—see page 54).

Audio1

A2

Video1

V2



Language

General





OSD Language — English



Audio Language

English



Subtitle Language

French



Auto Language

German



DVD Language

Italian



Subtitle Display

Spanish





Subtitle Off

Other





















Move



SETUP Exit

The DVD format recognizes 136 different languages. Choose Other if you want to specify a language other than those listed, then follow the on-screen display to select a language. You may also want to refer to the Language code list on page 66.

Audio1 A2 Video1 V2

Language

General



Audio Language











List of Languages



Code (0~2)



en: English



0

5

1

4

+/–









Return

Move

ENTER

Select

SETUP

Exit

Tip

You can switch between the languages recorded on a DVD disc any time during playback using the AUDIO button. (This does not affect this setting.)

Note

You cannot switch languages if there is only one language recorded on the disc. In this case, the mark is displayed.

For some discs, selection can be made using the DVD menu. In these cases, press MENU to display the DVD menu screen and then make your selection.

52

DVD Setup Menu

Subtitle Language

• Default Setting: English

This setting is your preferred subtitle language for DVD discs. If the language you specify here is recorded on a disc, the system automatically plays the disc with those subtitles (although this depends on the Auto Language setting—see page 54).

Audio1

A2

Video1

V2



Language

General





OSD Language

— English



Audio Language

English



Subtitle Language

French



Auto Language

German



DVD Language

Italian



Subtitle Display

Spanish





Subtitle Off

Other





















Move



SETUP Exit

The DVD format recognizes 136 different languages. Choose Other if you want to specify a language other than those listed, then follow the on-screen display to select a language. You may also want to refer to the Language code list on page 66.

Audio1 A2 Video1 V2

Language

General



Subtitle Language











List of Languages



Code (0~2)



en: English



0

5

1

4

+/–









Return

Move

ENTER

Select

SETUP

Exit

Tip

You can change or switch off the subtitles on a DVD disc any time during playback using the SUBTITLE button. (This does not affect this setting.)

Note

The subtitle language cannot be switched if the subtitle language is not recorded, or if only one language is recorded. In this case, the mark will be displayed.

To clear subtitles during playback, press SUBTITLE and then press CLEAR, or press SUBTITLE until Off appears.

For some discs, subtitle language selection can be made using the menu on the DVD. In this case, press MENU to display the DVD menu screen and then make your selection.

7

English

53

7DVD Setup Menu

Auto Language

• Default Setting: On

When set to On, the player always selects the default audio language on a DVD disc (French dialog for a French movie, for example), and displays subtitles in your preferred subtitle language only if that is set to something different. In other words, movies in your native language won’t have any subtitles, while foreign language movies will be shown with subtitles.

Set to Off to have the system play discs strictly according to your Audio Language and Subtitle Language settings.

For Auto Language to work, the Audio Language and Subtitle Language settings must be the same—see pages 52, 53.

Audio1

A2

Video1

V2



Language

General





OSD Language

— English



Audio Language

— English



Subtitle Language

— English



Auto Language



On











DVD Language





Off



Subtitle Display

— On





Subtitle Off

— Selected Subtitle

























Move







SETUP Exit

Tip

You can still switch audio and subtitle languages on playback using the AUDIO and SUBTITLE buttons.

DVD Language

• Default Setting: w/Subtitle Language

Some multilingual discs have disc menus in several languages. This setting specifies in which language the disc menus should appear. Leave on the default setting for menus to appear in the same language as your Subtitle Language—see page 53.

Audio1

A2

Video1

V2



Language

General





OSD Language

w/ Subtitle Language



Audio Language

English



Subtitle Language

French



Auto Language

German



DVD Language

Italian



Subtitle Display

Spanish





Subtitle Off

Other





















Move



SETUP Exit

The DVD format recognizes 136 different languages. Choose Other if you want to specify a language other than those listed, then follow the on-screen display to select a language. You may also want to refer to the Language code list on page 66.

Audio1 A2 Video1 V2

Language

General



DVD Language











List of Languages



Code (0~2)



en: English



0

5

1

4

+/–









Return

Move

ENTER

Select

SETUP

Exit

Note

You can also select the DVD language from the DVD disc menu. Press MENU to open the DVD menu and make your selection accordingly.

54

DVD Setup Menu

Subtitle Display

• Default Setting: On

When set to On, the player displays subtitles according to the Subtitle Language and Auto Language settings. Set to Off to switch subtitles off altogether (although see Subtitle Off on this page for special cases). Set to Assist Subtitle to have the player display the extra assistive subtitles recorded on to some DVD discs.

Audio1

A2

Video1

V2



Language

General





OSD Language

— English



Audio Language

— English



Subtitle Language

— English



Auto Language

— On



DVD Language



On



Subtitle Display



Off





Subtitle Off



Assist Subtitle























Move





SETUP Exit

Note

If there is no subtitle information recorded on the disc, no subtitles are displayed even if this function is set to On.

Whether this setting is On or Off, you can still switch subtitles (or switch them off) using the

SUBTITLE button.

Subtitle Off

• Default Setting: Selected Subtitle

Some discs display subtitles even if the Subtitle Display setting (above) is set to Off. In this case, you can either have the subtitles displayed in the same language as your preferred audio language (With Audio), or in your preferred subtitle language (Selected Subtitle). If the Audio Language and Subtitle Language settings are the same then both of these choices will give the same result.

Audio1

A2

Video1

V2



Language

General





OSD Language

— English



Audio Language

— English



Subtitle Language

— English



Auto Language

— On



DVD Language

— English



Subtitle Display



With Audio





Subtitle Off



Selected Subtitle























Move





SETUP Exit

General settings

Setup Navigator

Use the Setup Navigator to make the basic settings for your DVD player. See page 17 for detailed instructions.

Audio1

A2

Video1

V2



Language

General

























Setup Menu Mode

— Expert



Setup Navigator

Start







Parental Lock — Off (us)





Bonus Group









Auto Disc Menu — On

Group Playback — Single

Move SETUP Exit

Parental Lock

Default level: Off

Default password: none

Default country code: us (2119)

Some DVD Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, it will require you to enter a password before the disc will play. This gives you some control about what your children watch on your DVD player.

Some discs also support the Country Code feature. The player does not play certain scenes on these discs, depending on the country code you set.

Before you can set the Parental Lock level or the Country Code you must register a password. As the password owner, you can change the Parental Lock level or Country Code whenever you like. You can also change the password.

Audio1 A2 Video1 V2 Language General

Setup Menu Mode — Expert

Setup Navigator

Parental Lock

— Password

Bonus Group

Level

Auto Disc Menu

Country Code

Group Playback

— Single





Move

SETUP Exit

Note

Not all discs that you may consider inappropriate for your children use the Parental Lock feature. These discs will always play without requiring the password first.

7

English

55

7DVD Setup Menu

Registering a new password

You must register a password before you can change the Parental Lock level or enter a Country Code.

1 Select ‘Password’.

Audio1 A2 Video1 V2

Language

General



Parental Lock: Register Code Number



+/–





Return

Move



SETUP

Exit

2Use the number buttons to enter a 4-digit password.

It’s also possible to use the Joystick to set the password (up and down to set the number; left and right to change the cursor position).

3Press ENTER to register the password.

If you forget your password, you can reset the system then register a new one. See page 65 for how to reset the player.

Changing your password

To change your password, confirm your existing password then enter a new one.

1 Select ‘Password Change’.

2Use the number buttons to enter your existing password.

The numbers appear as asterisks as you enter them.

It’s also possible to use the Joystick to set the password (up and down to set the number; left and right to change the cursor position).

3 Press ENTER.

4 Enter a new password.

5 Press ENTER.

Setting/changing the Parental Lock level

1Select ‘Level’.

2Use number buttons to enter your password, then press ENTER.

3Select a new level.

Move leftward to lock more levels (more discs will require the password); rightward to unlock levels. You can’t lock

level 1.

Audio1 A2 Video1 V2

Language

General

Parental Lock: Level Change









Level

1

2

3

4

5

6

7

8

Off



















Return



Move







ENTER

Select

SETUP

Exit

4Press ENTER to set the new level.

Tip

Use the Condition Memory feature (page 32) to save the Parental Lock level for individual discs.

Setting/changing the Country Code

You may also want to refer to the Country code list on page 66.

1Select ‘Country Code’.

2Use number buttons to enter your password, then press ENTER.

3Select a country code.

You can select the country code by letter or number. See page 66 for the list of country codes.

Audio1 A2 Video1 V2

Language

General



Country Code











List of Codes



Code (0~2)



us

2



1

1

9

+/–









Return

Move

ENTER

Select

SETUP

Exit

4Press ENTER to set the new Country Code.

56

DVD Setup Menu

Auto Disc Menu

• Default setting: On

This specifies whether the menu (Top menu) is automatically displayed after loading a disc. Set to On if you want the menu displayed automatically, or Off if you don’t want it displayed.

Audio1 A2 Video1 V2 Language General

Setup Menu Mode — Expert

Setup Navigator

Parental Lock — Off (us)

Bonus Group

Auto Disc Menu On

Group Playback

Off





Move

SETUP Exit

Note

Some DVD discs display a menu automatically regardless of this setting. If you press 3while a disc is loading, this setting is ignored.

Bonus Group

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number. When you try and play the bonus group, the key number input screen will automatically appear, although it is also available from the General menu. Input the number and press

ENTER.

Audio1 A2 Video1 V2 Language General

Setup Menu Mode — Expert

Setup Navigator

Parental Lock

— Off (us)

Bonus Group

Start

Auto Disc Menu

— On

Group Playback

— Single





Move

SETUP Exit

Press ENTER twice

Audio1 A2 Video1 V2

Language

General



Bonus Group: Key Number Input





+/–





Return

Move



ENTER

Exit

Note

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

Group Playback

• Default setting: Single

DVD-Audio discs can have up to 9 groups of tracks. When set to Single, the selected group plays and then the disc stops, or returns to the menu screen. Use Group Search (page 23) to select the group to play. (You cannot use the track skip 4 / ¢or scan buttons 1 / ¡in this mode.)

Set to All if you want to play all the groups on a disc consecutively.

Note

Even if the players is set to All but you select a group to play from the disc menu, only that group will play. If you stop playback, all groups will play again when you restart playback.

Audio1 A2 Video1 V2

Language

General



Setup Menu Mode — Expert





Setup Navigator







Parental Lock — Off (us)





Bonus Group







Auto Disc Menu — On





Group Playback

All







Single





Move



SETUP

Exit

7

English

57

8Additional Information

Handling discs

When holding discs of any type, take care not to leave fingerprints, dirt or scratches on the disc surface. Hold the disc by its edge or by the center hole and edge.

Damaged or dirty discs can affect playback performance. Take care also not to scratch the label side of the disc. Although not as fragile as the recorded side, scratches can still result in a disc becoming unusable.

Should a disc become marked with fingerprints, dust, etc., clean using a soft, dry cloth, wiping the disc lightly from the center to the outside edge as shown in the diagram below.

Wipe lightly from the

Don’t wipe the disc surface

center of the disc using

using circular strokes.

straight strokes.



If necessary, use a cloth soaked in alcohol, or a commercially available CD/DVD cleaning kit to clean a disc more thoroughly. Never use benzine, thinner or other cleaning agents, including products designed for cleaning vinyl records.

Storing discs

Although CDs and DVD discs are more durable than vinyl records, you should still take care to handle and store discs correctly. When you're not using a disc, return it to its case and store upright. Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight).

Don't glue paper or put stickers onto the disc, or use a pencil, ball-point pen or other sharp-tipped writing instrument. These could all damage the disc.

For more detailed care information see the instructions that come with discs.

Do not load more than one disc into the player.

Discs to avoid

Discs spin at high speed inside the player. If you can see that a disc is cracked, chipped, warped, or otherwise damaged, don't risk using it in your player—you could end up damaging the unit.

This unit is designed for use with conventional, fully circular discs only. Use of shaped discs is not recommended for this product.

Cleaning the pickup lens

The DVD player’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest MARANTZ-authorized service center. Although lens cleaners for CD players are commercially available, we do not recommend using them since some may damage the lens.

Problems with condensation

Condensation may form inside the player if it is brought into a warm room from outside, or if the temperature of the room rises quickly. Although the condensation won’t damage the player, it may temporarily impair its performance. For this reason you should leave it to adjust to the warmer temperature for about an hour before switching on and using.

58

Additional Information

Hints on installation

We want you to enjoy using this unit for years to come, so please bear in mind the following points when choosing a suitable location for it:

Do...

Use in a well-ventilated room.

Place on a solid, flat, level surface, such as a table, shelf or stereo rack.

Don’t...

Use in a place exposed to high temperatures or humidity, including near radiators and other heatgenerating appliances.

Place on a window sill or other place where the player will be exposed to direct sunlight.

Use in an excessively dusty or damp environment.

Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.

Use near a television or monitor as you may experience interference—especially if the television uses an indoor antenna.

Use in a kitchen or other room where the player may be exposed to smoke or steam.

Use on a thick rug or carpet, or cover with cloth— this may prevent proper cooling of the unit.

Place on an unstable surface, or one that is not large enough to support all four of the unit’s feet.

Moving the player

If you need to move the player, first press POWER ON/OFF button on the front panel to turn the player off, then unplug the power cord. Never lift or move the unit during playback—discs rotate at a high speed and may be damaged.

Power cord caution

Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cords. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest MARANTZ authorized service center or your dealer for a replacement.

8

English

59

8Additional Information

Glossary

Analog audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also Digital audio.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the screen is almost square); widescreen models are 16:9 (the screen is almost twice as wide as it is high).

Bonus Group (DVD-Audio only)

An ‘extra’ group on some DVD-Audio discs that requires a key number to access. See also Group.

Browsable pictures (DVD-Audio only)

A feature of some DVD-Audio discs in which the user can browse still pictures recorded on the disc as the audio is played. See also Slideshow.

Chapter (DVD-Video, DVD-RW)

Just as a book is split up into several chapters, a title on a DVD disc is usually divided into chapters. See also Title.

Digital audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals (44,100 times a second for CD audio) by an analog-to-digital converter, generating a stream of numbers. On playback, a digital-to- analog converter generates an analog signal based on these numbers. See also Sampling frequency and

Analog audio.

Dolby Digital

1

Using a maximum of 5.1 channels of audio, this high quality surround system is used in many of the finer movie theaters around the world.

DTS

R

DTS stands for Digital Theater System. DTS is a surround system different from Dolby Digital that has become a popular surround sound format for movies.

Dynamic range

The difference between the quietest and loudest sounds possible in an audio signal (without distorting or getting lost in noise). Dolby Digital and DTS soundtracks are capable of a very wide dynamic range, delivering dramatic cinema-like effects.

File extension

A tag added to the end of a filename to indicate the type of file. For example, “.mp3” indicates an MP3 file.

Group (DVD-Audio only)

A collection of tracks on a DVD-Audio disc. Equivalent to a DVD-Video title. See also Title and

Track.

Interlaced video

A method of displaying a picture in which oddnumbered lines are updated in one pass, then even-numbered lines updated in the next. See also

Progressive scan video.

MP3

MP3 (MPEG1 audio layer 3) is a compressed audio file format. Files are recognized by their file extension “.mp3” or “.MP3”.

MPEG audio

An audio format used on Video CDs and some DVD discs. This unit can convert MPEG audio to PCM format for wider compatibility with digital recorders and AV amplifiers. See also PCM.

60

Additional Information

MPEG video

The video format used for Video CDs and DVDs. Video CDs uses the older MPEG-1 standard, while DVD uses the newer and much better quality MPEG-2 standard.

Multi-session

A CD-R/RW that contains two or more ‘sessions’. Each session is a complete recording process, so each session is read as a complete disc. This player can only read the first session on a disc.

Optical digital output

A jack that outputs digital audio in the form of light pulses. Connect components with optical digital jacks using a special optical cord, available from good audio dealers.

Packed PCM (DVD-Audio only)

A lossless compression system that enables more PCM audio to be stored on a DVD-Audio disc than would otherwise be possible.

PCM (Pulse Code Modulation)

The most common system of encoding digital audio, found on CDs and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital, DTS and MPEG audio to PCM. See also Digital audio.

PBC (PlayBack Control) (Video CD only)

A system of navigating a Video CD through onscreen menus recorded onto the disc. Especially good for discs that you would normally not watch from beginning to end all at once—karaoke discs, for example.

Progressive scan video

Also called non-interlaced video, this method of displaying a picture updates all the lines in one pass, resulting in a more stable, flicker-free image than interlaced video (for a given scanning rate). See also Interlaced video.

PureCinema (DVD-Video only)

Video on a DVD discs may be either video material (originally shot on video) or film material (originally shot on film). Video material has a frame rate of 30 frames/sec.(NTSC), compared with 24 frames/sec. for film. This player converts film material to 60 frames/sec. (in progressive scan mode). PureCinema adjusts the picture so that it matches more closely the picture quality of a cinema screen.

You can see whether video on a DVD disc is film or video material by displaying the video transmission rate (see page 34). If a hash mark (#) appears above the transmission rate display, it is film material.

Regions (DVD-Video only)

These associate discs and players with particular areas of the world. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling frequency

The rate at which sound is measured to be turned into digital audio data. The higher the rate, the better the sound quality, but the more digital information is generated. Standard CD audio has a sampling frequency of 44.1kHz, which means 44,100 samples (measurements) per second. See also Digital audio.

Slideshow (DVD, Video CD)

A feature of some DVD discs in which still pictures recorded on the disc cycle automatically as the audio is played. See also Browsable pictures.

Title (DVD-Video only)

A collection of chapters on a DVD-Video disc. Equivalent to a DVD-Audio group. See also

Chapter and Group.

Track

Audio CDs, Video CDs and DVD-Audio discs all use tracks to divide up the content of a disc. The DVD-Video equivalent is called a chapter. See also

Chapter and Group.

8

English

61

8Additional Information

Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest MARANTZ authorized service center or your dealer to carry out repair work.

The disc is ejected automatically after loading.

• Dirty or damaged disc.

See page 58 for disc care information.

Disc not seated properly in the disc guide. Align the disc properly.

Incompatible region number.

If the region number on a DVD-Video disc does not match the number on the player, the disc cannot be used (page 9).

• Condensation inside the player.

Allow time for condensation to evaporate. Avoid using the player near an air-conditioning unit.

Playback is not possible.

• Disc is loaded upside down.

Reload the disc with the label side face up.

Cannot play DVD-RW disc

If the display shows ‘COPY PROTECT PROGRAM, UNPLAYABLE’, this means that this disc cannot be played.

DVD-Audio playback stops.

• The disc may have been illegally copied.

mark appears on screen.

• The operation is prohibited by the player.

mark appears on screen.

• The selected function does not operate for that disc.

When making changes in the Setup OSD menus, is displayed.

There is a CD or Video CD loaded and the setting that was changed applies only to DVD discs.

The settings will take effect next time a DVD is loaded.

Picture playback stops and the operation buttons cannot be used.

Press 7, then start playback again (3).

Switch the power off once using the front panel POWER ON/OFF and then switch on again using the front panel

POWER ON/OFF.

New settings made in the Setup screen menus while a disc is playing are ineffective.

Some settings can be changed while a disc is playing, but are not effective until the disc is stopped then restarted. This is not a malfunction.

Make the same setting when the player is stopped.

Press 7, then restart playback (3). Note that making settings in the Setup screen menus may cancel the RESUME function.

Settings are canceled.

When the power is cut due to power failure or by unplugging the power cord, settings will be canceled.

Before unplugging the power cord, press POWER button on the Remote Control and checking that STANDBY indicator light on the front panel, then press POWER ON/OFF the front panel to turn the player off.

No picture/No color.

• Incorrect video connections.

Check that connections are correct and that plugs are inserted fully.

• TV/monitor or AV amplifier settings are incorrect.

Check the instruction manual of the connected equipment.

The Component Video menu is set to Progressive but your TV/monitor is not compatible with progressive scan.

Reconnect the player to your TV using a composite or S-Video cord and set the TV to the appropriate input. Now choose the Interlace setting in the Component Video menu, then switch the TV input back to the component input. (page 48).

Reset the player (page 65). Component Video will be reset to Interlace but you’ll also loose other settings.

Check that VIDEO ON/OFF switch is set to the correct position (page 51).

Screen is stretched or aspect does not change.

• The TV Screen setting in the Setup menu is incorrect.

Set the TV Screen option to match the TV/monitor you're using (page 47).

62

Additional Information

Screen is suddenly stretched when the Setup screen is opened.

If the Setup screen is opened during playback of a DVD being viewed in the letter box format, the screen may switch to the wide screen format.

This is not a malfunction. The screen will return to normal when the Setup screen is closed.

Picture disturbance during playback or dark.

This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV.

This is not a malfunction.

The TV system may be set inappropriately. See Setting the TV System on page 16.

Discs respond differently to particular player functions. This may result in the screen becoming black for a brief instant or shaking slightly when the function is executed.

These problems are largely due to differences between discs and disc content and are not malfunctions of this player.

• When using progressive-scan.

If your TV is connected using the COMPONENT VIDEO OUT jacks, set the Component Video menu to Interlace (page 48).

When recorded on a VCR or passed through an AV selector, there is disturbance in the playback picture.

Due to the player’s copy protection circuits, connection of this device through a VCR or an AV selector may prevent recording or cause picture problems.

This is not a malfunction.

Some settings in the Setup Menu do not appear.

The Setup Menu Mode is set to Basic; set it to

Expert (page 39).

The remote control doesn't seem to work.

• The CONTROL IN jack on the rear panel is connected.

Check that REMOTE CONTROL SW is set to the external position (page 10).

The remote control is too far from the player, or the angle with the remote sensor is too wide.

Use the remote within its operating range (page 7).

• The batteries are exhausted.

Put in new batteries (page 7).

Check that REMOTE CODE setting is set to the correct position (page 14, 16).

Cannot listen to high-sampling rate audio through the digital output.

Linear PCM Out is set to Down Sample On. Set to Down Sample Off.

As a copy-protection measure, some DVDs do not output 96kHz audio.

In this case, even if Down Sample Off is selected, the player automatically outputs the audio at 48 kHz. This is not a malfunction.

No audio, or audio is distorted.

• Some DVD discs do not output digital audio.

Switch your amplifier to the player's analog outputs.

Dirt, dust, etc. on the disc. Clean the disc (page 58).

Interconnects are not fully inserted into the terminals (or are not connected).

Check that all interconnects are firmly inserted.

Dirty or oxidized plugs/terminals. Clean the plugs/terminals.

Incorrect audio cable connection.

Check the audio connections (pages 10-12).

Player's output is connected to the amplifier's phono (turntable) inputs.

Connect to any set of inputs except phono.

• The disc is paused.

Press 3 or 8 to exit the pause mode.

• Incorrect amplifier settings.

Check that the volume is turned up, that the speakers are on, the input function set correctly, etc.

• The Audio Out setting is incorrect.

If there is no dialog from the front L/R speakers, set Audio Out to 2 Channel. If there is no output from the rear, center and subwoofer speakers, set Audio Out to 5.1 Channel (page 43).

The player is set to 5.1ch playback, but sound is only 2ch.

Check that 2ch playback is not selected in the disc’s menu.

The analog audio is OK, but there appears to be no digital audio signal.

• Incorrect Audio 1 menu settings.

Make sure that the Digital Out setting is set to On

(page 42).

Check that the Dolby Digital and DTS settings are suitable for your amplifier—check the amp's instruction manual.

8

English

63

8Additional Information

Noticeable difference in DVD and CD volume.

• DVDs and CDs use different recording methods. This is not a malfunction.

Cannot play multi-channel audio

Make sure that 5.1 Channel is selected in the Audio Out menu (page 43).

Check that the settings in the Speaker Setting screen are correct (page 44).

Check the audio options available from the disc’s menu.

No digital audio output

Check that Digital Out setting is set to On (page 42).

Some DVD-Audio discs prohibit digital audio output.

No digital audio is output when playing SACDs.

Cannot output 192kHz or 176.4kHz digital audio.

The player does not output digital audio at these sampling rates.

Cannot output 96kHz or 88.2kHz digital audio.

Check that the Linear PCM setting is not set to Down Sample On (page 41).

Some discs are digital copy protected and do not output high sampling rate digital audio.

No DTS audio output.

If this unit is connected to a non-DTS compaible amplifier or decoder using a digital audio cable, set DTS Out to DTS 3 PCM in the Setup menu. If you do not do this, noise will be output if you try and play a DTS disc.

If this unit is connected to a DTS-compatible amplifier or decoder using a digital audio cable, check the amplifier settings, and that the cable is properly connected.

Audio mix does not sound right or sounds incomplete (for example, inaudible dialog).

• Incorrect Setup menu settings.

Make sure that 2 Channel output is selected for the Audio Out menu option if you've connected to the stereo inputs on your amplifier or TV (page 43).

If the power is switched off before exiting the Setup menu, the settings are not stored.

Make sure that you exit the Setup menu after changing any settings before switching off.

The disc containing the MP3 tracks won’t play.

If the disc is a recordable CD, make sure that the disc is finalized. If the message ‘UNPLAYABLE MP3 FORMAT’ is displayed when you try to play a disc/track:

Check that the track(s) are in the MPEG1 Audio Layer 3 format.

Check that the sampling rate of the track(s) are 44.1 or 48kHz.

Some MP3 tracks appear to be missing from a disc.

If a track name does not end in “.mp3” or “.MP3”, this player will not recognize it as an MP3 track.

This player only recognizes the first 250 folders and tracks on a disc. If there are more folders/tracks than this, you will not be able to play them.

This player is not compatible with multi-session discs. If the disc is multi-session, you will only be able to play tracks recorded onto the first session.

Can’t perform frame search, or the frame number is not displayed

Check that the Frame Search option is set to On (page 47).

You can only use frame search with DVD-Video discs.

Frame numbers are only displayed with DVD-Video discs, and only when the disc is paused or during frame advance/reverse.

Frame search doesn’t find the frame number input, or some frames are skipped when using frame advance.

You may experience this with discs recorded in 24 frames/ second progressive scan format. With these discs, the player ‘misses’ one frame every six frames. For this reason, the frame numbers do not appear continuous when using frame advance, and it may not be possible to display the exact frame you searched for. The player does not actually drop any frames that are recorded on the disc, however.

64

Additional Information

Resetting the Player

Resetting the player returns all menu, picture and password settings to their factory defaults.

To reset the player, press and hold 7

(stop) on the front panel when pressing Power switch to turn the power on.

Note

Static electricity or other external influences may cause malfunctioning of this unit. In this case, unplug the power cord and then plug back in. This will usually reset the unit for proper operation. If this does not correct the problem, please consult your nearest MARANTZ service center.

8

English

65

8Additional Information

Country Code List

Country

Input-Code

Country-code

ARGENTINA



0118

ar

AUSTRALIA



0121

au

AUSTRIA



0120

at

BELGIUM



0205

be

BRAZIL



0218

br

CANADA



0301

ca

CHILE



0312

cl

CHINA



0314

cn

DENMARK



0411

dk

FINLAND



0609

fi

FRANCE



0618

fr

GERMANY



0405

de

HONG KONG



0811

hk

INDIA



0914

in

INDONESIA



0904

id

ITALY



0920

it

JAPAN



1016

jp

KOREA, REPUBLIC OF

1118

kr

MALAYSIA



1325

my

MEXICO



1324

mx

NETHERLANDS



1412

nl

NEW ZEALAND



1426

nz

NORWAY



1415

no

PAKISTAN



1611

pk

PHILIPPINES



1608

ph

PORTUGAL



1620

pt

RUSSIAN FEDERATON

1821

ru

SINGAPORE



1907

sg

SPAIN



0519

es

SWITZERLAND



0308

ch

SWEDEN



1905

se

TAIWAN, PROVINCE

2023

tw

OF CHINA







THAILAND



2008

th

UNITED KINGDOM

0702

gb

UNITED STATES OF

2119

us

AMERICA







Language code list

Language

Code

Japanese/japonais ( ja )

1001

English/anglais ( en )

0514

French ( fr)

0618

German ( de )

0405

Italian ( it )

0920

Spanish ( es )

0519

Dutch ( nl )

1412

Russian ( ru )

1821

Chinese ( zh )

2608

Korean ( ko )

1115

Greek ( el )

0512

Afar ( aa )

0101

Abkhazian ( ab )

0102

Afrikaans ( af )

0106

Amharic ( am )

0113

Arabic ( ar )

0118

Assamese ( as )

0119

Aymara ( ay )

0125

Azerbaijani ( az )

0126

Bashkir ( ba )

0201

Byelorussian ( be )

0205

Bulgarian ( bg )

0207

Bihari ( bh )

0208

Bislama ( bi )

0209

Bengali ( bn )

0214

Tibetan ( bo )

0215

Breton ( br )

0218

Catalan ( ca )

0301

Corsican ( co )

0315

Czech ( cs )

0319

Welsh ( cy )

0325

Danish ( da )

0401

Bhutani ( dz )

0426

Esperanto ( eo )

0515

Estonian ( et )

0520

Basque ( eu )

0521

Persian ( fa )

0601

Finnish ( fi )

0609

Fiji ( fj )

0610

Faroese ( fo )

0615

Frisian ( fy )

0625

Irish ( ga )

0701

Scots-Gaelic ( gd )

0704

Galician ( gl )

0712

Guarani ( gn )

0714

Gujarati ( gu )

0721

66

Additional Information

Language

Code

Hausa ( ha )

0801

Hindi ( hi )

0809

Croatian (hr )

0818

Hungarian ( hu )

0821

Armenian ( hy )

0825

Interlingua ( ia )

0901

Interlingue ( ie )

0905

Inupiak ( ik )

0911

Indonesian ( in )

0914

Icelandic ( is )

0919

Hebrew ( iw )

0923

Yiddish ( ji )

1009

Javanese ( jw )

1023

Georgian ( ka )

1101

Kazakh ( kk )

1111

Greenlandic ( kl )

1112

Cambodian ( km )

1113

Kannada ( kn )

1114

Kashmiri ( ks )

1119

Kurdish ( ku )

1121

Kirghiz ( ky )

1125

Latin ( la )

1201

Lingala (ln )

1214

Laothian ( lo )

1215

Lithuanian ( lt )

1220

Latvian ( lv )

1222

Malagasy ( mg )

1307

Maori ( mi )

1309

Macedonian ( mk )

1311

Malayalam ( ml )

1312

Mongolian ( mn )

1314

Moldavian ( mo )

1315

Marathi ( mr )

1318

Malay ( ms )

1319

Maltese ( mt )

1320

Burmese ( my )

1325

Nauru ( na )

1401

Nepali ( ne )

1405

Norwegian ( no )

1415

Occitan ( oc )

1503

Oromo ( om )

1513

Oriya ( or )

1518

Panjabi ( pa )

1601

Polish ( pl )

1612

Pashto, Pushto ( ps )

1619

Portuguese ( pt )

1620

Language

Code

Quechua ( qu )

1721

Rhaeto-Romance ( rm )

1813

Kirundi ( rn )

1814

Romanian ( ro )

1815

Kinyarwanda ( rw )

1823

Sanskrit ( sa )

1901

Sindhi ( sd )

1904

Sangho ( sg )

1907

Serbo-Croatian ( sh )

1908

Singhalese ( si )

1909

Slovak ( sk )

1911

Slovenian ( sl )

1912

Samoan ( sm )

1913

Shona ( sn )

1914

Somali ( so )

1915

Albanian ( sq )

1917

Serbian ( sr )

1918

Siswati ( ss )

1919

Sesotho ( st )

1920

Sundanese ( su )

1921

Swedish ( sv )

1922

Swahili ( sw )

1923

Tamil ( ta )

2001

Telugu ( te )

2005

Tajik ( tg )

2007

Thai ( th )

2008

Tigrinya ( ti )

2009

Turkmen ( tk )

2011

Tagalog ( tl )

2012

Setswana ( tn )

2014

Tonga ( to )

2015

Turkish ( tr )

2018

Tsonga ( ts )

2019

Tatar ( tt )

2020

Twi ( tw )

2023

Ukrainian ( uk )

2111

Urdu ( ur )

2118

Uzbek ( uz )

2126

Vietnamese ( vi )

2209

Volapük ( vo )

2215

Wolof ( wo )

2315

Xhosa ( xh )

2408

Yoruba ( yo )

2515

Zulu ( zu )

2621

8

English

67

8Additional Information

When viewing on a standard TV or monitor



Screen format of disc

Setting



4:3 (Letter Box)

Appearance

The picture is shown in widescreen with black bars at the top and bottom of the screen.

16:9

The sides of the



4:3 (Pan & Scan)

picture are cropped so

that the picture fills





the whole screen.



The picture is

16:9 (Wide)

squashed. Set to either

Pan & Scan or Letter





Box.

4:3

16:9 (Wide)

The picture is

4:3 (Letter Box)

presented correctly on

4:3 (Pan & Scan)

any setting.

When viewing on a widescreen TV or monitor





Screen format of disc

Player Setting

TV Setting

Appearance

16:9

Normal



16:9 (Wide)



Full

The picture is squashed. Set your TV to ‘Full’.

The picture is presented in widescreen.

4:3

The picture is

presented with black

Normal



bars either side.

16:9 (Wide)





The picture is

Full

stretched. Set your TV



to ‘Normal’.

Choose this setting if you have a progressive scan-compatible TV and the aspect ratio cannot be changed.

4:3





16:9 (Compressed)



The picture is

(This setting only has



Full

presented with black

any effect with



bars either side.

progressive output.)







68

Additional Information

Specifications

General

System

DVD-Video, DVD-Audio, DVD-R/RW, Video-CD, SACD, CD

and MP3 files









Power requirements ...............................................







120 V, 60 Hz

Power consumption ..............................................................







18 W

Power consumption in standby mode

..............................



?? W

Weight .................................................................







?? kg (? lb ? oz)

Dimensions ........................

440 (W) x 307 (D) x 89 (H) mm



(?? ?/ (W) x ?? ??/

??

(D) x ? ?/ (H) in.)



?



?

Operating temperature ......

+5°C to +35°C (+36°F to +96°F)

Operating humidity ..............

5% to 85% (no condensation)

S-Video output







1 Vp-p (75 Ω)

Y (luminance) - Output level .............................





C (color) - Output level .............................



286 mVp-p (75 Ω)

Jacks ...........................................................................







S-VIDEO jack

Video output (2 individual outputs)





1 Vp-p (75 Ω)

Output level ..........................................................







Jacks ...................................................................................







RCA jack

Component video output (Y, CB /PB, CR/PR)

Output level ......................................................

Y: 1.0

Vp-p (75 Ω)



CB/PB, CR/PR: 0.7

Vp-p (75 Ω)

Jacks .................................................................................



RCA jacks

Audio output





Output level





During audio output .................

200 mVrms (1 kHz, –20 dB)

Number of channels .....................................................................



2

Jacks ...................................................................................



RCA jack

Audio output (multi-channel / L, R, C, SW, LS, RS)

Output level



During audio output .................

200 mVrms (1 kHz, –20 dB)

Number of channels .....................................................................

6

Jacks ...................................................................................

RCA jack

Digital audio characteristics

Frequency response ..........

4 Hz to 44 kHz (DVD fs: 96 kHz)

4 Hz to 88 kHz (DVD-Audio fs: 192 kHz)

S/N ratio ...............................................................................

118 dB

Dynamic range ....................................................................

108 dB

Total harmonic distortion ..............................................

0.001 %

Wow and flutterLimit of measurement (±0.001% W. PEAK) or

lower



Digital output



Optical digital output ..................................

Optical digital jack

Coaxial digital output ....................................................

RCA jack

Other terminals



Control in .........................................................................

RCA jack

Control out ......................................................................

RCA jack

Accessories



Audio/Video cable ........................................................................

1

System control cable ....................................................................

1

Remote control unit .....................................................................

1

“AA” size (R6P) batteries .............................................................

2

Power cord ......................................................................................

1

Operating Instructions



Note: The specifications and design of this product are subject to change without notice, due to improvement.

8

English

69

8Additional Information

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

Start your volume control at a low setting.

Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel



Level

Example

30

Quiet library, soft whispers

40

Living room, refrigerator, bedroom away from traffic

50

Light traffic, normal conversation, quiet office

60

Air conditioner at 20 feet, sewing machine

70

Vacuum cleaner, hair dryer, noisy restaurant

80

Average city traffic, garbage disposals, alarm clock



at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers, thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

70

Additional Information

8

English

71

COUNTRY

COMPANY

ADDRESS

ALGERIE

Azur 2000

8, Lotissement Ben Hatadi, Alger, Algerie

ARMENIA

NGYIG Ltd.

47 A/75 St. Lalaiants, 375000 Yerevan, Armenia

AUSTRALIA

Jamo Australia Pty. Ltd.,

24 Lionel Road, Mt. Waverley, VIC 3149, Australia

AUSTRIA

Huber & Prohaska GmbH

Taborstraße 95 / Ladestraße 1, Gebäude Hangartner, A-1200 Wien, Austria

BAHREIN

Ambassador Stores

P.O. Box 237,141, Government Avenue, Manama,Bahrein

BANGLADESH

Target

1078, Ramjoy Mohanja Lane Asadgonj, Chittagong 4000, Bangladesh

BELGIUM

Van der Heyden Audio N.V.

Brusselbaan 278, 9320 Erembodegem, Belgium

BULGARIA

Ariescommerce GmbH

Makedonia Blvd. 16, 1606 Sofia, Bulgaria

CANADA

Lenbrook Industries Limited

633 Granite Court, Pickering, Ontario

CHINA

Guang Chang Audio International Co., Ltd. No.38 Yushan Road, ShiQiao, Pan Yu, Guang Dong, China

CYPRUS

Empire Hifi systems Ltd.

P.O. Box 5604, Nicosia, Cyprus

CZECH REPUBLIC

Audio International

Sokolska 41, 67902 Rajecko, OKR,Blansko, Czech Republic

DENMARK

Audio Nord

Dali Allé 1, 9610 Noerager, Denmark

DUBAI

V.V.& SONS

P.O. Box 105, Dubai, U.A.E.

EGYPT

Solimco

9, El Attibaa St. Doki, Cairo, Egypt

ESTONIA

HiFi Club Estonia

Ehte 4, 90503 Haapsalu, Estonia

F.Y.R.O.M.

T.P. KODI

ul.Cedomir Kantargiev 21a, Skopje, Former Yugoslavian Republic of Macedonija

FINLAND

Audio Nord

Uudenmaankatu 4-6, Helsinki SF-00120, Finland

FRANCE

Marantz France

A division of Marantz Europe B.V., P.O. Box 301, 92 156 Suresnes Cedex, France

GERMANY

Marantz Deutschland

Hakenbusch 3, 49078 Osnabrück, Germany

GREECE

Adamco S.A.

188, Hippocratous Street, 11471 Athens, Greece

HEADQUARTERS EUROPE:

Marantz Europe B.V.

Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands

HONG KONG

Marantz Asia Ltd.

Unit 1706, Metroplaza II, 223 Hing Fong Road, Kwai Fong, N.T., Kowloon, Hong Kong

HUNGARY

Infovox Ltd.

Terez Krt.31, 1067 Budapest, Hungary

ICELAND

ID Electronics Ltd.

Armula 38, 108 Reykjavik, Iceland

INDIA

NOVA Audio Private

8,Punam Co-op.Society 29/30 Road#5, Union Park MUMBAI 400052, India

IRAN

Home Co.

5th floor no 878 Philips Building Enghelab ave, P.O. 11365/7844 Tehran, Iran

IRELAND

Marantz Ireland

Clonskeagh, Dublin 14, Ireland

ISRAEL

Elmor Ltd.

52 Heh Beiyar Street, Kikar Hamedina, Tel Aviv, Israel

ITALY

Marantz Italy

Via Casati 23, 20052 Monza (Milano), Italy, Servizio Consumatori 1678-20026, Numero Verde

IVORY COAST

Hifivoir

B.P. 2428, Abidjan 01, Ivory Coast

JAPAN

Marantz Japan Inc.

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan

KOREA

Mk Enterprises Ltd.

121-210, 2F Shinhan Bldg., 247-17 Seokyo-dong, Mapo-ku, Seoul, Korea

KUWAIT

alAlamiah Electronics Intl.

P.O. Box 8196, Salmiah 22052, Kuwait

LATVIA

Ace Ltd.

61, LacPlesa Str., Riga LV 1011, Latvia

LEBANON

AZ Electronics S.A., 1,

P.O. Box 11 2833, Beirut, Lebanon

LITHUANIA

Accapella Ltd.

Ausros, Vartu G/5, Pasazo SKG., 2001 Vilnius, Lithuania

MALAYSIA

Wo Kee Hong Electronics Sdn. Bhd.

Suite 8.1, Level 8, Menara Genesis, No. 33, Jalan Sultan Ismail, 50250 Kuala Lumpur, Malaysia

MALTA

Doneo Co Ltd.

78 The Strand, Sliema SLM07, Malta

MAURITIUS

SKR Electronics Ltd.

P.O. Box 685, Bell Village, Port Louis, Mauritius

MILITARY MARKET EUROPE

PASCO GmbH

PO BOX 1280, Sandhausen 69200, Germany

NETHERLANDS

Marantz Domestic Sales

A division of Marantz Europe B.V., Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands

NEW ZEALAND

Wildash Audio Systems

14 Malvern Road, Mt. Albert, Auckland, New Zealand

NORWAY

Audio Nord

Sandkerveien 64, Oslo 0483, Norway

OMAN

Mustafa & Jawad Trading CO.

P.O. Box 1918, Ruwi, Oman

POLAND

Philips Polska Sp. z.o.o.

Al.Jerozolimskie 195b, 02 222 Warszawa, Poland

PORTUGAL

Corel2

Comércio de Electrónica Lda., Av. Luís Bívar, No 85 A, 1050 Lisboa, Portugal

PROFESSIONAL EUROPE

Marantz Professional Products
