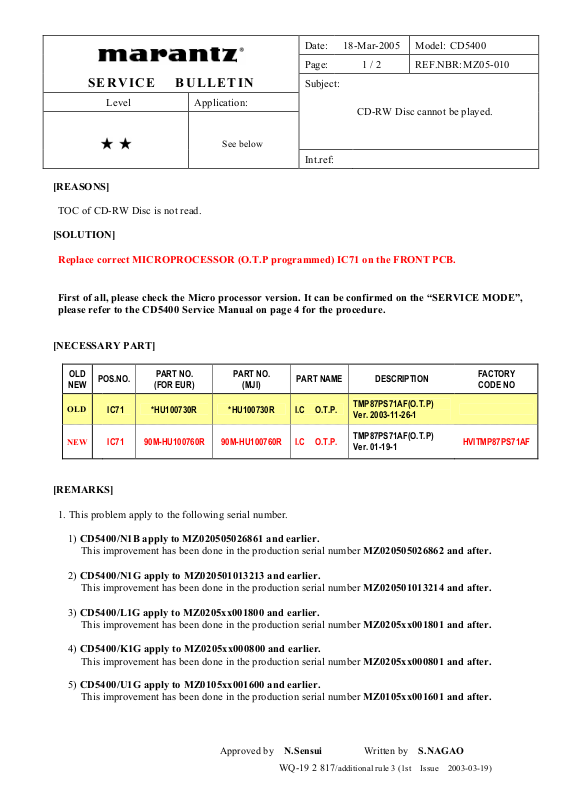

SERVICE BULLETIN

Level Application:

See below

Date: 18-Mar-2005 Model: CD5400

Page: 1 / 2 REF.NBR: MZ05-010

Subject:

CD-RW Disc cannot be played.

Int.ref:

[REASONS]

TOC of CD-RW Disc is not read.

[SOLUTION]

Replace correct MICROPROCESSOR (O.T.P programmed) IC71 on the FRONT PCB.

First of all, please check the Micro processor version. It can be confirmed on the “SERVICE MODE”,
please refer to the CD5400 Service Manual on page 4 for the procedure.

[NECESSARY PART]

OLD

NEW

POS.NO.

PART NO.

(FOR EUR)

PART NO.

(MJI)

PART NAME DESCRIPTION

FACTORY
CODE NO

OLD

NEW

IC71 *HU100730R *HU100730R I.C O.T.P.

IC71 90M-HU100760R 90M-HU100760R I.C O.T.P.

TMP87PS71AF(O.T.P)
Ver. 2003-11-26-1

TMP87PS71AF(O.T.P)
Ver. 01-19-1

HVITMP87PS71AF

[REMARKS]

1. This problem apply to the following serial number.

1) CD5400/N1B apply to MZ020505026861 and earlier.

This improvement has been done in the production serial number MZ020505026862 and after.

2) CD5400/N1G apply to MZ020501013213 and earlier.

This improvement has been done in the production serial number MZ020501013214 and after.

3) CD5400/L1G apply to MZ0205xx001800 and earlier.

This improvement has been done in the production serial number MZ0205xx001801 and after.

4) CD5400/K1G apply to MZ0205xx000800 and earlier.

This improvement has been done in the production serial number MZ0205xx000801 and after.

5) CD5400/U1G apply to MZ0105xx001600 and earlier.

This improvement has been done in the production serial number MZ0105xx001601 and after.

Approved by N.Sensui Written by S.NAGAO

WQ-19 2 817

/additional rule 3 (1st Issue 2003-03-19)

CD5400 Service Bulletin REF.NBR: MZ05-010 page 2/2

IC71

FRONT PCB

Approved by N.Sensui Written by S.NAGAO

WQ-19 2 817

New version

01-19-1

/additional rule 3 (1st Issue 2003-03-19)
